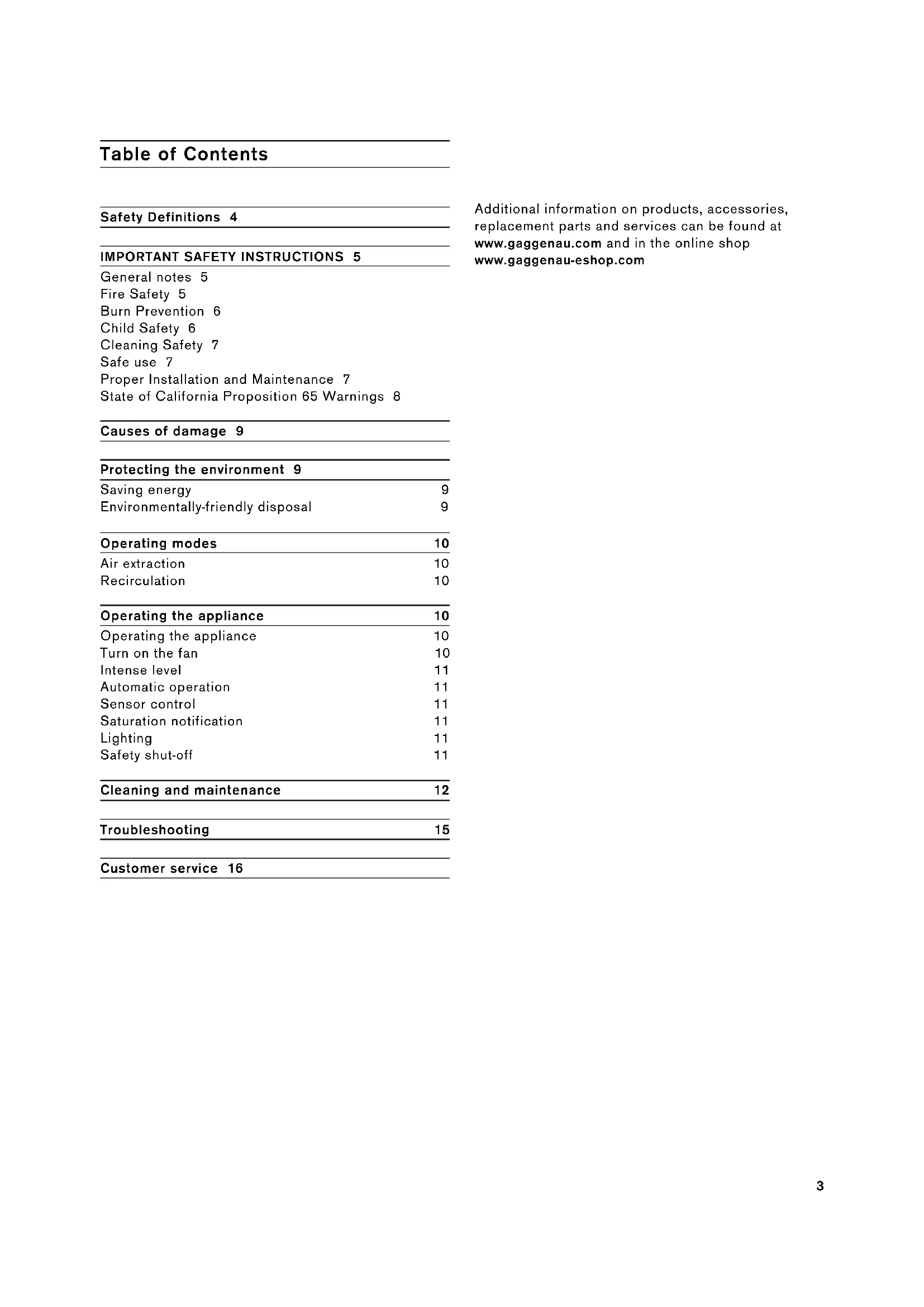

General notes 5 Fire Safety 5 Burn Prevention 6 Child Safety 6 Cleaning Safety 7 Safe use 7 Proper Installation and Maintenance 7 State of California Proposition 65 Warnings 8 Causes of damage 9 Protecting the environment 9 Saving energy 9 Environmentally-friendly disposal 9 Operating modes 10 Air extraction 10 Recirculation 10 Operating the appliance 10 Operating the appliance 10 Turn on the fan 10 Intense level 11 Automatic operation 11 Sensor control 11 Saturation notification 11 Lighting 11 Safety shut-off 11 Cleaning and maintenance 12 Troubleshooting 15 Customer service 16 Additional information on products, accessories, replacement parts and services can be found at www.gaggenau.com and in the online shop www.gaggenau-eshop.com4 Safety Definitions 9 WARNING This indicates that death or serious injuries may occur as a result of non-observance of this warning. 9 CAUTION This indicates that minor or moderate injuries may occur as a result of non-observance of this warning. NOTICE: This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory. Note: This alerts you to important information and/or tips.5

9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONREAD AND SAVE THESE INSTRUCTIONS WARNING When properly cared for, your new appliance has been designed to be safe and reliable. Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons. When using kitchen appliances, basic safety precautions must be followed, including those in the following pages. General notes Examine the appliance after unpacking it. In the event of transport damage, do not plug it in. Fire Safety Always have a working smoke detector near the kitchen. WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. b) Always turn hood ON when cooking at high heat. c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element. Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter! CAUTION For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames. Smother flames from food fires other than grease fires with baking soda. Never use water on cooking fires. WARNING TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ‒ SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. ‒ NEVER PICK UP A FLAMING PAN – You may be burned. ‒ DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result. ‒ Use an extinguisher ONLY if: ‒ You know you have a Class ABC extinguisher, and you already know how to operate it. ‒ The fire is small and contained in the area where it started. ‒ The fire department is being called ‒ You can fight the fire with your back to an exit. Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance. Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off. WARNING Risk of fire Grease deposits in the grease filter can ignite. Clean the grease filter at least every two months. Never operate the appliance without the grease filter.9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING Risk of fire Grease deposits in the grease filter can catch fire. Never work with a naked flame near the appliance (e.g. flambéing). Install the unit near a heat-producing appliance for solid fuels (e.g. wood or coal) only if there is a closed, non-detachable cover. There must be no flying sparks. WARNING Risk of fire When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire. Only operate the gas burners with cookware on them. WARNING Risk of fire During simultaneous use of multiple gas cooktops, a great deal of heat is created. A ventilation device located above it can become damaged or catch fire. Never use two gas cooktops together at maximum heat for longer than 15 minutes. One large burner with over 17,000 Btu/hr (5 kW) (wok) is equal to the wattage of two gas burners. WARNING Risk of fire Operating several gas burners at the same time gives rise to a great deal of heat. The ventilation appliance may become damaged or catch fire. The ventilation appliance must only be combined with gas burners that do not exceed the maximum total output of 61,000 Btu/hr (18 kW). If 41,000 Btu/hr (12 kW) is exceeded, the local regulations concerning room ventilation, room size, and combination with ventilation devices in exhaust and recirculating operation must be heeded. WARNING Risk of fire Hot oil and fat catch fire fast. Never leave hot oil and fat unsupervised. Never extinguish a fire with water. Switch off the cooking position. Suffocate flames carefully with a lid, a fire blanket or similar. Burn Prevention WARNING Risk of burns The accessible parts get hot during operation. Never touch hot parts. Keep children away. Child Safety When children become old enough to use the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons. Remove all tape and packaging before using the appliance. Destroy the packaging after unpacking the appliance. Never allow children to play with packaging material. Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer. This can damage the appliance, and the unit may tip over, potentially causing severe injury. Do not allow children to use this appliance unless closely supervised by an adult. Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use. CAUTION Items of interest to children should not be stored in an appliance, in cabinets above an appliance or on the backsplash. Children climbing on an appliance to reach items could be seriously injured.7

9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Cleaning Safety WARNING Be sure the entire appliance (including the grease filters and light bulbs, if applicable) has cooled and grease has solified before attempting to clean any part of the appliance. Do not use steam cleaners to clean the appliance. Safe use WARNING Risk of injury Edges of the appliance in the head area. Be careful not to hit your head against the appliance. Make sure that you allow sufficient headroom when cooking. WARNING Do not repair, replace or remove any part of the appliance unless specifically recommended in the manuals. Improper installation, service or maintenance can cause injury or property damage. Refer to this manual for guidance. All other servicing should be done by a qualified technician. WARNING Risk of injury Items placed on the appliance may fall down. Do not place any objects on the appliance. WARNING Risk of injury The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. Proper Installation and Maintenance Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference. This appliance must be properly installed and grounded by a qualified technician. Connect only to properly grounded outlet. Refer to Installation Instructions for details. This appliance is intended for normal family household use only. It is not approved for outdoor use. See the Warranty. If you have any questions, contact the manufacturer. Do not store or use corrosive chemicals, vapors, flammables or nonfood products in or near this appliance. It is specifically designed for use when heating or cooking food. The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury. Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized servicer. Do not repair or replace any part of the appliance unless specifically recommended in this manual. Refer all servicing to a factory authorized service center. CAUTION Grease left on filters can remelt and move into the vent. CAUTION Turn power off at breaker before removing a damaged bulb. Do not touch the bulbs immediately after use. The bulbs will remain hot for several minutes. WARNING Make sure the appliance and lights are cool and power to the appliance has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns.The lenses (if equipped) must be in place when using the appliance.The lenses (if equipped) serve to protect the light bulb from breaking.The lenses (if equipped) are made of glass. Handle carefully to avoid breaking. Broken glass can cause an injury.9 IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

Hidden surfaces may have sharp edges. Use caution when reaching behind or under appliance. WARNING When the hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion. Safe operation is possible provided that the under pressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar). This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc. WARNING Avoid carbon monoxide poisoning – Provide adequate air intake so combustion gases are not drawn back into the room. An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded. Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as cooktops and ovens. State of California Proposition 65 Warnings WARNING This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.9 Causes of damage NOTICES: ▯ Risk of damage due to corrosion. Always turn appliance on when cooking to avoid condensation buildup. Condensation can lead to corrosion damages. ▯ Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth. ▯ Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the grind direction only. Do not use any stainless steel cleaners for operator controls. ▯ Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents. ▯ Risk of damage from condensation back flow. Install exhaust vent at a slight downward slope away from the appliance (1° slope). Protecting the environment Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly. Saving energy ▯ Only switch the fan on when necessary. If you are just warming something up briefly that does not have a strong smell, you can also leave the fan switched off. ▯ Select a fan level that is appropriate for the circumstances. ▯ Switch the ventilation off after cooking. ▯ Clean the grease filter regularly; this increases the effectiveness of the ventilation. ▯ Switch the lighting of the appliance off when it is not being used. Environmentally-friendly disposal Unpack the appliance and dispose of the packaging in line with environmental requirements.10 Operating modes You can use this appliance in the air extraction or the recirculation mode. Air extraction Note: The extracted air must neither be discharged into an operating smoke or waste gas chimney nor into a shaft that serves to ventilate rooms where heat- producing appliances are installed. ▯ The local chimney sweep's consent must be obtained if the exhaust air is to be routed to a smoke or waste gas chimney that is not in operation. ▯ A telescopic wall duct should be used if the exhaust air is routed through the outside wall. Recirculation Note: You must install an activated charcoal filter to bind odors in the recirculation mode. Refer to the manual or ask your specialist dealer for details of the various options for operating the appliance in the recirculation mode. You can obtain the necessary accessories from specialist dealers, from our after- sales service or in the online shop. Operating the appliance Note: Switch on the extractor hood when you start cooking and switch it off again only several minutes after you have finished cooking. This is the most effective way of removing the kitchen fumes. Operating the appliance Control panel Turn on the fan Note: Always adjust the fan strength to meet current conditions. If there is a large build-up of steam or fumes, select a high fan setting. Switching on 1 Press the # button. The fan starts on level 2. 2 Press the 1, 2, 3 or Ž button to set the corresponding fan level. Switching off Press the # button. The air sucked in is cleaned by the grease filters and is routed outdoors through a pipe system. The aspirated air is cleaned by the grease filters and an activated charcoal filter and is returned to the kitchen. Explanation

Light on/off/dimming11 Intense level For especially strong odor or vapor, use the intense level. Switching on 1 Press the # button. The fan starts on level 2. 2 Press the Ž button. The intensive mode is activated. Note: The run time of the intensive mode is 6 minutes.Once this time has elapsed, the appliance switches back to the previously selected fan level. Switching off Press the # button, or the button for another fan level. The intensive mode ends. Automatic operation Switching on 1 Push the # button. The fan starts in fan setting 2. 2 Push the < button. The optimum fan setting 1, 2, or 3 is set automatically by a sensor. Switching off Press the < or # button. Automatic mode is switched off. The fan switches off automatically if the air quality in the room exceeds a certain level. The run time of the automatic mode is 4 hours at most. Sensor control In automatic mode, a sensor in the extractor hood detects the intensity of the cooking and roasting fumes. Depending on the setting of the sensor, the fan automatically switches to another fan level. Default sensitivity setting: 2 Lowest sensitivity setting: 1 Highest sensitivity setting: 4 Changing the sensitivity of the sensor If the sensor control reacts too quickly or too slowly, change the sensitivity setting. 1 When the fan is switched off, press the < button and hold it for approx. 4 seconds. The setting is displayed. 2 Press button 1, 2, 3 or the Ž button to change the sensitivity setting. 3 Press and hold the < button for approx. 4 seconds. The change is saved. Saturation notification If the metal grease filters are saturated, the œ button flashes. At the latest now the metal grease filter should be cleaned. For instructions on how to clean the metal grease filters, please refer to the Cleaning and maintenance section. Resetting the saturation indicator Press the œ button. Lighting The lighting can be switched on and off independently of the ventilation. Switching on or switching off Press the ž button. Setting the brightness Press and hold the ž button until the desired brightness is reached. Safety shut-off For your protection, the appliance is equipped with a safety shut-off. The lighting switches off after 12 hours and the fan after 4 hours if the appliance is not operated during this time. Button 1 = Sensitivity 1 Button 2 = Sensitivity 2 Button 3 = Sensitivity 3 Ž button = Sensitivity 412 Cleaning and maintenance 9 WARNING Risk of burns The appliance grows hot during operation. Let appliance cool down prior to cleaning. 9 WARNING Risk of electric shock Penetrating damp can cause electric shock. Only clean appliance with a damp cloth. Prior to cleaning, pull the plug or flip the breaker in the fusebox. 9 WARNING Risk of electrical shock Moisture entering the appliance can cause an electrical shock. Don't use a high-pressure cleaner or steam cleaner. 9 WARNING Risk of injury Components inside the appliance may have sharp edges. Wear protective gloves. Cleaning agents To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use: ▯ Harsh or abrasive cleaning agents, ▯ Cleaning agents with a high alcohol content, ▯ Hard scouring pads or cleaning sponges, ▯ High-pressure cleaners or steam cleaners. Wash new sponge cloths thoroughly before use. Follow all instructions and warnings included with the cleaning agents. Degreaser (Product no. 00311297) Intensive degreaser for effective removal of grease deposits in the extractor hood. Ideal for pre-treating metal grease filters. Stainless steel care cloths (Product no. 00311134) Used to care for stainless steel surfaces. Impregnated with special oil, prevents the accumulation of dirt and fingerprints. Uninstalling metal grease filter 9 WARNING Risk of injury Metal grease filters and components inside the appliance may have sharp edges. Wear protective gloves. 9 WARNING Risk of injury The metal grease filters are very heavy. Remove the metal grease filters carefully and secure them against falling down when doing so. The metal grease filter consists of three components. You can take the metal grease filters apart to facilitate cleaning. Area Cleaning agent Stainless steel Hot soapy water: Clean with a dish cloth and then dry with a soft cloth. Clean stainless steel surfaces in the grind direction only. Special stainless steel cleaning prod- ucts are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth. Aluminum and plastic Glass cleaner: Clean with a soft cloth. Glass Glass cleaner: Clean with a soft cloth. Do not use a glass scraper. Controls Hot soapy water: Clean using a damp dish cloth and dry with a soft cloth/towel. Risk of damage to the electronics from penetrating moisture. Never clean operating controls with a wet cloth. Do not use any stainless steel cleaners.13 1 Open the lock and fold the metal grease filter downwards. For safety reasons, the metal grease filter is locked in place at the rear edge. 2 Slightly lift the front edge of the metal grease filter until it can be removed from the holder. Note: Grease can accumulate in the bottom of the metal grease filter. Hold the metal grease filter level to prevent fat from dripping out. 3 Remove the metal mesh filter. 4 Pull the two parts of the filter apart, using the recessed grip to help you do this. 5 Clean the metal grease filter. 6 Clean the appliance from the inside. Cleaning the metal grease filter 9 WARNING Risk of fire Grease deposits in the grease filter can ignite. Clean the grease filter at least every two months. Never operate the appliance without the grease filter. Notes ‒ Do not use any aggressive, acidic or alkaline cleaning agents. ‒ When cleaning the metal grease filters, also clean the metal grease filter holder in the appliance with a moist cloth. ‒ You can clean the metal grease filters in a dishwasher or by hand. In the dishwasher: Note: If the metal grease filters are cleaned in the dishwasher, slight discoloration may occur. This has no effect on the function of the metal grease filters. ▯ Do not clean heavily soiled metal grease filters together with utensils. ▯ Remove any heavy soiling first by hand. ▯ Place the metal grease filters loosely in the dishwasher. The metal grease filters may not be wedged in. By hand: ▯ Soak the metal grease filters in hot soapy water. ▯ Clean the filters with a brush and then rinse them thoroughly. ▯ Leave the metal grease filters to drain. Note: You can use a special degreaser for stubborn dirt. This can be ordered via the Online-Shop (Product no. 00311297). Spray the dirty metal grease filters with the degreaser and leave it to work for up to five minutes. Then rinse thoroughly. Observe the instructions for use supplied with the cleaning product.14 Installing metal grease filter 1 Push the two parts of the filter back together. Ensure that the opening on the edge is in the correct place. 2 Push the metal mesh filter in completely. 3 With the lock facing towards the front, place the metal grease filter in the underside of the appliance and engage the lock. Note: When pushing the filter in, make sure the lock engages. Otherwise, the metal grease filter can fall and damage the cooktop. 4 Press the œ button. The saturation indicator is reset. Changing the activated charcoal filter (only in circulating-air mode) 9 WARNING Risk of injury Risk of falling while changing filter. Use a stable stepladder. In order to ensure the degree of odor removal, you must change the activated charcoal filter regularly. In the case of low or occasional use: change the activated charcoal filter after 18 months at the latest or if odors are present in the emergent air. In the case of daily or heavy use: change the activated charcoal filter after 12 months at the latest or if odors are present in the emergent air. Notes ‒ The activated charcoal filters are included in the scope of supply of the recirculating-air set AA 442 810. Additional activated charcoal filters can be obtained through specialist retailers, customer service, or the online shop under the part number AA 442 110 (package of 2 filters). ‒ Always change both activated charcoal filters. ‒ The activated charcoal filters cannot be cleaned or activated again. ‒ Dispose of used active charcoal filters in your household garbage. Method 1 Open the lock on both protective grids and inspect the protective grids. 2 Remove the old activated charcoal filters. 3 Insert the new activated charcoal filters. 4 Insert the protective grids.15 Troubleshooting You can often easily eliminate problems that may occur on your own. Before calling customer service, take into account the following information. 9 WARNING Risk of electric shock Improper repairs are dangerous. Only an after- sales technician trained by us may perform repairs and may replace damaged connecting leads. Remove the mains plug or deactivate the fuse in the fuse box if the appliance is defective. Call after-sales service. 9 WARNING Risk of injury The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1). Do not look directly into the switched on LED lights for longer than 100 seconds. LED lights Defective LED lights may be replaced by the manufacturer, his customer service or a qualified technician (electrician) only. Fault table Disruption Possible cause Solution The appliance does not work The plug is not plugged in Connect the appliance to the electricity supply Power failure Check whether other kitchen appliances are working The fuse is faulty Check in the fuse box to make sure that the fuse for the appliance is in working order The appliance does not work, all buttons flash The network cable plug is not plugged

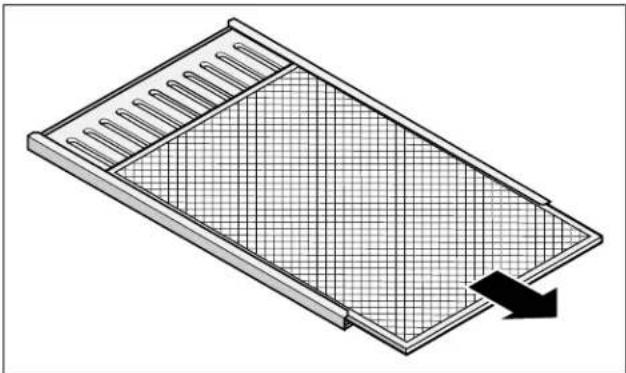

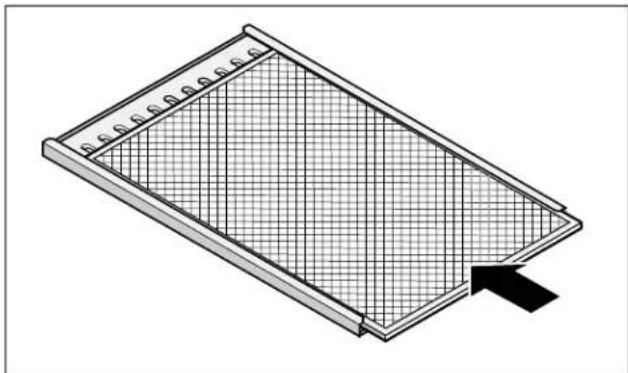

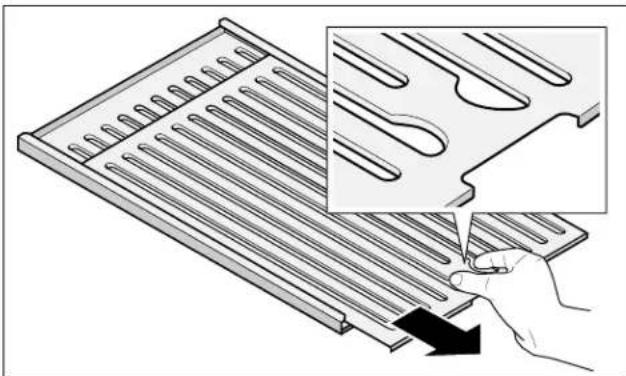

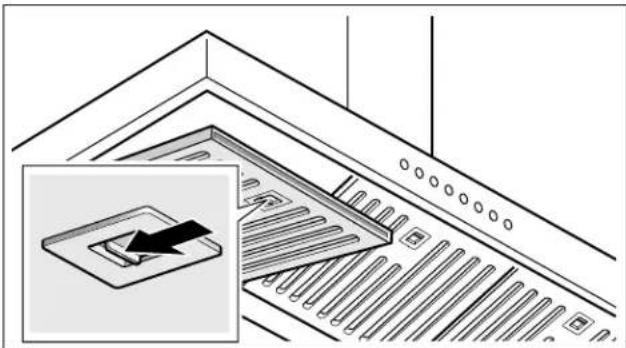

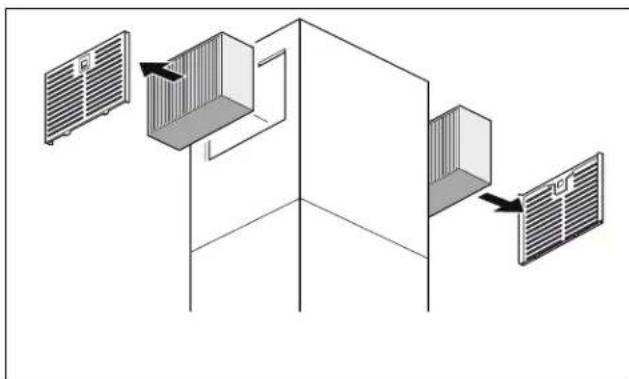

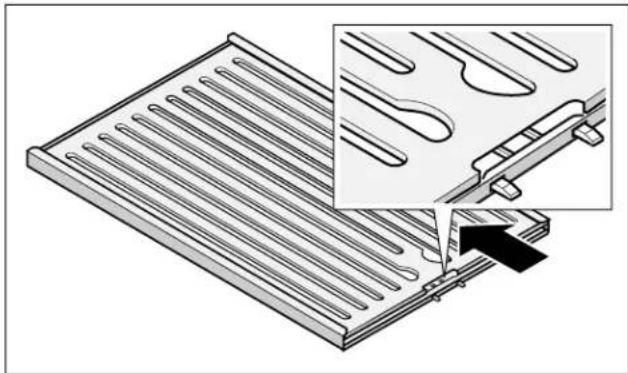

Check network cable connection for all appliances The fuse is faulty Check in the fuse box to make sure that the fuses for all appliances are in work- ing order A component of the appliance has failed Call Customer Service The appliance does not work The appliance has been operating for longer than 4 hours, safety shut-off was activated Switch the appliance on again The button illumination does not work The control unit is faulty Call Customer Service The lighting does not work The lighting is defective Call Customer Service The œ button flashes The metal filter is saturated Clean the filter, see the Cleaning and maintenance section16 Customer service If your appliance needs repairs, our customer service is there for you. We work hard to help solve problems quickly and without unnecessary service calls, getting your appliance back up and running correctly in the least amount of time possible. When you call, please indicate the product number (E-Nr.) and serial number (FD-Nr.) so that we can support you in a qualified manner. The identification plate listing the numbers can be found inside of the appliance (remove metal grease filter to find it). To avoid having to search for a long time when you need it, you can enter your appliance data and the customer support telephone number here. Please read the use and care instructions provided with your appliance. Failure to do so may result in an error in using the appliance. This could result in a service call that instead of fixing a mechanical issue is only needed for customer education. Such calls are not covered by the appliance warranty. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice You can rely on the manufacturer’s expertise. Rest assured that the repair will be handled by trained service technicians who have the original replacement parts for your appliance. E-Nr. FD-Nr. Customer Service

Aspiration intensive
