AI240191 - Range hood GAGGENAU - Free user manual and instructions

Product type	Range hood
Brand	Gaggenau
Model	AI240191
Connectivity	Home Connect (Wi-Fi) with app control
Number of speeds	3 speeds + intensive mode (via app)
Lighting	Integrated LED
Filter type	Metal grease filter, dishwasher-safe
Charcoal filter	Optional (recirculation)
Material	Stainless steel
Dimensions (W x H x D)	900 x 600 x 500 mm (estimated)
Weight	25 kg (estimated)
Power supply	230 V, 50 Hz
Motor power	250 W (estimated)
Installation	Island or wall-mounted
Exhaust mode	External exhaust or recirculation
Display	Status and speed LEDs
Special features	Remote control, online recipes via Home Connect
Noise level	55 dB (estimated)
Warranty	2 years (standard manufacturer)

Frequently Asked Questions - AI240191 GAGGENAU

How to connect my Gaggenau AI240191 hood to Home Connect?

To connect your hood, download the Home Connect app and create an account. Then, according to the app instructions, you can use the WPS method (press and hold the symbol , press 1, activate WPS on the router) or the manual method (press and hold , press 2, connect your smartphone to the hood's temporary WLAN network). Follow the steps in the app.

What to do if Wi-Fi connection fails?

First check that the hood is within range of the Wi-Fi network. Make sure your smartphone/tablet is connected to the same home network. If the WPS method fails, try the manual method (step by step). You can also cancel the procedure by pressing Ⓐ and start over.

How to clean the grease filters?

The metal grease filters can be washed in the dishwasher or by hand with hot water and detergent. Let them dry completely before replacing. Regular cleaning is recommended to maintain performance.

How to replace the charcoal filter?

The charcoal filter is optional and used in recirculation mode. To replace it, open the filter compartment, remove the old filter and insert the new one. Replacement frequency depends on usage, usually every 6 to 12 months.

Can I use the hood without Wi-Fi connection?

Yes, the hood works perfectly in local mode without Home Connect connection. Manual controls (speeds, lighting) remain accessible. Wi-Fi connection is only needed for connected functions (remote control, recipes).

Is the hood compatible with all routers?

The hood supports standard Wi-Fi connections (2.4 GHz) and WPS method. Most modern routers are compatible. Check that your router broadcasts on the 2.4 GHz band (not only 5 GHz).

How to reset the Wi-Fi settings of the hood?

To reset, press and hold the symbol until it flashes. Then press button 1 or 2 depending on the desired method. You can cancel at any time with Ⓐ. This erases the current Wi-Fi configuration and allows a new connection.

What to do if the Home Connect app does not find my device?

Make sure your smartphone and the hood are connected to the same Wi-Fi network. Check that the hood is in connection mode ( flashing). Restart the app and try again. If the problem persists, use the manual connection method.

What is the warranty of the Gaggenau AI240191 hood?

Gaggenau offers a standard manufacturer warranty of 2 years from the date of purchase. Register your product on the Gaggenau website to activate the warranty. Exact conditions may vary by country.

Where can I download the full manual of the AI240191?

You can download the full manual in PDF format for free on notice-facile.com. Go to the product page AI240191 Gaggenau and click on 'Download'. The manual is available in several languages.

USER MANUAL AI240191 GAGGENAU

Hand holding smartphone with floating icons of kitchen appliances on a dark screen (no text or symbols)

DE Verbinden Sie Ihre Dunstabzugshaube mit der Zukunft. 2
EN Connect your extractor hood to the future. 8
ES Conecte su campana extractora con el futuro. 14
FR Connectez votre hotte aspirante à l'avenir. 20
IT Collegate la vostra cappa di aspirazione al futuro.

26

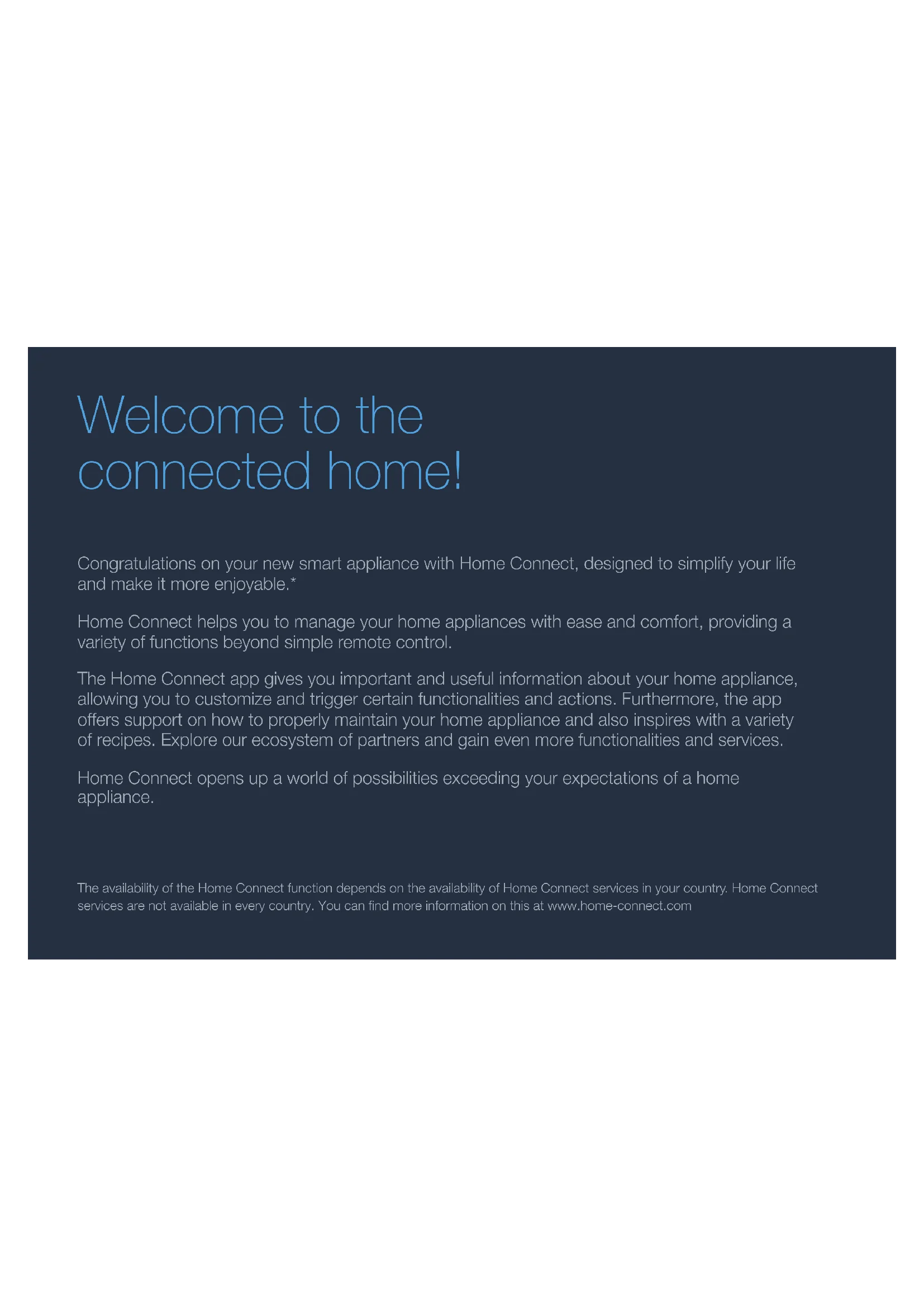

Welcome to the connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your home appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your home appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities exceeding your expectations of a home appliance.

The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com

Explore: With the Home Connect app you can...

Manage your appliance

In the app's appliance section you have an overview of your connected home appliances, offering a variety of functions beyond simple remote control. Monitor the home appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your home appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started:

What you need

1 | Your extractor hood must be installed properly and plugged in.
2 | A smartphone or tablet equipped with a current version of iOS or Android operating system.
3 | Your extractor hood within the Wi-Fi signal of your home network.
4 | The name of your Wi-Fi network (SSID) and its password (key).
5 | This installation guide.

Important Information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted. Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com.

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for "Home Connect" in the Store and install the app.

Home Connect app:

home connect

3 | Open the app and register yourself so that you can create a Home Connect user account.
4 | Make a note of your Home Connect access data (user account and password) – you will need this later.

√ The app will take you through the necessary steps for linking your appliance with Home Connect. If necessary, the app will refer to these instructions.

Step 2: Connect your extractor hood to your home network

1 | Your extractor hood must be installed properly and plugged in.
2 | Open your Home Connect app to add your extractor hood.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Information:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

Step 2.1: Connect your extractor hood to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the home appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing Ⓐ.

1 | Press and hold the 🔒 symbol on your extractor hood until it starts flashing.

2 | Press 1 to start automatic login to your home network.

√ The LED for fan setting 1 and flash.

3 | Activate the WPS function on your home network router within the next 2 minutes.

√ If connection to the home network is successful, and the LED for fan setting 3 flash.
√ The app will get notified once your extractor hood has been successfully connected to your Wi-Fi network.

4 | Follow the instructions in the app.

Information:

If the connection could not be established within 2 minutes, make sure your extractor hood is within the range of your Wi-Fi network.

For some appliances the WPS mode is also called "automatic mode".

12 EN

Step 2.2: Connecting the extractor hood to your home network, step by step

Follow the instructions in Step 2.2 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

Note:

To connect the extractor hood to your home network, the hood and the light must be switched off. You can cancel the process at any time by pressing Ⓐ.

1 | Press and hold the symbol on your extractor hood until it starts flashing.

2 | Press 2 to start manual login to your home network.

√ The LED for fan setting 2 and 📞 flash.

√ The appliance will open a temporary Wi-Fi network, "Home Connect", for a few minutes with the password "HomeConnect".

Using this temporary Wi-Fi network, the app will transfer the name (SSID) and the password of your home network to the extractor hood, thereby enabling the extractor hood to connect to your home network.

√ If connection to the home network is successful, and the LED for fan setting 3 flash.

3 | Follow the instructions in the app.

Information:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode".

If the step-by-step mode does not work please check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connecting the extractor hood to the Home Connect app

Follow the instructions in Step 3 only if the app tells you to. The following steps set out how to perform this operation on the appliance itself.

1 | Press and hold the 🔒 symbol on your extractor hood until the LED for fan setting 3 and ⚫start to flash.

2 | Follow the instructions in the app.

stops flashing on the display's control panel. The login process is now complete.

Information:

If the connection could not be established make sure your smartphone/tablet is within range of your Wi-Fi network.

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

To learn more about smart home appliances with Home Connect and our partner ecosystem, visit www.home-connect.com

Installation instructions in other languages can be found under "Home Connect" in the instruction manual supplied with your home appliance.
