USER MANUAL XRSS 687 BW BB AMANA

Illustration of a gray server unit with two black ventilation slots (no text or symbols)

Side by Side Refrigerator

English 2

Deutsch 27

Français 51

Seven identical gray diamond shapes arranged horizontally (no text or symbols)

Part No. 12591314

Printed in U.S.A. 07/02

Thank you for purchasing this refrigerator!

Please read this Owner's Manual thoroughly. This manual provides proper maintenance information.

Warranty service must be performed by an authorized servicer. The manufacturer also recommends contacting an authorized servicer if service is required after warranty expires. To locate an authorized servicer, contact your distributor.

When contacting your servicer, please provide the following information. Product information is on the serial plate, located on ceiling of fresh food section.

Model Number

'P' Number

Serial Number

Purchase Date

Dealer Name

Dealer Address

Dealer Phone

Contents

Introduction 2

Contents 2

Important Safety Information 3

Installing Your Refrigerator 4

How to Transport Your Unit 4

How to Select the Best Location 4

How to Install and Remove Handles 5

How to Level Your Refrigerator 6

How to Adjust the Temperature Controls .... 7

About Your Filtration System 8

Refrigerator Features 9

Interior Shelves 9

Door Storage 10

Drawers 11

Freezer Features 12

Primary Features 12

Shelves 13

Door Storage 13

Dispenser Features 14

Primary Features 14

Water Dispenser Operation 14

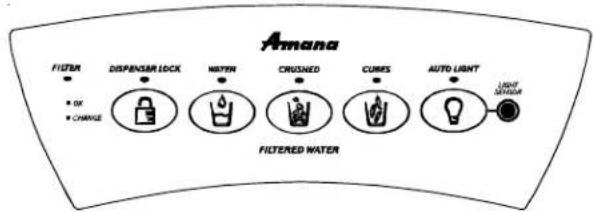

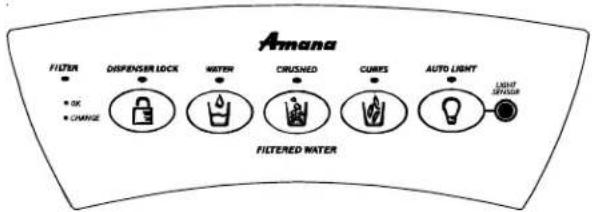

Control Features (5-button control) 15

Control Features (Electronic control) 16

Hints and Care 19

How to Clean Your Unit 19

How to Remove and Replace Light Bulbs 20

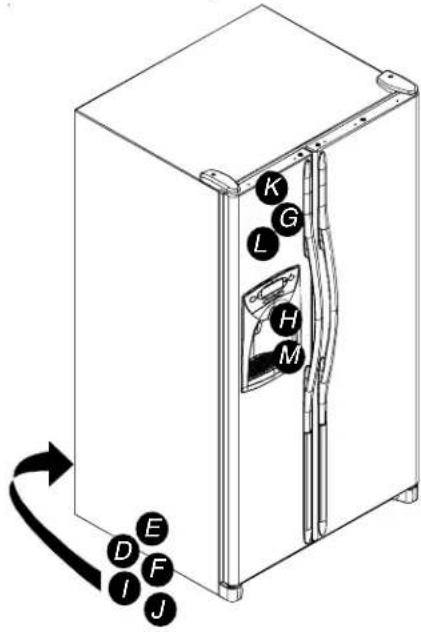

Before Calling Service 21

Water Filter Data 25

How to Obtain Replacement Parts and Services?

Problems? Save yourself the nuisance of unnecessary service calls; check the "Before Calling Service" section of the owner's manual.

Your new refrigerator has been carefully engineered and manufactured under strict quality standards and should give you satisfactory and dependable operation. However, like all mechanical merchandise, it may occasionally require adjustment, replacement parts, or maintenance. Should you ever need assistance, please contact the dealer from whom you purchased the refrigerator.

Provide the following:

• Model
  • Manufacturing Number
• Serial Number and all of the other data shown on the model serial plate.
  • State briefly the trouble you are having.

The page area to the left has been provided to record valuable information.

Keep instructions for future reference!

Keep this manual and your sales receipt together in a safe place in case warranty service is required.

What if These Features are Different from Mine?

This book is intended to show the variety of features that are available in the product line. If interested in purchasing additional items available for your unit, please contact your distributor.

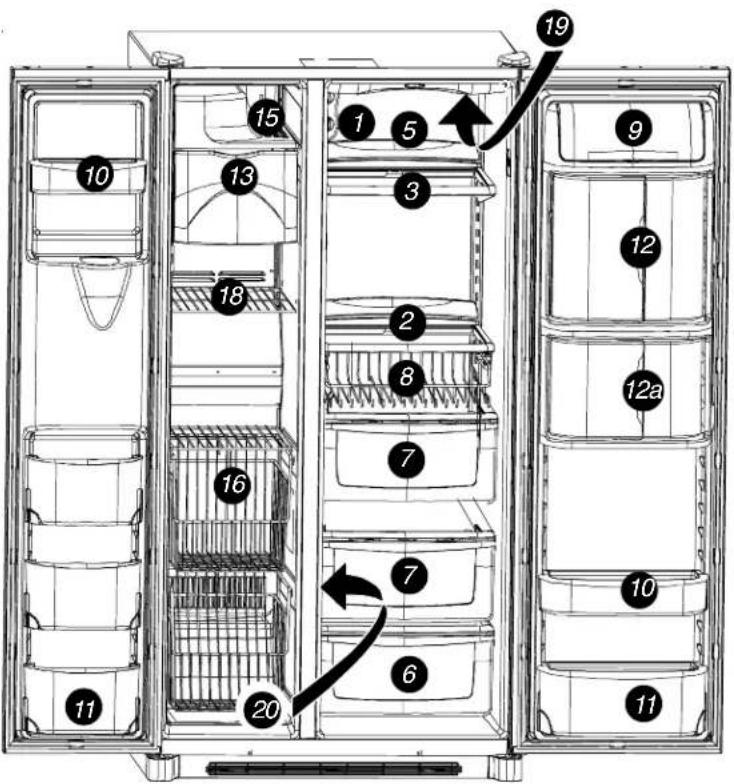

Features at a Glance

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

1. Temp Assure ^ controls

2. Spill Saver™ shelf

3. Spill Saver™ Easy Glide™ shelf

4. Side Glide™ shelves—not shown

5. Rear shelf extensions

6. Deli/Crisper drawer

7. Crisper drawer

8. Beverage Organizer™

9. Dairy center

10. Door buckets

10a. Bucket grippers—not shown

1. Tilt-out bucket

2. Beverage Chiller™

12a. Mini-Beverage Chiller ™

1. Ice storage bin

2. Ice maker—not shown

3. Ice Cream Shelf

4. Stor-Mor ^ system

5. Hanging wire shelf—not shown

6. Fixed freezer shelf

7. Water filter—not shown

8. Air filter—not shown

9. Lights—not shown

Upper fresh food

Lower fresh food

Freezer

Dispenser

Important Safety Information

Recognize Safety Symbols, Words, Labels

DANGER

DANGER—Immediate hazards which WILL result in severe personal injury or death.

WARNING

WARNING—Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION

CAUTION—Hazards or unsafe practices which COULD result in minor personal injury or product or property damage.

What You Need to Know about Safety Instructions

Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating refrigerator. Always contact your dealer, distributor, service agent, or manufacturer about problems or conditions you do not understand.

DANGER

To reduce risk of injury or death, follow basic precautions, including the following:

Proper Disposal of Your Refrigerator

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous—even if they sit out for "just a few days". If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

• Take off the doors.
- Leave the shelves in place so children may not easily climb inside.

Line drawing of a refrigerator with doors open and shelves stacked vertically (no text or symbols)

Installing Your Refrigerator

These instructions were provided to aid you in the installation of your unit. The manufacturer cannot be responsible for improper installation.

Steps to Follow...

A qualified engineer must connect refrigerator in accordance with these installation instructions. Measure door opening and depth and width of refrigerator. Remove handles or doors if required. Engineer must also do the following:

1. Follow local water and electrical company connection regulations.
2. Complete water supply connection before electrical supply connection.

Service to or replacement of power cord must be performed by a qualified servicer.

Installation Requirements

1. Install on an earthed outlet with a separate 230-240 volt, 50hz., 10A circuit Y-connection type power cord.
2. Protect soft flooring with cardboard or rugs.
3. Install on a floor which supports up to 429 kg.
4. Provide 5 mm clearance at side of refrigerator and for models more than 60 cm deep, provide 12.7 mm clearance at top of refrigerator.
5. 60 cm deep models.

Trim corners of counter top to a 45° angle if counter top has 25 mm overhang.

Provide 5 mm clearance on both sides of refrigerator, and allow 7 mm on top for ease of installation and leveling.

No minimum clearance is required at the rear of the cabinet.

How to Remove Wooden Base

CAUTION

To avoid personal injury or property damage, two people must remove wooden base.

1. Tape doors shut to prevent doors from opening unexpectedly.
2. Slide appliance cart under side of refrigerator.
3. Wrap refrigerator with blanket or pad. Thread strap around refrigerator. Put foam shipping pads, located in shipping carton, under strap. Tighten strap securely.
4. Lower appliance cart to floor with appliance cart handles on bottom.
5. Remove top two bolts from skid.
6. Return refrigerator and appliance cart to an upright position. Remove strap.
7. Slide appliance cart under opposite side of refrigerator.
8. Repeat steps 3–5.
9. Remove wooden base.
10. Return refrigerator and appliance cart to an upright position and remove appliance cart.

IMPORTANT:

Do not leave refrigerator on its side longer than necessary to remove bolts.

How to Remove and Replace Doors and Hinges

- Contact a qualified engineer to perform this task.

Installing Your Refrigerator

How to Install and Remove Handles

Handles are located within fresh food section of refrigerator. Trim, plugs, and accent pieces will be located within the literature assembly.

Full-Length Grab Handles (non-stainless steel)

1 Remove two ^1/_4 " hex nut screws from bottom of refrigerator and freezer door.

Diagram showing a test tube with liquid levels and arrows indicating measurement directions, likely illustrating a physics or fluid mechanics concept.

3 Insert screws removed in step 1 into screw holes at bottom of handle section.

2 Align door handles with top and bottom sets of door clips, and slide down until screw holes on bottom of handles match with door screw holes.

4 Snap trim over bottom portion of handles and retainers on bottom of door

To remove after initial install...

- Follow steps 3 through 4 in reverse order.

NOTE: Fit may be tight. When removing handle, pull up and out.

Half-Length Grab Handles (non-stainless steel)

1 Remove four ^1/_4 " hex nut screws from top and bottom of doors.

3 Snap colored handle trim over screw holes at top and bottom of handles.

- Snap in trim by inserting large round end first.

2 Align door handles with screw holes and insert screws removed in step 1.

To remove after initial install...

Handles may need to be removed if transporting unit through tight spaces.

- Follow steps 2 and 3 in reverse order.

IMPORTANT: To avoid damage to handle, use a flat blade screwdriver edge wrapped in masking tape to remove colored handle trim.

WARNING

To avoid risk of serious personal injury from sharp edges, use extreme caution when removing & installing handles.

Stainless Steel Models

1 Loosen lower door clip on refrigerator door with ^1/_4 " hex nut driver.

3 Fit other end of handle over upper door clip and slide up as far as possible.

2 Locate predrilled hole at base of handle, and fit hollow end of handle over lower door clip.

4 Insert 14 " hex nut driver into predrilled hole at base of handle and tighten screw.

Installing Your Refrigerator

How to Install the Handles continued

Stainless Steel Handles continued

5 Insert screw plug into predrilled hole.

To remove after initial install...

- Follow steps 2 through 5 in reverse order.

IMPORTANT: To avoid damage to unit, use a flat blade screwdriver edge wrapped in masking tape to remove screw plugs.

6 Repeat steps 2 through 5 to install freezer handle.

How to Connect the Water Supply

- Contact a qualified engineer to perform this task.

How to Level Your Refrigerator

CAUTION

• To avoid damage to walls and flooring, protect soft vinyl or other flooring with cardboard, rugs, or other protective material
• To avoid damage or breakage to adjusting bolt, do not use power tools to correct leveling.
• DO NOT adjust unit to be any shorter than 173.9 cm tall (minus hinge and cap). Doing so may damage underside components.

Materials Needed

• ^3/_8 " hex head driver • Level

1 Remove Toe Grille and Bottom Hinge Covers

- Open both doors 180^ , or as wide as possible, to remove.

Technical diagram of a structural frame with arrows indicating direction (no text or symbols)

3 Turn both rear adjustment screws (B) clockwise to raise and counterclockwise to lower.

2 Turn both front adjustment screws (A) clockwise to raise and counterclockwise to lower.

4 Check with level to verify 6 mm tilt to the back for proper door closure.

- If unit is aligned and stable, replace toe grille.

What if my doors are not aligned?

• Locate the higher door, and turn front adjustment screw counterclockwise. Continue until doors are level.
• If bottom of adjustment range is reached, and doors are not level-raise opposite door by turning front adjustment screw clockwise.
• Replace toe grille

What if my unit rocks?

• Turn rear adjustment screw clockwise to raise rocking corner.
• Replace toe grille.

Installing Your Refrigerator

How to Adjust the Temperature Controls

This refrigerator is designed to operate at a household temperature of 16^ to 43^ C.

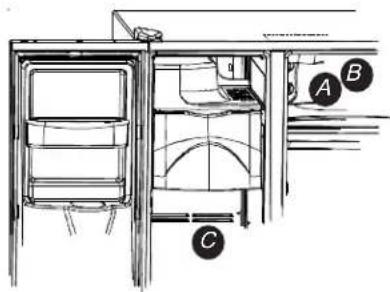

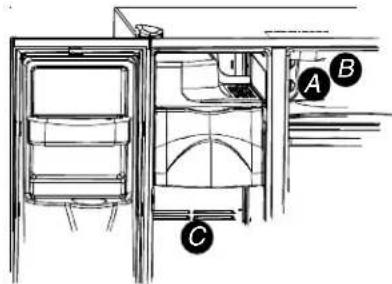

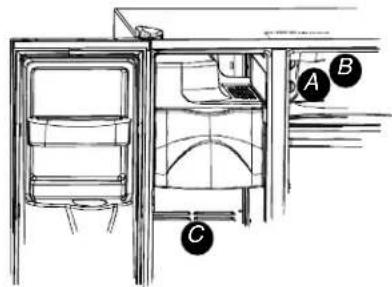

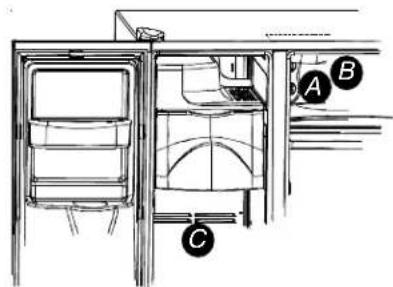

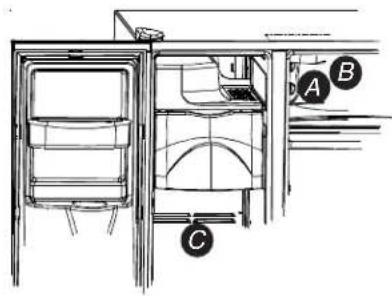

1 Locate refrigerator and freezer controls on upper left wall of fresh food section, and set both controls to 4.

IMPORTANT: Neither section will cool if freezer control is set to Off.

4 Check to see that fresh food section is 3^ to 4^ C.

• Turn control to next highest number if too warm.
• Turn control to next lowest number if too cold.
• Allow 5 to 8 hours for adjustments to take effect.

2 Allow 24 hours for temperatures to stabilize.

IMPORTANT: Due to design of unit, always start temperature adjustments with freezer section.

3 Check to see if freezer temperature is -17^ to -16^ .

• Turn control to next highest number if too warm.
• Turn control to next lowest number if too cold.
• Allow 5 to 8 hours for adjustments to take effect.

5 Repeat process, as necessary.

How do I perform a temperature test?

Materials needed

• 2 thermometers measuring -21^ to 10^
• 2 drinking glasses

For Freezer

- Place thermometer in glass of vegetable oil in middle of freezer and continue with step 3 of Temperature Adjustment section.

For Refrigerator

- Place thermometer in glass of water in middle of unit and continue with step 3 of Temperature Adjustment section.

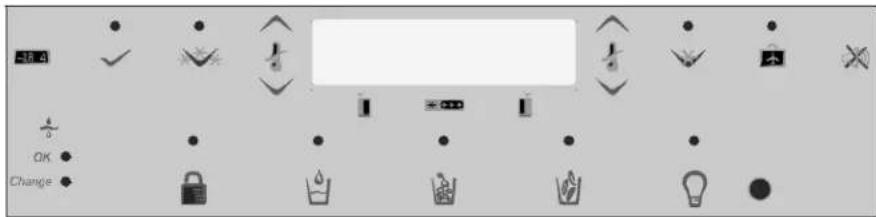

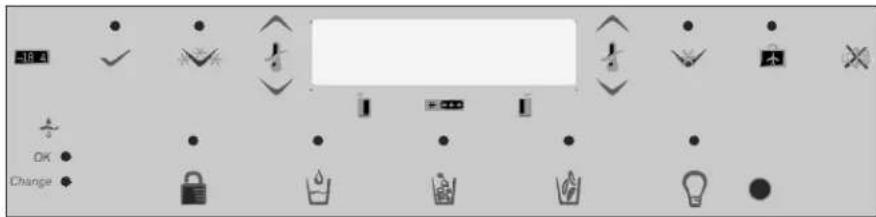

Electronic Temperature Control Models

1 To set temperature of the freezer, use the buttons next to the

button. A setting of 0^ to 2^ (-17° to -16° C) is recommended.

• Use the button to raise the temperature of the freezer section, or the to lower it.
• Press the √ button to confirm the settings.

2 To set temperature of the fresh food section, use the buttons next to the button. A setting of 38^ to 40^ F ( 3^ to 4^ C) is recommended.

• Use the button to raise the temperature of the fresh food section, or the to lower it.
• Press the √ button to confirm the settings.

3 Allow 24 hours for temperatures to stabilize.

NOTE: If adjusting the temperature of an operational unit, only 5 to 8 hours is required for temperatures to take effect.

About Your Filtration System...

Water Filter Removal and Installation

WARNING

To avoid serious illness or death, do not use unit where water is unsafe or of unknown quality without adequate disinfection before or after use of filter.

CAUTION

• Bypass cartridge DOES NOT filter water. Be sure to have replacement cartridge available when filter change is required.
• If water filtration system has been allowed to freeze, replace filter cartridge.
• If system has not been used for several months, and water has an unpleasant taste or odor, flush system by dispensing 2–3 glasses of water. If unpleasant taste or odor persists, change filter cartridge.

Initial Install of Water Filter

1 Remove blue bypass cap and retain for later use.

2 Remove sealing label from end of filter and insert into filter head.

- Rotate gently clockwise until filter stops and snap filter cover closed.

3 Reduce water spurts by flushing air from system. Run water continuously (approximately 2 minutes) through dispenser until water runs steady.
• Additional flushing may be required in some households where water is of poor quality.

I'm trying to dispense water to flush the system. Where's the water?

During initial use, allow about a 1 to 2 minute delay to allow internal water tank to fill.

What if I choose not to use the water filtration system?

Dispenser feature may be used without water filter cartridge. If you choose this option, replace filter with blue bypass cap.

Replacing Water Filter

IMPORTANT: Air trapped in system may cause water and cartridge to eject. Use caution when removing.

1 Turn filter counterclockwise until it releases from filter head.
2 Drain water from filter into sink or toilet, and dispose in normal household garbage.
3 Wipe up excess water in filter cover and continue with installation steps 2 and 3.

When do I change the water filter?

Select dispenser models feature a water filter change indicator. For instructions on how to operate and reset this feature, refer to the dispenser features section in your manual.

For units without indicator feature, filter should be changed approximately every 6 months.

IMPORTANT: Condition of water and amount used determines life span of water filter cartridge. If water use is high, or if water is of poor quality, replacement may need to take place more often.

How do I order a replacement filter cartridge?

Replacement Water Filter cartridge model OWF51 is available through your dealers and servicers. Contact your local distributor for more information.

What if These Features are Different from Mine? This book is intended to show the variety of features that are available in the product line. If your refrigerator does not have all the options that are shown, many of these options may be purchased by contacting your local distributor.

Interior Shelves

CAUTION

To avoid personal injury or property damage, observe the following:

- Confirm shelf is secure before placing items on shelf.

- Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.

Side Glide™ Shelves (some models)

Side Glide™ shelves hook onto a rear double-crossbar assembly. Shelves may be aligned side by side to create a full width level surface, or if attached to separate crossbars, the shelves may slide left or right to accommodate storage needs.

To remove and install shelf:

• To remove shelf, raise shelf 10° to unhook from double crossbar and lift out.

- To install, reverse above procedure.

To slide shelves:

- Lift front of shelf slightly and slide left or right.

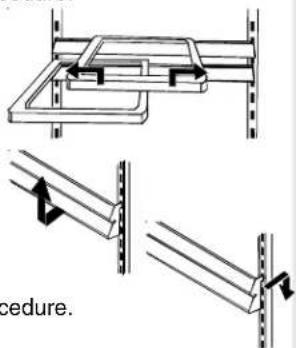

To remove and install double-crossbar assembly:

- To remove, slide assembly up to unhook from metal track.

- To install, reverse above procedure.

level surface, ssbars, the to s. f e crossbar and lift out. cedure

cedure.

Spillsaver™ Easy Glide™ (some models)

Spillsaver™ Easy Glide™ shelves feature the convenience of easy cleaning with a pull-out design to reach items in the back. For ease of cleaning, glass shelf may be removed by p extension and lifting out of frame

pulling to full

- To remove shelf and frame, see instructions for Spillsaver™ stationary shelves.

Spillsaver™

Spillsaver™ stationary shelves hold simple spills for easier cleaning.

• To remove shelves, lift up and out.

- To install shelves, reverse above procedure.

Pure mechanical assembly diagram showing a bracket with mounting flanges and a triangular component (no text or symbols)

Rear Shelf Extensions (some models)

Rear shelf extensions help prevent articles from falling off the back of the shelf.

To remove and install shelf extension:

• To remove, pull extension straight up from rear of shelf.

- To install, insert posts of the shelf extension into holes in the shelf frame.

Fresh Food Features

Door Storage

Dairy Center

The dairy center provides convenient storage for items such as butter, yogurt, cheese, etc.

This compartment is an adjustable feature located in the door. It can be moved to several different locations to accommodate storage needs.

• To remove, slide dairy center up and pull straight out.
• To install, reverse above procedure.

Technical line drawing of a mechanical bracket with an arrow indicating direction (no text or symbols)

Tilt-Out Door Buckets (some models)

The Tilt-Out Bucket assembly consists of a bucket and frame, providing adjustable, convenient storage for food items in door. The bucket assembly tilts forward for easy access of items, and lifts out for ease in cleaning and adjusting.

To remove and install bucket:

• To remove bucket, tip bucket forward and pull straight out to remove.
• To install bucket, slide bucket into bucket frame and push bucket upright.

To adjust bucket frame:

• Remove bucket per above instructions.
• Lift frame off door support and place in desired door location.

Grip Pads

The Grip Pads prevent objects from sliding in the door bucket. Grip Pads are removable and are top-rack dishwasher safe for easy cleaning.

Beverage Chiller™/ Mini-Chiller™ (some models)

The Temperature-Controlled Beverage Chiller™ and Temperature-Controlled Mini Beverage Chiller™ keep beverages and other items up to 3°C colder than the rest of the fresh food section. Air inlet allows air from the freezer section to pass to Beverage Chiller™.

The Beverage Chiller™ control is located on the left wall of fresh food section. Control adjusts amount of air circulating in Beverage Chiller™. Turn control toward the large snowflake icon for colder temperature.

To remove and install Beverage Chiller™:

• If located directly above Chiller, dairy center or door bucket may need to be removed. Refer to appropriate instructions and remove item. Slide Beverage Chiller™ assembly up and pull straight out.

Simple line drawing of a window with arrows indicating direction (no text or symbols)

- To install, align one of the Beverage Chiller™ cold air intake holes (A) with one of the two air inlets (B) in door liner. Push assembly down onto door liner retainer until it stops.

Technical diagram showing mechanical components with labeled parts A and B, likely illustrating a gear or cam mechanism.

IMPORTANT: Beverage Chiller™ will not operate properly if air intake holes are not aligned with air inlet in door liner.

Door Buckets

Door buckets adjust to meet individual storage needs.

Diagram of a mechanical assembly with two rectangular containers and a vertical rod, no text or symbols present

• To remove, slide bucket up and pull straight out.
• To install, reverse above procedure.

Fresh Food Features

Drawers

Deli/Crisper Drawer climate controlled

The Deli/Crisper system provides a drawer with a variable temperature control that keeps the compartment up to 3^ C colder than refrigerator temperature. This drawer can be used for deli storage or additional produce storage.

NOTE: Cold air directed to the Deli/Crisper System can decrease refrigerator temperature. Refrigerator control may need to be adjusted.

Controls

Located on the wall to the left of the drawer, the climate controls regulate the air temperature in the Deli/Crisper drawer. Set control level to cold to provide normal refrigerator temperature for produce with outer skins. Use the coldest setting for meats or other deli items.

Crisper Drawer climate controlled

Garden Fresh ^™ crisper keeps produce fresh longer by providing an environment with adjustable humidity.

Controls

The Garden Fresh™ controls regulate the amount of humidity in the crisper drawer. Use the low setting for produce with outer skins. Use the high setting for leafy produce.

To remove and install drawers:

- To remove drawer, pull drawer out to full extension. Tilt up front of drawer and pull straight out.

- To install, reverse above procedure.

To remove and install crisper shelf:

- Lift off wall supports and remove.

- To install shelf, lower shelf onto wall supports and push in until shelf is flush with rear wall.

Diagram of a refrigerator interior with a downward arrow indicating flow or movement (no text or symbols)

Beverage Organizer™ (some models)

The Beverage Organizer™ slides out from underneath the Spillsaver™ Easy Glide™ shelf. The Organizer holds up to twelve 12-ounce beverage cans.

To remove and install Organizer:

- To remove, empty contents of Organizer. Pull Organizer forward to full extension and lift front to release from shelf rail. Pull straight out to remove.

- To install, reverse above procedure.

Technical line drawing of a mechanical component with internal channels and a labeled part (no readable text or symbols)

Freezer Features

What if These Features are Different from Mine?

This book is intended to show the variety of features that are available in the product line. If your refrigerator does not have all the options that are shown, many of these options may be purchased by contacting your local distributor.

Primary Features

CAUTION

To avoid property damage, observe the following:

• Do not force ice maker arm down or up.
• Do not place or store anything in ice storage bin.

Automatic Dispensing Ice Maker

This ice maker creates the ice used in the dispensing system.

Using Ice Maker for the First Time

• Confirm ice bin is in place and ice maker arm is down.
  • After freezer section reaches between -18^ to -17^ C, ice maker fills with water and begins operating.
• Allow approximately 24 hours after installation to receive first harvest of ice.
• Discard ice created within first 12 hours of operation to verify system is flushed of impurities.

Operating Instructions

• Confirm ice bin is in place and ice maker arm is down.
  • After freezer section reaches -18^ to -17^ C, ice

maker fills with water and begins operating. You will have a complete harvest of ice approximately every 3 hours.

• Stop ice production by raising ice maker arm until click is heard.
• Ice maker will remain in the off position until arm is pushed down.

IMPORTANT: Ice Cream Shelf should not be installed if ice maker arm is in "off" position

Ice Cream Shelf

The Ice Cream Shelf provides a space for items to be chilled or frozen quickly.

• To remove, lift Ice Cream Shelf from ice bin rails and pull straight out.
• To install, reverse above procedure.

IMPORTANT: Ice Cream Shelf should not be installed if ice maker arm is in "off" position

Ice Storage Bin

The ice storage bin is located below the automatic dispensing ice maker.

To remove and install ice storage bin:

• To remove bin, remove Ice Cre Shelf. Raise ice maker arm to deactivate ice maker.
- Lift front of bin and pull out to its full extension. Lift up front of bin and remove.
- To install, slide bin into rails below ice maker until bin locks into place. Drop ice maker arm to activate ice maker, and replace Ice Cream Shelf.

IMPORTANT: Ice bin must

be locked in proper place for proper ice dispensing. If freezer door does not close, bin is not in proper location. Turn auger driver as shown to properly align ice bin with back of unit.

Freezer Features

Shelves

Stor-Mor® System

Baskets slide out for easy access of items in back. Shelves can be removed to meet individual storage needs.

To remove and install Stor-Mor ^® shelf:

• To remove, snap right side of shelf from cabinet railing and remove from wall mounting clips.

• To install, reverse above procedure.

NOTE: Back of shelf must be flush with back of cabinet to secure firmly in cabinet railing. Improper alignment will cause shelf to slide.

To remove and install baskets:

• To remove, pull basket forward to full extension. Lift front handle to release basket from rails and remove.

• To install, reverse above procedure.

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Door Storage

Door Buckets

• Refer to Fresh Food section for instructions.

Fixed Freezer Shelf

To remove and install shelves:

- Remove shelf from wall mounting clips and pull out of left side mounting holes.

• To install, reverse above procedure.

Hanging Wire Shelf (some models)

Hanging wire shelf provides extra storage for ice cube trays, boxed frozen foods, ice packs, etc.

To remove shelf:

- Pinch rung hook of hanging wire shelf inward to release hanging wire shelf from right side of Stor-Mor® shelf. Shelf will swing downward.

- Press rung hook of hanging wire shelf outward to remove shelf from freezer section.

To install shelf:

- Perform above steps in reverse order.

Tilt-Out Door Buckets (some models)

• Refer to Fresh Food section for instructions.

Dispenser Features

Primary Features

Dispenser Light not shown

A light activates within the dispenser area at full power when dispensing ice or water.

Front Fill Button (some models)

The Front Fill button works independently of the dispenser controls, providing an up-front alternative to the dispenser pad for dispensing water. This feature is convenient for filling large items that will not fit into the dispenser area (i.e. sport bottles, pitchers, large pans, coffee pots).

This feature allows added convenience of dispensing ice and water simultaneously. To use, choose your preferred ice mode from dispenser control panel. Press container against dispenser pad while pressing the Front Fill button.

Dispenser Pad

The dispenser pad is located on the back wall of the dispensing area. When the dispenser pad is pressed, the selection chosen on your dispenser control panel will dispense.

Removable Tray

The removable tray at the bottom of the dispenser area is designed to collect small spills and may be easily removed for cleaning and emptying purposes.

IMPORTANT: Removable tray does not drain. Continuous water running into tray will cause tray to overflow.

Simple line drawing of a device with an arrow pointing to the interior (no text or symbols)

Diagram of a mechanical component with curved surfaces and a textured base (no text or symbols)

Water Dispenser Operation

CAUTION

To avoid personal injury or property damage, observe following instructions:

• Do not put fingers, hands, or any foreign object into dispenser opening.
• Do not use sharp objects to break ice.
• Do not dispense ice directly into thin glass, fine china, or delicate crystal.

NOTE: During initial use of water dispenser, allow an approximate 1-2 minute delay in water dispersal to allow internal water tank to fill. Discard first 10-14 containers of water after initially connecting refrigerator to household water supply and extended periods of nonuse.

To use dispenser pad:

• Choose water selection from dispenser control panel.
• Press sturdy, wide-mouthed container against dispenser pad.
• Release pressure on dispenser pad to stop water from dispensing. A small amount of water may continue to dispense, and collect in dispenser tray. Large spills should be wiped dry.

To use Front Fill button (some models):

• Align container under Front Fill button using water droplet as guide.
• Press and hold Front Fill button.
• Release button when desired fill is reached. A small amount of water may continue to dispense, and collect in dispenser tray. Large spills should be wiped dry.

NOTE: If water dispenser is active for more than 5 minutes, an automatic lock out sensor will shut down power to dispenser area. See Automatic Lock Out for further information.

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Dispenser Features

Control Features

(Five button control)

Amana FILTER • OK • CHANGE DISPENSER LOCK WATER CRUSHED CURBS AUTO LIGHT LIGHT SURVADOR FILTERED WATER LIGHT SURVADOR

Ice Dispenser Operation

To dispense ice:

• Select Cubed or Crushed ice mode by pushing button on dispenser control panel. A green indicator light above button shows mode selection.
• Press container against dispenser pad. When dispensing crushed ice, hold container as close to chute as possible to reduce spraying. Selection mode may not be changed while ice dispenser is in operation.

NOTE: If dispenser is active for more than 3 minutes, an automatic lock out sensor will shut down power to dispenser area. See Automatic Lock Out for further information.

Dispenser Lock

This feature prevents ice or water from being dispensed.

To lock and unlock dispenser:

• To lock dispenser, press and hold Dispenser Lock button for 3 seconds. A green indicator light above button confirms dispenser is locked.
• To unlock dispenser, hold Dispenser Lock button for 3 seconds. Green indicator light above button will go out.

What is the Automatic Lock Out feature?

The Automatic Lock Out feature shuts down power to the water and ice dispenser when either dispenser has run continuously for approximately 3 minutes. If this mode goes into effect, the green light will activate above the Dispenser Lock button.

To unlock dispenser:

• To unlock dispenser, hold Dispenser Lock button for 3 seconds. Green indicator light above button will go out.

Filter Status Indicator Light

FILTER

The Filter Status Indicator Light serves as a reminder to replace the water filter. A green light indicates that the filter is in good condition. A red light indicates the filter should be changed. Once light turns red, it will remain red until function is reset.

● OK
● CHANGE

To reset indicator:

- Press and hold both Dispenser Lock and Auto Light buttons simultaneously for 4 seconds. The green Filter Status Indicator Light will flash 3 times when the function has successfully reset.

Auto Light

The Auto Light function offers the ability to activate the dispenser light at half-power when the Light Sensor detects that the light levels in room are low.

To activate and deactivate Auto Light:

• To activate, press Auto Light button located on control panel. A green indicator light above button displays to show that sensor is active.
• To deactivate, press Auto Light button. Green indicator light will go out.

NOTE: Dispenser light will operate whether or not Auto Light is selected.

Sabbath Mode (some models)

This mode is intended to deactivate power to the LED and dispenser lights, while allowing the controls to remain operational.

To activate Sabbath Mode:

- Press and hold both Dispenser Lock and Auto Light buttons simultaneously for 3 to 4 seconds. After 3 to 4 seconds, the LED and dispenser lights will turn off. Dispenser light will not activate during dispensing while in this mode.

NOTE: In the event that power is interrupted while the Sabbath Mode is active, the control will remain in Sabbath Mode when power returns.

To deactivate Sabbath Mode:

- Press and hold both Dispenser Lock and Auto Light buttons simultaneously for 3 to 4 seconds. After 3 to 4 seconds, the LED and dispenser lights will activate.

Dispenser Features

Control Features

(Electronic control)

Toolbar interface with icons for zoom, refresh, lock, and lightbulb functions

Water and Ice Dispensing (main activator)

The water and ice dispensing functions work independently of each other.

To dispense water:

- Press the

- Press water activator

To dispense ice:

- Press the

button for crescent ice.

- Press the

button for crushed ice.

Dispenser Lock

This feature prevents ice or water from being dispensed.

To lock and unlock dispenser:

• To lock dispenser, press and hold the is locked.

button for 3 seconds. A green indicator light above button confirms dispenser

• To unlock dispenser, hold the

button for 3 seconds. Green indicator light above button will go out.

Light Function

The Light function offers two setting: OFF and AUTO.

NOTE: Dispenser light will operate at full power when ice or water functions are in use.

The OFF setting allows the light to function only as a dispenser cavity light.

The AUTO setting allows the SENSOR to measure the surrounding light levels and adjust the power of the cavity light accordingly. When the sensor registers lower light levels (night time, darkened kitchen), the cavity light will respond at 50% power. When the sensor registers high light levels (lighted kitchen, direct sunlight), the cavity light will not activate.

To deactivate the AUTO setting:

button located on control panel. When the green indicator light above button display is off, the light will when dispensing ice or water.

• To activate the AUTO setting, press the

button. When the green indicator light above the button display is on, the tting.

cavity dispenser light will use the AUTO setting.

Filter Status Indicator Light

The Filter Status Indicator Light serves as a reminder to replace the water filter. A green light indicates that the filter is in good condition. A red light indicates the filter should be changed. Once light turns red, it will remain red until function is reset.

OK

To reset indicator:

- Press and hold both the

and the 📊 buttons simultaneously for 4 seconds. The green Filter Status Indicator Light function has successfully reset.

Change

What is the Automatic Lock Out feature?

The Automatic Lock Out feature shuts down power to the water and ice dispenser when either dispenser has run continuously for approximately 2 minutes. If this mode goes into effect, the green light will activate above the 🔒 button.

To unlock dispenser:

• To unlock dispenser, hold

button for 3 seconds. Green indicator light above button will go out.

Dispenser Features

Control Features continued

(Electronic control)

User interface toolbar with icons for zoom, refresh, and change controls

Temperature Keys

These keys will lower or raise the freezer or fresh food compartment temperature.

To set the fresh food temperature:

- Locate the next to the button. Use the

button to raise the temperature of the fresh food section, or the √ to lower it.

- Press the button to confirm the setting.

To set the freezer temperature:

- Repeat the above instructions with the × button next to the × button on the display.

Max Cool NOTE: The temperature setting cannot be changed if Max Cool or Max Freeze setting is active.

This function causes the fresh food temperature to drop to the Minimum Refrigerator Temperature Setting preset by the control. This setting remains in effect for approximately 10 hours.

To activate Max Cool:

- Press the 🖼 button. The green light above the button will indicate active status.

To deactivate Max Cool:

- Press the button. The green light above the button will turn off.

Max Freeze

NOTE: The temperature setting cannot be changed if Max Cool or Max Freeze setting is active.

This function causes the freezer temperature to drop to the Minimum Freezer Temperature Setting preset by the control. This setting remains in effect for approximately 24 hours.

To activate Max Freeze:

- Press the 🧑 button. The green light above the button will indicate active status.

To deactivate Max Freeze:

- Press the button. The green light above the button will go out.

Display On/Off

The Display On/Off switch controls power to the LED display.

To deactivate display:

- Press the b-10 4 The display will turn off.

To reactivate display:

- Press the b-10.4 The display will turn back on.

Vacation Mode

This key, if enabled, causes less frequent defrost cycles. This conserves energy.

To place refrigerator into Vacation Mode:

- Press the button.

To deactivate Vacation Mode:

- Press the button, or open either refrigerator door.

Alarm Off

This key is used to turn the HI TEMP Warning Indicator and audio alarm, as well as the OPEN DOOR audio alarm off.

To turn the alarm off:

- Press the button.

Dispenser Features

Hidden Control Features (Electronic Control)

Sabbath Mode

This mode is intended to deactivate power to the LED and dispenser lights, while allowing the controls to remain operational. No visual or audio alarms will be available while in this mode.

To activate Sabbath Mode:

- Press and hold both the

simultaneously for 3 seconds. After 3 seconds, the LED and dispenser lights will turn off. Dispenser light will not activate during dispensing while in

To deactivate Sabbath Mode:

- Press and hold both

and buttons simultaneously for 3

seconds. After 3 seconds, the LED and dispenser lights will activate.

this mode.

NOTE: In the event that power is interrupted while the Sabbath Mode is active, the control will remain in Sabbath Mode when power returns.

Auto Display

The AUTO Display controls the illumination of the LED display based on the light readings received from the SENSOR. In AUTO mode, if the SENSOR indicates low light levels, the display will be dimmer than if displaying during well-lit periods. In ON mode, the display will have only one illumination setting and will not change due to light levels.

To set the power level of the display:

- Press and hold both the

button and the freezer

button for 3 seconds. The current active state will show in

the display by using 0 for on, RL for auto.

- Use the refrigerator

itton to scroll through the display states.

- Activate the chosen setting by pressing the

button.

Temperature Conversion Mode

This mode is available to change the Temperature Display between Fahrenheit and Celsius.

To change temperature reading:

- Press the

and freezer

buttons simultaneously

°F

°C

for 3 seconds. Pressing the same button combination will allow the user to toggle between the two selections.

Hidden Lockout for Upper Keypad

The purpose of this mode is to prevent tampering with the upper set of dispenser controls. This includes the Display On/Off, Max Freeze, Max Cool, Vacation Mode, and Temperature Set functions.

+

-18 4

To activate Hidden Dispenser Lockout:

- Press the

and -18 mins simultaneously for

3 seconds.

To deactivate Hidden Dispenser Lockout:

- Press the

but 13 4 simultaneously

for 3 seconds.

ON/OFF Function

The ON/OFF function turns off cooling to the fresh food and freezer sections.

To turn the unit off:

- Press the freezer button until the readout registers beyond the maximum allowable freezer temperature. At this point, the LED displays: -- ----

- Press the button to confirm the selection.

WARNING

To avoid electrical shock which can cause severe personal injury or death, do not perform maintenance or service on refrigerator unless unit is unplugged.

To reactivate the unit:

- Press the freezer button.

- Press the √ button to confirm the selection.

How to Clean Your Unit

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before cleaning. After cleaning, connect power.

CAUTION

To avoid personal injury or property damage:

• Read and follow manufacturer's directions for all cleaning products.
• Do not place buckets, shelves, or accessories in dishwasher. Cracking or warping of accessories may result.
• Handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change.
• Protect soft vinyl or other flooring with cardboard, rugs, or other protective material.

Hints and Care

What cleaners are recommended for my stainless steel product?

Your manufacturer has a cleaner available for purchase (Part #31960801). Please contact your local distributor for purchase.

IMPORTANT: Damage to stainless steel finish due to improper use of cleaning products or non-recommended productions is not covered under any warranty.

General

1. Wash surfaces with a warm water and baking soda solution. Use a soft clean cloth to clean surfaces.
2. Rinse surfaces with warm water. Dry surfaces with a soft, clean cloth.

Adhesives

1. Remove glue residue by rubbing toothpaste into adhesive with fingers until adhesive loosens.
2. Rinse surface with warm water. Dry surface with a soft, clean cloth.

Door Gaskets

1. Keep gaskets clean at all times. Clean door gaskets thoroughly every 3 months according to "General" instructions.

Condenser Coils

Clean condenser coil every 3 months to ensure maximum performance of refrigerator. Accumulated dust and lint may cause the following:

• reduced cooling performance
- increased energy usage
• in extreme cases, premature compressor failure

1. Remove toe grille and bottom hinge covers as shown right.
2. Clean front surface of condenser coil with a vacuum cleaner hose nozzle.
3. Replace toe grille by inserting clips in holes and snapping in. Snap bottom hinge covers over bottom hinges.

Glass Shelves

Remove shelf by lifting front, releasing hooks from metal track then pulling out. Place shelf on a towel. Allow shelf to adjust to room temperature before cleaning.

Clean crevices by completing the following steps:

1. Dilute mild detergent and brush solution into crevices using a plastic bristle brush. Let set for 5 minutes.
2. Spray warm water into crevices using faucet spray attachment.
3. Dry shelf thoroughly and replace shelf by inserting hooks into metal track and lowering front.

How do I remove an odor from my refrigerator?

1. Remove all food and disconnect power to refrigerator.
2. Clean all interior surfaces including ceiling, floor, and walls according to "General" instructions. Pay special attention to corners, crevices, and grooves. Include all drawers, shelves, and gaskets.
3. Connect power to refrigerator and return food to refrigerator. Wash and dry all bottles, containers and jars. Wrap foods in tightly sealed containers to prevent further odor. After 24 hours, check if odor was eliminated.

Complete the following steps if odor was not eliminated.

1. Complete steps 1–2.
2. Place garden fresh crispers on top shelf of refrigerator section. Pack refrigerator and freezersections including doors with crumpled sheets of black and white newspaper.
3. Place charcoal briquettes randomly throughout newspaper.
4. Close doors and let stand 24–48 hours.
5. Remove charcoal briquettes and newspapers.
6. Complete steps 2–3.

If odor was still not eliminated, contact your local retailer for assistance.

Hints and Care

How to Get the Most Out of Your Energy Dollar

This refrigerator is designed to be one of the most energy efficient refrigerators available. Reduce energy use by observing the following.

• Operate in normal household temperatures of 16° to 43°C away from heat sources and direct sunlight.
• Set refrigerator, freezer, and Chiller Fresh™ system controls no colder than necessary.
• Keep freezer section full.
• Keep door gaskets clean and pliable. Replace gaskets if worn.
• Keep condenser coils clean.

How to Remove and Replace Light Bulbs

WARNING

To avoid electrical shock which can cause severe personal injury or death, disconnect power to refrigerator before replacing light bulb. If unable to disconnet power by unplugging power cord then remove the fuse at mains. After replacing light bulb, connect power.

CAUTION

To avoid personal injury or property damage, observe the following:

• Allow light bulb to cool.
• Wear gloves when replacing light bulb.

Upper fresh food section

1. Locate finger gaps on each side of clear light shield. Insert fingers and press in on each side of shield. Pull shield down and remove.
2. Remove light bulbs.
3. Replace with appliance bulbs, type Krypton E27, no greater than 25 watts.

4. Snap back of light cover into place.

5. Replace light bulb cover by inserting front tabs of light shield into holes in liner directly in front of light assembly.

Lower fresh food section and Non-dispensing model freezer section

1. Pinch bottom tabs (A) on light cover and pull straight out.
2. Remove light bulb.
3. Replace with appliance bulbs, type Krypton E27, no greater than 25 watts.
4. Insert top tabs (B) of light cover into refrigerator liner and snap bottom portion over light assembly.

B A

Dispensing model freezer section

1. Remove ice bin by lifting front of bin and pulling out.
2. Remove light bulb cover by pinching top tab (A) and pulling cover out of liner.
3. Replace with appliance bulbs, type Krypton E27, no greater than 25 watts.
4. Insert bottom tab (B) of light cover into liner and snap top portion over light assembly.
5. Replace ice bin by sliding in until bin locks into place.

A B

Ice 'N Water dispenser

1. Locate light bulb inside top edge of dispenser frame. Unscrew to remove.
2. Replace bulbs with a 230/240VAC bulb no greater than 12 watts. Extra light bulbs are provided in crisper due to local unavailability.

Before Calling Service

NOISE

Today's refrigerators have new features and are more energy efficient. Foam insulation is very energy efficient and has excellent insulating capabilities, however, foam insulation is not as sound absorbent. As a result, certain sounds may be unfamiliar. In time, these sounds will become familiar. Please refer to this information before calling service.

TOPIC	POSSIBLE CAUSE	SOLUTION
Clicking	Freezer control (A) clicks when starting or stopping compressor.	Normal operation
	Defrost timer (B) sounds like an electric clock and snaps in and out of defrost cycle.	Normal operation
Air rushing or whirring	Freezer fan (C) and condenser fan (D) make this noise while operating.	Normal operation
Gurgling or boiling sound	Evaporator (E) and heat exchanger (F) refrigerant makes this noise when flowing.	Normal operation
Thumping	Ice cubes from ice maker(some models) drop into ice bucket (G).	Normal operation
	Dispenser ice chute (H) closing.	Normal operation
Vibrating noise	Compressor (I) makes a pulsating sound while running.	Normal operation
	Refrigerator is not level.	See Installation Instructions for details on how to level your unit.
Buzzing	Ice maker water valve (J) hookup (some models) buzzes when ice maker fills with water.	Normal operation
Humming	Ice maker (K) is in the 'on' position without water connection.	Stop sound by raising ice maker arm to 'off' position. See Automatic Ice Maker section in your owner's manual for details.
	Ice auger (L) (some models) hums as auger agitates ice during dispensing.	Normal operation
	Compressor (I) can make a high pitched hum while operating.	Normal operation
	Solenoid valve (M) operating ice chute door.	Normal operation

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

OPERATION

Freezer control and lights are on, but compressor is not operating.	Refrigerator is in defrost mode. Normal operation Wait 40 minutes to see if refrigerator restarts.
Deli/Crisper system temperature is too warm	Control settings are too low. See section on	Deli/Crisper system to adjust controls.
	Freezer controls are set too low. See section is section in Owner's Manual on how to adjust your controls.
	Drawer is improperly positioned. See section on Deli/Crisper system to verify drawer positioning.
Refrigerator does not operate	Refrigerator is not plugged in. Plug in unit.
	Freezer control is not on. See section on controls in your Owner's Manual.
	Fuse is blown, or circuit breaker needs to be reset.	Replace any blown fuses. Check circuit breaker and reset if necessary.
	Power outage has occurred. Call local power company listing to report outage.
Refrigerator still won't operate	Unit is malfunctioning. Unplug refrigerator and transfer food to another unit. If another unit is not available, place dry ice in freezer section to preserve food. Warranty does not cover food loss. Contact service for assistance.
Fresh food temperature is too cold	Condenser coils are dirty. Clean according to cleaning instructions in your Owner's Manual.
	Refrigerator or freezer controls are set too high.	See controls section in Owner's Manual on how to adjust your controls.
	Beverage ChillerTM (some models) is improperly positioned.	See section on Temperature-Controlled Beverage ChillerTM to verify proper positioning.

TOPIC POSSIBLE CAUSE SOLUTION

Food temperature appears too w arm	Door is not closing properly.	Refrigerator is not level.See Installation Instructions for details on how to level your unit.
		Check gaskets for proper seal. Clean, if necessary, according to cleaning instructions in Owner's Manual.
		Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, ice buckets, oversized or improperly stored containers or foodstuffs, etc.).
	Controls need to be adjusted. See the controls section in your Owner's Manual for assistance in how to adjust your controls.
	Condenser coils are dirty. Clean according to cleaning instructions in your Owner's Manual.
	Rear air grille is blocked on models over 60 cm deep.	Check the positioning of food items in refrigerator to make sure grille is not blocked. Rear air grille is located behind crisper drawers.
	Door has been opened frequently, or has been opened for long periods of time.	Reduce time door is open. Organize food items efficiently to assure door is open for as short a time as possible.
		Allow interior environment to adjust for period the door has been open.
	Food has recently been added. Allow time for recently-added food to reach refrigerator or freezer temperature.
	Compartment is dirty or has odor-causing food.	Refer to odor removal instructions in Owner's Manual. Refrigerator has an odor
	Air filter (some models) needs to be changed.	Change air filter.
Water droplets form on outside of refrigerator	Check gaskets for proper seal. Clean, if necessary, according to cleaning instructions in Owner's Manual.
	Humidity levels are high. Normal during times of high humidity.
	Controls require adjustment. See the controls section in your Owner's Manual for assistance in how to adjust your controls.
Water droplets form on inside of refrigerator	Humidity levels are high or door has been opened frequently.	See the controls section in your Owner's Manual for assistance in how to adjust your controls.
	Check gaskets for proper seal.	Reduce time door is open. Organize food items efficiently to assure door is open for as short a time as possible.
		Clean, if necessary, according to cleaning instructions in Owner's Manual.
Refrigerator or ice maker make unfamiliar sounds or seems too loud	Normal operation Refer to "Noise" section of Before Calling Service in your Owner's Manual.
Deli/Crisper System and/or crisper drawers do not close freely	Contents of drawer, or positioning of items in the surrounding compartment could be obstructing drawer	Reposition food items and containers to avoid interference with the drawers.
	Drawer is not in proper position. See section on Deli/Crisper System and/or crisper drawer section for proper placement.
	Refrigerator is not level.	See Installation Instructions for details on how to level your unit.
	Drawer channels are dirty or need treatment.	Clean drawer channels with warm, soapy water. Rinse and dry thoroughly.
		Apply a thin layer of petroleum jelly to drawer channels.
Refrigerator runs too frequently	Doors have been opened frequently or have been opened for long periods of time.	Reduce time door is open. Organize food items efficiently to assure door is open for as short a time as possible.
		Allow interior environment to adjust for period the door has been open.
	Humidity or heat in surrounding area is high.	Normal operation
	Food has recently been added.	Allow time for recently-added food to reach refrigerator or freezer temperature.
	Unit is exposed to heat by environment or by appliances nearby.	Evaluate your unit's environment. Unit may need to be moved to run more efficiently.
	Condenser coils are dirty.	Clean according to cleaning instructions in your Owner's Manual.

TOPIC POSSIBLE CAUSE SOLUTION

Refrigerator runs too frequently (continued)	Controls need to be adjusted.	See the controls section in your Owner's Manual for assistance in how to adjust your controls.
	Door is not closing properly	Refrigerator is not level. See Installation Instructions for details on how to level your unit
		Check for internal obstructions that are keeping door from closing properly (i.e. improperly closed drawers, ice buckets, oversized or improperly stored containers or foodstuffs, etc.).
		Check gaskets for proper seal. Clean, if necessary, according to cleaning instructions in Owner's Manual.

ICE & WATER

Water appears cloudy	Air or air bubbles in water. This is normal when	first using dispenser and will disappear with use.
Particles in water and/or ice cubes.	Carbon dust from water filter cartridge. Initial water ejected through cartridge may contain harmless carbon dust flushed from cartridge. Particles are safe for consumption. Will disappear after the first few uses.
	Concentrations of minerals in water will form particles when water becomes frozen and melts.	Particles are not harmful and naturally occur in water supplies.
No indicator lights are lit on dispenser control (some models)	Freezer door is not closed.	Verify that freezer door is closed. Power is removed from the control when freezer door is opened.
	Refrigerator is not plugged in. Plug in unit.
	Fuse is blown, or circuit breaker needs to be reset.	Replace any blown fuses. Check circuit breakers for any tripped circuits.
	Power outage has occurred. Call local power company listing to report outage.
Neither ice nor water is dispensed when pads are pushed (some models)	Freezer door is not closed. Verify that freezer door is closed. Power is removed from the control when freezer door is opened.
	Controls are in lock mode.	See Dispenser control instructions.
	Water tank is filling.	At initial use, there is an approximate 45-second delay in dispensing while the internal water tank is filling.
	Ice maker or ice maker-equipped unit has just recently been installed or a large amount of ice has just been used.	Wait 24 hours for ice production to begin and for ice maker to restock after emptied.
	Water filter is clogged or needs to be changed.	Change water filter.
Ice maker is not producing enough ice or ice is malformed (some models)	Ice maker has just recently been installed or a large amount of ice has just been used.	Wait 24 hours for ice production to begin and for ice maker to restock after emptied.
	Water pressure is too low.	Low water pressure can cause valve to leak. Water pressure must be between 20 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for units with water filters.
	Water filter is clogged or needs to be changed.	Change water filter.
Ice maker is not producing ice (some models)	Ice maker arm is not in correct position	Confirm ice maker arm is down. See Automatic Ice Maker section in your Owner's Manual for details.
	Household water supply is not reaching water valve	Check water connection procedure in your Installation Instructions.
	Water supply tubing has kinks.	Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	Water pressure is too low.	Water pressure must be between 20 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for units with water filters.
	Check freezer temperature.	See the controls section in your Owner's Manual for assistance on how to adjust your controls. Freezer must be between 0 to 2°F (-18 to -17°C) to produce ice.
	Ice bin is not installed properly	See ice bin section for proper installation and alignment.

Before Calling Service

ICE & WATER

TOPIC	POSSIBLE	CAUSE	SOLUTION
Ice maker is not producing ice (some models-continued)	Improper water valve was installed. Check water connection procedure in your Installation Instructions. Self-piercing and ^3/_16 " saddle valves cause low water pressure and may clog the line over time. The manufacturer is not responsible for property damage due to improper installation or water connection.
Unit is leaking water	Plastic tubing was used to complete water connection.	The manufacturer recommends using copper tubing for installation. Plastic is less durable and can cause leakage. The manufacturer is not responsible for property damage due to improper installation or water connection.
	Improper water valve was installed. Check water connection procedure in your Installation Instructions. Self-piercing and ^3/_16 " saddle valves cause low water pressure and may clog the line over time. The manufacturer is not responsible for property damage due to improper installation or water connection.
Ice forms in inlet tube to ice maker	Water pressure is low. Water pressure must be between 20 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for units with water filters.
	Freezer temperature is too high.	See the controls section in your Owner's Manual for assistance on how to adjust your controls. Freezer is recommended to be between 0 to 2°C (-18 to -17°C).
Water flow is slower than normal	Water pressure is low. Water pressure must be between 20 to 100 pounds per square inch to function properly. A minimum pressure of 35 pounds per square inch is recommended for units with water filters.
	Improper water valve was installed. Check water connection procedure in your Installation Instructions. Self-piercing and ^3/_16 " saddle valves cause low water pressure and may clog the line over time. The manufacturer is not responsible for property damage due to improper installation or water connection.
	Water inlet tubing has kinks.	Turn off water supply and remove kinks. If kinks cannot be removed, replace tubing.
	Water filter is clogged or needs to be changed.	Change water filter.
Dispenser water is not cold	Refrigerator has been recently installed	Allow approximately 12 hours for water in holding tank to chill.
	Water supply in holding tank has been depleted.
	Water has settle into water lines outside holding tank and has warmed to room temperature.	Discard first glass of water and refill.

System Specification and Performance Data Sheet Refrigerator Water Filter Cartridge Model OWF-51

Specifications

Service Flow Rate (Maximum) 0.75 GPM (2.83 L/min)

Rated Service Life OWF-51-NI300 (Maximum) 300 gallons/ 1135 liters

Rated Service Life OWF-51-WI500 (Maximum) 500 gallons/ 1892 liters

Maximum Operating Temperature 100°F/38°C

Minimum Pressure Requirement 35 psi/138 kPa

Minimum Operating Temperature 33°F/1°C

Maximum Operating Pressure 120 psi/ 827 kPa

General Use Conditions: Read this Performance Data Sheet and compare the capabilities of this unit with your actual water treatment needs.

DO NOT use this product where water is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. System certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

The retractable water filtration system uses a OWF-51 replacement cartridge (see your distributor to order). Timely replacement of filter cartridge is essential for performance satisfaction from this filtration system. Please refer to the applicable section in this Owner's Manual for general operation, maintenance requirements and troubleshooting.

This systems has been tested according to ANSI/NSF 42 and 53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in ANSI/NSF 42 and 53.

Performance Data*

Substance	Influent challenge concentration	Effluent Average	Average % Reduction	Maximum Effluent	Min. Required Reduction	Inlet pH
Lead	0.15 mg/L +/- 10%	0.001 mg/L	99.33%	0.001 mg/L	0.010 mg/L	6.5
Lead	0.15 mg/L +/- 10%	0.002 mg/L	98.66%	0.003 mg/L	0.010 mg/L	8.5
Cyst	Minimum 50,000/L	1 count/mL	99.99%	3 count/mL	>99.95%	NA
Turbidity	11 +/- 1 NTU	0.12 NTU	98.98%	0.18 NTU	0.5 NTU	NA
Lindane	0.002 mg/L +/- 10%	0.00005 mg/L	97.62%	0.00005 mg/L	0.00002 mg/L	NA
Atrazine	0.009 mg/L +/- 10%	0.0002 mg/L	97.93%	0.0006 mg/L	0.003 mg/L	NA
Chlorine	2.0 mg/L +/- 10%	0.09 mg/L	95.26%	0.17 mg/L	≥75%	NA
Particulate**	at least 10,000 particles/mL	900 count/mL	99.68%	2400 count/mL	≥85%	NA
2,4-D	0.210 mg/L +/- 10%	45.45 ug/L	84.42%	100 ug/L	0.0017 mg/L	NA
Asbestos	10 to 10 ^b fibers/L; fibers greater than 10 micometers in length	0.16 MFL/mL	99.96%	0.16 MFL/mL	99%	NA

* Tested using a flow rate of 0.75 GPM (2.83 L/min.) and a maximum pressure of 120 psi (827 kPa) under standard laboratory conditions, however, actual performance may vary. Health Claim Performance tested and certified by NSF International
** Particle size range classification of test. Particles used were 0.5 –1 microns.

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Tested and Certified by NSF International against ANSI/NSF Standards 42 & 53 in models OWF50-W1500 and OWF50-N1300 for the reduction of:

Standard No. 42: Authentic Effects

Taste & Odor Reduction

Chlorine Reduction Class 1

Mechanical Filtration Unit

Particlate Reduction Class 1

Standard No. 53: Health Effects

Chemical Reduction Unit

Lead, Atrazine, Lindane & 2,4-D Reduction

Mechanical Filtration Unit

Cyst, Turbidity, & Asbestos Reduction

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

Pure technical diagram of a structural beam with supports and arrows indicating direction (no text or symbols)

Pure mechanical assembly diagram showing two vertical plates connected by a bracket (no text or symbols)

Technical line drawing of a mechanical support structure with no visible text or symbols

Spillsaver™

Pure mechanical assembly diagram showing a bracket with mounting holes and a triangular component (no text or symbols)

Technical line drawing of a mechanical assembly with a curved component and an arrow indicating direction (no text or symbols)

Simple line drawing of a window with directional arrows indicating movement (no text or symbols)

Technical line drawing of two stacked containers with a vertical arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing the door and drawer with a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Speiseeisregal

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Simple line drawing of a device with arrows pointing to a circular opening (no text or symbols)

Simple line drawing of a mechanical component or device with no visible text, numbers, or symbols.

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Toolbar interface with icons for zoom, lock, refresh, and change functions

Temperaturtasten

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

BETRIEB

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

Line drawing of a refrigerator with open door and shelf arrangement (no text or symbols)

Simple line drawing of a container with two vertical tubes and arrows indicating flow or movement (no text or symbols)

Pure architectural or structural diagram showing beams and supports without any text, numbers, or symbols

Pure mechanical assembly diagram showing two connected components with vertical supports (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Pure technical diagram of a structural frame with vertical supports and a downward arrow indicating force or direction (no text or symbols)

Pure mechanical assembly diagram showing a bracket with mounting holes and a triangular component (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting holes (no text or symbols)

Two-panel diagram showing mechanical or structural changes with arrows indicating direction (no text or symbols)

Simple line drawing of a window with arrows indicating direction (no text or symbols)

Technical diagram showing mechanical components with labeled parts A and B, likely illustrating a gear or cam mechanism.

Technical line drawing of two stacked containers with a directional arrow indicating movement (no text or symbols)

Diagram of a refrigerator interior showing the door and drawer with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a black arrow indicating direction (no text or symbols)

Diagram of a shopping cart with arrows indicating direction (no text or symbols)

Simple line drawing of a container with an arrow pointing to the lid and a small inset showing a flame or smoke (no text or symbols)

Simple line drawing of a mechanical component or bracket with no visible text or symbols

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

OK Change

Toolbar interface with icons for zoom, lock, refresh, and lightbulb functions

PROBLÈME CAUSE POSSIBLE SOLUTION

aples vende. K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled parts A, B, and C

FUNCTIONNEMENT

PROBLÈME CAUSE POSSIBLE SOLUTION

PROBLÈME CAUSE POSSIBLE SOLUTION

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and storage areas, highlighting internal structure and component annotations.

Line drawing of a refrigerator with doors open, showing shelves and storage (no text or symbols)

Diagram showing a container with two vertical tubes and bidirectional arrows indicating flow or movement, likely illustrating fluid or pressure measurement.

Technical diagram of a structural beam with support beams and load arrows (no text or symbols)

Pure mechanical assembly diagram showing two vertical plates connected by a bracket (no text or symbols)

Para extraer e instalar la bandeja:

Technical line drawing of a structural frame with vertical supports and a downward arrow indicating force or direction (no text or symbols)

Pure mechanical assembly diagram showing a bracket with mounting holes and a triangular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Two-panel diagram showing mechanical or structural changes with curved arrows indicating motion (no text or symbols)

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with two stacked containers and a vertical guide bar (no text or symbols)

Diagram of a refrigerator interior with a double-headed arrow indicating airflow or movement (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

Simple line drawing of a device with a circular top and arrow indicating rotation (no text or symbols)

Diagram of a multi-level shopping cart with arrows indicating flow or movement (no text or symbols)

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Diagram of a mechanical device with a textured component and curved components (no text or symbols)

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

-10 OK Change

-10 OK Change

Para activar Vacation Mode:

- Pulse el botón .

Para deactivate Vacation Mode:

Hidden Lockout for Upper Keypad

Para activar Hidden Dispenser Lockout:

al brante D E I F J K G L H M

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

FUNCIONAMIENTO

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota,

Estados Unidos

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

1. Temp Assure ^® temperaturkontroller
2. Spill Saver ™-hylla
3. Spill Saver TM Easy GlideTM-hylla
4. Side Glide ™-hyllor - visas ej
5. Bakre förlängning av hylla
6. Deli/Crisper-låda
7. Crisper-låda
8. Beverage Organizer TM
9. Mejerifacket
10. Dörrskålar
    10a. Skålhållare - visas ej
11. Tippbar dörrskål
12. Beverage Chiller TM
    12a. Mini-Beverage Chiller ^TM
13. Isfack
14. Ismaskin - visas ej
15. Glashylla
16. Stor-Mor TM-systemet
17. Hängande trådhylla - visas ej
18. Fast fryshylla
19. Vattenfilter - visas ej
20. Luftfilter - visas ej
21. Lampor - visas ej

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Installera Ditt kylskåp

Diagram showing a test tube with two arrows indicating direction, likely illustrating fluid or measurement setup.

Pure technical diagram of a structural beam with supports and arrows indicating direction (no text or symbols)

Technical line drawing of a structural frame with vertical supports and a downward arrow indicating force or direction (no text or symbols)

Pure mechanical diagram showing a bracket with arrows and a vertical rail, without any text or symbols

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Tippbar dörrskål (vissa modeller)

Technical diagram showing mechanical components with labeled parts A and B, likely illustrating a gear or cutting process.

Technical line drawing of a mechanical component with two cylindrical parts and a vertical arrow indicating direction (no text or symbols)

Kylfunktioner

Lådor

Deli/Crisper-låda klimatkontrollerad

Diagram of a refrigerator interior showing the door and drawer with a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Förvaring i dörren

Dörrskålar

Simple line drawing of a device with an arrow pointing to the top view (no text or symbols)

Simple line drawing of a mechanical component or device with no visible text, numbers, or symbols.

Vattenautomaten

FÖRSIKTIGT

Simple line drawing of a container with an arrow pointing to the lid (no text or symbols)

Control panel interface with icons for settings, buttons, and display options including OK/Change buttons

-18 OK Change

Temperaturknappar

Technical diagram of a refrigerator with labeled parts and airflow direction, including front and side views.

FUNKTION

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota

U.S.A.

EPA EST nr 35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

Line drawing of a refrigerator with doors open and shelves stacked on top (no text or symbols)

Asennusohjeet

Diagram showing two vertical tubes with arrows indicating direction, likely illustrating a physical or chemical process.

Pure mechanical assembly diagram showing beams and supports without any text, numbers, or symbols

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Spillsaver™ Easy Glide™ (joissakin malleissa)

Diagram of a structural frame with vertical supports and a downward arrow indicating force or direction (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

Diagram of a refrigerator interior showing the door and drawer with a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a device with an arrow pointing to the interior (no text or symbols)

Simple line drawing of a mechanical component or device with no visible text, numbers, or symbols.

Simple line drawing of a device with an arrow pointing to a circular opening (no text or symbols)

OK Change

Control panel interface with icons for settings, buttons, and function labels like OK, Change, and directional arrows

Lämpötilapainikkeet

Sabbath Mode (Sapattitila)

ISU K G L H M vä D E F I J A B C

TOIMINTA

Pentapure, Incorporated 1000 Apollo Road Eagan, Minnesota U.S.A. EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

Line drawing of a refrigerator with doors open and shelves stacked vertically (no text or symbols)

Diagram showing two test tubes with arrows indicating measurement directions, likely illustrating a physical or chemical setup.

Technical diagram of a structural support frame with diagonal braces and vertical supports (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Spillsaver™ Easy Glide™ (sommige modellen)

en en

Pure mechanical diagram showing a bracket with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and housing (no text or symbols)

Uitneembare deurbakken (sommige modellen)

Diagram of a mechanical or fluidic device with directional arrows indicating flow or movement (no text or symbols)

A B

Diagram of a refrigerator interior with a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Deurvakken

Deurbakken

Simple line drawing of a device with an arrow pointing to the interior (no text or symbols)

Line drawing of a mechanical component with a textured base and curved arm (no text or symbols)

Bediening van de waterdispenser

OPGELET

Simple line drawing of a container with an arrow pointing to a circular opening (no text or symbols)

Diagram illustrating a biological or chemical process with labeled components and directional arrows, possibly indicating steps or states.

Dispenser Lock

(Dispenservergrendeling)

OK Change

Dispenser Lock (Dispenservergrendeling)

Control panel interface with labeled icons for display, function buttons, and battery symbols

Temperatuurtoetsen

Ice 'N Water-dispenser

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

WERKING

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts

Line drawing of a refrigerator with open door and shelves (no text or symbols)

Installazione

Pure mechanical assembly diagram showing beams and supports without any text, numbers, or symbols

Pure mechanical assembly diagram showing two vertical plates connected by a central bracket (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Diagram of a structural frame with vertical supports and a downward arrow indicating force or direction (no text or symbols)

Pure mechanical diagram showing a bracket with a triangular load and connecting rods (no text or symbols)

Technical line drawing of a mechanical assembly with a curved component and an arrow indicating direction (no text or symbols)

Simple line drawing of a cabinet with arrows indicating direction (no text or symbols)

Technical line drawing of two stacked containers with a vertical support and arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with a black arrow indicating a drop or movement (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a device with a circular top and arrow indicating rotation (no text or symbols)

Simple line drawing of a camera with an arrow indicating direction (no text or symbols)

Ripiano per gelati

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating flow or movement.

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

OK Change

Toolbar interface with icons for zoom, lock, refresh, and change functions

Tasti temperatura

I bilbrazlone D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

FUNZIONAMENTO

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota, USA

EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

1. Temp Assure ^® -kontroller
2. Spill Saver™-hylle
3. Spill Saver™ Easy Glide™-hylle
4. Slide Glide™-hyller - ikke vist
5. Hylleforlenger bak
6. Påleggs-/grønnsaksskuff
7. Grønnsaksskuff
8. Beverage Organizer™
9. Meierivaresenter
10. Dørspann
    10a. Spanngriper - ikke vist
11. Vippespann
12. Beverage Chiller™
    12a. Mini-Beverage Chiller™
13. Isbeholder
14. Ismaskin - ikke vist
15. Iskremhylle
16. Stor-Mor ^® -system
17. Hengende trådhylle - ikke vist
18. Fastsittende fryserhylle
19. Vannfilter - ikke vist
20. Luftfilter - ikke vist
21. Lys - ikke vist
    Kjøleskap - øvre del
    Kjøleskap - nedre del
    Fryser
    Dispenser

Diagram showing two test tubes with arrows indicating measurement or flow direction, likely illustrating a physics or engineering concept.

Technical diagram of a structural beam with supports and load arrows (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating motion direction (no text or symbols)

Spillsaver™ Easy Glide™ (noen modeller)

Pure mechanical diagram showing a bracket with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Vippespann

(noen modeller)

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

Technical diagram showing mechanical components with labeled parts A and B, likely illustrating a gear or cam mechanism.

Technical line drawing of two container compartments with a vertical support structure (no text or symbols)

Diagram of a refrigerator interior with a double-headed arrow indicating rotation (no text or symbols)

Beverage Organizer™ (noen modeller)

Beverage Organizer™ glir ut fra under Spillsaver™ Easy Glide™-hyllen. Den kan holde opp til 12 brusbokser.

denl opp, lesporet.

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Iskremhylle

Diagram of a shopping cart with arrows indicating direction (no text or symbols)

Døroppbevaring

Dørspann

Simple line drawing of a device with arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component or device with no visible text, numbers, or symbols.

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Dispenserfunksjoner

Kontrollfunksjoner

(5-knappskontroll)

Amana FILTER DISPENSAR LOCK WATER CRUSHED CURS AUTO LIGHT LIGHT LAVELAR FILTERED WATER

Dispenser Lock (Dispenserlås)

-10 OK Change

Toolbar interface with icons for zoom, refresh, and change functions

Temperaturtaster

Max Freeze (maks frying)

Denne funksjonen skrur temperaturen i fryseren ned til minimum frysertemperatur. Innstillingen forblir aktiv i cirka 24 timer.

For å aktivere Max Freeze (maks frying):

- Trykk på knappen. Det grønne lyset over knappen indikerer aktiv status.

MERK: Temperaturen kan ikke endres dersom Max Cool (maks kjøling) eller Max Freeze (maks frying) er aktiv.

For å deaktivere Max Freeze (maks frying):

- Trykk på knappen. Det grønne lyset over knappen slukkes.

Display på/av

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

DRIFT

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal storage layout.

Line drawing of a refrigerator with open door and shelves (no text or symbols)

Diagram showing two test tubes with arrows indicating measurement or flow direction, likely illustrating a fluid or filtration setup.

Technical diagram of a structural beam with supports and load arrows (no text or symbols)

ar den at

er. mvendt er.

Simple line drawing of a window with directional arrows indicating movement (no text or symbols)

Technical diagram showing mechanical components with labeled parts A and B, likely illustrating a gear or cam mechanism.

Technical line drawing of a mechanical component with two views and a directional arrow (no text or symbols)

Køleskabsfunktioner

Skuffer

Charcuteri/grøntsagsskuffe

med klimakontrol

Diagram of a refrigerator interior showing the door and drawer with a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with internal channels (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Ispindehylde

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Opbevaringsrum i døren

Dørspande

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Simple line drawing of a hand pressing down on a curved surface with a textured base (no text or symbols)

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Sådan bruges dispenserpuden:

Diagram illustrating a crown and crown with an arrow pointing to the center of the crown, likely illustrating a concept such as 'crown' or 'candle'.

Dispenser Lock (Dispenserlås)

Denne funktion forhindrer, at der serveres vand.

-10 OK Change

Vand- og isdispenser (hovedaktivator)

Dispenser Lock (Dispenserlås)

OK Change

Temperaturtaster

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

BETJENING

Pentapure, Incorporated 1000 Apollo Road

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and storage areas.

Line drawing of a refrigerator with doors open and shelves stacked on top (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

OKO- OWS OU- CS

Technical line drawing of a mechanical assembly with two stacked containers and a directional arrow (no text or symbols)

Diagram of a refrigerator with a downward arrow indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a black arrow indicating direction (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Simple line drawing of a device with an arrow pointing to the interior (no text or symbols)

Simple line drawing of a hand pressing down on a curved surface with a textured base (no text or symbols)

Simple line drawing of a container with an arrow pointing to the interior (no text or symbols)

Diagram illustrating a procedure with crown and mouthpiece, showing two circular insets labeled with icons.

Toolbar interface with icons for zoom, lock, refresh, and change functions

Toolbar interface with icons for zoom, lock, refresh, and change functions

Diagram of two identical mechanical components labeled A and B, with a central rectangular component (no text or symbols beyond labels)

Diagram of a refrigerator with labeled parts and a circular arrow indicating rotation or movement around the door.

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

ΛΕΙΤΟΥΡΓΙΑ

Pentapure, Incorporated

1000 Apollo Road

Eagan, Minnesota U.S.A.

EPA EST #35917-MN-1

Diagram of a refrigerator interior with numbered compartments and labeled parts, showing front and back views.

Line drawing of a refrigerator with open door and shelves (no text or symbols)

Diagram showing two test tubes with arrows indicating measurement directions, likely illustrating a physical or chemical setup.

Pure mechanical assembly diagram showing structural beams and supports without any text or symbols

Para deslizar as prateleiras:

Pure mechanical diagram showing a bracket with a triangular load and connecting rods (no text or symbols)

Technical line drawing of a mechanical assembly with a curved component and an arrow indicating direction (no text or symbols)

Simple line drawing of a cabinet or enclosure with directional arrows indicating movement (no text or symbols)

Diagram of two container compartments with a directional arrow indicating movement or force (no text or symbols)

Para retirar e instalar as gavetas:

Diagram of a refrigerator interior showing a double door with a black arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a device with a circular component and an arrow indicating rotation (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Diagram of a multi-level shopping cart with arrows indicating direction (no text or symbols)

Arrumação na porta

Caixas da porta

(los) e ra

Line drawing of a mechanical component with curved lines and a textured base (no text or symbols)

Tabuleiro amovível

Simple line drawing of a container with a lid and arrow pointing to the interior (no text or symbols)

Diagram illustrating a chemical reaction or process with labeled components and directional arrows

Dispenser Lock

-10 c OK Change

K G L H M D E F I J

Technical diagram of a refrigerator interior with labeled compartments A, B, and C

FUNCIONAMENTO

Pentapure, Incorporated

1000 Apollo Road

Technical diagram of a refrigerator with numbered compartments and labeled parts, showing internal structure and assembly.

Line drawing of a refrigerator with shelves and doors (no text or symbols)

Technical diagram of a structural beam with supports and load arrows (no text or symbols)

Diagram of two mechanical components with directional arrows indicating motion (no text or symbols)

SpillsaverSpEasyeGlide ^T Easy Glide (bazi modeller)(bazi modeller)

Diagram of a structural frame with vertical supports and a black arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a bracket with a diagonal arrow and vertical railings (no text or symbols)

Technical line drawing of a mechanical assembly with a bracket and mounting base (no text or symbols)

Simple line drawing of a window with arrows indicating direction (no text or symbols)

TM A B

Technical line drawing of two container compartments with a vertical arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing the door and drawer with arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a directional arrow (no text or symbols)

Simple line drawing of a device with a circular top and arrow indicating rotation (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Dondurma Rafi Dondurma Rafi

Diagram of a multi-level shopping cart with directional arrows indicating movement (no text or symbols)

Simple line drawing of a curved surface with a textured base and curved top, no text or symbols present.

Simple line drawing of a container with an arrow pointing to the lid (no text or symbols)

Dispenser Lock (Sebll Killtlenmesl) Dispenser Lock

-28 A OK Change

Control panel interface with icons for settings, buttons, and function labels like OK, Change, and directional arrows

Buz ve Su Sebili

Technical diagram of a refrigerator with labeled parts and airflow direction, including front and side views.

ÇALIPMA

Kurşun, Atrazin, Lindan ve 2,4-D Azaltma

Mekanik Filtre Birimi
