Product Type	Steam station with iron and steam gun
Brand	Bosch
Model	Sensixx B25L professional TDS2555
Nominal Power	2400 W
Supply Voltage	220-240 V ~ 50/60 Hz
Water Tank Capacity	Approximately 1.5 L (removable)
Maximum Steam Pressure	Up to 6.5 bar (indicated by pressure gauge)
Variable Steam Flow	Yes, adjustable by wheel
Ironing Functions	Steam ironing, dry ironing, vertical steam, steam gun
Included Accessories	Steam gun, concentrator, brush, diffuser, fabric cleaner, comb brush, funnel, fabric protection cover
Indicator Lights	Steam ready, water empty, Calc'n clean, iron heating
Auto Shut-off	Not mentioned, but turn off after use
Maintenance	Boiler cleaning Calc'n clean every 50 hours, soleplate cleanable with damp cloth
Safety	Overheat protection, thermal fuse, plug with mandatory grounding
Spare Parts	Textile protection soleplate available from after-sales service (ref. 464846 TDZ2510)
Repairability	Repair only by authorized center, replaceable power cord
Dimensions (approx.)	Base: 30 x 30 x 25 cm, iron: 20 x 12 x 15 cm
Weight (approx.)	Approximately 5 kg
General Information	Household use only, tap water recommended, mix with distilled water if water is hard

Frequently Asked Questions - Sensixx B25L professional TDS2555 BOSCH

What type of water to use?

Use tap water. To extend the life, mix equal parts with distilled water (1:1). If the water is very hard, mix 1 part tap water with 2 parts distilled water (1:2). Never use perfume, vinegar, or descaling products.

How to descale the steam station?

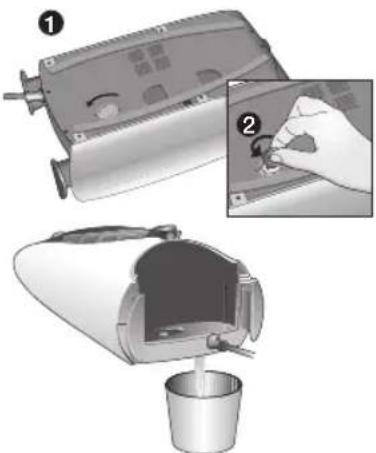

When the Calc'n clean light (9) comes on (every 50 hours), let the appliance cool for 2 hours, empty the tank, place the appliance over the sink, remove the drain plug at the bottom, pour 1/4 L of water into the boiler, shake and empty. Repeat twice. Screw the plug back on and reset the light by turning the station off twice (30 seconds minimum each time).

Why does water come out of the soleplate?

This can happen if the temperature is not high enough for steam or if condensation has formed in the hoses. If ironing at a low temperature, reduce the steam flow. To remove condensation, place the iron away from the laundry and press the steam button until steam is produced.

How to use the steam gun?

Unplug the iron, lift the cover, and insert the plug of the steam gun. Turn on the station and set the temperature to max. Use the gun in intervals of 10 seconds maximum. Never direct steam toward people or animals.

What to do if the iron does not heat up?

Check that the main switch (8) is in position I and that the temperature button (15) is not on min. Make sure the plug is properly inserted and that the fuse has not blown.

How to store the appliance after use?

Let the iron cool down. Set the switches to Off/Stop and unplug. Place the iron horizontally on the support. Empty the water tank. Wind the cord on the cord winder and fasten the steam hose with the clip.

Why is the soleplate stained or leaving marks?

Mineral deposits or too high temperature can dirty the soleplate. Clean it with a damp cloth after cooling. Use a mixture of distilled water to reduce deposits. Avoid using chemical products.

What is the 'Intelligent Steam' function?

After releasing the steam button, a small amount of additional steam is released for better results. You can stop it by pressing the button again briefly.

How to use the textile protection soleplate?

Place the tip of the iron into the end of the protector and pull the elastic band over the heel of the iron until it fits snugly. Use it for steam ironing at maximum temperature without damaging delicate fabrics.

What does the red 'Water tank empty' light mean?

The water tank is empty. You can refill it at any time without turning off the station. Remove the detachable tank, fill it without exceeding the max level, then replace it on the base.

USER MANUAL Sensixx B25L professional TDS2555 BOSCH

Black-and-white photo of a steam iron and a small steaming appliance (no visible text or symbols)

Line drawing of a vintage rotary telephone (no text or symbols)

Line drawing of a helicopter with a pilot figure beside it (no text or symbols)

Sensixx B25L professional / TDS25..

Technical diagram of a portable air conditioner with numbered parts labeled for identification.

31 30 BOSCH 29 22 20 19 21 23 24 28 7 25 26 27 2 1

A

Three-step illustration of a kitchen appliance with a brush and cleaning tool, showing step-by-step assembly (no text or symbols)

B

Illustration of two iron steamers, one with a handle and label '17', showing internal structure (no text or symbols beyond labels)

C

Two identical illustrations of a steam iron in a black jacket, each with a label indicating the number 17 (no text or symbols on the iron itself)

D

Two views of a portable electronic device with labeled parts (14), no visible text or symbols beyond labels

E

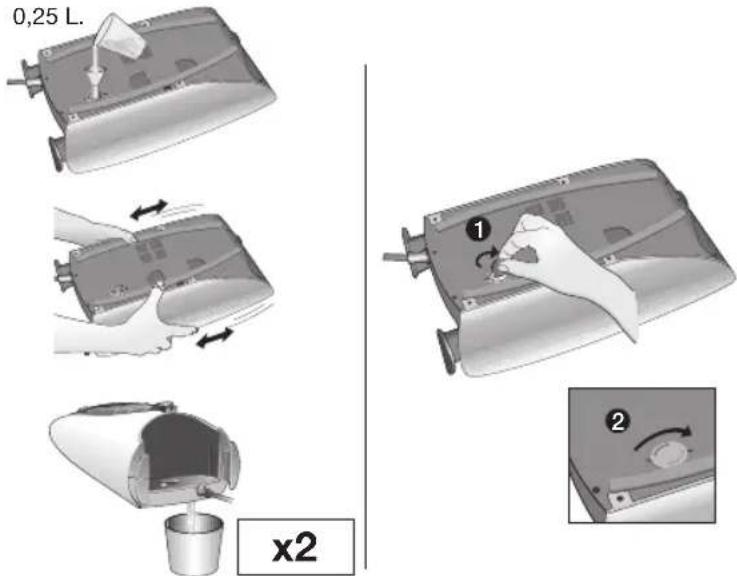

0,25 L. x2 ① ②

Illustration of a kitchen appliance with a hand inserting a small object into it, showing internal components and a base (no text or symbols)

F

Illustration of hands ironing a vintage-style iron with a curved arrow indicating motion (no text or symbols)

Illustration of a hand using a power iron to press iron, showing the iron being inserted (no text or symbols present)

Illustration of a steam iron with a handle and spout (no text or symbols)

Thank you for buying the sensixx B25L professional steam station, the new steam-ironing system from Bosch.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

Introduction

These instructions for use contain valuable information about the unique features of this system and some hints to make ironing easier for you.

This powerful system produces non-stop steam for an ideal ironing performance. It has a large detachable water tank that can be refilled at any time without switching off the system.

We hope that you enjoy ironing with this steam station.

Important

Open out the first page of the booklet, this will help you to understand how the appliance works.

This appliance complies with international safety standards.

This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.

This appliance must only be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.

General safety instructions

• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• The iron should not be used if it has been dropped, if there are visible signs of damage or if it is leaking water. It must be checked by an authorized Technical Service Centre before it can be used again.
• If the safety fuse fitted in the appliance blows, the appliance will be rendered inoperative. To restore normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• In order to avoid that, under unfavourable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0.2Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.

• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
• The appliance must never be placed directly under the tap to fill the water tank.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which the stand is placed is stable.
• The iron must not be left unattended while it is connected to the supply mains.
• Unplug the appliance from the mains supply after each use, or if a fault is suspected.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the iron or steam tank in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).
• With the aim of avoiding dangerous situations, any work or repair that the appliance may need, e.g. replacing a faulty mains cable, must only be carried out by qualified personnel from an Authorised Technical Service Centre.

Important :

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns in case of improper use.
• The steam hose, base station and in particular the iron can get hot when used.
• Never aim the steam at people or animals.
• Do not allow the power cable to come into contact with the soleplate when it is hot.
• Be aware that the system can keep on steaming a short additional time after releasing the steam trigger. This is a normal function.

Description

1. Removable water tank
2. Removable iron pad
3. "Steam ready" pilot light
4. Illuminated button for steam generation
5. Variable steam control
6. Pressure gauge
7. Steam hose
8. Illuminated main power "I/O" button
9. "Calcín clean" pilot light
10. "Water empty" pilot light
11. Housing with internal steam generator
12. Mains plug
13. Mains cable with storage facility
14. Cord clip
15. Temperature dial
16. Iron pilot light
17. Steam release button

en

1. Soleplate
2. Steam gun
3. Steam release button
4. Steam concentrator
5. Brush extension
6. Diffuser extension
7. Fabric cleanser extension
8. Comb brush extension
9. Funnel
10. Cloth protection sole cover
11. Connection plug
12. Accessories box
13. Slot position for connection
14. Protection cap

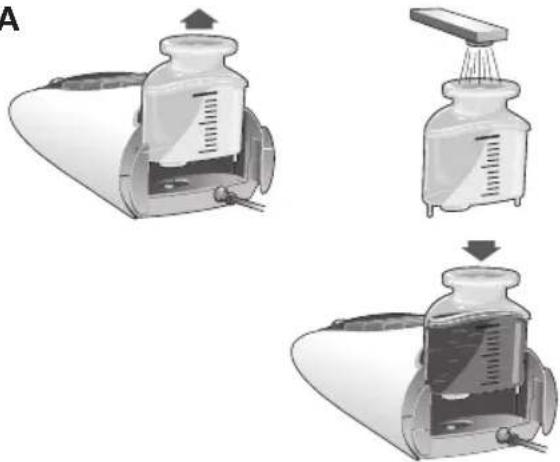

Preparations (A)

1. Remove any label or protective covering from the soleplate.
2. Place the appliance horizontally on a solid, stable surface. You may remove the iron pad from the appliance and place the iron on it on another solid, stable, horizontal surface.
3. Remove the detachable water tank and fill it, making sure not to pass the level mark.
4. Fit the water tank back onto the steam tank.
5. Unwind the mains cable fully and plug it into an earthed socket.
6. Set the boiler button (4) and main power button (8) switches to the "Start/I" position.
7. The "Steam ready" indicator lamp (3) will light up after several minutes, indicating that the appliance is ready to use.

The steam generator will take more time to reach "Steam ready" state only upon the initial heating up, or after performing the de-scaling operation (Calc'n clean).

When water is already present in the steam generator during regular use, heat up time to reach the operating temperature will be faster.

1. This appliance has a built-in water level sensor. The red "refill water tank" indicator (10) will light when the water tank is empty.

Important:

• Normal tap water can be used.

To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

You can inquire about the water hardness with your local water supplier.

• The water tank can be filled at any time while using the appliance.
• To avoid damage and/or contamination of the water tank and the boiler, do not put perfume, vinegar, starch, descaling agents, additives or any other type of chemical product into the water tank.

Any damage caused by the use of the aforementioned products, will make the guarantee void.

• The iron is not designed to rest on its heal. Please always position it horizontally on the iron pad (2).
• The iron pad can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!.

• During it first use the iron may produce certain vapours and odours, along with white particles on the soleplate, this is normal and it will stop after a few minutes
• While the steam release button is pressed, the water tank may produce a pumping sound, this is normal, indicating that water is being pumped to the steam tank.

Setting the temperature

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.
2. Select the temperature (15)

“•” Synthetics

“●●” Silk – Wool
“●●●” Cotton – Linen

1. The indicator lamp (16) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

Tips:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn

Controlling the pressure

Your steam station is equipped with a pressure gauge (6) which shows the pressure it works at every moment.

Dial of the gauge is divided into three areas

1. White area shows low pressure (during first heating or loss of pressure during the ironing. In this case, read Trouble Shooting section)
   2 Green area is the one in which the station works normally and pressure should be within it during ironing
   3 Red area shows high pressure and during normal use should not be reached. In case your steam station reaches it frequently, it will have to be checked by a technical service centre

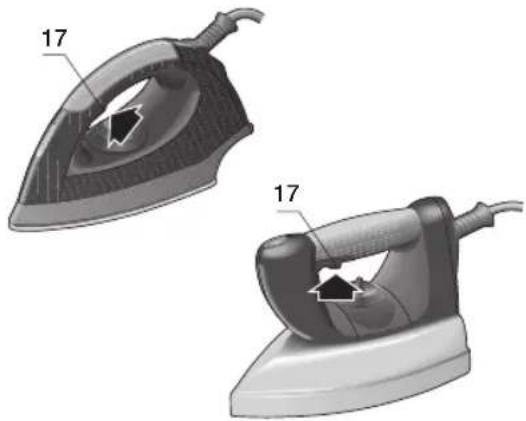

Ironing with steam (B)

1. Make sure that there is enough water in the water tank

2. Turn the temperature selector to the steam position, between “●●” and “max”.

3. Set the amount of steam to suit your needs, using the variable steam control (5)

4. Press the steam release button to release steam (17) Important:

- The steam hose may get hot if you are ironing for long periods.

Ironing without steam

1. Begin ironing but without pressing the steam release button (17).

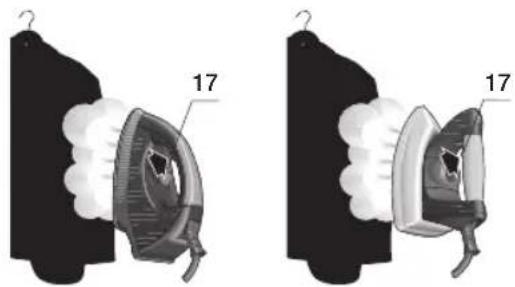

Vertical steam (C)

1. Set the temperature control to the “●●●” or “max” position.
2. You can steam iron curtains and hanging garments (jackets, suits, coats...) by placing the iron in a vertical position and pressing the steam release button (17).

Never direct the steam jet at garments that are being worn.

Never aim the steam at people or animals.

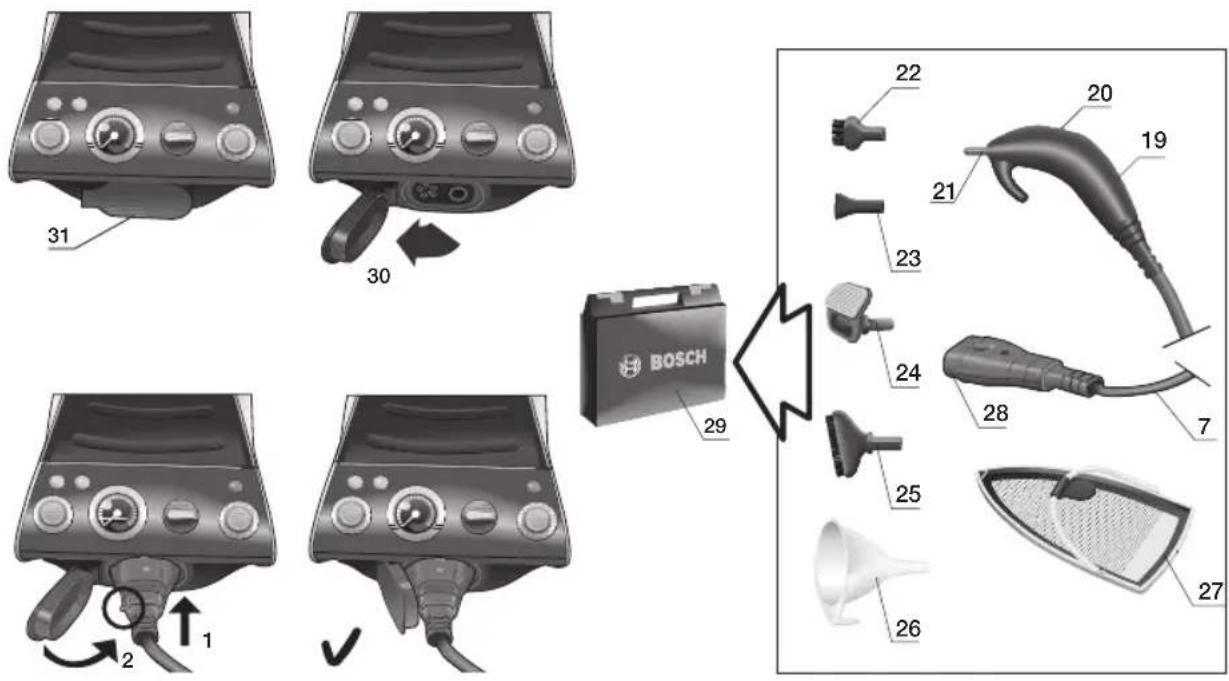

Stain remover steam gun

Preparation:

Ensure that the appliance is not connected to the mains. Remove connection plug for the iron (7) if this is connected. Then lift the cover (31) and insert the connection plug for the steam gun in the correct position

- with slot to the left - Then follow the same steps as for ironing, the indicator lights and switches operate in exactly the same way.

Important:

When the gun is being used, while pushing Steam release button (20), there might be some water drops, but this is normal.

Attention

• Use the steam gun in intervals of no longer than 10 seconds at a time.
• Direct the first steam jets towards a cloth in order to eliminate any possible water condensation residue from the steam tube.
• Never direct the steam jet at garments that are being worn by people or animals.
• Do not use the brush extension for delicate fabrics such as silk or cashmere.

To refresh fabrics

Refreshing garments with the steam gun can lessen creases and wrinkles, although this does not substitute ironing with the iron.

For better results, hang the clothes wich you would like to refresh on hangers.

- With diffuser (23) the sprayed steam enables superficial fabric creases to be lessened.

• Comb brush (25) can be used for refreshing and gently combing pile within fabric. Also, for general purpose cleaning and refreshing of garments, fabrics, upholstery and to remove fluffs
• Fabric cleanser (24) to be used with more delicate garments such as velour, velvet and suede, for refreshing and combing pile within material and for removing pet hair/fur, dandruff, crumbs etc.

Fully insert the accesory into the concentrator (21). Press the steam release button (20) for the steam supply and direct the jet towards the fabric that you would like to refresh. Maintain a minimum distance of 10 cm to avoid getting the fabric too damp.

To remove fabric stains

The steam gun can help to remove washable, fresh stains.

The concentrator (21) and brush extension (22) supply a concentrated jet of steam that makes it possible to remove certain types of fabric stains

• If the stain is not fresh, the garment should be washed in a washing machine or hand-washed according to the garment care label.
• For stubborn or non-washable stains, take the garment to a specialist cleaning centre or dry cleaners.

Use the concentrator (21) to direct the steam jet at the stain, in direction from the outer side of the garment into the fabric placing a sponge or cloth underneath it to absorb the dirt. The brush extension (22) can also be used with gentle action to support the cleaning effect.

If the above does not solve the problem, get in touch with an authorised technical service centre.

Intelligent steam

(depending on model)

This system has intelligent steam control, which, after releasing the steam release button (17), provides a small amount of additional steam.

The additional steam can always be stopped by briefly pressing the steam release button once again.

Cleaning & Maintenance

Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle and iron body with a damp cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cloth.
4. Never use abrasive products or solvents.

en

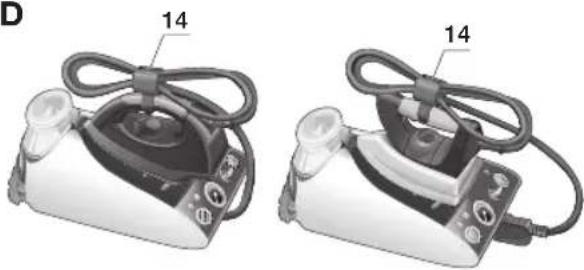

Storing the appliance (D)

1. Always allow the appliance to cool down before storing it.
2. Set the switches for main power and steam boiler to the "Off/Stop" position and disconnect the connection.
3. Place the iron on the iron pad, standing on the soleplate.
4. Empty the water tank and store the mains cable on the cord rewind facility. Tidy the steam hose on the handle of the iron using the cord clip provided (14). Do not wrap the cords too tight.

"Calc'n clean" (E)

Cleaning the Boiler

To extend the life of your steam generator and to avoid any build up of scale, it is essential that you rinse out the boiler after several hours of use. If the water is hard, increase the frequency.

Approximately after 50 hours of use, "Calc'n clean" pilot light (9) will light up indicating that boiler must be rinsed.

Do not use descaling agents for rinsing out the boiler, as they could damage it.

1. Check that the appliance is cold and unplugged for more than 2 hours, and that the removable water tank (1) is empty.
2. Place your appliance on the edge of your kitchen sink.
3. Remove the plastic cover located on the bottom of the appliance by turning it to the position.
4. Unscrew the boiler drainage plug located on the bottom of the appliance using a coin.

5. Holding your steam generator in upside down position, and using a jug, fill the boiler (in the base unit) with 1/4 litre of water

6. Shake the base unit for a few moments and then empty it completely over a sink or bucket. To obtain the best result, we recommend that this operation is done twice
   Important: before re-closing, make sure no water remains in the boiler.

7. Replace and tighten up the boiler drainage plug with a coin.
8. Insert and close the plastic cover by turning it to the position.

To reset "Calc'n clean" pilot light and hours counter, switch the station off twice, keeping it off during at least 30 seconds each time

Fabric protection soleplate cover (F)

(depending on the model)

The fabric-protection soleplate cover is used for steam-ironing delicate garments at maximum temperature without damaging them. Use of the soleplate cover also does away with the need for a cloth to prevent shine on dark materials.

It is advisable to first iron a small section on the inside of the garment to see if it is suitable.

To attach the soleplate cover to the iron, place the tip of the iron into the end of the soleplate cover and pull the elastic strap over the lower rear of the iron until it fits tightly. To release the soleplate cover, pull the elastic strap and remove the iron.

The fabric-protection soleplate cover may be purchased from the customer service or specialist shops:

Accessory code(After-sales)	Name of accessory(Specialist outlets)
464846 TDZ2510
464745* TDZ2520*

* Cork handle iron

If the above does not solve the problem, get in touch with authorized technical service.
Trouble shooting

Problem Possible causes Solution
The steam generator does not come on.	There is a connection problem.The steam tank and/or main power button is not switched on.	Check the mains cable, the plug and the socket.Press the buttons for main power (8) and steam generator (4) “Start/I”.
The iron does not heat up.	The main power button is not switched on.The temperature control knob is set to the “min” position.	Press the main power button (8) “I”.Set the temperature control knob (15) to the desired position.
The iron begins to smoke when switched on.	During first use: Certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.During later use: the soleplate may be soiled.	This is completely normal and will stop after a short while.Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the sole plate.	The steam function is being used before it has reached temperature.The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.	Reduce the steam flow when ironing at low temperatures (Variable steam control (5)).Point the iron away from the ironing area and press the steam release button (17) until steam is produced.
Dirt comes out through the sole plate.	There is a build-up of scale or minerals in the steam tank.Chemical products or additives have been used.	Use tap water mixed 50% with distilled or demineralised water.Clean the sole plate with a damp cloth.Never add products to the boiler water.
The iron does not produce any steam.	The boiler is not switched on or the water tank is empty.The water tank is not fitted onto the steam tank correctly.The steam regulator is set to the minimum position.	Set the switch (4) to the “Start” position and/or fill the water tank.Fit the water tank back onto the steam tank correctly (you will hear a click).Increase the steam flow by turning the steam control (5).
The ironed garment turns dark and/or sticks to the soleplate.	The selected temperature is too high and has damaged the garment.	Select a suitable temperature for the material being and clean the sole plate with a damp cloth.
The soleplate turns brown.	This is a regular consequence of usage.	Clean the soleplate regularly with a damp cloth.
The appliance makes a pumping sound.	Water is being pumped into the steam tank.The sound will not stop.	This is normal.If the sound will not stop, do not use the steam generator and contact an authorised technical service centre.
Loss of pressure during ironing.	Steam release button activated during a long period of time.	Use the steam release button (17) with intervals This improves the ironing result as the textiles will be dried and stay smooth better.
The iron does not stop steaming after placing it on the pad.	“Intelligent steam” function activated. Just press the trigger once again and the iron will stop steaming at once.
Calc'n clean pilot lamp (9) lights up continuously	Boiler must be rinsed Proceed to rinse the boiler according to the instructions.Then, switch the station off twice, keeping it off during at least 30 seconds each time
Water leakage from the boiler	Drainage plug located at the bottom of the appliance is loose.	Tighten up boiler drainage plug with a coin
Pressure gauge (6) reaches red area frequently	Pressure inside the boiler is high Switch the st	station off, and have it checked by a technical service centre

Advice on disposal

Our goods come in optimised packaging. This basically consists in using non-contaminating materials which should be handed over to the local waste disposal service as secondary raw materials. Your local town council can give you information about how to dispose of obsolete appliances.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

You can download this manual from the local homepages of Bosch.

fr

Vapore verticale (C)

“●●●” Bomuld – Linned

Loddrett dampstryking (C)

“•” Syntet
“●●” Silke – Ull
“●●●” Bomull – Linne

wast electrical and electronic) Oiléal allocate médية (equipment - WEEE

30Market must be trading in the hyperbasi

31 غطاء الوقاية

(A) تهابنات
