SMZS 260 G1 - Food Processor SILVERCREST - Free user manual and instructions

Brand	SilverCrest
Model	SMZS 260 G1
Product type	Multifunction chopper with whisk attachment
Power supply	220-240 V ~, 50 Hz
Bowl capacity	500 ml (max food level: 300 ml, liquids: 200 ml)
Main functions	Chopping, whipping cream (with whisk attachment)
Speed	Normal and Turbo (dedicated button)
Operating mode	Impulse (continuous press on the motor unit)
Intermittent operating time	1 minute maximum before cooling down
Blade material	Stainless steel (very sharp)
Bowl material	Glass or resistant plastic (not explicitly specified, but dishwasher-safe)
Included accessories	Motor unit, bowl, lid, knife holder with knife, whisk attachment, support base, instruction manual
Cleaning the motor unit	Well-wrung sponge, never immerse or put in dishwasher
Cleaning other parts	Wash under running water or in dishwasher (top rack)
Safety	Automatic stop when lifting the motor unit, sharp blade, moisture protection
Warranty	3 years, valid upon presentation of the receipt
After-sales service France	Phone: [phone], Email: [e-mail]
After-sales service Belgium	Hotline Monday to Friday 8am-8pm (CET)
Intended use	Household use, for chopping boneless food and whipping cream

Frequently Asked Questions - SMZS 260 G1 SILVERCREST

How to use the Turbo function?

To activate Turbo speed, press the motor unit 2 down while holding the Turbo button 1 (see figure C). This allows chopping hard foods or quickly reducing pieces.

Can you chop ice cubes with this appliance?

Yes, you can chop up to 100 g of ice cubes in pulse mode with the Turbo button. Press in pulses to avoid overloading the motor.

What is the maximum capacity for solid foods?

The bowl has a capacity of 500 ml, but the maximum fill level for solid foods is 300 ml (mark in the bowl). Do not exceed this limit to avoid overflow.

Can I mix hot ingredients?

No, never pour very hot foods or liquids into the appliance. This could damage the bowl or motor unit. Let ingredients cool to room temperature before chopping.

How to clean the motor unit?

Always unplug the appliance before cleaning. Clean the motor unit 2 with a well-wrung sponge. Never immerse it in water or put it in the dishwasher.

Are the parts dishwasher safe?

Yes, except the motor unit. The bowl 6, whisk attachment, lid and support base can be washed in the dishwasher, preferably on the top rack. Ensure they are not stuck.

What to do if the appliance does not start?

First check the fuses and the power outlet. If everything is correct, the cord or appliance may be defective. Have it checked by qualified personnel.

How to whip cream?

Use the whisk attachment 10. For 100 ml of cream, insert it onto both blades; for 200 ml, turn it so that it rests on one blade (see figures). Whip at normal speed: 30 sec for 100 ml, 30-50 sec for 200 ml. The cream must be very cold (max. 8°C).

Is the blade sharp?

Yes, the stainless steel blade is extremely sharp. Handle with care, keep out of reach of children, and always assemble the appliance after use to protect the blade.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your receipt. For any claim, contact after-sales service by phone before returning the appliance.

USER MANUAL SMZS 260 G1 SILVERCREST

Operating instructions

SE

MULTIMIXER

Bruksanvisning

FR BE

HACHOIR MULTIFONCTION

Mode d'emploi

DE AT CH

MULTIZERKLEINER

Bedienungsanleitung

F

MONITOIMILEIKKURI

Kayttoohje

DK

MULTIHAKKER

Beteningsvejledning

NL BE

MULTIHAKKER

Gebruiksaanwijzing

IAN 102981

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

F

GB/IE Operating instructions Page 1

FI	Käytöohje	Sivu	9
SE	Bruksanvisning	Sidan	17
DK	Betjeningsvejledning	Side	25
FR/BE Mode d'emploi Page 33
NL/BE Gebruiksaanwijzing Page 41
DE/AT/CH	Bedienungsanleitung			Seite	49

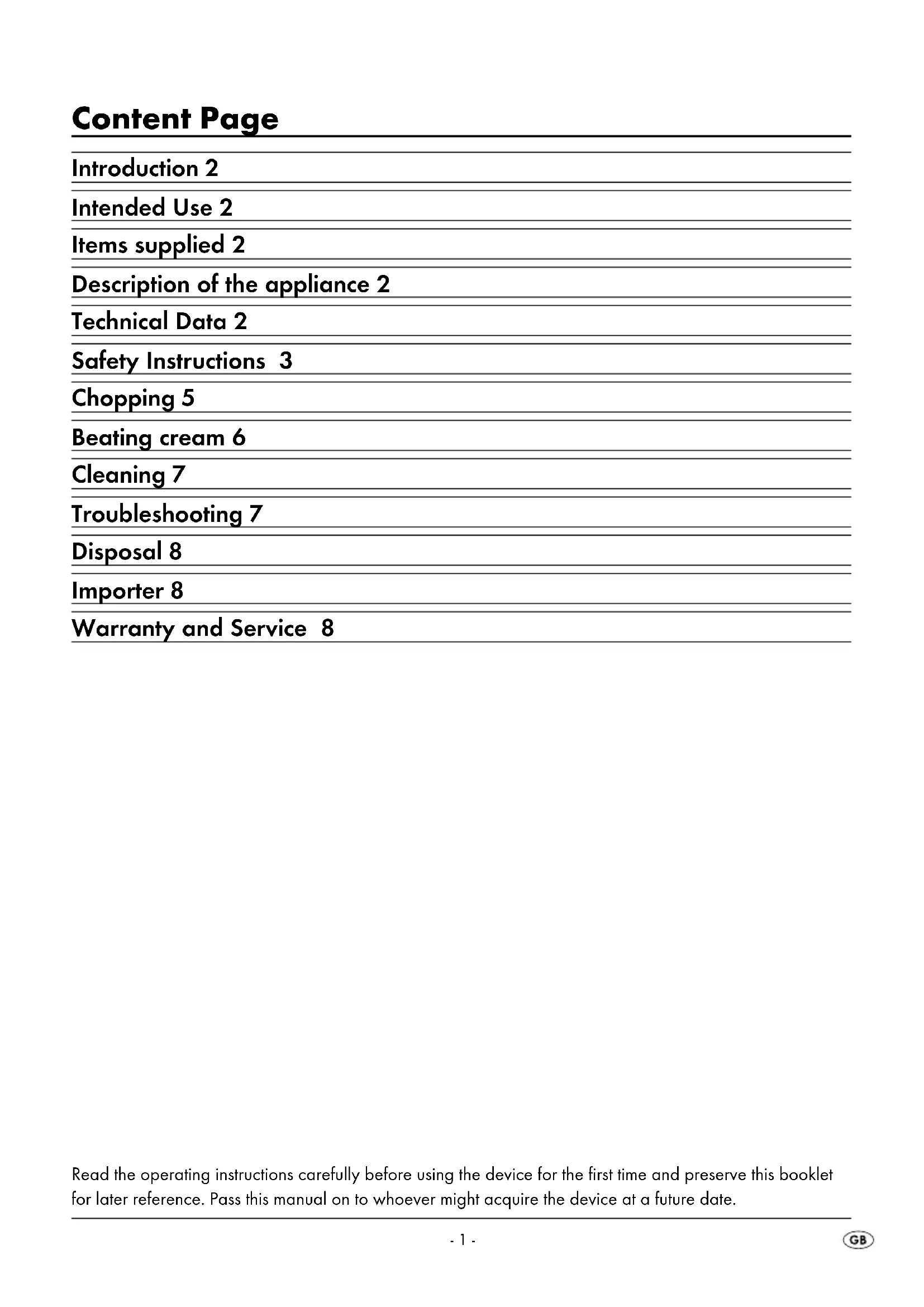

Content Page

Introduction 2

Intended Use 2

Items supplied 2

Description of the appliance 2

Technical Data 2

Safety Instructions 3

Chopping 5

Beating cream 6

Cleaning 7

Troubleshooting 7

Disposal 8

Importer 8

Warranty and Service 8

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are a constituent of this product. They contain important information about safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this product only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Intended Use

This appliance is intended solely for chopping boneless foods in small quantities or for whipping cream. This appliance is intended exclusively for use in domestic households. This also includes observance of all information in these operating instructions, particularly the safety instructions. All other uses are deemed to be improper and can result in property damage or even in personal injury. We shall not accept liability for damages caused due to improper use of the appliance.

Items supplied

Mini Chopper
Blade holder with blade
Whisk attachment
Operating instructions

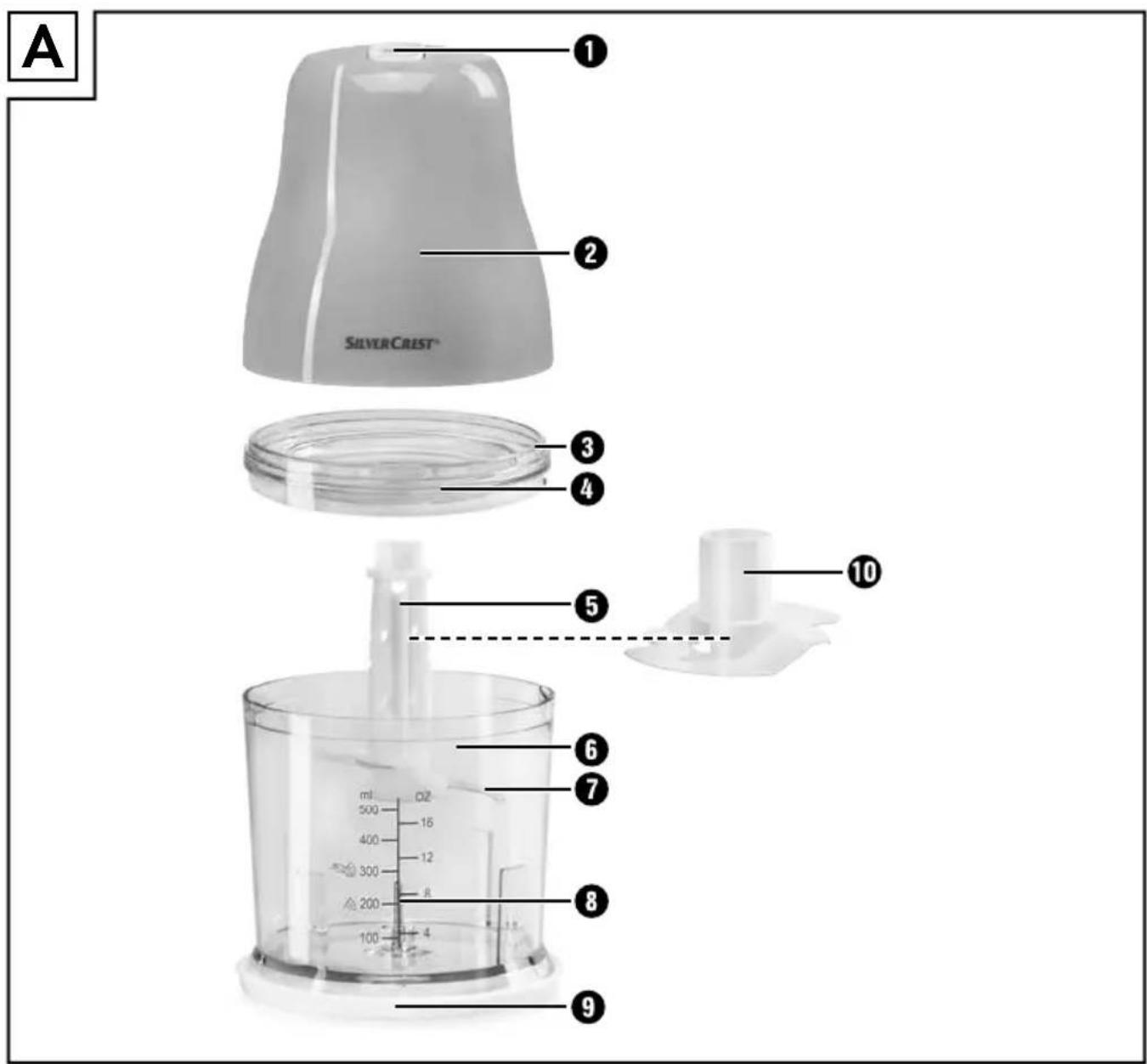

Description of the appliance

Illustration A:

Turbo button
2 Motor block
3 Lid collar
Lid
5 Blade holder
6 Bowl
7 Knife
8 Mounting
Appliance base
10 Whisk attachment

Technical Data

Mains voltage: 220 - 240 V , 50 Hz

Nominal power: 260 W

CO Time: 1 Minute

Protection class: II

Capacity blender jug: 500 ml

Max. capacity:

Foodstuffs

up to the 300 ml marking

Liquids

up to the 200 ml marking

CO Time

The C.O. Time (Continuous Operation) details how long an appliance may be used without the motor overheating and being damaged. After the appliance has run for for this period it must be switched off until the motor has cooled itself down.

Risk of electric shock!

• Connect the universal food processor only to properly installed power sockets with a mains voltage of 220 - 240V and 50Hz .
• To avoid potentially fatal risks, arrange for a defective power plug and/or cable to be replaced at once by qualified technicians or our Customer Service Department.
• Unplug the universal food processor from the socket if you notice any faulty operation and when you decide to clean it.
• Always remove the power cable from the socket by pulling on the plug, do not pull on the cable itself.
• Do not crease or crimp the power cable and place the power cable in such a way to prevent anyone from stepping or tripping over it.

Do not submerse the motor block of the universal food processor in liquids at any time and do not permit liquids to penetrate into the housing of the motor block.

• NEVER subject the appliance to moisture and do not use it outdoors. If by chance liquids do enter into the housing, unplug the appliance from the power socket immediately and have it repaired by a qualified technician.
• Never grasp the universal food processor, the power cable or the plug with wet hands.
• Should the power cable or motor block become damaged, arrange for the universal food processor to be repaired by a qualified specialist before using it again. Do not open the motor block housing of the universal food processor. Should you do so, appliance safety can no longer be assured and the warranty becomes void.
• Separate your universal food processor from the mains supply immediately after use. The appliance is completely free of electrical power only when you unplug it.

Risk of personal injury!

• Before changing accessories or additional parts that are in motion during operation, the appliance must be switched off and disconnected from mains power.
• Never use the appliance for purposes other than those described in these instructions.
• Take care when emptying the bowl! The blade is very sharp!

• Take care when cleaning the appliance! The blade is very sharp!

• The appliance should always be disconnected from the mains when not supervised and before assembly, disassembly or cleaning.

• This appliance shall not be used by children.
• The appliance and its connecting cable must be kept away from children.
• This appliance may be used by people with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in how to use the appliance safely and have understood the potential risks.
  Children must not play with the device.
  Children should be supervised to ensure that they do not play with the appliance.
• Handle the extremely sharp blade with caution, it can cause injuries. Reassemble the universal food processor after using and cleaning it so that you do not injure yourself with the blade. Keep the blade out of the reach of children.
• Never attempt to remove foodstuffs from the vessel as long as the blade is still running. Risk of serious injury!
• Before removing the motor block, wait until the knife has stopped rotating. NEVER try to grasp the still rotating knife blade! Risk of serious injury!

Risk of fire!

• Do not run the universal food processor for more than 1 minute at a time. After this period allow it to cool down.

Attention!

• Pay heed to the table of filling quantities in the chapter "Chopping". If you do not, there is a risk of soiling due to content being squeezed out.
• Do NOT clean the motor block in the dish-washer, doing so would damage it.
• Never fill the appliance with hot liquids! Otherwise the appliance could be damaged!

① Note

Before using the appliance for the first time, clean it thoroughly as per the instructions given in the chapter "Cleaning".

Place the bowl 6 in the appliance base 9.
Place the blade holder 5 with the knife 7 on the mounting 8.
Prepare the items to be processed by cutting large pieces to a size that will fit in the bowl 6.
Place the food to be processed in the bowl ⑥. Thereby, take note of the following table:

Foodstuff	Filling quantity	Processing time	Speed
Salami 130g 3x5secs.Turbo
Cheese(Gouda,young,refrigerator temperature)	100g	4x15secs.Turbo
OnionsGarlic	100g	pulsating Turbo
Carrots 100g 3x5secs.Normal
Dried fruit 130g 4x15secs.Turbo
Almonds 50g	coarse:1x10secs.middles:2x10secs.fine:3x10secs.		Turbo
Eggs(hard boiled)	150g	2x4secs.Turbo
Walnuts 50g 2x8secs.Turbo
Ice cubes 100g pulsating Turbo

l Close the bowl 6 with the lid 4: Place it on the bowl 6 so that the lugs on the lid 4 engage in the slots on the bowl 6. Then turn the lid 4 so that the lugs slide under the slots and the lid 4 locks into place.
Place the motor block 2 on the lid collar 3.

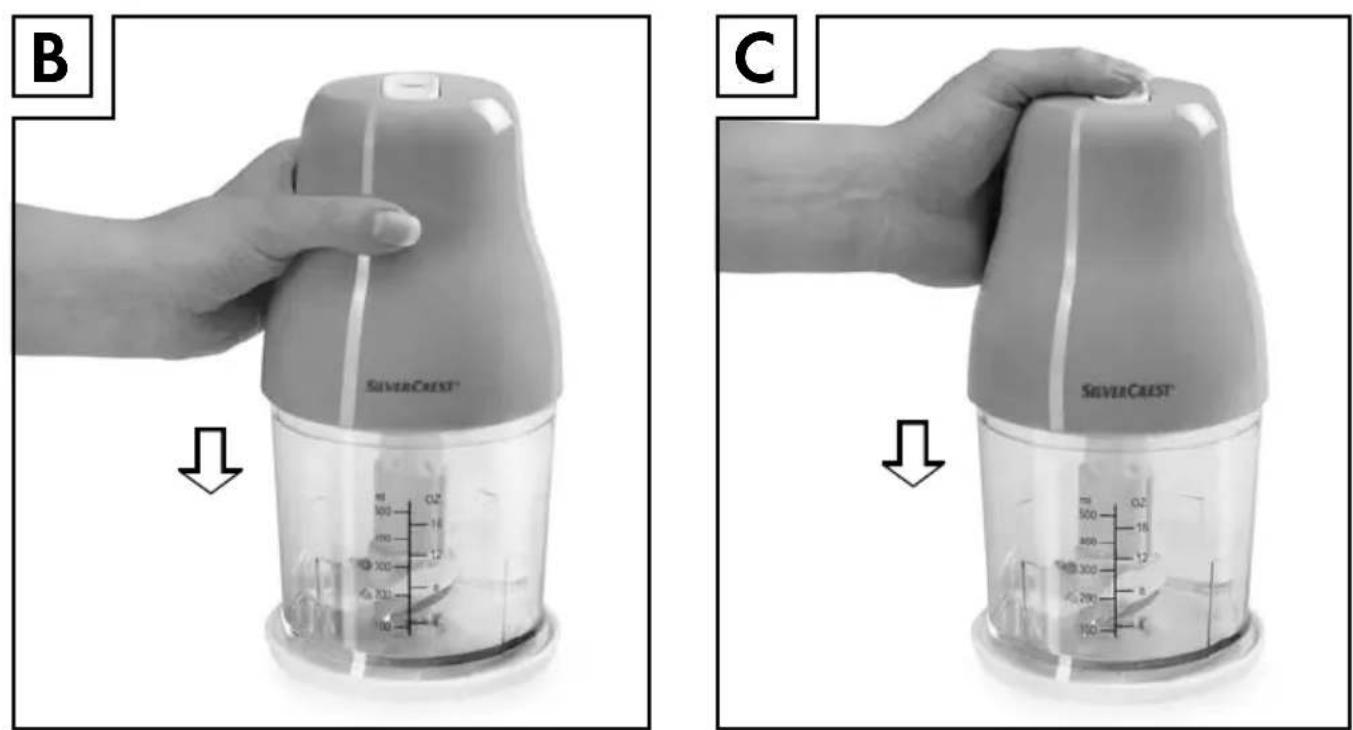

Press the motor block 2 downwards, as shown in Figure B. The motor starts with the normal operating speed.
To make use of the higher processing speed "Turbo", press, in addition to the motor block 2, the turbo button 1 and keep it pressed down, as shown in Figure C.

① Note

Should larger pieces of the contents collect on the wall of the bowl while processing, lift the motor block 2 from the lid collar 3. Shake the bowl 6 vigorously and then continue with the processing. Before the processing, particularly hard foods must be cut into smaller pieces (about 2cm ). Otherwise, the motor could block. With hard foodstuffs select a pulsating processing. For this, press the turbo button 1 repeatedly for a short time (in addition to the motor block 2). Should the foodstuff not be completely pulverised, you can either cut it into smaller pieces or lift the motor block 2 from the lid collar 3. Shake the bowl 6 vigorously and then continue with the processing.

When the contents have been sufficiently chopped, release the motor block 2 and, if necessary, the turbo button 1.
Unplug the power cable from the socket.

Risk of personal injury!

Never attempt to remove food from the bowl 6 when the blade 7 is still in motion. Contents could shoot out and make a mess.

Wait until the blade has stopped rotating.
Lift the motor block 2 from the lid collar 3.
Remove the lid 4.

Risk of personal injury!

To avoid injuries, exercise caution when handling the extremely sharp blade ⑦. Keep the blade ⑦ out of the reach of children.

Carefully pull the blade holder 5 with the knife 7 out of the bowl 6.
Remove the contents.

① Note

Due to the grinding of hard and abrasive foodstuffs, the bowl ⑥ can take on a dull appearance over time. This is normal and does not influence the functioning of the appliance.

① Note

After you have finished processing the foodstuffs, you can use the appliance base 9 as a cover for the bowl 6, this will help to keep the foodstuff fresh for longer.

Remove the motor block 2 and the lid 4 from the bowl 6.
The blade retainer 5 with the blade 7 can, if you wish, remain in the bowl 6.
Loosen the appliance base 9 from the underside of the bowl 6. You can now place appliance base 9 on the bowl 6 so that it seals the bowl 6.

Beating cream

Using the whisk attachment 0, you can also whip cream with this appliance:

Place the bowl 6 in the appliance base 9 .

Push the whisk attachment onto the blade holder:

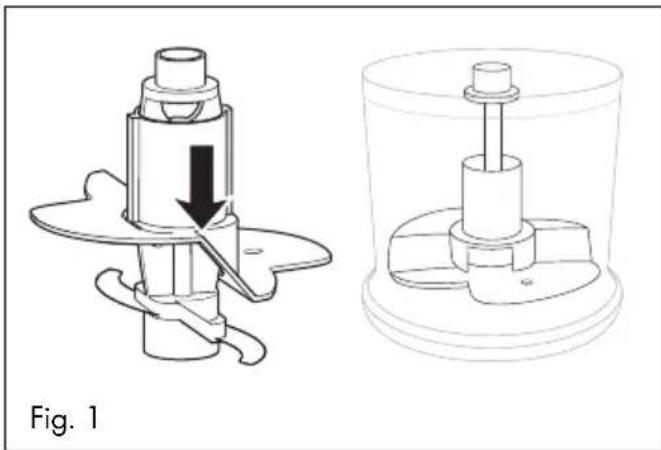

For 100ml of cream, place it on the blade holder so that the whisk attachment ⑩ rests on the two blades and engages (Fig. 1).

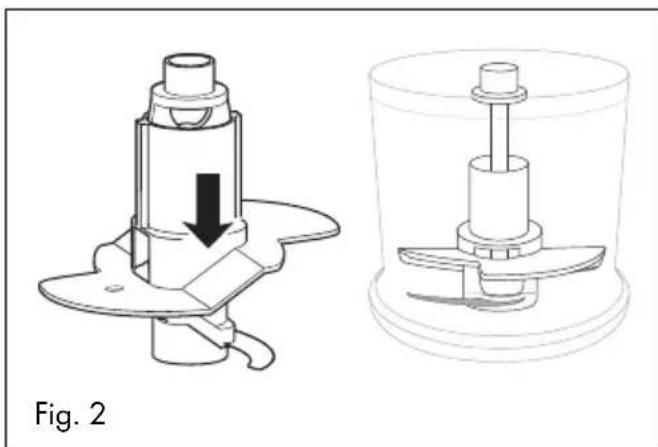

For 200ml of cream, turn the whisk attachment vertically through 180^ , so that it rests on only one blade and engages (Fig. 2). It then ploughs higher through the cream:

l Attach the blade holder 5 together with the whisk attachment 10 onto the mounting 8.

Pour the cream in.
Close the bowl 6 with the lid 4: Place it on the bowl 6 so that the lugs on the lid 4 engage in the slots on the bowl 6. Turn the lid 4 so that the lugs slide into the guides below.
Place the motor block 2 on the lid collar 3.
Press the motor block ② downwards, as shown in Figure B. The motor starts with the normal operating speed.

① Note

To whip cream optimally, it should be well chilled before being whipped (max 8^ / refrigerator temperature). For 100 ml of cream we recommend a whipping time of 30 seconds at normal speed. For 200 ml of cream we recommend a whipping time of 30 - 50 seconds at normal speed. Due to various factors, for example the fat content of the cream or the outdoor temperature, the whipping time can however vary! Observe the cream whilst whipping it and adjust the processing time to your requirements.

Cleaning

Risk of electric shock!

Always remove the plug from the mains power Sokket before cleaning the appliance. Under no circumstances may the appliance be immersed in water or held under running water during cleaning.

Risk of personal injury!

To avoid injuries, exercise caution when handling the extremely sharp blade 7. Reassemble the universal food processor after using and cleaning it so that you do not injure yourself on the exposed blade 7. Keep the blade 7 out of the reach of children.

Attention!

Do not clean the motor block 2 in the dish-washer as doing so would damage it.

Unplug the power cable from the socket.
Clean the motor block 2 and the blade holder 5 with the blade 7 by using a well pressed-out sponge.
Clean the bowl 6, the whisk attachment 10, the lid 4 and the appliance base 9 under running water and use a tea-towel to dry them well.
Alternatively, you can wash all components, EXCEPT the motor block 2, in the dish-washer. If possible, place the parts in the top basket of the dishwasher. Ensure that the parts are not trapped in any way..

Troubleshooting

Symptom:

The appliance will not switch on.

Possible cause and remedy:

• A domestic electrical fuse is defect. Check the fuses and replace them if necessary.
• The power socket is defective. Try another power socket.
• The universal food processor is possibly defective. Check the power cable and the power plug for damages. Have the appliance checked by a qualified technician.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Importer

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY

www.kompernass.com

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN102981

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 102981

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Takuu ja huelto

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garanti & Service

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Garantie en service

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

09/2014-Ident.-No.:SMZS260G1-092014-1
