USER MANUAL WW 1200 EINHELL

Original operating instructions Radiant heater

Important! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

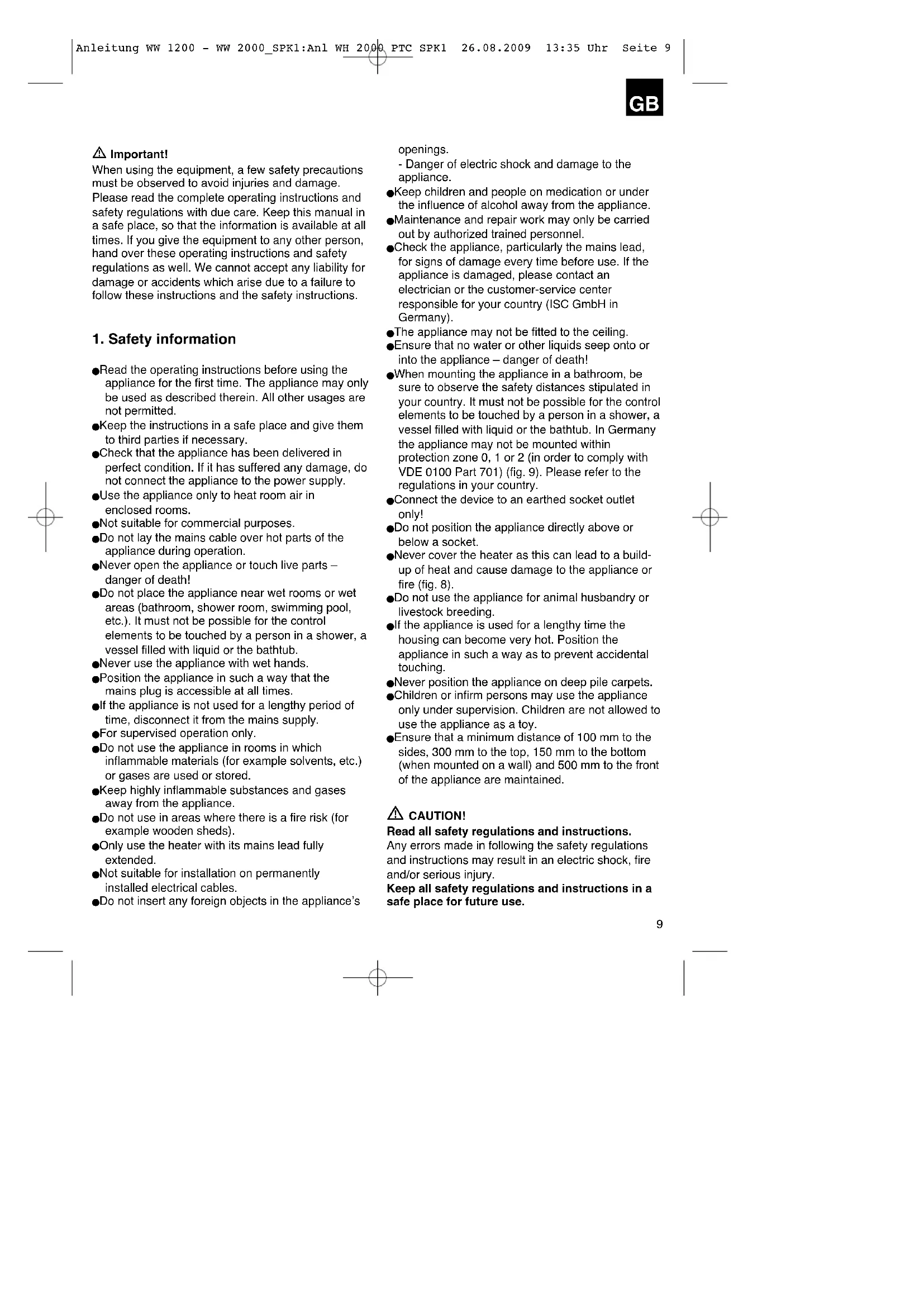

1. Safety information

Read the operating instructions before using the appliance for the first time. The appliance may only be used as described therein. All other usages are not permitted. Keep the instructions in a safe place and give them to third parties if necessary. Check that the appliance has been delivered in perfect condition. If it has suffered any damage, do not connect the appliance to the power supply. Use the appliance only to heat room air in enclosed rooms. Not suitable for commercial purposes. Do not lay the mains cable over hot parts of the appliance during operation. Never open the appliance or touch live parts – danger of death! Do not place the appliance near wet rooms or wet areas (bathroom, shower room, swimming pool, etc.). It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub. Never use the appliance with wet hands. Position the appliance in such a way that the mains plug is accessible at all times. If the appliance is not used for a lengthy period of time, disconnect it from the mains supply. For supervised operation only. Do not use the appliance in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored. Keep highly inflammable substances and gases away from the appliance. Do not use in areas where there is a fire risk (for example wooden sheds). Only use the heater with its mains lead fully extended. Not suitable for installation on permanently installed electrical cables. Do not insert any foreign objects in the applianceʼs openings. - Danger of electric shock and damage to the appliance. Keep children and people on medication or under the influence of alcohol away from the appliance. Maintenance and repair work may only be carried out by authorized trained personnel. Check the appliance, particularly the mains lead, for signs of damage every time before use. If the appliance is damaged, please contact an electrician or the customer-service center responsible for your country (ISC GmbH in Germany). The appliance may not be fitted to the ceiling. Ensure that no water or other liquids seep onto or into the appliance – danger of death! When mounting the appliance in a bathroom, be sure to observe the safety distances stipulated in your country. It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub. In Germany the appliance may not be mounted within protection zone 0, 1 or 2 (in order to comply with VDE 0100 Part 701) (fig. 9). Please refer to the regulations in your country. Connect the device to an earthed socket outlet only! Do not position the appliance directly above or below a socket. Never cover the heater as this can lead to a build- up of heat and cause damage to the appliance or fire (fig. 8). Do not use the appliance for animal husbandry or livestock breeding. If the appliance is used for a lengthy time the housing can become very hot. Position the appliance in such a way as to prevent accidental touching. Never position the appliance on deep pile carpets. Children or infirm persons may use the appliance only under supervision. Children are not allowed to use the appliance as a toy. Ensure that a minimum distance of 100 mm to the sides, 300 mm to the top, 150 mm to the bottom (when mounted on a wall) and 500 mm to the front of the appliance are maintained. CAUTION! Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Anleitung WW 1200 - WW 2000_SPK1:Anl WH 2000 PTC SPK1 26.08.2009 13:35 Uhr Seite 910

The equipment is designed for heating enclosed, dry rooms. It primarily emits heat by radiation straight on to objects and people who are in front. The equipment can be used indoors in a free standing position or mounted on a wall. Maintain all minimum distances. The equipment may only be used completely assembled and standing vertically. The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5.1 Free-standing installation

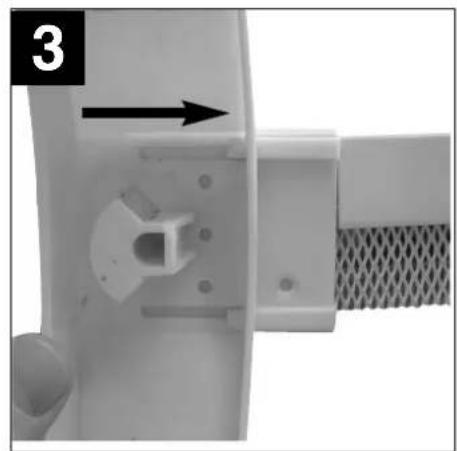

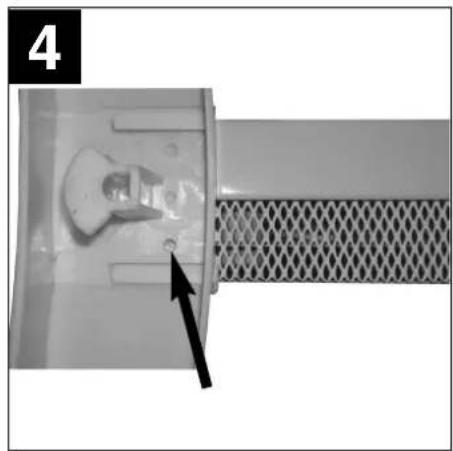

Observe Section 1 “Safety Instructions “. Important! To prevent damage when attaching the feet to the radiator, place the radiator upside down on a soft surface (e.g. a carpet). Slide the feet into the guides (Fig. 3) and fasten them at the point marked (Fig. 4) with the screw provided.

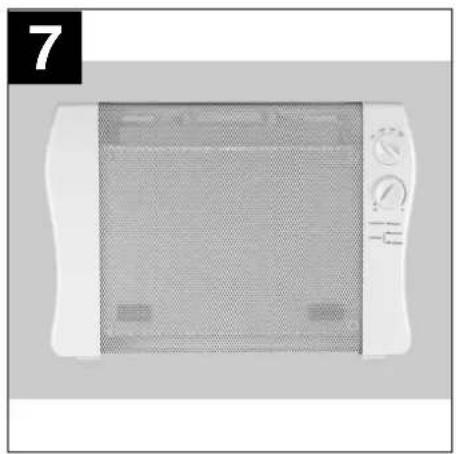

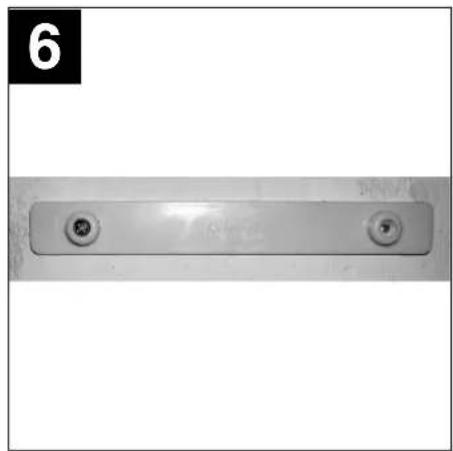

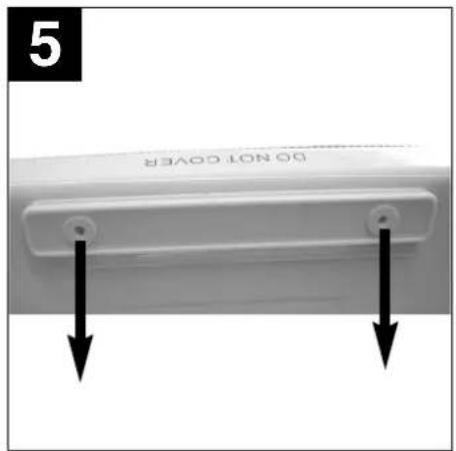

Observe Section 1 “Safety Instructions “. Do not attach the feet if the appliance is to be mounted on the wall. When selecting the location for the appliance, please note that if there are skirtings on the floor the minimum distance to the housing, or the installation height, has to be measured from the top of the skirting. If the wall bracket is mounted on the back of the radiator housing, pull it down and off (Fig. 5) Then drill the two fastening holes with 6 mm diameters, making sure they are horizontal, and screw the wall bracket to the wall (Fig. 6). Fit the radiator to the wall bracket and press it down until the wall bracket audibly locks into place. The radiator should now be mounted on the wall as shown in the illustration (Fig. 7).

Important! Before using the appliance for the first time, check that the voltage supply is the same as the voltage details set out on the rating plate. Read the safety instructions listed in section 1. When the heater is used for the first time or after a long period of rest it may emit an odor for a short Anleitung WW 1200 - WW 2000_SPK1:Anl WH 2000 PTC SPK1 26.08.2009 13:35 Uhr Seite 1011

time. This is not a fault. If the appliance should topple or fall over, the power supply will be cut off by an integrated safety switch in the appliance. The power supply resumes as soon as the appliance is stood upright again.

6.1 WW 1200 switch for heat output

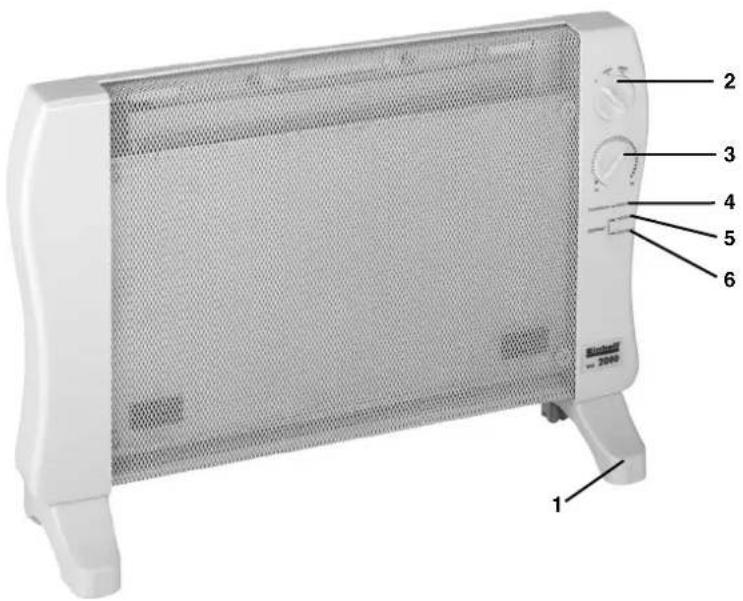

(Fig. 1/ Item 2) Low heat output (500 W): 500 W heat setting LED lights up in heating mode Medium heat output (700 W): 700 W heat setting LED lights up in heating mode Maximum heat output (1200 W): 1200 W heat setting LED lights up in heating mode

6.2 WW 2000 switch for heat output

(Fig. 2 / Item 2) Low heat output (1000 W): 1000 W heat setting LED lights up in heating mode Maximum heat output (2000 W): 2000 W heat setting LED lights up in heating mode

6.3 Thermostat control (Fig. 1 / Item 3):

Switch on the desired heat output with the heat output switch. Turn the control to “HI” until the required room temperature is reached. The temperature indicator LED comes on. Then turn the control back until the temperature indicator LED goes out. The thermostat control will switch the radiator on and off automatically to maintain the room temperature at an almost constant level. However, this presupposes that the radiator has sufficient output to cover the heating requirements for the room. Note: When the equipment is moved to a new location, the thermostat will not work properly until the equipment has adopted the ambient temperature.

6.4 Overheat cut-out

In case of excessive heating, the appliance shuts down automatically. If this occurs, turn off the appliance, disconnect the mains plug and wait a few minutes for the appliance to cool. After eliminating the cause (e.g. a covered air grille), the appliance can be switched on again.

7. Maintenance and cleaning

Before carrying out any cleaning and maintenance work the appliance must be turned off, disconnected from the power supply and cooled down. Maintenance and repair work may only be carried out by an authorized electrical servicing contractor or ISC GmbH. Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an electrician or ISC GmbH in compliance with the relevant regulations. Use a damp cloth to clean the casing. Remove dust pollution with a vacuum cleaner.

The radiator has to be stored in a dry place, covered if possible.

9. Ordering spare parts

Please provide the following information on all orders for spare parts: Model/type of tool Article number of the tool ID number of the tool Number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

10. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council. Anleitung WW 1200 - WW 2000_SPK1:Anl WH 2000 PTC SPK1 26.08.2009 13:35 Uhr Seite 1112

6.3 Termostatregulator/Rumtemperaturregulator

6.3 Termostatski regulator/regulator temperature

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

GUARANTEE CERTIFICATE Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights.

We do not charge you for this guarantee.

2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the

rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. The guarantee is rendered null and void if any attempt is made to tamper with the device.

3. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee

claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

4. In order to assert your guarantee claim, please send your defective device postage-free to the address

shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device. Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Anleitung WW 1200 - WW 2000_SPK1:Anl WH 2000 PTC SPK1 26.08.2009 13:36 Uhr Seite 4041
