USER MANUAL D712 MOTOROLA

D711 IPU_Multilingual_over.fm Page 0 Friday, August 24, 2007 6:57 PM

MOTOROLA

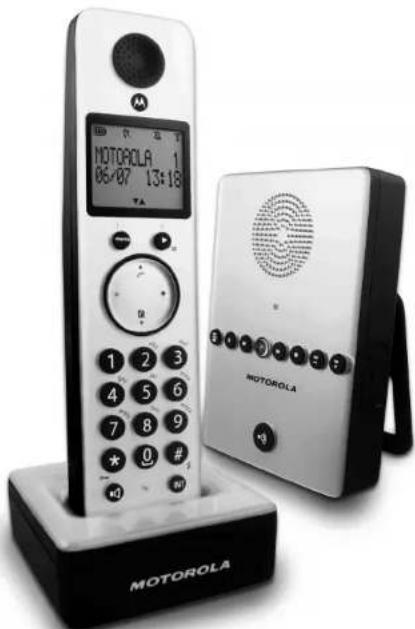

Motorola D710 series

Digital Cordless Phone with Answering Machine EN

Use only rechargeable batteries. Charge the handset for 24 hours before use.

D71LIPUINforELbookPageFriday,August 24,20073:58PM

Welcome...

to your new Motorola D711 Digital Cordless Phone!

All handsets fully cordless for locating anywhere within range.
100 Name and number phonebook
- Copy phonebook entries between other handsets.
- Answering machine with 12 minutes digital recording time.
- Caller Display shows you who's calling and see details of the last 50 callers in a Calls list.1
- Register up to 5 handsets to a single base and register each
handset with up to 4 different bases.
- Make internal calls, transfer external calls, hold 3-way conversation between two internal callers and an external caller.

1. You must subscribe to your network provider's Caliber Display or Call Waiting service for these features to work. A quarterly fee may be payable.
   Please note that this equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency.
   Alternatively, you may find the answer in the Help section at the book of this guide.

This User Guide provides you with all the information you need to get the most from your phone.

Before you make your first call you will need to set up your phone.

Follow the simple instructions in 'Getting Started', on the next few pages.

IMPORTANT

Only use the telephone line cord supplied

This equipment is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.

Got everything?

D711 handset & charger
D711 base
Quick start guide

Battery door
^ 念 2 x AAA NIMH rechargeable batteries
- Mains power adapter for the base
- Mains power adapter for the charger
- Telephone line cord

If you have purchased a D711 multiple pack you will also have the following additional items:

D711 handset & charger
- 2 x AAA NIMH rechargeable batteries
- Mains power adaptor for the charger

D711_1PU_1N_for_EU.book Page 3 Friday, August 24, 2007 3:58 PM

MOTOROLA

1.	Getting started	5
	Location	5
	Setting up	5
	Connecting up the large base	5
	Connecting the handset and charger	5
	Setting up your DT 11	5
	Went to a new phone	5
	Set date and time manually	5
2.	Getting to know your phone	6
	Overview of your handset	8
	Handset display	7
	Overview of the base	8
	Navigating the menu	8
3.	Using the phone	9
	Calls	9
	Make a call	9
	Pre-dial	9
	Dial one touch numbers 1 to 9	9
	Call from the phonebook	9
	Call from the calls list	9
	Answer a call	8
	Adjust volume	9
	Mute	9
	End a call	9
	Switch handset off/off	9
	Call a second external number	9
	Internet	9
	Call another handset	9
	Transfer an external call to another handset	10
	Switch between an internal and external call	10
	Three-party conference call	10
	Voicemail	10
	Dial your network Voicemail service	10
4.	Phonebook	11
	View and dial phonebook entries	11
	Store an email	11
	Entering names	11
	Charater map	11
	Enter a pause	11
	View all entry	11
	Build an entry	11
	Delete entry	12
	Delete all entries	12
	Copy phonebook to another handset	12
	One touch keys	12
	Dial a one touch number	12
	Store a phonebook entry as a one touch number	12
	Delete a one touch number	12
5.	Caller display and Calls list	13
	Calls list	13
	View the calls list	13

	Dial from the calls list:	13
	Save a number from the calls list to the phonebook	13
	Delete a calls list entry	13
	Delete entire calls list	13
	Redial	13
	Redial the last number	13
	View and dial a number in the radial list	13
	Copy a radial number to the phonebook	13
	Delete a radial list entry	13
	Delete entire radial list	13
6.	Clock & Alarm	14
	Set date and time	14
	Set alarm	14
	Set alarm melody	14
7.	Personal settings...	15
	Handset tones	15
	Ring volume	15
	Pulse repetition	15
	Group melody	15
	Key tones on/off	15
	First ring	15
	Handset name	15
	Auto铃 out	15
	Auto hang up	15
	Display language	15
	Bassist mode on/off	16
	Sayat	16
	Becklight on/off	16
	Keypad lock	16
8.	Advanced settings...	16
	Recall time...	16
	Dial mode...	16
	Temporary switch from Pulse to Tone dialing	16
	Call turned...	16
	Switch call barring on/off	16
	Set a number to be barred...	17
	Baxy call...	17
	Switch baby call on/off	17
	Set the baby call number...	17
	Dial a busy number...	17
	Registration...	17
	Register a handset...	17
	Send a text...	17
	Unregister a handset...	17
	PIN...	17
	Reset...	18
	Default settings...	18
	Auto prefix...	18
	Contents...	18
	Intrusion...	18
	ECO mode...	18

D711_1PU_IN_for_EU.book Page 4 Friday, August 24, 2007 3:58 PM

MOTOROLA

1. Using your Answering machine 19
   D711 Base Answer Machine Control Keys 19
   Switch on/off 19
   Play messages 19
   Dolitis all mssages 19
   Baeed a rme 10
   Record a mho 19
   Outoing messages.. 19
   Answer & Record 19
   Anew 19
   Set answer mode 18
   Recor, play or delete your own outgoing mesege 20
   Anssing hinee 20
   Remote access 20
   Remote Access onVoff 20
   Call screening 20
   Switch handset call screening on/off 20
   Switch base station call screening on/off 20
   Access answering capabilities via the Eiffel list 76
   Access answering machine (Hence via the Cane list.. 21
   Memory full.. 21
2. Help 21
3. General Information 22
   Safetv information 22
   Cloning 23
   Gc 22
   Eeynpnral. 22
   Product disposal instructions 23
   Warranty intemaid 23
   Inserting a pause 23
   Recall 23

D711_1PU_1N_for_EU.book Page 5 Friday, August 24, 2007 3:58 PM

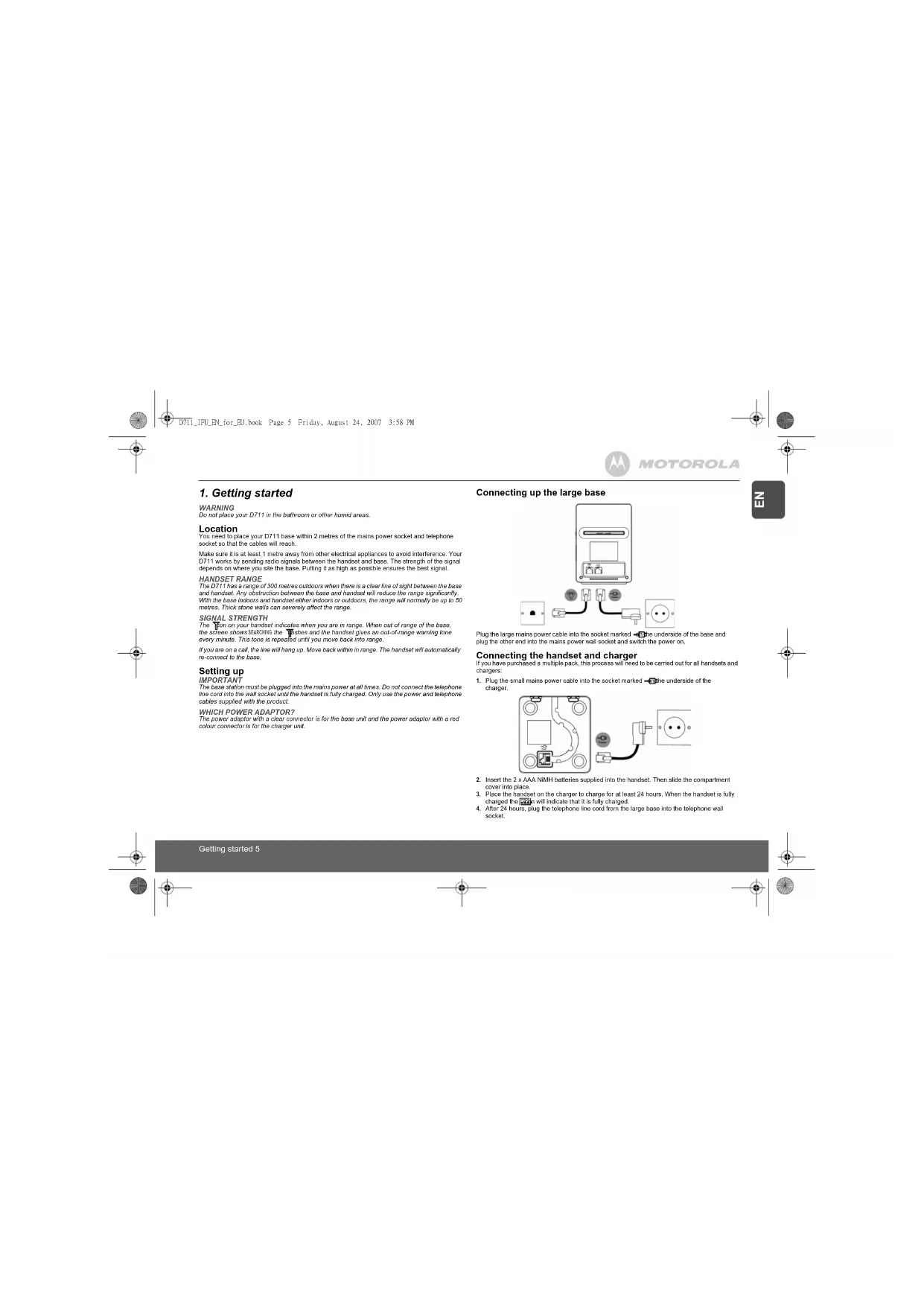

1. Getting started

WARNING

Do not place your D711 in the bathroom or other humid areas.

Location

You need to place your D711 base within 2 metres of the mains power socket and telephone socket so that the cables will reach.

Make sure it is at least 1 metre away from other electrical appliances to avoid interference. Your D711 works by sending radio signals between the handset and base. The strength of the signal depends on where you sit the base. Putting it as high as possible ensures the best signal. HANDSET RANGE

The D'11 has a range of 300 metres outdoors when there is a clear line of sight between the base and handrail. Any obstruction between the base and handrail will reduce the range significantly. With the base indoors and handrail either indoors or outdoors, the range will normally be up to 50 metres. Thick stones walls can severely affect the range.

SIGNAL STRENGTH

The ton on your handed indicates when you are in range. Wher out of range of the basc, the scon shows searing the fleses and the handed gives an out of range warning tone every minute. This tone is repeated until you move back into range

if you are on a call, the line will hang up. Move back within in range. The handshi will automatically re-connected to the base.

Setting up

IMPORTANT

The base station must be plugged into the main power at all sites. Do not connect the telephone to the base station, or the handset is fully charged. Orly use the corner and telephone cables supplied with the product.

WHICH POWER ADAPTOR?

The power adaptor with a clear connector is for the base unit and the power adaptor with a red colour connector is for the charger unit.

MOTOROLA

Connecting up the large base

Plug the large mains power cable into the socket marked: 0 the underside of the base and plug the other end into the mains power wall socket and switch the power on.

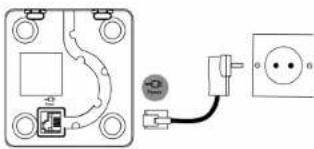

Connecting the handset and charger

If you have purchased a multiple pack, this process will need to be carried out for all handsets and chargers:

1. Plug the small main power cable into the socket marked -the underside of the charger.

1. Insert the 2 x AAA NIMH batteries supplied into the hardset. Then slide the compartment cover into place.
2. Place the handse on the charger to charge for at least 24 hours.When the handset is fully charged the FID will indicate that it is fully charged.
3. After 24 hours, plug the telephone line cord from the large base into the telephone wall socket.

Getting started 5

D711_1U_DN_for_EJ book Page 6 Friday, August 24, 2007 3:58 PM

MOTOROLA

BATTERY LOW WARNING

If the icon flashes in the display, you will need to recharge the handout before you can use it again.

During charging, the will scroll in the display.

BATTERYPERFORMANCE

In June conditions, fully charged penalties should give about 10 hours talk time or 100 hours abandoy time on a single charge.

Note that new batteries do not reach full capacity until they have been in normal use for several days.

To keep your batterkes in the best condition, leave the hands off the base for a few hours at a time.

Running the betteries night down at least once a week will help them get as long as possible.

The charge capacity of rechargeable batteries will reduce with time as they wear out, giving the hundreds less talk/standby time. Eventually they will need to be replaced.

After charging your handset for the first time, subsequent charging time is about 6-8 hours a day. Batteries and handset may become warm during charging. This is normal.

Setting up your D711

Welcome screen

1. WE COLO is displayed and scoria in different languages. Press The country name is shown on the display.

2. Scroll (or to your country and press 3 CONFRN is displayed.

3. The handout and base will reset to load the correct settings. The standby screen is then displayed, and your phone is ready to use.

You can still make and receive calls without first selecting your country and network operator; however the Welcome screen will reappear until you have configured your phone country set.

Date and time

Providing you have subscribed to your network's Caller Display service, the date and time is set automatically for all handsets every time a call is received.

The date and time is recorded with each answering machine message you receive.

If you do not have a Caller Display service you can set the date and time manually.

Set date and time manually

1. Press and scroll to CLOCKLARM. Press Display shows DATE & TIME, then press 2. Extract the data using the formatted PRINT file for 1000 rows

2. Press and enter the time using the 24 hour format.

e.g. 14:45 for 2.45pn

1. Press to confirm or to return to standby

Your D711 is now ready for use.

6 Getting to know your phone

2. Getting to know your phone

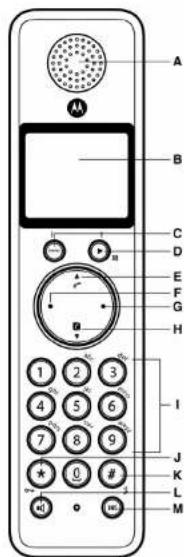

Overview of your handset

D11LIPUIN. in Page 7 F:/day.August 24, 2007 4:20 PM

A. Farpiess

B Display

See page 7 for an overview of the display icons.

C. Menu key

Enter the main menu. Select the option displayed on screen. Confirm menu option OK is displayed on screen.

D. Redial / Scroll Right / Clear / Mute

Open the radial list. Scroll to the right.

Delete characters on screen when entering names and numbers.

Mule / unmmute the microphone during a call. Go back to previous menu level - BACX displayed on screen.

E Call log / Scroll Up / Volume up

Open the calc log.

Scroll up through lists and settings. Increase the various variables during a roll

Increase the carpeting volume during a call

F Talk/Recall

Make or answer a call.

Use recall (R) functions.

G End/Exit/Switch handset on/off End a call

When in a menu go back to standby mode. Press and hold to switch handset off (when in standby) or on.

H Phonebook / Scroll Down / Volume down

Open the phonebook.

Scroll down through lists and menus.

Decrease the carpioc volume

Key p a d

Press to dial number in during a call or in predial

Press and hold a key 1-9 for one touch dialing of pro-set numbers.

J 一 Keypad lock

Press and hold to lock/unlock the keypad.

During a call, press and hold to switch from pulse dialling to tone dialling

Data Star:

K N/Ringer off/Pause

Press and hold to switch handset ringing on or off.

When dialing or storing a number, press and hold to enter a pause (P)

Dial a 0.

L Loudspeaker key

Activate and deactivate the loudspeaker during a call.

WARNING

Handisfree activation can suddenly increase the volume in the carpiere to a very high level. Make

sure the handset is not too close to your ear.

M. Intercom. (at least 2 handsets needed)

Instandby marks, unless in means an internal roll.

During a call, use to transfer an external call to another handset.

MOTOROLA

Handset display

A Display icons

On when the line is in use.

Flashes when there is an incoming call.

Flashes when you have new voicemail messages.

On when you have missed calls and new number(s) in the Calls list

Phonebook is open.

The alarm clock has been set.

Handset ring is off.

Answering machine On. Off when answering machine is off. Flashes when you have new messages. Flashes fast when the memory is full.

Steady when the handsalt is registered and within range of the base. Flashes when the handsalt is out of range or searching for base.

proximate power levels of your battery are indicated as below:

Battery is fully charged

Battery is partially charged.

Battery is running low

Getting to know your phone 7

D711_IN_IN_for_IN book Page 8 Friday, August 24, 2007 3:58 PM

MOTOROLA

OK displayed

Press the key to select and validate a setting

C▲▼displayed

Press (or to) to scroll through the options in a menu, to open the phonebook or calls list when in standby.

D Back displayed

Press to go back to the previous menu option, to cancel an action or to delete a character.

Overview of the base

A LED

Indicates when the answering machine is on or off, and when you have messages.

Status Action

On Answer machine on.

Off

Long then short flashes New message(s)

Flashes evenly

Flashbas quickly

A

Recording

Memory Full

B Answering machine On/Off

C Delete

D Skip back

E Play 5

F SKI P 10 r W a r d

HVolumeDown

Volume I

1. Pacing key

Paging is a useful way of finding lost handsets.

1. Press on the base

All bandsees too.

1. Press again to cancel the paging call or press any key on the handset to stop the paging call.

Navigating the menus

The basic steps of navigating through the menu and on-screen options.

1.From the standby screen,press

The main menu is opened.

1. Use the (出) or (出) keys to scroll through the menu.

2. Soll key options ok and BRK are displayed. Press to select OK and open a sub-menur or

Valable an option.

a

1. Press to return to standby.

If you do not press any button on the handpaet for 15 seconds the display will automatically return

to standby. It will also return to standby when the handset is placed on the base or charger.

8 Getting to know your phone

machine

off.

D711_INU_IN_for_EU.book Page 9 Friday, August 24, 2007 3:58 PM

3. Using the phone

Calls

Make a call

1. Press 2. Dialt

Prodiect

1. Enter the phone number (maximum 24 digits). If you make a mistake press

2. Press to dial the phone number entered.

Dial one touch numbers 1 to 9

1. Press and hold a key from 0 to 9 until the number is displayed and dialed. If no number is entered, you hear a o h o

Call from the phonebook

1. Press 1. The first only in the phonebook is displayed.

2. Soro 3 to the unity 1. Prove to find the numbers

TIP

Instead of scrolling to browse the phonebook entries, press the numeric key corresponding to the

First letter of the entry you wish to locate. For example, pressing with A. Pressing (2) again will show the entries starting with B at

Call from the calls list

NOTE

You need to subscribe to your network's Caller Line Identification service to be able to see the caller's number in the calls list. See "Calls list" on page 13 for more details.

1. Press to enter CALL LOG menu. You have the options to accessCALL LIST or ANSM VAGHNE.

Press to enter CALL LIST. The first entry in the call list is displayed.

1. Scrl 0f 1 is the enry you want.

A

1. When the above rows and 1 flashes in the display press or press to answer the call

vi the loudspeaker.

WARNING

When the phone is ringing, avoid holding the earpiece too close to your ear as it may damage your hearing. Your ears are sufficiently increased the volume is the optimum to a very high

level. Make sure the handet is not too close to your ear.

NOTE

If you have subscribed to your Network's Caller Identity service and assigned a VIP Group to the caller's number, the caller's details are displayed before the phone starts ringing (see "Store an entity" on page 11 and "Group melody" on page 15). You can set your phone to give the default voice. The caller will be able to access the caller's identity is displayed, the assigned ringlines will start. See "First ring" on page 15.

MOTOROLA

TIP

If Auto Pick up mode (see page 15) is on, simply lift up the handset from its base to answer the

图1.14

An inopening call has priority over other purposes. Wherewever there is an inoposing

operations in progress such as phone settings, menu navigation, etc. will be ended.

Adjust volume

1. During a call, press or to adjust the earpiece or loudspeaker volume.

The level is shown in the handser display.

Mute

Mute the microphone so that you can talk to someone else in the room without your caller hearing

1.Durina call

The microsphere is projected.

1. Press again to turn the microphones back on.

End a call

1. Press

After you hang up, the duration of your call is displayed for 5 seconds.

NOTE

If auto hang-up is on (see page 15) simply replace the handset on the base to end the call. The default setting is ON.

Switch handset on/off

1. Press and hold until the handset switches off.

2. Press and hold 3 again to switch the handset back on.

Call a second external number

Put an external caller on hold to make a second external call. You can then switch between both callers or hold a 3-way conference call.

1. During your call, press Esc to INT AND CALL.

2. Press

D. 15

4.2018年1月1日

1. When your second caller answers, press to open the open menu.

2. Power In hang up

Intercom

This feature is only available when there are at least 2 registered handsets. It allows you to make

Using the phone 8

D71IPLENforELbookPage 10 FridayAugust 24,20073:58PM

MOTOROLA

Call another handset

1. Press

If you have two hands, the other hand is called automatically.

If more than two handos are registered to the base, their numbers are displayed, e.g. 246. Enter the number of the handed you want to call or press to ring all handeds.

2 Press to heng up.

NOTE

IF the handse does not belong to D709710 range, this function may not be available.

Transfer an external call to another handset

uring an external call, press

Your callar is put on hold.

1. Enter the number of the handset you want to call or press to ring all handsets
   If there are only two hands, the other hand is called automatically.
2. When the other handset answers, announce the caller then press to transfer the call. If the other handset does not answer, press to talk to your caller again.

Switch between an internal and external call

uring an external call, press
Your caller is put on hold.
2. Enter the number of the handset you want to call or press to ring all handsets
- if there are only two hands, the other handser is called automatically.
3. When the other handed answers you can speak privately to your internal caller. 4. Press (M) to switch between both callers.
Press (to hang up

Three-party conference call

1. During an extreme cell process

Your letter is not on any account.
2. Enter the number of the handset you want to call or press to ring all handsets
If there are only two handsets, the other handset is called automatically.
3. When the other handset answers, announce the call then press and hold to connect both
Caill. If the other handset does not answer, press to talk to your caller again.

Voic

If you have subscribed to your network's voicemail service (if available), your D711 displays 0.0

when you have a new message. Depending on your country and network services, the voicemail number you can be sent on in your handout for any touch dialling using the 2) button.

10

NOTE The voicall mumber is pre-stored only if the country where the phone was purchased offers a voicall service. If the voicall number is not pre-stored you can add a number, or overwrite the existing stored number. See page 12.

Dial your network voicemail service

Press and hold 1

Hn n i t

your messages

10 Using the phone

D711_INU_INfor EU book Page 1 Friday, August 24, 2007 5:58 PM

MOTOROLA

4. Phonebook

The D711 handset phonebook can store up to 100 names and numbers.

NOTE

Numbers can be up to 24 digits long and names up to 12 characters long. Entries are stored in alphabetical order.

View and dial phonebook entries

1.Pure 3.

1. Scrol 2 or 1 to the entery you want

or

To search alphabetically, press ① then press the key with the first letter of the name, e.g. if

the name begins with N, press 6 twice.

The display shows the first entry beginning with N. If required, press 2 or 3 to scroll to

the exact entry.

1. Press to dial the entry displayed.

Store an entry

1. Press 念 . PHONEBOOK is displayed.

2. Press 念 . MEM ENTRY is displayed.

3. Press ENTER NAVEO is displayed.

4. Enteri

5. Enter a number. Press to save. Press or to select NO GROUP, GROUP A, B or C and press

to contn

1. Press to return to standby.

NOTE

You can assign individual contacts to specific groups of your choice. For example, Group A

contains phone numbers of all your co-workers. You can also assign a specific menu to that group (see Group menu on page 15). You can benefit from this feature as it you have

subscribed to Solar Line Identifying requires from your network provider. If it is the case, please

time someone from that group calls you, you will hear the designated drontone for that group.

NOTE

Cancel storing an entry by pressing at any time during the process.

Entering names

Use the alphanumeric keypad to enter names in the phonebook.

For instance, to enter the name Paul

Press 7 once

1

m - 1 0 ;

L

To enter space press

Press to delete a character or press and hold to delete all characters.

Character map

Use the keypad to enter names and characters.

1

2 A B C 1

( x - 2x) t - xy^2 = ( x - 2x) f^ t

4 H

(2) a_4 = 16

（）

m - 1 0 ;

（）

②

Enter a pause

If your D711 is connected to a switchboard, you may need to enter a pause in a stored number.

This gives the swinherd title to get an outside line. A Pause is normally stored after the

1. When starting a number, press and hold it until the display shows P. You can then continue

storing the phone number.

View an entry

in standard
4. Dyes
1.
entry. The value is defined
3. Press to display the number if there are more than 12 digits press again to see the
rest of the number
4. Press to return to standby.
2018年9月16日
m = 311 ;
1. Press twice to open the phonebook menu
2. Enter the first letter of the name you want then scroll or if necessary to the exact name
Press to display the number. If there are more than 12 digits, press again to see the
rest of the number.
3. Press to cancel the phonebook display.
4. Brass - again to end the call

Z

Phonebook 11

D711_1RULINforEJ. book Page 12 Friday, August 24, 2007 3:58 PM

MOTOROLA

Edit an entry

1. Press (2)
2. Copy or to the entry you want to edit and press. EDIT ENTRY is displayed. Press grain.
3. Edit the name and press to confirm. Use to delete characters.
4. Press and edit the number
5. Press to confirm.
6. Scroll or to select NO GROUP, GROUP A, B or C and press to confirm.
7. Press to return to standby.

Delete an entry

1. Press 0.
   2 Scroll to the entire text you want to delete. 3. Click OK to save your text.
   3.Seril 4. Rrechshh (0000) Prrn
2. Display showing Confim? Plesse

Delete all entries

1. Press twice.
2. Scroll to DELETE ALL and press
3. Display shows COFFAM' Press
4. Press to return to standby.

Copy phonebook to another handset

1. Press twice
   2 Scroll to PnTnSFR and prcess

2. Scroll or to the number of the handset you want the phonebook copied to. Press

3. Press to return to standby.

NOTE

If an entry with the same name and number is already stored in the receiving handset, it will not be coded across.

One touch keys

The keys 1 to 9 enable one touch dialing of entries stored in the phonebook.

Dial a one touch number

1. Press and hold a number key 1 to 2.
   The number is disclosed and dialg.
2. Press to cancel the dialing and return to standby.
3. Press and hold a number key 1 to 2.
   The number is disclosed and dialg.
4. Press to cancel the dialing and return to standby.

Store a phonebook entry as a one touch number

1. Press twice
2. Scroll to DRECT MEN and press
3. Press or to select Key 1-9 and press . The current entry, if any, is displayed.
4. Press again to open the options menu.

5. Press to 400 an entry from the phonebook.

6. Scrol 2 or 1 to the enry you want. Press to confirm or to return to standby.

Delete a one touch number

1. Press twice then scroll 2 or to PECT VEN and press
2. Scroll or to select NE1:
3. Press to display the current entry. Press again to open the options menu.
4. Scroll to DELETE and press
5. Display shows CONFIRM? Press
6. Press to return to standby

Dial a one touch number.

12 Phonebook

D711_INU_INfor EU book Page 13 Friday, August 24, 2007 5:58 PM

5. Caller display and Calls list

If you have subscribed to Caller Line Identification (CLI), and provided the identity of the caller is available, the caller will be displayed together with the date and time of the call (if provided by the network).

NOTE

If the caller's number is stored in your phonebook along with a name, the name will also be displayed.

• If the telephone number is not available for incoming calls, the handset will display AVAILABLE information about incoming calls will vary by country and network operator. Some operators may charge a subscription for their Caller Line Identification service.

Calls list

The calls list contains details of missed and received call. Details include the date and time of the call. Entries are displayed in chronological order with the most recent call at the top of the list.

NOTE

When the calls list is full, a new call replaces the oldest in the list.

The received and missed calls log holds details of up to 50 calls. If you see a call that one cell for the same number and the

If you receive more than one call from the same number, only the most recent call is kept in the calls list.

When you have missed calls (incoring calls that you haven't answered) the will be displayed in the display on all handsets registered to the base.

If one handset is used to view the calls log, the icon on the other handsets continue to flash (Multipack user only).

View the calls list

1. Press 已 to enter CALL LOG option menu, then press 已 to enter CALL LIST - The most recent number or name 3 stored in the phonebook is displayed. New osis are

2. Scroll or through the calls log.

At the end of the log, you will hear a beep.

Press to see the number. If the number has more than 12 digits, press to see the rest of the number.

1. Press to return to standing

NOTE

The 10 stops flashing once all new calls have been viewed.

Dial from the calls list

1. Press to enter the CALL LOG option menu, then press to enter CALL LST. The most recent call is already set.

2. Scroll (A) or (B) to the entry you want.

3. Press or $ to print

Save a number from the calls list to the phonebook

1. Press then The most recent call is displayed.

2. Scroll or to the number you want.

3. Press SAVE NUMBER is displayed.

4. Press ENHANCED is displayed. Use the Keypad to enter the name.

must press to save the number (even if has not been edited).

1. Press or to select NC GROUP, CGROUP A, B or and press to confirm.

2. Press to confirm.

3. Press to return to standby.

Delete a calls list entry

1. Press then The most recent call is displayed

2. Scroll or to the number you want 3. Page for more than small on SEET and on

3. Display above (CBBN) Error in the form

4. Press ( 喜 ) to return to stand

Delete entire cell list.

1. Press (F) then (F). The press

2. Scroll to DELETE ALL and press

3. Display shows CONFIRN? Press to confirm. Press to return to standby.

Radial

The D711 lets you redial any of the last 10 numbers called. Numbers can be up to 24 digits long.

Redial the last number

1. Press The last number dialled is displayed.

If the number has more than 12 digits, the display shows and the cursor blinks. Press OK to display the text. If the number is stored in the Filesystem, the same is displayed on all

1. Press to di

1

View and dial a number in the radial list 1.

1. If converg , surp , tol or tol to display the property

2. Press to dial the number

Copy a radial number to the phonebook.

1. Press and scroll ±bx or 0 to the entry you want.

2. Press

3. Display shows SAVE NUMBER Press

4. Enter the name and press (+)

5. Edit the number required and press OK.

6. Pless 60

7. Ptees (in return is statiny)

Delete a radial list entry

1. Press OK, Scroll or 10 to display the number you want. 2. Press OK and Scroll to Print the paper on your computer.

2. Press and scholl 2 to deliee than prese 3. Display shows COBBY2. Error bar to confirm the

4.108

D711_INU_IN_for_EJ.Hook Page 14 Friday, August 24, 2007 5:58 PM

MOTOROLA

Delete entire radial list

1. Press then press
2. Scroll to DELETE ALL and press
3. Display shows CONFIRM: Press to confirm, Press to return to standby.

6. Clock & Alarm

If you subscribe to your network's Caller Identification service, the time on your D711 may be set automatically each time you receive a call, depending on your network provider.

You can also set or adjust the time using the Clock & Alarm menu.

Set date and time

1. Press and scroll to CLOCKLINE Press Display shows DATE & TIME, then press
2. Enter the date using the format DOWN e.g. 10ff for 4th August
3. Press and enter the
   e.g. 14.45 for 2.43psi
4. Press to return to standby

NOTE

Set alarm

1. Press Esc to DOCKALARY end press
2. Scroll to SET ALARM and press
3. Scroll or to OFF, ON, ORCE or ON/DAY and press
4. If you select ON/OFF or ON/DAILY enter the time using the 24 hour format HH-VM e g 14:45 for
5. Press to return to standby. When the alarm goes off, press any key to stop the ring.
   NOTE

Once the alarm is set to on, the non is displayed.

The alarm will ring at the medium level. ALARM ON and the flash on the display

Set alarm melody

There are three alarm ningtonones.
1. Press and scroll to CLOWSALARY
Press
2. Scroll to ALARM TONE and press
- Melodies are playco
3. Scroll or and press

14Clock & Alarm

D711_INU_INfor EU book Page 15 Friday, August 24, 2007 3:58 PM

7. Personal settings

Handset tones

WARNING

When the phone is ringing, avoid holding the cellphone too close to your ear as it may damage your hearing.

Ring volume

Choose from: Ringer Off, Low, Medium, High, Boost and Progressive (increasing ring volume).

NOVE The default setting is High.

1. Press OK to fill in the PERSONAL SET and press OK

2. HANDSEET TONE is displayed. Press

3. RING VOLUME is displayed. Press

4. Scroll (or to adjust the ringer volume level)

5. Press to save the settings

Ring melody

Choose from 10 ringer melodies.

1. Press, scroll to PERSONAL SET and press

2. HANDSETTONE is displayed. Press and scroll to RING MELCOY. Press

3. Press or to select the ringtone.

A sample of the ringtone is played.

1. Press to confirm.

2. Press to return to standard

Group melody

To benefit from this feature, you must subscribe to the Caller Line Identification service. This menu

enables you to select and set the mleodies to be played when there is an external incoming call

rrom a contact whose name is stored in your phonebook and is part of a group. You can associate

ring melody to each group . There are three phonebook groups ( Group A ,to organize your contacts . Each group can be assigned a unique melody ,

1.2000000000000000000000000000000

1. ANOESTONE is displayed, Prrn and onse (to CROUVE ME)CBX, Brame

2.1000000000000000000000000000000000000000000000000000

1. Press 2 or 1 to select the photorey you want for use

2. Press: to return to syntax

Key toros on/off

Key Terms On/

1. Process: 1. to 555NALNET and pone

2. HANDSETONE is displayed. Press ( ) and scroll to KEY TONE. Press

3. Scroll (↑) or (↓) in respect to or off

4.Pressa to confirm

1. Press to return to standby

MOTOROLA

First ring

Your D711 will automatically detect the Caller identification (Subscription dependent). If you de
not wish to hear the ring before the caller identification is displayed you can manually set FIRs1 RING to OFF. The default setting is ON.
1. Press, scroll to PERSONAL SET and press
2. HACSET TONE is displayed. Press end scrol1 to FIRST RING. Press
3. Scroll or to select ON or OFF.
4. Press to confirm.
5. Press to return to standby.

Handset name

Personalise your handset, with a name or location for example Peter or Bedroom. Maximum 10

1. Press to scroll to PERSONAL SET and press

2. Scoll HANSDT NANE and press The current narn is displayed

3. Press to delete the current name.

4. Enter the name you want - maximum 10 characters and press

to save.

1. Press to return to standby.

Auto pick up

With Auto pick up switched on, you can answer a call just by lifting the handset off the base or charger. If switched off, you will have to press to answer a call. The default setting is On.

1. Press to PERSONAL SET and press
2. Scroll to AUTO PICK UP. Press
   3.Scrollor or to selecton oroff
3. Press to confirm.
4. Press to return to standby.

Auto hang up

With Auto hang up switched on, you can end a call just by replacing the handset on the base or charger. If switched off, you have to press " 念 to hang up. The default setting is On.
1. Press scoll to PERSONAL SET and press
2. Scroll to AUTO HANG UP Press
3. Scall # or # is selection or iff
4. Press to confirm.
5. Press to return to standby.

Display language

You can change the display language.
1. Press to scroll to PERSONAL SET and press
2. Scroll Language Press
3. Scroll or to select the language you want
4. Press to confirm
5. Press to return to standby.

Personal sellings 15

D71IPLENforELbookPage 16 FridayAugust 24,20073:58PM

MOTOROLA

Babysit mode on/off

Leave one handset in a room and use another handset to hear sounds in that room.
1. Press to PERSONAL SET and press
2. Scroll to BABYSIT VCDPE Press
3. Press or to select OR or OFF.
4. Press to confirm.
When switched On, you can leave this handset in the room you wish to monitor. Only the microphone is on. Anyone in the room cannot near you.

Babysit

1. Switch a handset's babysit mode setting On and place that handset in the room.

2. At a second handset, press 0 and enter the number of the handses you are using as a room monitor. You can now hear sounds coming from the room.

TIP

To stop room monitoring at any time, press

Backlight on/off

1. Press, scroll to PERSONAL SET and press
2. Scroll to BACKLIGHT Press
3. Press 2: or to select ON or OFF.
4. Press to confirm

Keypa

Prevent accidental dialing while carrying the handset by locking the keypad.

1. Press and hold
   The display shows KEsLOcED
2. To unlock the handset, press and hold again.
   NOTE
   While the keypad is locked, you can answer incoming calls as normal.

8. Advanced settings

This setting is useful to access certain network and PABX-switchboard services.

Recall time

The default D711 recall time is suitable for your country and network operator. It is unlikely that you should need to change this setting unless advised to do so.

1. Press , scroll to ADVANCED SET and press
2. RECALL TME is displayed. Press
3. Press or to select the setting you want: SHORT, MEDUUM LONG
4. Press to confirm
5. Press to return to standard

NOTE

The use of your D711 cannot be guaranteed on all PABX.

Dial mode

The default D711 dialling mode is suitable for your country and network operator. It is unlikely that you should need to change this setting unless advised to do so.

1. Press , scroll to ADVANCED SET and press (
2. Scroll to DUAL MODE Press
3. Press or to select TONEOR PULSE
4. Press to confirm.
5. Press to return to standby

Temporarily switch from Pulse to Tone dialling

1. Press and hold 2. Hold

The dai mode will change from Pulse to Tone for the duration of the call.

Call barring

Prevent certain numbers from being dialed from your D711. Store up to four specific numbers,
each up to 4 digits - for example, international or local prefixes.
Bypass call barring by switching the setting Off or On.
NOTE
If you switch Call barring on, BARR VCOE ON will be displayed on your screen in standby mode.

Switch call barring on/off

1. Press , scroll to ADVANCED SET and press
2. Scroll to Call SBBPG Press
3. Enter the master PIN (default setting 9000) and press
4. NODE is displayed. Press
5. Press or to select ON or OFF. Press to confirm.
6. Press to return to standby. You can now set the number

(See below)

16 Advanced settings

D711_INU_INfor EU book Page 17 Friday, August 24, 2007 5:58 PM

Set a number to be barred

7. Press to return to standby.

1. Press to AdvancedSet and press
2. Scrol to CALL BARRING. Press
3. Eple the master PIN (defaul setting 0000) and press
   4.5001 to NUVER Press
   5.2023年1月24日（星期五）
4. Puys and wiph the mumber of uynr you want to be Puys
   0
   10 comrnH.

Baby call

When activated, this feature allows you to dial a number by pressing any key on your handset (except . This feature is very useful for access in emergency services.

Switch baby call on/off

1. Press , scroll to ADVANCED SET and press
3. Enter the master PIN (default setting (X) and press:
   4.NOI is disclosed. Press stop press or to sign OR oF Press to confirm
4. Power (1) to return to maturity
   1

NOTE

If you switch Baby call on, BABY CALL ON will be displayed on your screen in standby mode.

To switch Payx call off again:

1. Press

2.Off! is displayed.Press to confirm.

Set the baby call number.

1. Press Esc to Advanced Set and press
2. 2.01
3. Ener the mster Pin (Densr) 4.
4. Scrol 10 NUVER.Press
5. Enter the number. Press to confirm
6. Press to return to standard

Dial a baby number

1. When a baby call number has been stored and the baby call setting switched on, press any key (apart from 空 ), to dial a number.

#

NOTE

When baby can be switched on, you can still answer any incoming call as normal.

Registration

Up to 5 handsets can be registered to one base stallion. Additional handsets must be registered
in the base before you can use them.

---

• The instructions described below apply specifically to your D711 handset. If you wish to register another manufacturer's handset, the instructions may vary. In this case, please refer to the manufacturer for more information.

MOTOROLA

The Master PIN is required before you can register or unregister handseels. The default PIN is 1000.

Register a handset

At the oseae

1. Press and hold the button on the base station for at least 3 seconds. The base station enters a beep when it is ready to accept registration. You have 90 seconds in which to register a handout.

At the handout

1. Press and scroll to AVANCED SET and press
2. Scill 3 to RERIRATOH and stess
3. If necessary, scroll or to display REGIST. BASE and press , BASE 1214 is displayed and the registered base number is flashing. Enter the number of the base on which you wish to register your handset.
   If you have only 1 base slation, press ① . If you have 2 base slations, press ① or ② ,etc. 4. When the display shows PIN... enter the base PIN.
4. When the handest registers with the base, it is assigned a handest number.

Select a base

You can register your D711 handset with up to 4 bases. Once registered, you can switch between bases, for examples, bases at home and at work.
1.000元（1000份）
1. Pies and Soch 2. AONANED SIE AND PIES
2. Scroll to Registration and press
3. SELECT BASE is displayed. Press
- The available bases are displayed with the current base number flashing
4. Enter the number of the base you want - 1,2,3 or 4 and press
- When the base is found you hear a beep. If not found, the display shows unREGISTERED.

Unregister a handset

1. Bress and scoll in 600000 and pess
2. Seell to INSESSER and cxers
   3.2018-04-05 17:00
3. Enter the 4-digit master PIN and press OK.
4. Smal to 1000
   4.3.10.2018 1

PIN

The 4-digit master PIN is used when registering or unregistering a handset and when changing some settings on your D711. The default setting is 0000. You can change this PIN for more security.

1. Brrr rccn 1
2. Scaal to Fw Eame
3. Ento the pumr (1) 2018 and 2019 (Prrn 2020)

4. Enter the current ^+ digit Fisger ± 4. Enter the current ^+ digit ^+

5. Enter the new PIN and press OK.

D71IPLENforELbookPage 18 FridayAugust 24,20073:58PM

MOTOROLA

NOTE

Make a note of your PIN. If you forget your PIN you will need to reset your product.

Reset

This will reset your D711 to its default settings.

1. Press scoll to ADVANCED SET and press

2. Scroll to RESET UNIT. Press

3. CONFRONT IS displayed. Press OK

Entries stored in the phonebook and new answering machine messages are retained. After reset, depending on your country, the welcome mode settings may be shown on the handset display.

Default settings

Handset name Handset

Key jane, 90

First ring On:

AutoPick On

A

Ringer melody Ring 1

Ringer volume

Earpiece volume 3

Phonebook

Unchanged

Call log Empty

Redist Empty

Master PIN 0000

Keypad lock Off

Clock

Alarm

Dial mode

Answer Machine

Answer Mode

Outgoing message

Ring delay

Remote Access

Handset screening

Base screening

18/19

Anwer & Record

Pre-defined

15 seconds

On

01

图1

Auto prefix

You can set the D711 to detect a dialing number and replace it with another number. The number to be detected can be up to 5 digits long. It can be replaced with a number up to 10 digits.

10
1. Press , sccll 10 A/VALEUdAeI and prse
2 Scroll to PREL Press. 3. DETECT POINT in foreground. Press
4. Enter the number you want to be detected and press
5. Scroll to PREFERENCES and press
6. Enter the number you want it replaced with and press.
7. Press 3 to return to Stanley

Country

If you move to another country you can set your phone to be compatible with the network settings of that country.
NOTE
If you make a mistake during welcome mode country selection, you can also reset your country
Depending on your country, this option may be displayed as NOT AVAILABLE or you country may not be displayed.
1. Press, scroll to ADVANCED SET and press
2. Scroll to SEL COUNTRY Press
3. Enter the 4-digit master PIN and press OK.
4. sclro 2 or to display the required country.
5. Press to confirm.

Intrusion

When an external call is taking place, another handset registered to the base can join in, making the call a very successful one.
To enable the transmission may be switched On.
1.
2. SIRIUS 10175000000
3.50120202020
4. Press to confirm
5. Press to return to standard

ECO mode

To reduce the level of power emissions, you can select low power or ECO mode. When the ECO
m
TaumECU Mode 100W ofFF
1. Press →, scroll (0 to ADVANCED SET and press →).
2. Scroll to ECO WOCE and press
3. Press or to highlight on or off then press to confirm
A confirmation beap is cllled and the handsc display will switch between the handsc s

NOTE

When Eco Mode is set to 0, the handset range will be reduced.

18 Advanced settings

ur D711 to its default settings.

n

ESHTUMBongx

enwled Eress

the phonebook and new answering machine messages are retained. After reset, our country, the welcome mode setting may be shown on the handset display.

in no

tings

Hard Set

1

On

Bing 1

1

High

m = 311

( x - 2x) t - xy^2 = ( x - 2x) f^ t

TV

Y

1

色：

---

图1

m = 311

.

符号

1

D711_IN_IN_for_EJ. book Page 19 Friday, August 24, 2007 3:58 PM

MOTOROLA

9. Using your Answering machine

Your O711 answering machine records unanswered calls when it is activated. It can store up to 59 messages within the maximum recording time of 12 minutes. Each message can be up to 3 minutes long. Your personal outgoing messages can be up to 1 minute long.

D711 Base Answer Machine Control Keys

Press to turn the answering machine on/off

Play new messages

Press to stop playback

Skip to the next message during message playback

Replay current message

Press twice to skip back to previous message

Delete current message during message playback
Long press to delete all messages when TAM is in standby mode

Increase speaker volume during message playback

Decrease speaker volume during message playback

Switch on/off

1. Press 念 scroll or to ANM WACHNE and press

2. Scrl 1 to ANSWC OFF and press

3. Scrol 9 or 10 display on B or C.

4. PEG8 160000H

5. Press to return to standard

Play messages

1. Press and scroll or to AUGMENTHE and press PLAY is displayed

2. Press to play new messages.

The display shows the number of new messages, if there are no new messages, all stored

meeasaaare played

1. Press to display the callers identification. Press again to see the date and time of the call.
   NO.1 We have not subscribed to the Caller Line Identification this option is not available. This also applies for memo recordings.
2. During playback press to display a list of options. Use the and keys to change the options:
   REPEAL-press inrepeal current messages
   -NEXTYES64E-press- to play next pressure
   PREVMESSAGE-press to play previa message
3. SAVE NUMBER - press to store the number, if available, in the pheretox.

NOTE

If you have not subscribed to the Caller Line Identification this option is not available.

1. Press to stop playback and return to standby.

Delete all messages

1. Press to scroll to ANSW MACHINE and press
2. Scroll to DELETE ALL and press
3. Display shows COMRR? Press to confirm

Record a memo

You can record a memo which is stored on your answering machine and played back like a normal

1. Press to AVMNACNE and press
   2.Soml to REORMO and pess. Dislay shows REORMO
2. Speak your message. Press to end recording.

Outgoing messages

This is the message your calers hear on the answering machine. There are two pre-recorded

Ougong mssages, or you can record your own.

Answer & Record

The caller can leave a message. The pre-recorded message is 'Hello, your call cannot be taken
at the moment, so please leave your message after the lone.

Answer Only

The caller can listen to your announcement but cannot leave a message. The pre-recorded
message is "Hello, your call cannot be taken at the moment, and you cannot leave a message, so please call for."

Set answer mode

Sel your machine to Answer & Record or Answer Only.
1. Press int serpl(）or（）to/IMM# and press
1. Plo8 2. Small in WSNER VOCE and xeran (2)
-This current answer mode is displayed

Using your Answering machine 19

D711_INU_INfor EU book Page 20 Friday, August 24, 2007 5:58 PM

MOTOROLA

1. Soroi or to select AXSNER &REC or AXSNER ONLY and press

2. Scroll or to display the message type you want PERSONALISED to set your own recorded messages or PRSEPUKE for the pre recorded messages

3. Press to portm

If you select PERSONALIZED, see following paragraph.

Record, play or delete your own outgoing message

An er & Rrcd r t you cllers to leave a message. Averl Only tels calers h your

1. Press script in AVIN WACHNE and press

2. Scrol 1 to AYSMEYVCE and press

3. Scroll or to select ANSWER & REC or ANSWER ONLY and press . Use the or key to

select PERSONALISED then pre 4. A in standard Power Mix

1. FOWD IS displayed. Press OK.

2. Scroll to select RECORD WES3 - press. Display shows RECORD and a beep is emitted.

Speak your message. Press to end recording.

• DELETE - press The pre-recorded message will be automatically reinstated.

• Pless to comr

Answering machine settings

Ring delay

Select the duration of rings before your answering machine picks up the call. Choose from 5/10/15/20/26/30 seconds to Tall Tall.

1520230860018 or 101 SAAV

NOTE

If Toll Saver is selected, then

If you have new messages your phone answers after 10 seconds.

If there are no new messages it will answer after 20 seconds. So you have the option to hang

If the memory is full, it will answer after 30 seconds in Answer Only mode.

1. Press to spin to select the data and press

2. Scroll to ASSETTING and press OK.

3. RING DELAY is displayed. Press

4. Scroll or to select 5/10/15/20/25/30 seconds or TOLL SVER.

5. Press to confirm.

Remote access

Remote access allows you to operate your answering machine and listen to your messages by

NOTE

Change this code for increased security, see PIN on page 17.

1. After entering your PIN as stated above, use the keypad to operate your D711 answering

machine:

Play messages 2

Play previous message 1

Play next message. 3

Delete message playing 6

Switch answer machine on:

Switch answer machine on 1

Stoppayback8

Switch answer machine off 9

Remote Access on/off

1. Press, scroll to ANS NCHNE and press
2. Scroll to ANSW SETTINGS and press
3. Scroll to RENDEEACC and press
4. Srlal 0r to selent AINATID OF DEAUTNATEU

Call screening

Use your handset or base speaker to hear a caller leaving a message. You can then choose to
ignore the caller or pick up the call.
The default settings are
Handset call screening: Off
Base call screening: On

at the end of

1. If you want to interrupt and take the call press or

At the base

1. When a caller is leaving a message, press or to adjust the volume to listen to your

1. To interrupt and take the call on the handset, press 1 or (4)

Switch handset call screening on/off

1. Press, scroll or to ANSW NACHME and press
   2 Scroll to RWMS SETTINGS and press
2. Pn 1000000000000000000000000000000000000000000
3. Process to optimise
   Switch hoo-ation on
   Switch base station can screening on/off 1. Press Esc to AWX VACHEV and press Esc

Remote access

calling your D711 from another phone .
The default setting is on.
1. Call your D711. When you hear your outgoing message, press it.
2. Enter your 4 digit PIN. The default code is 0000
You hear a confirmation hesp.
rrnre aee rreee eae reene e e e e e e e e e e e e e e e e e
The
1. Call your D711. When you hear your outgoing message, press it.
2. Enter your 4 digit PIN. The default code is (60)
- You hear a confirmation hesp.

20 Using your Answering machine

---

m - 1 0 ;

D711_INU_INfor EU book Page 2 Friday, August 24, 2007 5:58 PM

2.ScriltoHNSWSETTNGsandpress

1. Scrol to B5 SFEENNG and press
2. From 10 to 15, select the following:
3. Press OK to see

Access answering machine menu via the Calls list

When the is a n to go to AWN WADINE to play new messages.

1
1. Press OK, CALL LIST is displayed.
2. Press OK ARMACHINE displayed.
3. Presa 一 _ 1 PLN is displayed
4. Press the handse will start the new message playback. Once all messages are played,
the hndset will return to standby.

NOTE

During message playback, press anytime to return to standby.

Memory full

The memory is full if there is less than 15 seconds of recording time left or if the maximum total of
39 Messages has been searched
When the memory becomes full:

The LED will flash quickly.

+the quickx on the bareds display

The machine will automatically switch to (any) only.

• The following will be included in the survey: A. Name of the household

If the memory becomes full while a caller is leaving a message, they will hear a beep and the call

is ended.

MOTOROLA

10. Help

Charging

The is not scrolling when the handset is placed on the base
Bad battery contact - move the handset slightly
- Dirty contact - Clean the battery contact with a cloth moistened with alcohol
Battery is full - no need to charge

Calls

No dialling tone.

• No power - check the connections. Reset the phone, unplug and plug back in the mains
  Batteries are empty - change the batteries for at least 24 hours
  You are too far from the base - move closer to the base.
• Wearing line cable - use the line cable provided
  1
• Line adaptor (when released) is not connected to the

Pareaucracy

The hae in tio cie i e r o
n the base at loh) are mok wth from ray oohing
HRE the base at hnsb tne fhe way from any ciehical ap

The icon is blinking.

Handseel is not registered in the base - register the handseel to the base
- You are too far from the base - move closer to the base
No ring tops.
The line has no direction.
: Increase the volume

Caller Line Identification (CLI) service does not work

Check your subscription with your network operator

Phonebook

A phonebook entry cannot be stored

The phonebook is full. Delete an entry to free memory

Display

Try recharging or replacing the balleries.
Try disconnecting and connecting the base power supply.
- if LED is not lit up, then try disconnecting and connecting the base power supply.

Registration

Unable to register another handset
Maximum number of 5 handels has been marred.
The display showSEARCH. You must unregister a handse in order to register a new one

Help 21

D711_INU_IN_for_EU.hoek Page 22 Friday, August 24, 2007 5:58 PM

MOTOROLA

Interference

Noise Interference on your radio or television

Your base or charger may be too close. Move it as far away as possible.

Answering machine

Answering machine does not record messages
- SWITCHING INCHING MACHINE
The fhiory may be tll. 02 you will need to dege some mssages
G

Cannot access messages remotely

• If wrong PIN is entered a heen is played. You can enter the PIN once again.
  Cannot record outgoing message
  The memory may be full. If so, you will need to delete some messages.
  Answering machine steps automatically.
  The memory may be full. If so, you will need to delete some messages.
  The maximum message length is 3 minutes.

11. General information

IMPORTANT

This equipment is not designed for making emergency telephone call when the power fails. Alternative arrangements should be made for access to emergency services.

This product is intended for connection to an electronic switchboard in the United Kingdom.

Safety information

• Only use the power supply suitable for the D711 range. Using an unauthorised power supply will invalidate your guarantee and may damage the telephone.
• Use only the approved rechargeable batteries supplied.
  expose you to high voltages or other risks.
• Radio signal transmitted between the handsets and base may cause interference to hearing aids.
• It is recommended that advice from a qualified expert be sought before using this product in the vicinity of emergency/intensive care medical equipment.
  It is recommended that if you have a pacemaker fitted you check with a medical expert before using this product.
• Your product may interfere with other electrical equipment, e.g. TV and radio sets, clock, alarms, and programming if closed in close.
  It is recommended that you place your product at least one metre away from such appliances in order to prevent the use of aluminium.
• Never dispose of batteries in a fire. There is a serious risk of explosion and/or the release of highly toxic chemicals.

Cleaning

• Clean the handker and base (or charger) with a damp (not wet) cloth, or an anti-static wipe. Never use any plastic polish as this will damage the product. Never use a dry cloth as this may cause a stubble shop.

Environmental

• Do not expose to direct sunlight.
• The handset may become warm when the batteries are being charged or during periods of use. This is normal. However, we recommend that to avoid damage you
• Do not stand your product on carpets or other surfaces which generate fibres, or place it in incollings representing the fire flow of air over its surfaces.
• Do not submerge any part of your product in water and do not use it in doing or humid conditions, such as bathrooms.
  Do not expce your product to fire,expensive or other hazardous conditions.
• There is a slight chance your phone could be damaged by an electrical storm. We recommend that you unpig the power and telephone line cord during an electrical storm.

22 General Information

D711_INU_INfor EU book Page 23 Friday, August 24, 2007 5:58 PM

Product disposal instructions

The symbol shown here and on the product means that the product is classed as a commercial or commercial product, and can be disposed with other household or commercial waste at the end of its working life.

The Waste of Electrical and Electronic Equipment (WEEE), Directives (2002/06/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimize the impact on the environment, treat any hazardous substances and avoid the increasing landfill.

Product disposal instructions for residential users

When you have no further use for it, please remove any batteries and dispose of them and the product per your local authority's recycling processes. For more information please contact your local authority or the manufacturer directly.

Product disposal instructions for business users

Business users should contact their suppliers and check the terms and conditions of the purchase contract and ensure that this product is not mixed with other commercial waste for disposal.

Warranty Information

The authorized Motorola dealer or retailer where you purchased your Motorola product will honour a warranty claim and/or provide warranty service.

Please return your radio to your dealer or retailer to claim your warranty service. Do not return your telephone to Motorola. In order to be eligible to receive warranty service, you must present your receipt of purchase or a comparable substitute proof of purchase bearing the date of purchase. The telephone should also clearly display the serial number. The warranty will not apply if the type or serial numbers on the product have been altered, deleted, removed, or made illegible.

What Is Not Covered By The Warranty

Defects or damage resulting from use of the Product in other than its normal and customary manner or by not following the instructions in this user manual.
Defects or damage from misuse, accident or neglect.
Defects of damage from Improper testing, operation, maintenance, adjustment, or any alteration or modification of any kind
- Breakage or damage to serials unless caused directly by defects in material or workmanship.
Products disassembled or repaired in such a manner as to adversely affect performance or removal adequate incinerator and testers to work away unreasonably claim.
proven adnolat inspcion and wiling to verify any tonary claim. - Defects or damage due to range.
Defects or damage due to moisture, liquid or spills.
All plastic surfaces and all other externally exposed parts that are scratched or damaged due
- Products rented on a temporary basis.
Periodic maintenance and repair or replacement of parts due to normal usage, wear and tear.

MOTOROLA

Technical Information

How many telephones can I have?
All items of telephone equipment have a Ringer Equivalence Number (REN), which is used to calculate the number of items which may be connected to any one telephone line. Your D71 has a REN of 1. A total REN of 4 is allowed. If the total REN of 4 is exceeded, the telephones may not be able to display different telephone types there is no guarantee of ringing, even when the REN is less than 4.
Any additional handsets and chargers that you register have a REN of 0.
Declaration of Conformance
Hereby, Motorola declares that this D711 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5EC.
The Declaration of Conformance for the D711 is published on the website: http://
www.microola.com/reuradps/technicaDocumentation

Inserting a pause

With some switchboards, after distilling the access code you may have to wait for a moment while the switchboard picks up an outside line so you will need to enter a pause in the dialing sequence.

Braan and poin ( to insert a course ( ) before entering the telephone number

You may also need to enter a pause when storing international numbers or charge card numbers.

Recall

You may need to use the recall function if you are connected to a switchboardPBX (Private

Branch Exchange); contact your PEX supplier for further information.

General information 23

Bienvenue...

D711_1PU_1R.book Page 3 Friday, August 24, 2007 S:24 PM

MOTOROLA

1. Pour commencer

Emploement 5

Installation 5

Alumni (degrde in combination

Effectuar un second sopoel exteme 0

Interphene 10

Actior/ disrtions in his derourne

PRETIGE SPINDGE

Nom du comine.

Aeriver, besaiver in rade babyin Marie Babyin

A

Wvtpuillng slwir

D711_1P1_PR.book Page 4 Friday, August 24, 2007 5:24 PM

MOTOROLA

D711_1PU_1R.book Page 5 Friday, August 24, 2007 S:24 PM

1. Pour commencer

ATTENTION

D711_PU.PR.book Page 6 Friday, August 24, 2007 5:24 PM

MOTOROLA

ALERTE DE BATTERIE FAIBLE

D711_1PU_1R.book Page 7 Friday, August 24, 2007 S:24 PM

A Ecouteur

B E c r a n

D711_1PU_1R.book Page 8 Friday, August 24, 2007 S:24 PM

MOTOROLA

B OK

D711_1P1_PR.book Page 9 Friday, August 24, 2007 5:24 PM

MOTOROLA

D711_1PU_PR.book Page 10 Friday, August 24, 2007 5:24 PM

MOTOROLA

Interphone

D71LJPUFRbook Page 11 Friday, August 24, 2007 5:24 PM

4. Répétoire

D71LJPUFR.book Page 12 Friday, August 24, 2007 5:24 PM

MOTOROLA

D71L JPU PR. book Page 13 Friday, August 24, 2007 5:24 PM

D71L JPU FR. book Page 14 Friday, August 24, 2007 5:24 PM

MOTOROLA

D71LJPUFR.book Page 15 Friday, August 24, 2007 5:24 PM

MOTOROLA

D71LJPUFR.book Page 16 Friday, August 24, 2007 5:24 PM

MOTOROLA

Langued'affichage

D71L JPU PR book Page 17 Friday, August 24, 2007 5:24 PM

Entrer un numero a bloquer

D711_PU_PR.book Page 18 Friday, August 24, 2007 5:24 PM

MOTOROLA

REMARQUE

Vermuillage clayier Disactive

Horloge

Revell

Mode de numerotation

Récondeur

Mode response

M

Nnre

Accies distance Active

Fillrage combine

Filtage case

00.00

Dessactie

Frequences vocales

Active

Bepnds & copsiistre

Pristlefiri

15

Désactie

Active

Prefixe auto

D71L JPU PR. book Page 19 Friday, August 24, 2007 5:24 PM

MOTOROLA

D71L JPU PR book Page 20 Friday, August 24, 2007 5:24 PM

MOTOROLA

D71L JPU PR book Page 21 Friday, August 24, 2007 5:24 PM

D71L JPU PR book Page 22 Friday, August 24, 2007 5:24 PM

MOTOROLA

Interférences

D711_HU_DE_for_EU.book Page 3 Friday, August 24, 2007 2:37 AM

1.基础知识

1. OHF & Wecker
   Date and time: Worker installers

Wckerent

Wecksma

D711_PU_DE_for_EU.book Page 4 Friday, August 24, 2007 2:37 AM

MOTOROLA

D71L_1PU DE.1n Page 5 Friday, Augus 24, 2007 4:37 PM

1. Inbetriebnahme

ACHTUNG

D711_HU_DE_for_EU.book Page 6 Friday, August 24, 2007 2:37 AM

MOTOROLA

WARNHINWEIS BEIGERNGER AKKUKAPAZITA T

D711_HU_DE_for_EU.book Page 7 Friday, August 24, 2007 2:37 AM

D711_1FU.DE.fn Page 8 Friday, August 24, 2007 4:33 PM

MOTOROLA

ACHTUNG

D711_HU_DE_for_EU.book Page 9 Friday, August 24, 2007 2:37 AM

A LED

D711_PU_DE_for_EU Book Page 10 Friday, August 24, 2007 2:37 AM

MOTOROLA

HINWEIS

D711 IPU DE for EU book Page 1 Friday, August 24, 2007 2:37 AM

D711_100_DE_for_EU. book Page 12 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_INU_DIE_for_EU.hook Page 13 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_1PU DE_for EU book Page 14 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_INU_DIE_for_EU.hook Page 15 Friday, August 24, 2007 2:37 AM

MOTOROLA

6. Uhr & Wecker

D711_1PU DE_for EU book Page 16 Friday, August 24, 2007 2:37 AM

MOTOROLA

1. Wahen Schmitt 4. Portions of this report are not included in the financial statements.

2. BISINAGIT 81H 5

D711_INU_DIE_for_EU.hook Page 17 Friday, August 24, 2007 2:37 AM

D711_PU_DE_for_EU book Page 18 Friday, August 24, 2007 2:37 AM

MOTOROLA

Anmelden

D711_PU_DE_for_EU.hook Page 19 Friday, August 24, 2007 2:37 AM

MOTOROLA

Hörbertsbrärke 3

Telefonbuch

Annuliste

D711_INU_DIE_for_EU.hook Page 20 Friday, August 24, 2007 2:37 AM

MOTOROLA

9. Anrufbeantworter

D711_INU_DIE_for_EUBook Page 2 Friday, August 24, 2007 2:37 AM

Anrufbeantworter-Modus "ANTW+AUFNEHM"

D71IUPU DE-for EJ.hook Page 22 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_INU_DIE_for_EU.hook Page 23 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_1PU DE_for EU book Page 24 Friday, August 24, 2007 2:37 AM

MOTOROLA

D711_INU_DIE_for_EU.hook Page 25 Friday, August 24, 2007 2:37 AM

MOTOROLA

D71I_HU_IT_for_EU.book Page 1 Friday, August 24, 2007 6:12 PM

Benvenuti...

D711_HU_IT_for_EU.book Page 3 Friday, August 24, 2007 6:12 PM

MOTOROLA

1. Periniziare

Ubicazione 5

Cargurazone 5

Schemate of Benayato

Impssion panns di data s po

1. Report

Hemorization up comparison

D711_101_101_for_EU.book Page 4 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_HU_IT_for_EU.book Page 5 Friday, August 24, 2007 6:12 PM

MOTOROLA

1. Per iniziare

AWERTENZA

Ubicazione

D711_1PU_1T_for_EU.book Page 6 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_HU_IT_for_EU.book Page 7 Friday, August 24, 2007 6:12 PM

A. Avolow

B Display

M Intercom (seop aessai alpno 2 (rps)

D711_101_11_for_EU book Page 8 Friday, August 24, 2007 6:12 PM

MOTOROLA

B OK visualizzato

emers l task pse selection

▼▼visualizzato

D711_HU_IT_for_EU.book Page 9 Friday, August 24, 2007 6:12 PM

3. Uso del Telefono

Chiamate

D711_INU_IT_for_EUBook Page 10 Friday, August 24, 2007 6:12 PM

MOTOROLA

Inte

D711_INU_IT_for_EUBook Page 1 Friday, August 24, 2007 6:12 PM

4. Rubrica

D711_INU_IT_for_EUBook Page 12 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_INU_IT_for_EUBook Page 13 Friday, August 24, 2007 6:12 PM

m = 311

m - 1 0 ;

( x - 2x) t - xy^2 = ( x - 2x) f^ t

( x - 2x) t - xy^2 = ( x - 2x) f^ t

12x - 1 > 0

D711_INU_IT_for_EUBook Page 14 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_INU_IT_for_EUBook Page 15 Friday, August 24, 2007 6:12 PM

MOTOROLA

1. Premare 3 perfonare in standcy

Suoneria di gruppo

D711_INU_IT_for_EUBook Page 16 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_INU_IT_for_EUBook Page 17 Friday, August 24, 2007 6:12 PM

5.Prepare 品 perfomans in standby

NOTA

m = 311 ;

Ring

ds/ivcivals cM ECOLOGICA.

NOTA

D711_INU_IT_for_EUBook Page 19 Friday, August 24, 2007 6:12 PM

D711_INU_IT_for_EUBook Page 20 Friday, August 24, 2007 6:12 PM

MOTOROLA

D711_INU_IT_for_EUBook Page 2 Friday, August 24, 2007 6:12 PM

D711_1FU_1T_for_EJ.Hook Page 22 Friday, August 24, 2007 6:12 PM

MOTOROLA

Interferenza

D711_INU_IT_for_EUBook Page 23 Friday, August 24, 2007 6:12 PM

D711_1PU_ES.book Page 3 Friday, August 24, 2007 6:49 PM

1. 估值模型

Ubicacion

Cangzheng Chen

Transfertion 1100000000000000000000000000000000000000000000000000000000000000000000000000

Igmda de confemps in tne partes

Cerro de voz

m = 311

2 : x^ ( x) = y^ ( x) : 2 : x^ ( x) = y^ ( x) : x = 15; y = 15 x,y S x = 15; y = 15 x,y S x = 15; y = 15 x,y S x = 15; y = 15 .

一

。

一

m = 311 ;

1 + u7 = 70%

+

+

2 : x^ ( x) = 10的1.2

1

m = 311 ;

3

m = 311 ;

1 + u7 = 70%

。

+

2 : x^ ( x) = 10的1.2

1

+

2 : x^ ( x) = 10的1.2

D711_INU_ES.book Page 5 Friday, August 24, 2007 6:49 PM

1. Introduccion

ADVERTENCIA

D711_INU_ES.book Page 6 Friday, August 24, 2007 6:49 PM

MOTOROLA

D711_1PU_ES.book Page 7 Friday, August 24, 2007 6:49 PM

A Auricular

B Pantalla

Reducel volume of auriculars

Tolardo

D711_10U_5S.book Page 8 Friday, August 24, 2007 6:49 PM

MOTOROLA

B Se muestra OK

D711_1PU_ES.book Page 9 Friday, August 24, 2007 6:49 PM

MOTOROLA

3. Utilizacion del Telefono

Llamadas

Realizar una llama

1. Marque o numero de telofofo.

Premarcado

D711_PU_ES.book Page 10 Friday, August 24, 2007 6:49 PM

MOTOROLA

This function will be applicable to any registered user and terminals. In general, the functions transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer, transfer

D71L JPU Ls. book Page 11 Friday, August 24, 2007 6:49 PM

MOTOROLA

4.Agenda

D711_1PU_ES.book Page 12 Friday, August 24, 2007 6:49 PM

MOTOROLA

Editar una entrada

D711_1FU_ES.book Page 14 Friday, August 24, 2007 6:49 PM

MOTOROLA

D71LJFUS. book Page 15 Friday, August 24, 2007 6:49 PM

MOTOROLA

7. Ajustes personales

Tonos del terminal

ADVERTENCIA

D71LJFUS. book Page 16 Friday, August 24, 2007 6:49 PM

MOTOROLA

Idioma en pantalla

D71L IPU Ls. book Page 17 Friday, August 24, 2007 6:49 PM

D711_PU_ES.Book Page 18 Friday, August 24, 2007 6:49 PM

MOTOROLA

1. Pulse,desplice nasta JUSTE KANZy pulse
2. Despase (hasta PN, Puise 3. intruderos al PIM masces de 4 d'actifs actuels u pules /fisrate protetatione 0701
3. Introduce an PIN male with 4 digits actuary pulse (1). (Page predefinirado 0002)
4. Introduce an el nuevo PIN y pulse (2).

NOTA

Restaurant

De este modo se restaurarán los tiustes predeterminados del D711.
1. Pulse, desplace nata JUSTE ANZY pulse
2. Despiace hasla REMCUR Pulse
3. Se mostra corrirmar en pianta. Pulse

D71L IPU Ls. book Page 19 Friday, August 24, 2007 6:49 PM

D71L_1FUS. book Page 20 Friday, August 24, 2007 6:49 PM

MOTOROLA

D71L JPU Ls. book Page 21 Friday, August 24, 2007 6:49 PM

D71LJFUS. book Page 22 Friday, August 24, 2007 6:49 PM

MOTOROLA

D71L JPU Ls. book Page 23 Friday, August 24, 2007 6:49 PM
