| Brand | WIKO |
| Model | Bloom 2 |
| Product Type | Smartphone |
| Dimensions (approx.) | 143.5 x 72 x 8.5 mm |
| Weight (approx.) | 150 g |
| Display | 5.0 inch IPS, 720x1280 pixel resolution |
| Operating System | Android 5.0 Lollipop |
| Processor | Quad-core 1.3 GHz |
| RAM | 1 GB |
| Internal Storage | 8 GB |
| Expandable Storage | microSD up to 64 GB |
| Battery | 2000 mAh removable |
| Power Supply | Mains charger 5V / 1A, micro USB cable |
| SIM Cards | Dual SIM (mini-SIM) |
| Rear Camera | 8 megapixels with LED flash |
| Front Camera | 5 megapixels |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS, 3G (HSPA+), 2G (EDGE/GPRS) |
| Sensors | Accelerometer, proximity sensor |
| Care and Cleaning | Soft dry cloth, no solvents |
| Safety | Follow instructions: avoid shocks, liquids, extreme temperatures; do not disassemble |
| Spare Parts and Repairability | Removable battery, charger, USB cable; repair by WIKO authorized technician |
| Box Contents | WIKO Bloom 2 mobile, power adapter, micro USB cable, headset, user guide, battery |
| Warranty | Manufacturer's warranty according to WIKO terms |
Frequently Asked Questions - Bloom 2 WIKO
User questions about Bloom 2 WIKO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Smartphone in PDF format for free! Find your manual Bloom 2 - WIKO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Bloom 2 by WIKO.

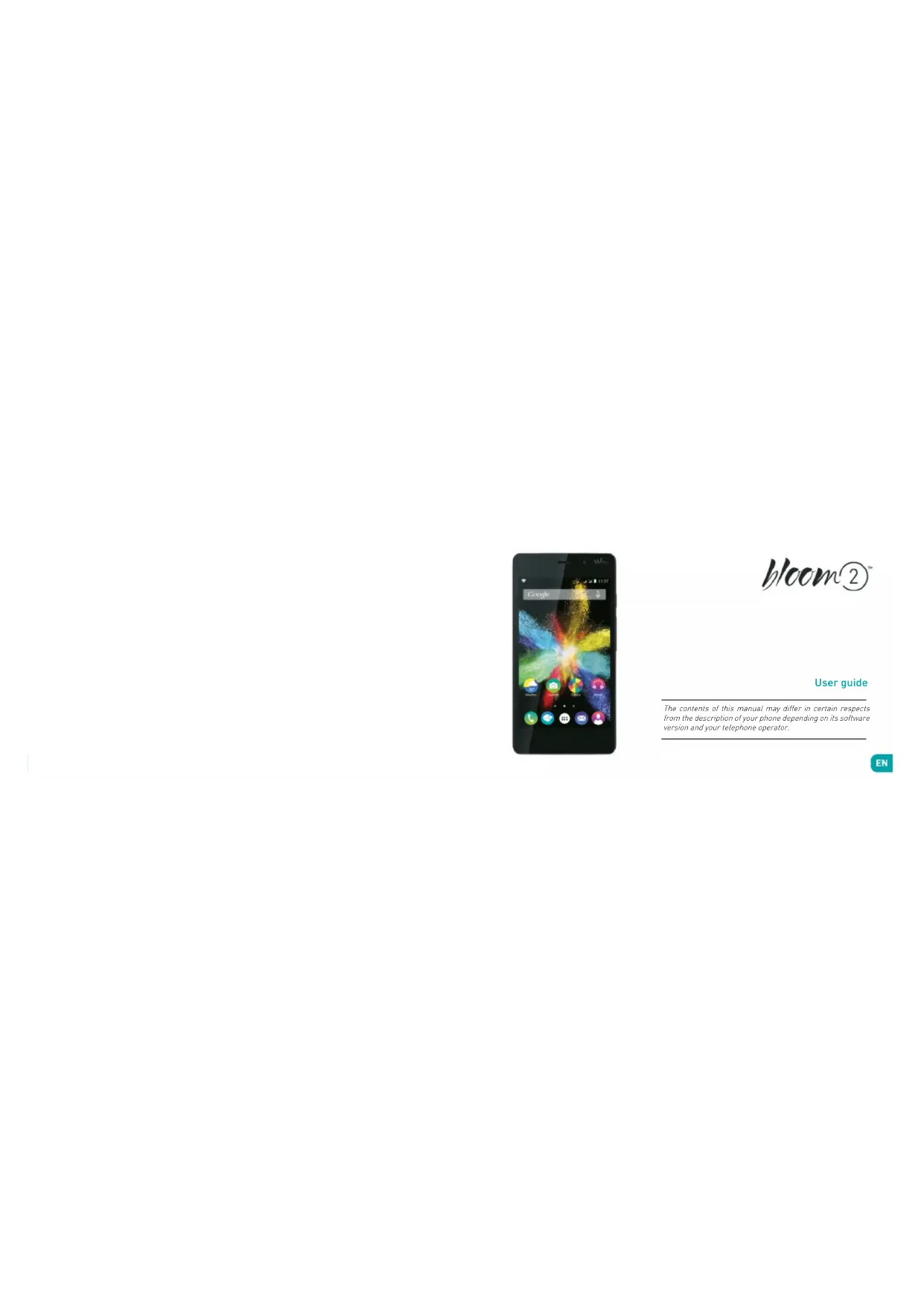

USER MANUAL Bloom 2 WIKO
The contents of this manual may differ in certain respects from the description of your phone depending on its software version and your telephone operator.
EN
CONGRATULATIONS!
You have just purchased your WIKO BLOOM2 mobile phone. This guide contains all the information needed to use the phone so that you can quickly familiarise yourself, we hope, with the world of WIKO.
Copyright © 2015 WIKO
The information contained in this manual may not be disclosed to third parties or reproduced in any form whatsoever without the express written consent of WHO.
Trademarks
WIKO is a registered trademark of WIKO SAS.
Disclaimer
This manual has been prepared with the utmost care and attention and is designed to guide you through the functions and features of your device. However, the information and recommendations contained herein co
not constitute a guarantee under the Applicable law. WIXO reserves the right to change or modify the information contained in this manual at any time.
Limitation of Liability
All content and services accessible through this device are the exclusive property of third parties and are protected by the relevant laws copyright, patent, licence and/or other intellectual property laws). These services are for your own personal non-commercial use. It is not permitted to use any content or services without prior written permission of the content owner. You may not copy, publish, transfer, sell, create derivative works or exploit in any manner or medium any content or services displayed through this device.
THIRD PARTY CONTENT AND SERVICES ARE PROVOCED "AS IS." WIKO DOES NOT GUARANTEE THE CONTENT OR SERVICES. SO PROVIDED, FITHER EXPRESSLY OR IMPLIEDLY, FOR ANY PURPOSE WHATSOEVER. WIKO EXPRESSLY DISCIAWS ANY WARRANTYMENTS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. WIKO DOES NOT GUARANTEE THE ACCURACY, VALIDITY, LEGALITY, OR COMPLETENESS OF ANY CONTENT OR SERVICES MADE AVAILABLE THROUGH THE DEVICE.
WIKO has no control over the content and services provided by third parties via networks or transmission devices. Moreover, third-party services may be terminated or interrupted any time without notice. Therefore, WIKO makes no representation or warranty whatsoever as to the availability of any third party content or service and expressly declines any responsibility for such term nation or interruption.
WIKO cannot in any way be held responsible for the processing and/or monitoring of third party content and services accessible through this device. Any question or request relating to the content or services should be addressed directly to the respective content or service provider.
An independent third party operator provides the SIM card and the network or system (mobile or other) on which this device operates. WIKO expressly declines any responsibility in respect of the function, availability,
coverage, services, or network or system capacity (Mooleo or other). The responsibility of WIKO and its authorised after-sales service is limited only to the cost of repair and/or replacement of the unit during the warranty period.
WHO IS NOT LIABLE IN THE CASE OF NEGLI SENCE, WHETHER CONTRACTUAL OR BASED ON TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL OR SPECIAL DAMAGE, LEGAL FEES, EXPENSES, OR ANY OTHER DAMAGES RESULTING FROM THE USE BY YOU OR ANY THIRD PARTY OF THE CONTENT OR SERVICES ACCESSIBLE THROUGH THIS DEVICE. SOME JURISDICTIONS MAY NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTY OR THE LIMITATION OF THE CONSUMER'S LEGAL RIGHTS, THEREFORE THE STATEMENT MAY NOT APPLY TO YOU.
What's in the Box:
1.WIKO BLOCM2 mobile phone
2. AC adaptor
3. Micro USB cable
4. Hands-free kit
5. User guide
6. Battery

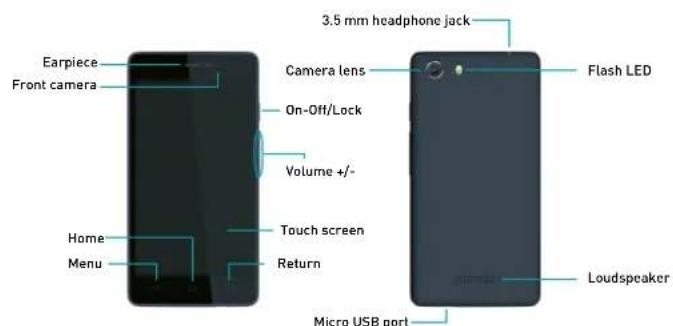

Getting to Know Your Phone
~ The buttons on your phone
| Button | Function |
| On/Off | Press and hold the button to turn the phone on or off. Press the button lightly to lock the touch screen. |
| Home | Returns to the home screen and opens Google NOW (press and hold the button). |
| Menu | Opens the list of recent applications. |
| Return | Returns to the previous screen. Closes the onscreen keyboard. |
| VOLUME+/- | Increases or decreases the call volume, the ringtone, music, games and other audio functions. Switch the ringtone to silent mode when the phone rings. Press and hold on Volume to enable the meeting profile. |
Getting Started
- Inserting the SIM cards
In order to use your telephone, you need b insert your SIM Card. The back cover of the phone is clipped on. Please undisc it using the notch on the card, following the contour of the phone. Insert the SIM cards following the diagrams below.
\~InstalIingMemoryCard
Your phones takes a MicroSD memory card of up to 64 GB.
Insert the microSD memory card following the diagram below.
Charging the Battery
A flashing red light indicates that the battery level is very low. The battery should be recharged because,
if the level is too low, it may shorten the life of the battery.
Connect the charger to a power outlet and the micro USB connector to the phone's USB port.
The phone's status indicator changes to red, indicating that the device is charging.
Once the phone has finished charging, the status indicator changes to green and you should unplug the charger.
For more information, refer to the Safety Information section.
~Turning the Phone On and Off
To turn the phone on, press on the CN/CFH button and hold it down until the phone begins to vibrate.
If your SIM card is locked, you must enter the correct PIN code to unlock the SIM card when the phone is powered up. Your PIN is supplied by your operator; if you did not receive it or have lost it, please contact them.
When the PIN is entered incorrectly three times, the mobile phone is blocked and has to be unblocked using your PUK (this is supplied with the SIM card; if this is not the case, you should contact your phone operator).
To turn the phone off, press and hold the ON-OFF button until the menu opens, then press on Switch Off. Now press OK to confirm.
The phone vibrates when it is shut down completely.
Basic Operations
Network Connection
The first time the phone is turned on, or when you change SIM card(s) and re-start the phone, the Access point settings menu will be brought up. Press on Select.
Press on the name of the SIM card to display the list of access points. Choose the one that matches your operator's by pressing on the button on the right, then press on RETURN#to back to the previous menu.
APN Not Available
If your operator does not appear in the list or the list is empty, ask your operator how to configure the APN manually. To do this, press on the button and enter the information provided by your operator. Return to the previous menu, then choose the APN that you have just saved.
- SIM Management
When you turn your phone for the 1st time, you are notified that the SIM cards have been changed thanks to the ican.
Drag the notification panel downwards with one finger. Click on the icon The SIM Cards menu will be brought up. Now you can:
- Personalise the information on the SIM cards by clicking on the SIM card you want to modify. The background color serves to differentiate the two SIMs. 2. Set the default SIM* for Voice & Video Calls, SMS / MMS and internet data connection.
*You can still choose a different SIM card when performing an action such as before making a call or sending a SMS / MMS; drag the notification panel downwards and press on the SIM you want. The default SIM card will be undivided.
Enabling Data Connection
To check your data connection settings:
-
Go to Settings > Wireless & networks > More > Mobile networks > Access Pin. Names, then enable the access point according to your generator/package.
-
To activate Mobile data, drag the notification panel downward with two fingers and enable data connection. 3. You can choose with which SIM card you will enable data connection in Settings > Wireless & network > SIM cards > Activities > Mobile data, then press on the SIM card you want to activate.
When you activate Data Connection for one SIM card, the 3G network can only be activated for this SIM card.
Data Roaming
Note that for marning SIM cards, you must enable the data roaming in the Settings > Wireless > Networks
...Mono >Mobile networks >Activato Data roaming, Otherwise, the internal connection will be disabled by default.
\~ Notifications
Notification icons on the status bar
Signal strength
H+ Connected to HSPA+ [3G++]
H Connected to HSPA (3G+)
3G Connected to 36
E Connected to EDGE
G Connected to GPRS
No signal
R Roaring
Wi-Fi available
Connected to Wi-Fi
Bluetooth enabled
GPS in use
Voice call in progress
Call waiting
Missed call
Synchronising
New mail
Alarm on
Silent mode on
New voicemail
Downloading
Connected to computer
Battery level
New SMS or MMS
Airplane mode on
Depending on the application, notifications may be accompanied by a beep, vibration or a flashing LED.
Notifications Panel
Drag the status bar downwards to see details of all your notifications, information about new messages received, upcoming calendar events, download status, etc. will then be displayed. The name of the operator is shown as the bol num of the paral.
Press on to clear all temporary notifications [applications that are running are still listed]. Drag a notification to the left or right to clear it. To close the panel, drag it upwards or press on RETURN
To access the sellngs panel, press on
Shortcut : pull the notification downwards with two fingers.
\~Using the Menus
The menus on your phone take the form of a contextual menu or an options menu.
Contextual Menu
To bring up a contextual menu, press and hold on an item on the screen: the contextual menu then suggests various actions associated with the item. For example, if you press and hold on an SMS, the options for the message are displayed.
Note: not all items have a contextual menu. When you press and hold on an item that does not have a menu, nothing will happen.
Options Menu
To bring up an options menu, press on the icon
The options menu suggests actions or settings for the current screen or application but not for a specific item as is the case for the contextual menu.
Note: some screens do not have options menus.
Safety Information
Please read this safety information carefully so that you can use your phone in complete safety:
- Children: Be very careful with children and your phone.
A mobile phone contains a number of spare parts. Exercise great care when children are in close proximity to the phone. The phone contains small parts that could be swallowed or cause choking. If your phone is equipped with a camera or lighting device, you can use it to near children or animals.
-
Hearing: Prolonged listening at full power using a lightweight headset or headphones can damage your hearing. Reduce the volume to the Lowest possible level when listening to music or conversational ones. Avoid high volumes over extended periods.
-
Driving: Exercise core when driving. Driving requires maximum attention at all times in order to
minimise the risk of accidents. Using a mobile phone can distract the user and result in an accident. You must fully comply with the local regulations and laws in force regarding the use of cell phones whilst driving. You are not allowed to use the phone whilst driving. A hands-free kit should not be regarded as an alternative solution.
Flying: Turn your phone off when flying.
remember to turn your phone off when you are in a plane (GSM + Buelcoh) as it may cause interference.
- Hospitals: Turn your phone off near any medical devices.
It is extremely dangerous to leave a phone switched on near medical devices as it may cause interference. You must observe any instructions or warnings in hospitals and treatment centres.
Remember to turn your phone off in service stations.
Do not use your device in a petrol station near fuel.
It is dangerous to use your phone inside a professional garage.
5. Electronic implants and pacemakers: Users who wear a pacemaker or who are fitted with an electronic implant must hold the phone on the opposite side to their implant as a precaution when making a call.
If you notice that your phone is causing interference with a pacemaker, switch it off immediately and contact the manufacturer of the pacemaker for advice on what action to take.
6. Fire hazard: Do not leave your device near heat sources such as radars or cookers.
Do not locate your phone charging near flammable materials as there is a real risk of fire.
7. Contact with liquid : Do not expose the phone to liquid or touch it with wet hands : any damage caused by water may be irreparable.
8. Use only WIKO-approved accessories. The use of unauthorized accessories may damage your phone or cause a safety risk.
- Do not destroy the batteries and chargers.
Never use a battery or charger that has been damaged.
Keep batteries away from magnetic objects as the latter might cause a short-circuit between the positive and negative terminals of your batteries and permanently destroy the battery or phone.
As a general rule, you should not expose the batteries to very high or low temperatures (below 0^ or above 45^ ). Differences in temperature may reduce battery autonomy and service life.
10. Shocks and impact: Handle and use your phone with the utmost care.
Protect your phone : shocks and impact may damage it. Some parts of your phone are made from glass and might break if the phone is dropped or is subject to severe impact. Avoid dropping your phone. Do not touch the screen with sharp objects.
11. Electric shock: Do not try to disassemble your phone as there is a very real risk of electric shock.
- Maintenance: If you want to clean your handsal, use a dry cloth. Do not use a solvent, such as benzene, or alcohol.
- Recharge your phone in a well ventilated area. Do not recharge your device when it is resting on a soil surface.
- Damage to magnetic strips: Keep your phone away from credit cards as they may damage the data on the magnetic strips.
- Do not use the mobile phone in an environment at loco high or loco low temperature, never expose the mobile phone under strong sunshine or too wet environment. The suitable temperature for the phone is -10^ to +65^ , the maximum charging temperature declared by the manufacturer is +40^ .
- Due to the use of enclosure material, the GSM mobile phone shall only be connected to a USB Interface of version 2.0 or higher. The connection so called power USB is prohibited.
-
The power adapter is the disconnect device for this equipment. The socket-cutlet shall be near the equipment, and easily accessible.
-
This charger is for inducer use only, the charger type is:
| ARE & CHUNITS CHARGE IN TPY | |
| Areal | France, Germany, Italy, Portugal, Spain, Belgium, Netherland, Seberaland, Luxemburg, Poland, Algeria |
| Areal 2 | UAE, Saudi Arabia, Nigeria, Kenya |
- Important operating guidelines
Batteries -SIM-Emergency calls-SAR-Repairs
- To increase the life of your battery, only use WIKO chargers and batteries. Replacing the battery with a non-compliant model may result in the taller exploding.
- Never throw batteries on a fire and follow the guidelines in force for recycling used batteries and phones.
- Be careful not to crush or damage the battery, as this could cause an internal short circuit and overheating.
- Do not take the battery apart
- The battery can be recharged several hundred times before needing to be replaced. When it shows signs of losing its power, it can be replaced.
-
If you do not use your mobile phone for an extended period, remember to recharge the battery to optimise its use time.
-
Do not throw batteries away with household waste: recycle them in accordance with the manufacturer's guidelines. If the battery is damaged, contact the seller sales service or the nearest authorised WIKO dealer.
-
Unpug the charger from the wall socket when the battery is fully charged in order to reduce your energy consumption.
-
Do not leave the battery being charged for more than a week as this might result in an overload and reduce the life of the product.
-
Iardle the SIM cards with care: wipe them with a soft cloth if they appear dirty.
-
Emergency calls: the emergency numbers may not be accessible on all mobile telephone networks, in isolated areas or areas where there is no coverage; check first with your operator.
12. Radio Frequency Exposure
Your mobile phone has been designed and manufactured in accordance with the international
guidelines (ICNIRP) on exposure to radio frequencies. These guidelines, which are based on various studies and research, have been developed by independent scientific organisations to ensure the safety of everyone who uses a mobile phone.
The safety information on exposure to radio waves uses a unit of measurement known as SAR (spefic Absorption Ratio). The international guidelines have set this limit at 2W / kg^* . The phone is used in standard operating positions when being tested for its SAR.
International Commission on Non-Ionising Radiation Protection
Although the SAR is determined using the highest power level, the phone's real rate of specific absorption whilst in operation may be well below the maximum value.
A phone is designed to operate at different power levels so that it only uses the power it needs to be connected to the network.
In addition, all models of phone must undergo tests before being marketed to ensure compliance with the European R&TE directive.
This directive publishes strict rules for guaranteeing the safety of users and for preventing any risks to health.
The maximum SAR value tested on this device when used in its normal position at the ear is 0.XXXW/kg and X.XXXW/kg when used close to the body, at a minimum distance of 1.5cm . It complies with the rules on exposure to radio frequencies when used in its normal position at the ear or at a minimum distance of 1.5cm from the body. The device uses a high-quality network connection for transmitting files, data and messages. On occasion, the transmission of files or messages may be delayed until the connection is available. When this is the case, be sure to follow the instructions regarding the separation distance for establishing the transmission. If you use a case, belt clip or holder
for carrying the phone, it must not contain any metal and should be kept at a minimum distance of 1.5 cm from your body.
*The SAR limit for mobile devices is 2.0 walls / kilogram [W/Kg] averaged over ten grams of body tissue. SAR values may vary according to the standards for reporting information that are in force in different countries.
Tips for Reducing Exposure Levels
We recommend that you use your phone in good reception conditions in order to reduce the amount of radiation received. It is advisable to limit the amount of time you use the phone in underground car parks and when travelling by car or train, etc.
Reception conditions are indicated by the bare that are displayed on your phone : the more bars there are, the better the reception quality.
We recommend that you use the hands-free kit to reduce exposure to radiation.
To reduce the adverse effects of prolonged radiation exposure, we advise teenagers to hold the phone away from their lower abdomen, and that pregnant women hold the phone at a distance from their stomach.
-
Only qualified service personnel should repair your device. If you give your device to non-qualified personnel for repair, the phone will not be covered by WIKO's warranty. 14. The (IME) code is the serial number used to identify your device and for After-Sales support. There are several ways of finding your IMF code:
-
Type # 06 # on your mobile telephone's keyboard.
-
Refer to the packaging box (that your telephone came in).
-
Remove the battery from your device; or the back, you will see a label with your IMEI code. [For non-removable batteries, refer to the label on the telephone's rear casing.
NOTE
WIKO's warranty does not cover normal wear and tear-batter as, screens, keyboards, camera lenses, etc.
Data Use Agreement
Registering your WIKO phone is a free service offered by WIKO that allows our engineers to connect to your phone's physical data so that they can tell what your model and hardware specifications are in real time. In return, the engineers can keep you informed of updates that are available for your system and warn you in case of a recognised technical failure on a mode, or series. In addition, this service allows us to alert you instantly if there is a malfunction so that we can provide a technical solution as soon as possible. It is necessary to gather this data in order for WIKO to propose appropriate upgrades for your mobile phone.
By registering your phone, you acknowledge that WIKO and its engineers are able to collect store, analyse and use diagnostic, technical and usage data and related data including, without limitation, data regarding your WIKO device, your software system and
your applications. We will collect this information on a regular basis to facilitate the provision of software updates and product support and miscellaneous services offered to customers (where applicable) relating to the software on your device.
WIKKO may use this information without revealing the identity of the customer in order to offer and improve its products or services for the user.
This service will not give us access to your content and personal files.
You need to be connected to the mobile internet network for a short time to register your WiKi phone. This may result in connections costs, at your expense, depending on the nature of your contract with your mobile operator. We recommend that you use a Wi-Fi connection, as with this type of connection there is no data limit (if your phone service limits the exchange of data) and the connection is quicker.
The information obtained is processed electronically in
order to access the physical data on your phone. They will be kept by WIKO in a dedicated, secure location for a maximum of three years from the date of collection, depending on the nature of the data. The data recipient is WIKO SAS.
You have the right to access, modify, rectify or delete your personal data submitted upon registration. You may exercise this right by writing to WIKO SAS, I ruc Capitaine Dessemond, 13007 MAREILLE, FRANCE
Recycling
The symbol of a crossed-out wheeled-bin, as found in his manual, indicates that the item is subject to European Directive 2002/96/EC, which states that electrical and electronic equipment, batteries,
accumulators and accessories must undergo selective waste management.
Make sure that, when your phone is no longer usable, you put it in a suitable waste bin or return it to a mobile phone retailer. In this way you will help to reduce environmental and health hazards.
Local councils, retailers and rational manufacturing associations will give you the necessary information on how to dispose of your old device.
The details and conditions of our manufacturer warranty are available on www.wikicomobile.com.
STATEMENT OF COMPLIANCE
We, WIKO SAS - 1, rue Capitaine Decoernond - 13007 - Mersolles - FRANCE, here by cector that the BLOOM2 mobile phone complies with the standards and provisions of the Directives.
SAFETY:FN639512078411207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A01207A0120637206372063720637206372063720637206372063720637206372063720637206372063720637206372063720637206372063
The procedure for the Statement of Compliance, set out in Article 10.5 of Directive 1999/5EC, was conducted upon top supervision of the following arrangements:
D-32825 Blomberg, Germany
www.pncenx-testlab.de
Phone-49015235-9500-0/Fax+49105235-9500-10
The full text of the device's Statement of Compliance is available on written request to the following address:
Michal ASSADOURIAN/CEO
[Date]
[Name and signature of the authorised official]
Customer service information
Ligria, Lagoa
Nigcia, Logos Email: smarccs pneria@smarccs.com
Locations: http://www.grossmartcare.com
Telephone+2349092153965/+2348188881236
Kenya, Nairobi
Email:info@tebllkorya.com
Locations: 2nd Floor, View Park Towers, Utah Lane, P.O.Box
48369 Nairobi KENYA
Telephone+25472388999+254701340222
254704349444
WIKO SAS
Prolonged listening to the music player
at full power may damage the user's
Guide d'utilisateur
Copyright © 2015 WIKO www.wikomobile.com
D-32825 Blomberc, Germany
www.phcerix-testlab.de
Phone+49(0)5235-9500-0/Fax+4910)5235-9500-10
Michel ASSADOURIAN/CEO
[Date]
Copyright © 2015 WIKO
Michel ASSACOURIAN/CEO
Support to client:rfoldsworkable
WIKO SAS
Copyright © 2015 WIKO
Michel ASSADOURIAN / CEO
[Fechal]
