USER MANUAL AH 7913 SEVERIN

Exterior view of a white vacuum cleaner with clear glass casing and ventilation slots (no text or symbols visible)

GB Instructions for use Rechargeable Vacuum Cleaner 8

Exploded view diagram of a handwash vacuum cleaner with numbered parts labeled for identification.

DE

Simple line drawing of a trash bin with a crossed X symbol (no text or labels)

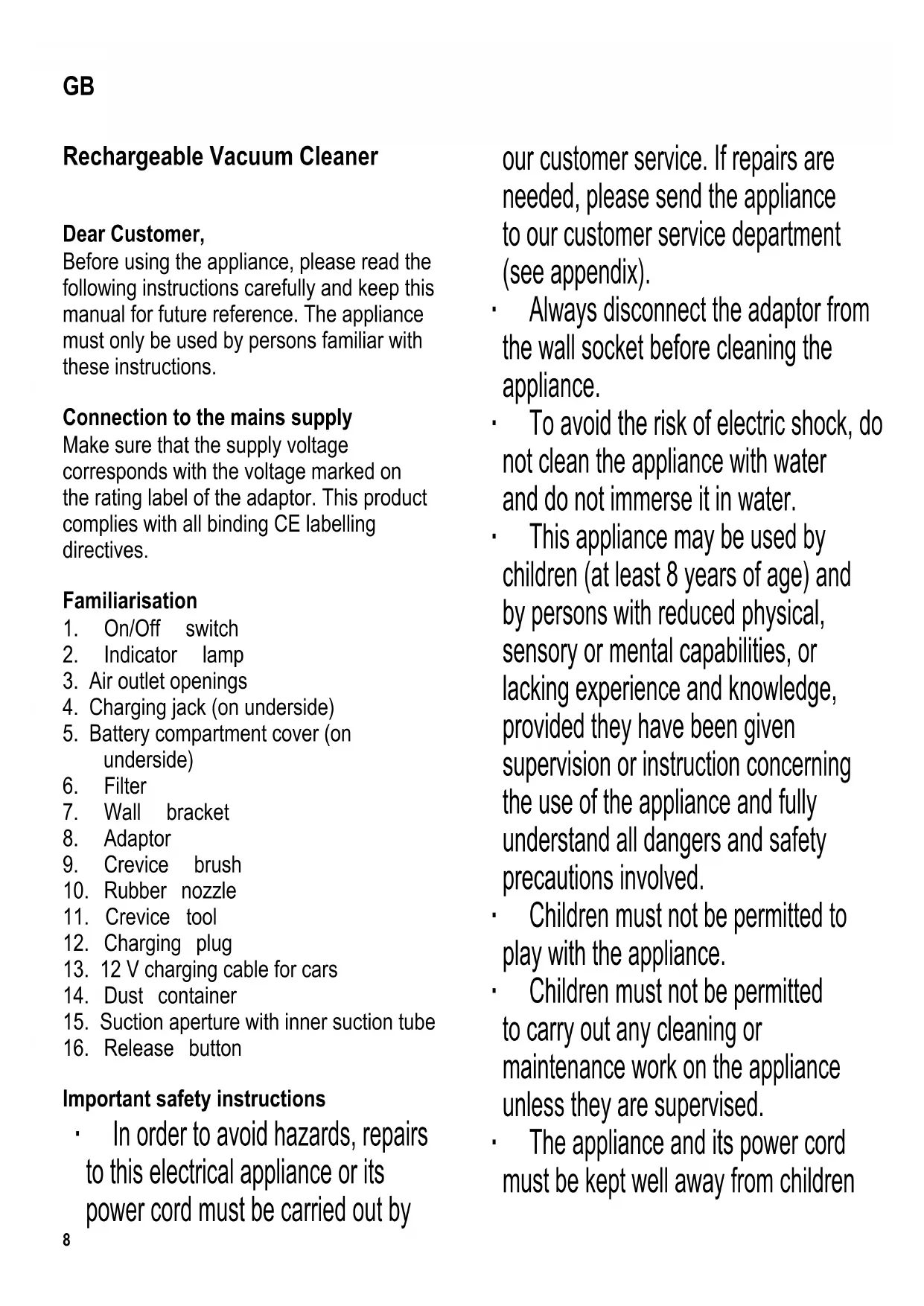

Rechargeable Vacuum Cleaner

Dear Customer,

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

Make sure that the supply voltage corresponds with the voltage marked on the rating label of the adaptor. This product complies with all binding CE labelling directives.

Familiarisation

1. On/Off switch
2. Indicator lamp
3. Air outlet openings
4. Charging jack (on underside)
5. Battery compartment cover (on underside)
6. Filter
7. Wall bracket
8. Adaptor
9. Crevice brush
10. Rubber nozzle
11. Crevice tool
12. Charging plug
13. 12 V charging cable for cars
14. Dust container
15. Suction aperture with inner suction tube
16. Release button

Important safety instructions

- In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by

our customer service. If repairs are needed, please send the appliance to our customer service department (see appendix).

• Always disconnect the adaptor from the wall socket before cleaning the appliance.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  • Children must not be permitted to play with the appliance.
  • Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised.
  • The appliance and its power cord must be kept well away from children

under 8 at all times.

- Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.

- Do not operate the vacuum cleaner without its fi Iter.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- Never use the appliance to pick up hot or smouldering material, nor acid or infl ammable liquids.

- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.

• This appliance is intended for domestic or similar applications, such as

• in shops, offices and other similar working environments,
  -in agricultural working environments,
  -by customers in hotels, motels etc. and similar establishments,
  -in bed-and breakfast type environments.

Wall mounting

The wall bracket is designed for storing the appliance and also serves as a charging unit.

First insert the charging plug into the wall bracket, facing up.

Mount the wall bracket vertically, near a wall socket, using the screws provided with the

appliance.

Both the crevice tool with brush and the rubber nozzle can be stored on the left and right sides of the appliance.

Charging process

Before using the vacuum cleaner for the first time, the battery must be charged for a period of approximately 10 hours.

• Insert the adaptor into a wall socket.
• Put the On/Off switch to its off position.
• Place the vacuum cleaner in the wall bracket. The charging process begins automatically and the indicator light shows red. Once the red indicator light goes out, the appliance is ready for use.

- This appliance can remain on charge indefinitely without damage or danger and is therefore fully charged and ready for use at all times.

- Whilst charging, the adaptor will become warm. This is perfectly normal and safe and does not indicate a malfunction of any kind.

- If the vacuum cleaner is not being used for a long period of time, the capacity of the battery may decrease by a certain amount. However, full capacity will be restored after several charge/discharge cycles.

12 V operation

• With the 12 V connector, the battery pack may be recharged through the car cigarette-lighter socket.
• Insert the small plug of the connecting cable into the 12V jack of the vacuum cleaner, and the larger plug into the car's cigarette-lighter socket.
• Power is now supplied directly from the car's electrical system; the indicator lamp

shows red.

Picking up liquid matter

Before picking up liquid matter, ensure that the rubber nozzle is fully inserted in the suction aperture.

Crevice tool

The crevice tool can be inserted into the suction aperture to clean crevices, corners and other areas diffi cult to reach.

Crevice brush

The crevice brush can be fitted to the crevice tool and is suitable for cleaning uneven surfaces such as computer keyboards etc.

Operation

• Remove the vacuum cleaner from its wall bracket.
• If required, fit any of the nozzle attachments to the suction aperture.
• Switch on the appliance using the On/Off switch. The indicator lamp shows green.
  • Always ensure that the dust container is emptied in good time, before the dust or liquid matter collected reaches the level of the inner suction tube (see max marking).
• If the battery loses power during operation, the green indicator lamp starts fl ashing and the appliance switches off after a while; this is to prevent excessive discharge of the battery pack. In this case, the battery pack needs recharging.
  Always ensure that the appliance is switched off before putting it in the charging station.

Cleaning and care General

• Before cleaning the appliance, remove

the vacuum cleaner from the wall bracket.

- To avoid the risk of electric shock, do not clean the appliance or the adaptor with water and do not immerse them in water.

- If necessary, the housing may be wiped with a damp cloth. Wipe dry afterwards.

To empty the dust container

Reduced vacuuming power despite a fully charged battery pack indicates that the dust container and fi Iter inlay must be emptied.

• Hold the vacuum cleaner with the dust container facing downwards.
• Push the release button, open the dust container in a downward and forward direction, remove the filter and empty it.
• The filter may be cleaned by slightly tapping it, or by gentle brushing. The fi Iter can be separated from its holder by simply turning fi Iter and holder in opposite directions and taking the fi Iter off.
• Should the filter be visibly dirty, it should be thoroughly cleaned with soapy water; make sure to let it dry completely afterwards. Once dry, replace the filter to its holder and lock it by turning it.
• The filter holder, dust container and attachment tools may be cleaned the same way.

Battery pack

- This appliance contains a nickel-metal hydride (Ni-Mh) rechargeable battery pack, which may be removed for disposal. When replacing the battery pack, ensure that only an original battery pack is used.

- The battery compartment is located on the underside of the appliance. Open the compartment by removing the screw in the compartment cover using a suitable screwdriver. Lift the battery pack out, cut

the cables one at a time (taking care not to cause a short-circuit), and dispose of the battery pack properly.

- Never dispose of old battery packs in domestic garbage, but only through

Simple line drawing of a trash bin with a crossed X symbol (no text or labels)

the proper public collection points. This also applies to the battery packs of defective appliances.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national

legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
