USER MANUAL Classic FloorMate HOOVER

Operating and Servicing Instructions

Español - página E1

FloorMate™ SpinScrub Hard Floor Cleaner

HOOVER

www.hoover.com

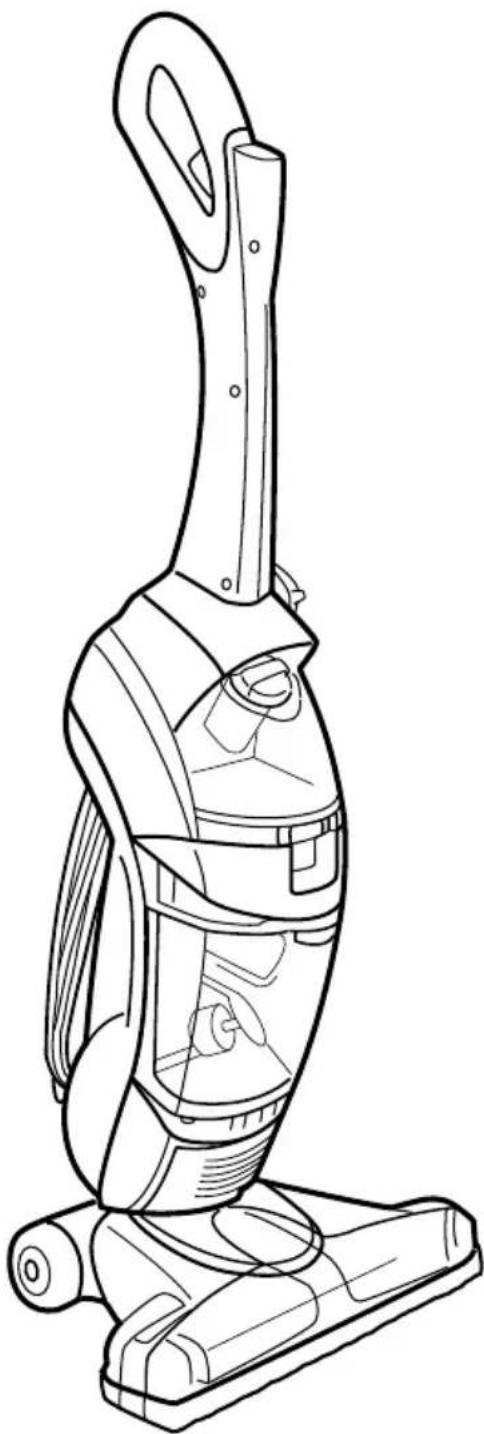

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

Questions or concerns? For assistance, please call Customer Service at 1-800-944-9200 Mon-Fri 8am-7pm EST before returning this product to the store.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIALLY WARRANTY IS VOID.

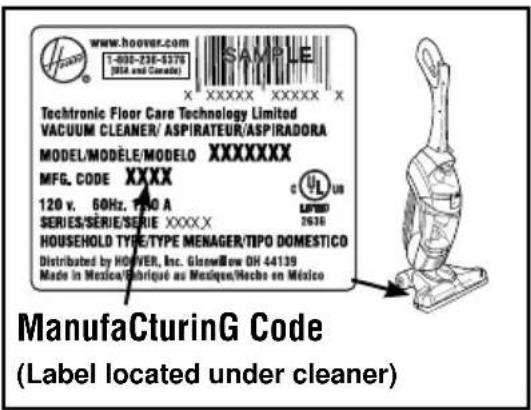

Please enter the complete model and Manufacturing Code in the spaces provided.

MODEL

MFG.CODE

Hint: Attach your sales receipt to this owner's manual. Verification of date of purchase may be required for warranty service of your HOOVER® product.

Be sure to register your product online at Hoover.com or call 1-800-263-6376 to register by phone.

www.hoover.com 1-000-236-637V (854 and Canada) SAMPLE XXXXXX XXXXX X Techtronic Floor Care Technology Limited VACUUM CLEANER/ASPIRATEUR/ASPIRADORA MODEL/MODELE/MODELO XXXXXXX MFG. CODE XXXX 120 v. 60Hz, PNO A SERIES/SÉRIE/SÉRIE XXXX HOUSEHOLD TYPE/TYPE MENAGER/TIPO DOMESTICO Distributed by HOVER, Inc. GlowBow OH 44139 Made in Mexico/Tobriguez as Mexique/Hecho en México c VL us LIFID 2638 ManufaCturinG Code (Label located under cleaner)

Contents

Important Safeguards .... 3

Cleaner Assembly 5

Carton Contents 5

Attach Handle 5

Install Brushes and Nozzle 5

Unfold Handle 6

How to Fold Handle....6

How To Use....6

Cleaner Description 6

ON/OFF Switch 6

Handle Release Pedal 6

Transporting 7

Mode Selector Dial 7

The Tanks 8

Filters 9

How To Clean....10

Recommended Cleaning Sequence 10

Cleaning Floors 10

Picking Up Spills 10

Maintenance....11

Nozzle 11

Brushes 12

Storage....12

Lubrication....12

Troubleshooting 13

Service....14

Cleaning Products....15

Warranty 16

If you need assistance:

Visit our website at hoover.com. Follow the authorized dealer locator link to find the Hoover® authorized dealer nearest you or call 1-800-944-9200 for an automated referral of Hoover® authorized dealer locations (U.S. only) or to speak with a customer service representative; Mon- Fri 8am- 7pm EST. Please do not return this product to the store.

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

When using an electrical appliance, basic precautions should followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Use indoors only.
• Use only on surfaces moistened by the cleaning process or small spills. Do not immerse product.
• For use on bare floors or sealed wood floors. NOT for use on carpets.
  • Always install float before any wet pick up operation.
• Close supervision is necessary when any appliance is used by or near children. Do not allow cleaner to be used as a toy or to run unattended at any time.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up or use flammable or combustible materials such as gasoline or fine wood sandings or use in areas where they may be present.
• Avoid picking up hard, sharp objects with the cleaner. They machine.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
  • Always disconnect cord from electrical outlet before servicing the cleaner.
  • Unplug cleaner when not in use. Turn off all controls before unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Never handle plug or appliance with wet hands.
• Connect to a properly grounded outlet only. See “Grounding Instructions”.
• Do not clean over floor electrical outlets.
• Do not use without tanks in place.
• Use extra care when cleaning on stairs. Do not place cleaner on stairs.
• The use of an extension cord is not recommended. If an extension cord is absolutely necessary, use at least a 16 gauge 3-wire cord which has a 3-prong grounding type plug and a 3-pole receptacle that accepts the machine plug.
• Keep detergents and other cleaners out of children’s reach.
• Do not pick up chlorine bleach, drain cleaner, gasoline or any other toxic material with this appliance.

• When using recommended chemicals with this machine, be certain area is well ventilated.

• Do not use a flammable or combustible liquid to clean a floor.

• Use only commercially available Hoover cleaners intended for machine application. Do not use any type of wax with extractor.
• Follow manufacturer's instructions for all chemicals used with this machine. Do not exceed recommended mixing ratios.
  • Store in a dry place. Do not expose machine to freezing temperatures.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Hoover Sales and Service Center or Authorized Hoover® Warranty Service Dealer.
• Use cleaner only for its intended use as described in the instructions.
• WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects or reproductive harm.

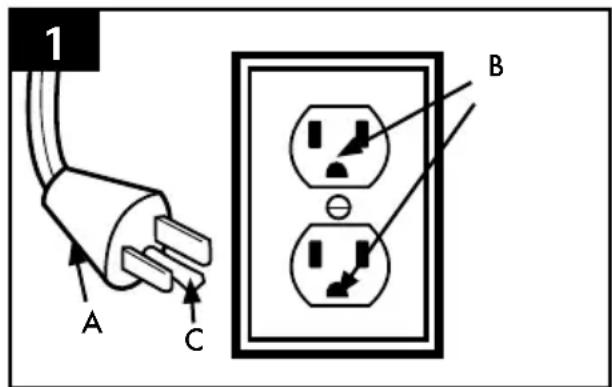

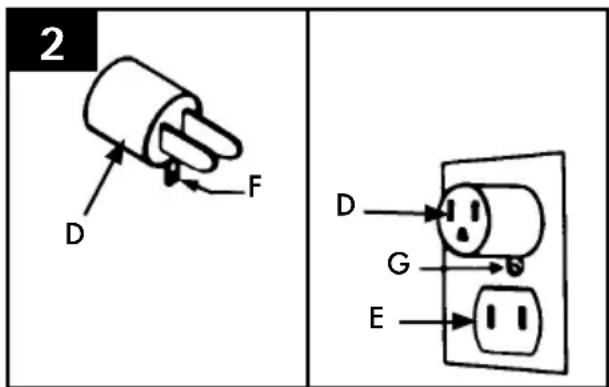

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment conductor (C) and grounding plug (A). The plug must be inserted into an appropriate outlet (B) that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in the risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug (A) illustrated in Fig. 1. A temporary adapter (D) may be used to connect this plug to a 2-pole receptacle (E) if a properly grounded outlet is not available. The temporary adapter should be used a properly grounded outlet (B) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like (F) extending from the adapter must be connected to a permanent ground (G) such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.

1 A C B

2 D F D G E

1. Cleaner asseMblY

Carton Contents

1.1

Line drawing of a vacuum cleaner device with labeled component A (no text or symbols on the device itself)

B

Line drawing of a handheld electrical fuse or clamp device (no text or symbols)

C

E

D

A. Hard floor cleaner
B. Upper handle
C. Brush assembly
D. Nozzle
E. Hard Floor Cleaning Detergent

Remove all parts from carton and identify each item shown.

Make sure all parts are located before disposing of packing materials.

NOTE: Phillips screwdriver needed for assembly.

attaCh handle

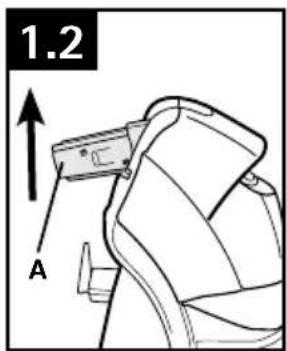

1.2 Rotate bottom handle support (A) up to the upright position until a snap is felt.

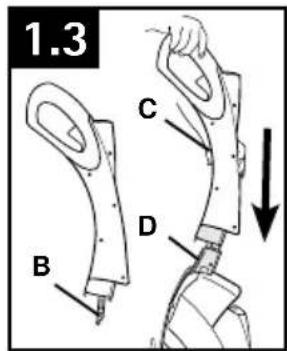

1.3 Align control rod (B) on upper handle (C) with slot in bottom handle support (D).

Push upper handle (C) all the way down until you hear it snap in place.

1.2 A

1.3 B C D

install brushes and noZZle

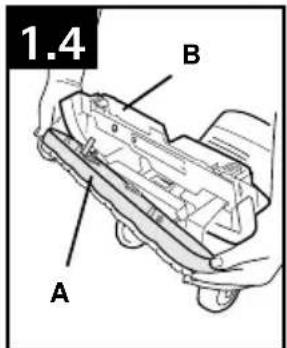

1.4 To install brushes, place handle in upright position. Tilt cleaner back so that it rests on the floor.

Align post (A) on brush block with hole (B) on bottom of cleaner. Turn brushes slightly until post fits easily into hole.

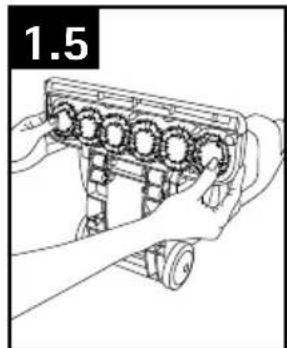

1.5 Press brush assembly firmly to snap into place.

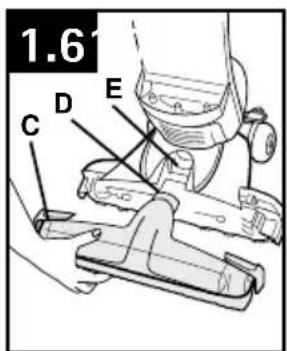

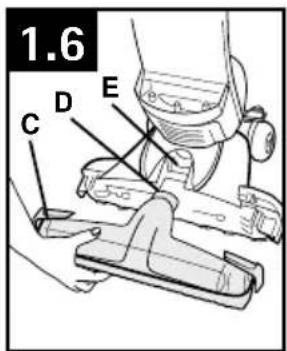

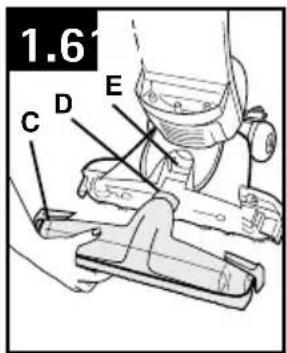

1.6 To install nozzle, make sure latches (C) are out. Align middle section (D) of nozzle with opening (E) on cleaner.

Remove cardboard packing insert from squeegee area on underside of nozzle.

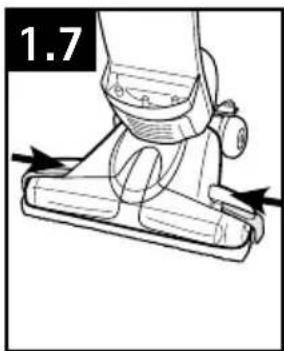

1.7 While holding nozzle in place, slide latches inward to lock in place.

1.4 A B

Illustration of hands assembling a mechanical component with gears and wheels (no text or symbols)

1.6 C D E

Technical line drawing of a mechanical device with no visible text or symbols

unfold handle

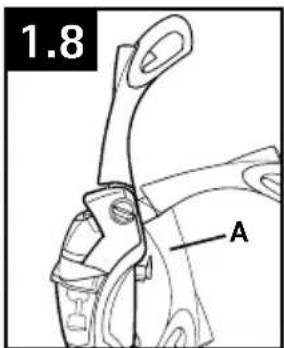

1.8 Raise upper handle (A) to upright position until it locks in place.

1.8 A

how to fold handle

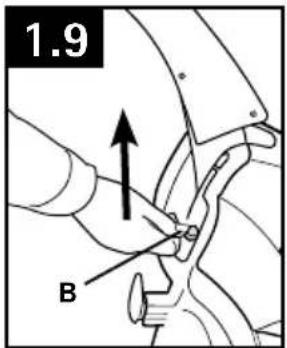

1.9 Press upper handle release button (B) to fold handle to storage position.

1.9 B

2. how to use

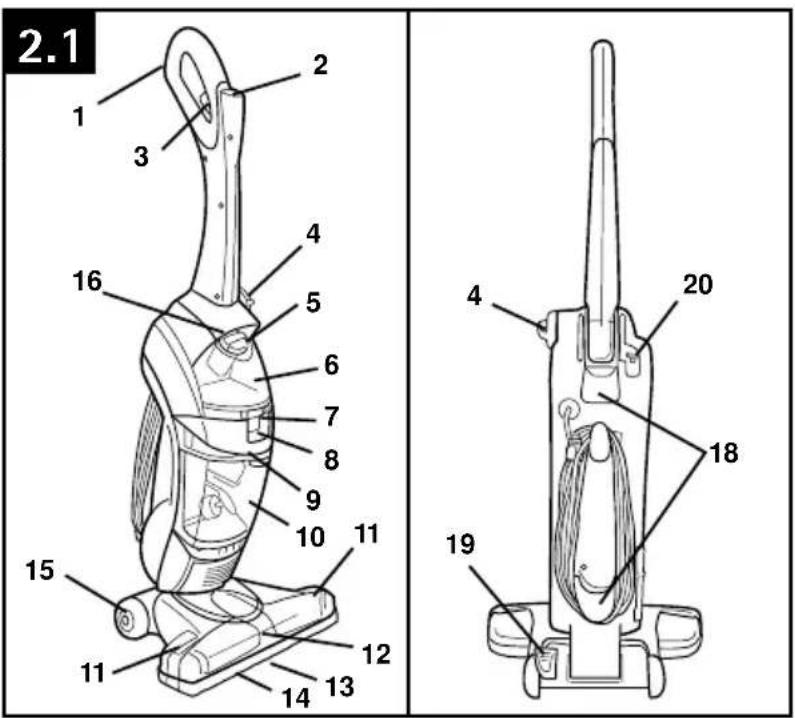

Cleaner desCription

1. Soft Hand Grip

2. ON/OFF Switch

3. Solution Trigger: squeeze to release cleaning solution

4. Mode Selector Dial: turns brushes ON for wet washing and OFF for drying and vacuuming

5. Clean Water Solution Tank Cap/Measuring Cup

6. Clean Water Solution Tank

7. Clean Water Solution Tank Release

8. Dirty Water Tank Release

9. Dirty Water Tank Lid and Filter

10. Dirty Water Tank: collects dry debris as well as dirty cleaning solution

11. Nozzle Release Buttons: release nozzle for easy clean-up (located behind nozzle)

12. Nozzle

13. Squeegee (underneath nozzle)

14. Bumper

15. Soft-tread Wheels

16. Carrying Handle

17. Upper Handle Release Button

18. Cord Hooks: top hook rotates for quick cord release

19. Handle Release Pedal

2.1 1 2 3 4 5 6 7 8 9 10 11 15 11 12 13 14 19 20 4 18

Operate cleaner only at voltage specified on data plate on bottom of cleaner.

This cleaner is intended for household use.

on/off switCh

2.2 Push switch (A) once to turn cleaner ON. Push switch again to turn cleaner OFF.

2.2 A

handle release pedal

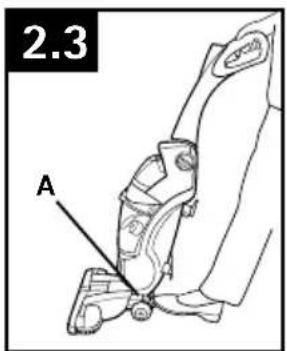

2.3 Step on pedal (A) to lower handle to operating position. Handle does not lock into a single position, but "floats" to allow convenient operation.

2.3 A

transportinG

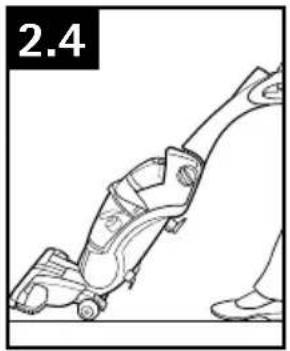

2.4. To move your cleaner from room to room, put handle in upright position, tilt cleaner back on rear wheels and push forward.
2.5 The cleaner may also be lifted using the carrying handle (A) on the front of the cleaner.

Line drawing of a robotic vacuum cleaner (no text or symbols)

2.5 A

Mode seleCtor dial

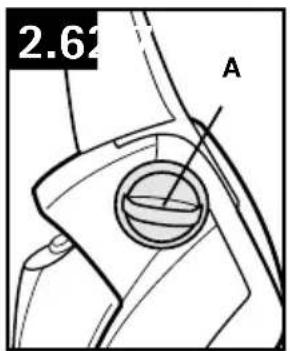

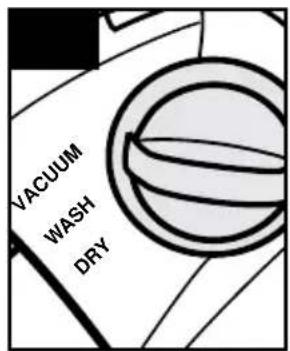

2.6 The Mode selector dial (A) turns the brushes on and off.
2.7 For dry debris pickup, turn the dial to the VACUUM position. In this position, the brushes will not rotate and are raised off the floor surface.

To wet clean with brushes turned ON, turn the dial to the WASH position.

For wet pickup, turn the dial to the DRY position.

Refer to "How to Clean" section for complete cleaning instructions.

2.62 A

VACUUM WASH DRY

THE TANKS:

CLEAN WATER SOLUTION TANK (upper tank)

Turn cleaner off and disconnect from electrical outlet.

The Clean Water Solution Tank holds detergent and water that is to be dispersed onto the surface being cleaned.

How to Fill

Place carpet cleaner handle in the upright, locked position.

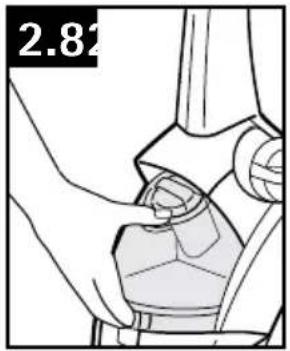

2.8 To remove tank, squeeze release button and pull tank straight out.

Carry tank to a sink.

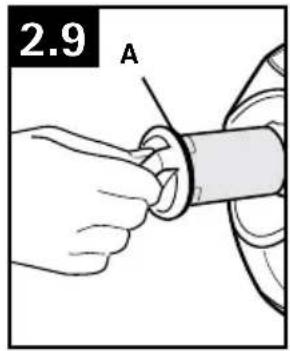

2.9 Rotate tank cap counter-clockwise and lift up to remove cap (A).

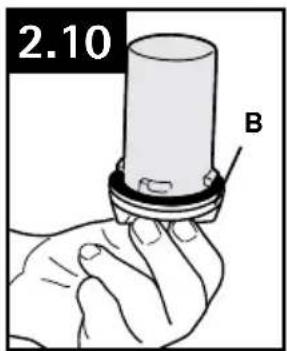

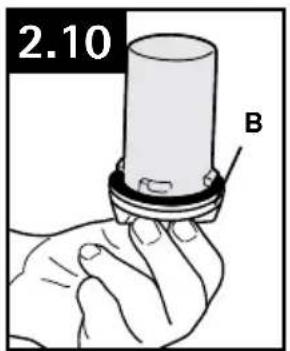

2.10 Turn cap (B) upside down to serve as a measuring cup.

For hard surface floors such as vinyl, linoleum, marble, laminate wood, polyurethane sealed wood or other wood floors that can normally be cleaned using water, use one cup (2 oz.) HOOVER® Hard Floor Detergent.

Check for worn spots or joint separations before using, as these conditions could lead to damaged flooring when using water to clean floor.

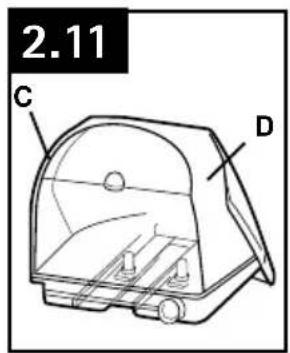

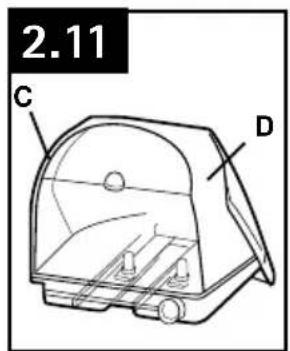

2.11 Pour cleaning concentrate into tank (C). Fill tank to fill line (D) (1 quart) with warm water.

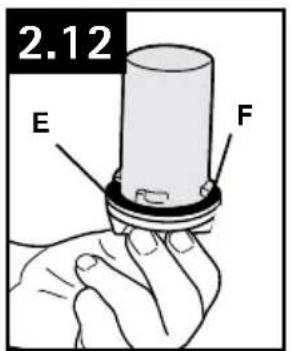

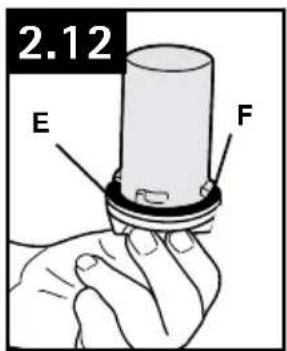

2.12 If rubber ring (E) on cap has become dislodged, reposition it with uneven side against ledge (F) as shown.

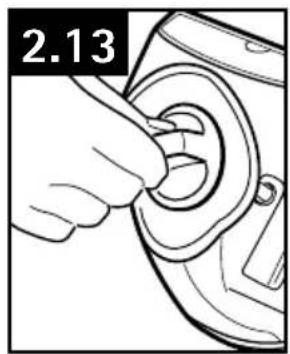

2.13 Replace cap. Rotate cap clockwise until it locks in place. Cap must be locked in place for proper performance and to prevent leaking.

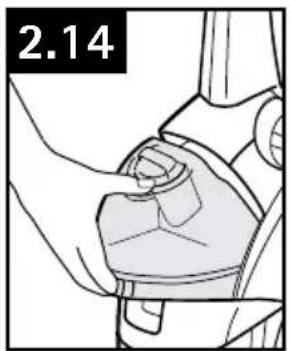

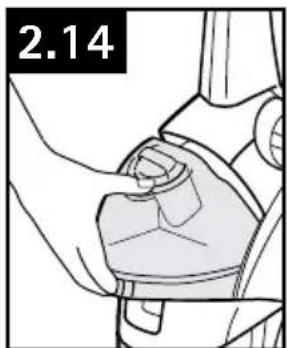

2.14 Slide tank straight into position until latch snaps in place.

CAUTION

DO NOT use cleaning concentrates that contain solvent based ingredients.

Technical line drawing of a mechanical component with no visible text or symbols

A

2.10 B

2.11 C D

2.12 E F

2.13

Line drawing of a mechanical component with no visible text or symbols

DIRTY WATER TANK (lower tank)

Automatic "Shut Off"

An automatic suction shut-off is built into the Dirty Water Tank to prevent the tank from overflowing.

When the shut-off activates, the cleaner will not pick up debris and the sound of the motor will change. The Dirty Water Tank is full and must be emptied.

How to Empty

Turn cleaner off and disconnect from electrical outlet.

Although not necessary for satisfactory performance, it is recommended that the Dirty Water Tank be emptied after dry vacuuming and before wet operation.

Check the Clean Water Solution Tank also. It may need to be refilled at this time.

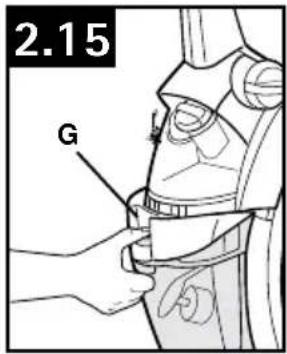

2.15 To remove tank, press down on release button (G) and pull tank straight out.

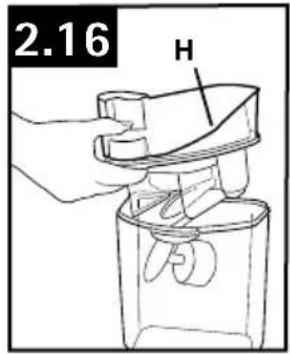

2.16 Remove tank lid (H). Empty tank.

2.15 G

2.16 H

FILTERS

The tank lid contains a washable, reusable filter. Clean this filter when suction is low or reduced.

How to Clean

Turn cleaner off and disconnect from electrical outlet.

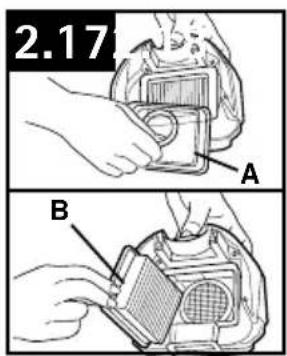

2.17 Remove Dirty Water Tank and lid (Figs. 2.15 & 2.16). Remove filter lid (A), then remove filter (B). Remove loose debris from filter by tapping the filter or gently brushing using your hand. The filter may also be rinsed for additional cleaning. Allow filter to air dry between uses.

Reposition filter.

2.18 Replace filter lid. Press down firmly until snapped in place.

Dry or loose debris will also collect on the filter screen located in the tank lid.

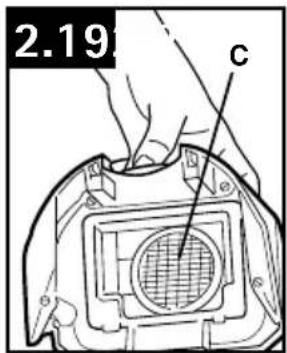

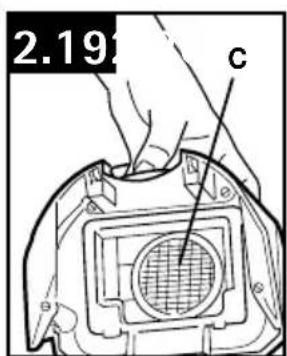

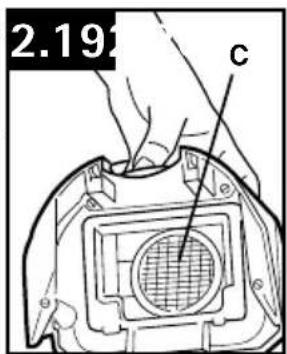

2.19 To remove debris from screen, remove the pleated filter from the lid. Remove debris from screen (C).

The filter screen may also be cleaned by rinsing it under running water.

Reposition pleated filter in lid. Replace lid onto Dirty Water Tank, pressing down firmly until snapped in place.

2.20 To replace Dirty Water Tank, place bottom of tank behind ledge (D) and push tank straight into cleaner body until it is locked in place.

2.17 A B

Illustration of hands installing a mechanical component with a downward arrow (no text or symbols)

2.19 c

E

3. how to Clean

reCOMMended CleaningSequence

Use your HOOVER® FloorMate™ SpinScrub® Cleaner to:

• VACUUM: Vacuum to remove loose dirt, hair and debris.
- WASH: Clean the floor surface. The brushes will provide light agitation to help loosen dirt.
- DRY: Pickup reduces drying time of the floor surface.

The Mode selector dial turns the brushes on and off.

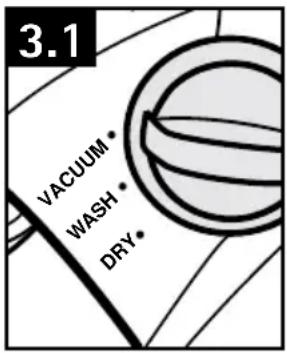

3.1 For dry debris pickup, turn the dial to the VACUUM position. In this position, the brushes will not rotate and are raised off the floor surface.

To wet clean with brushes turned ON, turn the dial to the WASH position.

For wet pickup, turn the dial to the DRY position.

3.1 VACUUM WASH DRY.

CleaninG floors

If using cleaner on sealed wood floors, inspect floor surface for worn finish, bare wood or separated joints. Do not use FloorMate™ SpinScrub® cleaner to wet clean sealed wood floors if any of these conditions exist.

Set Mode selector dial to VACUUM position and vacuum floor.

Turn cleaner off and disconnect from electrical outlet. Empty Dirty Water Tank (see Figs. 2.15 & 2.16).

Fill Clean Water Solution Tank with either Floor to Floor Cleaning Concentrate or Grout Cleaner, depending upon the type of floor being cleaned, and water (see Figs. 2.8 through 2.14).

Do not use solvent based cleaning concentrates in your cleaner. Do not use any type of wax in your cleaner.

Turn Mode selector dial to WASH position.

Dry hands and plug cleaner into a properly grounded outlet.

Step on handle release pedal and lower handle to operating position. Turn cleaner ON.

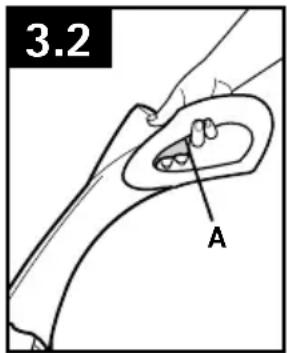

3.2 To release solution, squeeze trigger (A). Slowly move cleaner forward and backward over area to be cleaned.

Squeeze trigger to release solution as needed.

Overlap strokes by one inch to help prevent streaking. The cleaner's suction will pick up the dirty solution throughout cleaning.

To greatly enhance drying of the floor surface, release trigger and turn Mode selector dial to the DRY position. Continue to move cleaner over the area to pick up the dirty solution.

To continue cleaning another area, turn Mode selector dial to WASH position. Repeat cleaning motion.

Empty Dirty Water Tank or clean the filter when the motor sound becomes higher in pitch and there is a loss of suction (see "Automatic shut-off" section).

3.2 A

- IMPORTANT -

Your HOOVER ^® FloorMate ^TM SpinScrub ^® cleaner may be used to clean wood floors that have been sealed with a polyurethane coating and can be cleaned with water.

When cleaning sealed wood floors, make sure all areas are completely dry. Ensure that no water remains on the floor.

When switching between wet cleaning and wet pickup, it is not necessary to turn the cleaner off. Simply move the Mode selector dial between the two settings.

CAUTION

To prevent damage to wood floors, follow the flooring manufacturer's cleaning recommendations.

PICKING UP SPILLS

Your cleaner may also be used to pick up small liquid spills (1 quart or less, never to exceed 1/4 inch in depth) on non-carpeted floors. Turn Mode selector dial to the WASH position and release the trigger. Continue to move cleaner over the area to pick up the spill.

CAUTION

Do not use the cleaner to pick up flammable or combustible liquids or chemicals. Do not use the cleaner to pick up detergents that contain solvent based ingredients.

4. MAINTENANCE

Familiarize yourself with these home maintenance tasks as proper use and care of your cleaner will ensure continued cleaning effectiveness.

Any other servicing should be done by an authorized service representative.

NOZZLE: How to Clean

Your carpet cleaner is equipped with removable brushes for easy cleaning.

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner before servicing.

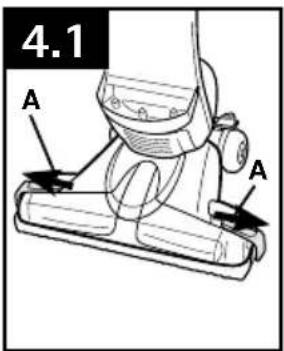

4.1 Slide the two nozzle release latches (A) outward.

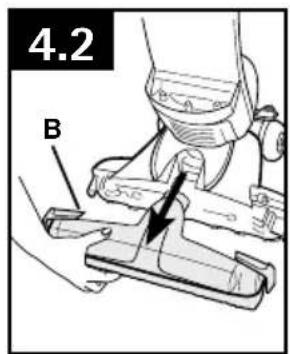

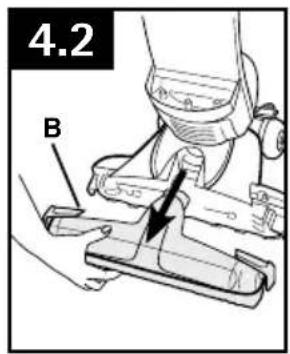

4.2 Remove nozzle (B) by pulling straight out.

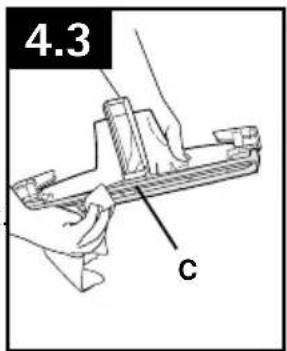

4.3 Rinse nozzle under running water. Remove debris from squeegee (C) and wipe with a damp cloth.
4.4 To replace nozzle, make sure latches (D) are out

Cleaner should be in the upright position for easier assembly of the nozzle.

Align middle section (E) of nozzle with opening (F) on cleaner.

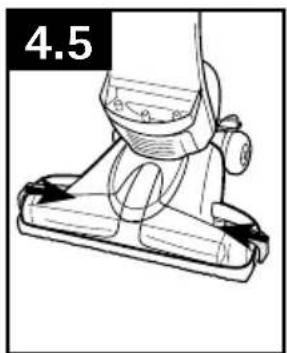

4.5 While holding nozzle in place, slide latches inward to lock in place.

4.1 A A

4.2 B

4.3 C

4.4 D E F D

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

BRUSHES: How to Change and Clean

The brush assembly can be removed for easy cleaning.

CAUTION

To reduce the risk of injury from moving parts, unplug cleaner before servicing.

How to Remove

Place handle in the upright position.

Remove tanks to prevent leaking. Set aside.

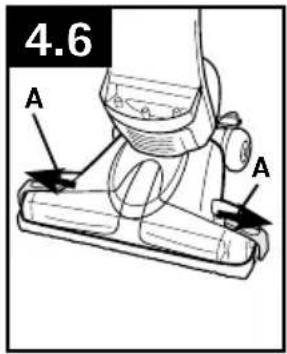

4.6 Pull the two nozzle release buttons (A) out. Remove nozzle.

Tilt cleaner back so handle rests on floor.

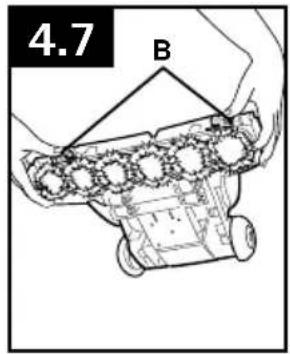

4.7 Push two brush release buttons (B) and remove the brush assembly.

The brushes can be washed with a mild detergent and rinsed. Do not use a solvent based detergent.

How to Replace

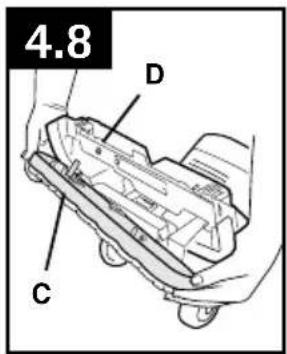

4.8 To replace brushes, align post (C) on brush block with hole (D) on bottom of cleaner. Turn brushes slightly until post fits easily into hole. Press brush assembly firmly to snap into place.

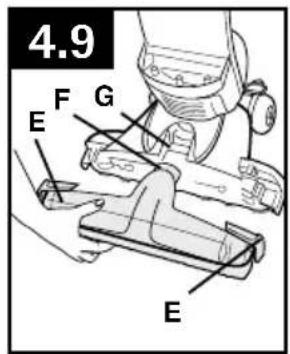

4.9 Return cleaner to upright position. Replace nozzle, making sure latches (E) are out.

Align middle section (F) of nozzle with opening (G) on cleaner.

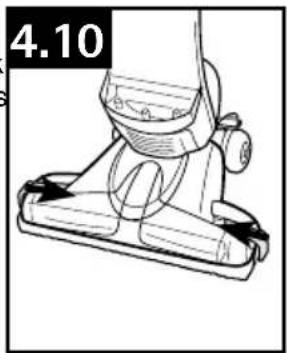

4.10 While holding nozzle in place, slide latches inward to lock in place. Replace tanks.

4.6 A A

4.7 B

4.8 D C

4.9 E F G E

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

STORAGE

Before storing cleaner:

Turn cleaner OFF and disconnect from electrical outlet.

• Empty and rinse solution and Dirty Water Tanks. Allow to air dry.
• Press on upper handle release button to lower handle for storage.
  • Make sure that nothing is pressing on the nozzle squeegee.
• Do not store cleaner on a wood surface unless cleaner is completely dry.

LUBRICATION

The motor is equipped with bearings which contain sufficient lubrication for the life of the motor. The addition of lubricant could cause damage. Do not add lubricant to motor bearings.

5. troubleshootinG

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below.

Any other servicing should be done by an authorized service representative.

WARNING

To reduce risk of personal injury - unplug cleaner before servicing.

problem possible	Cause possible solution
Cleaner won't run	1. Power cord not firmly plugged into outlet.	1. Plug unit in firmly.
	2. Blown fuse or tripped breaker.	2. Check fuse or breaker in home. Replace fuse/reset breaker in home.
Low suction 1.Washable Filter is dirty. 1. Clean Washable Filter.
Water puddling behind cleaner	1. Wrong detergent used. 1. Use recommended detergents to reduce foaming.
	2. Clean Water Solution Tank not in place.	2. Make sure Clean Water Solution Tank is installed properly.
	3. Dirty water tank full. 3. Empty dirty water tank.
Won't pick up dirty solution	1. Dirty Water Tank not in place.	Make sure Dirty Water Tank is installed properly.
	2. Dirty water tank full. 2. Empty Dirty Water Tank.
	3. Filter or Filter lid not in place. 4. Make sure Filter and Filter lid are properly positioned.
Cleaner solution won't dispense	1. Tanks not in place. 1. Make sure tanks are locked in place.
	2. Clean Water Solution Tank is empty.	2. Refill Clean Water Solution Tank.
Brushes won't rotate	1. Blown fuse or tripped breaker.	Check fuse or breaker in home. Replace fuse/reset breaker in home.(1) Push ON/OFF switch to turn cleaner OFF.(2) Unplug the cleaner.(3) Wait one minute.(4) Plug the cleaner into electrical outlet.(5) Push the ON/OFF switch again to turn cleaner ON.If the brushes continue to stall and the breaker trips again, clean the brushes to remove debris

6. serviCe

To obtain approved Hoover® service and genuine Hoover® parts, locate the nearest Authorized Hoover® Warranty Service Dealer (Depot) by:

• Checking the Yellow Pages under "Vacuum Cleaners" or "Household".
• Visit our website at hoover.com (U.S. Customers) or hoover.ca (Canadian customers).
  Follow the service center link to find the service outlet nearest you.
• For an automated referral of authorized service outlet locations call 1-800-944-9200.

Do not send your vacuum to Hoover, Inc., Company in Glenwillow for service. This will only result in delay.

If you need further assistance:

To speak with a customer service representative call1-800-263-6376; Mon-Fri 8am-7pm EST. In Canada, contact Hoover® Canada, Toronto: 755 Progress Ave., Scarborough, ON M1H 2W7 OR HooverCanada, Edmonton: 18129-111 Ave., Edmonton, AB T5W 2P2, Phone: [phone], Mon-Fri 8am-7pm EST. Always identify your vacuum by the complete model number when requesting information or ordering parts. (The model number appears on the bottom of the vacuum.)

Please do not return this product to the store.

7. CleaninG produCts

WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only Hoover® cleaning products and Hoover® hard surface attachments intended for use with the appliance as noted below.

Hoover® Cleaning Product Guide

Product Name	Deep Cleansing Premium	Premium Pet Oxy Anti-Allergen			Hard Floor	Professional Strength	Pet Plus
Hoover®Quick & LightTM	√	√	√	√		√	√
Hoover®SteamVac®	√	√	√	√	^2	√	√
Hoover®SteamVac®Dual V®	√	√	√	√	^3	√	√
Hoover®SteamVac®Dual V®All Terrain	√	√	√	√	√	√	√
Hoover Platinum Collection®	√	√	√	√		√	√
Hoover®FloorMate®					√

^1 Allergens: pollen, pet dander, dirt, and dust.
^2 When cleaning a hard surface, the Hoover ^® hard surface attachment below must be used (optional if not included): 5 Brush/Dual Brush Hoover ^® part # 48417008.

3 When cleaning a hard surface, the optional Hoover® hard surface attachment below must be used:

6 Brush Hoover® part # 36419008

5 Brush Hoover® part # 48417007.

For optimal performance use Hoover® brand detergents, wipes, and spot cleaners available at Hoover.com and retailers nationwide.

Product packaging of pet steam and tafers with spray bottles (no visible text or symbols)

Two black spray cans with visible brand text and labels, likely from a product or advertisement.

liMited one Year warrantY

(Domestic Use)

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your HOOVER® product is warranted against original defects in material and workmanship for a full one year from date of purchase (the "Warranty Period"). During the Warranty Period, Hoover® will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to either a Hoover® Sales and Service Center or Hoover® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Hoover® online at www.hoover.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Hoover® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST. In Canada, contact Hoover® Canada, Carson Building, 100 Carson St., Etobicoke, Ontario M8W 3R9, Phone: [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Hoover®, owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a Hoover® Sales and Service Center for warranty service, cost of shipping will be paid one way.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Hoovef® products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.

THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY HOOVER®. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

IMPORTANTE: LEA ATENTAMENTE ANTES DE ENSAMBLAR Y USAR.

2 D F D G E

Line drawing of a vacuum cleaner with labeled component A (no text or symbols on the device itself)

B

Line drawing of a handheld device with a curved handle and screw base (no text or symbols)

C

E

D

Illustration of hands assembling a mechanical engine block (no text or symbols visible)

1.6 C D E

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

desdoble el ManGo

Line drawing of a robotic vacuum cleaner with a foot and legs, no text or symbols present

A

seleCtor de Modo

Illustration of a hand adjusting a mechanical component (no text or symbols visible)

2.9 A

2.10 B

2.11 C D

2.12 E F

Hand turning a circular component with a knob, no text or symbols visible

Line drawing of a mechanical component with a hand adjusting a base (no text or symbols)

Illustration of hands installing a component with a brush (no text or symbols visible)

2.19 c

E

4.4 D E F D

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

4.9 E F G E

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

ALMACENAR

Product display of spray bottles and containers, including Part 1, Part 2, and Part 3 (no visible text or labels)

8. Garantía

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

IMPORTANT : LIRE CES INSTRUCTIONS ATTENTIVEMENT AVANT D'UTILISER L'ASPIRATEUR.

2 F D D G E

Line drawing of a vacuum cleaner device with labeled component A (no text or symbols on the diagram itself)

B

Line drawing of a handheld device with handle and screw base (no text or symbols)

C

E

D

Line drawing of hands assembling a mechanical component with gears (no text or symbols)

1.6 C D E

Technical line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

déploYer le ManChe

Line drawing of a person using a vacuum cleaner (no text or symbols)

Line drawing of a person using a vacuum cleaner (no text or symbols present)

Cadran séleCteur

Illustration of a hand adjusting a mechanical component (no text or symbols visible)

A

2.10 B

2.11 C D

2.12 E F

Hand turning a circular component with a knob, labeled '2.13' (no other text or symbols)

Line drawing of a mechanical component with a hand adjusting a base (no text or symbols)

LE RÉSERVOIR DE RÉCUPÉRATION

Arrêt automatique

Illustration of hands installing a component with a grating tool (no text or symbols visible)

2.19 c

E

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

4.2 B

4.4 D E F D

4.9 E F G E E

How to Replace

Line drawing of a vacuum cleaner's base assembly (no text or symbols)

Product packaging and spray bottle of a hairless wiper (no visible text or symbols)

8. Garantie
