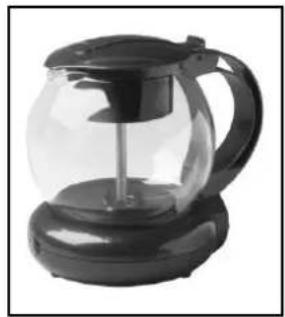

Automatic coffee and tea percolator

Cafetière / théière

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Technical diagram of a coffee maker with numbered parts and exploded view

D

1. FILTERPLATTE
2. KAFFEE-/TEEBEHÄLTER
3. STEIGROHR
4. DECKEL
5. GRIFF
6. GLASKANNE
7. KONTROLLEUCHTE
8. WASSERSTANDSANZEIGE
9. BASIS / FUSS
10. ORANGER KNOPF
11. HEIZELEMENT
12. FILTERSYSTEEM

UK

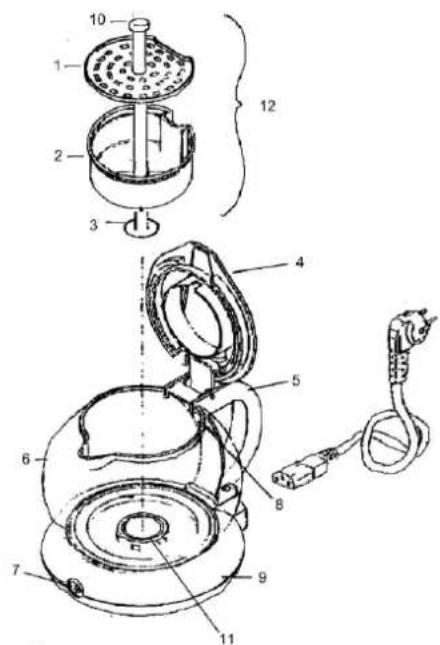

1. DISTRIBUTOR PLATE
2. FILTER BOWL
3. PERCOLATOR TUBE
4. LID
5. HANDLE
6. CARAFE
7. POWER ON LIGHT
8. MAXIMUM FILL LEVEL
9. BASE
10. ORANGE KNOB
11. HEATING ELEMENT
12. BREWING SYSTEM

F

1. PLATEAU D'ECOULEMENT
2. RECEPTACLE DU FILTRE

3. TUBE DE PERCOLATION

4. COUVERCLE

5. POIGNEE
6. CARAFE
7. TEMOIN LUMINEUX
8. TRAIT DE CONTENANCE MAX.
9. BASE AVEC CONNECTEUR D'ALIMENTATION
10. TIGE ORANGE
11. ELEMENT CHAUFANTE
12. UNITÉ DE FILTRATION

NL

1. WATERVERDEELPLAAT
2. FILTERKORF
3. WATERBUIS
4. DEKSEI.
5. HANDVAT
6. GLAZEN KAN
7. CONTROLELAMPJE
8. MAXIMUM WATERNIVEAU AANDUIDING
9. SOKKEL
10. ORANJE KNOP
11. VERWARMELEMENT
12. FILTERSYSTEEM

SP

1. DIFUSOR DE AGUA
2. FILTRO
3. TUBO PARA EL AGUA Y VÁLVULA
4. TAPA
5. ASA
6. JARRA
7. PILOTO LUMINOSO
8. INDICADOR NIVEL MÁXIMO
9. BASE
10. BOTÓN NARANJA
11. ELEMENTO CALEFACTOR
12. CONJUNTO HERVIDOR

P

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

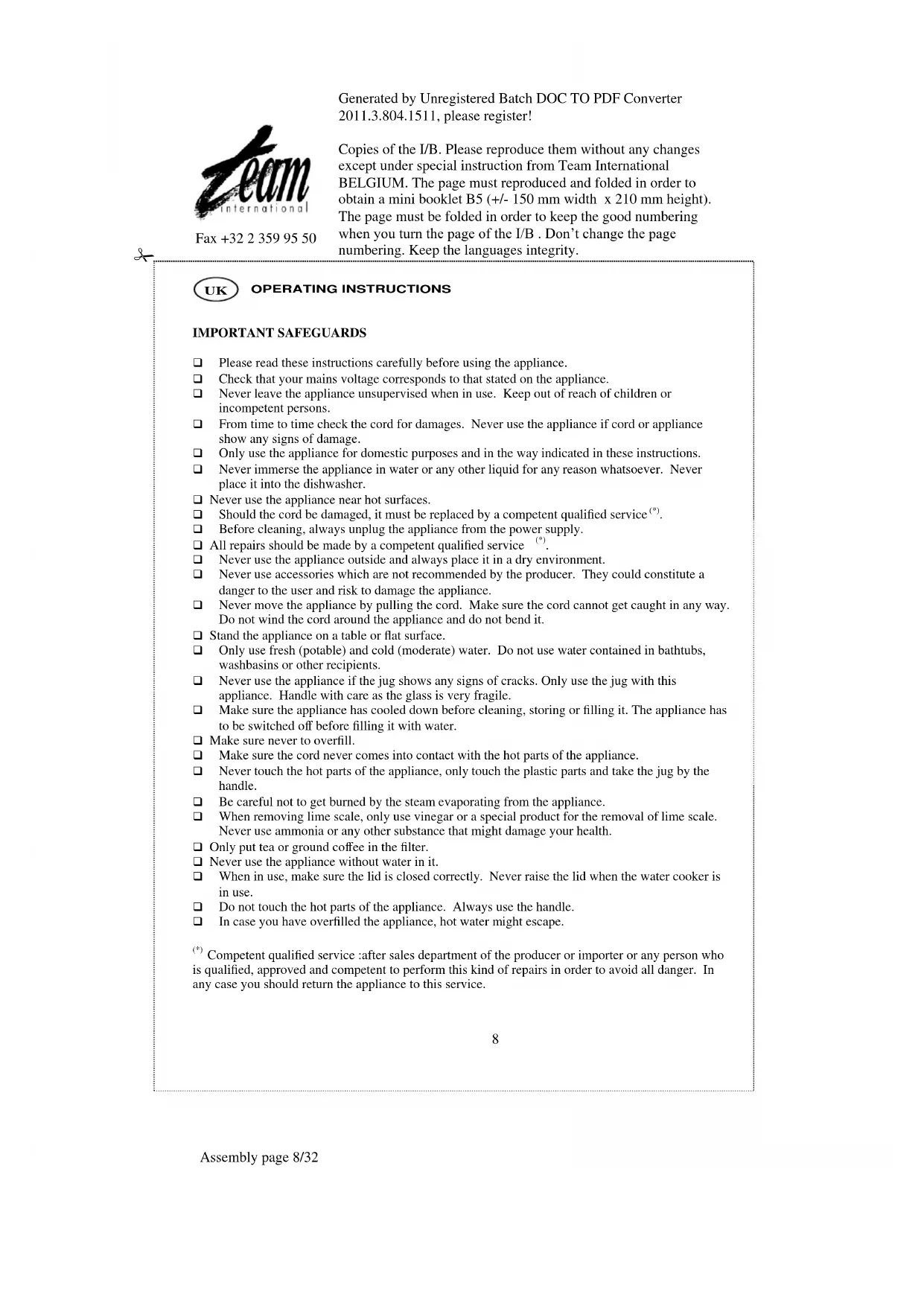

☐ Please read these instructions carefully before using the appliance.
☐ Check that your mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
□ Never use the appliance near hot surfaces.
☐ Should the cord be damaged, it must be replaced by a competent qualified service ^ .
Before cleaning, always unplug the appliance from the power supply.
☐ All repairs should be made by a competent qualified service ^ .
□ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
□ Stand the appliance on a table or flat surface.
☐ Only use fresh (potable) and cold (moderate) water. Do not use water contained in bathtubs, washbasins or other recipients.
☐ Never use the appliance if the jug shows any signs of cracks. Only use the jug with this appliance. Handle with care as the glass is very fragile.
☐ Make sure the appliance has cooled down before cleaning, storing or filling it. The appliance has to be switched off before filling it with water.
□ Make sure never to overfill.
☐ Make sure the cord never comes into contact with the hot parts of the appliance.
☐ Never touch the hot parts of the appliance, only touch the plastic parts and take the jug by the handle.
☐ Be careful not to get burned by the steam evaporating from the appliance.
☐ When removing lime scale, only use vinegar or a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health.
☐ Only put tea or ground coffee in the filter.
□ Never use the appliance without water in it.
☐ When in use, make sure the lid is closed correctly. Never raise the lid when the water cooker is in use.
☐ Do not touch the hot parts of the appliance. Always use the handle.
☐ In case you have overfilled the appliance, hot water might escape.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

BEFORE USE

• Thoroughly rinse all the pieces of the "Brewing System" and inside the carafe.
- Then operate the percolator twice (without tea or coffee) to remove any traces of dust or grease from inside, follow the "how to operate" instruction below.

HOW TO OPERATE

• Open the lid.
• Remove the "Brewing System" by lifting the orange knob. This will allow all of the following items to be removed together: filter bowl, distributor plate and percolator tube.
• Fill the carafe with water to the required level. The maximum water is 1.0 litre and the minimum is 0.3 litre. This is marked on the outside of the bowl. Take care not to allow water to run over the outside of the carafe, mouldings and into the electrical socket at the rear.
• Fill the filter bowl with the desired amount of loose tea, tea bags or coffee. Do not fill above the maximum line marked inside the filter bowl. See "Making perfect Tea & Coffee" guide below..
• Replace the "Brewing System" by picking up the orange knob and place it all into the bowl. Ensure that the percolator tube fits into the hole in the heating element and that the filter bowl and distributor plate are all fitted together correctly.

• The lid can now be closed.

- Attach the power cord to the percolator and then plug into the power supply.

- The "power on" light will now be illuminated and the brewing will begin.

- The brewing will take approximately 7-12 minutes depending on the amount and temperature of the water used.

- When the brewing is completed the power light will switch off and the drink is ready to serve. WARNING: This percolator makes very hot tea and coffee.

- If the drink is not required immediately the product will switch automatically to a "hold" position. This will keep the drink hot by switching the power back on for a short period every few minutes. Remember the drink will slowly evaporate and become stronger in taste the longer it is left to stand.

- Before pouring unplug from the power supply and detach the power cord. After pouring the percolator can be plugged back in the power supply to keep the drink hot. Do not switch back on if the drink level is below the 0.3 litre Min level.

WARNING: Protect the glass carafe from breaking. Do not refill with cold water until the percolator has cooled completely.

MAKING PERFECT TEA AND COFFEE

Always use fresh water taken directly from the tap.

Tea

• You can use all kinds of loose tea or tea bags (but do not leave the labels and strings inside the percolator).
• As a guide to the strength we would recommend the following quantity of tea when filled to the Max. water level (1 litre).

Taste	Loose Tea leaves (Tsp)	Loose Tea Leaves	Tea bags.
Weak	3 Level Tea spoons	(15ml)	3
Medium	4 Level Tea spoons	(20ml)	4
Strong	5 Level Tea spoons	(25ml)	5

Coffee

• The unique percolator flavour is best made with "Coarse ground coffee".
This is often marked on the packets as: "Suitable for Cafetiere and Percolators" or "coarse ground". Alternatively your coffee supplier can grind the beans to a coarse grind suitable for percolators. If percolator coffee is unavailable "filter machine" or "medium ground" coffee may be used but some coffee may pass through the filter.
We do not recommend that "Expresso machine" or "fine ground" coffee is used.

- As a guide to the strength we would recommend the following quantity of coarse ground coffee when filled to Max.water level(1 litre).

Taste	Coarse Ground Coffee level desert spoons (Dsp)	Coarse Ground Coffee
Weak	6	60ml
Medium	7	70ml
Strong	8	80ml

CLEANING

• Always disconnect from the power supply and allow to cool down before cleaning.
• The external glass and plastic only requires occasional cleaning with a clean damp cloth.
- The "Brewing System" may be removed and taken apart for cleaning and may be soaked in mild washing detergent.
• Never use cleaning agents or abrasives as this will damage the finish.
- The inside of the glass and the top of the heating element may be cleaned with water and a soft bristle brush (This is supplied with some models). Be very careful not to scratch the black non-stick coating on top of the heating element. Rinse thoroughly before using again.

DESCALING

• 1. If you have an extremely "hard drinking water" supply, it may be necessary to descale the percolator occasionally to prevent the build up of calcium on the heating element. This calcium will reduce the performance of the product and if allowed to build up may damage the product.
• The best method is to wipe the inside of the bowl and top of the heating element clean after each use and use a soft bristle brush occasionally.
• Do not use chemical to remove the calcium. This will damage the non stick coating on the heating element.
• If the calcium does begin to appear, try this simple, safe method.

10

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

a) Fill percolator with 0.5 litres of water.
b) Add the juice of 1 fresh lemon.
c) Switch on percolator and leave for 30 minutes.
d) Allow to cool down and rinse thoroughly.
