USER MANUAL TKM 6 TEAM

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Ï Front cover page (first page) Assembly page 1/28

4. Lid of filter holder and water tank

6. Illuminated ON/OFF switch

7. Water tank with level indicator

5. Plaque de support

Assembly page 2/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

Assembly page 3/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

Assembly page 5/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

Assembly page 6/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

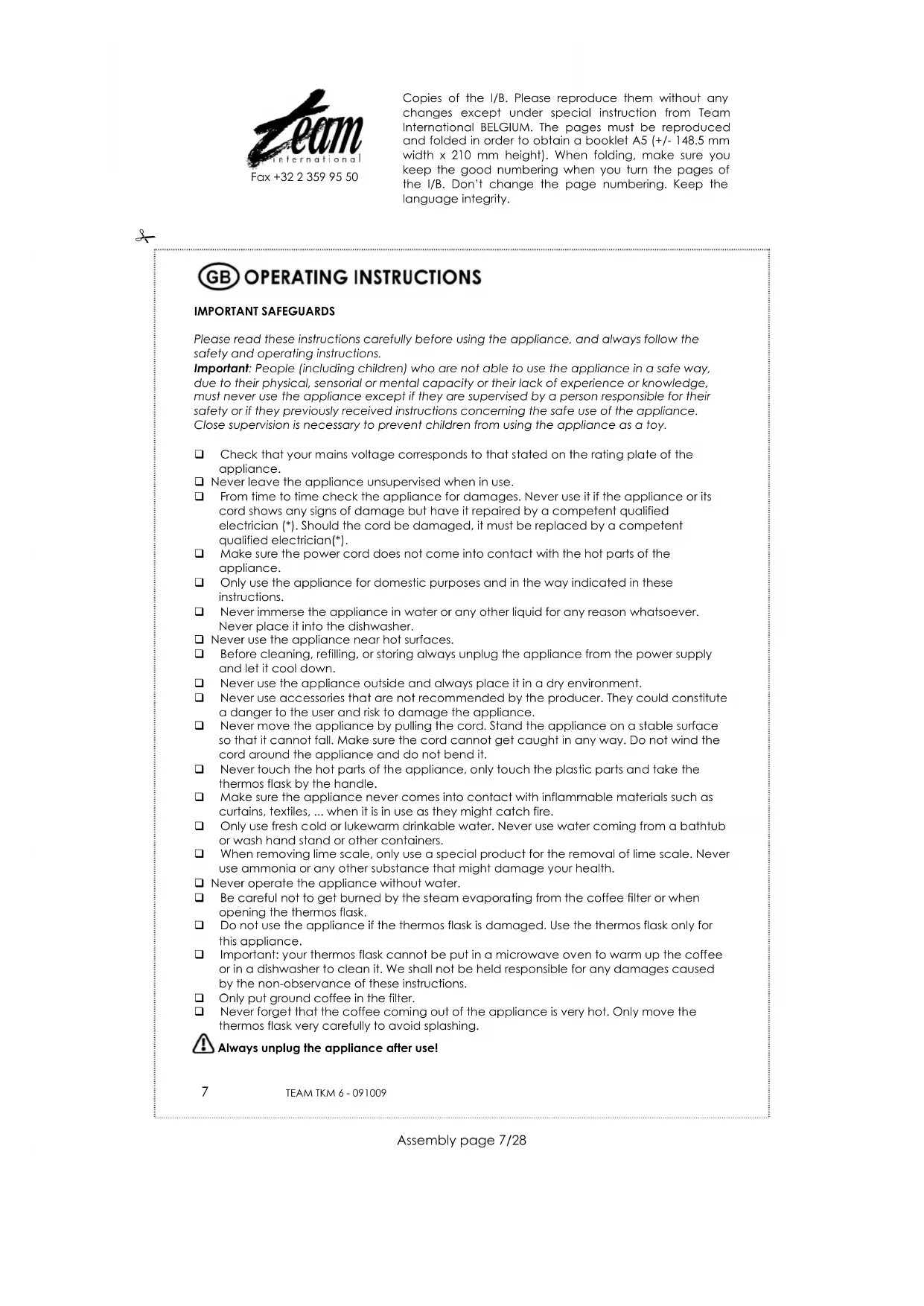

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the rating plate of the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use it if the appliance or its cord shows any signs of damage but have it repaired by a competent qualified electrician (*). Should the cord be damaged, it must be replaced by a competent qualified electrician(*). Make sure the power cord does not come into contact with the hot parts of the appliance. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, refilling, or storing always unplug the appliance from the power supply and let it cool down. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Stand the appliance on a stable surface so that it cannot fall. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Never touch the hot parts of the appliance, only touch the plastic parts and take the thermos flask by the handle. Make sure the appliance never comes into contact with inflammable materials such as curtains, textiles, ... when it is in use as they might catch fire. Only use fresh cold or lukewarm drinkable water. Never use water coming from a bathtub or wash hand stand or other containers. When removing lime scale, only use a special product for the removal of lime scale. Never use ammonia or any other substance that might damage your health. Never operate the appliance without water. Be careful not to get burned by the steam evaporating from the coffee filter or when opening the thermos flask. Do not use the appliance if the thermos flask is damaged. Use the thermos flask only for this appliance. Important: your thermos flask cannot be put in a microwave oven to warm up the coffee or in a dishwasher to clean it. We shall not be held responsible for any damages caused by the non-observance of these instructions.

Only put ground coffee in the filter. Never forget that the coffee coming out of the appliance is very hot. Only move the thermos flask very carefully to avoid splashing. Always unplug the appliance after use!

Assembly page 7/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

FIELD OF APPLICATION/OF OPERATION

• Use the appliance for domestic purposes only and in the way indicated in these instructions.

• This appliance is intended to be used for domestic applications and similar applications such as: Kitchen corners reserved for personnel in shops, offices and other professional environments. Farms. The use by clients of hotels, motels and other environments with a residential character. Environments of the “bed and breakfast” type. INITIAL OPERATION

• For a perfect taste, carry out 2 or 3 boil-processes with fresh water (without coffee). These boil-processes are absolutely necessary.

• Once all the water has passed through, switch the appliance off and let it cool down during 5 minutes. Then repeat the process with fresh water.

PREPARATION OF COFFEE

• Open the lid of the water tank and pour the desired volume of water in it. Make sure not to overfill by filling maximum 8 cups of water. The number of cups can be read from the water level indicator (7).

• Use the permanent filter or insert a paper filter (size 4) in the filter holder and add the desired quantity of ground coffee (1 teaspoon per cup, approximately 6g). Pay attention: fold the bottom and the side edges of the paper filter in such a way that it fits perfectly in the filter holder.

• Never forget to close the lid of the water tank (4) before switching on your coffee maker.

• Put the thermos flask (1) with closed lid on the supporting plate.

• To switch on the machine, put the switch in position "I" and its pilot light will come on, indicating that the appliance is working.

• When the brewing process is over, remove the thermos flask from the supporting plate and pour the desired amount of coffee, keeping the lever of the trickle-through lid pressed down.

• When you remove the thermos flask from the appliance, a non-drip valve will automatically operate to stop any drops of coffee dripping onto the hotplate. Replacement of the thermos flask automatically opens the non-drip valve and allows remaining coffee to filter through into the thermos flask.

• Wait until the brewing process is finished and the filter has run empty. Switch off the appliance by putting the ON/OFF switch in position “0” and unplug it.

• The thermos flask allows you to keep the coffee warm for quite some time.

• When the water tank is empty, wait a few additional minutes, as some water might still drip out of the filter.

• To keep the coffee warm, remove the flask from the appliance, as then the cap will close itself hermetically.

Assembly page 8/28 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Fax [phone]

DECALCIFICATION AND CLEANING

When you notice that the coffee making process is longer than it should be, it is probably time to decalcify the appliance. Do not wait until the situation gets worse. The decalcifying frequency depends on the amount of lime in the water and therefore can be different from family to family. Therefore it is important to pay attention to this.

• We advise you to descale the coffee maker to prolong its life span. For descaling only use products especially made for the descaling of coffee makers and follow their instruction manual. Then rinse the appliance twice with fresh water, without coffee powder. Guarantee claims will not be accepted for appliances that have not been descaled.

• Never use a dishwasher to clean the appliance or its accessories. Just clean the thermos flask in soapsuds. To clean the plastic parts of the appliance, use a damp, non-abrasive cloth.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
