USER MANUAL Stelio Glas WMF

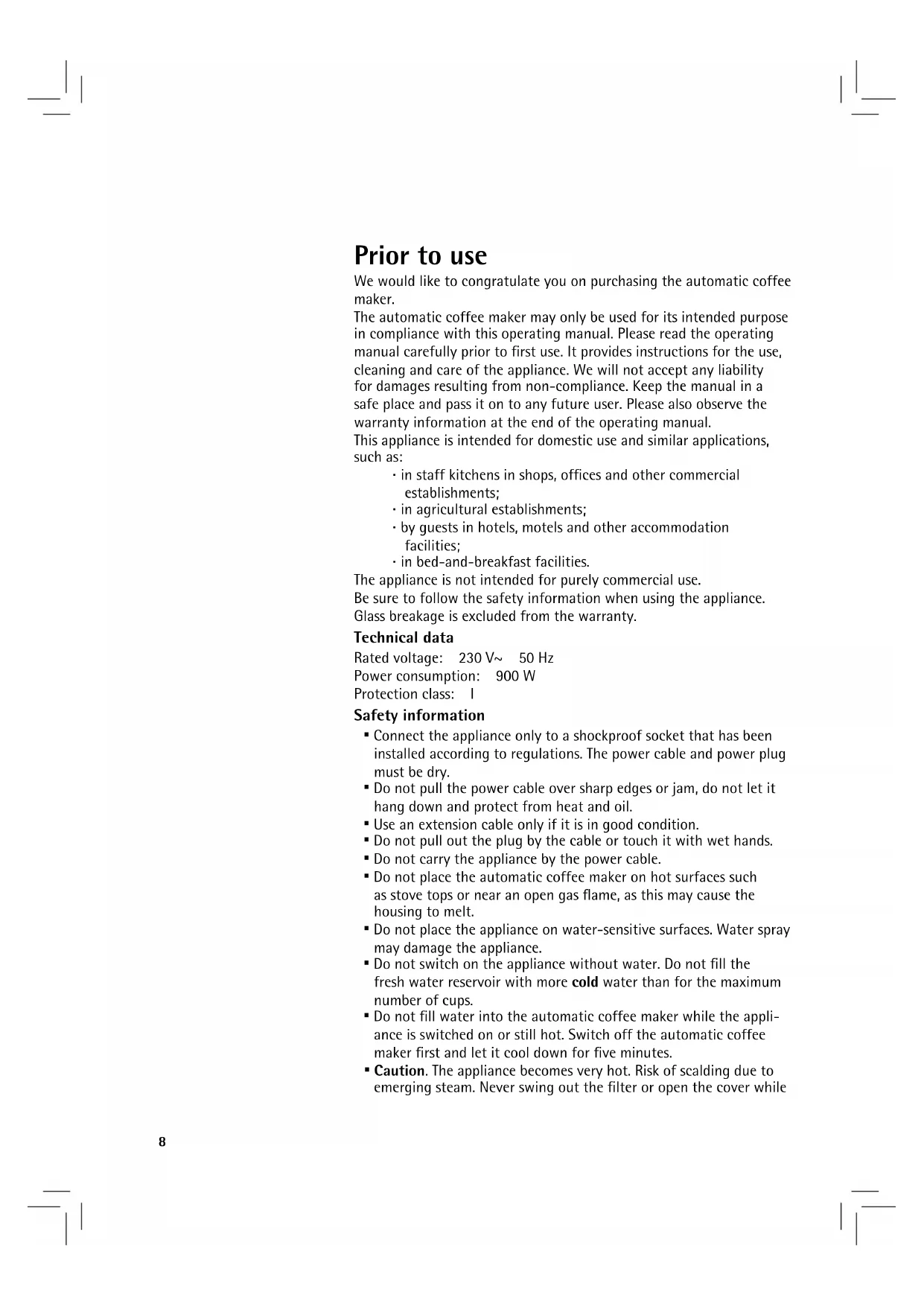

We would like to congratulate you on purchasing the automatic coffee maker.

The automatic coffee maker may only be used for its intended purpose in compliance with this operating manual. Please read the operating manual carefully prior to first use. It provides instructions for the use, cleaning and care of the appliance. We will not accept any liability for damages resulting from non-compliance. Keep the manual in a safe place and pass it on to any future user. Please also observe the warranty information at the end of the operating manual.

This appliance is intended for domestic use and similar applications, such as:

• in staff kitchens in shops, offices and other commercial establishments;
• in agricultural establishments;
• by guests in hotels, motels and other accommodation facilities;
• in bed-and-breakfast facilities.

The appliance is not intended for purely commercial use.

Be sure to follow the safety information when using the appliance.

Glass breakage is excluded from the warranty.

Technical data

Rated voltage: 230V 50 Hz

Power consumption: 900 W

Protection class: I

Safety information

• Connect the appliance only to a shockproof socket that has been installed according to regulations. The power cable and power plug must be dry.
• Do not pull the power cable over sharp edges or jam, do not let it hang down and protect from heat and oil.
• Use an extension cable only if it is in good condition.
• Do not pull out the plug by the cable or touch it with wet hands.
• Do not carry the appliance by the power cable.
• Do not place the automatic coffee maker on hot surfaces such as stove tops or near an open gas flame, as this may cause the housing to melt.
• Do not place the appliance on water-sensitive surfaces. Water spray may damage the appliance.
• Do not switch on the appliance without water. Do not fill the fresh water reservoir with more cold water than for the maximum number of cups.
• Do not fill water into the automatic coffee maker while the appliance is switched on or still hot. Switch off the automatic coffee maker first and let it cool down for five minutes.
• Caution. The appliance becomes very hot. Risk of scalding due to emerging steam. Never swing out the filter or open the cover while

brewing is in progress.

• This appliance is not intended to be used by persons (including children) with limited physical, sensory or intellectual faculties or who lack experience and/or knowledge, unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance.
• Please make sure that children do not have an opportunity to play with the appliance.
• If you do not intend using the appliance for an extended period, pull the power plug.

• If the following happens, do not use the appliance and unplug it immediately:

• the appliance or power cable are damaged

• a defect is suspected after a fall or similar occurrence

In these cases, have the appliance repaired.

The appliance must be decalcified regularly.
- The glass pot is not suitable for use in microwave ovens.
- Never immerse the appliance in water.
- We will not accept any liability for damages resulting from misuse, non-compliance with the decalcification instructions, or unqualified repairs. Also, guarantee services are excluded in such cases.
- If the power cable of the appliance is damaged, it must be replaced by the manufacturer's authorised service agent or a qualified technician. Incorrect repairs may result in considerable hazards for the user.

Start-up

Prior to initial use or when the automatic coffee maker has not been operated over a long period, fill the appliance with the maximum amount of water but without coffee powder, let the water boil and finally rinse the filter and pot with hot water.

Setting the current time

After connecting the power plug to a socket the display will flash 12 00. Set the current time by pressing the buttons h and min. As soon as the colon starts flashing, the clock is set and running, a further confirmation is not required. You can change the current time at any time by pressing the h and min buttons.

Note: After a power failure or after the power plug has been disconnected, the time must be reset.

Programming the Auto-On time

The Auto-On system of the appliance automatically starts the brewing process at the set time. The Auto-On time can be programmed up to 24 hours in advance. It is displayed when you press the set button and BREW appears in the display. Keep the set button pressed and set the required Auto-On time by pressing the buttons h and min.

Note: After a power failure or after the power plug has been disconnected, the Auto-On time must be reset.

Brewing coffee

Open the rear cover on the appliance and pour cold water into the reservoir. The water level indicator on the reservoir shows the quantity of fresh water required to brew the desired number of cups à 125 ml coffee. The scale on the handle of the glass pot refers to cups of brewed coffee à 125 ml.

Note: If you have accidentally filled in too much water, you can pour it out through the rear overflow outlet. Do not tilt the appliance forward to empty the reservoir.

To fill in coffee powder, open the front cover. Fold a paper filter size 1 × 4 along the fold lines and insert it into the filter. The paper filter is not allowed to stick out beyond the rim of the filter and must therefore be pressed slightly into place by hand.

Fill in the required quantity of coffee powder. Depending on your personal taste, use approximately 5 to 7 grams of medium ground coffee per cup. If the coffee powder is ground too finely, the filter may overflow.

Auto-On function

If you want the brewing process to start up automatically at the programmed Auto-On time, press the Start/Stop button once. AUTO will appear in the display and the indicator light lights up red. After the appliance has switched on automatically at the programmed time, the indicator light will go out, the indicator light will light up green and the brewing process will start.

Instant start

If you want the coffee to brew instantly, press the Start/Stop button twice until the indicator light lights up green. The brewing process will then start. You can switch off the appliance at any time by pressing the Start/Stop button again.

After the brewing process is completed, the glass pot can be removed. A drip-stop valve prevents coffee residues from dripping onto the hot plate.

Keeping coffee hot

On the hot plate the coffee is kept at serving temperature for up to 2 hours. You can switch off the appliance at any time by pressing the Start/Stop button again.

Before brewing more coffee the appliance should be left to cool down for 5 minutes.

Cleaning

• Disconnect the power plug and leave the appliance to cool down.
• Never immerse the appliance in water; simply wipe the exterior using a damp cloth with a drop of washing-up.
• Do not use harsh or abrasive cleaning agents.
• Clean the filter and glass pot under running water or in the dishwasher.

Decalcifying

Limescale and calcium deposits result in a loss of energy and impair the service life of the appliance. The appliance will switch off prematurely if the deposit is too excessive. It is then very difficult to remove the deposit. We therefore recommend you to decalcify the appliance regularly, but at the latest when the brewing time increases significantly or there is more noise during the brewing process.

The following values are offered for guidance and are based on daily use in a household.

Hardness range Hardness Decalcification
1 soft 0 - 7° dH every	6 months
2 medium >7- 14° dH	every 3 months
3 hard >14 - 21° dH	every 6 weeks
4 very hard	>21° dH	every 4 weeks

1^ corresponds to approximately 0.18 mmol/l Ca and Mg ions

You can obtain details of the water hardness range in your residential area from your water works or community offices.

We recommend using durgol universal. This decalcifier is highly effective, protects the material and does not require any additional exposure time.

You can obtain this decalcifier where you bought the appliance or from select dealers, or you can order it directly from wmf consumer electric.

Insert the paper filter and place the pot into the automatic coffee maker. Fill 1-2 cups of durgol universal into the water reservoir, fill up the reservoir with tap water to the max. mark and switch on the appliance. Then let a reservoir full of tap water run through to rinse the appliance.

On no account use vinegar or vinegar essence, as the materials in the appliance could be damaged.

When using decalcifiers based on citric acid, precipitates may form during decalcification and seal the calcium deposits or block the pipelines in the appliance. Furthermore, decalcification with citric acid is too slow and therefore complete decalcification cannot be guaranteed.

Important. Warranty compensation does not cover damage that occurs due to non-compliance with the decalcification instructions.

For UK use only

• This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.
• The replacement of the plug at the mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow Earth

blue Neutral

brown Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol, or coloured green or green and yellow,
• the wire which is coloured blue must be connected to the terminal which is marked the letter N or coloured black,

• the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

• If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 15 A fuse either in the plug or adapter or at the distribution board.
  If in doubt - consult a qualified electrician.

• Never use the plug without closing the fuse cover.

C E

The appliance is compliant with European Directives 2006/95/EC, 2004/108/EC and 2009/125/EC.

This product may not be disposed of in normal household waste at the end of its service life, but must be delivered to a collecting point for recycling electrical and electronic appliances.

The materials are reusable in accordance with their identification. You will make an important contribution to the protection of our environment by recycling used appliances.

Please ask about the responsible disposal point at your community offices.

Subject to change

Universal Express Decalcifier durgol® universal

durgol® universal quickly and simply removes limescale and calcium deposits from all household items. Its formula stands for efficient decalcifying which is at the same gentle on materials, food-compatible and environmentally friendly.

durgol® universal can be purchased at select dealers or directly from wmf consumer electric in a 500 litre bottle.
