USER MANUAL MD 15482 Micromaxx

1.1. Please read these operating instructions and keep them in a safe place .............................................................................................30

• 7.1. Short-term operation p. 38
• 7.2. Attaching the mixing bowl with blades p. 39
• 7.3. Attaching the mixing bowl with the mixing disc p. 40
• 7.4. Attaching the mixing bowl with the holder for graters and blades p. 41
• 7.5. Attaching the mixing bowl with the citrus press p. 42
• 7.6. Attaching the mixing bowl with the kneading disc p. 43

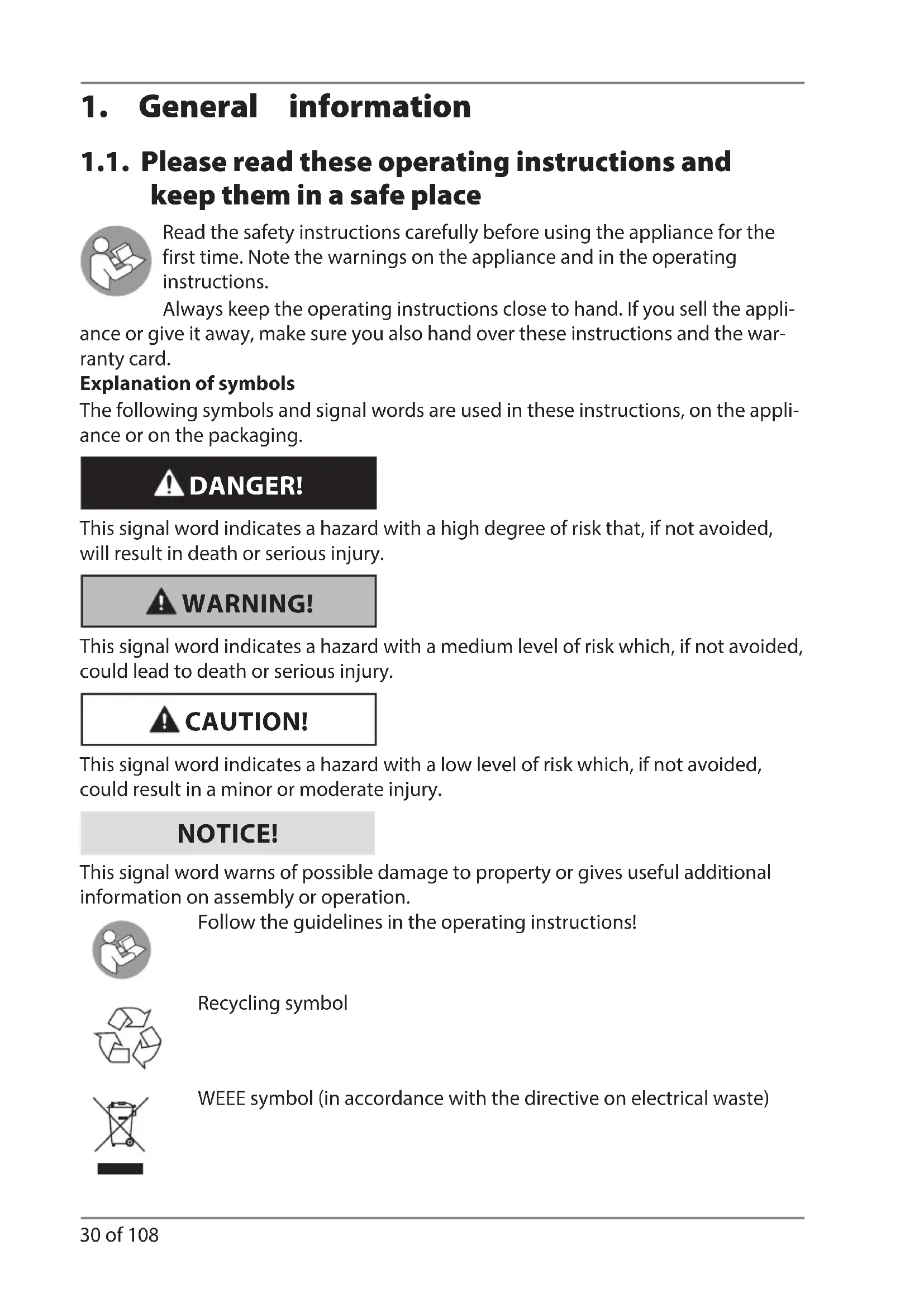

1.1. Please read these operating instructions and keep them in a safe place Read the safety instructions carefully before using the appliance for the first time. Note the warnings on the appliance and in the operating instructions. Always keep the operating instructions close to hand. If you sell the appli- ance or give it away, make sure you also hand over these instructions and the war- ranty card. Explanation of symbols The following symbols and signal words are used in these instructions, on the appli- ance or on the packaging. DANGER! This signal word indicates a hazard with a high degree of risk that, if not avoided, will result in death or serious injury. WARNING! This signal word indicates a hazard with a medium level of risk which, if not avoided, could lead to death or serious injury. CAUTION! This signal word indicates a hazard with a low level of risk which, if not avoided, could result in a minor or moderate injury. NOTICE! This signal word warns of possible damage to property or gives useful additional information on assembly or operation. Follow the guidelines in the operating instructions! Recycling symbol WEEE symbol (in accordance with the directive on electrical waste) 15482 DE EN FR NL ECommerce Content RC1.indb 3015482 DE EN FR NL ECommerce Content RC1.indb 30 14.09.2015 13:47:5014.09.2015 13:47:50DE

Declaration of conformity (See chapter “Declaration of Conformity”): products marked with this symbol meet EC directive requirements. Symbol – risk of crushing injury Symbol – risk of electric shock

After unpacking the product, please ensure that the following parts have been sup- plied:

• Food processor accessories and attachments (see “Overview of the device” on page 36)

• Operating instructions and warranty documents

The appliance’s kneading attachment should only be used to knead, mix, shred and cut foods such as dough, mousse, cream or egg whites. The blender unit is intended for puréeing, beating and mixing foods. This appliance is intended to be used in private households or for similar household applications, such as: − in staff kitchens in shops, offices and other commercial areas; − on agricultural estates; − by customers in hotels, motels and other residential facili- ties; − in bed & breakfast accommodation. The appliance is not suitable for commercial or industrial use. Please note that we shall not be liable in cases of improper use:

• Do not modify the appliance without our consent and do not 15482 DE EN FR NL ECommerce Content RC1.indb 3115482 DE EN FR NL ECommerce Content RC1.indb 31 14.09.2015 13:47:5014.09.2015 13:47:5032 of 108 use any auxiliary equipment which we have not approved or supplied.

• Use only spare parts and accessories that we have supplied or approved.

• Heed all the information in these operating instructions, especially the safety information. Any other use is deemed improper and can cause personal injury or property damage.

• Do not expose the appliance to any extreme conditions. The following should be avoided: − High levels of humidity or moisture − Extremely high or low temperatures − Direct sunlight − Naked flames

4. Safety information

WARNING! Risk of injury due to improper handling. Store the appliance and its accessories out of the reach of children. This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities or by those without experience and/or knowl- edge, if they are supervised or have been instructed in the safe use of the appliance and have understood the dan- gers that result from it. Children must not be allowed to play with the appliance. Cleaning and user maintenance may not be carried out by children, unless they are aged 8 or over and are supervised. Children younger than 8 should be kept away from the appliance and the mains cable. 4.1. Unpacking the appliance If you find transport damage, contact the Medion Service 15482 DE EN FR NL ECommerce Content RC1.indb 3215482 DE EN FR NL ECommerce Content RC1.indb 32 14.09.2015 13:47:5014.09.2015 13:47:50DE

Centre at once. WARNING! Risk of suffocation. Keep any plastic sheet used in packaging away from chil- dren. DANGER! Risk of injury from electric shock! Before using the appliance for the first time and after each use, check the mains cable for damage. 4.2. Electrical safety DANGER! Risk of injury from electric shock! Make sure that the mains cable does not present a trip hazard. Do not allow the mains cable to become trapped or squashed. Do not operate the appliance if there is any visible damage to the food processor or the mains cable. There are dangerous voltages inside the appliance. Never open the housing or insert objects into the ventilation slots. In order to disconnect the appliance completely from the power supply, pull the plug from the socket. Always pull the plug, never the cable. Ensure that a defective appliance is repaired immediately by a specialist workshop. In order to reduce risks: if the mains cable for this appliance is damaged then it must be replaced by the Medion Service Centre or a similarly quali- fied person. 15482 DE EN FR NL ECommerce Content RC1.indb 3315482 DE EN FR NL ECommerce Content RC1.indb 33 14.09.2015 13:47:5014.09.2015 13:47:5034 of 108 NOTICE! Damage to the appliance caused by storms Appliances left connected to the mains power supply during thunderstorms may be damaged. Therefore, always pull out the mains plug if there is a thunderstorm. DANGER! Risk of injury from rotating and moving parts Avoid touching moving parts. Keep hair, clothing, hands, cut- lery, mixing spoons or similar items away from the appliance during operation to avoid injuries or damage to property. Before changing any accessories or additional parts that move during operation, the appliance must be switched off and disconnected from mains power. Before switching on, make sure that the accessory attach- ment is correctly fitted and firmly seated. As soon as you turn on the appliance, its drive shaft will rotate. During operation, do not reach into the rotating drive shaft! Never use the mixing bowl and blender jug without the splash guard or lid fitted! NOTICE! Risk of damage to the appliance if it is set up incorrectly Place the appliance on a firm, level surface. Do not use an extension cable. Never place the appliance on the edge of a table – it could tip over and fall. Remove the plug from the mains socket after each use, before cleaning and during periods when the appliance is left unattended. Unwind the cable fully when using the appliance. Do not allow the mains cable to come into contact with hot objects or surfaces (e.g. cooker hob). 15482 DE EN FR NL ECommerce Content RC1.indb 3415482 DE EN FR NL ECommerce Content RC1.indb 34 14.09.2015 13:47:5014.09.2015 13:47:50DE

DANGER! Risk of injury due to improper use of the appliance Do not allow the mains cable to come into contact with water or other liquids. Safe operation Never immerse the appliance in liquids! Do not use the appliance outdoors. Do not leave the appliance unattended during operation. Ensure that no foreign objects (spoon, dough scraper or similar items) are in the mixing bowl during operation. There is a risk of scalding if the appliance is used with foodstuffs that are hotter than 60°C. Do not fill the mixing bowl with hot foodstuffs.

5. Declaration of conformity

Medion AG hereby declares that the product MD 15482 conforms to the following European requirements:

• EMC Directive 2004/108/EC

• Low Voltage Directive 2006/95/EC

• Ecodesign Directive 2009/125/EC

• RoHS Directive 2011/65/EU Full declarations of conformity are available at www.medion.com/conformity. 15482 DE EN FR NL ECommerce Content RC1.indb 3515482 DE EN FR NL ECommerce Content RC1.indb 35 14.09.2015 13:47:5014.09.2015 13:47:5036 of 108

6. Overview of the device

7. Using the device for the fi rst time

Before using the appliance for the first time, thoroughly wash the accessories (pusher, splash guard lid, blade adapter, mixing bowl, drive rod, citrus press, cut- ting blade, coarse grater, fine grater, blade holder, mixing disc, kneading disc, slicing disc, measuring cup, lid of the blender jug, blender jug, blade for the blender jug and the drive adapter for the blender jug). Please note that the parts are not dish- washer safe. Attach the accessories as described in the following sections. After assembly, connect the food processor to a 220–240V ~ 50/60Hz safety socket. 7.1. Short-term operation NOTICE! Risk of overheating due to excessive operation Do not operate the appliance continuously for longer than the times stated below: Short-term operation: approx. 5 minutes.

• After operating for 5 minutes, allow to cool for 10 minutes. NOTICE! Odours during initial operation The appliance is driven by an electric motor. This can lead to a slight smell during initial operation. This smell is normal and is not a sign of a malfunctioning appliance. Ensure that there is adequate ventilation. DANGER! Risk of injury from rotating and moving parts Always fit the splash guard lid to provide protection against the rotating parts. There is risk of crushing injury! 15482 DE EN FR NL ECommerce Content RC1.indb 3815482 DE EN FR NL ECommerce Content RC1.indb 38 14.09.2015 13:47:5114.09.2015 13:47:51DE

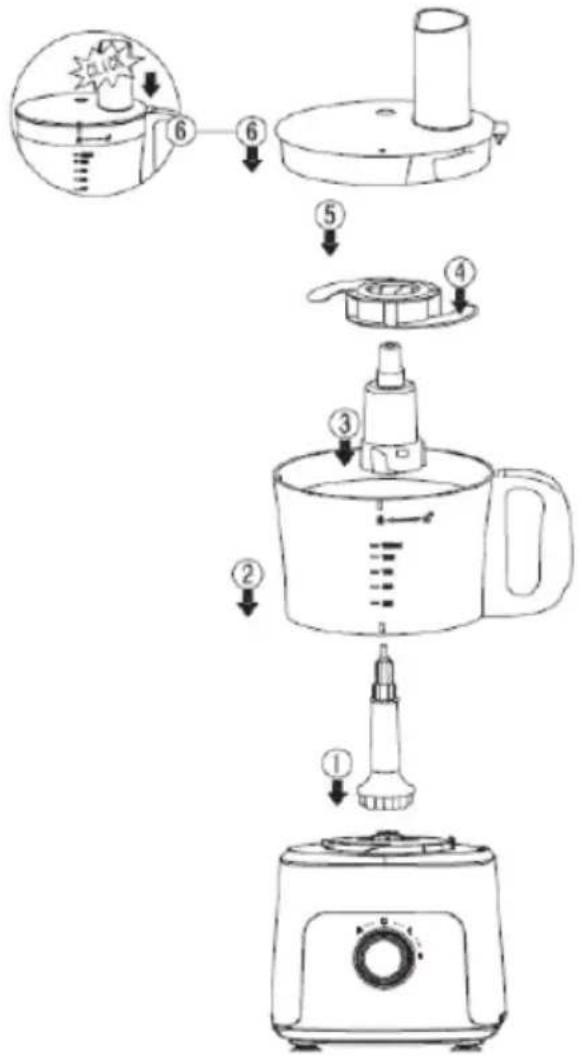

7.2. Attaching the mixing bowl with blades

2) Place the mixing bowl onto the

drive rod and screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right.

adapter. Ensure here that the two slots on the slicing disc fit onto the two tabs on the blade adapter.

5) Place the splash guard lid onto the

mixing bowl so that the catches on the lid engage with the corre- sponding slots on the mixing bowl.

6) Twist the splash guard lid onto the

mixing bowl until it closes tightly and the protrusion on the lid is fully aligned with the handle on the mixing bowl. If this is not done cor- rectly, the safety contact on the base will not allow operation. NOTICE! Safety contact on the mixing bowl The food processor cannot be operated if the mixing bowl is incorrectly fitted. If incorrectly fitted, the safety contact on the housing edge will prevent operation. Use the pusher to insert food through the feed chute. 15482 DE EN FR NL ECommerce Content RC1.indb 3915482 DE EN FR NL ECommerce Content RC1.indb 39 14.09.2015 13:47:5114.09.2015 13:47:5140 of 108 7.3. Attaching the mixing bowl with the mixing disc

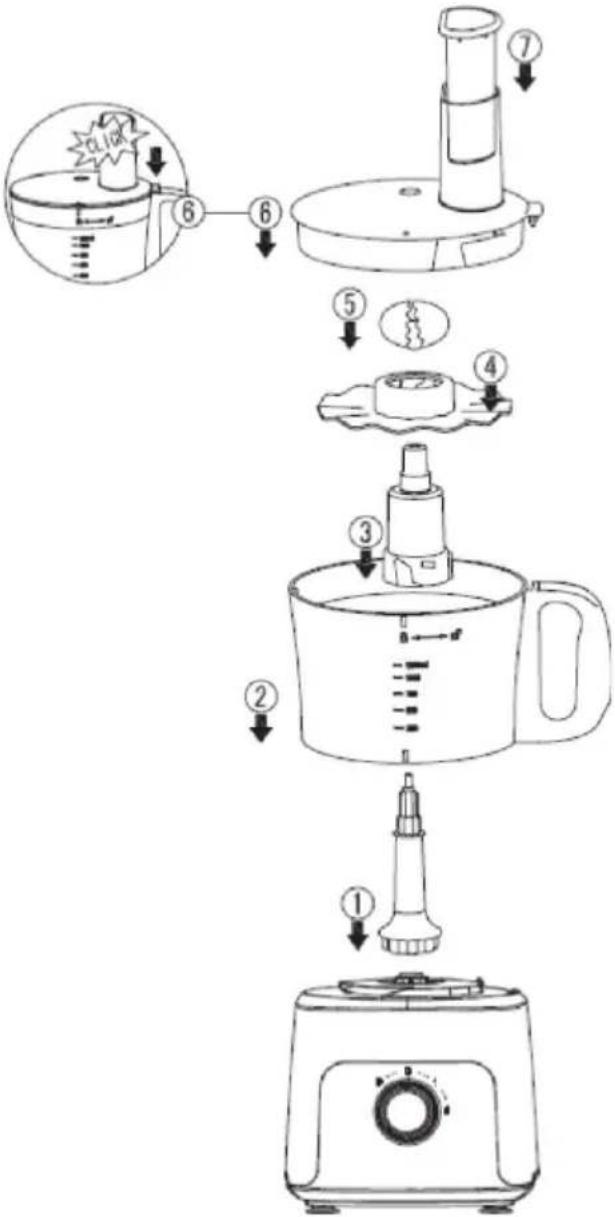

2) Place the mixing bowl onto the

drive rod and screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right.

4) Place the mixing disc onto the blade

adapter. Ensure here that the two slots on the mixing disc fit onto the two tabs on the blade adapter.

5) Place the splash guard lid onto the

mixing bowl so that the catches on the lid engage with the corre- sponding slots on the mixing bowl.

6) Twist the splash guard lid onto the

mixing bowl until it closes tightly and the protrusion on the lid is fully aligned with the handle on the mixing bowl. If this is not done cor- rectly, the safety contact on the base will not allow operation.

7) Use the pusher to insert food

through the feed chute. NOTICE! Safety contact on the mixing bowl The food processor cannot be operated if the mixing bowl is incorrectly fitted. If incorrectly fitted, the safety contact on the housing edge will prevent operation. 15482 DE EN FR NL ECommerce Content RC1.indb 4015482 DE EN FR NL ECommerce Content RC1.indb 40 14.09.2015 13:47:5114.09.2015 13:47:51DE

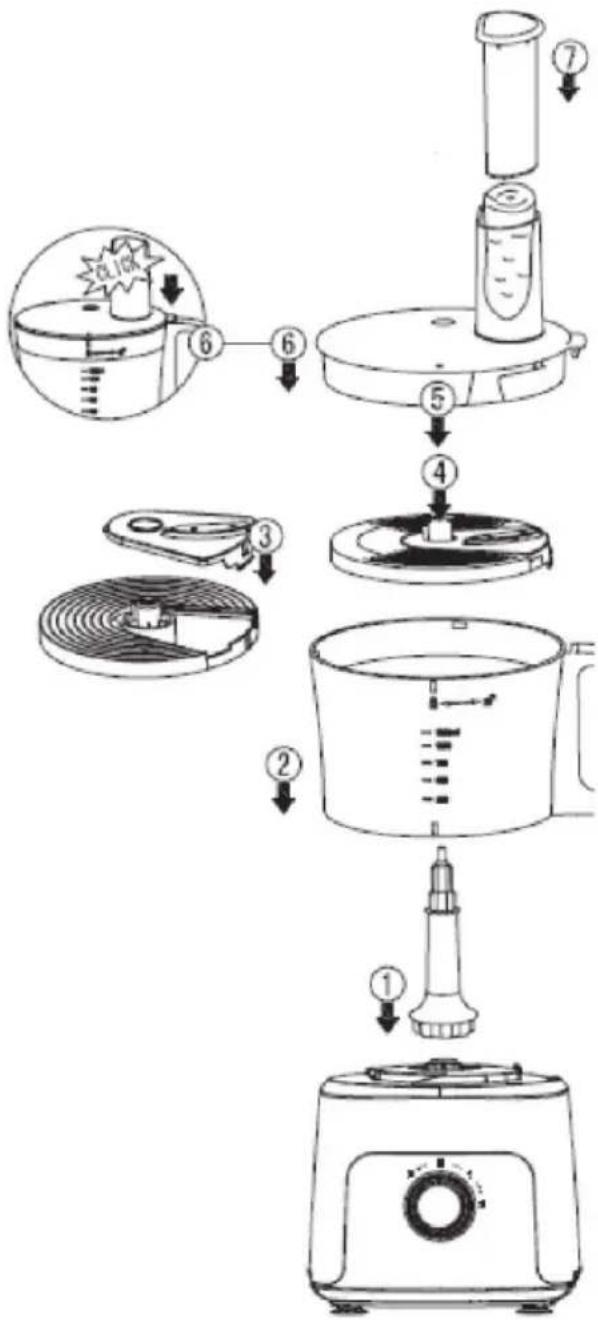

7.4. Attaching the mixing bowl with the holder for graters and blades

2) Place the mixing bowl onto the

drive rod and screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right.

4) Place the blade holder with the blade

facing upwards onto the drive rod. Ensure that the cogs mesh together.

5) Place the splash guard lid onto the

mixing bowl so that the catches on the lid engage with the corre- sponding slots on the mixing bowl.

6) Twist the splash guard lid onto the

mixing bowl until it closes tightly and the protrusion on the lid is fully aligned with the handle on the mixing bowl. If this is not done cor- rectly, the safety contact on the base will not allow operation.

7) Use the pusher to insert food

through the feed chute. NOTICE! Safety contact on the mixing bowl The food processor cannot be operated if the mixing bowl is incorrectly fitted. If incorrectly fitted, the safety contact on the housing edge will prevent operation. 15482 DE EN FR NL ECommerce Content RC1.indb 4115482 DE EN FR NL ECommerce Content RC1.indb 41 14.09.2015 13:47:5214.09.2015 13:47:5242 of 108 7.5. Attaching the mixing bowl with the citrus press

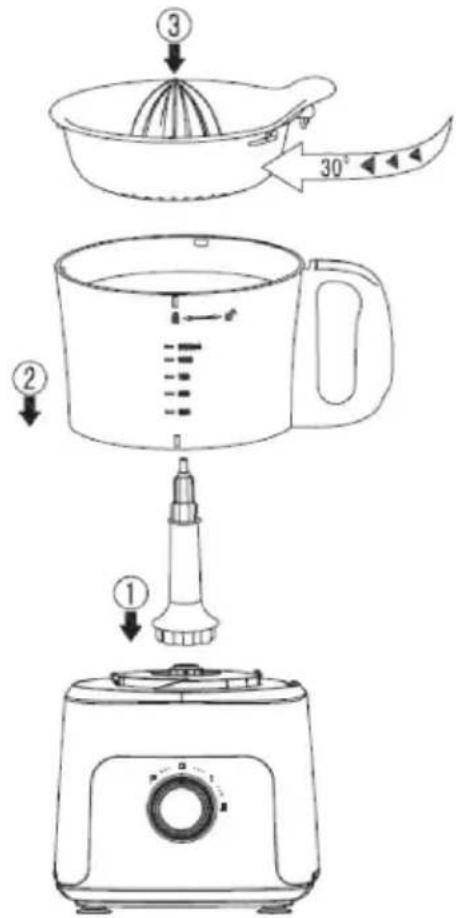

2) Place the mixing bowl onto the

drive rod and screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right.

3) Place the citrus press on to the drive

rod so that the catches on the citrus press engage with the corresponding slots on the mixing bowl. Screw the citrus press onto the mixing bowl until it closes tightly and the pro- trusion on the lid is in alignment with the handle on the mixing bowl. If this is not done correctly, the safety contact on the base will not allow operation. NOTICE! Safety contact on the citrus press The food processor cannot be operated if the citrus press is incorrectly fitted. If incorrectly fitted, the safety contact on the housing edge will prevent operation. 15482 DE EN FR NL ECommerce Content RC1.indb 4215482 DE EN FR NL ECommerce Content RC1.indb 42 14.09.2015 13:47:5214.09.2015 13:47:52DE

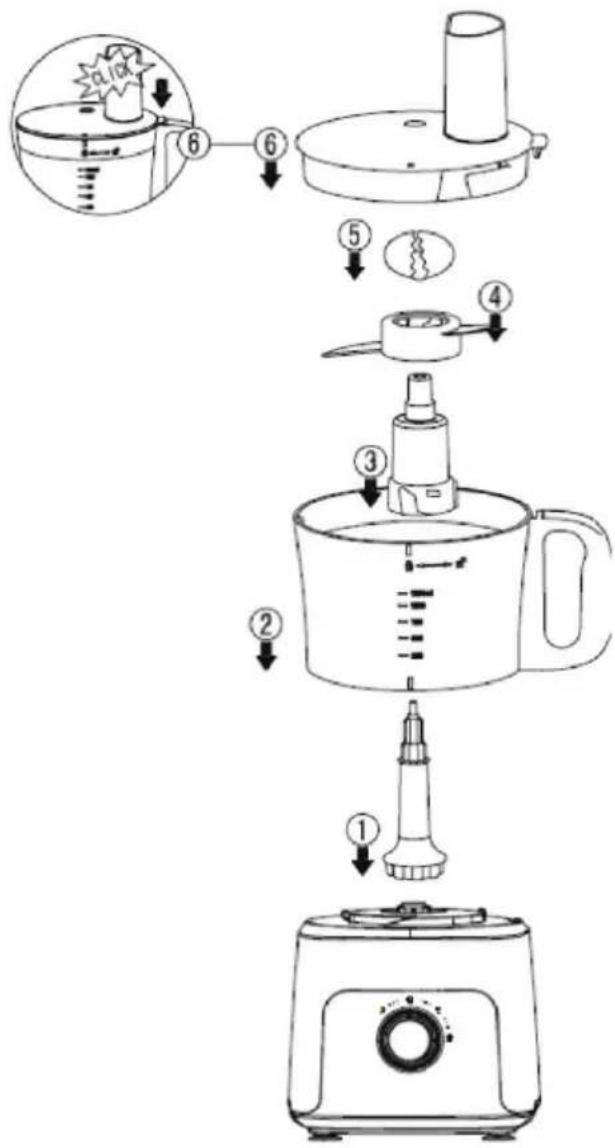

7.6. Attaching the mixing bowl with the kneading disc

2) Place the mixing bowl onto the

drive rod and screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right.

4) Place the kneading disc onto the

blade adapter. Ensure here that the two slots on the kneading disc fit onto the two tabs on the blade adapter.

5) Place the splash guard lid onto the

mixing bowl so that the catches on the lid engage with the corre- sponding slots on the mixing bowl.

6) Twist the splash guard lid onto the

mixing bowl until it closes tightly and the protrusion on the lid is fully aligned with the handle on the mixing bowl. If this is not done cor- rectly, the safety contact on the base will not allow operation. Use the pusher to close the lid or to insert food through the feed chute. NOTICE! Safety contact on the mixing bowl The food processor cannot be operated if the mixing bowl is incorrectly fitted. If incorrectly fitted, the safety contact on the housing edge will prevent operation. 15482 DE EN FR NL ECommerce Content RC1.indb 4315482 DE EN FR NL ECommerce Content RC1.indb 43 14.09.2015 13:47:5214.09.2015 13:47:5244 of 108

8. Using the blender jug

WARNING! Risk of injury from rotating and moving parts The cutting blades are very sharp! There- fore, avoid touching the blade assembly!

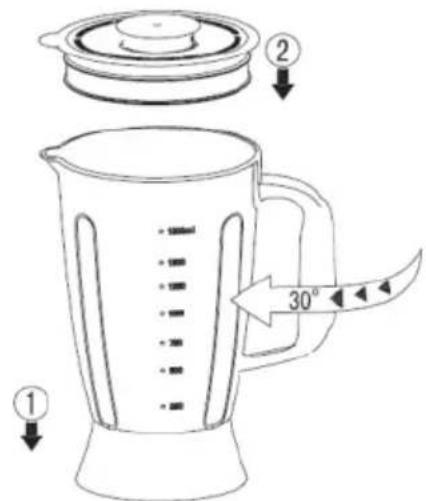

1) Place the blender jug onto the drive rod and

screw it onto the stand housing in a clockwise direction so that the handle is then pointing to the right. Cut up larger pieces of food so that they are small enough to fit into the blender jug without squashing. Fill the blender jug.

2) Place the protective lid and measuring cup on

the blender jug. Select the appropriate speed based on the required use in accordance with the following table: Speed level Food 1 Blending liquids 2 Blending liquids containing solid foods

• For crushing ice (in liquid)

• Chopping solid foods NOTICE! Using pulse mode When chopping food, working in pulse mode (speed control position P) will achieve the best results. Operating it for longer will chop the food too finely. 15482 DE EN FR NL ECommerce Content RC1.indb 4415482 DE EN FR NL ECommerce Content RC1.indb 44 14.09.2015 13:47:5214.09.2015 13:47:52DE

If food residues remain stuck to the side of the jug (e.g. in the case of herbs or other moist foods), switch the appliance off and dislodge the residues with a flat spoon or spatula. Return them to the jug and pulse two or three more times to chop them. To add ingredients, either remove the protective lid completely or just the meas- uring cup. After filling, close the blender jug with the lid straight away. Once the food has been chopped sufficiently, wait until the blade stops. Move the speed control to the 0 position and unplug the mains cable. Turn the blender jug anticlockwise to remove it from the drive shaft. Remove the lid and measuring cup and empty the blender jug. 8.1. Dismantling the blade for the blender jug Switch the appliance off by moving the speed control to the 0 position and dis- connect the food processor from the mains. Turn the blender jug anticlockwise to remove it from the drive shaft. Remove the lid and measuring cup and empty the blender jug. Place the blender jug upside down on a stable and even surface. Twist the drive adapter on the blender jug in a clockwise direction to unscrew it from the blender jug. Clean the drive adapter and the blade for the blender jug as described under “Cleaning the appliance” on page 46. Then screw the drive adapter back onto the blender jug by turning it in an anti- clockwise direction. 15482 DE EN FR NL ECommerce Content RC1.indb 4515482 DE EN FR NL ECommerce Content RC1.indb 45 14.09.2015 13:47:5214.09.2015 13:47:5246 of 108

9. Cleaning the appliance

DANGER! Risk of injury from electrified parts Before cleaning, turn the control knob to speed setting "0" and pull out the mains plug. Never immerse the appliance in water or other liquids! Always disconnect the appliance plug from the mains socket before cleaning or servicing the appliance and before fitting or dismantling the attachments. Always remove the attachments from the main appliance before cleaning. NOTICE! Risk of damage to the device due to improper handling Do not use a wire brush or other abrasive objects or any sharp or scouring cleaning agents. Motor housing: Use only a damp washing-up cloth with a little washing-up liquid and only for cleaning the outside of the housing. Dry off with a cloth. Kneading disc, slicing disc, cutting blade, coarse grater, fine grater: These components are made out of metal and are not suit- able for cleaning in a dishwasher! Heat and aggressive cleaning agents can cause them to become warped or dis- coloured. 15482 DE EN FR NL ECommerce Content RC1.indb 4615482 DE EN FR NL ECommerce Content RC1.indb 46 14.09.2015 13:47:5214.09.2015 13:47:52DE

Plastic accessories, mixing bowl, blender jug, lid and mixing disc: These accessory parts can be cleaned with hot water and washing-up liquid or in the dishwasher. Do not use any scouring agents.

10. End of operation

The product left our warehouse in perfect condition. If you do, however, discover a problem, see if you can solve it by using the solutions offered in the following table. If these do not work, contact our Customer Services department. Problem Possible cause Remedy The appliance is not working. The plug is not connected to the mains. Connect the appliance to a properly installed AC 220–240V~, 50/60Hz safety socket. The appliance has overheat- ed. Switch off the appliance for a few seconds and then switch it on again. If the appliance still doesn’t work, allow it to cool down for half an hour. The mixer is not working. The blender jug has not been correctly attached. Blender jug as described under "7.4. Assembling the blender unit" as de- scribed on page 21. 15482 DE EN FR NL ECommerce Content RC1.indb 4815482 DE EN FR NL ECommerce Content RC1.indb 48 14.09.2015 13:47:5214.09.2015 13:47:52DE

Packaging The product has been packaged to protect it from damage in transit. Packaging is raw material and can be reused or added to the recycling system. Appliance Do not under any circumstances dispose of the appliance with the household rubbish at the end of its service life. Please consult your local authority for advice on correct and eco-friendly methods of disposal.

Copyright © 2015 All rights reserved. This operating manual is protected by copyright. Mechanical, electronic and any other form of reproduction is prohibited without the written permission of the manufacturer Copyright is owned by the company: Medion AG Am Zehnthof 77 45307 Essen Germany The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.

15. General Warranty Conditions

15.1. General information The warranty period is 24 months and begins on the day the product is purchased. The warranty covers all types of material and product damage that could occur du- ring normal use. Please keep your original proof of purchase in a safe place. The warranty provider reserves the right to refuse to confirm the status of the warranty or to carry out a re- pair under warranty if a valid proof of purchase cannot be produced. If it is necessary to return your device for repair, please ensure that it is suitably pa- ckaged for transportation. Unless otherwise specified, you shall bear the costs for sending the device and the transport risk. The warranty provider does not assume any liability for additional materials sent with the product that do not belong to the original package contents supplied with the product. Please enclose as much information as possible about the fault when sending the device to the warranty provider. In order to make a valid claim under warranty and before returning the device, please contact the Service Hotline operated by the war- ranty provider or the Service Portal. They will provide you with information on how to proceed further. This warranty has no effect on your statutory warranty rights and is subject to the laws of the country in which the first purchase of the product was made by the end customer.

In the event of a fault on your product that is covered by this warranty, the warranty provider guarantees to repair or replace the product. The decision about whether to 15482 DE EN FR NL ECommerce Content RC1.indb 5015482 DE EN FR NL ECommerce Content RC1.indb 50 14.09.2015 13:47:5214.09.2015 13:47:52DE

repair or replace the device is taken by the warranty provider. Therefore, the warran- ty provider can at its own discretion decide to replace a device submitted for repair under warranty with a refurbished device of the same quality. No warranty is provided for batteries or rechargeable batteries or for consumable materials i.e. parts which have to be replaced at regular intervals during the normal use of the product e.g. video projector lamps. A pixel error (permanently coloured, light or dark point in an image) is not generally considered a fault. Please refer to the information provided in the manual for this product for the precise number of permissible defects in the image. The warranty provider gives no warranty for burnt-in images on plasma or LCD de- vices that result from the improper use of the device. Please refer to the information provided in the manual for this product for precise instructions on operating your plasma or LCD device. The warranty does not cover errors relating to the playback of data media that have been created in an incompatible format or as a result of using unsuitable software. If it is discovered during the repair that the fault concerned is not covered under warranty, the warranty provider reserves the right to invoice the customer for the costs already incurred in the form of a flat-rate handling charge, as well as to char- ge the customer for the materials and labour required for the repair after submitting a cost estimate. You will be informed in advance as the customer about these repair charges; you are responsible for accepting or rejecting the repair process.

Malfunctions and damage to the device caused by external influences, accidental damage, improper use, changes made to the product, modifications, upgrades, the use of third-party parts, neglect, viruses or software faults, improper transport, im- proper packaging or loss during the return of the product are not covered by the warranty issued by the warranty provider. The warranty will be invalidated if the fault to the device is caused by maintenance or repair carried out by someone other than a service partner authorized by the warranty provider. The warranty will also be invalidated if labels or serial numbers on the device or a component of the device have been modified or made illegible.

15.1.3. Service Hotline

Before sending the device to the warranty provider, you must contact us via the Ser- vice Hotline or the Service Portal. This ensures that you receive further information on how to make a valid claim under warranty. The use of the hotline may be subject to a charge. The Service Hotline should under no circumstances be considered a substitute for user training for software and hardware or reading the manual , nor does it provide support for third-party products. 15482 DE EN FR NL ECommerce Content RC1.indb 5115482 DE EN FR NL ECommerce Content RC1.indb 51 14.09.2015 13:47:5214.09.2015 13:47:5252 of 108 15.2. Special warranty conditions for PC, notebook, pocket PC (PDA), devices with navigation functions (PNA), telephone devices, mobile telephones and devices with a memory function Should any of the supplied options (e.g. memory cards, etc.) have a fault, you are en- titled to a repair or replacement. The warranty covers material and labour costs for restoring the functionality of the product concerned. The warranty can be invalidated if any damage to the product itself or the supplied options results from the addition of any hardware to your product that is not produ- ced or distributed by the warranty provider. A limited warranty is provided for supplied software. This applies to a pre-installed operating system and also to supplied programs. For software supplied with the de- vice by the warranty provider, a warranty is issued that any data media, e.g. discs and CD-ROMs on which the software is supplied, shall be free from faults in terms of their materials and workmanship for a period of 90 days following purchase. In the event of a faulty data medium being supplied, the warranty provider shall repla- ce the faulty data medium free of charge; any further claims are excluded. Excluding the warranty for data media, all software is supplied without warranty. Furthermore, it is not warranted that this software shall function without interruption or errors or that it will meet your requirements. In the case of map material supplied for a device with navigation functions, no warranty is provided for its completeness. It may be necessary to delete all data from the device in order to repair it. Please en- sure that you have a backup copy for all of the data on the device before sending back the device. We expressly point out that the factory settings will be restored in the event of a repair. The warranty provider assumes no liability for the cost of a software configuration, lost revenue, loss of data or software, or other consequenti- al damages. 15.3. Special warranty conditions for repair on site or replacement on site If there is an entitlement to on-site repair or replacement, the specific warranty terms and conditions for on-site repair or replacement shall apply to your product. The following provisions must be ensured by you for carrying out repairs or replace- ments on site:

• Personnel from the warranty provider who arrive at your premises for the above- mentioned purpose must have unrestricted, safe and immediate access to the devices.

• Telecommunication facilities required by these personnel for the proper execu- tion of your order, for testing and diagnostic purposes or for remedying faults must be provided by you at your own expense.

• You shall be personally responsible for restoring your own application software after completion of the service by the warranty provider. 15482 DE EN FR NL ECommerce Content RC1.indb 5215482 DE EN FR NL ECommerce Content RC1.indb 52 14.09.2015 13:47:5214.09.2015 13:47:52DE

• You shall be personally responsible for configuring and connecting any existing external devices after completion of the service by the warranty provider.

• The free cancellation period for repairs or replacements on site is at least 48 hours, thereafter we shall invoice you for any costs resulting from a late or mis- sing cancellation.

• Directive CEM 2004/108/CE
