Product type	Wall-mounted electric convector
Brand	AEG
Model	WKL 1002
Rated power	1000 W
Width	445 mm
Height	450 mm
Depth	78 mm (without wall bracket), 100 mm (with wall bracket)
Weight	4.7 kg
Power supply	230 V ~ 50 Hz
Protection class	II
Protection rating	IP24 (protection against water splashes)
Control type	Mechanical knob thermostat, continuous adjustment from 6 °C to 30 °C
Functions	Frost protection, regulator limitation by pins
Safety device	Safety temperature limiter with automatic reset after cooling
Mounting	Wall mounting with bracket and locking bolt
Electrical connection	Cable with plug (supplied with the device)
Maintenance	Clean the ventilation grilles with a vacuum cleaner; do not use abrasive products
Applications	Supplementary heating for small rooms (workshop, kitchen, bathroom, laundry room)
Warranty	To be claimed in the country of purchase, installation by a qualified professional recommended

Frequently Asked Questions - WKL 1002 AEG

What is the power of the AEG WKL 1002 heater?

The WKL 1002 model has a rated power of 1000 W.

How to set the temperature on the AEG WKL 1002 convector?

Turn the temperature knob (mark 2) to adjust the desired temperature continuously between approximately 6 °C and 30 °C.

Can the AEG WKL 1002 heater be used in a bathroom?

Yes, it has an IP24 protection rating, which protects it against water splashes, and it can be installed in the safety volumes defined by the NF C 15-100 standard.

How to mount the AEG WKL 1002 convector on the wall?

Use the supplied wall bracket. Fix it to the wall with 4 screws, then hang the convector by its hanging slots onto the bracket tabs and push down to lock. Turn the locking bolt (4) clockwise until it stops.

What to do if the heater stops heating?

First check that the switch (1) is in position I. If the safety temperature limiter has tripped, wait a few minutes for it to cool down and reset automatically. If the problem persists, contact an authorized after-sales service.

How to clean the AEG WKL 1002 convector?

Use a vacuum cleaner to regularly clean the upper and lower ventilation grilles. Do not use abrasive or caustic products on the casing.

What safety distances must be observed?

Observe the minimum distances indicated in the manual: do not obstruct the ventilation grilles, do not place combustible objects nearby, and install the device at least 10 cm from a socket or junction box.

Does the AEG WKL 1002 heater have a frost protection function?

Yes, when the knob is set to the * symbol, the thermostat automatically turns on the heating if the room temperature drops below approximately +6 °C.

How to limit the adjustable temperature range?

Remove the two pins (3) at the back of the control box and mount them on both sides of the number corresponding to the desired maximum or minimum temperature.

The power cable is damaged, can I replace it myself?

No, for safety reasons, the cable must be replaced by the manufacturer, its after-sales service, or a similarly qualified person.

USER MANUAL WKL 1002 AEG

WKL 502, WKL 752,
WKL 1002, WKL 1502,
WKL 2002, WKL 2502,
WKL 3002

Wandkonvektor

Operating and Installation instructions

English

Convecteur

1. Operating instructions 6
   1.1 Switching on the Unit 6

1.2 Heater 6
1.2.1 Anti-frost setting 6
1.2.2 Limiting the temperature range 6

1.3 Safety notes 6
1.4 Servicing 6

1. Installation instructions 7
   2.1 Attaching the wall mounting bracket 7

2.2 Wall mounting the convector 7
2.2 Electrical connection 8

3.Guarantee 8
3.1 Environment and recycling 8

Inhoudsoverzicht

Nederlandds

Typ WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLK WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKT 4,1 4,1 4,7 6,1 7,4 8,1 10,0

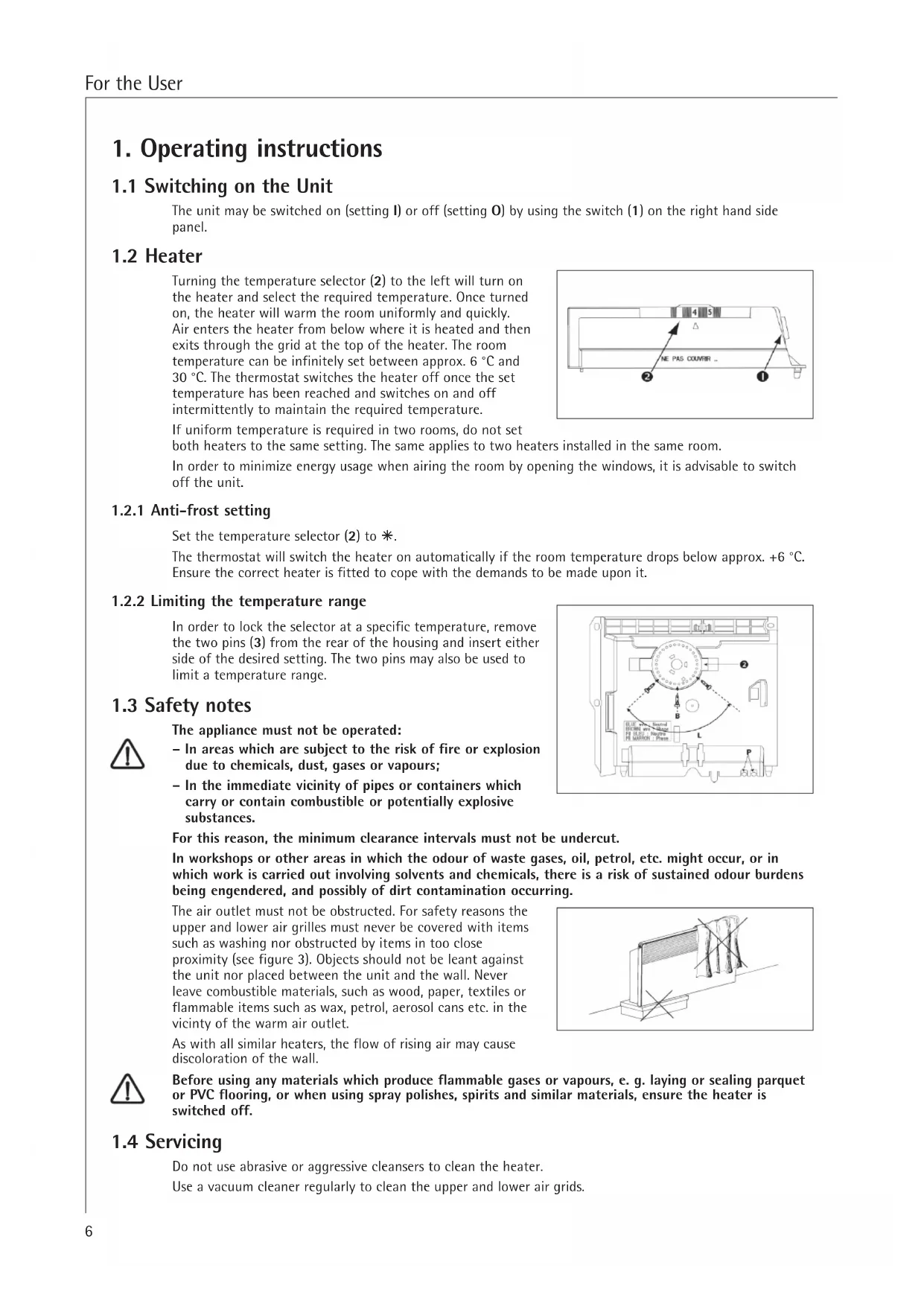

1. Operating instructions

1.1 Switching on the Unit

The unit may be switched on (setting 1) or off (setting 0) by using the switch (1) on the right hand side panel.

1.2 Heater

Turning the temperature selector (2) to the left will turn on the heater and select the required temperature. Once turned on, the heater will warm the room uniformly and quickly. Air enters the heater from below where it is heated and then exits through the grid at the top of the heater. The room temperature can be infinitely set between approx. 6^ and 30^ . The thermostat switches the heater off once the set temperature has been reached and switches on and off intermittently to maintain the required temperature.

If uniform temperature is required in two rooms, do not set both heaters to the same setting. The same applies to two heaters installed in the same room.

In order to minimize energy usage when airing the room by opening the windows, it is advisable to switch off the unit.

1.2.1 Anti-frost setting

Set the temperature selector (2) to

The thermostat will switch the heater on automatically if the room temperature drops below approx. +6^ . Ensure the correct heater is fitted to cope with the demands to be made upon it.

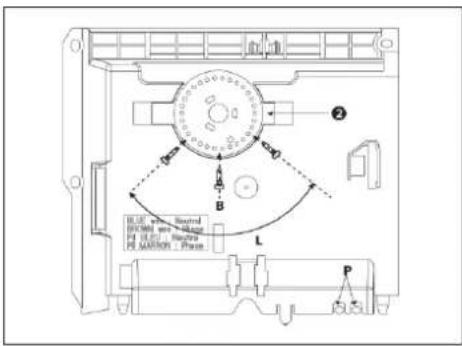

1.2.2 Limiting the temperature range

In order to lock the selector at a specific temperature, remove the two pins (3) from the rear of the housing and insert either side of the desired setting. The two pins may also be used to limit a temperature range.

1.3 Safety notes

The appliance must not be operated:

• In areas which are subject to the risk of fire or explosion due to chemicals, dust, gases or vapours;
• In the immediate vicinity of pipes or containers which carry or contain combustible or potentially explosive substances.

For this reason, the minimum clearance intervals must not be undercut.

In workshops or other areas in which the odour of waste gases, oil, petrol, etc. might occur, or in which work is carried out involving solvents and chemicals, there is a risk of sustained odour burdens being engendered, and possibly of dirt contamination occurring.

The air outlet must not be obstructed. For safety reasons the upper and lower air grilles must never be covered with items such as washing nor obstructed by items in too close proximity (see figure 3). Objects should not be leant against the unit nor placed between the unit and the wall. Never leave combustible materials, such as wood, paper, textiles or flammable items such as wax, petrol, aerosol cans etc. in the vicinity of the warm air outlet.

As with all similar heaters, the flow of rising air may cause discoloration of the wall.

Before using any materials which produce flammable gases or vapours, e. g. laying or sealing parquet or PVC flooring, or when using spray polishes, spirits and similar materials, ensure the heater is switched off.

1.4 Servicing

Do not use abrasive or aggressive cleansers to clean the heater.

Use a vacuum cleaner regularly to clean the upper and lower air grids.

2. Installation instructions

ATTENTION!

The installation, electrical connection and first operation of this appliance should be carried out by a qualified installer.

The company does not accept liability for failure of any goods supplied which have not been installed and operated in accordance with the manufacturer's instructions.

This convector heater must be installed by an authorised serviceman in conjunction with these instructions.

These installation instructions belong to the heater and must be handed on to the successor if the heater is sold.

AEG convector heaters are direct electric heaters designed to be mounted on the wall and are particularly suitable for heating smaller rooms such as utility rooms, kitchen, bath- and washrooms etc.

The convector heater is supplied with a lead.

(Exception: WKL502 C to WKL3002 C)

The convector heater must not be mounted immediately below a wall socket.

During the just operation, the heater may give off a smell. Ensure that the room is ventilated (for example, open a window).

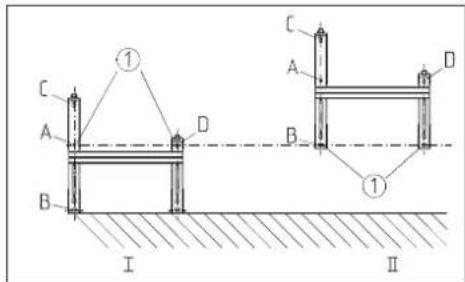

2.1 Attaching the wall mounting bracket

The wall mounting bracket is oriented centrally

(see figure and the following table).

Use the wall-mounting bracket as a template for positioning the heater correctly and providing the correct distance from the floor.

Place the bracket on the floor. Mark the screw-holes through the drill holes (①).

Type WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLK WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKTWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKTLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLKWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKRWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKCWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKS	502 752 1002 1502 2002 2502 3002
Connecting power W 500 750 1000 1500 2000 2500 3000
Breadth mm 370 370 445 590 740 890 1036
Heigth mm 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 45	100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100	100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10	100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 1	100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10
Measure A	121 121 195 343 491 639 790
Weightkg	4.1 4.1 4.7 6.1 7.4 8.1 10.0

Raise the bracket and position it in such a way that holes B are aligned with the marks on the wall you have just made. Now mark the upper holes through holes C and D in the wall mounting (II).

Drill the four holes, insert plugs and screw the wall mounting securely to the wall using four screws.

2.2 Wall mounting the convector

On the backside of the convector there are 4 slots, these should be hooked onto the wall bracket and pushed down. The spring clips should be turned clockwise to secure. To remove the convector reverse the above operation.

2.2 Electrical connection

This heater is for 230 V AC.

Please observe national standards, the regulations of your local electricity supply company as well as data the rating label.

Electrical safety!

The convector heaters have protective system II ( l ) and are spray protected (AP24).

Note the details on the rating plate!

The voltage supply must match the requirements on the rating plate. The supply cable must be correctly sized. The heater must be connected to a socket outlet or permanent terminal box at least 10cm to one side of the heater.

In compliance with installation regulations the permanently wired electrical installation must be provided with an omnidirectional terminal switching device that has a contact opening gap of at least 3mm

To avoid hazards, if the power cord of the appliance exhibits visible damage it must be replaced by the manufacturer or his service department or a qualified electrician.

Please note in general:

Where the convector heater is fitted in a room with a bath or shower, ensure the safety zone defined in IEE Regulations is applied in accordance with the details on the rating plate.

Safety measures

This convector heater is equipped with a safety cut-out (STB) that switches the heater off if it overheats. Once the heater has switched off due to overheating, remove the cause of the fault, e.g. blocked air grids. When the heater has cooled down for several minutes it will restart automatically. If the heater then cuts off again, switch off the heater and call an authorised serviceman.

Caution!

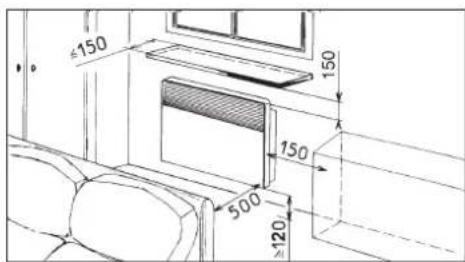

Ensure the safety zones (mm) in following figure are kept free.

3. Guarantee

For guarantee please refer to the respective terms and conditions of supply for your country.

The installation, electrical connection and first operation of this appliance should be carried out by a qualified installer.

The company does not accept liability for failure of any goods supplied which are not installed in accordance with the manufacturer's instructions.

3.1 Environment and recycling

Please help us to protect the environment by disposing of the packaging in accordance with the national regulations for waste processing.

Tipo WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKLWKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WCLK WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKL WKT1 6,1 7,4 8,1 10,0
	502 752 1002 1502 2002 2502 3002
