Product type	Kitchen scale
Brand	ADE
Model	Blanca KE 1602
Dimensions (L x W x H)	230 x 160 x 19 mm
Net weight	Approx. 0.5 kg
Power supply	2 LR03 (AAA) batteries, 1.5 V
Maximum capacity	5 kg
Graduation	1 g
Accuracy	± 1 %
Measurement units	Solids: g, lb:oz ; Liquids: ml, fl oz
Functions	Zero setting, tare, solid/liquid selection, auto-off
Surface material	Glass (weighing surface)
Display type	Digital display
Cleaning	Wipe with a slightly damp soft cloth; do not immerse
Child safety	Keep batteries out of reach of young children; risk of ingestion
Overload protection	Display shows "Err" if capacity exceeds 5 kg
Electromagnetic compatibility	Do not place near mobile phones, radios
Warranty	3 years (material and manufacturing defects)
Country of origin	Germany (distributed by Waagen-Schmitt GmbH)
Repairability	Replaceable batteries; other repairs by specialized workshop
Spare parts	LR03 (AAA) batteries available commercially

Frequently Asked Questions - Blanca KE 1602 ADE

How to change the batteries of the Blanca KE 1602 scale?

The battery compartment is located under the scale. Press the locking tab, remove the cover, insert 2 LR03 (AAA) batteries respecting polarity (+/-), then close the cover until it clicks.

What does the "Lo" display on the screen mean?

"Lo" indicates that the batteries are low. Replace them with new LR03 (AAA) batteries.

How to use the tare function (weighing by addition)?

Place an empty container on the scale, press the ZERO/MODE button to reset the display, then add the ingredient. The displayed weight corresponds to the added ingredient. Repeat up to 5 kg.

What is the maximum weighing capacity?

The maximum capacity is 5 kg (11 lb). Do not exceed this limit, otherwise the screen will show "Err".

How to clean the scale?

Wipe the scale with a slightly damp soft cloth. Never use corrosive or abrasive detergents and do not immerse the scale in water.

How to choose the measurement unit (g, ml, lb:oz, fl oz)?

Press the UNIT button located under the scale several times to cycle through the units. For solids: g or lb:oz; for liquids: ml or fl oz.

The scale turns off automatically. Is this normal?

Yes, the scale turns off automatically in two stages: the backlight turns off after 15 seconds of inactivity, then the entire unit after 2 minutes. This saves batteries.

What to do if the scale displays incorrect values?

Make sure the scale is on a flat, hard surface, away from electromagnetic devices (phones, radios). If the problem persists, remove the batteries, wait a moment, then reinsert them.

How to reset the scale to factory settings?

Remove the batteries from the compartment, wait a few seconds, then reinsert them respecting polarity. The scale will be reset.

Is there a warranty on the Blanca KE 1602 scale?

Yes, the warranty is 3 years from date of purchase, covering material and manufacturing defects. To use it, return the item with proof of purchase to your retailer.

USER MANUAL Blanca KE 1602 ADE

White electronic device with ADE branding and a circular control knob labeled 'ZERO MODE' (no additional text or symbols visible)

Bedienungsanleitung

KE 1602

Operating instructions | Instrucciones de operación | Mode d'emploi Istruzioni per l'uso | Gebruiksaanwijzing | Instrukcja obsługi

Icon of a person using a laptop inside a circle (no text or symbols)

22089 Hamburg, Germany

22089 Hamburg, Germany

Garantie

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. These kitchen scales are a practical companion for kitchen and household. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We hope you are happy with your scales and wish you success when weighing!

Your ADE Team

General Information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General Information....12

Intended Use....14

Safety 14

At a glance (scope of delivery) 16

Scope of delivery....16

Inserting/changing batteries....17

Operation 17

Weighing....17

Set the scale to zero....18

TARE Function....18

Switching off the scales....18

Resetting the scales....19

Cleaning....19

Fault/Remedy....19

Technical Data 20

Declaration of Conformity 20

Guarantee 20

Disposal 21

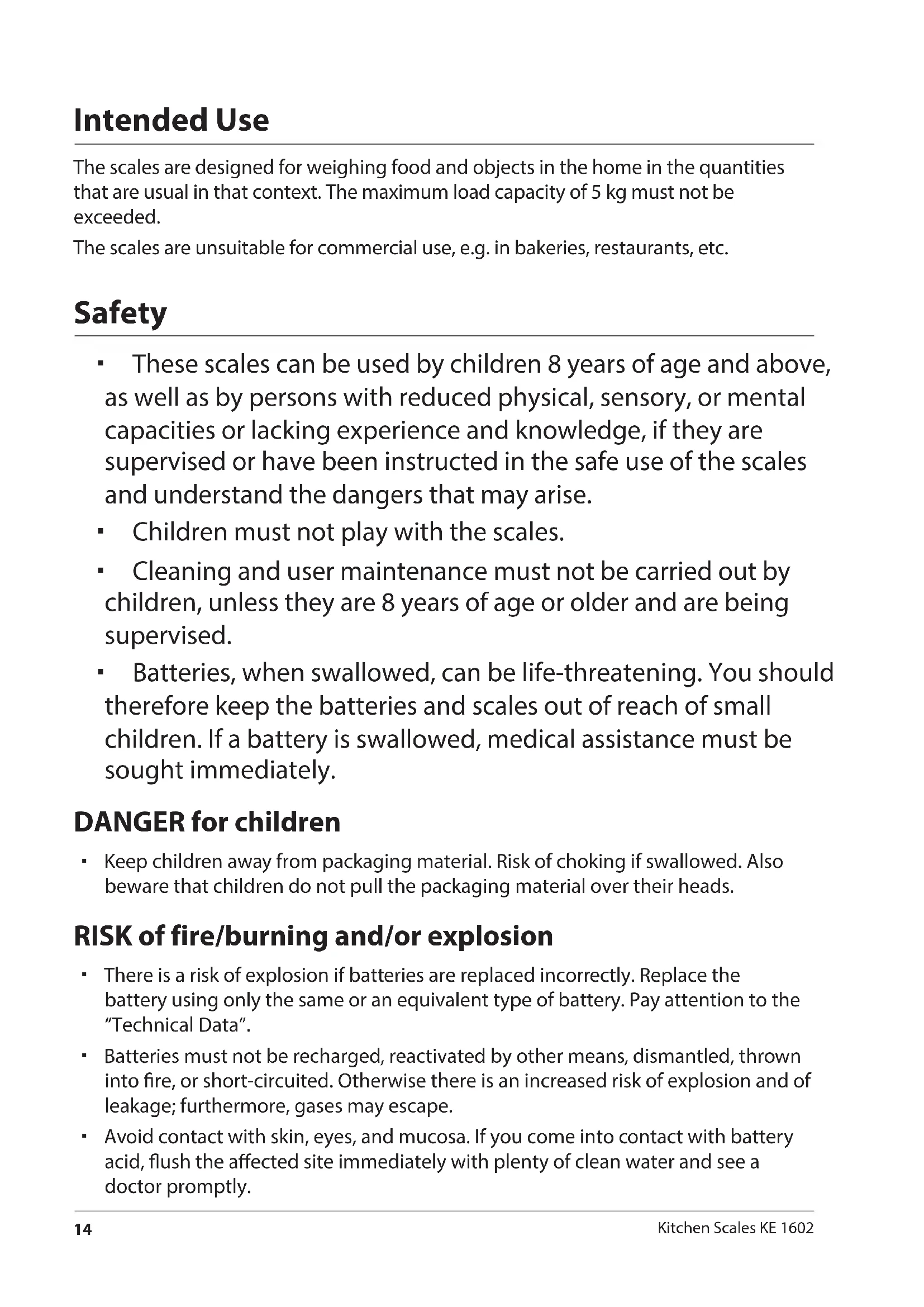

The scales are designed for weighing food and objects in the home in the quantities that are usual in that context. The maximum load capacity of 5 kg must not be exceeded.

The scales are unsuitable for commercial use, e.g. in bakeries, restaurants, etc.

Safety

These scales can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the scales and understand the dangers that may arise.
- Children must not play with the scales.
- Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
- Batteries, when swallowed, can be life-threatening. You should therefore keep the batteries and scales out of reach of small children. If a battery is swallowed, medical assistance must be sought immediately.

DANGER for children

- Keep children away from packaging material. Risk of choking if swallowed. Also beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace the battery using only the same or an equivalent type of battery. Pay attention to the "Technical Data".
• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.
• Avoid contact with skin, eyes, and mucosa. If you come into contact with battery acid, flush the affected site immediately with plenty of clean water and see a doctor promptly.

WARNING against risk of injury

- If the scales fall and shatter, there is a risk of injury from glass splinters.

BEWARE of material damage.

• Place the scales on a stable, even surface.
• Do not overload the scales. Pay attention to the "Technical Data". Place objects on the scales exclusively for the purpose of weighing.
• Protect the scales from sharp jolts and vibrations.

- Remove the batteries from the scales if they have been used up or if you are not going to use the scales for a long time. You will thus avoid damage that may result from the leakage of battery acid.

- When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not subject the batteries to extreme conditions by, for example, storing them on heaters or under direct sunlight. Increased risk of leakage!

- Clean the battery and device contacts, as needed, before inserting the battery.

- Only insert batteries of the same type; do not use different types or used and new batteries with each other.

- Do not make any modifications to the scales. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.

- Do not place the scales in the vicinity of devices that emit electromagnetic radiation, such as mobile phones, wireless devices, and the like. This can lead to incorrect display indicators or malfunctions.

- Do not place any objects on the scales when you are – for example – storing them in a cupboard. The sensitive measuring electronics in the scales could be damaged by heavy objects.

- There are feet on the underside of the scales. Since surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain ingredients that attack and soften the feet of the device. If necessary, place an anti-slip underlay beneath the scales.

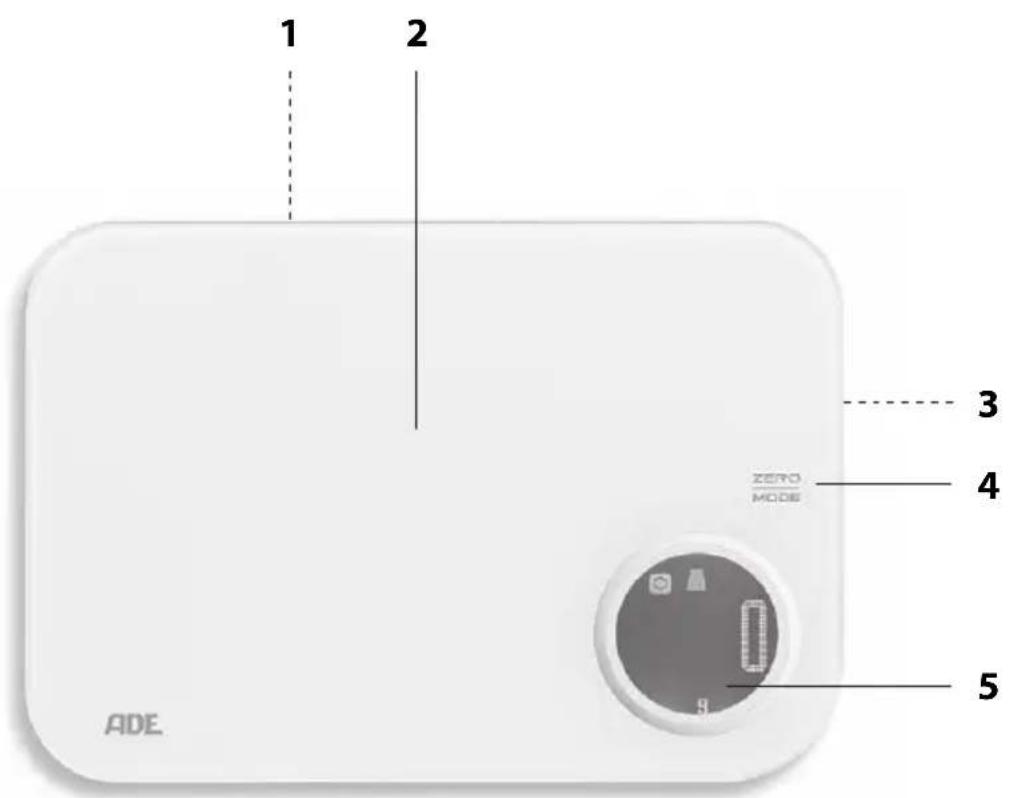

At a glance (scope of delivery)

1 2 ZERO MODE 3 4 5 ADE

1 Battery compartment (underside)
2 Weighing surface (with switch-on function)
3 UNIT: Choosing the unit of measurement (underside)
4 ZERO/MODE: Select the type of material to be weighed (solid or liquid), set the values to zero (zeroing function)
5 Display

Scope of delivery

• Kitchen scales
• Battery type LR03 (AAA), 1,5 ¥= (2x)
• Operating Manual

In order to use the scales, you will need 2 batteries of type LR03 (AAA), 1.5 V (included). The battery compartment is located on the underside of the device.

1. Press the locking tab slightly towards the centre of the scale and remove the battery compartment lid marked with an arrow.
2. Insert the batteries as shown on the base of the battery compartment. Pay attention to the correct polarity (+/-). Pay attention to the correct polarity (+/-).
3. Put the battery compartment cover back in place. The locking tab must snap securely into place.

Notes on changing the battery:

• A change of batteries becomes necessary when "LO" appears on the display, or when nothing at all is displayed.
• Only use the type of battery that is specified in the "Technical Data".
• Always change all batteries at the same time.
• Dispose of batteries in an environmentally appropriate way (see "Disposal")

Operation

Weighing

1. Place the scales on an even, firm, and dry surface. Carefully position the scales in order to avoid hard impacts to the sensors/feet and therefore to avoid damage.
2. Switch on the scale by briefly pressing down on the weighing platform using slight force.
3. Keep pressing ZERO/MODE briefly to select the correct setting for your material to be weighed. Note the display:

Solid material to be weighed

Weigh water

Weigh milk

To select a different unit of measure, press the UNIT button repeatedly. The following units of measure are available:

• For solid material to be weighed: "g" (gram) and "lboz" (pound)

• For liquid material to be weighed: "ml" (millilitre) and "floz" (fluid ounce).

• If you want to weigh something in a container, now place the container without anything in it onto the weighing surface. Otherwise, proceed as described in point 6.

• Press ZERO/MODE. The display shows "0".
• Put the substance to be weighed in the container or place it on the weighing surface. The measured weight is shown on the display.
• Read off the measured weight and remove the item or substance from the container or the weighing surface.

Set the scale to zero

If values are still shown on the display, even if the weighing platform is empty (e.g. if the scale is not optimal or TARE value is still displayed, see next section), you must set the scale to zero.

-Briefly press ZERO/MODE 1x.

If the scale is correctly set to zero, Ⓞ also appears on the display.

TARE Function

This function is practical, for example, when baking, if you would like to add another ingredient to the ingredients already on the scales.

1. Press ZERO/MODE in order to set the scales back to "0".

- If the weight on the weighing platform is less than 200 grams, 📄 is displayed (zero function).

- If the weight on the weighing platform is greater than 200 grams, T is displayed (tare function).

1. Add the new substance. The weight of the added substance is shown on the display.
2. Repeat the process whenever you want to add more ingredients. The process can be repeated as often as needed until the capacity limit (5 kg) is reached.

Switching off the scales

If the scale is no longer used, it automatically switches off in two stages:

• After approx. 15 seconds, the display light switches off.
• After approx. 2 minutes, the scale switches off completely.

Resetting the scales

Reset the scales to factory settings if unusual or obviously incorrect values are shown on the display.

1. Remove the batteries from the battery compartment and wait a moment.
2. Re-insert the batteries. Pay attention to the correct polarity of the batteries (+/-).

After switching the scales on, you can start weighing as usual.

Cleaning

NOTE on material damage

• Do not immerse the scales in water or other liquids.
• Do not under any circumstances use harsh, scraping, or abrasive cleaning agents or the like to clean the scales. If you do, the surface could be scratched.

The scales should be cleaned immediately after use, especially if they have come into contact with fat or oil, spices, vinegar, and other strongly spiced and/or coloured foodstuffs.

- Wipe down the scales as needed using a lightly dampened, soft cloth. Avoid contact with citric acid.

Fault/Remedy

Fault Possible Cause
No function	Are the batteries empty or have they been inserted incorrectly?
The scales appear to be displaying false weighing results	Are the scales standing on a firm, even surface?Is a device that can cause electromagnetic disturbances located in the vicinity of the scales?Remove the batteries from the scales and wait a moment. Re-insert the batteries.
“Err” is shown on the display.	The maximum capacity of the scales (5 kg) has been exceeded.
“Lo” is shown on the display.	The batteries are empty (see “Inserting/ changing batteries”).

Model: Kitchen Scales KE 1602 "Blanca"

Battery:

2x LR03 (AAA) / 1,5 V=

Rated current: < 15 mA

Measuring range: max. 5 kg

Variance: 1 % +/-

Indicator division: 1 g

Weight: approx. 0.5 kg

Dimensions of scales: approx. 230 x 160 x 19 mm

Distributor (no service address): Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

These scales have been manufactured in accordance with the harmonised European standards.

It conforms to the provisions of the EC directives cited below:

• EMC Directive 2004/108/EC regarding electromagnetic compatibility
• RoHS Directive 2011/65/EU in the currently valid versions.

This declaration loses its validity if modifications are made to the product without our approval.

Hamburg, February 2016

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

CE

Guarantee

The company Waagen-Schmitt GmbH guarantees for 3 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste.

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
