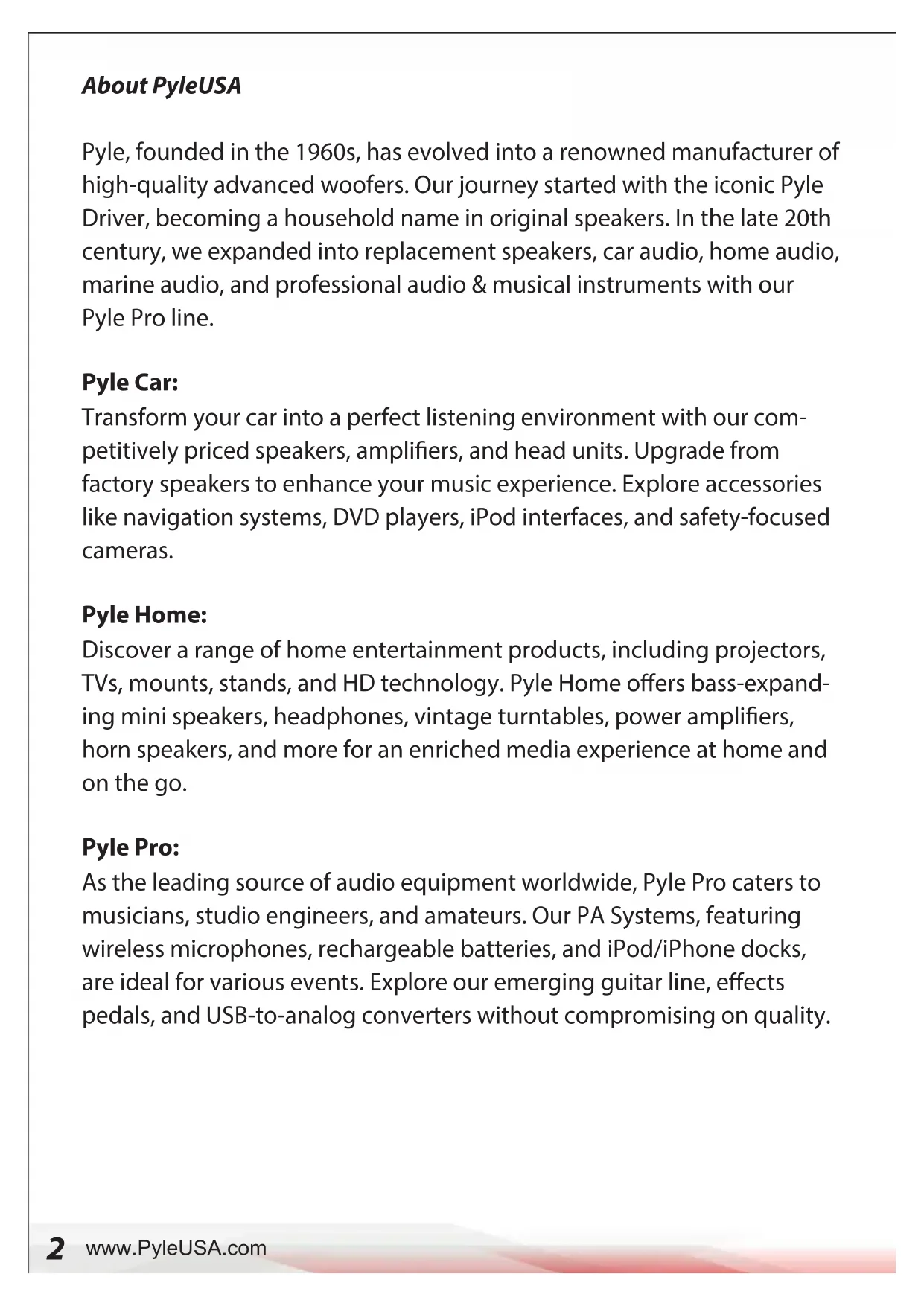

About PyleUSA

Pyle, founded in the 1960s, has evolved into a renowned manufacturer of high-quality advanced woofers. Our journey started with the iconic Pyle Driver, becoming a household name in original speakers. In the late 20th century, we expanded into replacement speakers, car audio, home audio, marine audio, and professional audio & musical instruments with our Pyle Pro line.

Pyle Car:

Transform your car into a perfect listening environment with our competitively priced speakers, amplifiers, and head units. Upgrade from factory speakers to enhance your music experience. Explore accessories like navigation systems, DVD players, iPod interfaces, and safety-focused cameras.

Pyle Home:

Discover a range of home entertainment products, including projectors, TVs, mounts, stands, and HD technology. Pyle Home offers bass-expanding mini speakers, headphones, vintage turntables, power amplifiers, horn speakers, and more for an enriched media experience at home and on the go.

Pyle Pro:

As the leading source of audio equipment worldwide, Pyle Pro caters to musicians, studio engineers, and amateurs. Our PA Systems, featuring wireless microphones, rechargeable batteries, and iPod/iPhone docks, are ideal for various events. Explore our emerging guitar line, effects pedals, and USB-to-analog converters without compromising on quality.

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions should be read before operating the appliance.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Head Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions

5. Water and Moistunt - The appliance should not be used near water for example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool, or a wet basement.

6. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings or placed in a built-in installation, such as a book case or cabinet that may impede the flow of air through the ventilation openings.

7. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances including amplifiers that produce heat.

8. Power Sources - The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

9. Grounding or Polarization - Precaution should be taken to insure that the grounding or polarization means of an appliance is not defeated.

10. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the appliance.

11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

12. Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits or where it can fail into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

13. Non-Use Periods - The power cord of the appliance should be unplugged from the outlet when the appliance is to be left unused for a long period of time.

14. Obiect and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

15. Carts and Stands - If the appliance is used with a cart or stand, the cart or stand should be a type recommended by the manufacturer. An appliance and cart combination should be

moved with care. Quick stops, excessive force, and uneven surfaces cause the appliance and cart combination to overturn.

1. Mounting - The appliance should be mounted only as recommended by the manufacturer.

2. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power-supply cord or plug has been damaged.
B. Objects have failed into, or liquid has been spilled into the appliance enclosure.
C. The appliance has been exposed to rain.
D. The appliance has been dropped, or the enclosure has been damaged.
E. The appliance does not appear to operate normally or exhibits a marked change in performance.

1. Servicing - The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should be referred to qualified personnel.
2. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
3. Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check - Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.

WARNING: To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified personnel.

This symbol is intended to alert you to the -6 presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

Your new PCM30A Stereo Power Amplifier

gives you the power and versatility you need in a professional sound system. The wide frequency response of it handles easily amplification of voice and music. The monitor terminal, talkover function on MIC 1, and Tel/Paging make it perfectly to use in meeting halls, auditoriums, sports events in school, and paging system in offices, anywhere you need to deliver special announcement with excellent sound.

FEATURES AND CONTROLS

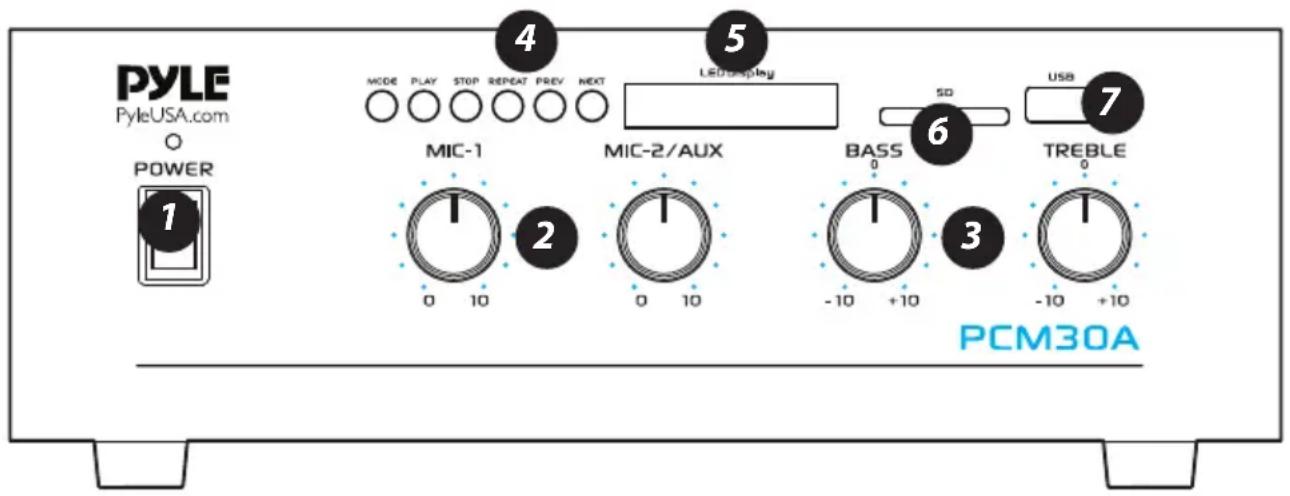

FRONT PANEL

PYLE PyleUSA.com POWER 1 MODE PLAY STOP REPEAT PREV NEXT LEDdisplay 4 MIC-1 2 MIC-2/AUX 6 BASS 3 TREBLE 0 -10 +10 -10 +10 USB 7 PCM30A

1. Power ON/OFF and Indicator: Main power switch, the indicator lights when the amplifier is turned ON
2. MIC 1 and MIC 2/AUX Volume Controls: Adjust the output signal level of the corresponding inputs.
3. BASS and TREBLE Tone Controls: Adjust the bass and treble of the corresponding output signals.

4. MODE, PLAY, STOP, REPEAT, PREV and NEXT Function Control buttons:

5. MODE Button: For audio selection like WIRELESS BT/SD/LINE IN

6. PLAY/PAUSE BUTTON: Play and Pause control button
7. STOP Button
8. REPEAT Button: Repeat the current track

9. PREV/NEXT: Quick backward or next song

10. LED Display

11. SD/MMC Socket for playing SD/MMC cards
12. USB Charge Port: USB port for smartphone charging only, no USB reader function

BACK PANEL

CAUTION NEW OF ELECTRIC SHOCK DO NOT OPEN DT ANT. 1 2 3 MND ENRIN IN PARALLEL L R FAM ANT. 5 6 7 CAUTION: INCOMPUT SWITCH CODE SWITCH TRANSFER FLS. CAUTION: IN CONNECT PROCESER ORDER SET OF THE WATER SET AND CAME THIS FLS. WARNING: IN SWITCH SET OF 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 100V, 10C (UNSWITCHED) 500W MAX. 8910 MIC-2 MIC-1 TEL COM HOT G C 60Ω 1ms 600Ω 1ms 600Ω 100ms COM 4Ω 8Ω 16Ω 15V 70V FUSE T 2AL 252V for 110-132V T 1AL 252V for 233-248V

1. Monitor Output Level Control (MUSIC ON HOLD): To adjust the output signal level of 1W 8-0hm speaker and headphones in monitoring.

2. MIC 2/AUX Input Selector Switch: Set to AUX for a high impedance audio input; set to MIC 2 for a balanced microphone low impedance input.

3. AUX RCA Input: To connect the audio source with a high impedance signal (should be more than 600-0hm) such as Tape Deck, CD Player, or Tuner.

4. Paging Output Level Control: To adjust the output signal level connected from TEL/PAGING terminals.

5. Voltage Switch: This amplifier has selectable input voltage from 110V/60Hz (USA and CANADA standard) to 220V/50Hz (for EUROPEAN operation). Please make sure the switch is in the proper position before operating, otherwise the severe damage will be incurred and not covered by the warranty.

6. AC Outlet (Unswitched): Supply power (maximum load of 500W) to a musical instrument or another amplifier.

7. AC Input: Plug the included power cord into the unit first while the power is switched off, then plug the AC power cord into a proper power outlet. Please also replace the fuse only with proper rating if needed (see the fuse rating of T 2AL 250V for 110-120V and T 1AL 250V for 220-240V printed at power inlet).

8. Monitor 600-0hm 1V Terminals (MUSIC ON HOLD): Provides 600-0hm 1V to connect with a pair of headphones, to monitor.

9. Monitor 1W 8-0hm Terminals (MUSIC ON HOLD): To connect with a small external loud speaker driven by an internal power amplifier, providing a nominal output of 1 watt. It is a MONITOR device, ONLY AUX signal is able to be selected to monitor.

10. Mute Terminals: To connect an electrical switch, once the switch is activated, the signals from AUX and MIC 2 will be attenuated by -40dB, only the signal from MIC 1 will be heard, it is good for paging system via using MIC 1 manually.

11. MIC 1 and MIC 2 Terminals: To connect the microphone with a balanced low impedance microphone signal. MIC 1 is a "Priority" MIC source, once MIC 1 is talked, the signals from MIC 2 and AUX will be attenuated automatically by -40dB, the signal from MIC 1 will override to page (Auto Talkover).
12. TEL/PAGING Terminals: To connect an auxiliary balanced telephone paging signal, once TEL is talked the signals from MIC 2 and AUX will be mixed to exist and/or attenuated by -40dB to page (Auto Talkover), if the TEL signal is louder and incorporated with the adjustment of MIC/TEL VOX level.

NOTE: The attenuation level of MIC 1/TEL is adjustable internally by MIC/TEL VOX potentiometer at VR4 from 0 to -40dB.

1. Speaker Terminals (COM/4-0hm/8-0hm/16-0hm/25V/70V):

To connect Speaker wires to the selected terminals.

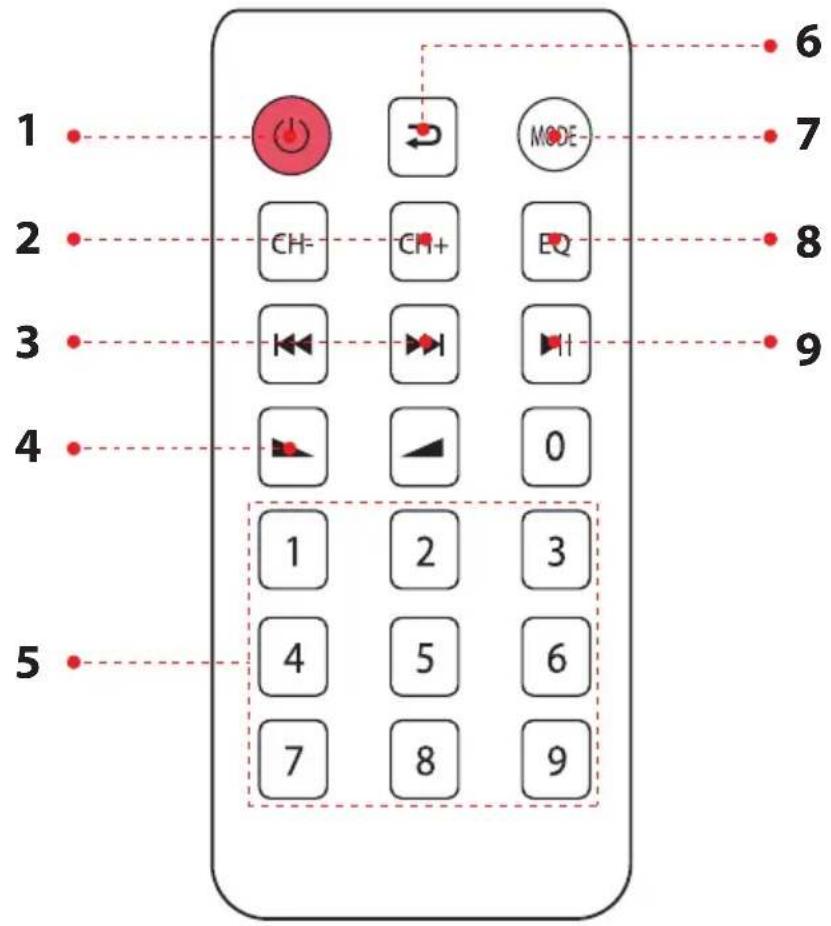

REMOTE CONTROL

1. Press this button to turn ON or OFF the MP3
2. When in the FM mode, press this two buttons to select previous or next channel.
3. Press these two buttons to select the previous or next track in USB or SD or Wireless BT mode
4. Volume up or down
5. Press the numbers to select the tracks directly.
   The unit takes 1-2 seconds to response in USB or SD mode.
6. Press this button to repeat mode.
7. Press this button to select the playing mode, such as USB/SD/FM/WIRELESS BT
8. EQ function: Select a pre-set mode of the equalizer that is designed accordingly.
9. Play and Pause function for MP3

REMOTE CONTROL

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9

SPEAKER CONNECTION

One or more speakers (4, 8 or 16 Ohms) can be connected to the amplifier with or without transformers. However, before you connect any speakers to the amplifier, the total impedance must be calculated in order to avoid damage to the amplifier. A total speaker impedance greater than 16 Ohms or less than 4 Ohms can cause this damage to occur.

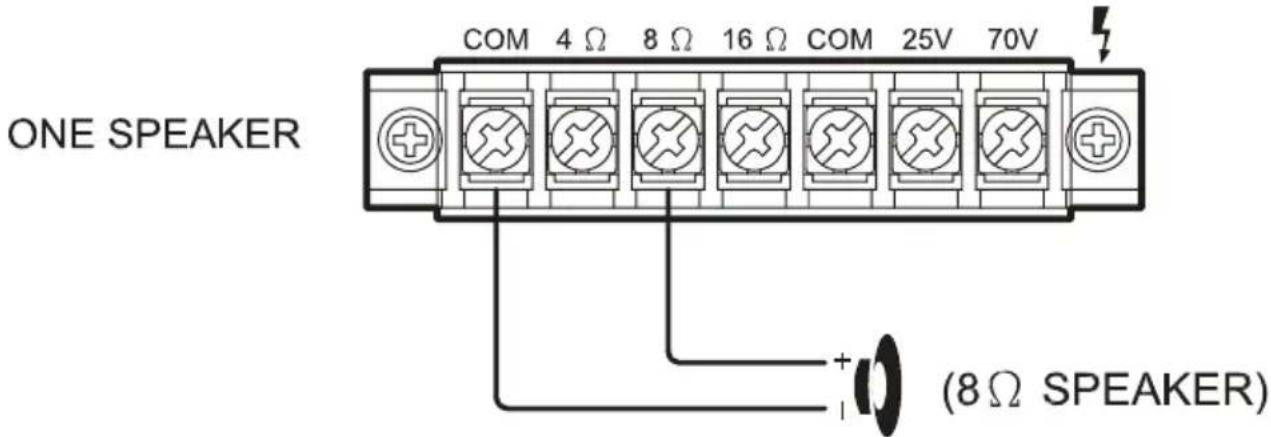

SYSTEM 1: Single Speaker System

NOTE: Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the speaker being used.

ONE SPEAKER COM 4 Ω 8 Ω 16 Ω COM 25V 70V (8 Ω SPEAKER)

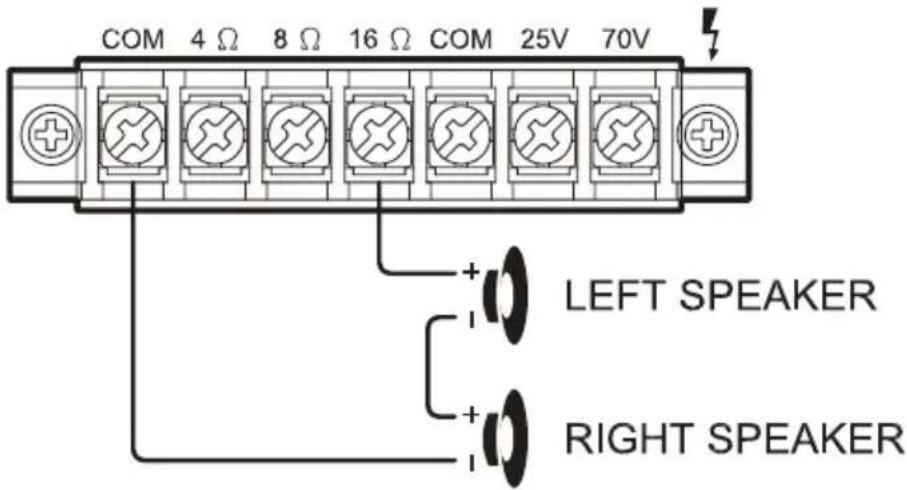

SYSTEM 2 : Two (or more) Speakers in Series

NOTE: Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker impedance in this series configuration is 16 ohms.

TWO SPEAKERS IN SERIES

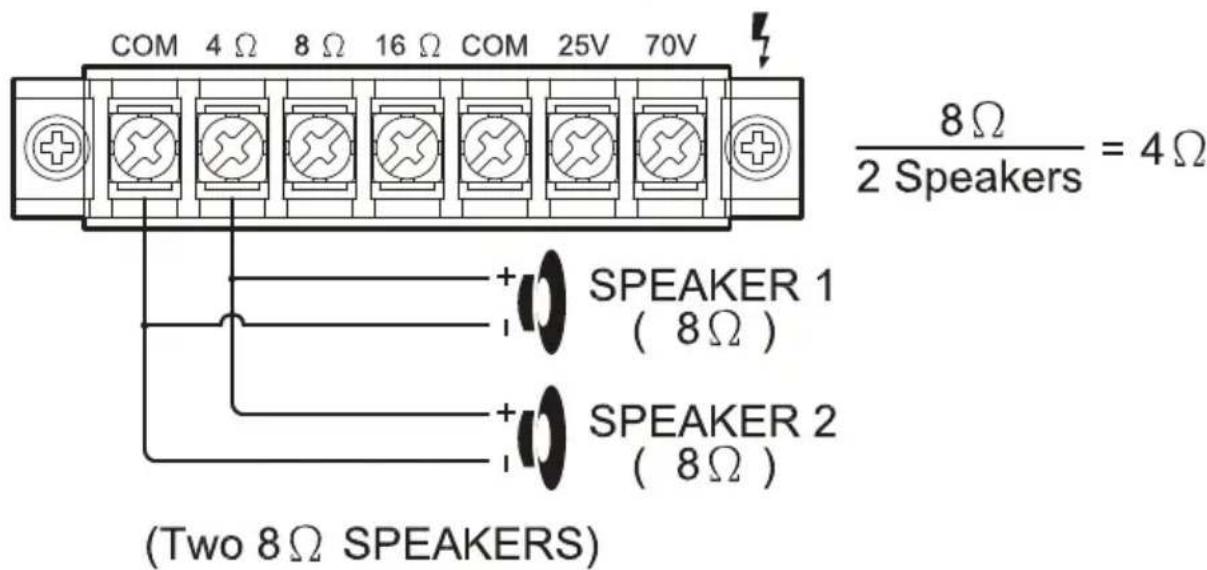

SYSTEM 3 : Two (or more) Speakers in Parallel

NOTE: Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an impedance of 8-Ohm, the total speaker impedance in this series configuration is 4 ohms.

TWO SPEAKERS IN PARALLEL

COM 4 Ω 8 Ω 16 Ω COM 25V 70V + SPEAKER 1 ( 8 Ω ) + SPEAKER 2 ( 8 Ω ) (Two 8 Ω SPEAKERS) 8 Ω / 2 Speakers = 4 Ω

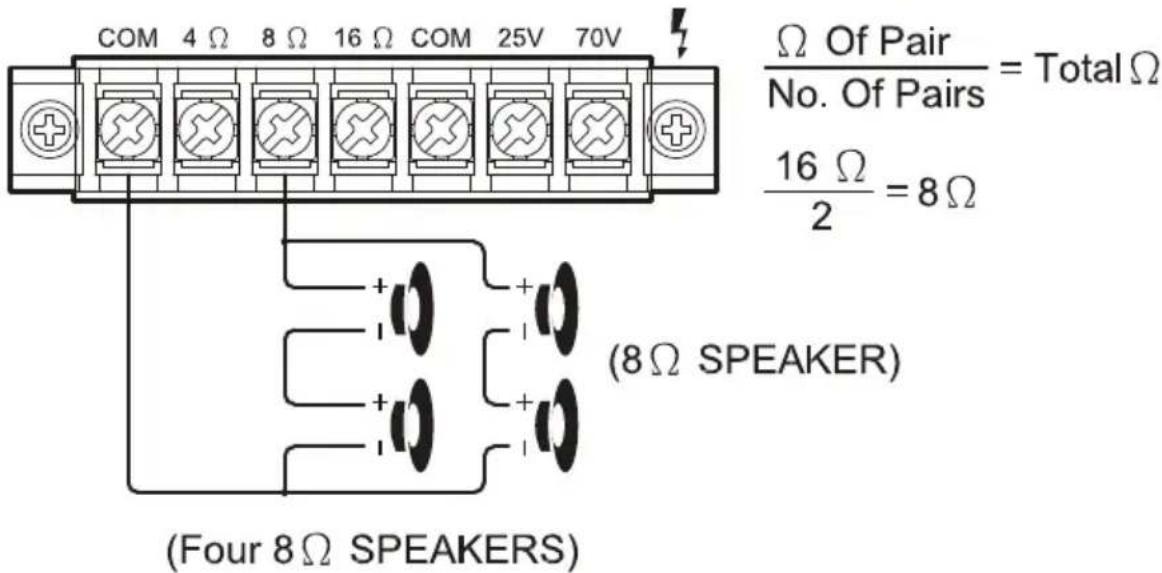

SYSTEM 4: Four Speakers in Series and Parallel

NOTE: Although the description above is for connecting two series pairs of 8 Ohms speakers in a parallel hook up, you may also select to combine a series pair and a parallel pair in a parallel hook up, simply be sure you have calculated the total impedance, and attach the speaker (+) circuit wire to the proper amp terminal.

FOUR SPEAKERS IN SERIES / PARALLEL COMBINATION

COM 4 Ω 8 Ω 16 Ω COM 25V 70V (Four 8 Ω SPEAKERS) (8 Ω SPEAKER) Ω Of Pair = Total Ω No. Of Pairs 16 Ω = 8 Ω (2 (8 Ω SPEAKER)

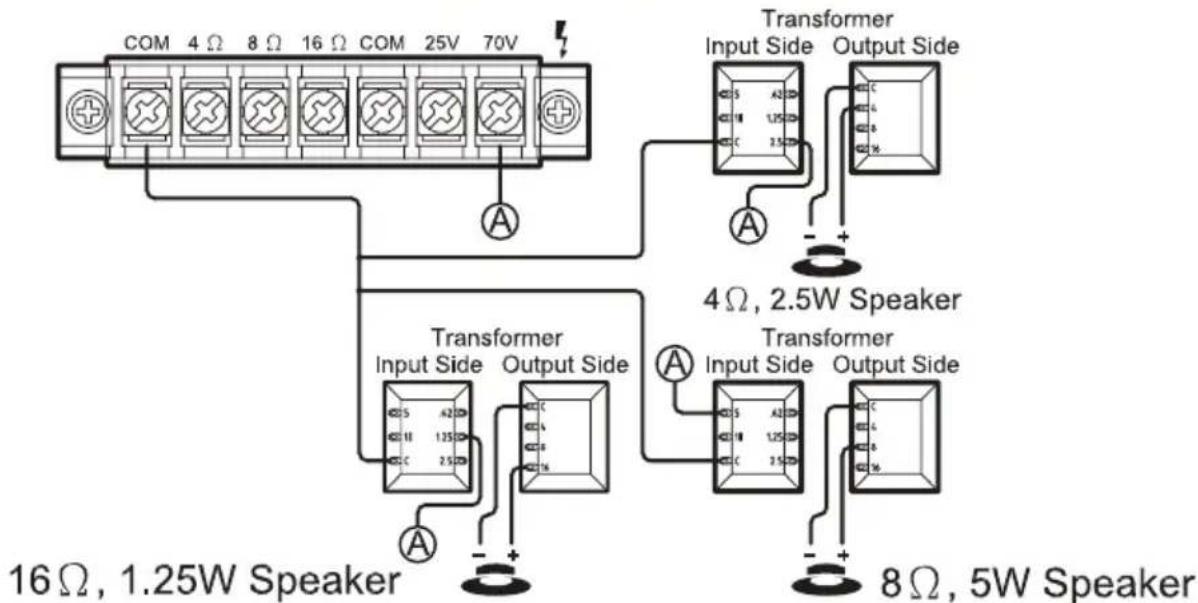

SYSTEM 5: Connecting Speakers with Transformers

NOTE: When the 25V or 70V constant line voltages are used, a line matching transformer must be used with each speaker. All transformers must be connected in parallel, never connect line transformers in series.

SPEAKER CONNECTION

COM 4 Ω 8 Ω 16 Ω COM 25V 70V Transformer Input Side Output Side 4 Ω, 2.5W Speaker 16 Ω, 1.25W Speaker Transformer Input Side Output Side 8 Ω, 5W Speaker

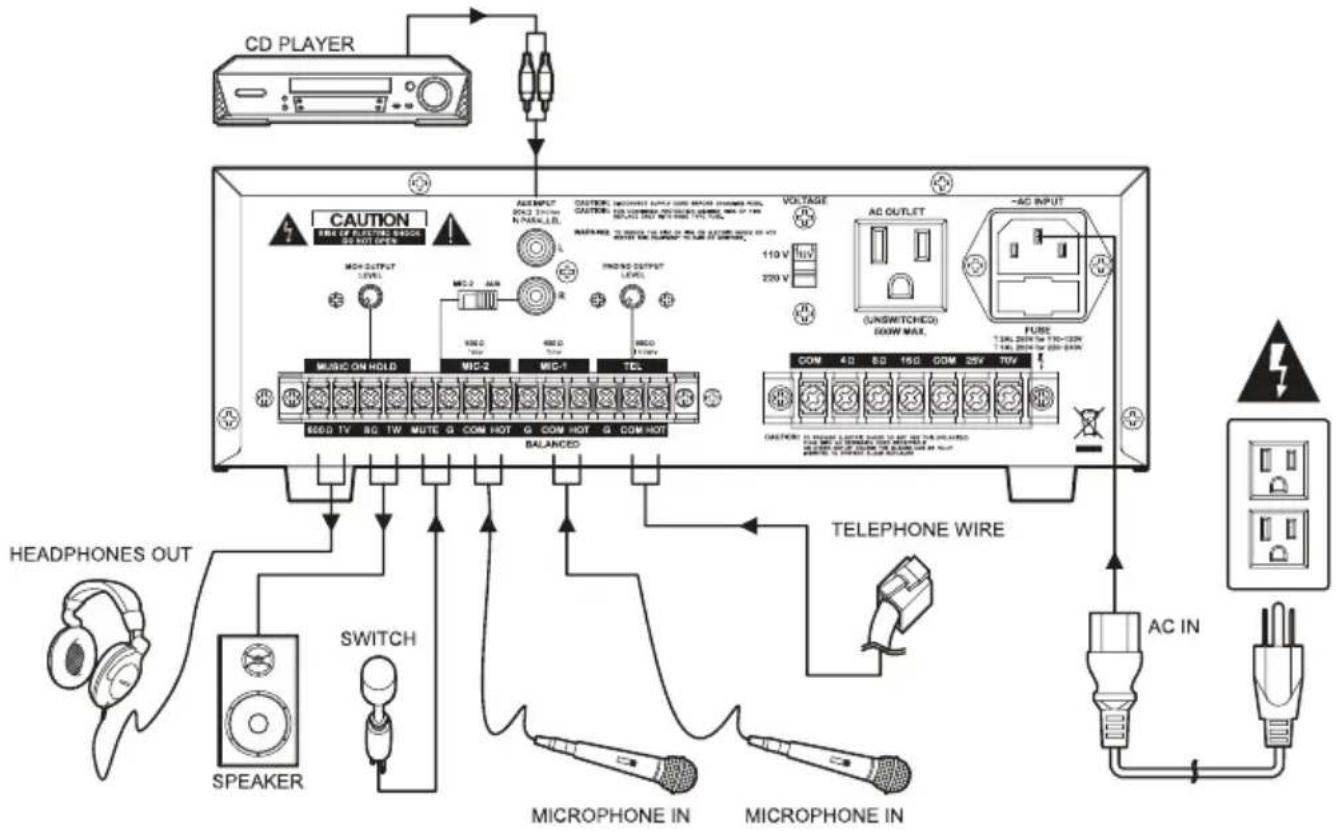

CONNECTION DIAGRAM

Care and Maintenance

Your Pyle Pro Amplifier is an example of superior design and craftsmanship. The following suggestions will help you care for your amplifier so you can enjoy years of use:

• Keep the amplifier dry. If it gets wet, wipe immediately.
• Use the amplifier only in well-ventilated installations.
• Handle the amplifier away from dust and dirt.
• Wipe occasionally with a damp cloth to keep it looking new.
• Do not use harsh chemical, solvents or detergents!

California Prop 65 Warning

! WARNING:

This product may expose you to chemicals, which is known to the state of California to cause cancer, birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

Features:

• Built-in Wireless BT for Audio Streaming
• Digital LED Display with FM Radio
- USB Flash Drive & SD Memory Card Readers
• Power On/Off Switch & LED Indicator
- MIC 1 Output Level Control
- MIC 2/AUX Output Level Control
- Bass and Treble Tone Controls
- AUX RCA Input
- MIC 2/AUX Input Selector Switch
- MIC 1/MIC 2 Terminals (MIC 1 Auto Talkover)
- Mute Terminals
- Detachable AC Power Input
- Replaceable Fuse
• Monitor 600-Ohm 1V Terminals (Music On Hold)
• Monitor 1W 8-Ohm Terminals (Music On Hold)
• Monitor Output Level Control (Music On Hold)
- TEL/PAGING Terminals
- Paging Output Level Control
- MIC/TEL VOX Level Control (Internal)

Wireless BT Connectivity:

• Works with All of Your Favorite Wireless BT Devices (iPhones, Androids, Smartphones, iPad, Tablet, PC, etc.)
• Wireless BT Network Name: 'PYLEUSA'
• Wireless BT Version: 5.0
• Wireless Range up to 30'+ ft.

What's in the Box:

• PA Amplifier
• FM Antenna
• Remote Control

Technical Specs:

• MAX Power Output: 500 Watt AC Outlet
• Construction Material: Iron
- Bass/Treble: +/-10dB, 100-10kHz
• Frequency Response: 50-15kHz
- Attenuation (Mic): 61dB
• T.H.D.: <1%
- Speaker Terminals (COM/4-ohm/8-Ohm/16-Ohm/25V/70V)
- Battery Operated Remote, Requires (1) x CR-2025 Button Cell Battery, Included
• Power: 120/240 Voltage Selector
- Dimensions (W x H x D):

10.7" x 8.9" x 3.46" inches / 27.1 x 22.6 x 8.7-cm

Register Product

Thank you for choosing PyleUSA. By registering your product, you ensure that you receive the full benefits of our exclusive warranty and personalized customer support. Complete the form to access expert support and to keep your PyleUSA purchase in perfect condition.

Start Here

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

Questions? Comments?

We are here to help!

Phone: [phone]

PyleUSA.com/ContactUs

MODS PLAY STOP REPEAT PBNY NEXT LED Display SO USB MIC-1 MIC-2/AUX BASS TREBLE 0 10 0 10 -10 +10 -10 +10 PCM30A

PCM30AEU-PCM30AUK

This symbol is intended to alert you to the -6 presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

Domande o Commenti?

One or more speakers (4, 8 or 16 Ohms) can be connected to the amplifier with or without transformers. However, before you connect any speakers to the amplifier, the total impedance must be calculated in order to avoid damage to the amplifier. A total speaker impedance greater than 16 Ohms or less than 4 Ohms can cause this damage to occur.

SYSTEM 1: Single Speaker System

NOTE: Connect the speaker (+) to the amplifier's 4-Ohm, 8-Ohm or 16-Ohm terminal, depending on the speaker being used.

ONE SPEAKER COM 4 Ω 8 Ω 16 Ω COM 25V 70V (8 Ω SPEAKER)

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

MODS PLAY STOP REPEAT PREV NEXT LED Display SO USB MIC-1 MIC-2/AUX BASS TREBLE 0 10 0 10 -10 +10 -10 +10 PCM30A

PCM30AEU-PCM30AUK

This symbol is intended to alert you to the - 6 presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

This symbol is intended to inform you that important operating and maintenance instructions are included in the literature accompanying this product.

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text

MODS PLAY STOP REPEAT PREV NEXT LED Display SD USB MIC-1 MIC-2/AUX BASS TREBLE 0 10 0 10 -10 +10 -10 +10 PCM30A

PCM30AEU-PCM30AUK

QR code image containing encoded data, no visible human-readable text

Model Number: PCM30A
PyleUSA.com/pages/register

PYLE®

PyleUSA.com

QR code image containing encoded data, no visible human-readable text
