RE270K - Wifi repeater TP-LINK - Free user manual and instructions

Product Type	WiFi Range Extender
Brand	TP-Link
Model	RE270K
WiFi Standards	802.11 b/g/n (2.4 GHz), 802.11 a/n/ac (5 GHz)
Maximum Speed	733 Mbps (300 Mbps on 2.4 GHz + 433 Mbps on 5 GHz)
Ethernet Port	1 RJ45 10/100 Mbps port
Features	WiFi Range Extender, Ethernet client mode, WPS button, Signal LED
Wireless Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Power Supply	Built-in power plug (100-240 V, 50/60 Hz)
Dimensions	Approximately 110 x 66 x 18 mm
Weight	Approximately 100 g
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % RH (non-condensing)
Certifications	CE, RoHS
Package Contents	Range Extender, Quick Installation Guide, User Manual
Maintenance and Cleaning	Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water, fire, or high temperatures. Do not disassemble. Use in a well-ventilated area.
Spare Parts and Repairability	The device contains no user-serviceable parts. In case of issues, contact TP-Link support.
Warranty	Limited warranty in accordance with local legislation. See packaging or TP-Link website.
General Information	TP-Link RE270K WiFi Range Extender. Extends existing WiFi network. Setup via Tether app or web browser.

Frequently Asked Questions - RE270K TP-LINK

Why can't I access the repeater's configuration page?

Make sure your computer is connected to the repeater's Wi-Fi network (e.g., TP-Link_Extender) or via an Ethernet cable. Check that IP address assignment is set to automatic. Use the default IP address 192.168.0.254 or the URL http://www.tplinkrepeater.net. If the repeater is already connected to the router, check the router's DHCP list to find the assigned IP address.

How do I reset the repeater to factory defaults?

With the repeater powered on, press and hold the RESET button for about 5 seconds until all lights briefly turn off, then release. Factory settings will be restored.

How to set up the repeater using the Tether app?

Download the TP-Link Tether app from your app store. Plug the repeater near the router. Open the app, create an account if needed, then follow the instructions to add a repeater. The app will guide you to connect it to your WiFi network.

How to set up the repeater via a web browser?

Plug the repeater into an outlet near the router. Connect your computer to the repeater's WiFi network (e.g., TP-Link_Extender) or via an Ethernet cable. Open a browser and go to http://www.tplinkrepeater.net or 192.168.0.254. Create an admin password and follow the setup wizard.

Where should I place the repeater for best coverage?

For optimal signal, plug the repeater halfway between your router and the area to cover. Ensure the signal LED indicates a good quality connection (usually green). Avoid thick obstacles like concrete walls.

Can I connect wired devices to the repeater?

Yes, the RE270K has an Ethernet port. In repeater mode, you can connect a non-WiFi device (e.g., TV, game console) to provide Internet access via the extended WiFi network. The repeater then acts as a WiFi client.

Is the WiFi password after setup the same as the router's?

Yes, by default the repeater copies the WiFi password from your router. Thus you have a single network and password. If you change the password on the router, you will need to reconfigure the repeater.

What do the repeater's indicators mean?

The Power LED indicates power status. The Signal (or WPS) LED indicates the strength of the signal received from the router: green (good), orange (weak), red (very weak), or off (no connection). Refer to the manual for more details.

Is the repeater compatible with my router?

The RE270K is compatible with most standard WiFi routers (802.11 b/g/n and ac). It can extend a 2.4 GHz or 5 GHz network, but for optimal performance, use a router that supports the same standards.

How to update the repeater's firmware?

Log in to the repeater's configuration page (via browser). Go to System Tools > Firmware Update. Download the latest firmware from the TP-Link website, then select the file and click Update. Do not power off during the update.

USER MANUAL RE270K TP-LINK

Quick Installation Guide

Wi-Fi Range Extender

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.

© 2024 TP-Link 7106511130 REV3.2.1

*Images may differ from actual products.

Contents

Deutsch----1

English 4

Español ----7

Ελληνικά----10

Français----13

Italiano 16

Português 19

Suomi 22

Nederlands 25

Svenska----28

Norsk----31

Dansk 34

1 Konfigurieren

oder

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Methode 2: Per Webbrowser

Line drawing of five electronic devices: monitor, gaming console, desktop computer, wireless router, and network device (no text or symbols)

Set up your extender via one of the methods.

Method 1: Via TP-Link Tether App

Get the up-to-date Tether app, and follow the app instructions to complete the setup.

Or

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Method 2: Via a Web Browser

1 Plug the extender into an electrical outlet near your router and press the power button if it has one.
2 Connect your computer to the extender.

Via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXXX).

Via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Launch a web browser and enter http://www.tplinkrepeater.net or http://192.168.0.254 in the address bar. Create a password to log in.

4 Follow the instructions on the web page to complete the initial configuration.

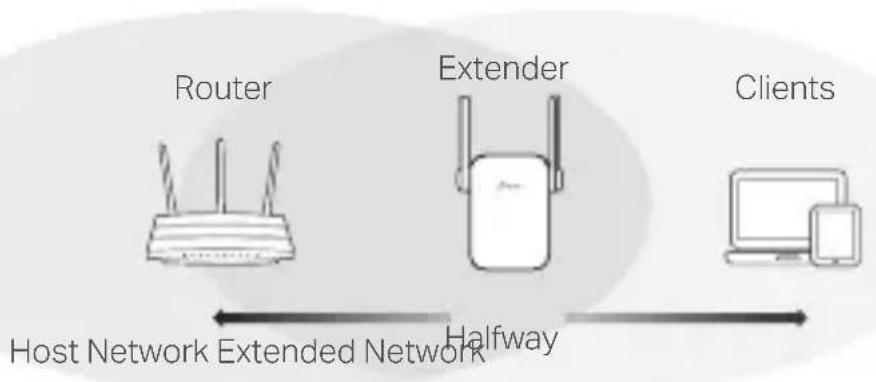

2 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://www.tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).

A2: Make sure your computer is set to obtain an IP address automatically.

A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.

A4: Reset the extender and connect to its wireless network, enter http://www.tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Configuración

Simple line drawing of a router with three antennas and a signal icon above (no text or labels)

Smart TV

Videoconsola

Desktop

Router

'H

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Ou

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Simple line drawing of a router with two antennas and signal waves (no text or symbols)

Routeur

Metodo 2: tramite Browser Web

Ou

Tai

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Tapa 2: Nettiselaimella

Of

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

→

Icon of a house with Wi-Fi signal inside, no text or symbols present

Eller

Metode 2: Via a nettleser

1 Koble forsterkeren inn i en stikkontakt i nærheten av ruteren og trykk strømknappen hvis den har en.
2 Koble datamaskinen til forsterkeren.

via trådløst

Eller

Metode 2: Via en web-browser

Line drawings of five electronic devices: monitor, controller, tower, wireless router, and network switch (no text or symbols)

Smart-TV Spillekonsol Computer
Router

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use the device where wireless devices are not allowed.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

Español

https://www.tp-link.com/en/ce.

Italiano

https://www.tp-link.com/en/ce.

Português
