USER MANUAL FCS3087 LEVELONE

Abstract geometric pattern composed of blue squares forming a stylized 'T' shape (no text or symbols)

Network Camera

Quick Installation Guide v1.0

English

Português

Deutsch

Русский

Français

Polski

Español

Ελληνικά

Italiano

Table of Contents

English....3

Deutsch....7

Français 11

Español....15

Italiano 19

Ελληνικά 23

Português 27

Русский 31

Polski 35

Package Contents

▶ Network Camera
CD Manual/Utility
▶ Quick Installation Guide

English

- Search tool of SADP

SADP is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices. You can also modify the basic network information of the devices using this software.

- Search Active devices online

◆ Search online devices automatically

After launch the SADP software, it automatically searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and information of the searched devices in the Online Devices interface. Device information including the device type, IP address and port number, etc. will be displayed.

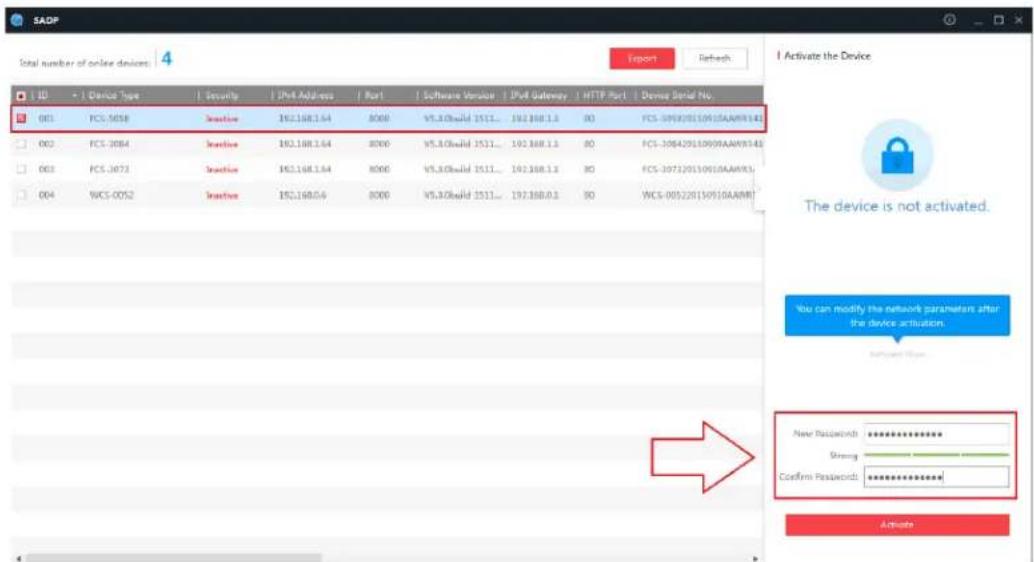

You are required to activate the camera first by setting a strong password for it before you can use the camera.

SADP Total number of online devices 4 Export Refresh ID + | Device Type | Security IP# Address | Port | Software Version | IP# Gateway | HTTP Port | Demo Serial No. 001 FCS-5058 Secntive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 80 PCS-505820150910AAAMR142 002 FCS-3084 Secntive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 80 PCS-30842015090AAAMR142 003 FCS-3073 Secntive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 80 PCS-307320150910AAAMR1 004 WCS-0052 Secntive 192.168.0.6 8000 V5.3.0build 1511... 192.168.0.3 80 WCS-005220150910AAAMR I Activate the Device The device is not activated. You can modify the network parameters after the device activation. New Password: ************ Binary: ************ Confirm Password: ************ Activate

Searching Online Devices

Note:

Device can be searched and displayed in the list in 15 seconds after it went online; it will be removed from the list in 45 seconds after it went offline.

- For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

- Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user.

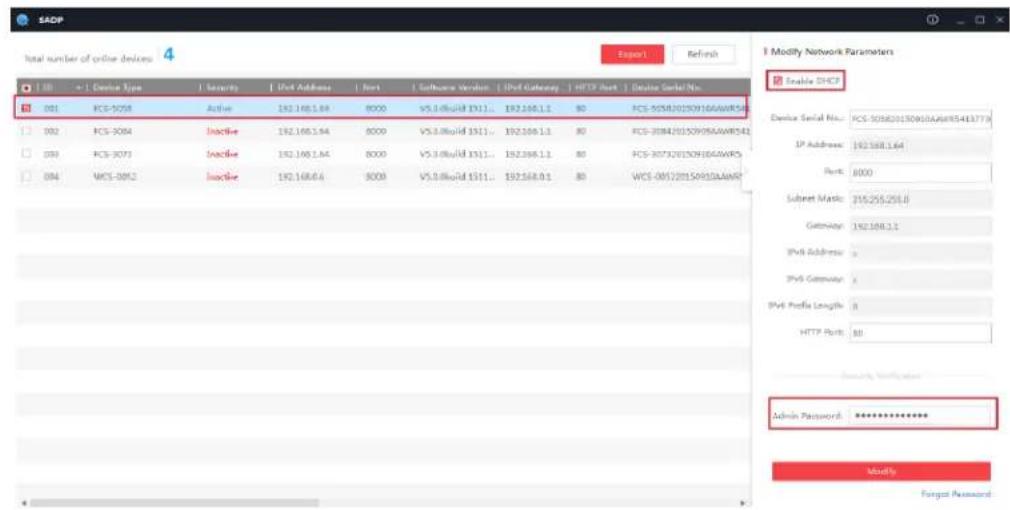

- Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.

2. Edit the modifiable network parameters, e.g. IP address and port number.

3. Enter the password of the admin account of the device in the Password field and click to save the changes.

SADP Total number of online devices 4 Report1 Refresh I Modify Network Parameters Enable DHCP Device Serial No: PCS-505620150916AAWR5413778 IP Address: 192168.1.64 Port: 8000 Subset Mask: 255255258.0 Gateway: 192168.1.1 IPv4 Address: IPv4 Gateway: IPv4 Profile Length: 8 HTTP Port: 88 Security Indicator Admin Password: ************ Modify Forgot Password

Notes:

● The default IP address of the camera is 192.168.1.64.

● And you need to activate the camera via SADP software. For the

camera enables the DHCP by default, the IP address is allocated automatically

Accessing by Web Browsers

Steps:

1. Open the web browser.
2. In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface.
3. Select the interface language on the top-right of login interface.

Abstract grayscale curved shape with soft gradients, no text or symbols visible

English User Name admin Password •••••• Login

1. Input the user name and password and click.

Login

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

1. Install the plug-in before viewing the live video and operating the camera. Please follow the installation prompts to install the plug-in.

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Download and Install Plug-in

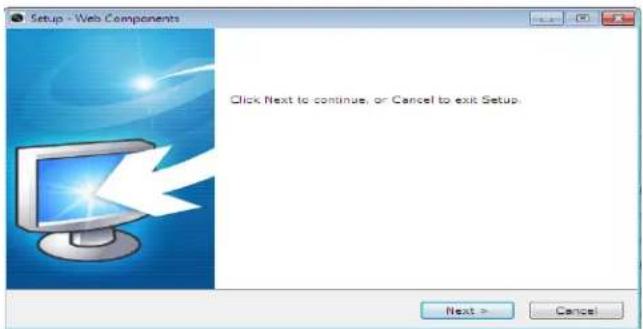

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Install Plug-in

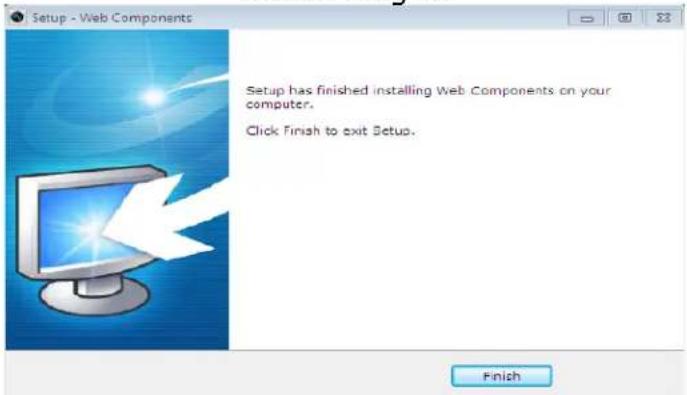

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Install Plug-in (2)

Deutsch

SADP Total number of online devices 4 Export Refresh ID Device Type Security IPV Address Port Software Version IPV Gateway HTTP Port Device Serial No. 001 PCS-1058 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 BD PCS-105820150910AAAWR142 002 PCS-1084 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 BD PCS-10842015090AAWR342 003 PCS-1073 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.3 BD PCS-107120150910AAWR3 004 WCS-0052 Inactive 192.168.0.6 8000 V5.3.0build 1511... 192.168.0.3 BD WCS-005220150910AAWR I Activate the Device The device is not activated. You can modify the network parameters after the device activation. Activate by: New Password: ********** Strong Confirm Password: ********** Activate

SADP Total number of online devices 1.01 - < Device Type | Security | PM Address | Port | Software Version | PM Currency | MTP Port | Device Serial No. 001 PCS-0018 | Active | 191.168.1.4 | 8000 | V5.3 Cloud 171L... | 191.168.1.1 | 80 | PCS-02820150916A4W07 002 PCS-0084 | Active | 191.168.1.4 | 8000 | V5.3 Cloud 151L... | 191.168.1.1 | 80 | PCS-02820150916A4W07 003 PCS-0073 | Active | 191.168.1.4 | 8000 | V5.3 Cloud 171L... | 191.168.1.1 | 80 | PCS-02820150916A4W07 004 PCS-0052 | Active | 191.168.1.4 | 8000 | V5.3 Cloud 171L... | 191.168.1.1 | 80 | PCS-02820150916A4W07 Device Serial No: PCS-02820150916A4W07/4/2/7/3 IP address: 232.168.1.4 Port: 8500 Subser mask: 232.168.1.4 Balance: 232.168.1.4 IP (load): | IP (Set) : | Split Profits Length: 0 HTTP Rate: 80 Advice Received: ********** Mouth: Target Password:

Hinweise:

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Plug-in installieren

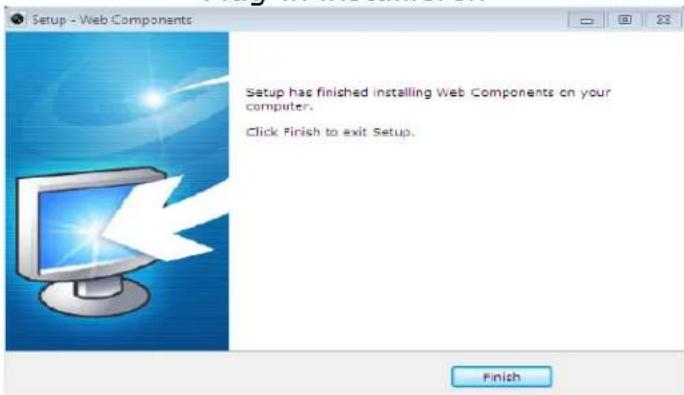

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Plug-in installieren(2)

Français

Abstract grayscale circular design with layered segments and gradients, no text or symbols present

English User Name admin Password •••••• Login

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Installez le plug-in

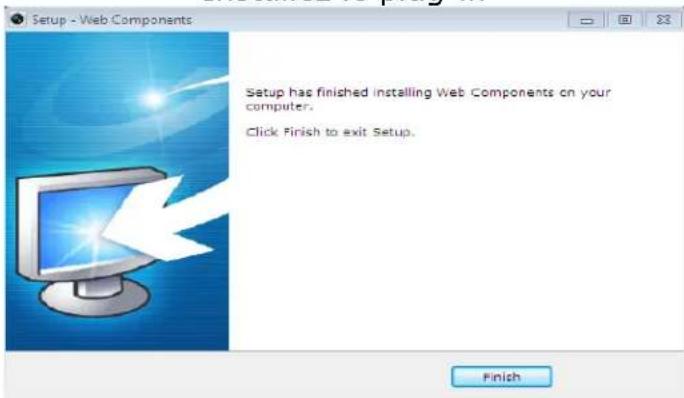

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Installez le plug-in(2)

Español

Total number of entire devices Export Refresh Device Serial No. FCS-30520130910AAWR5413773 Port Address: 1637681.64 Port: 8000 Socket Mask: 154255258.0 Gateway: 1823883.1 Dvd Address: + Dvd Gateway: + Dvd Prefix Length: 0 HTTP Port: 80 Modify Network Parameters Enable DTCB Admin Resource: ************ Modify Target Password

Notas:

Abstract grayscale geometric pattern with curved and angular shapes (no text or symbols)

English User Name admin Password •••••• Login

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Instalar el complemento

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Instalar el complement(2)

Italiano

Abstract grayscale geometric pattern with curved and angular shapes (no text or symbols)

English User Name admin Password •••••• Login

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

SADP Total number of active devices 4 Export Refresh 1 Activate the Device The device is not activated. You can modify the network parameters after the choice activation. New Password: ********** Bring: Confirm Password: **********

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

SADP Total number of online devices 4 ID Device Type Security PoS Address Port Software Version PoS Gateway HTTP Port Demus Serial No. 001 PCS-3058 Inactive 192.168.1.64 8000 V5.3.0build 3511... 192.368.1.3 80 PCS-508820150N10AAWR542 002 PCS-3084 Inactive 192.168.1.64 8000 V5.3.0build 3511... 192.368.1.1 80 PCS-308420150N08AAWR542 003 PCS-3073 Inactive 192.168.1.64 8000 V5.3.0build 3511... 192.368.1.3 80 PCS-307320150N05DAAWR542 004 PCS-0052 Inactive 192.168.0.6 8000 V5.3.0build 3511... 192.368.0.1 80 PCS-005220150N10AAWR542 I Activate the Device The device is not activated. You can modify the network parameters after the device activation. Active Path New Password: ************ Growing: Green Confirm Password: ************ Activate

Procurar dispositivos online

Nota:

Abstract grayscale geometric pattern with curved and angular shapes (no text or symbols)

English User Name admin Password •••••• Login

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Transferir e instalar o plug-in

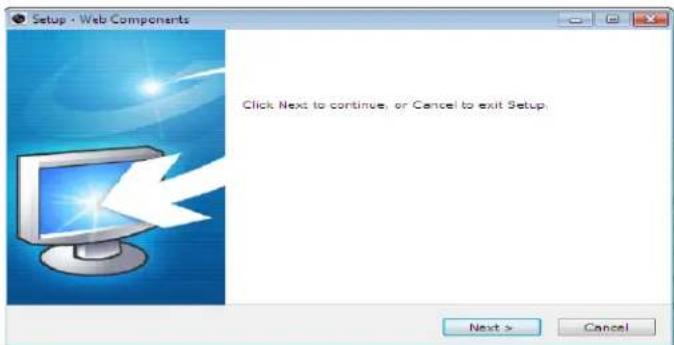

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Instalar o plug-in

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Instalar o plug-in (2)

Русский

• Средство поиска SADP

SADP Total number of online devices 4 Export Refresh ID Device Type Security JPM Address Port Software Version JPM Gateway HTTP Port Device Serial No. 001 PCS-3058 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.1 80 PCS-305820150910AAWR341 002 PCS-3084 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.1 80 PCS-30842015090AAWR341 003 PCS-3073 Inactive 192.168.1.64 8000 V5.3.0build 1511... 192.168.1.1 80 PCS-307320150910AAWR34 004 WCS-0052 Inactive 192.168.0.6 8000 V5.3.0build 1511... 192.168.0.1 80 WCS-305220150910AAWR I Activate the Device The device is not activated. You can modify the network parameters after the device activation. Active Type New Password: ********** Strong Confirm Password: ********** Activate

Abstract grayscale circular design with layered segments and gradients, no text or symbols present

English User Name admin Password ***** Login

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Live View Playback Log Configuration Sub Stream Main Stream Webcomponents Please click here to download and install the plug-in. Close the browser when installing the plug-in.

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Instalacja dodatku

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish
