Product type	Electronic kitchen scale
Brand	Fagor
Model	BC550
Maximum capacity	5000 g / 11 lb:04 oz / 1500 ml / 48 fl.oz
Precision (division)	1 g / 0.1 lb:oz / 1 ml / 0.1 fl.oz
Measurement units	g, lb:oz, ml, fl.oz (convertible)
Measuring modes	Weight, water volume, milk volume, oil volume, flour volume (CUP mode)
Tare function	Yes, button Ⓐ / TARE
Auto-off	Yes, after 30 seconds of inactivity
Manual shut-off	Yes, press and hold Ⓓ / TARE for 3 seconds
Power supply	2 AAA 1.5V batteries
Bowl material	Graduated bowl (material not specified, likely plastic or glass)
Cleaning	Soft dry cloth; do not immerse in water
Maintenance	Avoid shocks, do not store with weight on top, do not use chemicals
Safety	Do not overload, do not expose to electromagnetic fields, household use only
Electromagnetic compatibility	Compliant with EMC directives
Recycling	Do not dispose of with household waste; deposit in an approved collection center
Dimensions (approximate)	Not provided in the manual
Appliance weight	Not provided in the manual

Frequently Asked Questions - BC550 FAGOR

How to change the measurement unit on the Fagor BC550 scale?

Press the UNIT button to switch between units: grams (g), pounds/ounces (lb:oz), milliliters (ml), and fluid ounces (fl.oz).

How to use the tare function?

Place the bowl on the scale, briefly press the Ⓐ / TARE button. The display resets to zero and shows the letter 'T' at the bottom left. You can then add ingredients and the net weight is displayed.

What to do in case of overload (error display)?

Immediately remove excess weight. The maximum capacity is 5000 g / 11 lb:04 oz / 1500 ml / 48 fl.oz. Never exceed this limit to avoid damaging the scale.

How to change the batteries?

Remove the battery compartment cover located under the platform. Insert two AAA 1.5V batteries respecting polarity. Close the cover.

What to do if the display shows the low battery symbol?

Replace used batteries with new ones. Do not throw used batteries in the trash; deposit them in an appropriate collection container.

How to clean the scale?

Use a soft, dry cloth to wipe the exterior. Do not use chemical or abrasive products. Never immerse the scale in water.

How to assemble the bowl on the scale?

Align the bowl base with the sliding lock button (mark 9) on the scale. Press until you hear a click. To remove, keep the sliding button pressed and lift the bowl.

The scale does not turn on, what to do?

Check that the batteries are correctly installed and are new. If the problem persists, clean the battery contacts. If nothing works, contact after-sales service.

How to manually turn off the scale?

Press and hold the Ⓓ / TARE button for about 3 seconds until the display turns off.

What are the available measuring modes?

Press the MODE button to select weight mode or volume mode for water, milk, oil, or flour (CUP). The corresponding icon is displayed on the screen.

USER MANUAL BC550 FAGOR

KITCHEN SCALES

MOD.: BC-550 N.I.F. F-20.020.517 - B° San Andrés, n° 18 • Apartado 49 - 20500 MONDRAGON (Gurpúrcosa) SPAIN

CE

FAGOR

ES

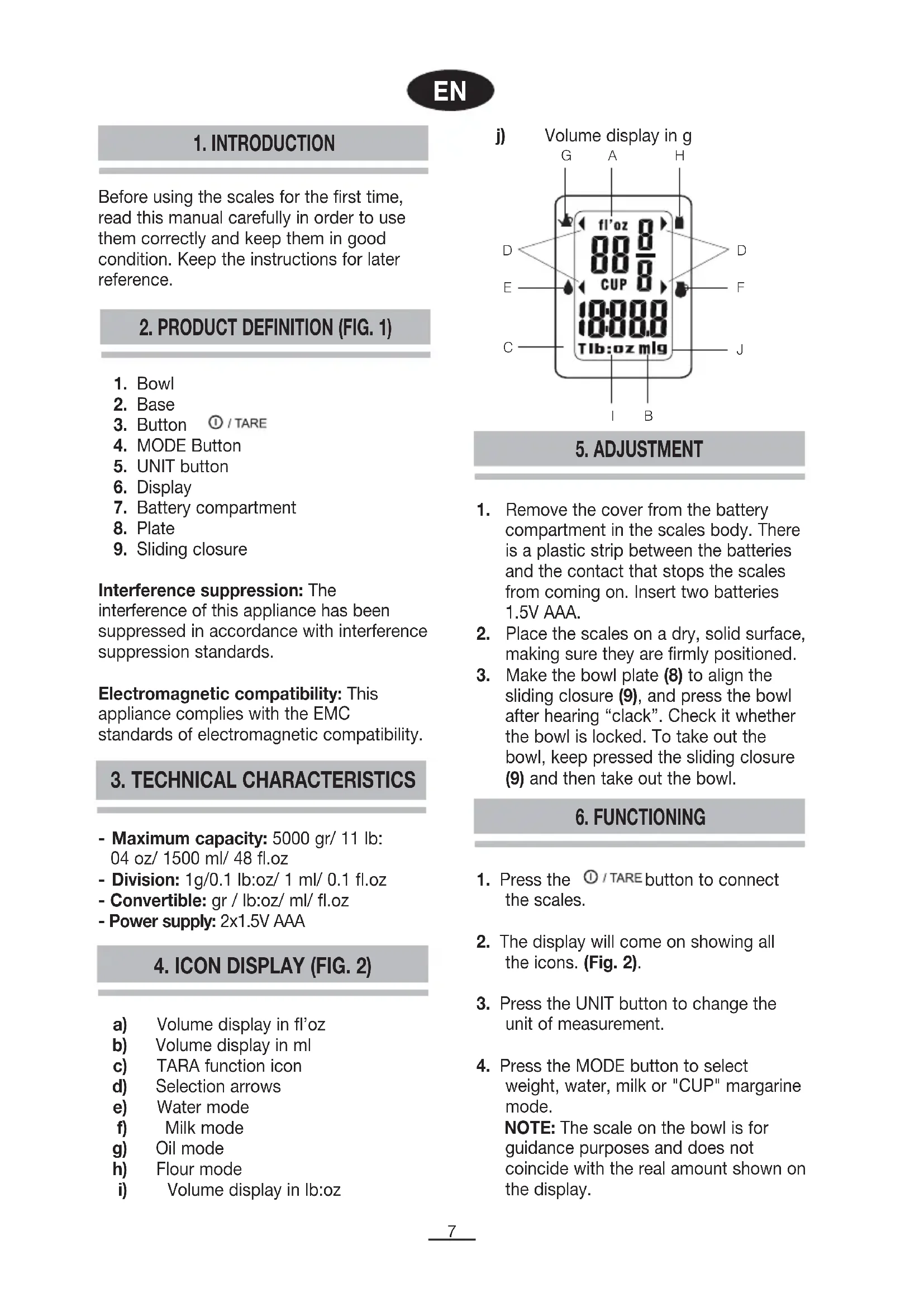

1. INTRODUCTION

Before using the scales for the first time, read this manual carefully in order to use them correctly and keep them in good condition. Keep the instructions for later reference.

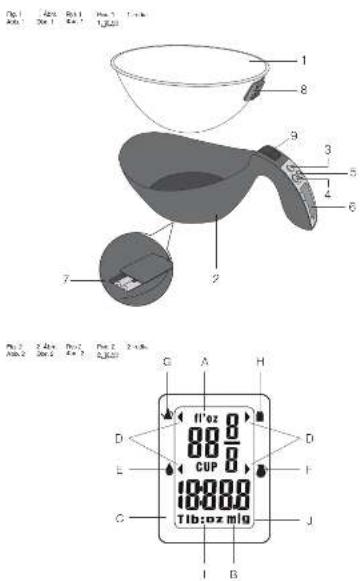

2. PRODUCT DEFINITION (FIG. 1)

1. Bowl
2. Base
3. Button ① / TARE
4. MODE Button
5. UNIT button
6. Display
7. Battery compartment
8. Plate
9. Sliding closure

Interference suppression: The interference of this appliance has been suppressed in accordance with interference suppression standards.

Electromagnetic compatibility: This appliance complies with the EMC standards of electromagnetic compatibility.

3. TECHNICAL CHARACTERISTICS

• Maximum capacity: 5000 gr/ 11 lb: 04 oz/ 1500 ml/ 48 fl.oz
• Division: 1g/0.1 lb:oz/ 1 ml/ 0.1 fl.oz
• Convertible: gr / lb:oz/ ml/ fl.oz
• Power supply: 2x1.5V AAA

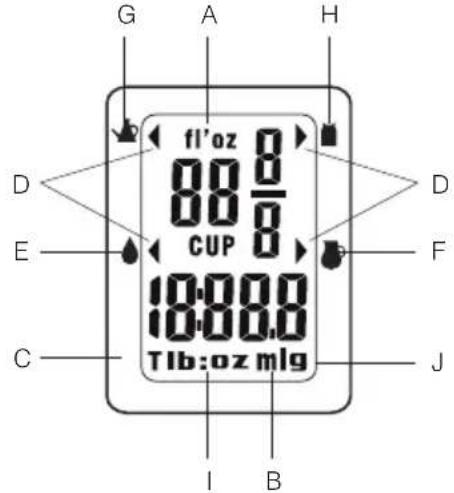

4. ICON DISPLAY (FIG. 2)

a) Volume display in fl'oz b) Volume display in ml c) TARA function icon d) Selection arrows e) Water mode f) Milk mode g) Oil mode h) Flour mode i) Volume display in lb:oz

j) Volume display in g

5. ADJUSTMENT

1. Remove the cover from the battery compartment in the scales body. There is a plastic strip between the batteries and the contact that stops the scales from coming on. Insert two batteries 1.5V AAA.
2. Place the scales on a dry, solid surface, making sure they are firmly positioned.
3. Align the bowl plate (8) with the sliding closure (9), and press the bowl until you hear a "clack". Check that the bowl is locked. To remove the bowl, keep the sliding closure (9) pressed and then take out the bowl.

6. FUNCTIONING

1. Press the Ⓐ / TARE button to turn on the scales.
2. The display will light up showing all the icons. (Fig. 2).
3. Press the UNIT button to change the unit of measurement.
4. Press the MODE button to select weight, water, milk, or "CUP" margarine mode.

NOTE: The scale on the bowl is for guidance only and does not match the actual amount shown on the display.

1. The scales are now ready for use. Try to keep the object to be weighed in the center of the measuring beaker. Read the screen when the figure stops flashing in this format:
2. Make sure the scales display "zero" before you start weighing. If not, press the Ⓞ / TARE button.
3. The scales will turn off automatically after 30 seconds if you do not weigh anything. To turn the scales off manually, press and hold Ⓞ / TARE for 3 seconds.

7. WARNING: DO NOT OVERLOAD THE SCALES

If the load capacity is exceeded, the scales may be damaged and the following warning will appear on the display:

8. BATTERY LOW INDICATOR

When the battery needs replacing, the following message will appear on the display:

When this happens, follow the adjustment instructions.

Remember that batteries are not household waste. Spent batteries must be disposed of in the special containers provided.

9. USING THE TARE BUTTON (3)

1. Set the scales to zero as explained above.
2. Position the bowl then press Ⓐ / TARE lightly and release. The display will revert to zero in a few seconds.

NOTE: The letter "T" will be displayed on the left.

1. Now you can add the other items you want to measure in the bowl. Repeat these two steps as often as required. The net weight of the item is shown on the display.
2. If you start removing the items from the beaker, you will see a negative number (-) which represents the weight of the item you have removed.
3. If you start removing the items from the beaker, you will see a negative number (-) which represents the weight of the item you have removed.

If you wish, you can reset the scales to zero by pressing Ⓐ / TARE every time you remove an item. NB: When you switch on the scales for the first time, if the display does not read zero, you can also press the ① / TARE button.

10. MAINTENANCE AND CLEANING

1. These scales are a precision instrument. Make sure they receive no knocks. Do not store the scales with a weight on them for long periods. 2 Always press the buttons gently. Do not use any sharp objects such as ballpoint pens to press them down.
2. If nothing appears on the screen when you switch on the scales using the Ⓐ / TARE button, check that the battery is inserted and correctly connected. If it is, the battery may have run down. Replace it with a new one.
3. Do not use chemical solvents or abrasive substances to clean the scales. The use of a soft, dry cloth is recommended for cleaning the outer surface of the scales. DO NOT SUBMERGE THE SCALES IN WATER.
4. Always keep the scales away from heat sources, e.g. ovens, as this could deteriorate the buttons and damage the appliance.
5. When the scales are in use, keep them away from any electromagnetic interference (EMI), i.e. mobile phones, as this would affect their accuracy.
6. Remove the battery if the scales are likely to be out of use for some time.
7. These scales are for domestic use only.
8. Always use the scales on a horizontal, firm surface. Do not use them on mats or carpets.
9. Do not insert any foreign object into the openings of the scales.
10. Do not try to open the scales to repair them. This will invalidate the guarantee.

11. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local authority or the shop where you bought the product.
