USER MANUAL BTHP400DES LEXIBOOK

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners. © 2015 Bluetooth SIG, Inc. BTHP400seriesIM1045_9Jan_V08.indb 1 09/01/2015 2:17 PMBTHP400seriesIM1045_9Jan_V08.indb 2 09/01/2015 2:17 PM3 FRANÇAIS

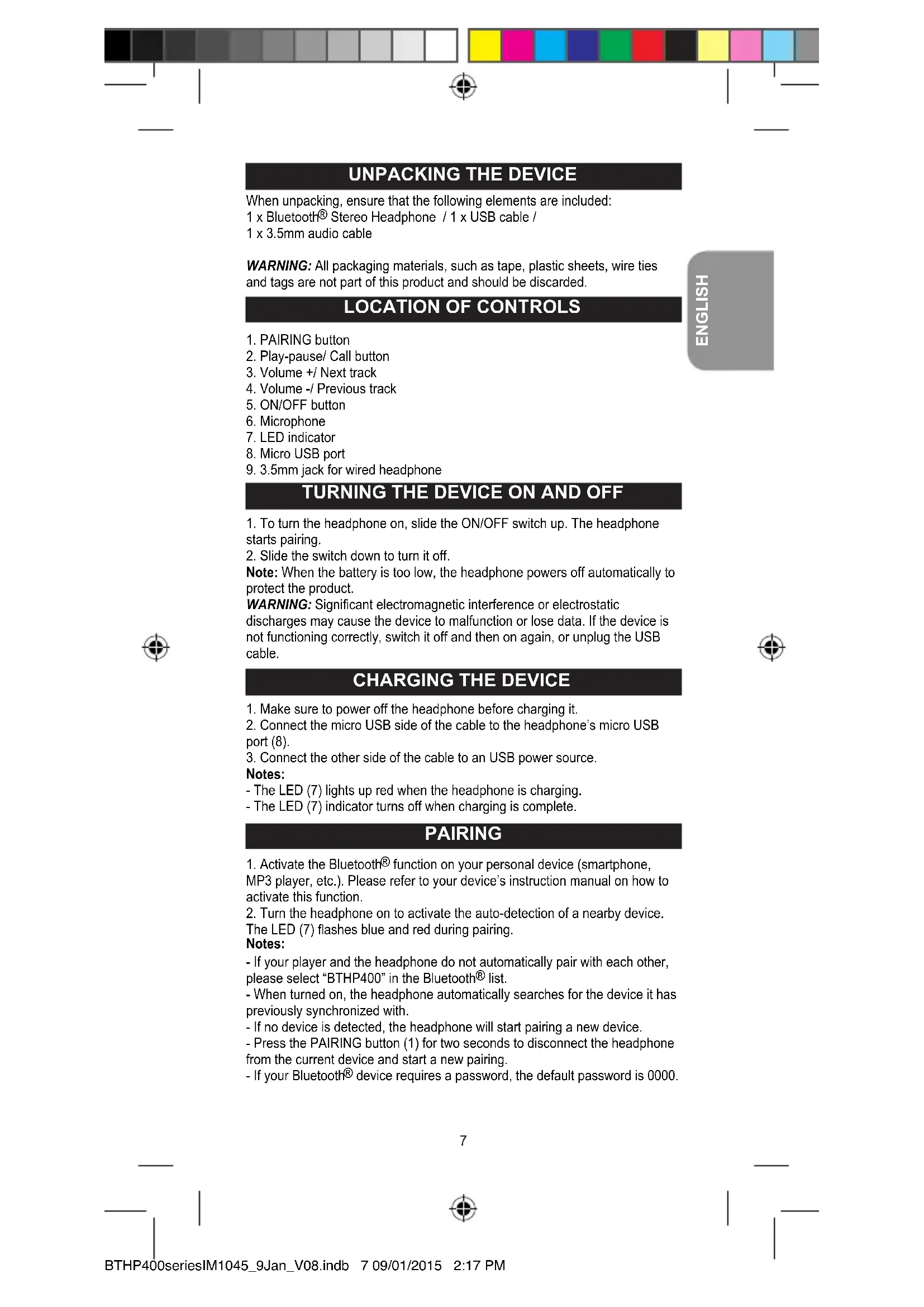

When unpacking, ensure that the following elements are included: 1 x Bluetooth

WARNING: All packaging materials, such as tape, plastic sheets, wire ties

and tags are not part of this product and should be discarded.

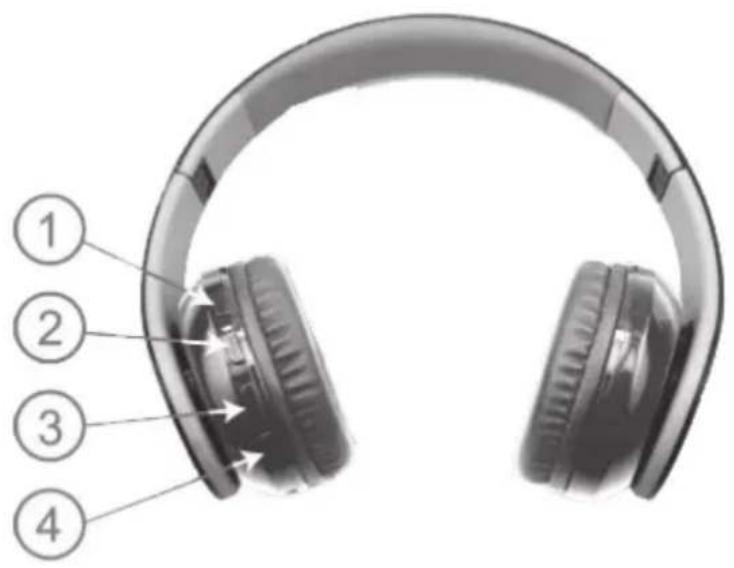

3. Volume +/ Next track

4. Volume -/ Previous track

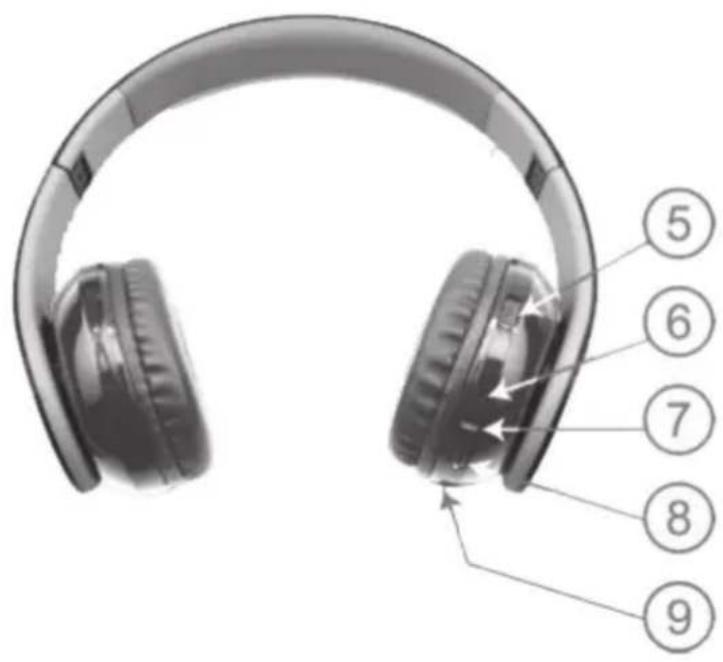

9. 3.5mm jack for wired headphone

1. To turn the headphone on, slide the ON/OFF switch up. The headphone

2. Slide the switch down to turn it off.

Note: When the battery is too low, the headphone powers off automatically to protect the product.

WARNING: Signicant electromagnetic interference or electrostatic

discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.

function on your personal device (smartphone, MP3 player, etc.). Please refer to your device’s instruction manual on how to activate this function.

2. Turn the headphone on to activate the auto-detection of a nearby device.

The LED (7) ashes blue and red during pairing. Notes: - If your player and the headphone do not automatically pair with each other, please select “BTHP400” in the Bluetooth

list. - When turned on, the headphone automatically searches for the device it has previously synchronized with. - If no device is detected, the headphone will start pairing a new device. - Press the PAIRING button (1) for two seconds to disconnect the headphone from the current device and start a new pairing. - If your Bluetooth

device requires a password, the default password is 0000.

1. Make sure to power off the headphone before charging it.

2. Connect the micro USB side of the cable to the headphone’s micro USB

3. Connect the other side of the cable to an USB power source.

Notes: - The LED (7) lights up red when the headphone is charging. - The LED (7) indicator turns off when charging is complete.

We, Lexibook® S.A. 2, avenue de Scandinavie 91953 Courtaboeuf Cedex – France Declare under our sole responsibility that the following product: Kind of product: Bluetooth

Speaker Type designation: BTHP400series Is in compliance with the following standards: EN 60065: 2002 +A1 : 2006 +A2 : 2010 +A11 : 2008 +A12 : 2011 EN 55013: 2013 EN 55020: 2007 +A11 : 2011 EN 61000-3-2 : 2006 +A1 : 2009 +A2 : 2009 EN 61000-3-3:2013 EN 300 328 V1.8.1 EN 301 489-1 V1.9.2 EN301 489-17 V2.2.1 EN 62479 : 2010 We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission. Yiu Wai Man Product Development Manager 30/01/2015 (Hong Kong) CONFORMITY DECLARATION Volume To decrease the volume, press the – button (4). To increase the volume, press the + button (3). CAUTION: Too high volume, especially when using headphones, can damage your hearing. For this reason, please turn the volume down. Previous/ Next Press and hold the – button (4) for one second to go back to the previous track. Press and hold the + button (3) for one second to go to the next track. Play Press the Play/Pause button (2) to play audio les from your player. Auto play/pause in Bluetooth

1. When you take off the headphone for more than 3 seconds, the music

2. The music resumes when you put the headphone back on within 5 minutes.

3. After 5 minutes, the headphone enters sleep mode and the Bluetooth

4. When you put the headphone back on during sleep mode, the headphone

reconnects to the last paired device. You can play the music again by pressing the Play button. Notes: Some music players do not fully support Bluetooth

audio controls. Play/pause, previous and next buttons on the Bluetooth

speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the headphone. Handsfree mode for phone calls

1. Press the Call button (2) once to answer calls.

2. To reject a call, press and hold the Call button (2) for two seconds.

3. During a call, press the Call button (2) once to end it.

Microphone The speaker is equipped with a microphone (6) that you can use for your calls. LED Status - The LED (7) alternates between red and blue during searching and pairing. - The LED (7) lights up red and blue simultaneously for 2 seconds during power on and power off. - The LED (7) blinks twice in blue every 3 seconds when speaker is paired. - The LED (7) blinks three times in red every 15 seconds when the battery is low. Connecting to an audio player (without Bluetooth

1. Connect the 3.5mm audio cable to the headphone’s 3.5mm jack and the

other end of the cable to your personal device.

2. Turn the headphone on.

3. Click on your device’s play button to listen to your desired audio le.

4. You can also listen to audio les from Internet.

5. To turn the headphone off, slide the ON/OFF switch (5) down.

6. Unplug the cable from the headphone and the playing device.

• Speaker driver 20mW x 2, ø 40mm, 24 Ohms +/- 15%, frequency response 40Hz - 20kHz

• Microphone ø4.0, -42dB +/-3dB, Omni-directional, S/N >= 60 dBA, frequency response 20 – 20kHz

• Built-in rechargeable battery, 300mAh/3.7V, Li-ion Polymer

• With 3.5mm audio in jack

• Charging current: DC5V, 50-180mA

• Standby current: 50mA

• Charging time: around 3-4 hours

• Playing time: around 5-8 hours with normal working current 60-200mA

• Standby time: 1 month

• Low battery indication

We, Lexibook® S.A. 2, avenue de Scandinavie 91953 Courtaboeuf Cedex – France Declare under our sole responsibility that the following product: Kind of product: Bluetooth

Speaker Type designation: BTHP400series Is in compliance with the following standards: EN 60065: 2002 +A1 : 2006 +A2 : 2010 +A11 : 2008 +A12 : 2011 EN 55013: 2013 EN 55020: 2007 +A11 : 2011 EN 61000-3-2 : 2006 +A1 : 2009 +A2 : 2009 EN 61000-3-3:2013 EN 300 328 V1.8.1 EN 301 489-1 V1.9.2 EN301 489-17 V2.2.1 EN 62479 : 2010 We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission. Yiu Wai Man Product Development Manager 30/01/2015 (Hong Kong) CONFORMITY DECLARATION Volume To decrease the volume, press the – button (4). To increase the volume, press the + button (3). CAUTION: Too high volume, especially when using headphones, can damage your hearing. For this reason, please turn the volume down. Previous/ Next Press and hold the – button (4) for one second to go back to the previous track. Press and hold the + button (3) for one second to go to the next track. Play Press the Play/Pause button (2) to play audio les from your player. Auto play/pause in Bluetooth

1. When you take off the headphone for more than 3 seconds, the music

2. The music resumes when you put the headphone back on within 5 minutes.

3. After 5 minutes, the headphone enters sleep mode and the Bluetooth

4. When you put the headphone back on during sleep mode, the headphone

reconnects to the last paired device. You can play the music again by pressing the Play button. Notes: Some music players do not fully support Bluetooth

audio controls. Play/pause, previous and next buttons on the Bluetooth

speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the headphone. Handsfree mode for phone calls

1. Press the Call button (2) once to answer calls.

2. To reject a call, press and hold the Call button (2) for two seconds.

3. During a call, press the Call button (2) once to end it.

Microphone The speaker is equipped with a microphone (6) that you can use for your calls. LED Status - The LED (7) alternates between red and blue during searching and pairing. - The LED (7) lights up red and blue simultaneously for 2 seconds during power on and power off. - The LED (7) blinks twice in blue every 3 seconds when speaker is paired. - The LED (7) blinks three times in red every 15 seconds when the battery is low. Connecting to an audio player (without Bluetooth

1. Connect the 3.5mm audio cable to the headphone’s 3.5mm jack and the

other end of the cable to your personal device.

2. Turn the headphone on.

3. Click on your device’s play button to listen to your desired audio le.

4. You can also listen to audio les from Internet.

5. To turn the headphone off, slide the ON/OFF switch (5) down.

6. Unplug the cable from the headphone and the playing device.

• Speaker driver 20mW x 2, ø 40mm, 24 Ohms +/- 15%, frequency response 40Hz - 20kHz

• Microphone ø4.0, -42dB +/-3dB, Omni-directional, S/N >= 60 dBA, frequency response 20 – 20kHz

• Built-in rechargeable battery, 300mAh/3.7V, Li-ion Polymer

• With 3.5mm audio in jack

• Charging current: DC5V, 50-180mA

• Standby current: 50mA

• Charging time: around 3-4 hours

• Playing time: around 5-8 hours with normal working current 60-200mA

• Standby time: 1 month

• Low battery indication

• Effective distance: 10m (straight line without obstacle) SPECIFICATIONS

BTHP400seriesIM1045_9Jan_V08.indb 9 09/01/2015 2:17 PM10 ENGLISH This product is not a toy. Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth

speaker once every 3 months in order to maintain the battery life. This product is covered by our 2-years warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modication on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information. Reference: BTHP400series Designed and developed in Europe – Made in China ©LEXIBOOK® United Kingdom & Ireland For any further information, please call 0808 100 3015 www.lexibook.com Environmental Protection: Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
