USER MANUAL BTHP500SW LEXIBOOK

Star Wars Bluetooth® Stereo Headphone

Black and white photo of a VADER headphones with stylized skull design (no visible text or symbols)

MODE D'EMPLOI INSTRUCTION MANUAL

LEXIBOOK®

BTHP500SW

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners.

© 2015 Bluetooth SIG, Inc.

Diagram of a multi-band headphones with numbered labels pointing to specific ear components

Diagram of a pair of headphones with numbered labels pointing to the ear structure.

DÉBALLAGE DE L'APPAREIL

EMPLACEMENT DES TOUCHES

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x Bluetooth® Stereo Headphone / 1 x micro USB cable /
1 x 3.5mm audio cable

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

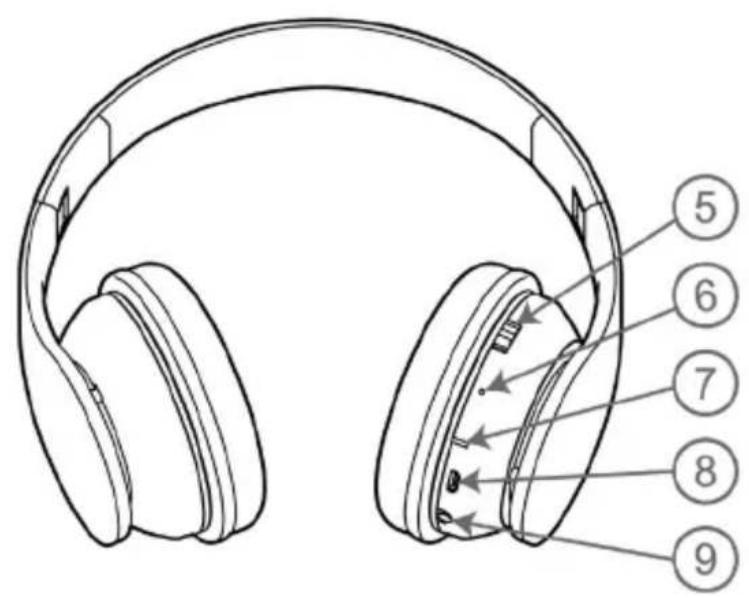

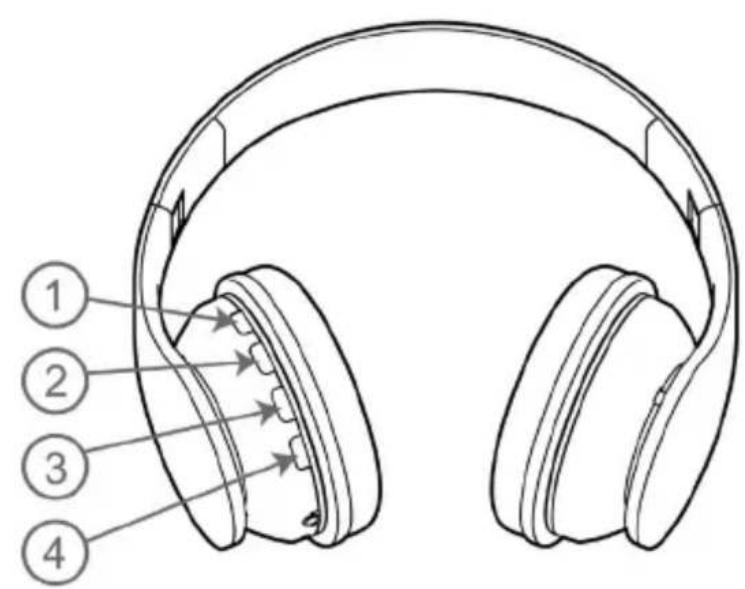

LOCATION OF CONTROLS

1. Power on/off
2. Play/Pause

Pairing

Call button

1. Volume + / Next track

2. Volume - / Previous track

3. Switch to turn on/off Darth
   Vader eyes

4. Microphone
5. LED indicator
6. Micro USB port
7. 3.5mm jack for wired headphone

TURNING THE DEVICE ON AND OFF

1. To turn the headphone on, press and hold the Power button (1) for 2 seconds.
2. To turn it off, press and hold the Power button for 2 seconds.
3. This Bluetooth® headphone offers auto on/off function. So once you put the headphone on your ears, it will automatically turn on, and automatically turn off if you don't wear it for more than 5 minutes.

Notes:

• If the button (5) is switched on, Darth Vader eyes will be lighting up while pressing Power on/off.
  -When the battery is too low, the headphone powers off automatically to protect the product.

WARNING: Significant electromagnetic interference or electrostatic discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.

CHARGING THE DEVICE

1. Make sure to power off the headphone before charging it.
2. Connect the micro USB side of the cable to the headphone's micro USB port (8).
3. Connect the other side of the cable to an USB power source.

Notes:

• The LED (7) lights up red when the headphone is charging.
• The LED (7) indicator turns off when charging is complete.

PAIRING

1. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.). Please refer to your device's instruction manual on how to activate this function.
2. Turn the headphone on to activate the auto-detection of a nearby device. Darth Vader eyes flash.

Notes:

• If your player and the headphone do not automatically pair with each other, please select "BTHP500SW" in the Bluetooth® list.
• When turned on, the headphone automatically searches for the device it has previously synchronized with.
• If no device is detected, the headphone will start pairing a new device.
• Press the PAIRING button (1) for two seconds to disconnect the headphone from the current device and start a new pairing.
• If your Bluetooth® device requires a password, the default password is 0000.
• Darth Vader eyes flash twice every 3 seconds when the headphone is paired. 7

HEADPHONE FUNCTIONS

Volume

To decrease the volume, press the - button (4). To increase the volume, press the + button (3).

CAUTION: Too high volume, especially when using headphones, can damage your hearing. For this reason, please turn the volume down.

Previous/ Next

Press and hold the – button (4) for one second to go back to the previous track. Press and hold the + button (3) for one second to go to the next track.

Play

Press the Play/Pause button (2) to play audio files from your player.

Auto play/pause in Bluetooth® mode

1. When you take off the headphone for more than 3 seconds, the music enters pause mode.
2. The music resumes when you put the headphone back on within 5 minutes.
3. After 5 minutes, the headphone enters sleep mode and the Bluetooth® connection stops.
4. When you put the headphone back on during sleep mode, the headphone reconnects to the last paired device. You can play the music again by pressing the Play button.

Notes: Some music players do not fully support Bluetooth® audio controls. Play/pause, previous and next buttons on the Bluetooth® speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the headphone.

Handsfree mode for phone calls

1. To answer calls, press ▶(2) once.
2. To reject a call, press and hold 1 for 2 seconds.
3. To hang up, press ▶ once.

Microphone

The headphone is equipped with a microphone (6) that you can use for your calls.

LED Status

• LED (7) lights up red when headphone is charging and turn off when charging is complete.
• Darth Vader eyes flash when searching device/pairing and flash twice every
  3 seconds when the headphone is paired.
• Darth Vader eyes light up for 2 seconds during power on/off.
• Darth Vader eyes blink three times every 15 seconds when the battery is low.

Connecting to an audio player (without Bluetooth®)

1. Connect the 3.5mm audio cable to the headphone's 3.5mm jack and the other end of the cable to your personal device.
2. Turn the headphone on.
3. Click on your device's play button to listen to your desired audio file.
4. You can also listen to audio files from Internet.
5. To turn the headphone off, press and hold the power button for 2 sec.
6. Unplug the cable from the headphone and the playing device.

Note: Play/Pause, Volume +, Volume - buttons on the headphone may not respond. To get the best control experience in the said player, use the controls of your music player rather than those on the headphone.

(1) To prevent possible hearing damage, do not listen at high value levels for long periods.
(2) Fully understand user manual before use.
(3) Ensure your player at low value levels or power off before you leaving.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED

BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS

SPECIFICATIONS

• Bluetooth® V3.0 Technology
• Speaker driver 20mW x 2, ø 40mm, 24 Ohms +/- 15%, frequency response 40Hz - 20kHz
• Microphone 4.0 , -42dB +/-3dB, Omni-directional, S/N >= 60 dBA, frequency response 20 – 20kHz
  • Built-in rechargeable battery, 300mAh/3.7V, Li-ion Polymer
• With 3.5mm audio in jack
  • Charging current: DC5V, 180mA
  • Standby current: 94uA
  • Charging time: around 3-4 hours
• Playing time: around 5-8 hours with normal working current 60-200mA
  • Standby time: 1 month
• Low battery indication
  • Effective distance: 10m (straight line without obstacle)

CONFORMITY DECLARATION

We, Lexibook® S.A.

Declare under our sole responsibility that the following product:

Kind of product: Star Wars Bluetooth® Stereo Headphone

Type designation: BTHP500SW

Is in compliance with the following standards:

EN 60065:2014

EN 55013: 2013

EN 55020: 2007 +A11 : 2011

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 300 328 V1.9.1

EN 301 489-1 V1.9.2

EN301 489-17 V2.2.1

EN 62479:2010

We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission.

Yiu Wai Man

Product Development Manager

17/07/2015 (Hong Kong)

C€0890

MAINTENANCE AND WARRANTY

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® speaker once every 3 months in order to maintain the battery life.

This product is covered by our 2-years warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: BTHP500SW

Designed and developed in Europe – Made in China

©LEXIBOOK®

© & ™ Lucasfilm Ltd.

United Kingdom & Ireland

For any further information, please call 0808 100 3015

www.lexibook.com

This product is not a toy.

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
