Product type	Bluetooth audio headset
Brand	Lexibook
Model	Violetta (BTHP400series)
Bluetooth technology	Bluetooth V3.0
Effective distance	10 m (straight line without obstacles)
Battery type	Li-ion polymer 300 mAh / 3.7 V
Playback battery life	5 to 8 hours
Charging time	3 to 4 hours
Connectivity	Micro USB (charging), 3.5 mm audio jack
Speakers	2 x 20 mW, ø 40 mm, 24 ohms
Frequency response	40 Hz - 20 kHz
Microphone	Omnidirectional, -42 dB +/- 3 dB
Main functions	Play/pause, next/previous track, volume, hands-free calling, auto pause/sleep
LED indicator	Red/blue for charging, pairing, low battery
Care and cleaning	Wipe with a soft dry cloth; for stubborn stains, slightly damp cloth (soapy water) then dry
Safety	Automatic shutdown when battery low; do not use harsh cleaners
Spare parts and repairability	Not specified; 2-year warranty, contact retailer for after-sales service
General information	Designed in Europe, made in China

Frequently Asked Questions - Violetta LEXIBOOK

How do I pair the headset with my smartphone?

Turn on Bluetooth on your smartphone, then turn on the headset. The LED flashes blue and red. Select BTHP400 from the device list. If a password is requested, enter 0000.

How do I charge the battery?

Turn off the headset. Connect the supplied micro USB cable to the micro USB port (8) and the other end to a USB power source (charger, computer). The red LED indicates charging; it turns off when charging is complete. Allow 3 to 4 hours.

What is the battery life?

Playback battery life is approximately 5 to 8 hours depending on volume. In standby, the battery lasts up to 1 month. When the battery is low, the headset automatically shuts down.

The music pauses on its own, why?

The headset has a built-in auto pause function: if you remove it for more than 3 seconds, the music pauses. If you put it back on within 5 minutes, it resumes where it stopped. Beyond that, the headset goes into sleep mode.

How do I adjust volume and change tracks?

Press + (3) to increase volume, - (4) to decrease. Hold - for 1 second to go to the previous track, and + to go to the next track.

What is the Bluetooth range?

The effective distance is 10 meters in a straight line without obstacles. Beyond that, the connection may drop or audio quality may degrade.

How do I clean the headset?

Turn off and unplug the headset. Wipe with a soft dry cloth. For stubborn dirt, use a slightly damp cloth (water and soap), wring it well, then dry with a dry cloth. Never use alcohol, gasoline, thinner, or chemical products.

What to do if the headset does not turn on or does not respond?

Make sure the battery is charged. If the problem persists, turn the headset off and on, or disconnect/reconnect the USB cable. In case of malfunction due to electromagnetic interference, turn off and on again. If nothing works, contact Lexibook customer service at 01 84 88 58 58.

Is the headset covered by warranty?

Yes, the product is covered by a 2-year warranty against defects in materials and workmanship. To claim it, contact your retailer with proof of purchase. The warranty does not cover damage due to misuse or unauthorized intervention.

Can I use the headset with a non-Bluetooth device?

Yes, connect the supplied 3.5 mm audio cable to the headphone jack (9) and your player. Turn on the headset and use your player's controls. You can thus listen to music from an iPod, computer, or any device with a headphone output.

USER MANUAL Violetta LEXIBOOK

Bluetooth® Stereo Headphone

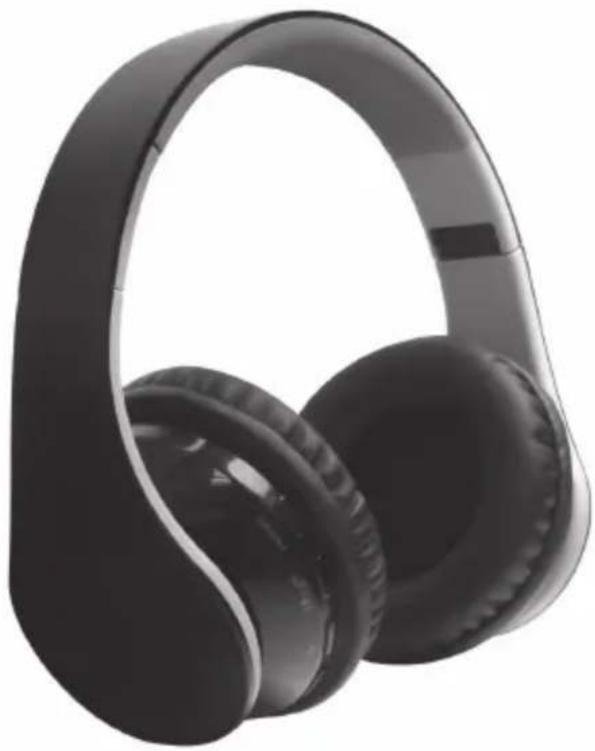

Black and white photo of a modern black and white headband with glossy finish (no text or symbols visible)

MODE D'EMPLOI INSTRUCTION MANUAL

LEXIBOOK®

BTHP400series

The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners.

© 2015 Bluetooth SIG, Inc.

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

DÉBALLAGE DE L'APPAREIL

EMPLACEMENT DES TOUCHES

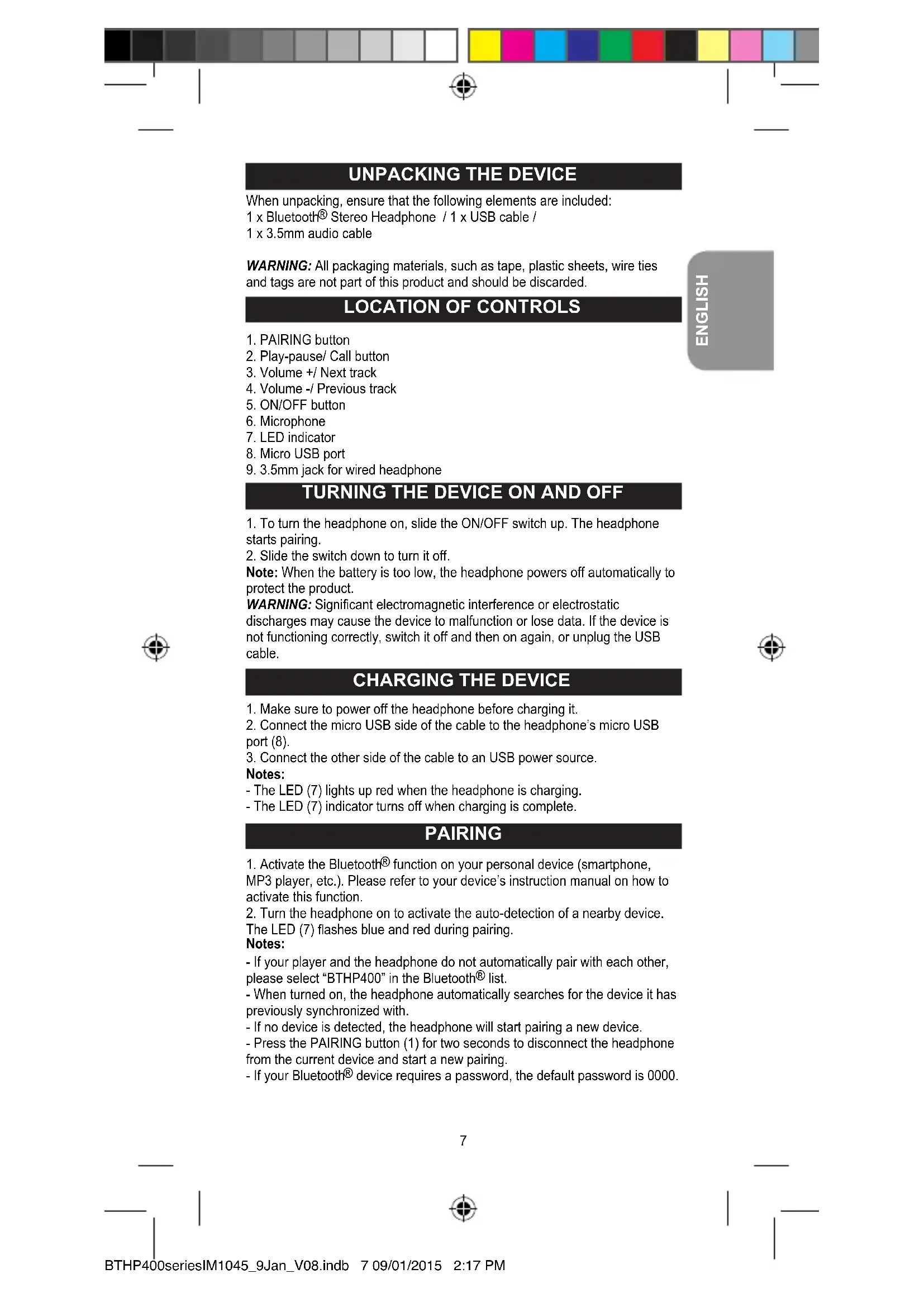

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x Bluetooth® Stereo Headphone / 1 x USB cable /
1 x 3.5mm audio cable

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

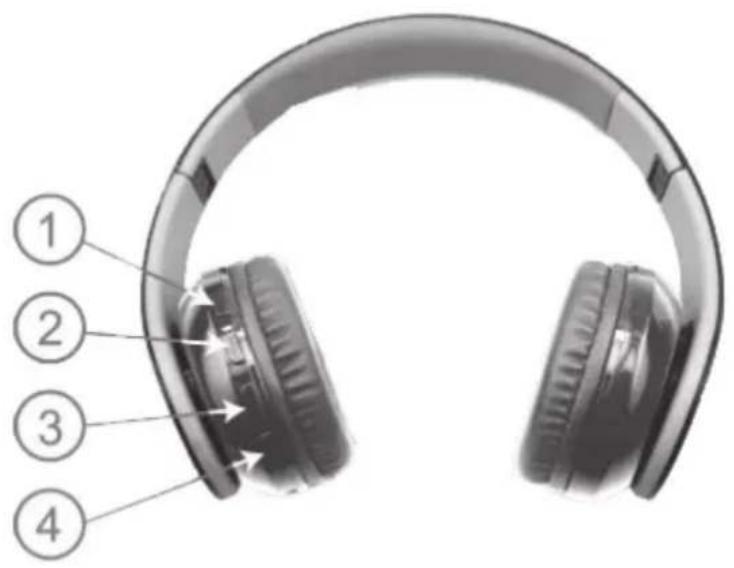

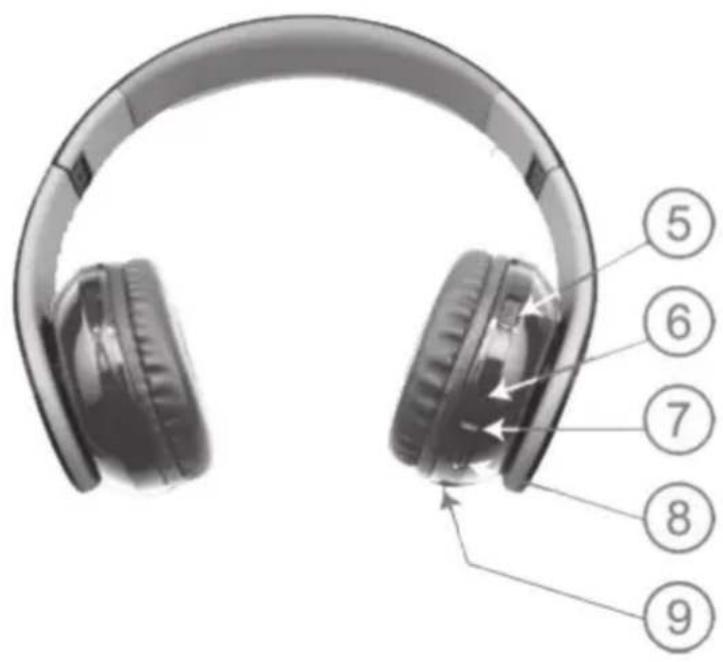

LOCATION OF CONTROLS

1. PAIRING button
2. Play-pause/ Call button
3. Volume +/ Next track
4. Volume -/ Previous track
5. ON/OFF button
6. Microphone
7. LED indicator

8. Micro USB port

9. 3.5mm jack for wired headphone

TURNING THE DEVICE ON AND OFF

1. To turn the headphone on, slide the ON/OFF switch up. The headphone starts pairing.
2. Slide the switch down to turn it off.
   Note: When the battery is too low, the headphone powers off automatically to protect the product.
   WARNING: Significant electromagnetic interference or electrostatic discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.

CHARGING THE DEVICE

1. Make sure to power off the headphone before charging it.
2. Connect the micro USB side of the cable to the headphone's micro USB port (8).
3. Connect the other side of the cable to an USB power source.

Notes:

• The LED (7) lights up red when the headphone is charging.
• The LED (7) indicator turns off when charging is complete.

PAIRING

1. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.). Please refer to your device's instruction manual on how to activate this function.
2. Turn the headphone on to activate the auto-detection of a nearby device. The LED (7) flashes blue and red during pairing.

Notes:

• If your player and the headphone do not automatically pair with each other, please select "BTHP400" in the Bluetooth® list.
• When turned on, the headphone automatically searches for the device it has previously synchronized with.
• If no device is detected, the headphone will start pairing a new device.
• Press the PAIRING button (1) for two seconds to disconnect the headphone from the current device and start a new pairing.
• If your Bluetooth® device requires a password, the default password is 0000.

HEADPHONE FUNCTIONS

Volume

To decrease the volume, press the - button (4). To increase the volume, press the + button (3).

CAUTION: Too high volume, especially when using headphones, can damage your hearing. For this reason, please turn the volume down.

Previous/ Next

Press and hold the – button (4) for one second to go back to the previous track. Press and hold the + button (3) for one second to go to the next track.

Play

Press the Play/Pause button (2) to play audio files from your player.

Auto play/pause in Bluetooth® mode

1. When you take off the headphone for more than 3 seconds, the music enters pause mode.
2. The music resumes when you put the headphone back on within 5 minutes.
3. After 5 minutes, the headphone enters sleep mode and the Bluetooth® connection stops.
4. When you put the headphone back on during sleep mode, the headphone reconnects to the last paired device. You can play the music again by pressing the Play button.

Notes: Some music players do not fully support Bluetooth® audio controls. Play/pause, previous and next buttons on the Bluetooth® speaker may not respond. The music player may also turn off. To get the best control experience in the said player, use the on-screen track controls of your music player rather than those on the headphone.

Handsfree mode for phone calls

1. Press the Call button (2) once to answer calls.
2. To reject a call, press and hold the Call button (2) for two seconds.
3. During a call, press the Call button (2) once to end it.

Microphone

The speaker is equipped with a microphone (6) that you can use for your calls.

LED Status

• The LED (7) alternates between red and blue during searching and pairing.
• The LED (7) lights up red and blue simultaneously for 2 seconds during power on and power off.
• The LED (7) blinks twice in blue every 3 seconds when speaker is paired.
• The LED (7) blinks three times in red every 15 seconds when the battery is low.

Connecting to an audio player (without Bluetooth®)

1. Connect the 3.5mm audio cable to the headphone's 3.5mm jack and the other end of the cable to your personal device.
2. Turn the headphone on.
3. Click on your device's play button to listen to your desired audio file.
4. You can also listen to audio files from Internet.
5. To turn the headphone off, slide the ON/OFF switch (5) down.
6. Unplug the cable from the headphone and the playing device.

SPECIFICATIONS

• Bluetooth® V3.0 Technology
• Speaker driver 20mW x 2, ø 40mm, 24 Ohms +/- 15%, frequency response 40Hz - 20kHz
• Microphone 4.0 , -42dB +/-3dB, Omni-directional, S/N >= 60 dBA, frequency response 20 – 20kHz
  • Built-in rechargeable battery, 300mAh/3.7V, Li-ion Polymer
• With 3.5mm audio in jack
• Charging current: DC5V, 50-180mA
• Standby current: 50mA
  • Charging time: around 3-4 hours
• Playing time: around 5-8 hours with normal working current 60-200mA
• Standby time: 1 month
• Low battery indication
  • Effective distance: 10m (straight line without obstacle)

CONFORMITY DECLARATION

We, Lexibook® S.A.

Declare under our sole responsibility that the following product:

Kind of product: Bluetooth® Speaker

Type designation: BTHP400series

Is in compliance with the following standards:

We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission.

Yiu Wai Man

Product Development Manager

30/01/2015 (Hong Kong)

C€0890

MAINTENANCE AND WARRANTY

ENGLISH

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® speaker once every 3 months in order to maintain the battery life.

This product is covered by our 2-years warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information.

Reference: BTHP400series Designed and developed in Europe – Made in China ©LEXIBOOK®

United Kingdom & Ireland For any further information, please call 0808 100 3015

www.lexibook.com

This product is not a toy.

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
