Product type	Clock Radio
Brand	Roadstar
Model	CLR2750
Main power supply	230 V AC, 50 Hz
Backup battery	9V (type 6F22/006P) not included
FM range	87.5 - 108 MHz
Display	LCD
Functions	Clock, Alarm, Radio or buzzer alarm, Snooze, Auto-off (Sleep), Dimmer
Alarm modes	Buzzer or Radio
Snooze function	8-minute snooze
Sleep function	Up to 59 minutes
Cleaning	Soft, slightly damp cloth with mild detergent solution
Safety	Do not expose to rain or moisture, avoid heat and dust

Frequently Asked Questions - CLR2750 ROADSTAR

How to set the time on the CLR2750?

To set the time, press and hold the clock setting button (button 1). Press the hour setting button (5) to advance the hours, then the minute setting button (6) for minutes. Release the clock setting button. The clock operates on a 24-hour format.

How to set the alarm?

Set the function selector (9) to STANDBY. Press and hold the alarm setting button (4). Press the hour setting button (5) for hours, and the minute setting button (6) for minutes. Release the alarm button. To check, briefly press the alarm button.

How to use the radio alarm?

First set the alarm time as described. Then tune to a radio station following the listening instructions. Set the volume to a comfortable level. Set the function selector to AUTO. The alarm indicator lights up. To turn off the alarm, press the alarm stop button (4) or set the selector to STANDBY.

How does the Snooze function work?

When the alarm sounds, press the Snooze button (3). The alarm stops for about 8 minutes, then sounds again. You can repeat this action as many times as desired.

How to use the Sleep function (auto-off)?

Set the function selector (9) to STANDBY or AUTO. Press the Sleep button (2). The display shows 59 minutes and the radio turns on. It will automatically turn off after 59 minutes. To reduce the duration, press the minute setting button (6) and the Sleep button simultaneously.

How to install the backup battery?

The battery compartment is located under the unit. Insert a 9V type 6F22/006P battery (not included) respecting the polarity. An alkaline battery is recommended for longer life. Replace it every 9 to 12 months.

What to do if the display flashes?

A flashing display indicates a power outage and a missing or discharged backup battery. The clock and alarm must be reprogrammed. Replace the backup battery if necessary, then set the time and alarm.

What is the FM frequency range?

The FM range covers frequencies from 87.5 to 108 MHz. Use the station tuning knob (12) to tune to a station.

How to clean the clock radio?

Use a soft, clean cloth slightly dampened with a mild, non-abrasive detergent solution. Never use benzene, thinners, or other solvents. Avoid allowing liquid to seep into the unit.

What safety precautions should I take?

Do not expose the unit to rain or moisture. Avoid extreme temperatures, dust, and vibration. Do not connect the unit to a power source other than 230 V AC 50 Hz. Do not attempt to insert objects into the ventilation slots.

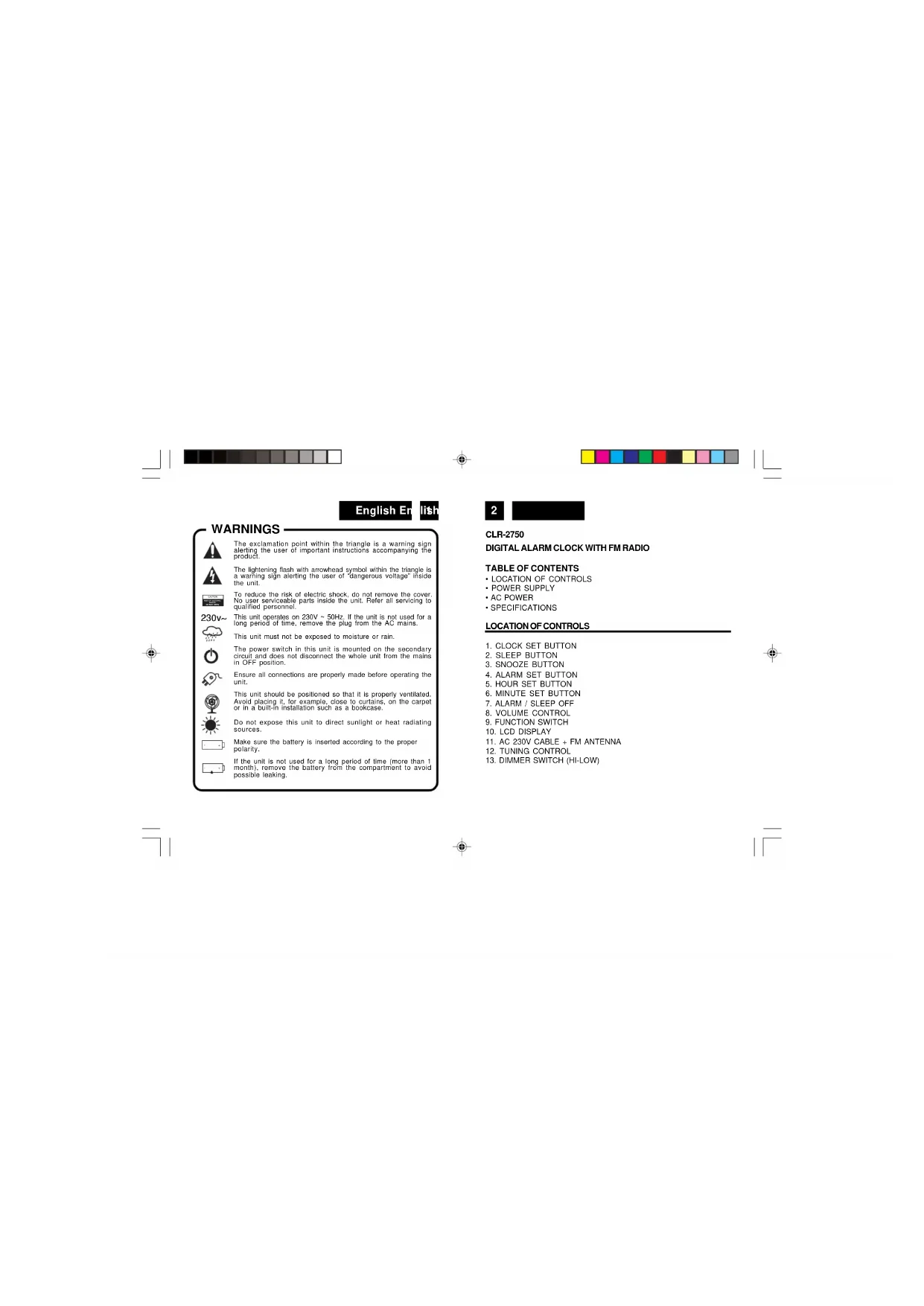

USER MANUAL CLR2750 ROADSTAR

The explanation point within the triangle is a warning sign. The user of the important instructions accompanying the product.

The lightning flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the triangle.

To reduce the risk of electric shock, do not remove the cover. Remove the cover parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz .If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the main POWER SWITCH.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. The unit should be positioned in the same blocks, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Make sure the battery is inserted according to the proper polarity.

If the unit is not used for a long period of time [more than 1 month], remove the battery from the compartment to avoid possible leaking.

CLR-2750

DIGITAL ALARM CLOCK WITH FM RADIO

TABLE OF CONTENTS

LOCATION OF CONTROLS
- POWER SUPPLY
- AC POWER
SPECIFICATIONS

LOCATION OF CONTROLS

1. CLOCK SET BUTTON
   2.SLEEP BUTTON
   3.SNOOZE BUTTON
2. ALARM SET BUTTON
   5.HOUR SET BUT
3. MINUTE SET BUTTON
4. ALARM/SLEEP OFF
5. VOLUME CONTROL
6. FUNCTION SWITCH
7. LCD DISPLAY
8. AC 230V CABLE + EM ANTENNA
9. TUNING CONTROL
10. DIMMER SWITCH (HI-LOW)

English En

1i3h

POWERSUPPLY

This unit operates from a main supply of 230V 50Hz .Connect the AC power cord to the AC household main outlet. Ensure that the voltage is as indicated on the rating plate on the rear of the unit.

Battery Back-up Power Failure Protection

This radio has a battery back up circuit that will keep the correct time and alarm settings in the event of a temporary power interruption. Install a 9-volt battery (type 6F 22/006P), not included, into the battery compartment located on the bottom of the unit.

Note: We recommend an alkaline battery for longer usable life. Change the battery every 9 to 12 months for best result and avoid possible battery leakage.

If power is temporarily interrupted the display will blink and the radio will not play. However, the battery back-up circuit will continue to maintain the clock and alarm settings. When power is restored the clock will display the correct time and alarm settings, and no adjustment is necessary.

Note: If power is interrupted and there is no battery in the compartment or the battery is exhausted. The time and alarm settings will be lost. When power is restored the clock will begin to flash indicating that the time and alarm settings must be corrected.

SETTING THE CORRECT TIME

1. Press and hold the CLOCK SET Button (1).
2. Press HOUR button (5) to advance hour
3. Press MINUTE button (6) until the correct time is displayed.
4. Release the CLOCK SET Button (1).

SETTING THE WAKE UPTIME

1. Set the FUNCTION Selector (9) to the STANDBY position.
2. Set the alarm time by following this procedure:
3. Press and hold the ALARM SET Button (4).
4. Press the HOUR Button (5) to advance hour press MINUTE Button (6) until the desired alarm time is displayed.
5. Release the ALARM/SET Button (4).
6. To check the correct alarm time is set, press the ALARM SET (4).

WAKETO BUZZERALARM

1. Set the alarm time as shown above.
2. Set the Function Selector (9) to the BUZ position.

The ALARM 1 indicator will light up on the top right side of the display.

1. To switch off the alarm either press the AL OFF Button (4), or set the FUNCTION Selector (9) to the STANDBY position.

English En

lish

WAKE TO THE RADIO

1. Set the alarm time as shown above.
2. Follow the procedure in LISTENING TO THE RADIO to tune the radio to a station.
3. Set the VOLUME Control (8) to a level you feel will wake you. 4. Set the FUNCTION Selector (9) to the AUTO position. ALARM indicator will light up on the top right side of the display.
4. To switch off the alarm either press the AL, OFF Button (4) or set the FUNCTION Selector (9) to the STANDBY position.

1. Set the FUNCTION Selector (9) to the ON position.
2. Turn the TUNING Knob (12) until the desired station is heard.
3. Adjust the VOLUME Control (8) to a comfortable listening level.
4. To turn off the radio, set the Function Selector (9) to the STANDBY position.

Note: For FM reception there is a built-in FM antenna wall at the rear of the unit. Move the wire around to obtain the best reception.

SNOOZEFUNCTION

When the alarm sounds, pressing the SNOOZE Button (3) will temporary stop about 8 minutes then the alarm sounds again.

SLEEPFUNCTION

1. This function enables you to go to sleep listening to the Radio.
2. Set the FUNCTION Selector (9) to STANDBY or AUTO.
3. Press the SLEEP Button (2). The clock display will show 59 minutes. The Radio turns on and will turn off automatically after 59 minutes
4. To select a shorter time press the MINUTE Button (6) while holding the SLEEP Button (2) until the desired sleep time is displayed.
5. To turn off the Radio at any time during the Sleep period, press the ALARM/SLP OFF Button (3).

DIMMER FUNCTION

Select display illumination level with the DIMMER Selector (13).

CARE AND MAINTENANCE

To prevent fire or shock hazard, do not allow this clock radio to be exposed to rain or moisture. This clock radio should not be exposed to direct sunlight, very high or low temperature, moisture, vibration, or placed in a dusty environment.

English En

lish

Do not use abrasives, benzine, thinners, or other solvents to clean the surfaces of the clock radio. To clean it, wipe with a mild non-abrasive defergent solution on a clean soft cloth.

Never attempt to insert wires, pins, or other objects into the ventilation holes or openings on the clock radio.

Note: When setting the Clock or Alarm times remember that this clock radio has a 24 Hour clock mode.

ACPOWER

For your own safety read following instructions carefully before attempting to connect this clock radio to the mains.

This unit is designed to operate on a 230V-50Hz supply only. Connecting it to other power sources may damage it.

Ensure that supply corresponds to the information on the rating label on the bottom of the unit.

8

SPECIFICATIONS

FM Band: 87.5 to 108 MHz

Power Supply: 230VAC. 50 Hz

Back-up Battery : 9V DC 006P (not included)

Design and specifications are subject to change without notice.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
