USER MANUAL 1LD3814 IAN 47584 CRIVIT

10:19 NT 115 Drivit

Gray wristwatch with digital display showing time, battery, and control buttons (no readable text or symbols beyond basic markings)

10:19 H: 11:54 BMW

www.lidl-service.com

MONTRE CARDIO-FRÉQUENCE MÊTRE · 1/2014 · Art.-Nr.: 1-LD3814

FR BE

MONTRE CARDIO- FRÉQUENCE MÈTRE

Mode d'emploi

DE AT CH

HERZFREQUENZ-MESSUHR

Usage and safety instructions

IAN 47584

FR

GB Usage and safety instructions....-71-

METRIC KM - KG KM - KG KM - KG
ou Miles/Pounds (M-LB)
IMPERIAL	M - LB	M - LB	M - LB

Medical procedure diagram showing steps to organize a patient's chest with a Erivit device, including labeled instructions and water droplets.

Surface de contact

Technical diagram showing three steps of a mechanical clamp or grip assembly with directional arrows indicating movement.

CHIME

STDALARM

SIGN HOR

HORA AL

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

-20-

of Mijlen/Pond (M-LB)

IMPERIAL

M - LB

M - LB

M - LB

STRAWBING BACK 1 2 3 4

Technical diagram of a mechanical component with numbered parts and labeled features

Medical illustration showing steps to deliver a patient's skin treatment using Crivit device, with labeled arrows and droplet symbols.

contactpunten

Diagram illustrating three steps of a mechanical device with directional arrows indicating movement or change.

CHIME

STDALARM

SIGN

HOR

HORA

AL

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

IMPERIAL

M - LB

M - LB

M - LB

Medical illustration showing step-by-step instructions for using a device to adjust the skin area of the Eritiv brand, with water droplets indicating fluid flow.

Kontaktfläche

Diagram illustrating three steps of a device grip or adjustment, showing how to change the grip and end.

CHIME STDALARM SIGN HOR HORA AL

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

GB Usage and safety instructions

Table of contents

Table of contents....-71 -

Preliminary note....-73 -

Intended use....-73 -

Scope of delivery - 73 -

Technical specifications....-73 -

Features....-74-

Important safety information....-75 -

- Batteries....- 75 -

- Electrical devices should not be in the hands of children .... - 75

Setup of the heart rate monitor.... - 76 -

Reset....-77 -

Replacing the watch battery - 77 -

Battery low indicator -77-

Wearing the chest belt -78-

Coded transmission -78-

Using the bicycle holder.... - 79 -

Light - 79 -

Important notes on the operation of the wrist watch - 79 -

Speed setting....- 80 -

Time and basic settings....- 80 -

Second time zone - 81 -

Alarm - 82 -

Snooze feature - 82 -

Timer (max. 23:59:00) - 82 -

Stop watch - 83 -

Memory feature....- 83 -

Heart rate measurement - 83 -

-71-

GB

Warning light....- 85 -

Timer - 85 -

Memory feature....- 86 -

Target heart rate....- 86 -

Calories, fat burn and BMI - 87 -

Notes on the BMI - 87 -

Fitness.... - 88 -

Troubleshooting....- 89 -

The heart rate is not shown or is shown incorrectly .... - 89 -

The display is unreadable / the light does not work .... - 89 -

Water resistance of the heart rate monitor - 89 -

Water resistance of the chest belt - 89 -

Cleaning instructions - 90 -

Disposal of the electronic appliance - 90 -

Disposal of the batteries.... - 90 -

Declaration of conformity - 90 -

digi-tech gmbh warranty ...... - 90 -

Warranty conditions - 91 -

Warranty period and defects liability - 91 -

Scope of the warranty....-91 -

Warranty claim procedure - 92 -

Service - 93 -

Supplier - 93 -

-72 -

GB

HEART RATE MONITOR

Preliminary note

Please read the instruction manual before using the product for the first time- even if you are experienced at using electronic equipment. Please take special care when reading the chapter "Important safety information". Keep this instruction manual so you may use it a reference material in the future. If you sell or give this product to someone else it is very important to also include this manual.

Intended use

This electronic appliance is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• Wrist watch incl. battery (CR2032)
- Chest belt incl. battery (CR2032)
- Bicycle holder
- Instruction manual

Technical specifications
Wrist watch

Operating temperature 0-50°C
Dimensions 4,3 x 4,6 cm
Display 2,5 x 2,6 cm
Weight 48g
Battery CR 2032/3V

-73-

GB

Chest belt

Operating temperature 0-50°C
Dimensions 7 x 3,3 x 1,2 cm
Frequency 110 kHz
Weight 51g
Battery CR 2032/3V

Features

Heart rate measurement

• Alarm for maximum heart rate
- Target heart rate training with timer and alarm (Health, Fitness, Performance and user defined)
• Max. heart rate, min. heart rate and average heart rate
- Warning light for high heart rate

Calorie features

• Calories and fat burned during training
- BMI-calculation
- Fitness Level

Stop watch

• 1/100 seconds with 99 lap times

Countdown timer

Time features

• Time
- Calendar
- Alarm with snooze
- Hourly chime
- Second time zone

-74-

GB

Other

- Back light

Important safety information

ATTENTION: Consult your doctor before you begin any training program. Your doctor can help you choose the proper training intensity and heart rate guidelines for your exercises.

This heart rate wrist watch is not a medical device and should only be used as a guide for your training.

- Batteries

Insert the batteries/ rechargeable batteries in the correct polarity. Don't try to recharge non-rechargeable batteries and under no circumstances throw them into fire. Danger of explosion.

Do not use unequal batteries (old and new, Alkaline and carbon, etc.) simultaneously. If you will not use the device for a long time, remove the batteries and store the device in a dry and dust-free place. Improper use of batteries may cause an explosion or leakage. If the batteries have leaked, use gloves and clean the appliance thoroughly with a dry cloth.

- Electrical devices should not be in the hands of children

Never let children use electrical devices unsupervised. Children can't always recognize the possible dangers properly. Batteries/ rechargeable batteries can be life threatening when swallowed. Store the batteries where they cannot be reached by small children. If a battery is swallowed, medical aid must be sought immediately.

Also keep the packaging foils away from children. Danger of suffocation.

-75-

GB

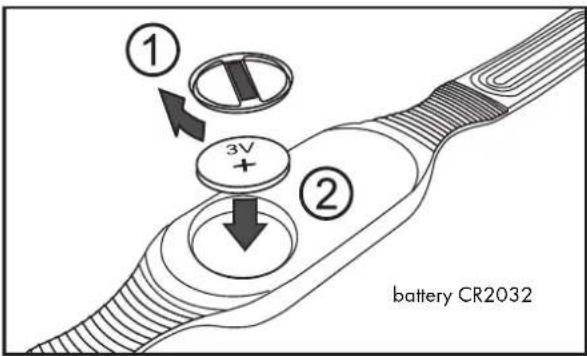

Setup of the heart rate monitor

Use a coin to unscrew the battery cover on the back side of the chest belt and insert the 3V battery with the (+) sign facing up. Screw the battery compartment cover back into the case.

① ② 3V + battery CR2032

Remove the protective film from the display and press MODE, SEL or SET.

Now select English, German, French or Spanish language by pressing SEL and confirm your setting by pressing SET.

Select the unit KM-KG

METRIC KM - KG KM - KG KM - KG
IMPERIAL	M - LB	M - LB	M - LB

in the same way. Complete the setting procedure by pressing MODE.

-76-

GB

Reset

The watch can be reset by pressing and holding SET and SEL together. Only after resetting the watch the other language can be selected.

Replacing the watch battery

The battery replacement can be performed by a watch maker in addition to a water resistance test.

To replace the battery yourself, please read the following instructions first: Remove the screws (1, 2, 3 and 4) from the back side of the watch with a small Phillips screwdriver. Remove the caseback and the battery sticker.

Use a small, flat tool to open the latch (5) of the battery holder. Remove the battery and insert a fresh 3V CR2032 battery with the (+) terminal facing upwards. Ensure that the gasket (6) is seated correctly. Close the latch of the battery holder. Replace the battery sticker and the caseback and replace the screws.

2 1 4 3 SMOSSER

Technical diagram of a mechanical component with numbered parts labeled 5, 6, and 7

Battery low indicator

If the battery voltage on the chest belt battery drops below the voltage required for normal operation,

TXBELTLO BAT

TXGURT BATT

SNGLTXPILE

TXECINBAT BA

will appear on the display. Replace the battery of the chest belt as described in the chapter "Chest belt".

-77-

GB

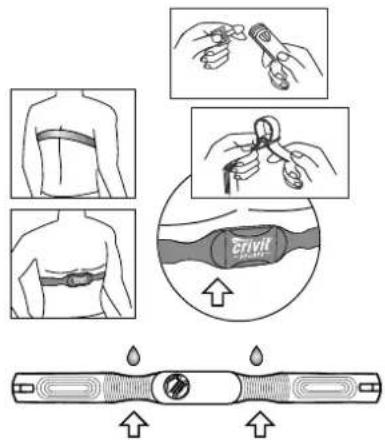

Wearing the chest belt

Adjust the chest belt so that it fits snugly directly below the chest muscles. Moisten the contact areas with water or ECG gel (ECG gel can be purchased at a pharmacy). Ensure that the contact areas constantly remain in skin contact.

Position the chest belt as per the following illustration.

Please ensure that the chest belt is seated properly. When you have exhaled completely the chest belt should still have very slight tension pressing it to your chest.

High voltage power lines, Trains or moving vehicular traffic may interfere with the heart rate measurement. Please consider this when planning your exercise route.

Medical illustration showing steps to organize a patient's chest with a 'Erivit' device, including medical instructions and water droplets.

contact area

Coded transmission

The chest belt's transmissions are digitally coded to prevent interference if you are training with a training partner who is using an identical watch and chest belt. When using the chest belt for the first time, a random channel is selected automatically. The channel is briefly displayed at the top of the display upon entering the heart rate display mode. The available channels are CH10, CH11, CH12, CH13 and CH14.

The channel can be changed by briefly removing the battery from the chest best and reinserting it. The chest belt will randomly select a channel and after approx. 1 minute the heart rate and the new channel will appear on the display of the watch.

-78-

GB

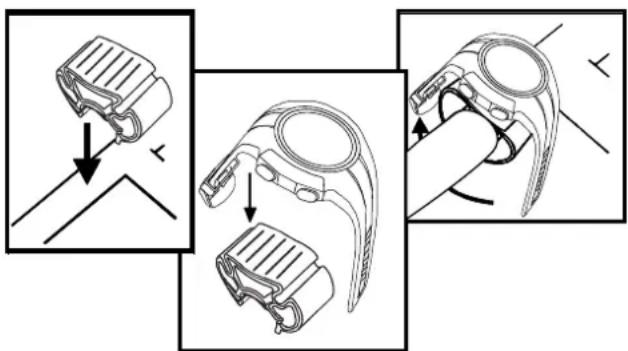

Using the bicycle holder

The included bicycle holder can be used to attach the wrist watch to the handlebar of a bicycle.

Technical diagram illustrating three-step assembly steps of a mechanical clamp or clamp device, with arrows indicating process direction.

Press the bicycle holder onto the top of the handlebar. Handlebars with an especially large diameter may require the use of additional force to snap on the bicycle holder. The heart rate monitor can now be attached to the bicycle holder in the same way that you would attach it to your wrist.

The maximum range of 70cm between the wrist watch and the chest belt should not be exceeded.

Light

Briefly press LIGHT to temporarily activate the light.

Important notes on the operation of the wrist watch

The watch has 3 different Modes of Operation.

-79-

GB

Press MODE to select the mode of operation of the watch.

The order of the modes is as follows:

Time and basic settings

TIME ZEIT TEMPS HORA
Stop watch
CHRONO ST-UHR CHRONO CRONO
Heart rate
HRM PULS FC PULSO

Each mode of operation may have several subfeatures.

The subfeatures can always be accessed by pressing SELSEL

Speed setting

When setting numerical values, press and hold SEL to use the speed setting feature.

Time and basic settings

Press MODE to select the feature before proceeding.

TIME ZEIT TEMPS HORA

The subfeatures of the time mode can be accessed by pressing SEL.

Time and basic settings

TIME ZEIT TEMPS HORA
Alarm
ALARM ALARM ALARM			ALARMA
Timer
TIMER TIMER COMPTE TIMER

-80-

GB

Press and hold SET for 3 seconds to access setting mode.

The display will show

HOLD TO SET

HALTEN=EINST.

MAINT=REGLER

MANT=AJUST

and the 12 or 24 hour selection will blink on the display.

Press SEL to select a setting and confirm your setting by pressing SET. Set the seconds, minutes, hours, year, month and day in the same way.

Now the basic settings will follow. First the year of the birthday setting will appear

BIRTHDAY GEB-TAG DATNAISS CUMPL-AN

Press SEL to set the year and press SET to confirm your setting. Set the month and day in the same way.

Now the weight will appear

WEIGHT

GEMICHT

POIDS

PESO

Set the digits of your weight by pressing SEL and confirm each digit by pressing SET.

Now the height display will appear

HEIGHT GROESSE TAILLE TAMANO

Set each digit of your height by pressing SEL and confirm each digit by pressing SET.

Exit setting mode by pressing MODE.

Second time zone

Press and hold SEL for 3 seconds. The watch will switch to the second time zone display and T2 will appear on the display. Setting the second time zone can be accomplished in the same way as described in the previous paragraph.

Press and hold SEL for 3 seconds to return to normal time mode.

-81-

GB

Alarm

ALARM ALARM ALARM ALARMA

Press and hold SET for 3 seconds to enter setting mode.

"AL" will appear on the display and the minutes of the alarm time will blink.

Press SEL to set the minutes and press SET to confirm your setting. Set the hours in the same way.

You may optionally set the month and day as well.

If neither month nor day are set the alarm will sound daily. If the day is set, the alarm will sound monthly. If both the month and the day are set the alarm will sound only at the set date.

The hourly chime setting will now appear on the display

CHIME STDALARM SIGN HOR HORA AL

Press SEL to select a setting and confirm your setting by pressing SET

(ON/EIN/ACTIF/ENCENDID=on,

OFF/AUS/INACTIF/APAGADO=off).

If the chime is activated, the bell symbol will appear and the watch will chime at the beginning of every hour.

Exit setting mode by pressing MODE. The alarm can be activated or deactivated by pressing SET. If the alarm is activated the alarm symbol "will appear."

When the alarm sounds, press SET, SEL or MODE to stop the alarm.

Snooze feature

If no button is pressed when the alarm sounds, the alarm will shut off after 30 seconds and the symbol "will blink on the display. The alarm will stop and will resume after sounding after 2 minutes. The process will repeat itself 5 times.

Timer (max. 23:59:00)

TIMER TIMER COMPTE TIMER

Press and hold SET for 3 seconds to enter setting mode.

The minutes of the timer time will blink on the display.

-82-

GB

Press SEL to set minutes of the timer time and confirm your setting by pressing SET. Set the hours in the same way. Now the additional settings for the timer will follow. Press SEL to select the desired mode:

Cd r After reaching 0:00 the timer will count the set time again
Cd U After reaching 0:00 the timer will count forward
Cd S After reaching 0:00 the timer will stop

Exit setting mode by pressing MODE. The timer can be started or stopped by pressing SET. Press and hold SET to reset the timer. After the timer time is up an alarm will sound.

Stop watch

Press MODE to select the feature before proceeding.

CHRONO

ST-UHR

CHRONO

CRONO

Press SET to start or stop the stop watch. Press SEL while the stop watch is running to record a lap time. Up to 99 laps can be recorded. Press and hold SET to reset the stop watch.

Memory feature

DATA RECALL

ANSICHT DATEN

APPEL DONNEES

RECUP DATOS

Press SEL while the stop watch is stopped to display the fastest lap on the display. Press SET to display the other lap times.

Please note: The memory feature can only be used if at least one lap time was recorded.

Heart rate measurement

Press MODE to select the feature before proceeding.

-83-

GB

HRM PULS FC PULSD

The subfeatures of the heart rate measurement can only be used when the chest belt is connected.

Press SEL to access the subfeatures of the heart rate watch.

Timer

TIMER

TIMER

COMPTE

TEMPOR

IZADOR

Memory feature

MEMORY SPEICHER MEMOIRE MEMORIA

Target heart rate

ZONE

BEREICH

ZONE

ZONA

Calories, fat burn and BMI

CALORIE

KALORIEN

CALORIES

CALORIAS

Fitness

FITNESS LEVEL

FITNESS LEVEL

NIV FORM PHYSIQ

NIVEL FIT

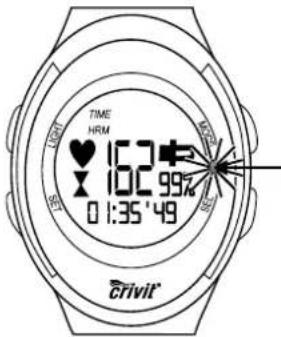

In the middle row of the display the heart rate is shown while wearing the chest belt. If the signal is received from the chest belt the heart symbol will flash. To the right of the heart rate the heart rate in percent of the maximum heart rate is shown. The maximum heart rate is calculated by evaluating your age, weight and height.

-84-

GB

Warning light

TIME HRM 162 102 99% 0 1:35 '49 crivit®

If your heart rate reaches or exceeds 99% of your maximum heart rate, or your heart rate exceeds the target zone values (see target zone) the red warning light will blink and an alarm will sound.

Timer

TIMER TIMER COMPTE TEMPORIZADOR

The bottom row of the display will show the elapsed training time. The middle row will show your heart rate and the heart rate in percent of the maximum heart rate. The timer will start automatically when the chest belt starts measuring the heart rate. The timer will continue counting the time if the feature mode of the watch is changed.

Press SET to select the timer mode:

TIMER total training time

training time in heart rate target zone
▲ training time with heart rate over target zone
▼ training time with heart rate below target zone
Press and hold SET to reset the training time.

-85-

GB

Memory feature

MEMORY SPEICHER MEMOIRE MEMORIA

The stored values are shown in the bottom row of the display.

maximum heart rate during training

HI

H

FO

AL

minimum heart rate during training

LO

N

FA

BA

average heart rate during training

AV

D

MO

PR

Press and hold SET to reset the stored values.

Target heart rate

ZONE

BEREICH

ZONE

ZONA

The bottom row of the display will show the lower and upper limit value of the target zone.

The selected training type is shown on the top row of the display.

L-U user defined

L-1 Health (50-65% of maximum heart rate)

L-2 Fitness (65-80% of maximum heart rate)

L-3 Performance (80-95% of maximum heart rate)

Press and hold SET for 3 seconds to enter setting mode.

Select the training type by pressing SEL. If "U" is selected (user defined) the lower and upper limits can be set. Press SET. The display will show the lower limit. Set the value by pressing SEL and confirm your setting by pressing SET. Set the upper limit in the same way.

-86-

GB

Exit setting mode by pressing MODE. Press and hold SEL to activate the heart rate alarm. When the heart rate alarm is activated, the alarm symbol will appear on and an alarm will sound when the measured heart rate is not within the set zone "BEEP-BEEP...BEEP-BEEP...BEEP-BEEP".

If the measured heart rate is at or above 99% of the maximum heart rate the max. heart rate alarm will sound. "BEEP-BEEP-BEEP-BEEP-BEEP-BEEP". The max. heart alarm is independent of the training zone and the heart rate alarm of the training zone.

Calories, fat burn and BMI

CALORIE

KALORIEN

CALORIES

CALORIAS

The lower row will show the burned calories

CALORIE

KALORIEN

CALORIES

CALORIAS

Press SET to switch to the display of fat burn in gram

FATBURN

FETT CONSGRAISSES

GRASA

or to the display of your BMI

BMI BMI IMC IMC

In the display for calorie burn or fat burn the values can be reset by pressing and holding SET.

Note: To increase the accuracy of the calorie and fat burn displays your age and weight must be set correctly.

Note: The counter for fat burn is only activated while your heart rate is above 120 beats per minute.

Notes on the BMI

The BMI is a statistical measurement that can be used to judge a persons weight. For adults, a value between 18.5 and 25 is considered normal. Values below

-87-

18.5 are considered "underweight". Values above 25 are considered "overweight". Values above 30 are considered "Obese".

The BMI is only a coarse guideline because it does not take a persons body type and body composition into consideration.

Fitness

FITNESS LEVEL

FITNESS LEVEL

NIV FORM PHYSIQ

NIVEL FIT

After your training, immediately press SET. A 5 minute countdown will start (cool down phase).

The bar will show the remaining time. On the left side of the display the heart rate at the beginning of cool down is shown. On the right side of the display the current heart rate is shown. The countdown time is shown on the bottom row of the display.

After 5 minutes your fitness level will appear.

Fitness level Heart rate

6	>130
5	130-120
4	120-110
3	110-105
2	105-100
1	<100

-88-

Troubleshooting

The heart rate is not shown or is shown incorrectly

Make sure the chest belt is positioned correctly and fits well.

Your skin should not be too dry or too cold.

The contact areas can be slightly moistened to improve function.

Electromagnetic interference may have an adverse effect on reception.

The distance between watch and chest belt must be under 70cm.

Other heart rate measuring devices within a 2m range may also cause interference.

Wireless bicycle computers may cause interference.

The batteries may be low and require replacing.

The display is unreadable / the light does not work

Replace the batteries.

Water resistance of the heart rate monitor

Water resistant up to 3 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Water resistance of the chest belt

Water resistance according to IEC 60529 IPx7.

-89-

Cleaning instructions

Clean the heart rate monitor with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

After each use, clean the chest belt and the watch strap with a sponge and lukewarm mild soap water. Dry all parts with a towel and hang the chest belt to dry. Sweat and contaminants are detrimental to the function of the sensor.

Disposal of the electronic appliance

This electronic appliance may not be disposed of with normal household waste. Dispose of the unit at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the appliance. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

Declaration of conformity

If used as intended this product conforms to the basic standards of § 3 and the other relevant provisions of the FTEG (Section 3 of the R&TTE directive).

You can request the declaration of conformity here:

[e-mail]

digi-tech gmbh warranty

This watch includes a 3 year warranty starting on the day of purchase. In case of defects of this heart rate monitor you have, by law, certain rights regarding the vendor of the heart rate monitor. These rights are not changed by the warranty which is described in the following paragraphs.

-90-

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the heart rate monitor within 3 years, the heart rate monitor will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the watch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired heart rate monitor or a new heart rate monitor. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The heart rate monitor was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass.

This warranty becomes void if the heart rate monitor is damaged, is not used in the recommended way or is improperly repaired.

For proper use of the heart rate monitor all instructions in this manual must be adhered to exactly. Use of the heart rate monitor in a way that is discouraged in the manual must be avoided.

The heart rate monitor not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

-91-

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (47584) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
• In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

-92-

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: Eppstein 65817

Country: Germany

-93-

digi-tech gmbh

Valterweg 27A

D-65817 Eppstein
