USER MANUAL DFD20R BESTRON

Abstract black arrow symbol pointing right, no text or symbols present

BESTRON®

DFD20R

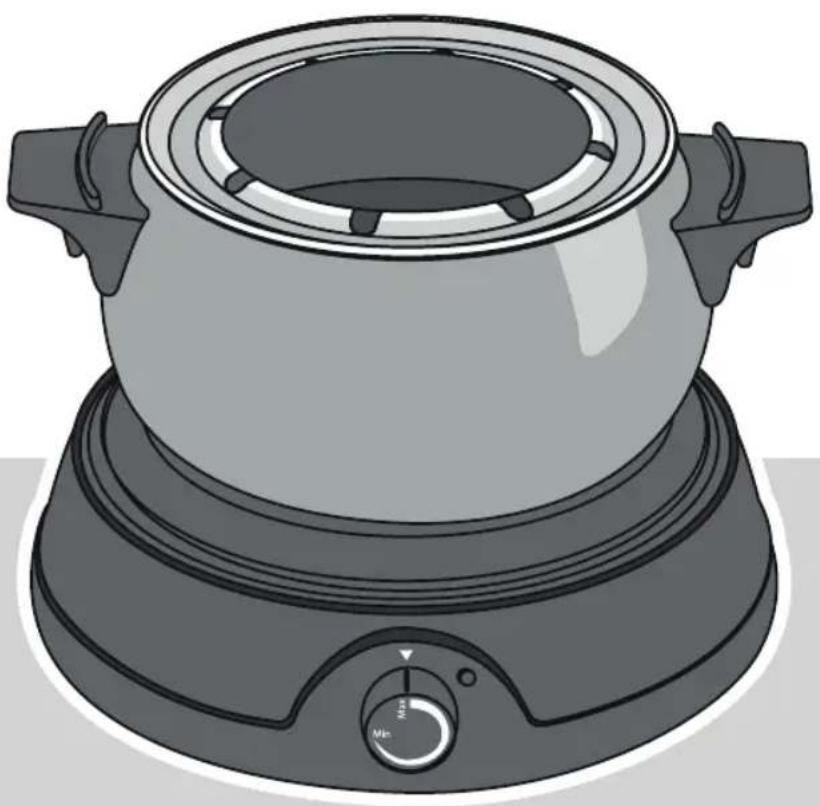

Illustration of a portable stove with a lid and control knob (no text or symbols)

Nederlands

Handleiding fondueset

Deutsch

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

Qualitätskontrolle

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

Handwritten signature or scribble on a line, possibly a signature or artistic mark

R. Neyman

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot. Not touch these parts to prevent burning yourself.

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Plug the appliance only into an earthed wall socket.
  • Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service department.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered. Make sure the air vents are not covered or blocked.
• Never use the appliance in the vicinity of flammable materials.
• Make sure that the appliance and the power cord do not come in contact with sources of heat, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord and plug do not come in contact with water.
• The built-in melt safeguard will be activated in the event of overheating. The power supply will be interrupted, and the appliance cannot be used. The appliance will need to be repaired by a qualified electrician.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
- Never use the appliance in a humid room.
- Place the appliance on a flat, stable surface where it cannot fall.
- Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
- Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
- Never leave the appliance unsupervised whilst it is in use.
- Never move the appliance whilst it is switched on or is still hot. Switch off the appliance, and wait until it has cooled down before you move it.
- Never switch on the appliance without filling it with the minimum required amount of fondue oil (0,45 litres) or other liquid used to fondue the food.
- Use solely oil suitable for fondues. Do not use standard margarine or butter. You can also fondue food with cheese or bouillon.
- Always hold the pan by the handles. The metal parts to which the wooden handles are attached can be very hot.
- Only metal implements with a suitable insulating handle should be used in the fondue oil. Do not touch the metal parts of the forks whilst using the fondue: they can become as hot as the oil.
• Make sure that the food is thoroughly dry before you put it in the fondue. Moist products can cause severe splashing of the hot oil.
• Take extreme care when filling or emptying the fondue pan. The inside of the antisplash rim and the pan are both very hot; the hot vapours and splashes of fat or oil can also cause burns.
- Do not remove or fit the anti-splash rim while the pan is hot.
- Do not splash hot oil on the heating plate. This will begin to smoke, and will smell. Oil spilling from the pan will be collected in the channel around the heating plate.
- Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
- Clean the appliance thoroughly after use (see ‘Cleaning and maintenance’).
- Never immerse the appliance, the plug or the power cord in water or other liquid.
- This appliance may not be used through an external timer or by means of a remote control.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

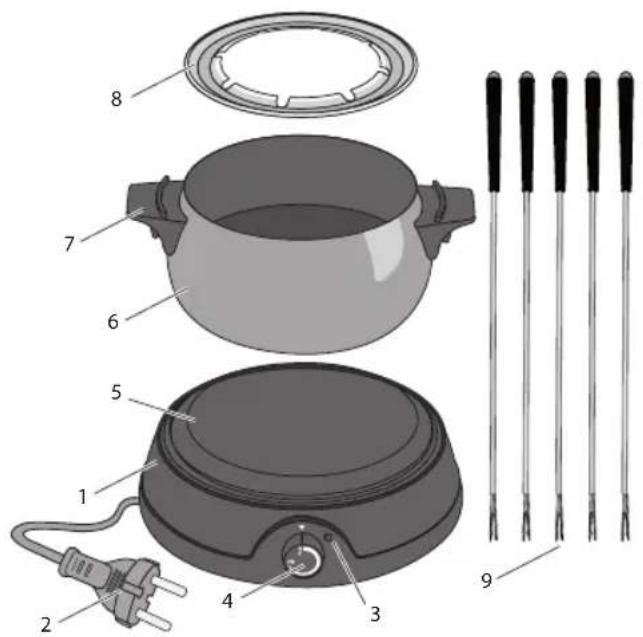

Labeled diagram of a cooking pot and its electrical components, including cooker, pot, pot, and six iron skewers.

1. Base
2. Power cord and plug
3. Indicator light
4. Thermostat dial and On/Off switch
5. Heating plate
6. Fondue pan
7. Insulated handles
8. Anti-splash rim
9. Forks (8)

Figure 1

OPERATION - Before first use

1. Take the appliance out of the packaging.
2. Clean the appliance thoroughly to remove any manufacturing residues (see 'Cleaning and maintenance').
3. When using the appliance for the first time, switch on without the pan on the heating plate (do not do this otherwise). Allow the appliance to heat, under constant supervision, for 15 minutes. A little smoke may be emitted, and the appliance might emit a slight odour. This is not harmful to humans, and will not last long.

OIPERATION - Ways to fondue

You can use the fondue set to fondue small pieces of food at the temperature you require.

• Meat fondue: meat will be drunk in boiling oil (sometimes bouillon). With that are all sorts of sauces served.
  • Japanese or Chinese fondue: meat and vegetables will be drunk in bouillon.
• Fish fondue: pieces of fish will be drunk in bouillon made of fish.

• Chocolate fondue: pieces of cake and fruit will be drunk in molten chocolate. Tip: Place a blade, placemat of other protection underneath the fondue set. The enclosed forks enable you to put pieces of food in the fondue pan, and to remove them when they are done.

• Fill the fondue pan with a maximum of 1,4 litres of oil or bouillon suitable for use in a fondue. Do not use standard margarine or butter.

• Fit the anti-splash rim to the pan.
• Put the plug into the wall socket. The fondue set is switched off when the thermostat dial is turned fully anticlockwise. The indicator light will not be illuminated.
• Turn the thermostat dial to the required setting. The indicator light will illuminate. This indicator light shows that the heating element has been switched on, but that the required temperature has not been reached. The required temperature has been reached once the indicator light extinguishes.
• Fondue the products using the forks.
• Make sure that the food is cooked. This will require between 4 and 7 minutes, depending on the size.
• Make sure that the liquid is at the right temperature for fondueing. The temperature is correct when the liquid is bubbling slightly. When the liquid is not bubbling the liquid is below the required temperature; when it bubbles too much it is above the required temperature.

• After use, turn the thermostat dial fully anticlockwise. Then remove the plug from the wall socket. The indicator light will extinguish.

• In addition to fondue oil, you can also use bouillon or cheese. Cheese fondues are delicious; however, you cannot cook meat in cheese. When using cheese you will need to set the fondue set to a lower temperature than for oil or bouillon.

- Use only metal implements with a suitable insulating handle in the oil.

Make sure that the food is thoroughly dry before you fry it. Moist products can cause severe plashing of the hot oil or fat.

• Take extreme care when filling and emptying the fondue pan, and when removing and fitting the anti-splash rim. The inside of the anti-splash rim and the pan are both very hot; the hot vapours and splashes of fat or oil can also cause burns.

CLEANING AND MAINTENANCE - Cleaning the bowl

1. Allow the bowl to cool down completely, and then remove the oil from the bowl.
2. Remove the remaining oil using absorbent paper kitchen towel.
3. Clean the inside and outside (if necessary) of the pan, the forks and the antisplash rim with hot water to which a little washing-up liquid has been added; do NOT use scourers. Then dry them thoroughly.
4. The pan, anti-splash rim and forks can also be cleaned in a dishwasher.

CLEANING AND MAINTENANCE - Cleaning the housing

1. Turn the thermostat dial fully anticlockwise, and remove the plug from the wall socket.

2. Wait until the heating plate has cooled down sufficiently.

3. Clean the housing with a damp cloth, if necessary with an additional couple of drops of washing-up liquid. After cleaning, dry the housing thoroughly.

4. Either return the oil to the pan, or store it in a securely-sealed container placed in the dark. Do not use the oil more than ten times. You can clean the oil by allowing it to pass through a filter or paper kitchen towel before you reuse it.

5. Store the fondue set.

- Verify that the appliance is not connected to the power supply before you clean it.

• Clean the fondue set after each use.

• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Do not immerse the fondue set in water, or in other liquids.
  • Some parts of this appliance may be sharp. Be careful not to cut yourself.

TECHNICAL INFORMATION

Type: DFD20R

Output: 1250 - 1500W

Power supply: 220 - 240V \~ 50/60Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC

• Low Voltage Directive 2006/95/EC

###

R. Neyman

Quality control

Labeled diagram of a cooking pot and its electrical stewer with numbered parts

Illustration of a cooking pot on a portable stove (no text or symbols)

BESTRON®

DFD20R

v 130910-08
