Product type	External hard drive
Brand	Philips
Model	SPD3040
Interface	USB 2.0 (high-speed)
Capacity	Varies with model (check label)
Transfer speed	480 Mb/s
Rotational speed	7200 rpm
Cache memory	8 MB (32 MB for versions ≥ 750 GB)
System requirements	Windows 2000, Windows XP, Windows Vista; USB 1.1/2.0 port
Mac compatibility	Requires FAT32 formatting before use
Power supply	External AC adapter (included)
Package contents	Hard drive, AC adapter, power cord, USB cable, manual
Dimensions (approx.)	180 x 120 x 30 mm
Weight (approx.)	0.5 kg
Warranty	See the 'Philips Warranty' folder on the drive
Maintenance	Avoid water, shocks, and extreme temperatures. Install in a ventilated area.
Safety	Do not expose to water. Keep plastic bags away from children.
Indicator light	Blue (indicates operation)
Supported operating systems	Windows 2000/XP/Vista, Mac (after formatting)
Usage	Storage, backup, and data transfer
Regulatory information	Compliant with European directives (CE, WEEE)

Frequently Asked Questions - SPD3040 PHILIPS

How to connect the Philips SPD3040 external hard drive?

Plug the power cord into the AC adapter, then connect the unit to the hard drive and a power outlet. Connect the USB cable to the hard drive's USB port and to a free port on the computer. A blue light turns on and a drive icon appears in Windows Explorer. For more details, see the Connection section of the manual.

How to safely disconnect the hard drive?

Click the Safely Remove Hardware icon in the system tray, select the device, then click Stop. Wait for the message 'Safe to Remove Hardware' before disconnecting the USB cable.

My computer does not recognize the hard drive, what should I do?

Check that all cables are properly connected and that the AC adapter is powered. Try a different USB port. If the problem persists, restart the computer. Make sure your operating system is compatible (Windows 2000/XP/Vista). For Mac, format the drive as FAT32.

Can I use this hard drive with a Mac?

Yes, but the drive is preformatted as NTFS for Windows. To use it on a Mac, you must format it as FAT32. Note that formatting erases all data. See the Mac Installation section of the manual.

How to format the hard drive as FAT32 for Mac?

Back up your data first. On a Mac, open Disk Utility, select the Philips drive, then choose Erase and select the format 'MS-DOS (FAT32)'. Confirm. Note that FAT32 limits file size to 4 GB.

What is the warranty on this product?

Warranty information is located in the 'Philips Warranty' folder on the hard drive. You will need Adobe Reader to read them. The warranty may not apply in case of accidental damage or improper use.

What to do if the blue light does not turn on?

Check the power: is the AC adapter properly plugged in and the outlet working? Test the USB cable on a different port. If the light stays off, the hard drive may be defective. Contact Philips support.

The hard drive is making noise, is this normal?

A slight rotation and read/write noise is normal for a 7200 rpm hard drive. If the noise becomes loud, irregular, or is accompanied by clicking, it may indicate a problem. Back up your data and contact support.

How to maintain my external hard drive?

Place it in a ventilated area, away from water, shocks, and extreme temperatures. Use a dry cloth to clean it. Disconnect it properly before moving it. Avoid placing it on unstable surfaces.

Can I use this hard drive with Windows 10?

Yes, the hard drive is compatible with newer Windows operating systems via the USB 2.0 interface. It will be recognized automatically. For optimal performance, ensure your USB drivers are up to date.

USER MANUAL SPD3040 PHILIPS

4 What's in the box?
4 How to connect?
5 How to disconnect?
5 Installation for Mac
6 Important information
7 Need help?
8 FCC Compliance

EN

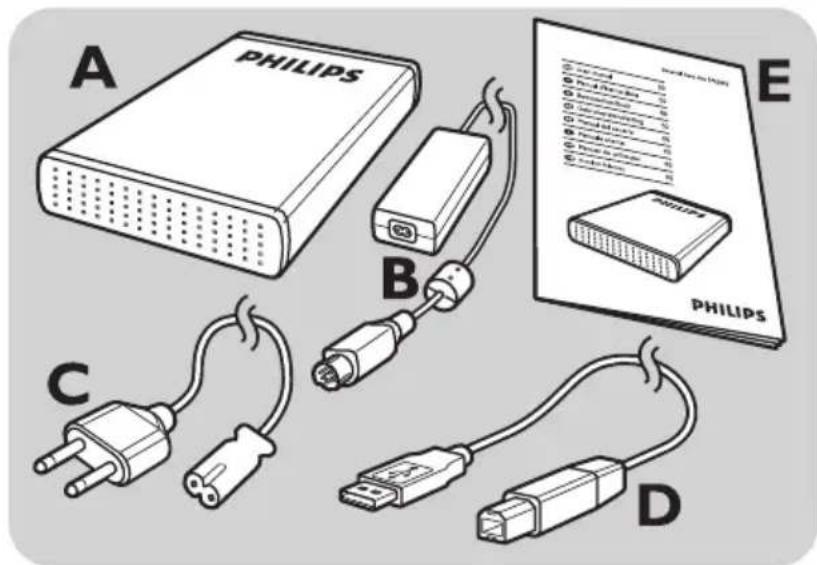

What's in the box?

A:External hard disk
B:Poweradapter
C:Power cord
D:USB cable
E:User manual

How to connect?

Put the Power Adapter (B) and the Power Cord (C) together and connect them to the external hard disk and a power outlet.

Plug the USB cable (D) in the USB port of your external hard disk. Connect the other side of the USB cable to an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the Blue light should light up. (To use the new hardware, the computer sometimes needs to be restarted)

Your hard disk is now ready to use and you can now save and copy data, just as you do when using your internal hard disk.

Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.
2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.
4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

Installation

Installation for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS format. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Look on your external hard disk and browse to the folder 'Philips Warranty'.

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer"

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise

you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Capacity Depending on model

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 7200 rpm

Cache memory 8 MB/32 MB*

System requirements USB 1.1 (USB 2.0 for

max. transfer speed)

Windows 2000,

Windows XP,

Windows Vista

• for versions >= 750 GB

Need help?

For interactive help and support:

www.philips.com/support

For software updates and frequently asked questions:

www.philips.com/storageupdates

Caution:

Changes or modifications made to this equipment not expressly approved by Philips may void the FCC authorization to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The shielded interface cable and connectors must be used in order to comply with the limits for digital device pursuant to subpart B of Part 15 of FCC Rules.

I Double-cliquez sur I'icone Safely Remove

Be responsible Respect copyrights

Installation fur Mac

Be responsible Respect copyright

• for versions >= 750 GB

Hulp nodig?

Be responsible Respect copyrights

• for versions >= 750 GB

Necesita？

• for versions >= 750 GB

Assistenza

Be responsible Respect copyrights

• for versions >= 750 GB

www.philips.com/support

Be responsible. Respect copyright

• for versions >= 750 GB

Yardim?

Interaktif yardu ve destek icin: www.philips.com/support Yazilim guncellemeleri ve sikca sorulan sorular: www.philips.com/storageupdates

Notes

Notes
