SPD5250CC - External hard drive PHILIPS - Free user manual and instructions

Brand	Philips
Model	SPD5250CC
Product type	External hard drive
Storage capacity	500 GB
Interface	USB 3.0
Rotation speed	5400 rpm
Dimensions (W x D x H)	120 x 80 x 15 mm
Weight	180 g
Power supply	USB bus powered
Power consumption	2.5 W (max)
System compatibility	Windows, macOS, Linux
Main functions	Data backup, portable storage, Plug-and-Play
Case material	ABS plastic
Care and cleaning	Clean with a soft, dry cloth; avoid liquids
Safety	Do not expose to moisture, shocks, or extreme temperatures
Spare parts and repairability	Not user-repairable; contact Philips customer service
Warranty	2 years
Box contents	Hard drive, USB cable, quick start guide

Frequently Asked Questions - SPD5250CC PHILIPS

How do I format my Philips SPD5250CC external hard drive?

To format the drive, connect it to your computer, open the disk management tool (Windows) or Disk Utility (Mac), select the drive and choose format. Note: this operation erases all data.

What should I do if my computer does not detect the hard drive?

First check that the USB cable is properly connected. Try another USB port. If the problem persists, test the drive on another computer. On Windows, open Device Manager to see if it is recognized.

The hard drive makes a clicking noise. Is this normal?

A slight operating noise is normal, but repeated clicking may indicate a mechanical problem. In this case, immediately back up your data and contact Philips customer service.

Can I use this hard drive with a gaming console?

Yes, the SPD5250CC is compatible with consoles that have a USB port, such as PlayStation 4/5 or Xbox One/Series X|S. You may need to format it to exFAT for optimal compatibility.

How do I clean the exterior of the hard drive?

Use a slightly damp microfiber cloth (water only) to clean the case. Do not use chemicals or abrasive liquids. Make sure the drive is unplugged before cleaning.

What is the average lifespan of this hard drive?

The lifespan depends on usage, but an external hard drive typically lasts between 3 and 5 years. To extend its life, avoid shocks and extreme temperatures.

The hard drive is recognized but access is very slow. What should I do?

This may be due to fragmentation or a defective USB cable. Try defragmenting the drive (Windows) or checking it with Disk Utility (Mac). You can also try another USB cable.

Can I partition the hard drive into multiple volumes?

Yes, you can create multiple partitions using your operating system's disk management tool. On Windows, right-click 'This PC' > 'Manage' > 'Disk Management'. On Mac, use Disk Utility.

How can I tell if the hard drive is USB 3.0?

Check the connection: the USB 3.0 connector is usually blue inside. You can also look in the device properties on your computer: the transfer speed displayed will be higher than 480 Mbps for USB 3.0.

What should I do if I lost the USB cable?

Use a standard USB cable type A to micro-B or USB-C, depending on your drive's connector. Check the manual for the exact type. You can buy one at any electronics store.

USER MANUAL SPD5250CC PHILIPS

4 What's in the box? 5 How to connect this external hard disk to your computer? 5 How to safely disconnect? 6 How to use the One-Click Back-Up button? 6 How to install for Mac, Windows 98 SE or Windows ME? 7 Warranty, Environment and Safety 8 Specifications

Important note

To start using the One-Click Back-Up button, first activate the

Carry it Easy software (once only) by clicking on the CarryitEasy.exe file located on your hard disk. For instructions and more information, see page 6.

When the computer does not recognize the hard disk (some

computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. For instructions and more information, see page 5.

EN

What's in the box?

A : External hard disk

B: Y-cable

C : Quick Start Guide

How to connect this external hard disk on your system?

EN

Plug the wrap around USB cable into an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer. (The computer sometimes needs to be restarted, before you can use the new hardware).

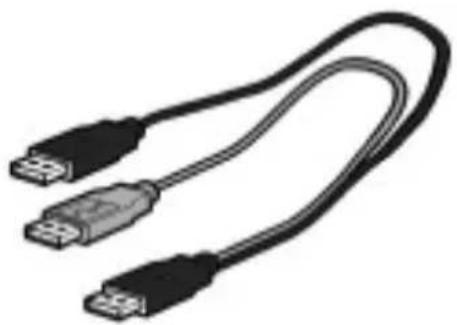

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. Connect the Y-cable to the USB cable of the hard disk and plug in the 2 connectors in the free USB ports of your computer. The black connector is for data transfer and power, the gray connector is for additional power only.

How to safely disconnect?

1. Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.

2. In the window that appears, select the name of the device that is to be removed, then click the Stop button. 3. When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button. 4. When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

For Windows only, this functionality doesn't work with Mac computers.

The One-Click Back-Up button allows you to instantly synchronize or back-up your files with the CoSoSys Carry it Easy software. To launch the software, double-click on the CarryitEasy.exe file on the hard disk in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder manuals on your hard disk for more instructions and more information.

How to install for Mac, Windows 98 SE or Windows ME?

The hard disk is preconfigured for Windows 2000 and Windows XP, with a NTFS format. For Mac, Windows 98SE and Windows ME, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/support

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer".

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance, Philips does advise you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface: Hi-Speed USB 2.0

Transfer speed: 480 Mb/s

Rotational speed: 5600 rpm

Cache memory: 8 MB

System requirements: USB 1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP

Additional information available at our website:

www.philips.com/support

www.philips.com/storage

B: Y-cable

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

A: External hard drive

B: Y-cable

C: Quick start guide

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Contents

B: Y-cable

C: Quick start guide

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Contents

A: External hard drive

B: Y-cable

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Table of contents

A: External hard drive

B: Y-cable

Be responsible Respect copyrights

www.philips.com/support

IT

www.philips.com/storage

Contents

B: Y-cable

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

PT

Contents

A: External hard disk

B: Y-cable

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance,

transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
