Product Type	External Hard Drive
Model	SPD5230CC
Brand	Philips
Storage Capacity	1 TB
Interface	USB 3.0
Form Factor	2.5-inch
Speed (RPM)	5400 RPM
Power Source	USB Bus-Powered
Dimensions (L x W x H)	120 x 75 x 12 mm
Weight	150 g
Operating Systems Supported	Windows, macOS, Linux
Plug and Play	Yes
Backup Software Included	None
Encryption	None
Housing Material	Plastic
LED Indicator	Yes
Operating Temperature	5°C to 35°C
Storage Temperature	-20°C to 60°C
Maintenance	Clean with a dry, soft cloth
Safety	Avoid drops and extreme temperatures
Spare Parts	USB cable available separately
Repairability	Not user-serviceable; contact support
General Information	Portable, lightweight, ideal for backups

Frequently Asked Questions - SPD5230CC PHILIPS

Is the Philips SPD5230CC compatible with Mac?

Yes, it works with macOS out of the box. However, it is often formatted in NTFS for Windows; you may need to reformat it to FAT32 or exFAT for full read/write compatibility on Mac.

What is the storage capacity of this drive?

The Philips SPD5230CC is typically available in 1 TB capacity, but other sizes may exist. Check the label on your device.

Does it require an external power adapter?

No, it is USB bus-powered. Just plug it into a USB port and it works.

Can I use it for gaming consoles like PlayStation or Xbox?

Yes, it can be used as external storage for consoles, but you may need to format it to a compatible file system (e.g., FAT32 for PS4).

What is the data transfer speed?

With USB 3.0, transfer speeds can reach up to 5 Gbps, but actual speed depends on the drive's internal speed and file size.

Is the drive durable?

It is a standard external hard drive with moving parts. Handle it with care; avoid drops and shocks. It is not shockproof.

Does it come with backup software?

No, but you can use built-in backup tools of your OS or download third-party software.

How do I format the drive?

Connect it to your computer, open Disk Management (Windows) or Disk Utility (Mac), and select the format option. Choose exFAT for cross-platform use.

What is the warranty period?

Standard warranty is 2 years from date of purchase. Verify with the retailer or Philips support.

Can I use it as a bootable drive?

Yes, if your system supports booting from USB, you can create a bootable drive for OS installation or recovery.

USER MANUAL SPD5230CC PHILIPS

Exterior view of a black hard drive with USB cable and power connector (no text or symbols visible)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to use the One-Click Back-Up button?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

To start using the One-Click Back-Up button, first activate the Carry it Easy software (once only) by clicking on the CarryitEasy.exe file located on your hard disk. For instructions and more information, see page 6.

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. For instructions and more information, see page 5.

Line drawing of a Philips hardcover case (no text or symbols on the cover itself)

A: External hard disk

Illustration of a black USB cable with two connectors (no text or symbols)

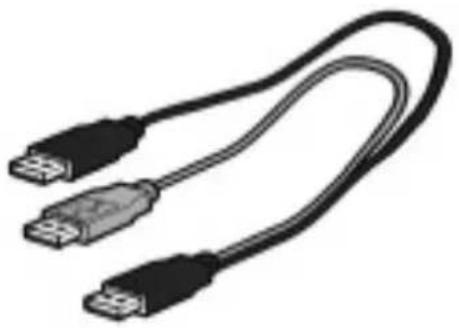

B:Y-cable

C: Quick Start Guide

How to connect this external hard disk on your system?

EN

Diagram showing a device connected via cable to a storage unit (no text or symbols visible)

Plug the wrap around USB cable into an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram showing a device with two cables connected to a power bank, no text or symbols present

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. Connect the Y-cable to the USB cable of the hard disk and plug in the 2 connectors in the free USB ports of your computer. The black connector is for data transfer and power, the gray connector is for additional power only.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

For windows only, this functionality doesn't work with Mac computers

The One-Click Back-Up button allows you to instantly synchronize or back-up your files with the CoSoSys Carry it Easy software. To launch the software, double-click on the CarryitEasy.exe file on the hard disk in your Windows explorer.

Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder manuals on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS format. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on

www.philips.com/support

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: "Information to the Consumer".

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care:

Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP, Windows Vista

For interactive help and support:

www.philips.com/support

For software updates and frequently asked questions:

www.philips.com/storageupdates

Line drawing of a Philips hardcover case (no text or symbols on the cover itself)

A: Ekstern harddisk

Coiled black USB cable with two connectors (no text or symbols visible)

B:Y-kabel

Diagram showing a device connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing a device with two cables connected to a power bank, no text or symbols present

www.philips.com/support

Specifications subject to change without notice.

All dimensions shown are approximate.
