SPE2010CC - External hard drive PHILIPS - Free user manual and instructions

Product Type	External Hard Drive
Brand	Philips
Model	SPE2010CC
Storage Capacity	1 TB
Interface	USB 3.0 (Backward compatible with USB 2.0)
Form Factor	2.5 inch portable
Power Supply	USB bus powered (5V DC)
Dimensions (W x H x D)	113 x 76 x 13 mm
Weight	150 g
Transfer Speed	Up to 5 Gbps (USB 3.0)
Compatibility	Windows, macOS, Linux
File System	NTFS (pre-formatted); supports FAT32, exFAT
Software Included	Backup and synchronization software (downloadable)
Color	Black
Operating Temperature	5°C to 35°C
Storage Temperature	-20°C to 60°C
Safety	Avoid exposure to liquids, extreme heat, and physical shocks
Cleaning and Maintenance	Wipe with a dry soft cloth; do not use solvents
Spare Parts and Repairability	No user-serviceable parts; contact customer support for repairs
General Information	Plug and play; no external power adapter required; LED indicator for power and activity
Warranty	2 years

Frequently Asked Questions - SPE2010CC PHILIPS

How do I format the Philips SPE2010CC external hard drive?

Caution: Formatting erases all data. To format on Windows, right-click the drive in File Explorer and select 'Format'. Choose file system (NTFS recommended for Windows, exFAT for cross-platform). On macOS, use Disk Utility to erase with desired format.

Why is my external hard drive not detected by my computer?

First, try a different USB port or cable. Ensure the drive is properly connected and the LED is on. If still not detected, go to Disk Management (Windows) or Disk Utility (macOS) to see if the drive appears there. If yes, assign a drive letter or mount it.

Can I use this hard drive with a PS4 or Xbox?

Yes, the SPE2010CC is compatible with PS4 and Xbox One. For PS4, the drive must be formatted as exFAT. For Xbox, format as NTFS. Note that some consoles require the drive to be connected via USB 3.0 for optimal performance.

What do I do if the hard drive is making clicking noises?

Clicking sounds may indicate a mechanical failure. Immediately back up your data if possible. If the drive is under warranty, contact Philips support for replacement. Do not disassemble the drive.

How can I transfer files faster?

Use a USB 3.0 port (blue) for maximum speed. Transfer large files one at a time rather than many small files. Avoid using USB hubs. Also, ensure the drive is not heavily fragmented; consider defragmenting if needed.

Does the drive come with backup software?

Yes, the Philips SPE2010CC includes backup and synchronization software that can be downloaded from the Philips website. The software allows you to schedule automatic backups and sync files between devices.

Can I split the storage into multiple partitions?

Yes, you can partition the drive using Disk Management on Windows or Disk Utility on macOS. Be aware that partitioning will erase existing data, so back up first. Each partition can have a different file system.

Is the drive compatible with my MacBook?

Yes, it works with macOS. However, the drive comes pre-formatted as NTFS, which is read-only on macOS. To write to it, you can reformat to exFAT or use third-party NTFS drivers.

What should I do if I accidentally drop the hard drive?

If the drive is dropped, inspect it for physical damage. Connect it to a computer and check if it is recognized. If you hear unusual noises or it is not detected, the internal mechanism may be damaged. Immediately back up data and contact support for possible replacement.

How do I safely eject the external hard drive?

Always use the 'Safely Remove Hardware' option on Windows (system tray icon) or 'Eject' on macOS before disconnecting. This prevents data corruption. Wait for the confirmation message before unplugging the USB cable.

USER MANUAL SPE2010CC PHILIPS

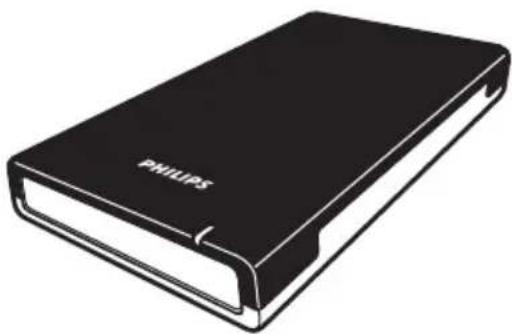

Black and white electronic device labeled 'PHILIPS' on its body, shown in a flat, slightly reflective design (no additional text or symbols visible)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the USB power cable supplied together with this product. For instructions and more information, see page 5.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

A: External hard disk B: Mini USB cable

Line drawing of a USB cable with two connectors (no text or symbols)

C: Quick Start Guide D: USB power cable

Line drawing of a USB cable with two connectors (no text or symbols)

How to connect this external hard disk on your system?

EN

Illustration of a USB cable connecting an electronic device to a black rectangular power bank, with no visible text or symbols.

Connect the USB cable to the hard disk, and to an empty USB port of the computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the blue light should light up. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

When Windows does not recognize the hard disk (some PCs or laptops provide insufficient bus power on one USB port), plug the additional USB power cable (D) into an empty USB port of your computer.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, check that the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

EN

How to use the software

The CoSoSys Carry it Easy software allows you to password protect your files. To launch the software, double-click on the CarryitEasy.exe file on the hard disk icon in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder ‘Manuals’ on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS file system. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

You need Adobe Reader software to open these files.

If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: 'Information to the Consumer'.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care:

Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP, Windows Vista

For interactive help and support:

www.philips.com/welcome

For software updates and frequently asked questions:

www.philips.com/storageupdates

Illustration of a black Philips hardcover with visible spine and cover (no text or symbols beyond branding)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

Diagram of a USB cable connection to a black electronic device (no text or symbols visible)

Be responsible Respect copyrights

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance,

transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
