SPE2015CC - External hard drive PHILIPS - Free user manual and instructions

Product Type	External Hard Drive
Brand	Philips
Model	SPE2015CC
Capacity	1 TB
Interface	USB 3.0
Form Factor	2.5-inch
Dimensions (W x D x H)	120 mm x 80 mm x 15 mm
Weight	150 g
Power Source	USB bus-powered
Compatible Operating Systems	Windows 7/8/10, macOS
File System	exFAT (or NTFS)
Data Transfer Rate	Up to 5 Gbps
Warranty	2 years
Color	Black
Key Features	Portable, Plug-and-Play, Shock-resistant
Included Items	USB cable, User manual
Storage Type	HDD

Frequently Asked Questions - SPE2015CC PHILIPS

How do I set up the Philips SPE2015CC external hard drive?

Connect the USB cable to the drive and your computer. It will be recognized automatically. For first use, you may need to format it using the Disk Utility (macOS) or Disk Management (Windows).

Does the SPE2015CC work with Mac and Windows?

Yes, the drive comes preformatted with exFAT, which is compatible with both Windows and macOS. If you only use one OS, you can reformat to NTFS (Windows) or APFS (Mac).

How can I back up my data automatically?

You can use built-in backup tools like Time Machine (Mac) or File History (Windows). Select the Philips drive as the destination for automatic backups.

Why is my external hard drive not recognized?

Check the USB connection, try a different port or cable. Ensure the drive is powered (if USB, verify the port provides enough power). Also check Device Manager (Windows) or System Information (Mac) for driver issues.

Can I use the SPE2015CC with a PlayStation or Xbox?

Yes, the drive works with PS4, PS5, Xbox One, and Xbox Series X/S. Format it to exFAT for PS4/PS5 or NTFS for Xbox (some consoles may require reformatting).

How do I safely eject the external hard drive?

Always use the Safely Remove Hardware option on Windows or Eject on Mac before disconnecting. This prevents data corruption.

What is the maximum storage capacity?

This model typically offers capacities up to 2 TB. Check your specific version for exact capacity.

Is the drive USB 3.0 backwards compatible?

Yes, it works with USB 2.0 and USB 1.1 ports, but data transfer speeds will be slower.

How can I improve data transfer speed?

Ensure you connect to a USB 3.0 port, use a short high-quality cable, and close other programs accessing the drive. Also, avoid filling the drive to full capacity.

What should I do if the drive makes clicking noises?

Clicking sounds may indicate a hardware failure. Immediately back up your data and contact Philips support for warranty service. Do not attempt to open the drive.

USER MANUAL SPE2015CC PHILIPS

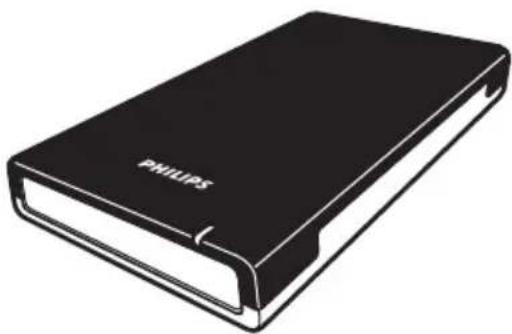

Black and white electronic device labeled 'PHILIPS' on its body, shown in a flat, slightly reflective design (no additional text or symbols visible)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to install for Mac
7 Warranty, Environment and Safety
8 Specifications

Important note

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the USB power cable supplied together with this product. For instructions and more information, see page 5.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

Line drawing of a USB cable with two connectors (no text or symbols)

A: External hard disk B: Mini USB cable

Line drawing of a USB cable with two connectors (no text or symbols)

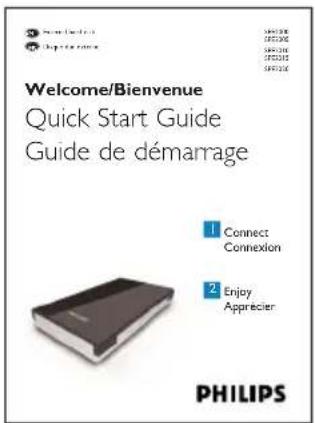

C: Quick Start Guide D: USB power cable

How to connect this external hard disk on your system?

EN

Illustration of a USB cable connecting an electronic device to a black rectangular power bank, with no visible text or symbols.

Connect the USB cable to the hard disk, and to an empty USB port of the computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer and the blue light should light up. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram of a power bank connected to an external device via cable (no text or symbols visible)

When Windows does not recognize the hard disk (some PCs or laptops provide insufficient bus power on one USB port), plug the additional USB power cable (D) into an empty USB port of your computer.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the system tray in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.

3 When the Stop a hardware device screen appears, check that the correct information is displayed, and then click the OK button.

4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

EN

How to use the software

The CoSoSys Carry it Easy software allows you to password protect your files. To launch the software, double-click on the CarryitEasy.exe file on the hard disk icon in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder ‘Manuals’ on your hard disk for more instructions and more information.

How to install for Mac

The hard disk is preconfigured for Windows 2000, Windows XP and Windows Vista, with a NTFS file system. For Mac, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/welcome

You need Adobe Reader software to open these files.

If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

'The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.'

WEEE mark: 'Information to the Consumer'.

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous.

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care:

Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5400 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP, Windows Vista

For interactive help and support:

www.philips.com/welcome

For software updates and frequently asked questions:

www.philips.com/storageupdates

Illustration of a black Philips hardcover case (no text or symbols on the cover itself)

Line drawing of a USB cable with two connectors (no text or symbols)

Line drawing of a USB cable with two connectors (no text or symbols)

Illustration of a black electronic device connected to a wall-mounted power bank via cable (no text or symbols visible)

Diagram of a USB cable connection to a black electronic device (no text or symbols visible)

Be responsible Respect copyrights

Specifications subject to change without notice.

All dimensions shown are approximate.

All rights reserved.

Reproduction, copying, usage, modifying, hiring, renting, public performance,

transmission and/or broadcasting in whole or part is prohibited without the written consent of Philips Electronics N.V.
