USER MANUAL Tracks Air Sol Republic

With your new TRACKS AIR wireless Bluetooth headset, you are free to roam around the house at will. Crystal clear HD calls on your phone, simple controls in your hand, and high fidelity sound in your ears — now that's what we call Independence.

OVERVIEW

ASSEMBLY 4

THE GOODS 6

CONNECTING 8

BASICS 11

ADVANCED STUFF 12

CONTACT 14

CAUTION

Before using Tracks Air, please read the safety, regulatory and legal information document.

NOTE

The battery is designed to last the life of your device. You don't need to take it out or fiddle with it. If you try to remove or replace your battery it will void your warranty and could cause injury and damage your device.

ASSEMBLY

Let's get it together.

PowerTrack™ Headband

Wireless A2 Sound Engines™

Single button cable with microphone

USB charge cable

Carrying case

INSTRUCTIONS

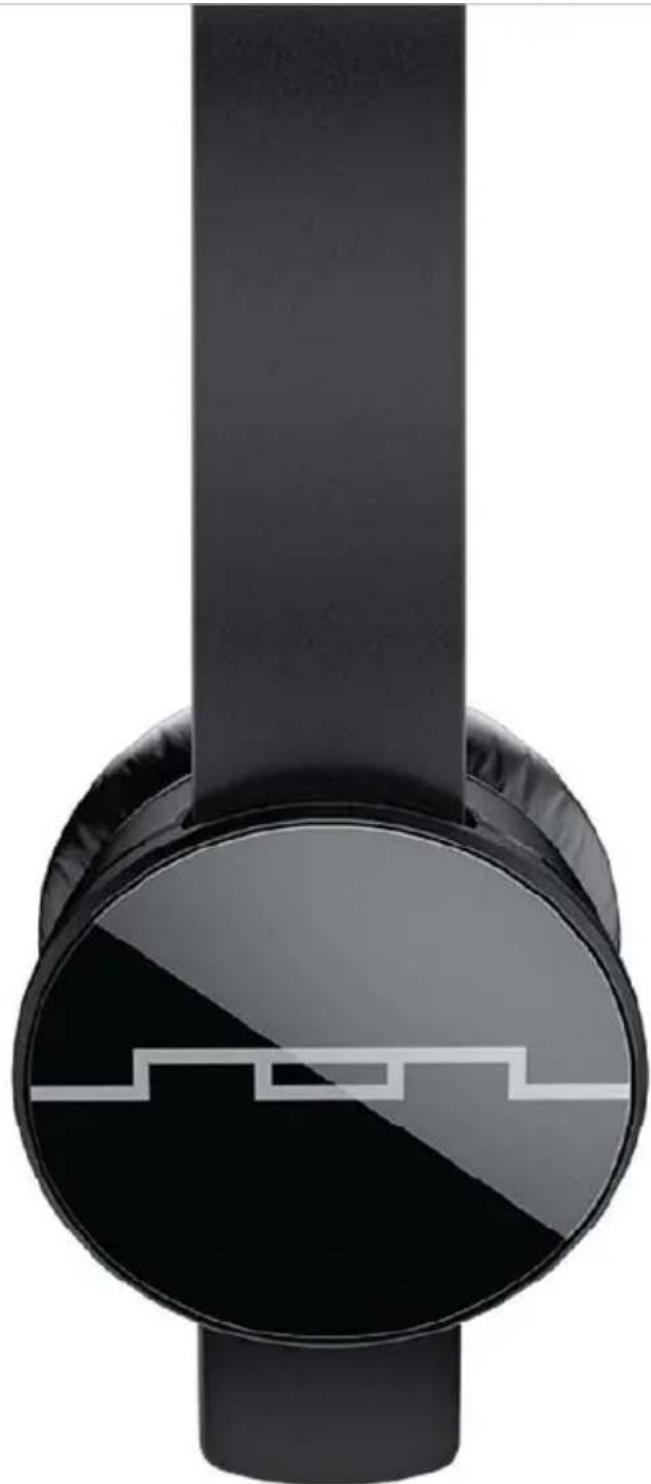

The sound engines have slots in them. Insert the ends of the PowerTrack™ headband into these slots and slide them up a bit. Make sure to match the L (left) and R (right) markings on the sound engines with the corresponding L and R on the PowerTrack™ headband. Settle the sound engines over your ears and adjust to a comfortable position. For optimum sound, make sure the L and R sound engines are over the corresponding ear.

Close-up of a black camera lens with visible lens and control panel (no text or symbols)

Sound Engine Slot
Sound Engine

EN USER GUIDE 54 ASSEMBLY

Close-up of a black electronic device with a circular display showing a waveform symbol (no text or labels visible)

PowerTrack™ headband

THE GOODS

...at a glance.

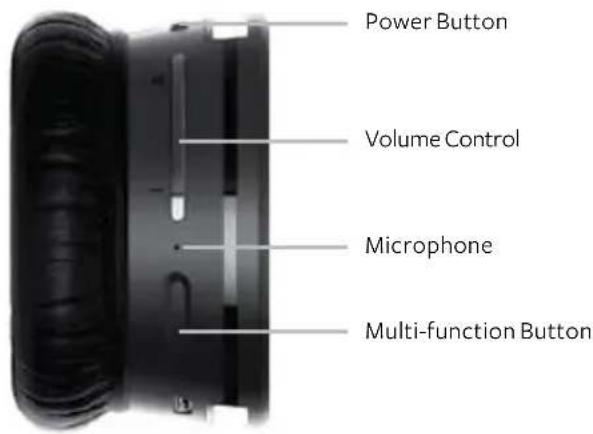

Power Button Volume Control Microphone Multi-function Button

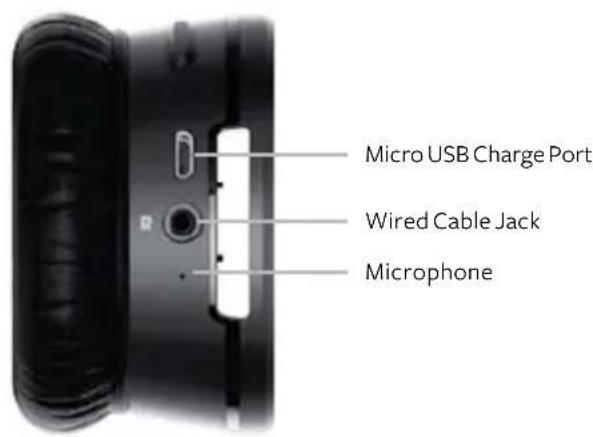

Micro USB Charge Port Wired Cable Jack Microphone

EN USER GUIDE 76 THE GOODS

POWER

First thing's first: give Tracks Air a charge. Plug the small end of the USB into the micro USB port located on the Right Sound Engine. It is fully charged when the status light turns solid green.

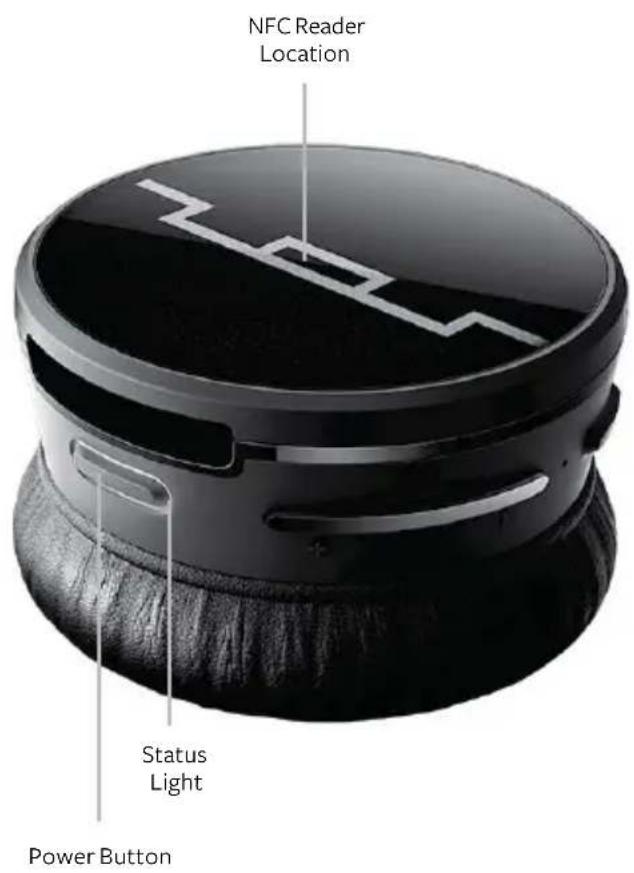

NFC Reader Location Status Light Power Button

NOTE

NFC only located on Right Sound Engine

CONNECT

Now let's get Tracks Air and your device talking to each other. There are two ways to pair it: the Bluetooth® EASYPAIR™ Method and the NFC™ way. EASYPAIR™ works for everybody. NFC™ people — you know who you are.

EASYP AIR™ METHOD

STEP 1

Turn on Bluetooth ^® on your device.

STEP 2

Turn on TRACKS AIR and it will automatically go into pairing mode.

STEP 3

Go to the Bluetooth menu on your device to pair and connect.

STEP 4

When the device and TRACKS AIR are connected, you'll get a pairing complete tone.

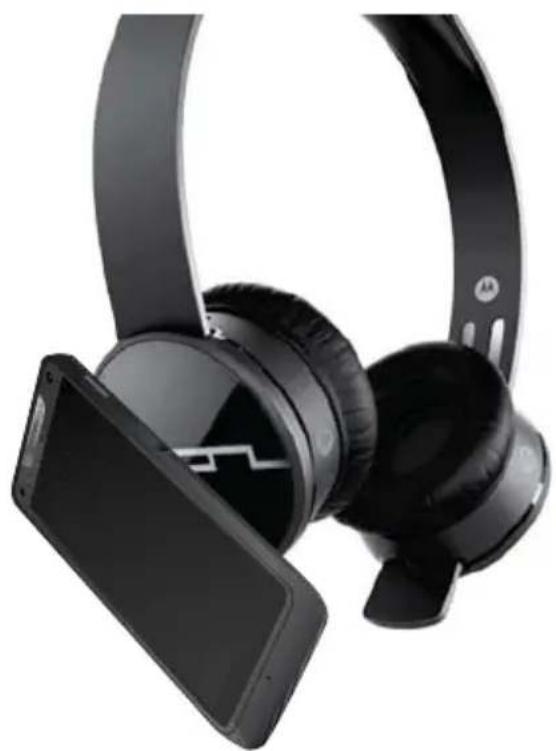

NFC METHOD

It seems obvious, but you must have an NFC Bluetooth-enabled device in order to use the NFC method. If you don't have it, use the Easypair Method.

Black multi-band headphones with a smartphone partially visible on the left (no text or symbols)

STEP 1

Turn on Bluetooth and NFC on your device.

STEP 2

Tap your device to the top of the right sound engine. Abracadabra. The device tells you when you're connected.

NOTE

The above works for most devices, but not all NFC readers are located in the same place or function the same way. See your device's user guide for all the details.

WIRED MODE

Now what if you prefer to stay wired? Friend, you can. Take the single button cable with mic (included) and plug the jacks into the respective sound engines. Not surprisingly, L goes into the left one, R goes into the right one. Push all connectors in until you hear a "click."

NOTE

In wired mode, the Bluetooth connection automatically switches off to save your battery.

BASICS

YOU WANT TO	PRESS
Play or pause	The multi-function button once.
Skip to the next track	The multi-function button twice.
Skip to previous track	Press the multi-function button three times.

CALLS — SOUND ENGINE CONTROLS

YOU WANT TO	PRESS
Take a call	The multi-function button.
Decline a call	Hold a volume button until you hear a tone.
Make a voice dial call	Hold the music/call button until you hear a tone.
Mute or unmute a call	Hold both volume buttons at the same time, until you hear “mute on” or “mute off”
End a call	The multi-function button.
Take a second incoming call	The multi-function button.
Decline a second incoming call	Use the phone keypad.
Hear remaining music playtime or batter status	The volume buttons while in standby.

NOTE

Some features may work differently depending on your phone/type of service.

NOTE

Using a mobile device or accessory while driving can be distracting and may be illegal. Always follow the laws of your state and drive safely. Both hands on the wheel. Ten and two. Eyes on the road.

ADVANCED STUFF

For Smarties

SECOND DEVICE/ MULTI-POINT CONNECTION

Do you use two phones? Do you use a tablet and a phone? Are you double jointed?

You can connect up to two devices to your headset for music and calls. As long as multi-point is enabled (see SETTINGS on page 13), pair both devices and then you can switch back and forth between devices seamlessly, whether you're playing music or managing calls.

Just follow the instructions under "Connect" on page 8 for each device. To connect both devices, just turn them on.

MUSIC

Select a music source by pressing play on that device. If you want to switch to your second paired device for music, just hit play on that device.

NOTE

Your headset will only stream from one music source at a time.

NOTIFICATION LIGHT

The easy way to check your headset

IF THE

LIGHT SHOWS...

IT MEANS...

Fading blue

Turning on or off

Flashing blue

In pairing mode

Steady blue

Device connected

Flashing red

Charging low power battery

Flashing green

Charging medium power battery

Steady Green

Battery fully charged

SETTINGS

To hear settings, press and hold the power and multi-function button. To change them, just follow the voice prompts.

Factory Reset

(CAUTION "Reset" erases all paired devices stored in your headset.)

Voice interface on/off

Multi-point on/off

Wide-band audio on/off

(NOTE Use for increased clarity and richer sound. Not all devices or carrier networks support Wide-band.)

CONTACT

Confused? Perplexed? Adrift? We've got answers and we're standing by.

Give Us a Shout

We're here to help.

SUPPORT

The following are a set of resources to ensure you get the most out of your SOL REPUBLIC product.

If you are experiencing issues at any time, please visit SOLREPUBLIC.COM/SUPPORT, contact us on Twitter (@SOLREPUBLIC), or call us at 877.400.0310

To acquire a printable version of this warranty, please visit SOLREPUBLIC.com/warranty

For customer service inquiries, please email [e-mail]

FR

Close-up of a black electronic device with a circular lens and abstract geometric patterns on the body (no text or symbols visible)

Arceau PowerTrack™

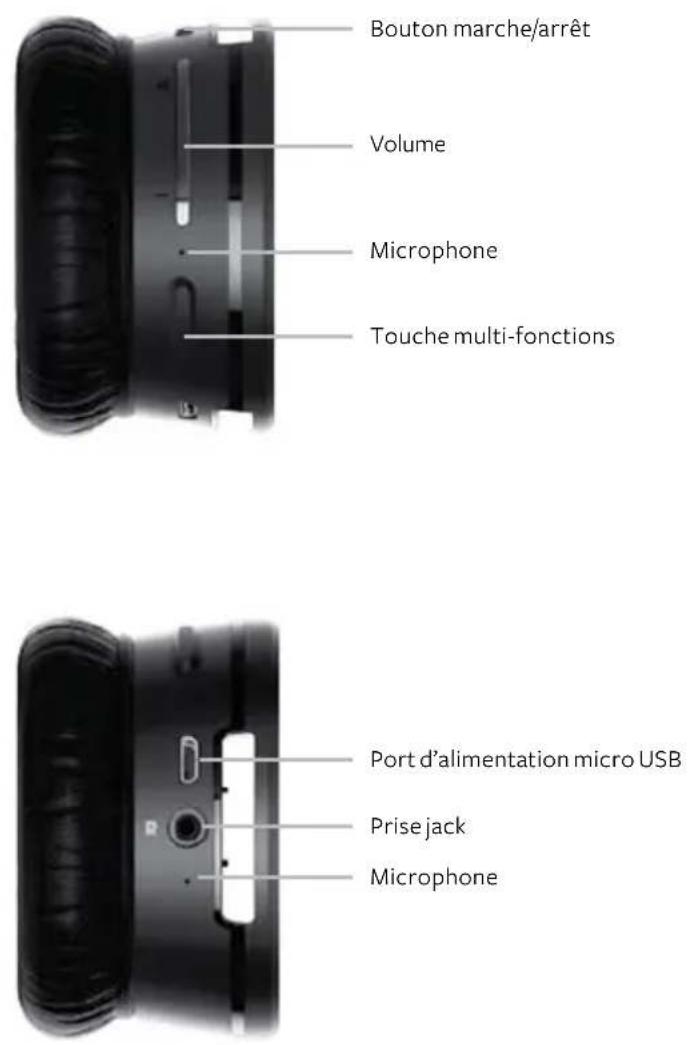

LES COMPOSANTS

... jetons un coup d'œil.

ALIMENTATION

Black multi-band headphones with a smartphone partially visible on top (no text or symbols)

ÉTAPE 1

Interface vocale on/off

Multipoint on/off

Audio large bande on/off

Close-up of a black camera lens with visible lens and adjustment knob (no text or symbols)

Close-up of a black electronic device with a circular display showing a waveform symbol (no text or labels visible)

Auriculares PowerTrack™

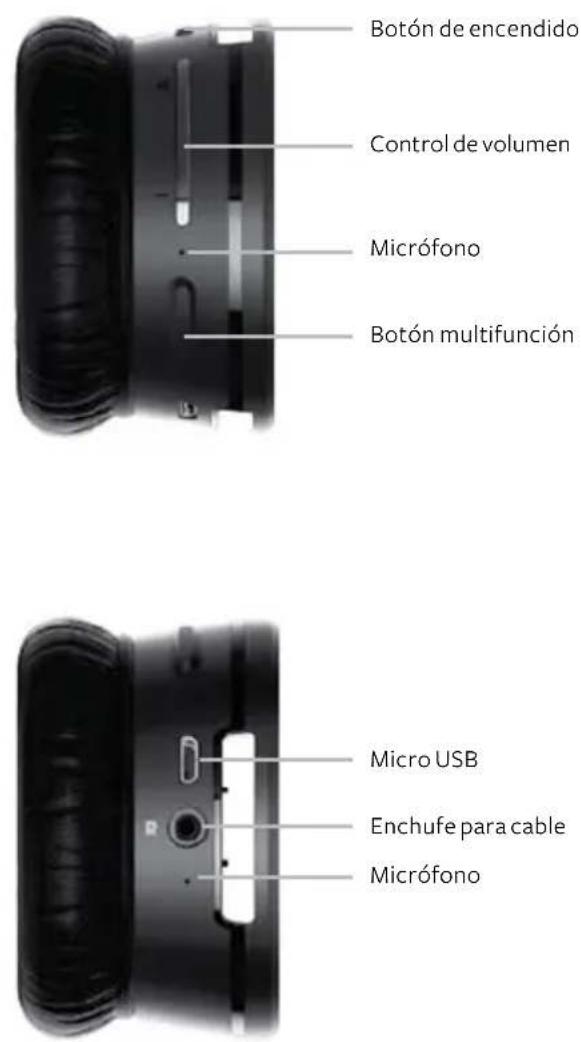

LOS PRODUCTOS

...con un vistazo.

POTENCIA

Black audio headphones with a smartphone partially visible, no text or symbols present.

PASO 1

Wireless A2 Sound Engines™

Close-up of a black camera lens with visible lens and adjustment knobs (no text or symbols)

Close-up of a black electronic device with a circular lens and abstract geometric design (no text or symbols visible)

Black multi-band headphones with a smartphone partially visible, no text or symbols present.

SCHRITT 1

Close-up of a black electronic device with a circular lens and abstract geometric patterns on the side (no text or symbols visible)

PowerTrack™ 头环

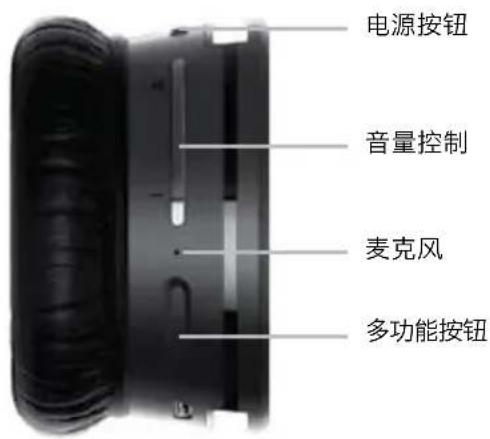

组件
