USER MANUAL SoundBox ID LOEWE

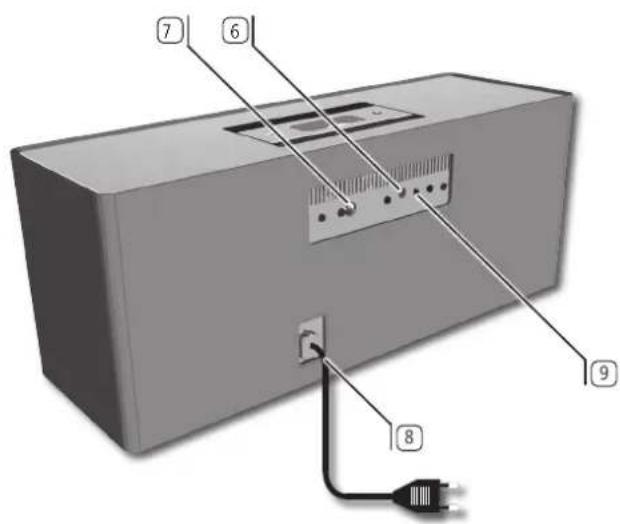

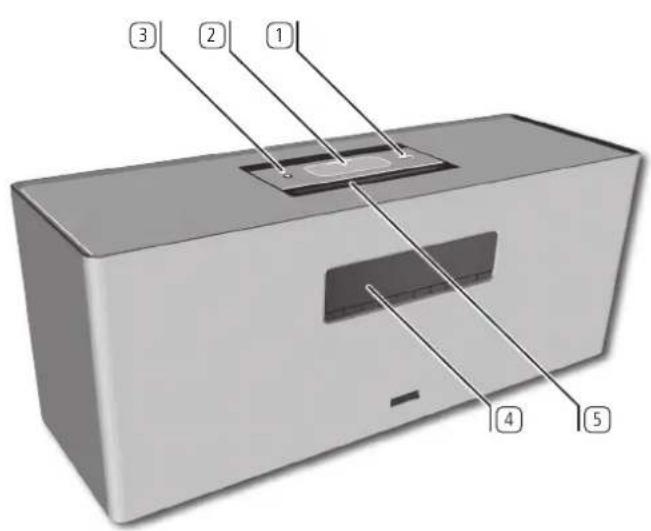

HEADPHONE - headphone socket

ANT FM - FM antenna socket

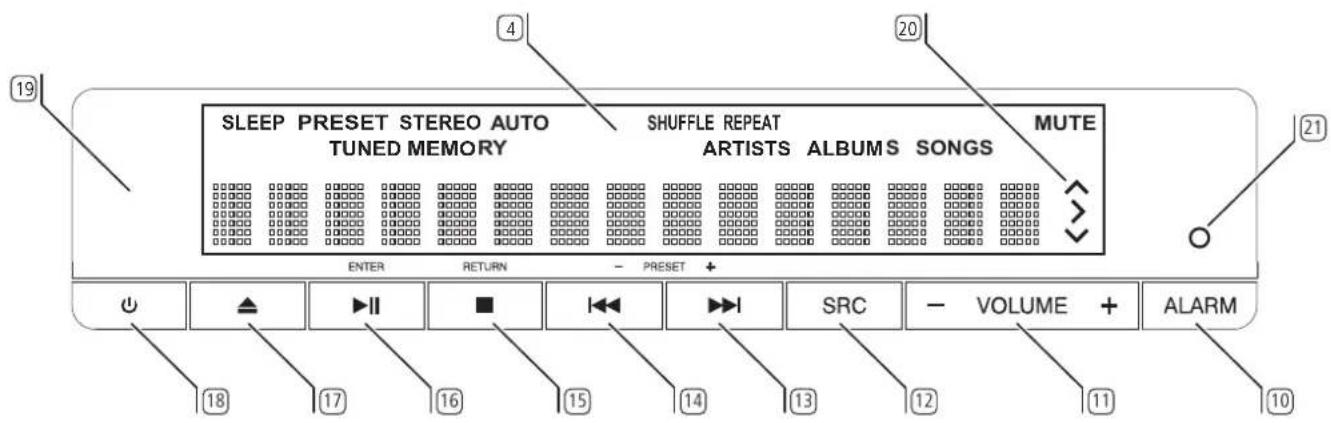

SRC - Set audio source

CD/USB/iPod: Next title; FM-Radio: short: Select station up

CD/USB/iPod: Previous title; FM-Radio: short: Select station down

CD/USB/iPod: Stop; at settings: back

Control functions in “Settings” menu

A list of which Apple models are compatible with the SoundBox ID can be found on page 26.

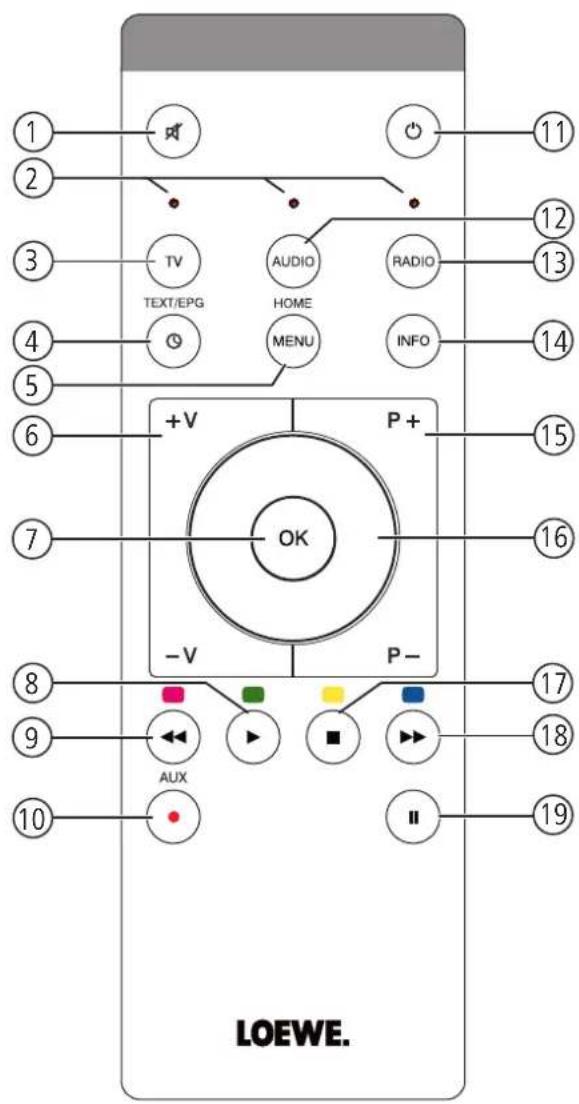

- 16 -Instructions for UseAssist Easy remote control

LED display for current operating mode

Switch over to TV mode

Short press: time Long press: alarm

Short press: iPod: Menu Long press: RADIO: save radio stations

Short press: play/pause Long press: random replay order

Short press: select title down Long press: wind down

Audio source selection

and at the same time

and at the same time

4: FM radio: search forwards

Operate the unit that has been set, e.g. SoundVision

Operate the unit that has been set, e.g. SoundBox ID

P+/P– radio station up/down

Short press: stop Long press: repeat

Short press: select title up Long press: wind up

Short press: continue pause/play Long press: snooze/sleep mode

The assignment of these buttons can be changed (page 20). The description refers to the standard setting.

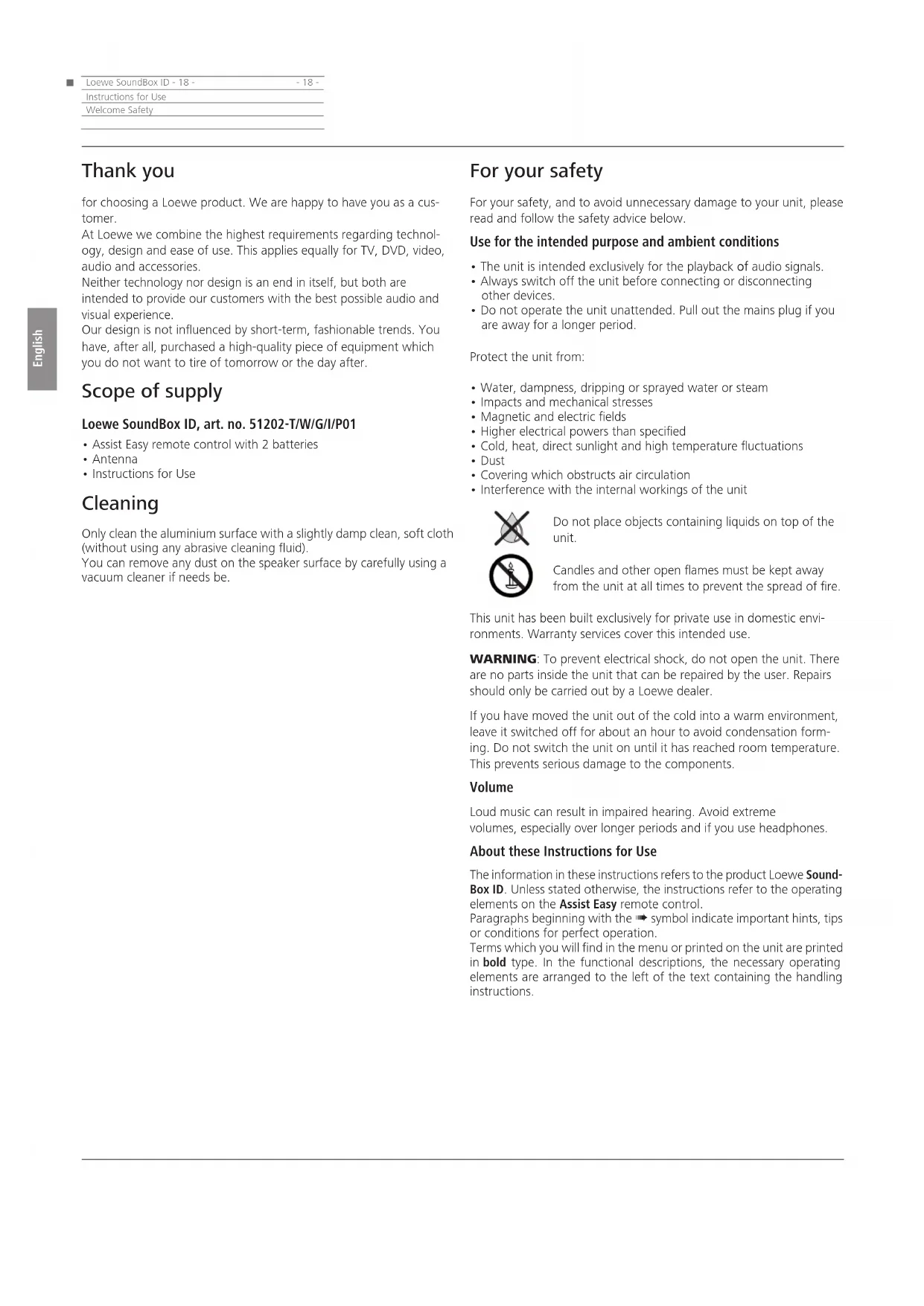

- 18 -Instructions for UseWelcome Safety Thank you for choosing a Loewe product. We are happy to have you as a cus- tomer. At Loewe we combine the highest requirements regarding technol- ogy, design and ease of use. This applies equally for TV, DVD, video, audio and accessories. Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience. Our design is not inuenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to tire of tomorrow or the day after. Scope of supply Loewe SoundBox ID, art. no. 51202-T/W/G/I/P01

• Assist Easy remote control with 2 batteries

• Instructions for Use Cleaning Only clean the aluminium surface with a slightly damp clean, soft cloth (without using any abrasive cleaning fluid). You can remove any dust on the speaker surface by carefully using a vacuum cleaner if needs be. For your safety For your safety, and to avoid unnecessary damage to your unit, please read and follow the safety advice below. Use for the intended purpose and ambient conditions

• The unit is intended exclusively for the playback of audio signals.

• Always switch off the unit before connecting or disconnecting other devices.

• Do not operate the unit unattended. Pull out the mains plug if you are away for a longer period. Protect the unit from:

• Water, dampness, dripping or sprayed water or steam

• Impacts and mechanical stresses

• Magnetic and electric elds

• Higher electrical powers than specied

• Cold, heat, direct sunlight and high temperature uctuations

• Covering which obstructs air circulation

• Interference with the internal workings of the unit Do not place objects containing liquids on top of the unit. Candles and other open ames must be kept away from the unit at all times to prevent the spread of re. This unit has been built exclusively for private use in domestic envi- ronments. Warranty services cover this intended use.

WARNING: To prevent electrical shock, do not open the unit. There

are no parts inside the unit that can be repaired by the user. Repairs should only be carried out by a Loewe dealer. If you have moved the unit out of the cold into a warm environment, leave it switched off for about an hour to avoid condensation form- ing. Do not switch the unit on until it has reached room temperature. This prevents serious damage to the components. Volume Loud music can result in impaired hearing. Avoid extreme volumes, especially over longer periods and if you use headphones. About these Instructions for Use The information in these instructions refers to the product Loewe Sound- Box ID. Unless stated otherwise, the instructions refer to the operating elements on the Assist Easy remote control. Paragraphs beginning with the ➠ symbol indicate important hints, tips or conditions for perfect operation. Terms which you will find in the menu or printed on the unit are printed in bold type. In the functional descriptions, the necessary operating elements are arranged to the left of the text containing the handling instructions.n Loewe SoundBox ID - 19 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska

- 19 -Instructions for UseSet-up Connection Set-up

• Place the unit on an even, firm, horizontal surface.

• Do not set up the unit near strong heat sources or in direct sunlight.

• If setting up in a shelf or a closed cupboard: Leave at least 2.5 cm clearance around the unit, so that the air can circulate unhindered and there is no heat backup. Do not cover the opening at the back. The device may not be laid on its back during operation.

• Incorrect voltages can damage the unit. This device may only be connected to a powersupply with the voltage and frequency indi- cated on the type plate using the mains cable.

• Pull out the power cable during thunderstorms. A voltage surge caused by lightning conducted through the mains could damage the unit.

• If the unit is not to be used for an extended period, the plug should also be disconnected from the mains.

• The power plug of the unit must be easily accessible so that the device can be disconnected from the power supply at all times.

• Position the mains cable in such a way that it can not be damaged. The power cable may not be kinked or laid over sharp edges, stood on or exposed to chemicals; the latter also applies to the unit as a whole. A power cable with damaged insulation can cause electric shocks and poses a fire risk.

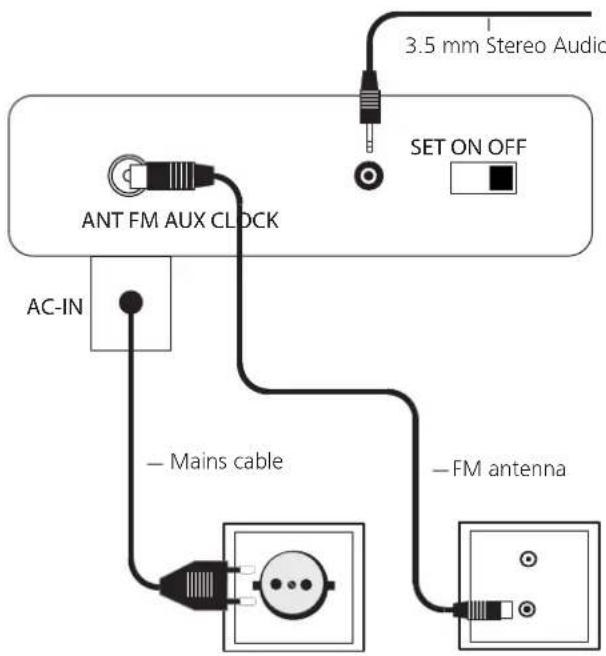

• When you want to unplug from the mains, pull on the plug housing rather than on the cable. The cables in the mains plug could oth- erwise be damaged and could cause a short-circuit when plugged in again. Connection Connect the ANT FM

jack to an FM antenna socket via an optional FM antenna cable (available from your dealer). Alternatively, use the antenna provided. Position the antenna so as to ensure the best reception, e.g. close to a window. You can connect an external audio source to the socket AUX

Use an audio cable with 3.5 mm jack cable available from your dealer. Plug the mains cable into a 230 V 50 Hz wall socket.

You can connect a headphone with a 3.5 mm jack socket to the HEADPHONE

socket. The speakers of the SoundBox ID are then switched off.

- 20 -Instructions for UseStart-upAssist Easy remote control Inserting batteries

Twist the battery compartment lid out in an anti-clockwise direction and then remove it. Insert a CR2032/DL2032 battery. The plus pole of the battery must point upwards here. Replace the battery compart- ment cover onto the remote control (observe the markings). ➠ Do not insert rechargeable batteries in the battery compartment of the remote control. ➠ The batteries used must not be exposed to excessive heat such as sunlight, fire or similar! Setting the remote control The AUDIO and RADIO buttons can be configured to operate certain Loewe products: Press the button down that you wish to configure (AUDIO or RADIO) and then press REC/AUX at the same time; hold the buttons down for 5 sec. The LED over the selected button flashes twice. Input the button combination from the table below (press the buttons one after another). Button combination UnitRed Loewe TV RadioGreen Loewe MediacenterBlue + yellow Loewe BluTechVision Inter-activeYellow Loewe AudioVisionGreen + blue Apple RemoteGreen + yellow Apple TVGreen + yellow + blue SoundBox ID (RADIO) Blue SoundVision (AUDIO)Red + blue <AirSpeaker>Red + green + yellowMediaVision 3DRed + green + yellow + blueReset all settings Press OK The LED above the button for the unit flashes twice. Default setting Operating Loewe devices Using the remote control for the Loewe SoundBox ID Press the RADIO button, the LED indicator lights up for about 5 seconds Using the remote control for a Loewe TV set Press the TV button, the LED indicator lights up for about 5 seconds Every time a button is pressed, the LED indicator lights up for the selected operating mode to allow you to check (TV – AUDIO – RADIO). Please refer to the respective operating instructions on how to operate the individual devices. Connecting to the mains supply Make the required cable connections as shown in the section “Connec- tion” (page 19). Plug the mains plug into the mains socket 230V 50 Hz. Switching on/off Activate the remote control for SoundBox ID opera- tion by pressing the RADIO button briefly. To switch on the unit, press the ON/OFF button

on the SoundBox ID or on the remote control Assist Easy

lights up. To switch off the unit, press the ON/OFF button

on the SoundBox ID or on the remote control Assist Easy

again. ➠ If you will be absent for some time, first switch off the unit with the ON/OFF button and then pull out the mains plug. You can thus save energy and protect the environment. ➠ The unit switches off automatically after 60 minutes without playback in the operating mode CD or USB (into Standby Mode) in order to save energy (page 24). ➠ The unit switches automatically off after 4 or 8 hours (into Standby Mode) in order to save energy (page 24).n Loewe SoundBox ID - 21 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska

- 21 -Instructions for UseStart-upBasic settings Radio operation Setting time The current time can be set.Reset the slide switch CLOCK on the rear of the unit to the SET position.Press the unit buttons

to set the hours up/down.Press the unit button

to conrm.Press the unit buttons

to set the minutes up/down.Press the unit button

to conrm. ➠ Press the

button to toggle between the display for 12 h / 24 h.Reset the slide switch CLOCK on the rear of the unit to the ON or OFF position: ON Time display in Standby mode OFF Clock is off in Standby mode (Energy Saving mode) SET Setting the timeThe unit briey shows the current time. ➠ The time setting is lost about five minutes after removing the power supply. Now reset the time. Setting the volume V+ / V- Set volume. Setting the sound The base and treble can be set.Long press: select the settings menu. 5 6 Select option TREBLE / BASS. Press OK to conrm. 5 6 Set higher or lower in the range from -10 to +10 dB. Press OK to conrm. Long press: quit Settings menu. Dimming the display The brightness of the display can be set.Long press: select the settings menu.5 6 Select option DIMMER.Press OK to conrm.5 6 Set DIMMER 1/2/OFF.Press OK to conrm. Long press: quit Settings menu. Setting radio stations You can save up to 30 FM radio stations. Automatic preset ➠ Only stations that support the RDS are found saved in the automatic preset. Please use the manual pre-set for non-RDS stations. Press several times for Tuner FM radio playback. Keep the MENU button pressed down for > 2 seconds.Press OK to conrm.The automatic preset starts. All radio stations previ-ously selected are deleted and overwritten by new ones (max. 30 stations). Manual preset Press several times for Tuner FM radio playback. Press and hold the

34 to set the desired radio station Keep the MENU button pressed down for > 2 seconds.56 Select desired storage location.Press OK to conrm. Listening to the radio Select saved radio station Press several times for Tuner FM radio playback. P+ / P- Select station up/down. Set radio station manually Press and hold the

34 to set the desired radio station Press 34 briey again: Set frequency incrementally.34 Long press: Search forwards and playback of the next radio station found.Press again. Various details on the set RDS radio station are displayed. For example: PS station name, PTY type of program, RT text messages, CT station time. Delete radio station Long press: select the settings menu.5 6 Select option PRESET DELETE.Press OK to conrm.5 6 Select station. OKn Loewe SoundBox ID - 22 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska

- 22 -Instructions for UseControlCD/USB play External sources CD/USB play You can play standard audio CDs (CD-DA) with a diameter of 8/12 cm with the Loewe SoundBox ID. The device can also play audio data CDs you have written yourself in the format CD-R (ISO 9660) and CD-RW. Audio files are played in the format MP3 and WMA (without DRM). USB sticks are supported in the format FAT16 and FAT32. Prerequisites for audio les

• Sampling frequency: 16 - 48 kHz (MP3), 22 - 48 kHz (WMA).

• Bit rate: 8 - 320 kbps (MP3), 16 - 320 kbps (WMA).

• Number of files: Maximum 512 (CD), 9999 (USB).

• Number of directories: Maximum 255 (CD), 999 (USB).

• Number of files per directory: Maximum 511 (CD), 255 (USB).

• File extensions: “.mp3” / “.wma”. Handling discs Do not touch the playing side of the disc. Hold the disc at the edges so as not to touch the surface with your fingers. Do not attach paper or adhesive tape onto either side of the disc. ➠ CD-R/RW discs written with a PC or a DVD or CD recorder cannot be played if the disc is damaged or dirty or the lens of the player is contaminated with condensation. ➠ If you write a disc with a PC, it may be the case that the disc can- not be played owing to the application software settings, even if your format is compatible. (You can obtain more information from your software provider). Discs must be finalised. ➠ Depending on the recording device or the CD-R/RW disc itself, some discs cannot be played with this device. ➠ Do not use CDs with unusual shapes (e.g. heart shaped or octag- onal). Otherwise malfunctions or damage cannot be ruled out. ➠ Finger prints and scratches on the disc can impair the playing qual- ity. Handle the discs carefully. Inserting discs The unit has a so-called slot-in drive

. This is located at the top (in front of the iPod dock). Insert the disc in the drive until it is automatically drawn in. The cover side of the disc points forwards here. On the display

LOAD and then Disc Reading or USB Reading is dis- played while the media recognition runs. Ejecting the disc To remove the inserted disc press

Playing the media As soon as the CD or USB stick is inserted, the playback starts auto- matically with the rst title. The playback is in alphabetic order of the title names in the case of data media. Replay functions Press several times for CD or USB playback. Play Start / Continue. Pause Stop play. Press briefly: Select title up/down. Press twice briefly to return to the previous title. Press longer: Search up/down. Press Stop once: Stop play, last title is played from the start with Play. Press twice: Playback completely termi- nated. 5 6 Select directory of data media. The main directory is designated with ROOT, the names of the directories on the storage medium being displayed below this. PLAY: Long press for random playback order. SHUFFLE ALL The titles of the current medium are played in random order. SHUFFLE FOLDER The titles of the current directory are played in random order. SHUFFLE OFF Play in normal order. STOP: Long press for repeat. REPEAT ALL Repeats all titles REPEAT ONE Repeats the current title REPEAT FOLDER Repeats all titles in the current directory REPEAT OFF No repeat Press INFO again. Various details on the current title can be displayed during the playback. For example: Title number, remaining play time, total play time of the disc, file name, title/album/artist name. Playing from external audio sources You can play an external audio source with the Loewe SoundBox ID. The source must be connected to the 3.5 mm jack socket AUX on the rear of the unit. Press several times for AUX playback. Start playing the connected audio source.n Loewe SoundBox ID - 23 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska iPod audio play Press several times for iPod playback. Play Start / Continue. Pause Stop play. Press briefly: Select title up/down. Press longer: Search up/down. Press briefly twice to return to the previous title. Stop End play. iPod menu. 34 Select entries in the iPod menu. OK Conrm/Play selected title. PLAY: Long press for random playback order. SHUFFLE SONGS Play all titles in random order. SHUFFLE ALBUMS Play titles of the current album in a random order. SHUFFLE OFF Play in normal order. STOP: Long press for repeat. REPEAT ALL Repeats all titles REPEAT ONE Repeats the current title REPEAT OFF No repeat Press again. Various details on the current title can be displayed during the playback. For example: Title number, remaining play time, title/album/artist name. ➠ Depending on the software version, your iPod can possibly not be operated via the SoundBox ID. We recommend updating the soft- ware of your iPod to the latest version. ➠ The compatibility with your iPod can vary depending on the model. For Apple devices supported see page 26. ➠ Faults can occur depending on the iPod device. ➠ Only disconnect your iPod from the SoundBox ID when there is no access to it.

- 23 -Instructions for UseControliPod operation iPod operation You can connect your Apple iPod to the SoundBox ID allowing you to listen to your music in the very best quality. The SoundBox ID has an integrated iPod dock

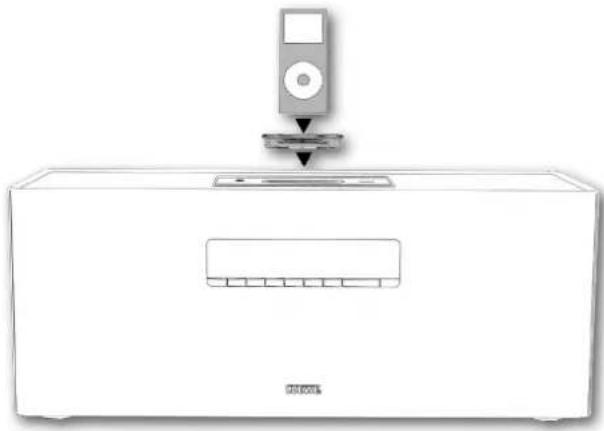

. Once you switch on the SoundBox ID, the battery of the connected iPod is charged. A list of which Apple models are compatible with the SoundBox ID can be found on page 26. Connecting the iPod Remove the cover from the iPod dock

Insert the dock adapter supplied with your iPod in the loading recess of the iPod dock. Then place your iPod in the dock. ➠ Use the corresponding Apple Dock Adapter of your Apple iPod/ iPhone to avoid damaging your iPod plug. ➠ When inserting and handling the iPod in the dock, only apply gentle force so as not to damage any sensitive plug-in connections.n Loewe SoundBox ID - 24 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska

- 24 -Instructions for UseControlWake-up function Sleep function Wake-up function Your SoundBox ID can wake you up at a preset time with one of the available audio sources or an acoustic signal. Setting the wake-up time Keep the ALARM button

pressed for > 2 seconds. The LED indicator light above the unit button ALARM and the hour display of the wake-up time ashes. Press the unit buttons

to set the wake-up time “hours”. Press the unit button to conrm. Press the unit buttons

to set the wake-up time “minutes”. Press the unit button to conrm. Press the unit buttons

to set the wake-up signal. BEEP A signal sound is emitted for the wake-up time SOURCE The music source set is played for the wake-up time SRC+BEEP The music source set is played and a signal sound is emitted for the wake-up time Press the unit button

to conrm. Press the unit buttons

to make further settings for the selected source, e.g. the desired radio station for FM radio. Press the unit button

to conrm. Press the unit buttons

to set the volume of the wake-up signal. Press the unit button

to conrm. The LED indicator light

above the unit but- ton ALARM lights up. This shows that the alarm is switched on. Activate/Deactivate wake-up function Use the button ALARM

on the remote control to switch the alarm off. The LED indicator light

above the ALARM button shows whether the wake-up function is active. The wake-up time is displayed briey when activating the wake-up function. ➠ If the audio source set is not available during the wake-up time (e.g. iPod is not in the dock), the acoustic sound will be buzzed. Snooze function Press and hold the button or press one of these buttons on the device when the alarm goes off:

The alarm stops and auto- matically starts again in ve minutes. The LED indicator light above the unit button ALARM ashes. The alarm is switched off. Set alarm volume. If the wake-up signal SRC+BEEP has been set, pressing the button once stops the acoustic sound and if you press it again the music source. Switch off alarm Use the button ON/OFF

on the remote control to switch the alarm off.. The LED indicator

light above the unit button ALARM goes out. ➠ The wake-up signal stops automatically after about 60 minutes. ➠ The wake-up function is deactivated after switching off the wake- up signal. Activate the wake-up function again, as described under “Activating /Deactivating the wake-up function”. Sleep function You can listen to music for a certain time with the SoundBox ID until it switches off automatically. Setting the run time Select desired music source. Select desired play time 30, 60, 90, 120 Min / SLEEP OFF by long pressing again. Switch off automatically The unit switches off itself after an adjustable time. Long press: select the settings menu. 5 6 Select option AUTO POWER OFF. Press OK to conrm. 5 6 Set 8H or 4H. Press OK to conrm. Long press: quit Settings menu.n Loewe SoundBox ID - 25 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska

- 25 -Instructions for UseTroubleshooting Troubleshooting Problem Possible cause Remedy Not working at all. Mains cable not plugged in. Plug the mains cable into a socket 230 V 50 Hz. No sound. Defective connections at the input cable. Connect the cable correctly (page 19). If the problem continues, the cable might be defective. The volume is set at minimum. Turn up the volume. The sound is set to mute. Press or V+ on the remote control to reactivate the audio output and then set the volume level. A headphone is connected. Remove the headphone. CD playback not possible. No disc inserted. Insert a disc. A disc that cannot be played has been inserted. Insert a disc that can be played (check the type of disc). The disc is dirty. Clean the disc. The disc cannot be loaded. Switch the unit on and then in- sert the disc in the drive. The disc is not inserted with the playback side to the rear. Insert the disc with the playback side to the rear. A media file cannot be played. The file format is not supported. Convert the file to a supported format on a computer with a converter program. The unit is not working properly. Unplug the mains plug from the mains socket and then try plugging it in again after 30 seconds. The remote control is not working properly. The batteries in the remote control are dead. Replace the batteries with new ones. The time display is flashing; the unit cannot be operated. The CLOCK switch

on the rear of the unit is in the SET position. Set the switch to the ON or OFF position. The unit switches off automatically. The unit switches to Standby mode to save energy after 60 minutes without playing a CD or USB. The sleep function (page 24) has been activated. Switch the unit on again. The iPod function is selected, but no iPod is docked. Place the iPod in the dock or select another operating mode. The unit has an energy saving function (page 24). Switch the set on again manually. The radio reception is disrupted. The antenna is loose or damaged. Insert the antenna cable firmly in the socket or replace it with a new one. iPod operation is disrupted. The iPod is not correctly inserted in the dock. Pull the iPod out and insert it carefully in the dock again until the correction is properly established. The iPod playback stops and another title is played. The iPod function “Shake to Shuffle” is acti- vated. Deactivate this function in your iPod. USB playback is not possible. The combination of file and directory name is too long. The combination of file and directory name must not exceed 250 characters. Please make the names shorter. The file format of the USB storage medium is not compatible. Format the USB storage medium in FAT16/32 format. The number of files / directories is greater than the maximum allowed. Reduce the number of files / directories (page 22).n Loewe SoundBox ID - 26 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska Trademark rights Markenrechte “Made for iPod” and “Made for iPhone” mean that an electronic ac- cessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may af- fect wireless performance. iPod is a registered trademark of Apple Inc. in the USA and other countries. Environmental protection Cardboard box and packaging In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. The unit Attention: The EU Directive 2002/96/EC governs the proper return, handling and recycling of used elec- tronic appliances. Old electronic appliances must therefore be disposed of separately. Never dispose of this unit in normal domestic waste! You can hand in your old unit free of charge at identied collection points or to your dealer if you buy a similar new unit. Other details about return (also for non-EU countries) are available from your local authorities. Remote control batteries The batteries provided contain no harmful materials such as cadmium, lead or mercury. Regulations concerning used batteries mean that batter- ies may no longer be disposed of in household waste. You can dispose of used batteries free of charge at the collection points in commercial outlets. Your dealer will also have a collection point for used batteries.

- 26 -Instructions for UseTechnical Data Technical Data General Loewe SoundBox ID Art.no. 51202-T/W/G/I/P01 Operating temperature [°C] 5 ... 40 Humidity [%] (no condensation) 30 ... 90 Dimensions [W x H x D in cm] 45 x 14.5 x 17 Weight [kg] 5.1 Electrical data Mains voltage [Volt 50 Hz] 230 Power consumption [Watt] 23 Power consumption in Standby [Watt] (Energy Saving mode) < 0.5 Laser Laser class 1, wavelength: 790 nm Output stages 2 Load bearing capacity [Watt] (max. music) 2x 15 Interfaces Headphones Jack socket 3.5 mm AUX Jack socket 3.5 mm USB 2x V 2.0, type A ANT FM FM antenna input, 75 Ohm Media formats supported USB, CD-R, CD-RW MP3, WMA (without DRM) CD Audio-CD Apple devices supported - Made for (only for audio playback) iPod touch (4th generation), iPod touch (3rd generation) iPod touch (2nd generation), iPod touch (1st generation) iPod classic iPod nano (6th generation) iPod nano (5th generation) , iPod nano (4th generation) iPod nano (3rd generation), iPod nano (2nd generation) iPhone 4, iPhone 3GS, iPhone 3G, iPhone Legal information Loewe Opta GmbH is a public limited company of German law with its Head Office in Kronach. Industriestrasse 11, 96317 Kronach Telephone: +49 9261 99-500 Fax: +49 9261 99-515 Email: ccc@loewe.de Commercial Register: Municipal Court Coburg, No. HRB 42243 VAT ID-No.: DE 193216550 WEEE registration number: DE 41359413 Editorial date 12.12. 3rd edition © Loewe Opta GmbH, Kronach All rights reserved including translation. Design and technical specifications are subject to change without notice.n Loewe SoundBox ID - 27 - Deutsch English Français Italiano Español Nederlands DanskSuomi Svenska
