CB 145 - Coffee machine BOMANN - Free user manual and instructions

USER MANUAL CB 145 BOMANN

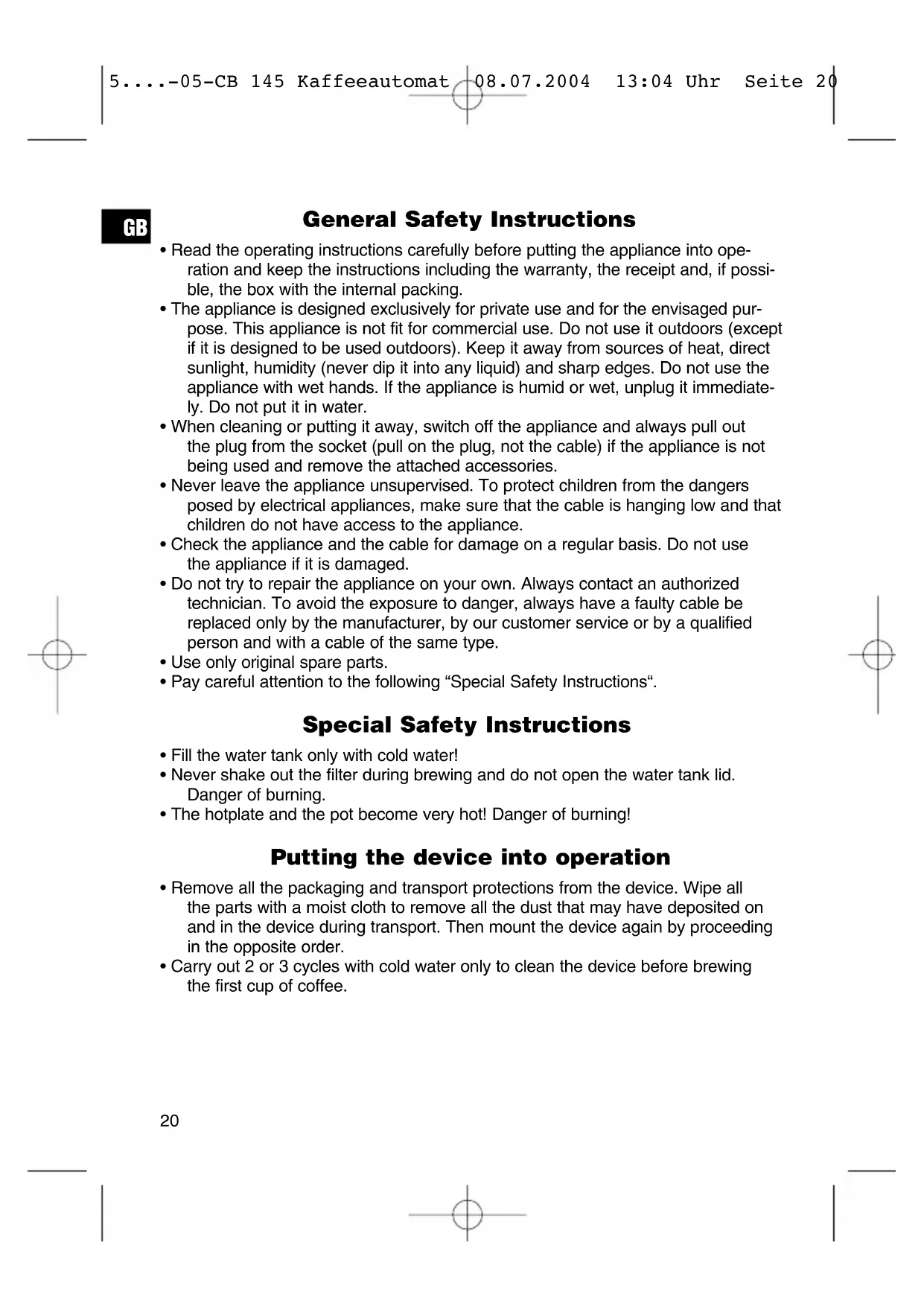

• Read the operating instructions carefully before putting the appliance into ope- ration and keep the instructions including the warranty, the receipt and, if possi- ble, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged pur- pose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediate- ly. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. Special Safety Instructions

• Fill the water tank only with cold water!

• Never shake out the filter during brewing and do not open the water tank lid. Danger of burning.

• The hotplate and the pot become very hot! Danger of burning! Putting the device into operation

• Remove all the packaging and transport protections from the device. Wipe all the parts with a moist cloth to remove all the dust that may have deposited on and in the device during transport. Then mount the device again by proceeding in the opposite order.

• Carry out 2 or 3 cycles with cold water only to clean the device before brewing the first cup of coffee.

• Insert the plug in a duly installed 230V/50Hz protective contact socket. The details can be found on the appliance’s nameplate.

• Make sure that the appliance is switched off. (The light in the on/off switch is off.) Operating

1. Open the water tank lid.

2. Now fill with enough fresh cold water for the desired number of cups. You can

read the level on the water level display. Do not overfill the appliance (max. 8 cups).

3. Close the water tank lid.

4. Swing the filter the left. Insert a paper filter (size 1x2) in the filter funnel and fill

with ground coffee (approx. 1 teaspoon for two cups). Lock in the filter until it snaps into place.

5. Place the pot evenly on the base. Make sure that the top of the pot is unscr-

6. Switch on the appliance (the LED in the switch lights up).

7. The brewing lasts about 10 to 15 minutes.

8. Your appliance is provided with a drip stop. By removing the pot, before the

water runs through the filter completely, it avoids that the coffee drips on the base. If there is still water in the tank or filter, make sure that the pot is placed back under the filter to avoid overflowing.

9. When the coffee stops flowing into the filter, you can remove the pot.

10. Switch off the appliance (the LED in the switch is off).

11. To pour the coffee out of the pot, turn the lid by half a turn counter-clockwise. To

keep the coffee warm, put the lid back on. De-scaling De-scaling is necessary when the brewing time increases substantially. Use only commercially available citrus acid-based de-scaler. Follow the recommended instructions for use. Cleaning

1. Always pull he plug before cleaning and wait for the appliance to cool down.

2. Clean the outside of the appliance, if necessary, with a slightly moist cloth with-

3. The filter holder can be washed as usual in warm washing up water.

4. Do not immerse the pot in water. Wipe the outside with a moist cloth. You can

clean the inside with warm water. If necessary, use a soft brush.

5....-05-CB 145 Kaffeeautomat 08.07.2004 13:04 Uhr Seite 21This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice! Guarantee We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt). During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge. Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase. Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer. You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this case only the faulty accessory needs to be ordered without sending back the whole appliance! The cleaning, servicing and replacement of wear parts are not covered by this war- ranty and hence are to be paid for. The warranty is terminated in case of handling on the part of Third parties. After the expiry of the guarantee Once the warranty has expired, repairs can be carried out by specialized technici- ans or repair services against the payment of the service.
