USER MANUAL KA 165 CB BOMANN

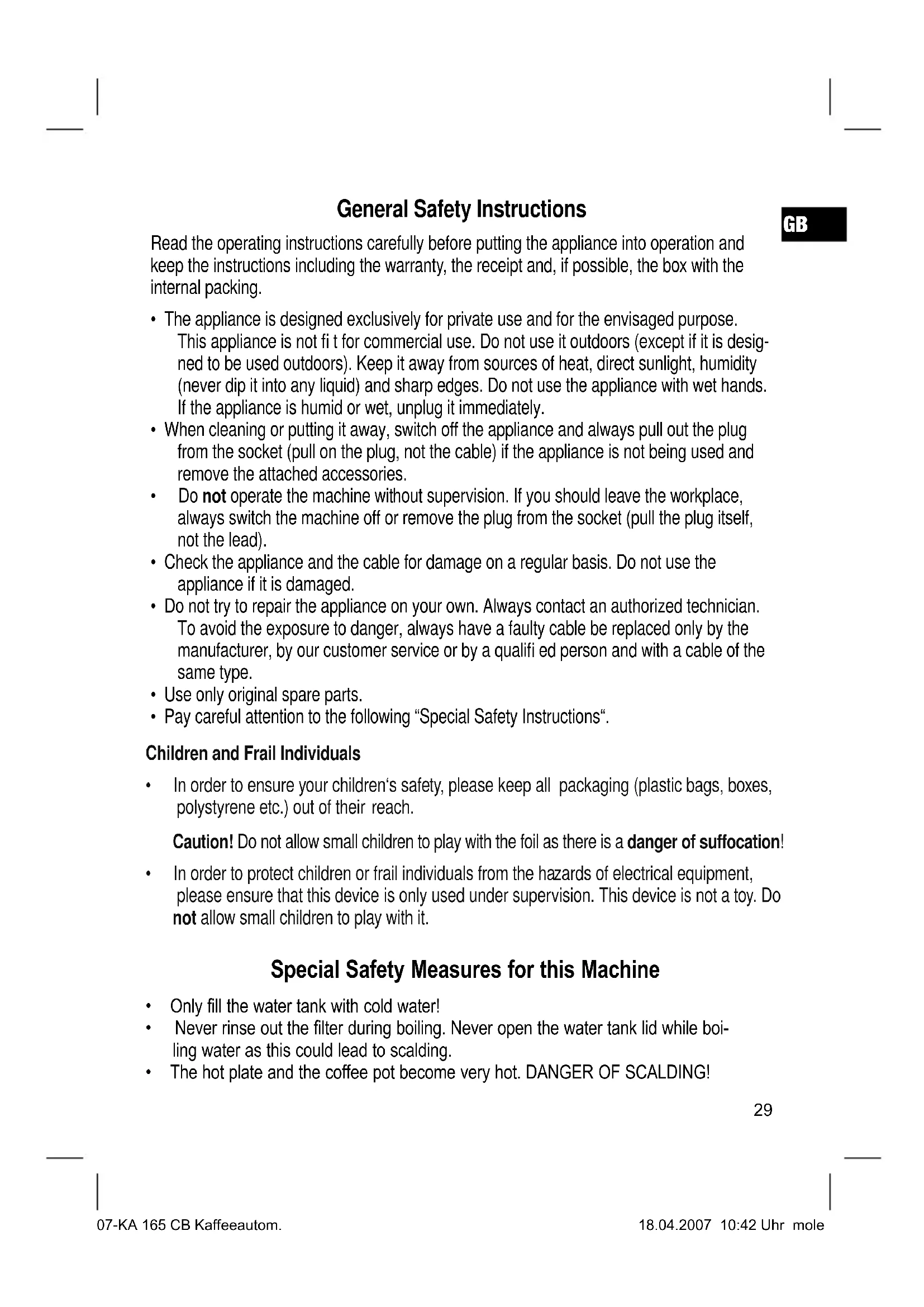

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is desig- ned to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instructions“. 07-KA 165 CB Kaffeeautom. 18.04.2007 10:42 Uhr mole Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it. Special Safety Measures for this Machine

• Only fill the water tank with cold water!

• Never rinse out the filter during boiling. Never open the water tank lid while boi- ling water as this could lead to scalding.

• The hot plate and the coffee pot become very hot. DANGER OF SCALDING!First Use of the Machine

• Before making coffee in the machine for the first time rinse two to three times with cold water in order to clean the machine.

• Clean the filter pad and the glass pot by rinsing. Electrical Connection

• Make sure that the machine is switched off (operating switch on "0").

• Before inserting the mains lead into the socket, check whether the voltage you intend to use complies with that of the machine. For details see the machine label.

• Only connect the machine to a properly installed safety socket, 230 V/50 Hz. Operation

1. Pull the lid of the water tank forwards. Fill the machine to the number of cups

required with cold water.

2. Swing the filter out to the right. Insert a filter (size 1 x 2) into the filter funnel and

fill it with coffee powder. Then close the filter holder until it locks in place.

3. Place the pot on the hot plate and close the lid of the water tank.

4. Turn the switch to position “1”. The coffee will begin to percolate. After perco-

lation you may remove the pot.

5. If you would like to keep the remaining coffee warm, the switch must remain in

position “1”. The hotplate will keep the coffee warm until the switch is moved to the “0” position. The machine is then switched off. Descaling Descaling is necessary when the time needed to prepare coffee becomes consider- ably longer. Only commercially available descaling products based on citric acid should be used. Cleaning Before cleaning the machine you should always remove the mains lead and wait until the machine has cooled down. The machine should only be cleaned with a slightly damp cloth. Do not use any strong detergents or solvents for cleaning. The coffee pot and the filter pad should be cleaned by rinsing in cold water.

This device has been tested according to all relevant current CE guidelines, such as electro- magnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. 07-KA 165 CB Kaffeeautom. 18.04.2007 10:42 Uhr moleGB

Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 07-KA 165 CB Kaffeeautom. 18.04.2007 10:42 Uhr molePL
