Noveo FG1901 - Coffee maker MOULINEX - Free user manual and instructions

Product type	Drip coffee maker
Brand	Moulinex
Model	Noveo FG1901
Power supply	220-240 V, 50-60 Hz
Carafe capacity	1.25 L (about 10 cups)
Filter type	Paper filter #2 or #4, or permanent filter (optional)
Drip stop	Yes, allows serving before the cycle ends
Aroma selector	Yes, intensity adjustment (depending on model)
Thermal carafe	Optional, keeps coffee hot for up to 4 h
Filter holder material	Removable, dishwasher safe
Carafe	Glass, microwave and dishwasher safe (without metal rim)
Recommended descaling	Every 40 cycles
Cleaning	Damp cloth, do not immerse
Safety	Do not use unsupervised, keep out of reach of children under 8 years
Use	Household use only
Included accessories	Glass carafe, filter holder, measuring spoon
Warranty	Excludes descaling defects

Frequently Asked Questions - Noveo FG1901 MOULINEX

How to descale the Moulinex Noveo FG1901 coffee maker?

Descale every 40 cycles. Use a descaler sachet diluted in 2 large cups of water or 2 large cups of white vinegar. Pour into the reservoir, brew one cup, stop, let it sit for 1 hour, then complete the cycle. Rinse with 2-3 cycles of fresh water.

Can I use ground coffee other than for filter?

No, use only filter ground coffee. Too fine a grind can clog the filter and affect taste.

Why is the coffee not flowing?

Check that the carafe or thermal pot is properly placed, that the water tank is not empty, and that the filter is not clogged. The drip stop may block if the carafe is not positioned correctly.

How to use the aroma selector?

The aroma selector (fig.7) allows adjusting intensity. Turn it towards the black cup for a stronger coffee. Depending on the model, it may not be present.

Can the thermal carafe go in the dishwasher?

No, the thermal carafe should not be placed in the dishwasher or microwave. Clean it by hand with warm water and a little dish soap, rinse thoroughly.

Can I reheat coffee in the carafe?

Do not put the carafe in the microwave if it has a metal part (e.g., steel rim). Glass carafes without metal can go in the microwave, but it is not recommended to reheat coffee to preserve taste.

How to clean a heavily stained thermal carafe?

Fill the pot with warm water, add a dishwasher tablet and let it soak. Then rinse thoroughly. Do not use abrasive cleaners.

What to do if the coffee maker leaks?

Check that the water tank is not overfilled, that the filter holder is properly locked, and that the carafe is correctly positioned. If the problem persists, contact an authorized service center.

What is the maximum water capacity?

Do not exceed the maximum water level indicated on the tank. This generally corresponds to about 1.25 L for 10 cups.

How to replace the filter?

Use a paper filter #2 or #4, or a permanent filter (optional). For paper filter, place it in the filter holder, add ground coffee, then close. For permanent filter, insert it directly.

USER MANUAL Noveo FG1901 MOULINEX

a Couvercle - Lid - Deksel - Deckel - Coperchio - Tapa - Tampa - Kapáki - Kapak - Låg - Lokk - Lock - Kansi - Granj
b Réservoir - Tank - Reservoir - Wassertank - Serbatoio dell'acqua - Depósito - Depósito - Δοχείο - Hazne - Beholder - Tank - Behållare - Vesisäiliö - مخزن - 물 탱크
c Niveau d'eau - Water level - Waterpeil - Wasserstandanzeige - Livello dell'acqua - Nivel de agua - Nivel de água - Στάθμη νερού - Su seviyesi - Vandniveau - Vannivå - Vattennivå - Vedentason näyttö - سطح آب - مستوى الماء - 물수위창
d Porte-filtre - Filter holder - Filterhouder - Filterträger - Alloggio del filtro - Portafiltros - Portafiltro - Θήκη φίλτρου - Filtre desteği - Filterholder - Filterholder - Filterhållare - Suodatinkotelo - نگهدار فيتر - حاملة الفلتر - 필터 - 홀더
e Plaque-chauffante** - Warming plate** - Opwarmplaat** - Heizplatte** - Piastra riscaldante** - Placa calefactora** - Placa de aquecimento** - Θερμαινόμενη πλάκα** - Isinan levha** - Varmeplade** - Varmeplate** - Värmeplatta** - Lämpölevy** - ** لوحة التسخين ظرف كرم كردن ** لوحة ** ¹ ** ² ** ³ ** ⁴ ** ⁵ ** ⁶ ** ⁷ ** ⁸ ** ⁹ ** ¹⁰ ** ¹¹ ** ¹² ** ¹³ ** ¹⁴ ** ¹⁵ ** ¹⁶ ** ¹⁷ ** ¹⁸ ** ¹⁹ ** ²⁰ ** ²¹ ** ²² ** ²³ ** ²⁴ ** ²⁵ ** ²⁶ ** ²⁷ ** ²⁸ ** ²⁹ ** ³⁰ ** ³¹ ** ³² ** ³³ ** ³⁴ ** ³⁵ ** ³⁶ ** ³⁷ ** ³⁸ ** ³⁹ ** ⁴⁰ ** ⁴¹ ** ⁴² ** ⁴³ ** ⁴⁴ ** ⁴⁵ ** ⁴⁶ ** ⁴⁷ ** ⁴⁸ ** ⁴⁹ ** ⁵⁰ ** ⁵¹ ** ⁵² ** ⁵³ ** ⁵⁴ ** ⁵⁵ ** ⁵⁶ ** ⁵⁷ ** ⁵⁸ ** ⁵⁹ ** ⁶⁰ ** ⁶¹ ** ⁶² ** ⁶³ ** ⁶⁴ ** ⁶⁵ ** ⁶⁶ ** ⁶⁷ ** ⁶⁸ ** ⁶⁹ ** ⁷⁰ ** ⁷¹ ** ⁷² ** ⁷³ ** ⁷⁴ ** ⁷⁵ ** ⁷⁶ ** ⁷⁷ ** ⁷⁸ ** ⁷⁹ ** ⁸⁰ ** ⁸¹ ** ⁸² ** ⁸³ ** ⁸⁴ ** ⁸⁵ ** ⁸⁶ ** ⁸⁷ ** ⁸⁸ ** ⁸⁹ ** ⁹⁰ ** ⁹¹ ** ⁹² ** ⁹³ ** ⁹⁴ ** ⁹⁵ ** ⁹⁶ ** ⁹⁷ ** ⁹⁸ ** ⁹⁹ ** ¹⁰⁰ **
f Verseuse* - Jug* - Koffiekan* - Kanne* - Caraffa* - Jarra* - Jarra* - Kaváta* - Sürahi* - Kande* - Kanne* - Kanna* - Kannu* - *ابريق - *عربية | 용기 *
g Cuillère doseuse - Dosing spoon - Maatlepel - Dosierlöffel - Cucchiaio dosatore - Cuchara dosificadora - Colher doseadora - Meζούρα - Ölçme kaşığı - Måleske - Doseringsskje - Kaffemätt - Mittalusikka - قاشق به ميزان دور - ملعقة قياس - 계량 ス폰

1

fig.1
2

fig.2
3

fig.3
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب الامعوله، مبند 에 따라다릅니다

4

5

fig.5
6

fig.6

* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modello - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Avhengig av modell - Beroende på modell - Riippuu mallista - حسب المُهْدَّل - 따라다릅니다

7

fig.7
8

fig.8
9

fig.9
* Selon modèle - Depending on model - Afhankelijk van de model - Je nach Modell - A seconda del modelo - Según modelo - Consoante o modelo - Aváloya με το μοντέλο - Modeline göre - Afhaengigt af modellen - Ahengig av modell - Beroende på modell - Riippuu mallista - حسب مويّد- م vessels 에 따라다릅니다

10

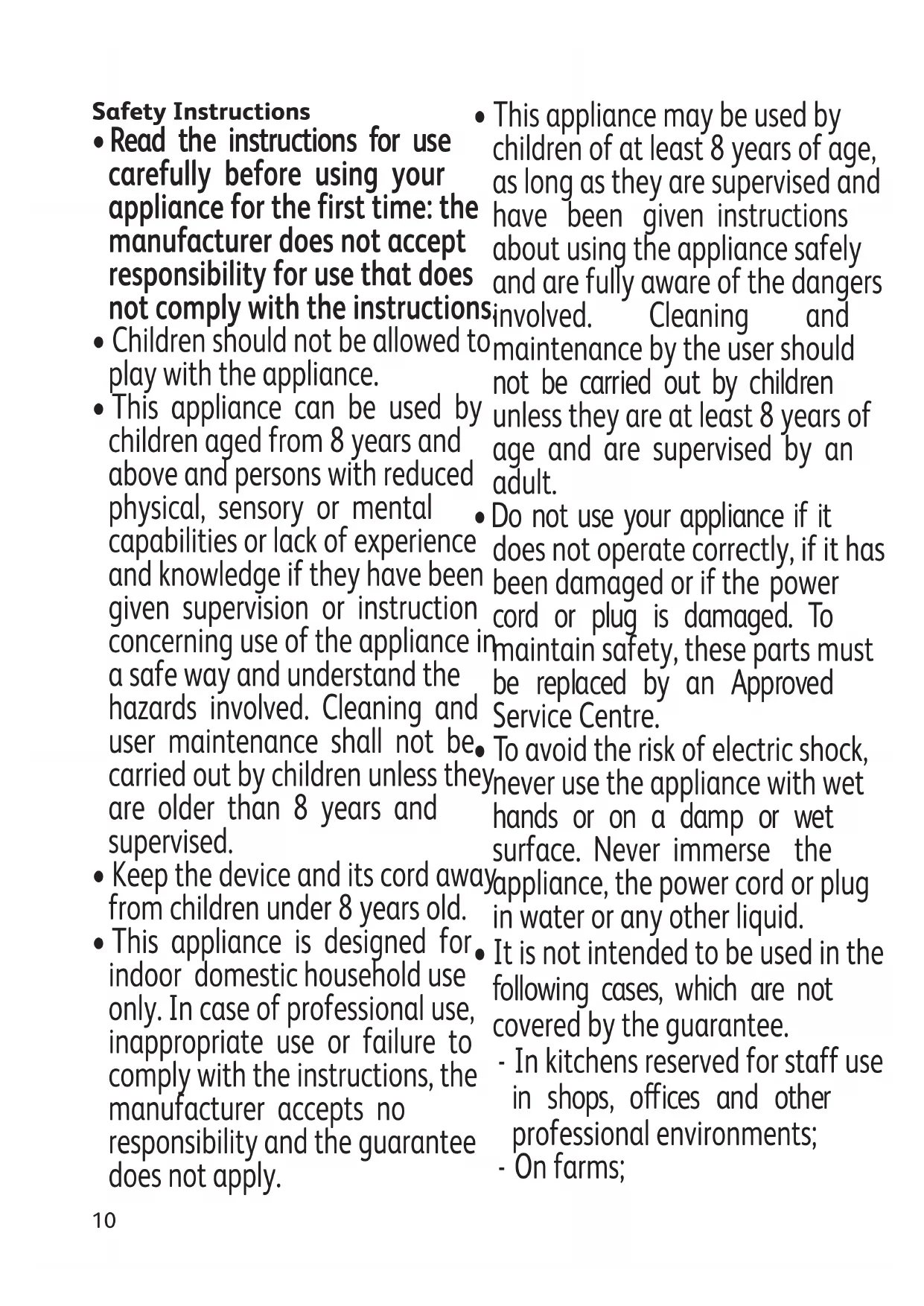

- Read the instructions for use carefully before using your appliance for the first time: the manufacturer does not accept responsibility for use that does not comply with the instructions;

- Children should not be allowed to play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.

- Keep the device and its cord away from children under 8 years old.

- This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.

- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and to maintenance by the user should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

- Do not use your appliance if it does not operate correctly, if it has been damaged or if the power cord or plug is damaged. To maintain safety, these parts must be replaced by an Approved Service Centre.

• To avoid the risk of electric shock, eYnever use the appliance with wet hands or on a damp or wet surface. Never immerse the ayappliance, the power cord or plug in water or any other liquid.

- It is not intended to be used in the following cases, which are not covered by the guarantee.

• In kitchens reserved for staff use in shops, offices and other professional environments;
• On farms;

- By hotel or motel clients, or on other residential premises; • - In bed and breakfast accommodation and other similar environments.

- For your safety, this appliance meets applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food articles, Environment, etc.).

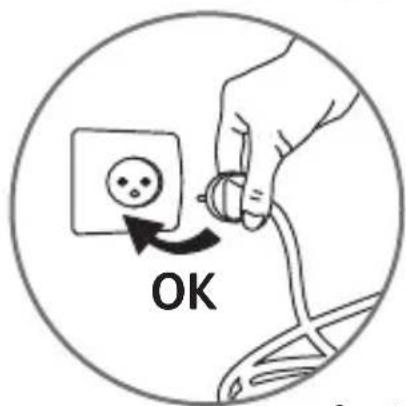

- This appliance is designed to function on AC current only. Before using it for the first time, check that your mains supply voltage matches that indicated on the appliance data plate.

- Any connection error will invalidate your guarantee.

- Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre.

- Do not use an extension lead. If you accept liability for doing so, only use an extension lead which is in good condition, has a plug with an earth connection and is suited to the power rating of the appliance.

- This appliance is not intended to function using an external time-switch or a separate remote control system.

- Never leave the appliance unattended whilst connected to the power supply, even if for a few moments, especially where children are present.

- Do not let the power cord hang where children may reach it.

- Switch off and disconnect the appliance from the power supply before carrying out cleaning & maintenance or when not in use.

- Never disconnect the plug by pulling on the power cord.

- Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre.

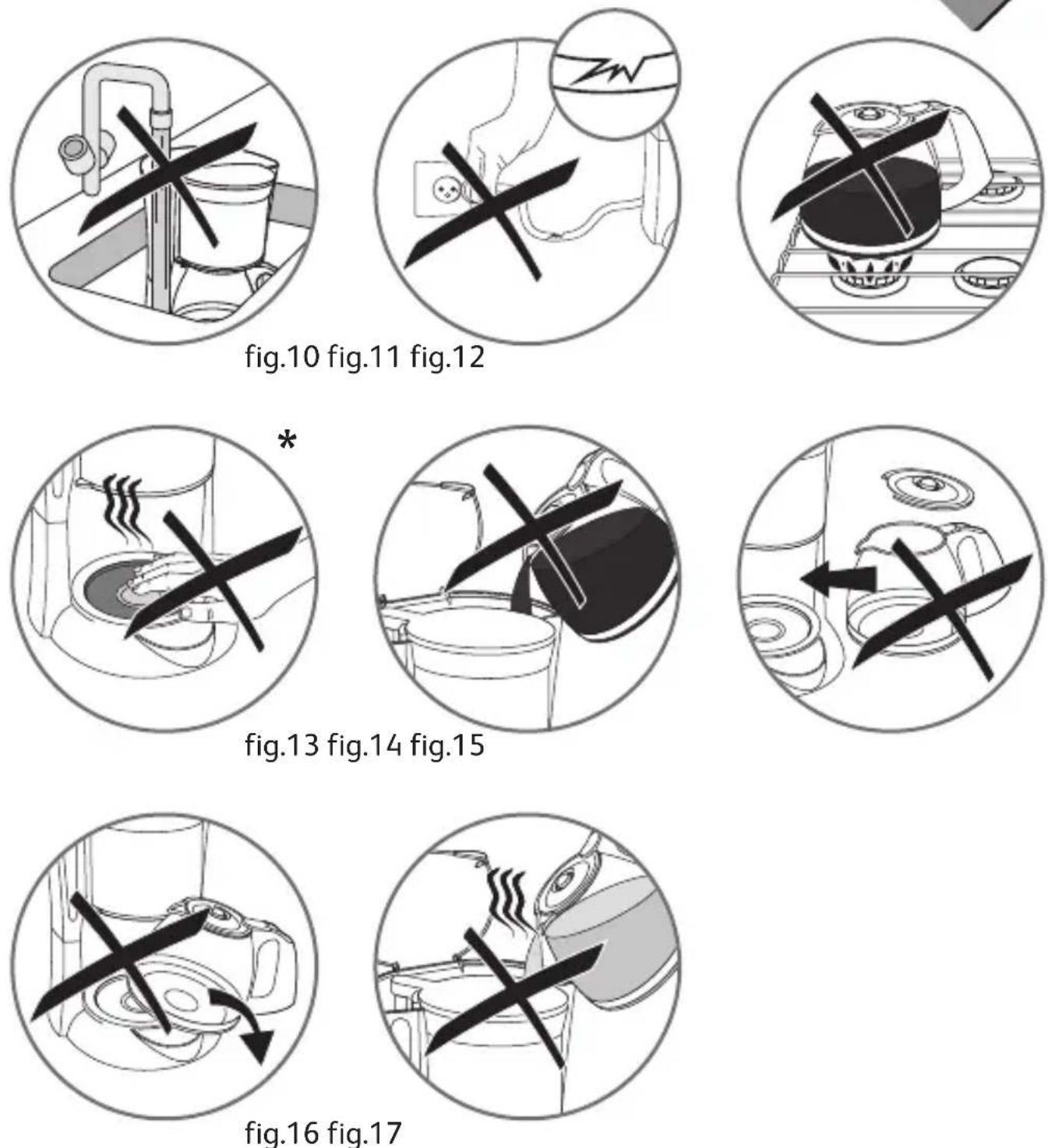

• The warming plate is very hot when the appliance is in use.

- Never place your hand on the warming plate while the coffee maker is in operation.

Allow the appliance to cool down completely before you clean and store it.

• Never insert your hand inside the thermal pot.
• Do not use the jug or thermal pot without their lids.
• Do not use the the jug or thermal pot on a flame or electric hob.
• Do not put water into the appliance when it is still warm.

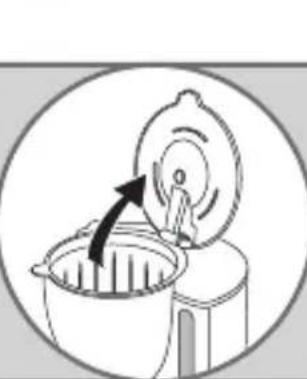

• Always close the lid (a) when the coffee maker is in operation.
• All appliances are subject to rigorous quality inspection. Practical tests using appliances taken at random are conducted and this may explain any possible traces of use.
• The glass jug without a metal part is microwave and dishwasher safe (ATTENTION: the thermal pot must not be placed in the microwave or dishwasher).
• The power cord must never be close to or in contact with hot parts of the appliance, close to a source of heat or resting on sharp edges.
• Never place the appliance close to a wall or below a wall cupboard. The steam could cause damage.
• Never place the appliance below or close to easily inflammable objects (e.g. curtains, etc.).
• After switching on your coffee maker, never put your hand on the warming plate when you are removing the jug from the coffee maker. While in operation, this plate has a very high temperature, which could cause burns.

Before using for the first time

- Use your filter coffee maker without coffee the first time using the equivalent of a jug of water to rinse your coffee maker.

Preparing the coffee

(Follow figures 1 to 9)

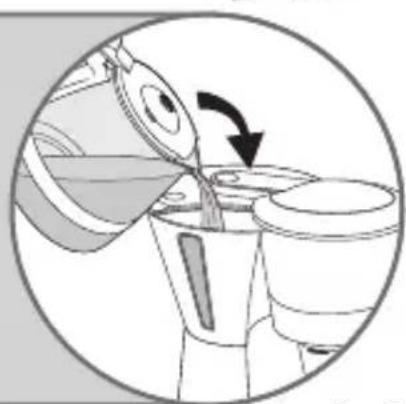

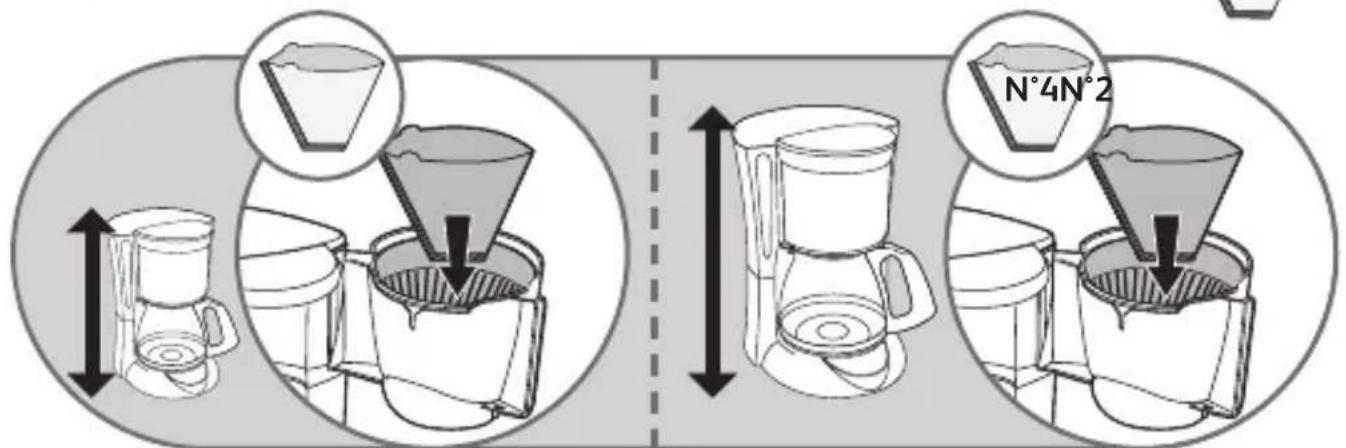

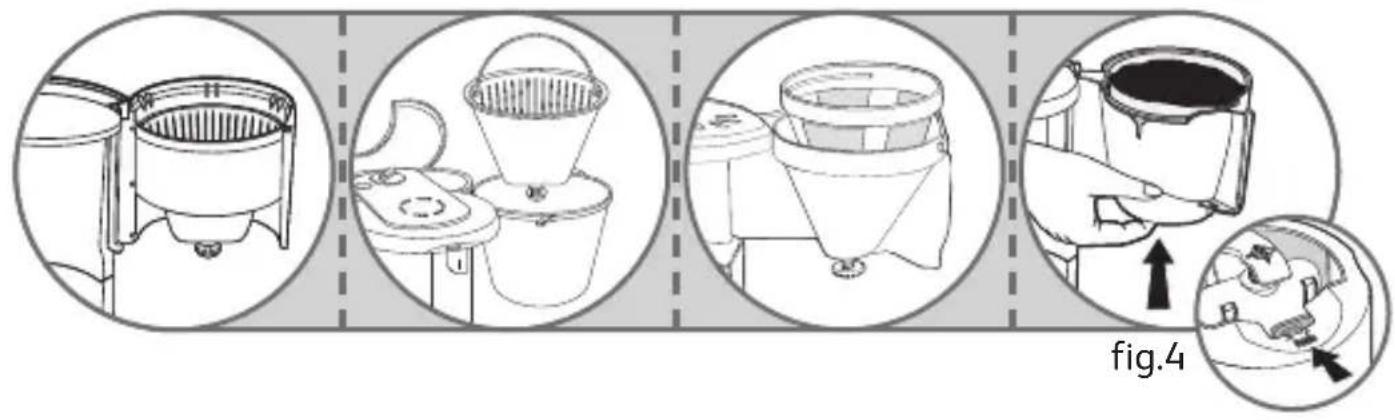

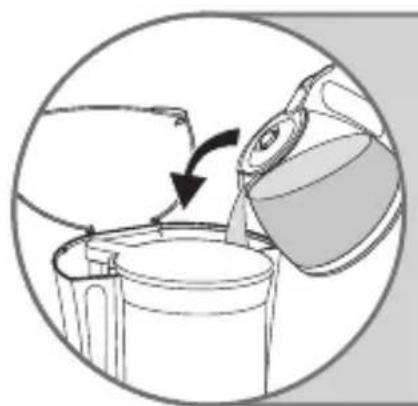

• Use only cold water and filter paper n°2 or 4 (fig.5) or the permanent filter* (fig.4).
• Do not exceed the maximum quantity of water indicated by the water level on the tank.

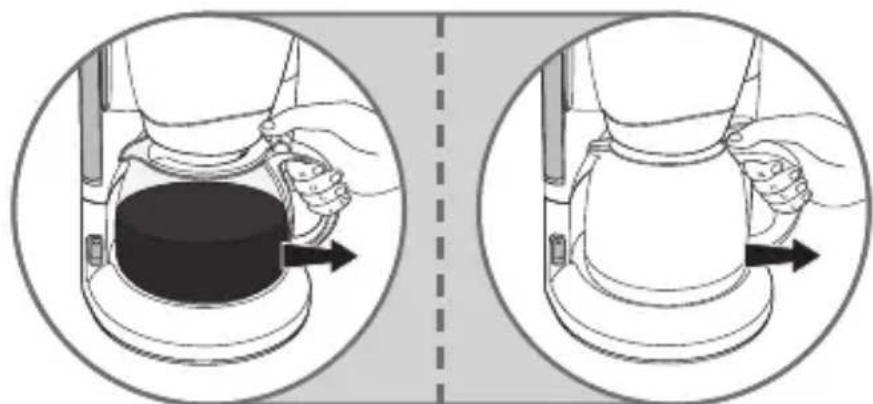

• This coffee maker has a drip stop so that you can serve coffee before the end of the cycle. Once your coffee is served, replace the jug or thermal pot* to prevent overflowing.

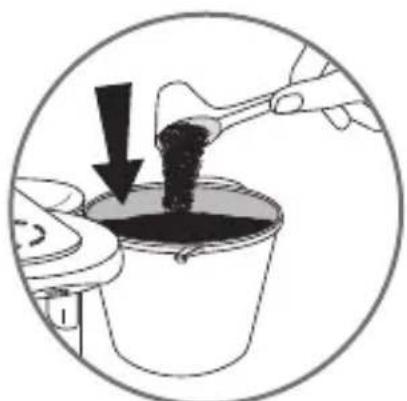

• Ground Coffee: Use one measuring spoon of ground coffee per large cup.

• Wait a few minutes before making a second pot of coffee.
• Do not make another pot of coffee if the jug already contains coffee.

Thermal pot*

• Do not use the thermal pot without its lid.

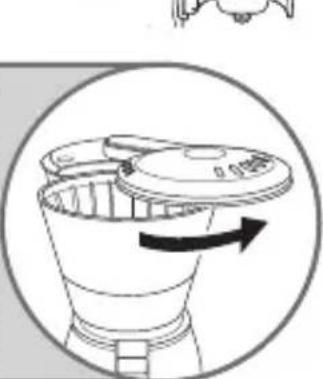

• The thermal pot lid must be closed tightly all the way to the right to prepare the coffee and keep it warm.
• To serve the coffee, press the lever on the lid of the thermal pot downwards or unscrew the lid half a turn to the left*.
• Do not put your thermal pot in the microwave or dishwasher.
• Rinse the thermal pot in hot water before using so that it retains heat better.
• The thermal pot keeps your coffee warm for four hours maximum.

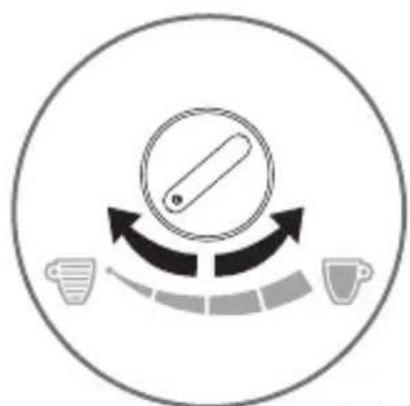

Aroma selector* (see figure n°7)

• The aroma selector (fig.7) allows you to adjust the intensity of the coffee.
• For a stronger coffee, turn the aroma selector to the black cup.

Reheating the coffee

- Do not put the glass jug into the microwave if it has a metallic part (e.g.: metal band).

Cleaning

• To dispose of the used coffee grounds, remove the filter paper (fig.5) or permanent filter* (fig.4).
• Unplug and let the coffee maker cool down.

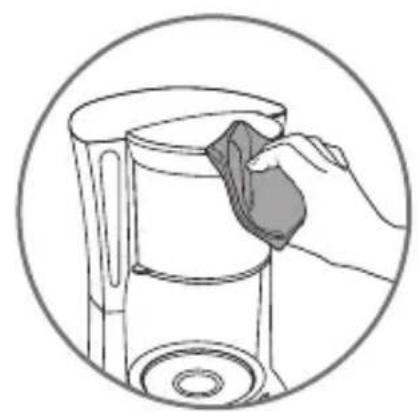

• Clean with a cloth or wet sponge.
• Do not clean the appliance when it is still hot.
• Never immerse the appliance, the power cord or plug in water or any other liquid.

Dishwasher:

• The removable filter holder is dishwasher safe.
• Only glass jugs without a metal band can be placed in the dishwasher (without lid).

Thermal jug*

• Do not clean with abrasive cleaning products.
• Do not put your hand inside to clean (risk of breaks).
• To clean your Thermal jug, fill it with soapy water and then rinse out thoroughly.

- In cases where the jug becomes very stained by the coffee, fill it with lukewarm water, add a dishwasher detergent tablet and let it soak. Afterwards, rinse out thoroughly.

Descaling

- Descale your coffee maker every 40 uses. You can use:

• a sachet of descaling agent diluted in two large cups of water;
• or two large cups of commercially available white vinegar.

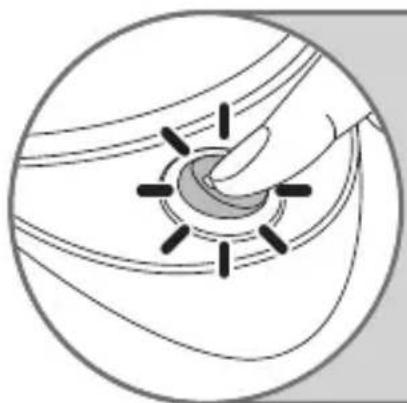

- Pour into the tank (b) and turn on the coffee maker (without coffee).

- Allow the equivalent of one cup flow into the jug or thermal pot (f) then stop.

- Allow to act for one hour.

- Restart the coffee maker to stop the flow.

- Run the coffee maker two or three times with the equivalent of one jug of water to rinse.

The guarantee excludes coffee makers that are not working or are not working properly due to lack of descaling.

Accessories*

• Glass jug
• Thermal pot
• Permanent filter

Think of the environment!

①Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.
