Product type	Gas cooker
Brand	Constructa
Model	CA18350
Category	Cooker / Gas hob
Installation type	Built-in or freestanding (depending on model)
Power supply	Gas (adjustable type per country)
Number of burners	5 burners (including a triple flame)
Burner powers	1 x 3.6 kW (rapid), 1 x 3 kW (semi-rapid), 2 x 1.75 kW (auxiliary), 1 x 1 kW (triple flame)
Triple flame burner	Yes, suitable for wok, paella, and large containers
Ignition	Automatic electric (spark plugs)
Safety	Flame failure safety valves on all burners
Additional grate (large diameters)	Available as an option (code 484138 / 363300)
Coffee maker grate (small diameters)	Available as an option (code 184200)
Recommended container diameters	Triple flame: >22 cm; Rapid: 22-26 cm; Semi-rapid: 12-20 cm; Auxiliary: 10-12 cm
Hob material	Glass and stainless steel (depending on model)
Cleaning	Soapy water and non-abrasive sponge; do not use steam cleaner
Burner maintenance	Clean the caps and diffusers with a non-metal brush
Safety instructions	Do not leave unattended; do not use as a heater; do not pour water on burning oil
Gas installation and conversion	Reserved for an authorized technician
Spare parts	Additional grate (ref. 484138/363300); Coffee maker grate (ref. 184200)

Frequently Asked Questions - CA18350 CONSTRUCTA

How to light a burner on the Constructa CA18350 cooker?

Press the control of the selected burner and turn it to the left to the ignition position. Hold it for a few seconds to light the burner. If the automatic ignition does not work, bring a flame (lighter, match) close to the burner. For burners with safety valve, keep the control pressed for about 10 seconds after ignition.

What to do if the electric ignition does not work?

Check that the spark plugs are not dirty or wet. Carefully clean the space between the plug and the burner with a small brush. Make sure the burner caps are correctly placed and dry.

How to clean the burners and grates?

Let the appliance cool down, then clean the burners and grates with a sponge, soapy water, and a non-metal brush. Dry completely before reassembling. Never use abrasive products or steel sponges.

Can I use a large container on the triple flame burner?

Yes, the triple flame burner accepts containers with a diameter greater than 22 cm. For containers over 26 cm, use the additional grate (ref. 484138/363300) for optimal stability.

How to convert the cooker for another type of gas?

Gas conversion must be carried out exclusively by an authorized technician. Contact Constructa technical support to adapt the appliance to the usage conditions in your country.

What to do if a gas smell spreads in the kitchen?

Check that no tap is open. Make sure the connection to the gas cylinder is correct. If the smell persists, close the supply and contact technical service.

How to turn off a burner?

Turn the burner control to the right to the stop position (closed mark).

What are the recommended container diameters for each burner?

For the triple flame burner: >22 cm. Rapid: 22-26 cm. Semi-rapid: 12-20 cm. Auxiliary: 10-12 cm. Always use flat-bottomed containers centered on the burner.

What to do if the burner flame is not uniform?

Check that the different parts of the burner (cap, diffuser) are correctly positioned. Clean the gas outlet grooves with a non-metal brush to remove residues.

How to get the coffee maker grate for small containers?

The coffee maker grate (ref. 184200) is available from Constructa technical service. It is designed for the auxiliary burner with containers of diameter less than 10 cm.

USER MANUAL CA18350 CONSTRUCTA

Close-up of a gas stove burner with a circular lid on top, heated by flames (no text or symbols visible)

GB Operating instructions
DE Gebrauchsanweisung
FR Mode d'emploi
IT Avvertenze per l'uso
ES Instrucciones de funcionamiento
PT Manual de utilização
NL Gebruiksaanwijzing

Constructa GmbH

Carl-Wery-Straße 34

81739 München

Cod. 9000280984 G

Constructa

Dear customer,

We would like to thank and congratulate you for your choice.

This practical modern appliance has been made using materials of the highest quality, which have been put through the strictest of Quality Controls during manufacture and meticulously tested to ensure that they meet all of your cooking demands.

We kindly ask you to read and follow these simple instructions in order to guarantee first-class results from the very start. This booklet contains important information not only concerning use, but also concerning your own personal safety and maintenance of the appliance.

Our products need to be carefully packed to protect them during transportation. All the material used for packing is considered essential for this purpose and is also completely recyclable. You too can contribute towards protecting the environment by disposing of this material at your nearest recyclable refuse collection point. Do not dispose of used cooking oil down the kitchen sink. Oil may seriously damage the environment. Dispose of it in a closed container at your nearest collection point or, failing this, dispose of it in your rubbish bin. Although this last solution is far from perfect, your oil will be taken to a controlled refuse dump where it will not be allowed to pollute water. You and your children will appreciate it.

Render your old appliance useless before disposing of it at your nearest recyclable refuse collection centre.

Your local authority will be pleased to inform you where your nearest centre is.

Packagingandoldappliances

If the symbol 📋 appears on the specifications plate, follow these instructions:

Disposinginan environmentally-responsible manner

Unpacktheapplianceanddisposeofthepackaging inanenvironmentally-responsiblemanner.

This appliance is labelled in accordance with the European Directive 2002/96/EC concerning used electrical and electronic appliances (waste electrical and electronicequipment-WEEE).

Theguidelinedeterminestheframeworkforthereturn andrecyclingofusedappliancesasapplicable.

CONTENTS

Safety warnings 3

Your new hob 5

Gas burners 6

Recommended receptacle diameters 7

Cooking recommendations 8

Warnings of use 9

Cooking 9

Cleaning and maintenance 10

Troubleshooting 12

Conditions of warranty 14

Safety warnings

☐ Read this manual carefully in order to cook efficiently and safely.
☐ In accordance with current regulations, the installation and adaptation of gas systems may only be performed by an officially authorised technician.
☐ Check all measurements before proceeding to install your new hob.
These instructions are only valid for the countries indicated on the appliance. Refer to the technical instructions to adapt the appliance to the conditions of use for the relevant country.
☐ This appliance must be installed in a position with the proper level of ventilation.
☐ The appliance should not be exposed to strong draughts, as these may blow the burners out.
☐ This appliance leaves the factory set for the gas supply indicated on the characteristics plate. Call the Service Centre if it needs to be altered.
☐ Do not tamper inside the appliance. If necessary, call your local Service Centre.
☐ Look after these instructions of use and installation so as to be able to produce them should the appliance ever change hands.
☐ If your hob is supplied with a glass cover, do not subject it to excessive force. If the glass should become detached from the hob, call the Service Centre immediately for them to repair or replace it.
☐ Do not use a damaged appliance.
☐ The surfaces on heating and cooking appliances get hot when in use. Be careful. Keep children away from the appliance.
☐ Only use your appliance for the preparation of food and never for room-heating purposes.

☐ Overheated fat or oil can easily catch fire. Never leave the appliance unattended when cooking food with fat or oil, e.g. chips.
☐ Never pour water on burning fat or oil. DANGER OF BURNS! Cover the receptacle to smother the flames and turn the hob off.
☐ In the event of a fault, cut the gas and electricity supplies to the appliance. Call our Service Centre to repair the fault.
☐ Do not use unstable or uneven-based receptacles on cooking plates or burners. They may accidentally tip over.
☐ If a gas supply knob/valve jams, do not force it. Call your official Service Centre immediately for them to repair or replace it.
☐ Do not use steam clearing machines to clean the hotplate, as there is risk of electrocution.
☐ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
☐ Never leave the appliance unattended during operation.
☐ The illustrations used in this booklet are only intended as a guide.

IF THESE INSTRUCTIONS ARE NOT FOLLOWED, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY.

Your new hob:

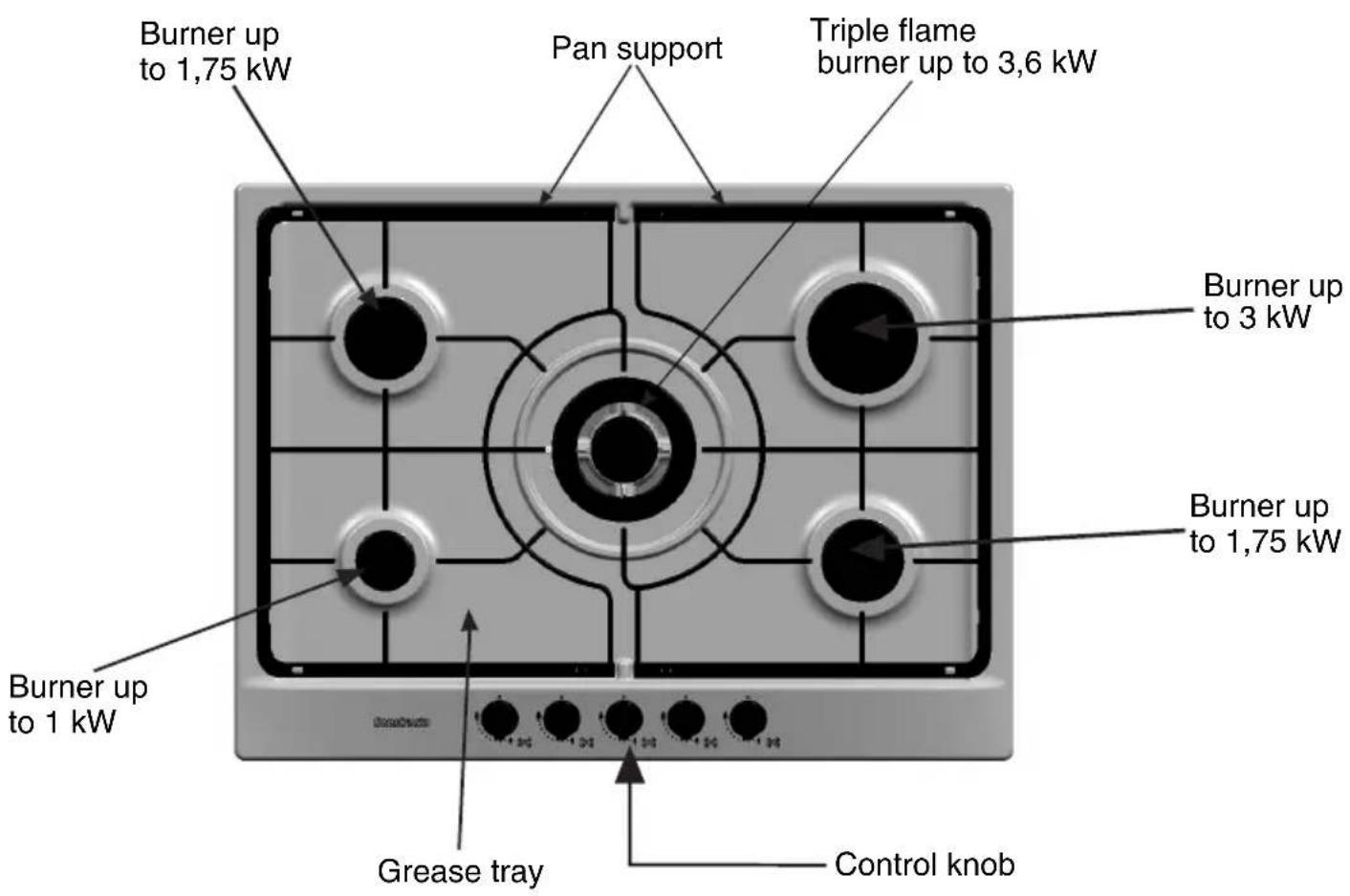

Burner up to 1,75 kW Pan support Triple flame burner up to 3,6 kW Burner up to 3 kW Burner up to 1,75 kW Burner up to 1 kW Grease tray Control knob

Gas burners

Diagram of a rotary knob with directional arrows and a small cross symbol, labeled Fig.1 (no text or symbols on the knob itself)

Each control knob indicates which burner it controls.(Fig.1)

To light a burner, push in the knob for the burner you wish to use and turn it in an anti-clockwise direction to the lighting position. Hold the knob at the maximum position for a few seconds until the burner ignites and then release and set the knob to the desired setting. If the burner does not light at the first attempt, repeat the operation.

If your hob does not come with any kind of automatic ignition system, then light the burners with a naked flame (cigarette lighter, matches, etc.).

If the spark plugs are dirty, then a fault may occur in the ignition system. Keep them completely clean. Clean the spark plugs using a small brush, remembering that the plugs must not receive any kind of violent impact.

If your hob is equipped with burners with safety valves which prevent gas from being released should the burners accidentally go out, proceed to light as described above, but keep the control knob pressed in until the burners light and then for a few more seconds once alight. If complete ignition does not occur, repeat the operation keeping the knob pressed in for approx. 10 seconds.

To turn the burners off, turn the control knob in a clockwise direction to the ●setting.

Your modern functional hob is equipped with progressive valves which permit you to find the perfect flame setting between maximum and minimum.

Depending on the model that you have purchased, your hob may come with a triple-flame burner, the perfect system for cooking paellas, using woks, etc..

Gas appliances create both heat and humidity in the room they are used in. Make sure that your kitchen is properly ventilated: keep natural ventilation outlets open or install a mechanical ventilation system (extractor fan). When using your appliance for a prolonged period of time, it may be necessary to provide additional ventilation e.g. by opening a window (without creating a draught) or turning up the setting on your mechanical ventilation system.

Recommended receptacle diameters (cm.)

Depending on model:

BURNER	MINIMUM ∅ RECEPTACLE	MAXIMUM ∅ RECEPTACLE
Triple flame:		>22 cm
Rapid:	22 cm 26 cm
Semi-rapid:	12 cm 20 cm
Auxiliary: 10 cm 12 cm

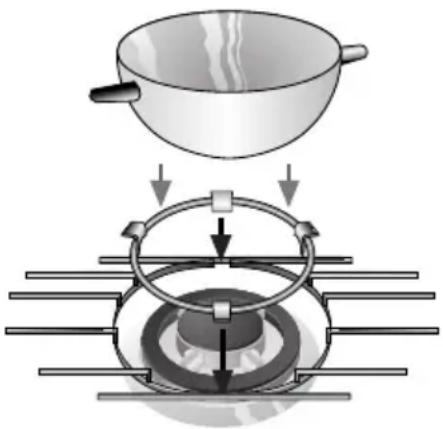

Additional pan support:

Fig.2

Diagram illustrating a cooking process with a pan, stirring bowl, and rotating stove with a central valve.

Depending on the model that you have purchased, your hob may come equipped with an additional pan support. This pan support is essential when using the triple-flame burner for receptacles with diameters of more than 26 cm, griddles, terracotta casseroles and all kinds of concave receptacles (woks, etc...) (Fig 2).

If you do not have a pan support, then these are available from your Service Centre, code 484138 // 363300.

Coffee pot support: Depending on the model that you have purchased, your hob may come equipped with an additional coffee pot support. This pan support is only for use on the auxiliary burner for receptacles with diameters of less than 10 cm. If you do not have a pan support, then these are available from your Service Centre, code 184200.

The manufacturer cannot be held responsible for the non-use or misuse of these additional pan support.

Cooking recommendations:

These recommendations are only intended as a guide☐ ☐

	Very strong	Strong □ Medium □ Slow
Triple flame □	Boiling, stewing, grilling,□browning off, paellas, oriental□prepared food, pre-cooked food. □food (wok).		Re-heating and keeping food warm: □
Rapid	Escalope, steak, omelette,□ Rice,fried food.		white sauce,□ Steaming:□ragout.□ fish,□□□| vegetables.□
Semi-rapid	Steamed potatoes, fresh□ Re-heating and keeping food warm: □vegetables, pasta.		pre-cooked food and delicate stews.
Auxiliary□	Stews, rice pudding, caramel.□		Thawing and □ | Making/ melting: □slow boiling:□ Butter, □pulses, fruit,□ chocolate, □□frozen food□| jelly.

Warnings concerning cooking:

DON'Ts

Illustration of a cooking pot with crossed panes and heating elements (no text or symbols)

Do not use small receptacles on large burners. The flame should not touch the sides of receptacles.

Illustration of a cooking pot with steam rising, crossed by diagonal lines (no text or symbols)

Do not cook without lids or with lids only partially covering receptacles. You are wasting energy.

Illustration of a cooking pot with steam rising from a stove (no text or symbols)

Do not use receptacles with uneven bases. They lengthen cooking times and increase energy consumption.

Illustration of a cooking pot on a stand with crossed x-bracing (no text or symbols)

Do not place receptacles on burners off centre. They could tip over. Do not use wide-based receptacles on the burners nearest to the controls. When centred on the burner, they could touch the controls or raise the temperature in the area. This may damage the hob.

Simple icon of a cooking pot with crossed-out triangular symbols (no text or labels)

Do not place receptacles directly on top of burners.

Illustration of a mechanical device with a central knob and two arms, emitting exhaust lines (no text or symbols)

Do not use excessive weights or strike the hob with heavy objects.

DOs

Always use suitably sized receptacles on each burner. This helps avoid excessive gas consumption and prevents receptacles from getting tarnished.

Always use lids.

Only use thick-, flat-based saucepans, frying pans and casseroles.

Always place receptacles in the middle of burners.

Always place receptacle on the pans support

Handle receptacles on the hob with care.

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a pot on a stove with a lid and side handles (no text or symbols)

Illustration of a cooking pot with a lid and base (no text or symbols)

Illustration of a cooking pot with a lid and two handles, mounted on a stand (no text or symbols)

Illustration of hands holding a wheel and gear, no text or symbols present

Cleaning and maintenance:

Illustration of a gas stove with kitchen utensils and a cooking pan (no text or symbols)

DON'Ts

Never use abrasive products, sharp objects, steel scouring pads, knives, etc., to remove stubborn food remains from the hob surface, grates, burners or electric plates.

If your hob comes with a glass or aluminium panel, do not use knives, scrapers or similar utensils to clean the join with the metal.

Do not use steam appliances to clean the hob with. They could damage it.

DOs

Once the appliance is cold, clean it with a sponge and soapy water.

Remove all excess liquid immediately. This will help you avoid unnecessary effort later.

The burners and pans support must be cleaned regularly to keep them clean. This is done by submerging them in soapy water and scrubbing them with a non-metal brush to keep the holes and slits free from obstruction so they can give a perfect flame. Dry the burner covers and grates whenever wet or damp.

Illustration of a kitchen gas stove with four panes and a hand pointing at the top (no text or symbols)

Simple line drawing of a sink with a triangular object on top, no text or symbols present

Illustration of a gas stove with a pan and fan, no text or symbols present

Do not allow acid products (vinegar, lemon juice, etc.) to come into contact with the hob. Try to prevent salt from coming into contact with the surface of the electric plate.

After cleaning and drying the burners, make sure that the covers are properly in position on the flame diffuser.

Diagram showing a mechanical assembly with a lid and a base component, no text or symbols present.

If the coating on the electric plates has worn off through use, smear them with a few drops of oil or one of the maintenance products available on the market.

The high temperatures suffered by the cover on the triple-flame burner ring and the stainless steel parts on your hob (plate rings, grease trays, area around burners, etc) may become discoloured over time. This is NORMAL. Clean them after use with a product suitable for stainless steel.

After cleaning the pans support, dry them thoroughly before cooking with them again. The presence of droplets of water or dampness at the beginning of the cooking process may damage the enamel surface.

If the pans support on your hob are supplied with rubber feet, be careful when cleaning as they may come off, leaving thepan support unprotected and scratching the hob surface.

The cleaning product suitable for stainless steel must not be used in the area surrounding the control knobs. The indications (serigraphy) may get deleted.

Troubleshooting

It is not always necessary to call the Service Centre. In some cases, you may be able to solve the problem yourself. This table contains some useful information.

Important information:

Only authorised personnel from our Service Centre are qualified to work on the main gas and electric systems.

What's wrong	Possible cause Solution
...if none of the electrical system works?	-Faulty fuse.-The automatic circuit breaker or mains differential has been triggered.	-Check the fuse in the main fuse box and replace it if it is faulty-Check to see if the circuit breaker or a differential has been triggered in the mains supply box
...if the electric ignition system does not work?	-There may be food or cleaning product particles between the spark plugs and the burners.-The burners are wet. -Dry the-The covers on the burners are not in the right position.	-The gap between the spark plug and the burner needs to be cleaned carefully.burner covers and spark plugs carefully.-Check that the covers have been put in the proper position.
...if the flame on the burners is not evenly distributed?	-The burner components have not been assembled properly.-The gas outlets on the burners are dirty.	-Put the components in their correct positions.-Clean the gas outlets on the burners.
...if the gas flow does not seem normal or there is no gas flow at all?	-The gas flow has been cut at an intermediate stopcock.-If the gas is supplied from a gas bottle, it may be empty.	- Open any intermediate stopcocks.-Replace the gas bottle with a full one.
...if the kitchen smells of gas?	-One of the valves has been left open.-Possible leak on the gas bottle coupling.	-Check to see if a valve has been left open.-Check that the coupling on the gas bottle is in order.
...if the safety devices on the different burners do not work?	-The control knob has not been kept pressed in for long enough.-The outlets on the burners are dirty.	-Once ignited, keep the control knob pressed in for a few seconds.-Clean the gas outlets on the burners.

Should you need to contact our Service Centre, please quote the following information:

E - NR

FD

These indications appear on your appliance's characteristics plate on the bottom of your appliance.

Conditions of warranty

The conditions of warranty are those set out by our company's representatives in the country where you purchased your appliance. The salesperson that sold you the appliance will be only too pleased to inform you as to the details of these conditions. Proof of purchase must be produced when making any kind of claim against the warranty.

The manufacturer reserves the right to modify these conditions.

Diagram of a rotary knob with directional arrows indicating rotation (no text or symbols)

Diagram illustrating a cooking process with a pan, stirring bowl, and rotating platform with arrows indicating steps.

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with a lid and two side handles, mounted on a base (no text or symbols)

Illustration of a cooking pot with steam rising from a stand (no text or symbols)

Illustration of a cooking pot with a lid and two side handles, mounted on a stand (no text or symbols)

Illustration of a cooking pot with a lid and base (no text or symbols)

Illustration of hands holding a circular object with a gear inside, against a plain background (no text or symbols)

Illustration of a gas stove with a paintbrush, a bottle, and a crossed-out pan (no text or symbols)

NEIN

Illustration of a gas stove with four fans and a wheel, crossed out by diagonal lines (no text or symbols)

Front view of a gas stove with four circular vent grilles and a central hub (no text or symbols visible)

Illustration of a sink with a triangular object partially submerged in it, no text or symbols present

Diagram showing a mechanical component with arrows indicating assembly or force direction (no text or symbols present)

Diagram illustrating a cooking process with a pan and a ring on a stove, showing step-by-step steps.

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with a lid and side handles, no text or symbols present

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with a side dish on a stand (no text or symbols)

Illustration of hands holding a circular mechanical component with gears, no text or symbols present

Illustration of a gas stove with tools and a paint bottle on top (no text or symbols)

Illustration of a gas stove with a fan and valve, no text or symbols present

Front view of a gas stove with four circular vented lights and a central grille (no text or symbols visible)

Illustration of a sink with a triangular glass container and faucet (no text or symbols)

Diagram showing a mechanical component with arrows indicating assembly or force direction (no text or symbols present)

Diagram of a rotary knob with directional arrows indicating rotation (no text or symbols)

Diagram illustrating a cooking process with a pan, stirring bowl, and rotating stove with cooling unit

Illustration of a cooking pot with two panes and a stove base (no text or symbols)

Illustration of a cooking pot with a side pan and heating stove (no text or symbols)

Illustration of a cooking pot with steam rising and crossed out by a ladder (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with steam rising from its side (no text or symbols)

Illustration of a steaming pot with food inside, no text or symbols visible

Illustration of a cooking pot on a stand with crossed x marks (no text or symbols)

Illustration of a cooking pot with a lid and side legs (no text or symbols)

Illustration of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a cooking pot with a lid and two handles, mounted on a stand (no text or symbols)

Illustration of a portable stove with steam rising from its top (no text or symbols)

Illustration of hands holding a circular mechanical component with gears, no text or symbols present

Illustration of a gas stove with kitchen utensils and a paint bottle (no text or symbols)

NO

Front view of a gas stove with four circular vented lights (no text or symbols visible)

Illustration of a square sink with a triangular object placed on top, no text or symbols present

Top-down view of a gas stove with fan, smokestack, and fire extinguisher (no text or symbols)

Diagram showing a mechanical component with arrows indicating assembly or force direction (no text or symbols present)

Diagram of a rotary knob with directional arrows indicating rotation (no text or labels)

Diagram illustrating a cooking process with a pan, stirring bowl, and rotating stove with cooling unit

Illustration of a cooking pot with two panes and a stove base (no text or symbols)

Illustration of a cooking pot with a side dish and base (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by diagonal lines (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with steam rising from its side (no text or symbols)

Illustration of a pot with a lid and side handles, containing a dish (no text or symbols visible)

Illustration of a cooking pot on a stand with crossed x marks (no text or symbols)

Illustration of a cooking pot with a lid and side handles (no text or symbols)

Simple icon of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a cooking pot with a lid and side handles, mounted on a stand (no text or symbols)

Illustration of a mechanical device with two blades and a central knob, emitting motion lines (no text or symbols)

Illustration of hands holding a circular mechanical component with gears, no text or symbols present

Illustration of a gas stove with crossed panes and a paint bottle (no text or symbols)

Illustration of a kitchen gas stove with four panes and a handle (no text or symbols)

Illustration of a kitchen sink with a triangular plate and faucet (no text or symbols)

Illustration of a gas stove with four panes and a lamp (no text or symbols)

Diagram showing a mechanical assembly with a lid and a circular component below (no text or symbols)

Diagram of a rotary knob with directional arrows indicating rotation (no text or symbols)

Diagram illustrating a cooking process with a pan, stirring bowl, and rotating stove with cooling unit

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with a side pot and two handles (no text or symbols)

Illustration of a pot with steam rising from its side (no text or symbols)

Illustration of a cooking pot with a lid and base (no text or symbols)

Illustration of a cooking pot with a lid and side legs (no text or symbols)

Illustration of hands operating a mechanical gear assembly (no text or symbols)

Illustration of a gas stove with a bottle, ticker, and paintbrush (no text or symbols)

NÃO

Illustration of a gas stove with a wheel, water droplets, and a pipe (no text or symbols)

Illustration of a kitchen gas stove with four panes and a handle, no text or symbols present

Illustration of a sink with a triangular object placed on top, no text or symbols present

Diagram showing a mechanical component with arrows indicating assembly or force direction (no text or symbols)

Abnormale situations 83

Diagram illustrating a cooking process with a pan and rotating ring, showing step-by-step steps.

Illustration of a cooking pot with steamers on a stand (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by diagonal lines (no text or symbols)

Illustration of a cooking pot with two handles and a base (no text or symbols)

Illustration of a cooking pot with crossed panes and steam rising (no text or symbols)

Illustration of a cooking pot with a lid and side handles, no text or symbols present

Illustration of a cooking pot with crossed x-shaped bands on a stand (no text or symbols)

Illustration of a cooking pot on a stove (no text or symbols)

Simple icon of a cooking pot with crossed-out triangular symbols (no text or labels)

Illustration of a cooking pot with a lid and two handles, mounted on a base (no text or symbols)

Diagram of a mechanical device with two blades and a central knob, emitting steam or vibration (no text or symbols)

Illustration of hands holding a circular object with a gear-like extension, no text or symbols present

Illustration of a gas stove with a cooking pan and a paintbrush (no text or symbols)

Illustration of a gas stove with crossed panes and a fire extinguisher (no text or symbols)

Illustration of a kitchen gas stove with four panes and a hand pointing at it (no text or symbols)

Illustration of a sink with a triangular object placed on top, no text or symbols present

Diagram showing a mechanical assembly with a lid and a circular component, no text or symbols present.
