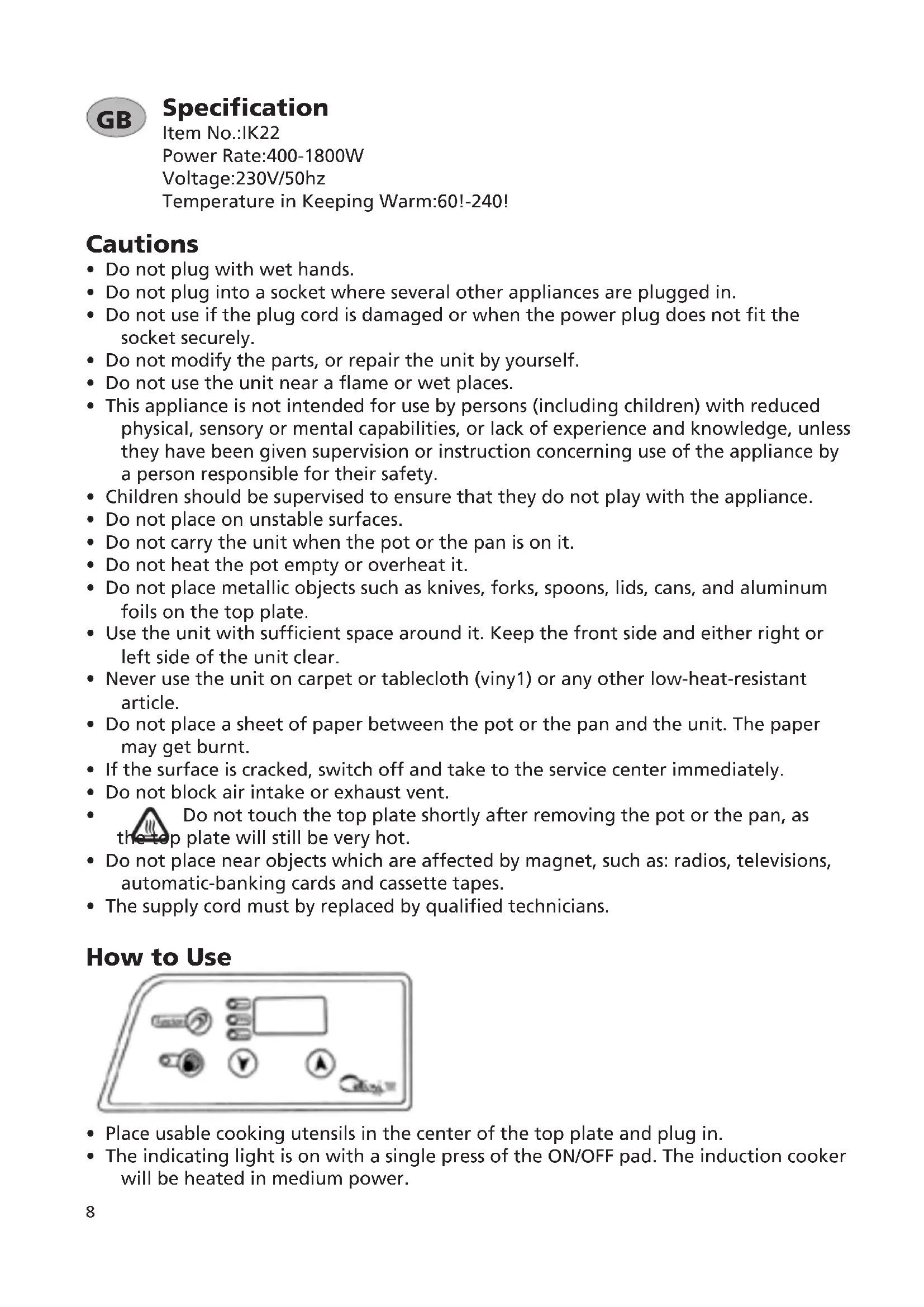

USER MANUAL IK 22 STEBA

Specification Item No.:IK22 Power Rate:400-1800W Voltage:230V/50hz Temperature in Keeping Warm:60!-240! Cautions

• Do not plug with wet hands.

• • Do not plug into a socket where several other appliances are plugged in.

• Do not use if the plug cord is damaged or when the power plug does not fit the socket securely.

• • Do not modify the parts, or repair the unit by yourself.

• Do not use the unit near a flame or wet places.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not place on unstable surfaces.

• Do not carry the unit when the pot or the pan is on it.

• Do not heat the pot empty or overheat it.

• Do not place metallic objects such as knives, forks, spoons, lids, cans, and aluminum foils on the top plate.

• Use the unit with sufficient space around it. Keep the front side and either right or left side of the unit clear.

• Never use the unit on carpet or tablecloth (viny1) or any other low-heat-resistant article.

• Do not place a sheet of paper between the pot or the pan and the unit. The paper may get burnt.

• If the surface is cracked, switch off and take to the service center immediately.

• Do not block air intake or exhaust vent.

Do not touch the top plate shortly after removing the pot or the pan, as the top plate will still be very hot.

• Do not place near objects which are affected by magnet, such as: radios, televisions, automatic-banking cards and cassette tapes.

• The supply cord must by replaced by qualified technicians. How to Use

• Place usable cooking utensils in the center of the top plate and plug in.

• The indicating light is on with a single press of the ON/OFF pad. The induction cooker will be heated in medium power.9

• Set the cooker at desired power by directly pressing to adjust the power from 1 to 10 or 10 to 1.

• • Function :Press the Function pad and to select POWER, TEMP and TIMER. The appliance is equipped with an overheat protection. If the pot or pan is getting too hot, the appliance will switch off power. The power steps are suitable for heating up water and soups. If meat or vegetables should be roasted, please use the temperature function to avoid any overheating. POWER: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 TEMP: 60, 80, 100, 120, 140, 160, 180, 200, 220, 240[°. TIMER: 0, 5, 10, 15, ... 180; 5 minutes per interval.

• • The preset temperature and timer are 120° and 00 respectively.

• This induction cooker is equipped with memory function. The power level, tempe- rature level and timer level interval will be stored even you change from POWER to TEMP and then back to POWER.

• If you want to cancel TIMER function, simply press AN/AUS. Press AN/AUS to start again. Usable and Non-usable Utensils

• UsablePans Steel or cast iron, enameled iron, stainless steel, flat-bottom pans/pots with diameter 12-26cm.

• Non-usable Pans Heat-resistant glass, ceramic container, copper, aluminum pans/pots. Round-bottom pans/pots with bottom measuring less than 12cm.

• Plese take care that the bottom of the pot is not to thin or is bended. How to Clean

• Disconnect plug and wait until it is cooled down. Clean after each use.

• If the pots/pans are used without being cleaned, discoloration or cooked on stains may be caused.

• Do not use petrol, thinner, scrubbing brush or polishing power to clean the induction cooker.

• Wipe using dish washing agent and damp cloth.

• Use vacuum cleaner to suck up dirt from the air intake and exhaust vent.

• Never run water over the unit. (water gets inside may cause malfunction).10 Disposal: Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin. Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Service and Repair: If the appliance must be repaired, plaese get in touch with your trader or with the ma- nufacturer: STEBA Elektrogeräte GmbH & Co KG Pointstr. 2 96129 Strullendorf / Germany Tel. 0 95 43 / 4 49 -17 oder -181112
