USER MANUAL PKI 154 Pelgrim
Using the induction hob 6
Pans for induction cooking 7
Switching of the power 8
Induction noises 8
Cooking settings 9
Temperature safety 10
Automatic shut-off 10
Operation
Switching on and power setting 11
Switching on boost 12
Switching off 12
Residual heat indicator 13
Child lock 13
Egg timer/Cooking timer 14
Maintenance
Cleaning 16
Troubleshooting
General 17
Troubleshooting table 18
Installation
Placing 19
Technical data
Technical data 20
Information according regulation (EU) 66/2014 20
Environmental aspects
Disposal of packaging and appliance 22
Introduction
This hob has been designed for the real lover of cooking. Cooking on an induction hob has a number of advantages. It is easy, because the hob reacts quickly and can also be set to a very low power level. Because, moreover, it can also be set to a high power level, it can bring dishes to the boil very quickly. The ample space between the cooking zones makes cooking comfortable.
Cooking on an induction hob is different from cooking on a traditional appliance. Induction cooking makes use of a magnetic field to generate heat. This means that you cannot use just any pan on it. The pans section gives more information about this.
For optimum safety the induction hob is equipped with several temperature protections and a residual heat indicator, which shows which cooking zones are still hot.
This manual describes how you can make the best possible use of the induction hob. In addition to information about operation, you will also find background information that can assist you in using this product.
Read the separate safety instructions before using the device!
Read the manual thoroughly before using the appliance, and store these instructions in a safe place for future reference.
Enjoy your cooking!

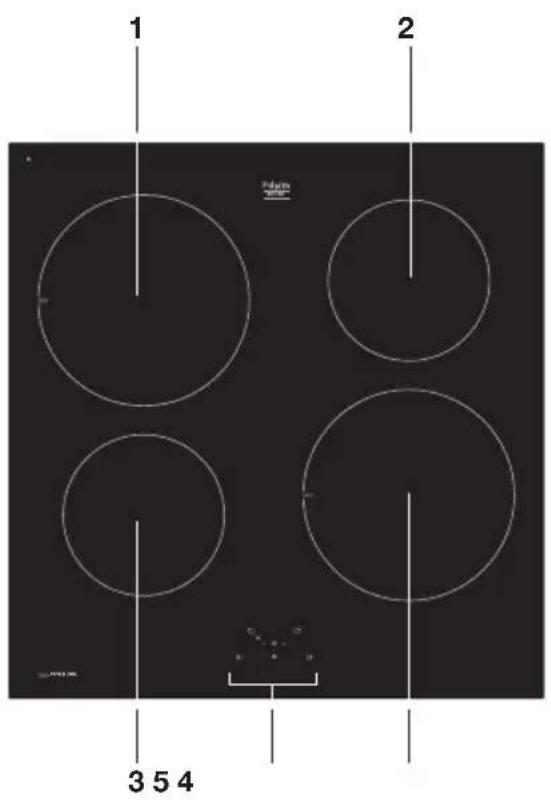

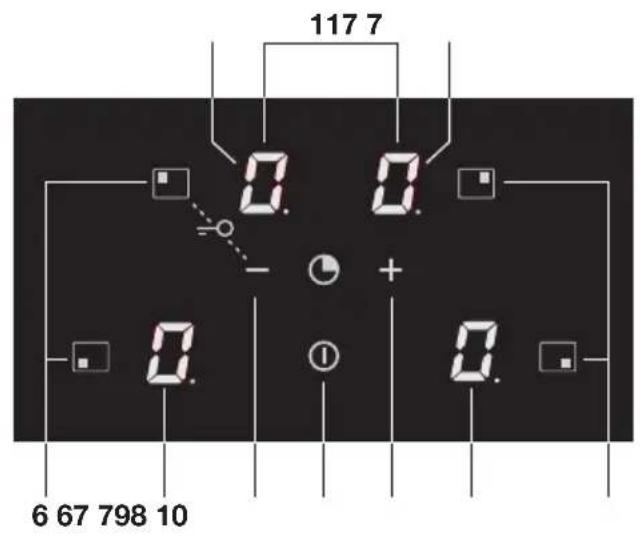

Description
- Cooking zone rear left (3,0kW, 20cm)
- Cooking zone rear right (1,4 kW, 0 16 cm)
- Cooking zone front left (1,4 kW, 0 16 cm)
- Cooking zone front right (3,0kW, 20cm)
- Control panel
- Selection key cooking zone
- Power / Residual heat indicator / Decimal point - for activated timer function
- -key
- On/off key
-
- key
- Time indication when setting the egg timer/cooking timer
Using the induction hob
Cooking on an induction hob is different from cooking on a traditional appliance. Induction cooking makes use of a magnetic field to generate heat.
Induction cooking is fast
To start you will be surprised by the speed of induction cooking. Especially at higher settings, foods and liquids will boil very rapidly. It is best not to leave pans unattended to avoid them boiling over or boiling dry.
The power level adjusts itself
In induction cooking, only the zone on which the pan is placed is used. If you use a small pan on a large zone, the power will be adjusted to the diameter of the pan. The power will thus be lower and it will take longer before the food in the pan comes to the boil.
Clean
The hob is easy to clean. Because the cooking zones do not get any hotter than the pans themselves, food spills cannot burn on.

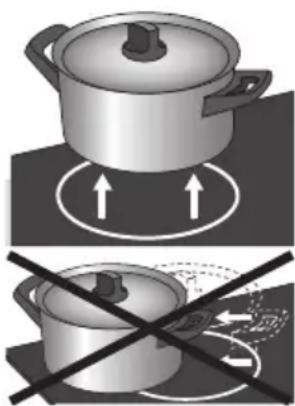

Safe
The heat is generated in the pan itself. The glass top does not get any warmer than the pan. This means that the cooking zone is considerable cooler compared to that from a Ceramic hob or a gasburner. Once a pan has been taken away, the cooking zone cools down quickly.
Please note
Grains of grit may cause scratches which cannot be removed. Only put pans with a clean base on the cooking surface and always pick pans up to move them.
- Do not use the hob as a worktop.
- To avoid energy loss, always keep the lid on the pan when cooking.
Pans for induction cooking
Induction cooking requires a particular quality of pan.
Please note
- Pans that have already been used for cooking on a gas hob are no longer suitable for use on an induction hob.
- Only use pans that are suitable for electric and induction cooking with:
a thick base of a minimum 2.25 mm;
a flat base.
- The best pans are those with the 'Class Induction' quality mark.
Tip
You can use a magnet to check whether your pans are suitable. A pan is suitable if the base of the pan is attracted by the magnet.
| Suitable Unsuitable | |
| Special stainless steel pans Earthenware | |
| Class Induction Stainless steel | |
| Solid enamelled pans Porcelain | |
| Enamelled cast-iron pans Copper | |
| Plastic | |
| Aluminium | |
Please note
Be careful with enamelled sheet-steel pans:
- the enamel may come loose from the steel at high settings when the pan is too dry;
- high power level settings may cause the base of the pan to warp.
Please note
Never use pans with a misshapen base. A hollow or rounded base can interfere with the operation of the overheating protection, causing the appliance to become too hot. This may lead to the glass top cracking and the pan base melting. Damage caused by using unsuitable pans or boiling dry is excluded from the guarantee.
Minimum pan diameter
The diameter of a pan must be at least 12cm . The best results are achieved by using a pan with the same diameter as the cooking zone. If a pan is too small the zone will not work.
Pressure cookers
Induction cooking is very suitable for pressure cookers. The fast-reacting cooking zone brings the pressure cooker to pressure quickly. As soon as you switch a cooking zone off, the cooking process stops immediately.
Please note
Never leave an empty pan on a cooking zone that is switched on. While the cooking zone is protected from overheating, the pan will be extremely hot. The pan could become damaged.
Switching of the power
A feature of this induction hob is the 'switching' of the power with settings lower than 8. It seems as if a cooking zone switches on and off, but that is not the case. The zone switches the power on and off continuously; the zone remains on and at the indicated setting. The two small zones switch to a lesser degree than the two large zones.
Please note
This switching is normal for this induction hob and cannot do any damage. It is not a defect of your induction hob.
Induction noises
A ticking sound
This is caused by the capacity limiter on the front and back zones. Ticking can also occur at lower settings.
Pans are making noise
Pans can make some noise during cooking. This is caused by the energy flowing from the hob to the saucepan. At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob.
The fan is making noise
To enlarge the lifespan of the electronics, the appliance is equipped with a fan. If you use the appliance intense, the fan is activated to cool down the appliance and you will hear a buzzing sound. The fan runs on for several minutes after the hob has been switched off.
Cooking settings
Because the settings depend on the quantity and composition of the contents of the pan, the table below is intended as a guideline only.
Use 'boost' setting and setting 9 to:
- bring food or liquid to the boil quickly;
- 'shrink' greens;
heat oil and fat; - bring a pressure cooker up to pressure.
Use setting 8 to:
sear meats;
- fry flatfish, thin slices or fillet;
- fry omelettes;
- fry boiled potatoes;
- deep frying.
Use setting 7 to:
- fry thick pancakes;
- fry thick slices of breaded meat;
- fry bacon (fat);
- fry raw potatoes;
make French toast; - frybreadedfish.
Use setting 5 and 6 to:
cook food through;
- defrost hard vegetables;
- fry thin slices of meat.
Use settings 1-4 to:
simmer bouillon;
stew meats;
simmer vegetables;
- melt chocolate;
- melt cheese.
Temperature safety
A sensor continuously measures the temperature of certain parts of the hob. Every cooking zone is equipped with a sensor that measures the temperature of the bottom of the pan to avoid any risk of overheating when a pan boils dry. In case of temperatures rising too high, the power is reduced or switched off automatically.
Cooking-time limiter
The cooking-time limiter is a safety function of your cooking appliance. It will operate if you forget to switch off your hob.
Depending on the setting you have chosen, the cooking time will be limited as follows:
| Setting The cook zone switches automatically off after: |
| 1 8 hours |
| 2 6 hours |
| 3 - 4 5 hours |
| 5 4 hours |
| 6 - 9 1,5 hours |
Switching on and selecting power
The four cooking zones on the glass work surface are indicated with circles. The diameter of the pan bottom must be as similar to the diameter of the cooking zone as possible. A symbol next to the control panel indicates which cooking zone is being operated.
Switching on
- Place a pan on a cooking zone.
- Press the On/Off button.
You will hear a single beep and a '0' will appear in the display next to each cooking zone. The decimal point of the '0' will flash.
- Press the button of the cooking zone you want to switch on to activate the cooking zone.
The power levels of the cooking zones that are not activated will be dimmed in the display and the decimal points will disappear.
- Press the - or + button to set the desired power level.
The cooking zones have 9 available heat settings. Consult the overview of cooking settings to choose the correct mode.
For three zones there is also the 'boost' setting (see 'Switching on boost').
When you select the - button directly, the cooking zone will switch on at power level 9.
The set power level appears in the display. After a few seconds, all power levels will be brightly lit again and the cooking zone will switch on.
- If you want to switch on a cooking zone, press the button of the cooking zone you want to switch on to activate it.
The power levels of the cooking zones that are not activated will be dimmed in the display. The power levels of the activated zones will also dim.
- Set the desired power level using the - or + button.
The set power level appears in the display. After a few seconds, all power levels will be brightly lit again and the cooking zone will switch on.
Note!
Not all 4 zones can be set to setting 9 (or boost) at the same.
The 4 zones can be set to a maximum of setting 7 at the same time. Another zone needs to be reduced or switched off first if a higher setting is desired. The appliance will beep and the set power level in the display will start to flash. You should then set the zones to a lower setting!
Switching on 'boost'
You can use the 'boost' function to cook at the highest power level for 5 minutes. After the boost time, the power will be automatically set to setting 9.
- Place a pan on a cooking zone.
- Press the On/Off button.
- Press the button of the cooking zone you want to switch on to activate the cooking zone.
- Press the - button to set the power level to '9'. '9' appears in the display.
- Then immediately press the + button to select 'boost'. 'P' appears in the display. After a few seconds, all power levels will be brightly lit again and the cooking zone will switch on at the highest power level.
Switching off
Switching off one cooking zone
You can switch off one cooking zone by first activating it.
- Press the button of the cooking zone you want to switch off. The power levels of the cooking zones that are not activated will be dimmed in the display.
- Press the - button and the button of the cooking zone simultaneously to set the power level to '0' at once. '0' appears in the display. After a few seconds, all power levels will be brightly lit again and the cooking zone will switch off. >You may also press a number of times on the - button only to reduce the power to '0'.
Switching off the induction hob
You can switch off the entire induction hob, with multiple cooking zones switched on, at once.
- Press the On/Off button.
The display goes out and the induction hob switches off.
Residual heat indicator
Residual heat is indicated with an 'H' for each cooking zone in the relevant display. This indicates that the cooking zone is still warm and goes out once the glass cook top has reached a safe temperature.
Child lock
Your induction hob is equipped with a childproof lock that lets you lock the appliance. It prevents the cooking zones being switched on unintentionally.
Activating the child lock
- Press the On/Off button.
A '0' appears in the display for each cooking zone.
- Press the button for the left rear cooking zone and the - button simultaneously for a minimum of three seconds.
An 'L' will appear in the display for each cooking zone for a few seconds to show that the child lock has now been activated.
Deactivating the child lock
- Press the On/Off button.
An 'L' appears in the display for each cooking zone.
- Press the button for the left rear cooking zone and the - button simultaneously for a minimum of three seconds.
A '0' will appear in the display for each cooking zone for a few seconds to show that the child lock has now been deactivated.
Timer/Cooking timer
A cooking timer can be set for each cooking zone. The hob also has a timer. Both the cooking timer as well as the timer can be set to a maximum of 99 minutes. The timer works in the same way as the cooking timer, but is not linked to a cooking zone. If the timer has been set, it will continue counting down after the hob has been switched off. The timer can only be switched off when the hob has been switched on.
- Timer - the timer only beeps after the set time has elapsed.
- Cooking timer - the timer is linked to a cooking zone. After the set time has elapsed, the cooking zone will switch off automatically.
Timer
When the hob has been switched on, you can set the timer.
- Press the On/Off button.
-
Press the - and + buttons simultaneously. The time setting '0 0' is displayed in the top two displays. The bottom two displays have been switched off.
-
Press the - or + button to set the desired time.
When you first press the - button, the time will immediately be set to 30 minutes.
If you keep the - or + button pressed, the time will run higher or lower at an increasingly faster rate.
The time setting is visible for a few seconds; then two flashing decimal points indicate that the timer is counting down.
- After the set time has elapsed, '0 0' will flash in the display. Furthermore, you will hear a repeated short beep. Switch off the timer and beep signal by pressing a random button. If you don't do this, the signal will switch off automatically after 2 minutes.
Note!
The timer can also be set if the cooking zones are switched on and even if cooking timers have been set. If this is the case, the display will indicate the power setting (and not the two flashing decimal points).
Cooking timer
When the hob is switched on, you can set a separate timer for each cooking zone that is switched on.
- Select a cooking zone that is switched on.
- Press the - and + buttons simultaneously.
The time setting '0 0' of the activated cooking zone is displayed in the top two displays. At the cooking zone itself, a flashing decimal point indicates that the timer can be set for that cooking zone.
- Press the - or + button to set the desired time.
When you first press the - button, the time will immediately be set to 30 minutes.
If you keep the - or + button pressed, the time will run higher or lower at an increasingly faster rate.
The time setting is visible for a few seconds; then all set power levels are displayed, and at the cooking zone for which a timer has been set, a decimal point is displayed.
- After the set time has elapsed, '0 0' will flash in the display, as well as the timer's decimal point. The cooking zone switches off. Furthermore, you will hear a repeated short beep. Press any key to switch off the audible signal. If you don't do this, the signal will switch off automatically after 2 minutes.
Note!
If no cooking zone has been activated and you press the - and + buttons simultaneously, the time setting of the timer is displayed (no decimal points will flash at a cooking zone)! By again pressing the - and + buttons simultaneously (multiple times), the time setting of a cooking zone that is switched on is displayed (the decimal point flashes at the relevant cooking zone).
Tip
Check the remaining time by pressing the - and + buttons simultaneously (multiple times). The time that appears in the display is either from the cooking zone that is switched on (with flashing decimal point) or from the timer (no decimal point flashes). Adjust the cooking time as needed using the - or + button.
Cleaning
Tip
Activate the child lock before cleaning the hob.
Daily cleaning
- Although food spills cannot burn into the glass, we nevertheless recommend you clean the hob immediately after use.
- For daily cleaning a damp cloth with a mild cleaning agent is best.
- Dry off with kitchen paper or a dry tea towel.
Stubborn stains
- Stubborn stains can also be removed with a mild cleaning agent, washing-up liquid, for example.
- Special products are available for this purpose.
- Traces of metals (caused by sliding pans) can be difficult to remove. Special products are available for this.
- Use a glass scraper to remove food spills. Melted plastic and sugar is also best removed with a glass scraper.
Never use
- Never use abrasives. These leave scratches in which dirt and limescale can accumulate.
- Never use anything sharp such as steel wool or scourers.
General
If you notice a crack in the glass top (however small), switch the hob off immediately, unplug the hob, turn off the (automatic) fuse switch(es) in the meter cupboard or, in the event of a permanent connection, set the switch in the power supply lead to zero. Contact the service department.
Troubleshooting table
When in doubt on the proper operation of your appliance, this does not automatically mean there is a defect. Try to address the problem yourself first by checking the points mentioned below or for more information visit the 'www.pelgrimservice.nl' website.
| Symptom Possible cause Solution | ||
| The fan runs on for several minutes after the hob has been switched off. | The hob is cooling down. Normal operation. | |
| A slight smell is noticeable the first few times the hob is used. | The new appliance is heating up. | This is normal and will disappear once it has been used a few times. Ventilate the kitchen. |
| You can hear a ticking sound in your hob. | Ticking can also occur at lower settings. | Normal operation. |
| The pans make a noise while cooking. | This is caused by the energy flowing from the hob to the saucepan. | At high settings this is perfectly normal for some pans. It will not damage either the pans or the hob. |
| You have switched a cooking zone on but the display keeps flashing. A pan detection symbol (U) will appear in the display. | The pan you are using is not suitable for induction cooking or has a diameter that is too small. | Use a correct pan. |
| When cooking, its seems as if the zone continuously goes on and off (the contents of the pan boil, stop boiling, return to the boil, etc). | This is the ‘switching’ of the power: the cooking zone is on, but the power switches on and off. | Normal operation; this is a feature of this induction hob (see ‘Switching of the power'). |
| Symptom Possible cause Solution | |
| A cooking zone suddenly stops working and you hear a signal. | The preset time has ended. Switch off the signal by pushing a random key. |
| The hob is not working and nothing appears in the display. | There is no power supply due to a defective cable or a faulty connection. Check the fuses or the electric switch (if there is no plug). |
| A fuse blows as soon as the hob is switched on. | The appliance is incorrectly connected. Check the electrical connections. |
| Error code ER03. The control panel is dirty or has water on it. | Clean the control panel. |
| You held a key too long. Do not hold the button too long. | |
| Error code E3. Unsuitable pan used. Use a pan suitable for induction cooking. | |
| Error code E2. Appliance over heated. The appliance has been switched off because of over heating. | |
| Error code E6. The appliance has been connected incorrectly and/or the mains voltage is too high. Have your connection changed. | |
| Other error code. Defective generator. Contact the service department. | |
Placing
First, read the separate safety instructions before installing the device!
- Install the hob on a flat, stable and horizontal base.
- Keep a free space of at least 2,5cm around the hob.
- After installation, the socket or switch (in case of a fixed connection) must always be accessible.
- The walls and the worktop surrounding the appliance must be heat resistant up to at least 85^ . Even though the appliance itself does not get hot, the heat of the hot pan could discolour or deform the wall.
- Ensure that the power cord will not come in contact with parts that can become hot.
- Do not place any inflammable or deformable objects directly beneath the hob.
Technical data
This appliance meets all relevant CE guidelines.
| Hob type PKI154RVS | |
| Induction x | |
| Connection 230V - 50/60Hz | |
| Number of phases 1 | |
| Maximum power cooking zones and diameters | |
| Front left 1,4 kW (Ø 160) | |
| Rear left 3,0 kW (Ø 200) | |
| Rear right 1,4 kW (Ø 160) | |
| Front right 3,0 kW (Ø 200) | |
| Connected load | |
| Total connected load 3,7 kW | |
| Dimensions | |
| Appliance width x depth | 540 x 560 mm |
Information according regulation (EU) 66/2014
Measurements according EN60350-2
| Model identification PKI154RVS | ||
| Type of hob Induction hob | ||
| Number of cooking zones and/or areas 4 | ||
| Heating technology Induction cooking zones | and cooking areas | |
| For circular cooking zones: diameter of useful surface area per electric heated cooking zone in cm | Ø 16.0 cm Ø | 20.0 cm |
| For non-circular cooking zones or areas: lenght and width of useful surface area per electric heated cooking zone or area L/W in cm | None | |
| Energy consumption per cooking zone or area calculated per kg (ECelectr hob) in Wh/kg | 185.0 | 166.8 |
| Energy consumption for the hob calculated per kg (ECelectr hob) in Wh/kg | 175.9 | |
Tips for energy-efficient cooking with hobs
- Always use the right size of pan for the amount of food you are cooking.
- Put just enough water in the pan to cover vegetables.
- Choose the right size of burner or ring for the pan.
Always put lids on pans to keep the heat in. - Turn down or turn off the cooking zone/area or burner once the cooking temperature or state is reached.
- Use a steamer to cook vegetables, that way you can layer a number of vegetables on top of each other and still use one ring, or use a pan with a divider.
- Use a pressure cooker for cooking pulses, and even joints of meat, whole meals, or stews. It speeds up the cooking process.
- If you're using an electric hob, choose flat-bottomed pans so the pan is in full contact with the ring.
Disposing of the appliance and the packaging
This product is made from sustainable materials. However, it must be disposed of in a responsible manner at the end of its useful life. The government can provide you with information about this.
The packaging of the appliance can be recycled. The following materials have been used:
cardboard
polyethylene wrap (PE)
CFC-free polystyrene (hard PS foam)
You should dispose of these materials in a responsible manner, according to the government regulations.
The product shows a pictogram of a crossed-out waste container to point out that domestic electrical appliances must be disposed of separately. Thus the appliance may not be processed via the regular waste flow at the end of its useful life. It must be handed in at a special municipal waste depot or at a sales outlet which does this for you.
By collecting household appliances separately, we prevent negative consequences to the environment and our health which could be the result of incorrect disposal. The materials used to make this appliance can be re-used, which means tremendous savings in energy and raw materials.
Please note! Do not throw a broken ceramic glass plate in the glass recycling bin but take this to the Municipality's waste recycling centre.
Declaration of conformity
We hereby declare that our products comply with the relevant European directives, standards and regulations as well as all requirements referred to in the standards.
Specifications techniques
Specifications techniques
The appliance identification card is located on the bottom of the appliance.
When contacting the service department,
have the complete type number to hand.
You will find the addresses and phone numbers of the service organisation on the guarantee card.
