Product type	Refrigerator with freezer compartment
Brand	Fagor
Model	3FIS882
Refrigerant	R600a (isobutane)
Electrical supply	220-240 V ~ 50 Hz
Climate class	T (16-43 °C) / ST (16-38 °C) / N (16-32 °C) / SN (10-32 °C)
Thermostat setting	Positions 1 to 5
Temperature indicator	Yes, with OK logo
Coldest zone	Just above the vegetable drawer
Included accessories	Shelves (glass), vegetable drawer, door bins, egg holder, butter holder, plastic scraper
Interior lighting	Bulb max 15 W
Defrosting	Automatic for the refrigerator
Recommended maintenance	Clean interior with baking soda; clean condenser once a year
Safety	Do not obstruct ventilation openings; do not use electrical appliances inside; do not accelerate defrosting mechanically
Transport instructions	Keep the appliance upright; wait 3 hours before starting after installation
Extended shutdown	Unplug, clean and leave the door open
Replacing the bulb	Unplug, open the cover, replace with a bulb ≤ 15 W
Consumer service	Tel. [phone] (toll-free call)
Dimensions (approx.)	H 150 cm x W 60 cm x D 60 cm
Net capacity (approx.)	180 litres (refrigerator + freezer)

Frequently Asked Questions - 3FIS882 FAGOR

How to adjust the temperature of my Fagor 3FIS882 refrigerator?

Use the thermostat inside. Turn the knob from position 1 (less cold) to 5 (colder). Position 0 stops cooling. For long-term storage, set between 3 and 4.

What to do if the appliance does not cool?

First check that the appliance is plugged in and the thermostat is not on 0. Make sure the socket works and the circuit breaker has not tripped. If the red light is on, the appliance is in alarm.

How to defrost the refrigerator?

Defrosting of the refrigerator compartment is automatic. Water drains through a hole at the back. Periodically clean the drain hole to avoid water accumulation.

Why is there water at the bottom of the refrigerator?

This usually indicates that the defrost water drain is clogged. Unclog it using the provided plug stem.

How to clean the inside of the refrigerator?

Unplug the appliance. Clean the inside with a mixture of baking soda and warm water. Wash accessories separately in soapy water (not in the dishwasher). Rinse and dry.

My refrigerator makes noise, is it normal?

A slight bubbling noise is normal, coming from the refrigerant gas. If the noise is excessive, check that the appliance is level and not touching a wall or object. Accessories may vibrate.

How to replace the refrigerator bulb?

Unplug the appliance. Open the hooks of the bulb cover and remove it. Replace with a bulb of max 15 W. Put the cover back and plug in after 5 minutes.

Can I put hot food in the refrigerator?

No, never place hot foods or evaporating liquids. Wait for them to cool to room temperature before storing.

What is the coldest zone of the refrigerator?

The coldest zone is just above the vegetable drawer, marked by a sticker on the left wall. Place raw meat, fish, and cold cuts there for best preservation.

What to do if I go on a long vacation?

Unplug the appliance, empty it and clean it. Leave the door slightly open to prevent mold and odors.

USER MANUAL 3FIS882 FAGOR

INSTRUCTIONS FOR USE

GUIDE D'INSTALLATION ET D'UTILISATION

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

3FIS-882

Index

BEFORE USING THE APPLIANCE ....2

Safety Instructions 2

Recommendations 3

Switching On the Appliance 4

HOW TO OPERATE THE APPLIANCE ....5

Thermostat Setting 5

FOOD STORAGE IN THE APPLIANCE....6

CLEANING AND MAINTENANCE 6

Defrosting 7

Replacing the Light Bulb 7

BEFORE CALLING YOUR AFTER SALES SERVICE 8

PARTS OF THE APPLIANCE AND THE COMPARTMENTS.... 10

-The operating instructions apply to several models. Differences may therefore occur.

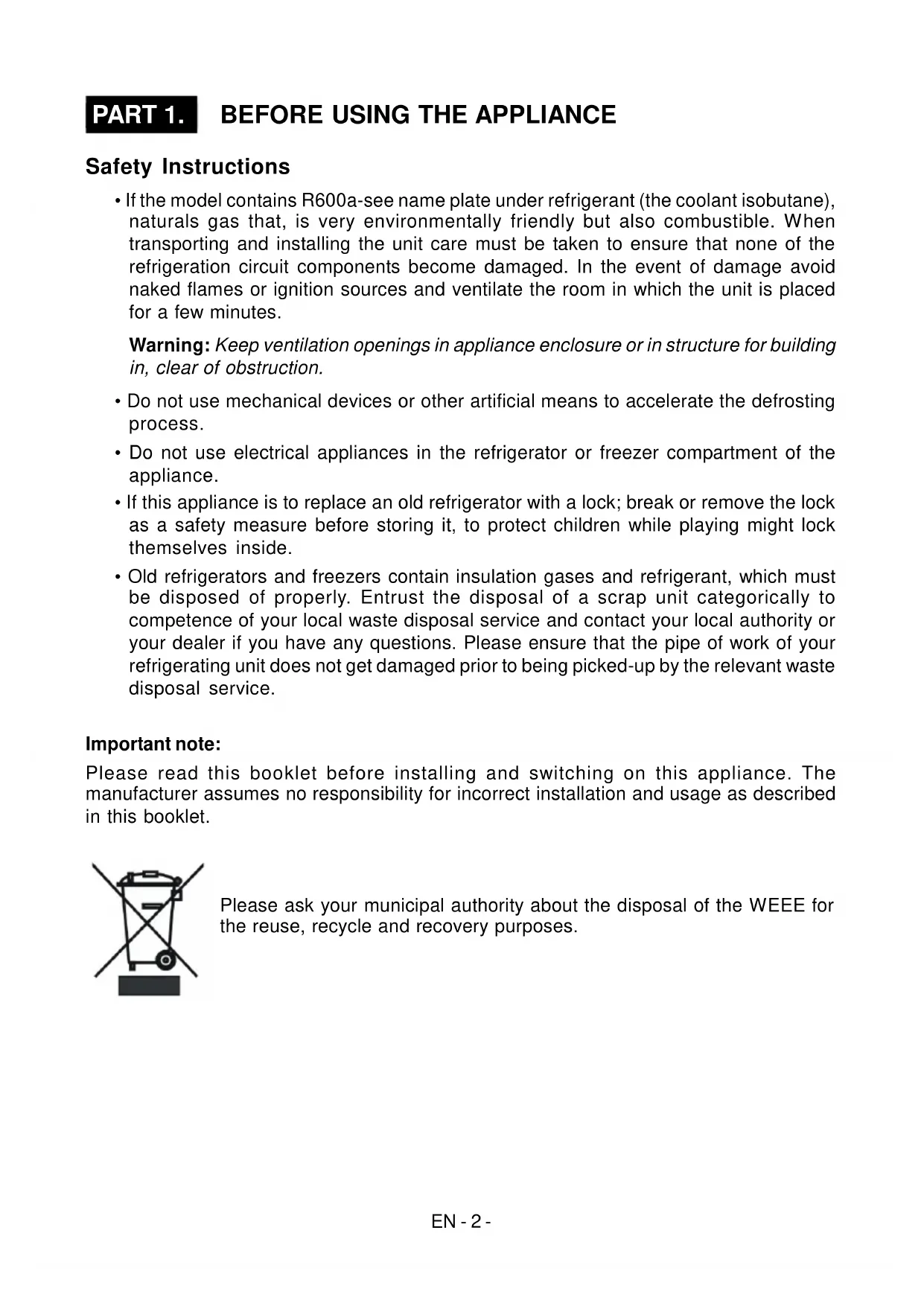

PART 1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not damage the refrigerant circuit.
• Do not allow children to play with the appliance. Children must never sit in the drawers or hang from the door.
• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug old, warped power supply cables.

Illustration of four hands performing a rope knotting technique (no text or symbols present)

• Do not twist and bend the cables, and keep them away from hot surfaces.
• Do not plug the power supply with wet hands.
• Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for disposal.
  • After installation make sure that the power cable is not trapped underneath appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

• If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.

• Do not defrost the appliance with other electrical devices (i.e. hair dryer) or other artificial means, and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

• Do not operate any electrical appliances inside the refrigerator or freezer.
• Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could cause the bottle to burst during freezing.
• Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.

Cartoon character holding a large open book (no text or symbols visible)

- Do not eat ice, which has just been removed from the freezer.

- The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Switching On the Appliance

- Before switching on, place the appliance on upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.

- Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).

• Installation of the appliance and electrical connections must be carried out by a qualified technician, in accordance with the Installation Manual and local regulations.

- Installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- There can be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

Cartoon illustration of a distressed refrigerator with arms and legs, holding a paper labeled 'KG' (no text or symbols on the refrigerator itself)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

PART 2. HOW TO OPERATE THE APPLIANCE

Thermostat Setting

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

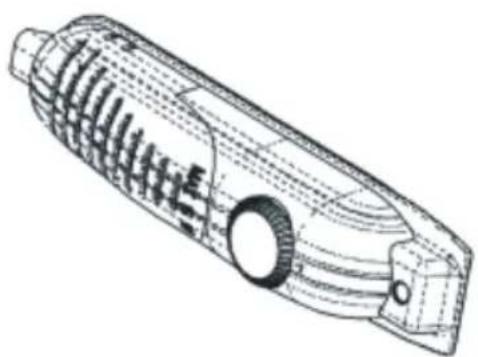

- Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

- The “0” position shows thermostat is closed and no cooling is available.

- For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position (1-3).

- For long-term storage of food in the freezer compartment, you can set knob medium position.(3-4)

- Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

- When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put much food inside.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting in order not to damage the compressor.

- LARDERS (without star rating): Larders (coolers) have not any freezer compartment but can cool down to 4-6°C.

PART 3. FOOD STORAGE IN THE APPLIANCE

Refrigerator compartment is used for storing fresh food for few days.

- Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.

- Do not place hot food or evaporating liquid in the refrigerator.

• Always store food in closed containers or wrapped.

- To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

- Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.

- You can put the fruits and vegetables into crisper without packing.

- To avoid the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

PART 4. CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- Do not pour water over the appliance.

Simple line drawing of a hand reaching toward a box with a bird, no text or symbols present

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

Cartoon illustration of a smiling rectangular character waving to two smaller figures (no text or symbols)

Defrosting

Line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand holding a circular object over a window, with an arrow pointing to the left side (no text or symbols present)

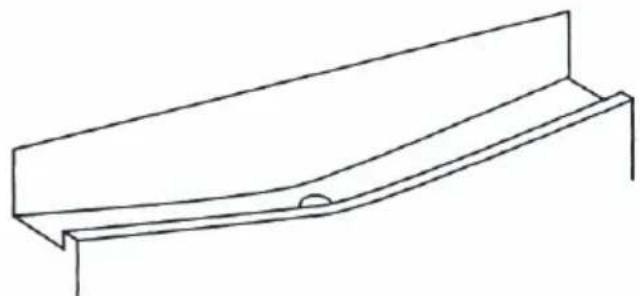

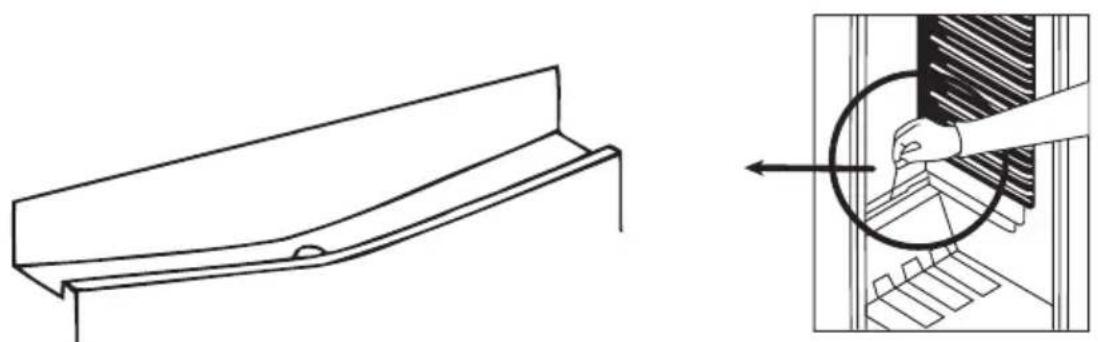

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

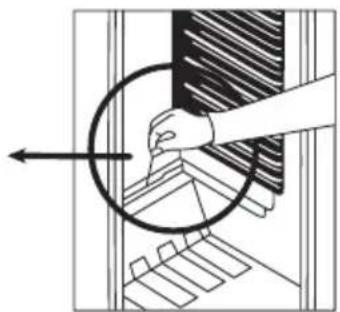

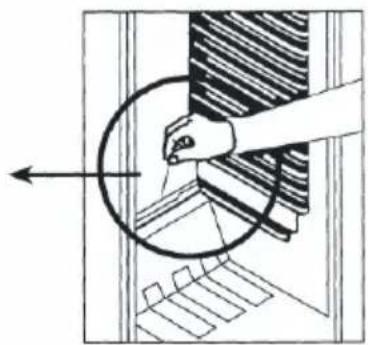

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 12 glass of the water to drain hole to clean inside.

Replacing the Light Bulb

Line drawing of a mechanical device with internal components and a dial indicator (no text or symbols)

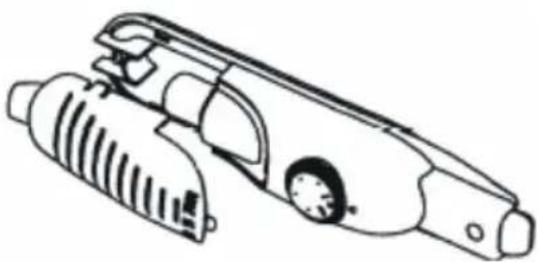

When replacing the bulb of the refrigerator compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

PART 5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position "0",

- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the Installation Manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

• Tropical Climate Class is described as between 16^ and 43^ of ambient temperatures according to EN ISO15502 standards.
• Appliance complies with EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

• In order to increase space and improve the appearance, the “cooling section” of refrigerators is positioned inside the back wall of the refrigerator compartment. When the compressor is working, this wall is covered with frost or water drops. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance is not used for a long time (for example during the summer holidays), set the thermostat knob to position "0". Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.

PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

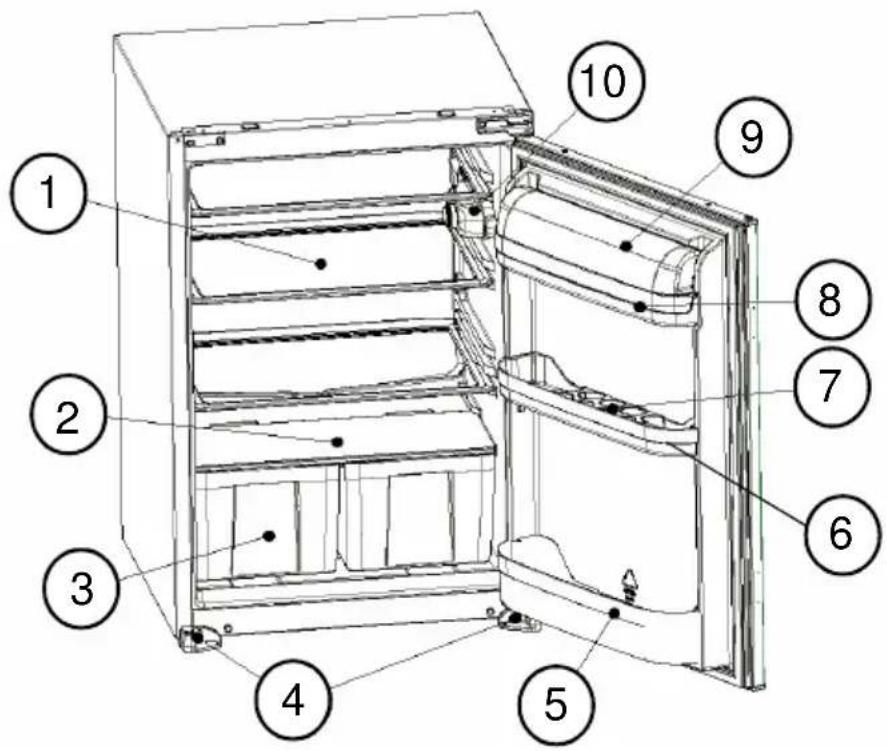

1) REFRIGERATOR SHELF
2) CRISPER COVER(SAFETY GLASS)
3) CRISPER
4) LEFT&RIGHT FEET
5) BOTTLE SHELF
6) MIDDLE SHELF
7) EGG HOLDER
8) BUTTER SHELF
9) BUTTER SHELF COVER
10) THERMOSTAT BOX

Sommaire

INSTRUCTIONS PREALABLES 12

TRANSPORT ET DEPLACEMENT 19

AVANT D'APPELER LE SERVICE APRES VENTE 19

ELEMENTS ET COMPARTIMENTS DE L'APPAREIL....21

PARTIE- 1. INSTRUCTIONS PREALABLES

Illustration showing three different techniques for using a tool to interact with a wire, no text or symbols present.

Cartoon illustration of an electric plug with a sad face and plug, showing electrical connections (no text or symbols)

Cartoon illustration of a person inside a refrigerator with arms and legs (no text or symbols)

Illustration of a hand holding a prohibition symbol, a smiling face icon, and a crossed-out fist (no text or symbols present)

Simple line drawing of two bottles and a glass with splashes, no text or symbols present

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

Cartoon illustration of a refrigerator with a 'KG' on top and a smiling refrigerator with a smiling face, accompanied by a mortar and pestle (no text or symbols)

Technical line drawing of a mechanical component with internal channels and a central circular feature (no text or symbols)

Warning symbol with exclamation mark inside a shield shape (no text or numbers)

Technical line drawing of a cabinet or rack structure with shelves and a door, no visible text or symbols

Illustration of four different household items: a hand gesture, a smiling refrigerator with a sad expression, a bottle with a smile, and a kitchen appliance with thumbs up (no text or symbols)

Dégivrage

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical tool or device with internal components (no text or symbols)

TRANSPORT ET DEPLACEMENT

Simple line drawing of two children holding a large rectangular object (no text or symbols)

AVANT D'APPELER LE SERVICE APRES VENTE

Pure mechanical diagram showing a bin with crosshair and no text or symbols

Illustration showing three different techniques for using a tool to interact with a wire, no text or symbols present.

Simple line drawing of a plug with an angry face and a lightning bolt, no text or symbols present

Cartoon illustration of a character inside a door, showing arms and legs (no text or symbols)

Illustration of a hand holding a smiling face, a neutral face with a crossed-out prohibition symbol, and a small square object (no text or labels)

Simple line drawing of a hand holding a smiling square emoji (no text or symbols)

Cartoon illustration of a refrigerator with a 'KG' on top and a 3D cube with a smiling face, accompanied by a mortar and pestle (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting features (no text or symbols)

Illustration of three cartoon kitchen appliances: a refrigerator, a smiling refrigerator with arms, and a refrigerator with a door (no text or symbols)

Ontdooien

Technical line drawing of a mechanical component with an inset showing a magnified view of a hand holding a circular object (no text or symbols present)

Technical line drawing of a mechanical tool or device with internal components (no text or symbols)

Simple line drawing of two children playing a game with a block (no text or symbols)

DEEL 6. VOORDAT U EEN BEROEP DOET OP DE KLANTENSERVICE

Pure diagram of a trash bin with diagonal lines crossing it, no text or symbols present

Illustration showing three different techniques for using a tool to cut a wire, with no text or symbols present.

Illustration of three cartoon figures: a smiling refrigerator with arms, a crossed-out prohibition symbol, and a broken bottle with broken glass (no text or symbols present)

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with arms and legs showing stress or discomfort (no text beyond label)

Cartoon illustration of a smiling cube with arms and thumbs up, next to a bowl of pills (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Simple line drawing of a hand holding a smiling emoji-shaped object (no text or symbols)

Illustration of four cartoon kitchen utensils: refrigerator, toilet, water dispenser, and refrigerator with a smiling face (no text or symbols)

Kühlschrank abtauen

Technical line drawing of a mechanical component with an inset showing a magnified view of a hand holding a tool (no text or symbols present)

Line drawing of a mechanical tool with ribbed and circular components (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

TEIL 6. BEVOR SIE DEN KUNDENDIENST RUFEN

Pure mechanical diagram showing a bin with diagonal lines and a wheel, no text or symbols present
