Dear customer,

Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct functioning of the appliance.

This symbol guides you, step by step, in the operation of the appliance.

The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the machine are marked with the clover symbol.

Should any problems arise, this booklet provides instructions on how to solve them by yourself; see section "Something not working?".

If this information is not sufficient, please contact our nearest Service centre (address and telephone numbers are indicated on the enclosed leaflet).

Printed on recycled paper.

People who think ecologically, act accordingly...

Contents

Safety instructions.... 4-6

General instructions 6

Discarding 7

Tips for environmental protection 8-9

Structure of the appliance....10-16

Front view 10

Rear view 10

Control panel 11-12

Brief operating instructions....13

Drying....14-16

Before the first drying cycle....14

Sort out the laundry....14

Open the door 14

Load the laundry 14

Switch the machine on, Select the drying programme/time....15

Start the machine 15

Remove or add laundry 15

End of drying cycle 16

Switch the tumble dryer off 16

Clean the filters....16

Adjusting the level of conductivity....17

Programme charts 18

Hints & tips on drying 19

Care symbols....19

Cleaning and care 20-21

External cleaning....20

Cleaning the door 20

Cleaning the filters 20-21

Cleaning the drum 21

Cleaning the panel and the controls. 21

Something not working? 22-23

Changing bulb for inside light. 23

Technical specifications 24

Electrical connection....24

Unpacking 25

Special accessory 25

Kit washing/drying column 25

Door reversal....25

Service 26

Guarantee conditions 27

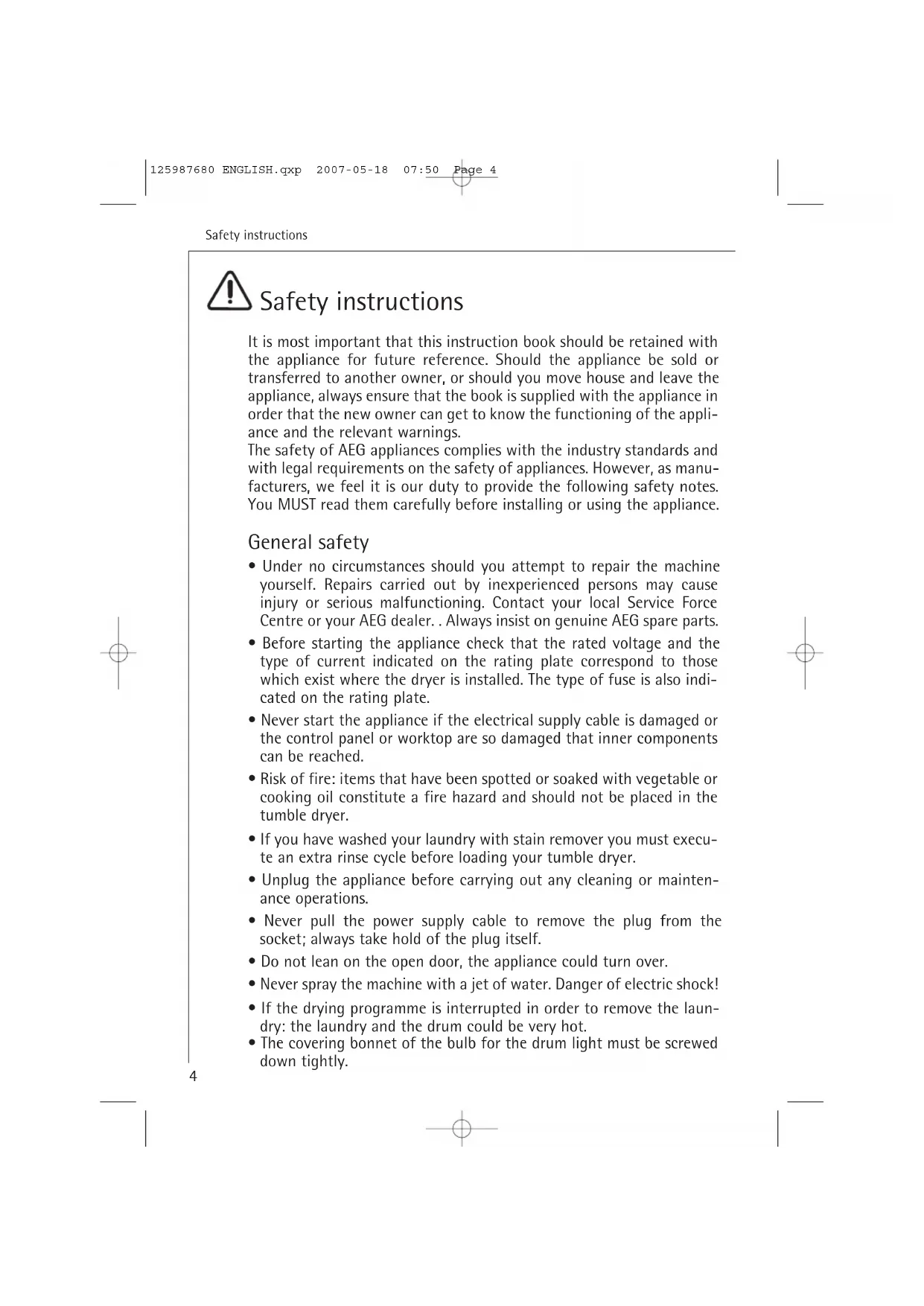

Safety instructions

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

The safety of AEG appliances complies with the industry standards and with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes. You MUST read them carefully before installing or using the appliance.

General safety

• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre or your AEG dealer. . Always insist on genuine AEG spare parts.
• Before starting the appliance check that the rated voltage and the type of current indicated on the rating plate correspond to those which exist where the dryer is installed. The type of fuse is also indicated on the rating plate.
• Never start the appliance if the electrical supply cable is damaged or the control panel or worktop are so damaged that inner components can be reached.
• Risk of fire: items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.
• If you have washed your laundry with stain remover you must execute an extra rinse cycle before loading your tumble dryer.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Do not lean on the open door, the appliance could turn over.
• Never spray the machine with a jet of water. Danger of electric shock!
• If the drying programme is interrupted in order to remove the laundry: the laundry and the drum could be very hot.
• The covering bonnet of the bulb for the drum light must be screwed down tightly.

Child safety

• Children are often not aware of how dangerous electrical appliances can be. When the machine is working, they should be carefully supervised and not be allowed to play with the appliance – there is a risk that they could become trapped inside.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children's reach.
  • Make sure that children or pets do not climb into the drum.

Positioning and connection

• Follow the separate instructions for positioning and connection.
• Check that the appliance has not been damaged during transport. Never connect a damaged appliance! If this is the case, contact your dealer.
• The dryer must not be installed in a room where the temperature can fall below zero or is higher than +35°C.
  • The dryer must be levelled.
• The dryer must not be positioned on a thick pile carpet as this would prevent air from circulating freely through the ventilation slots.
• If the appliance is installed near a gas, coal or electric heater, an insulating non-inflammable panel must be inserted between the dryer and the heater (size: 85x57.5 cm).
• The plug of the dryer must always be accessible.
• The dryer's exhaust must not be fed into a cooker hood, or a chimney or flue pipe designed to carry the exhaust from a fuel burning appliance.
• Ensure the room is well ventilated.
• A permanent connection to the mains power supply can only be carried out by a qualified electrician.

Safety instructions

Proper use

• For safety reasons, the appliance must not be modified.
• This appliance is designed for domestic use only. If the dryer is used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur.
• Dry only items that have been washed with water. Never dry items that have been in contact with inflammable solvents (petrol, methylated spirits, dry cleaning fluid and the like). These are of a volatile nature and could cause an explosion or a fire.
• Items containing rubber foam or materials similar to rubber foam must not be dried in the appliance. Fire danger!

i General instructions

• Starched fabrics leave traces of starch in the drum, therefore they should not be dried in the appliance.
• If the load to be dried exceeds the maximum weight indicated, creating may occur. For particularly delicate fabrics, the maximum load should not exceed 1.5 kg.
• For your information: 70 per cent of fabric wear is caused by wearing the garments, 20 percent by washing and only 10 percent by drying them in a tumble dryer. In your appliance, fluff accumulates in the filter. Only 0.03g fluff per Kilo will be lost by your laundry when being machine dried.

Discarding

Discarding

Packaging materials

Dispose of your tumble dryer's packaging materials correctly. All materials are environmentally friendly and can be disposed of without any danger.

The plastic parts can be reused:

- The external plastic cover and the bags inside are made of polyethylene (>PE<).

- The padding is made of CFC free polystyrene foam ( >PS<= ).

Cartons are made of recycled paper and should be disposed of in paper collection containers.

Appliance

Warning! When the appliance is disposed of, pull the plug out of the socket, cut off the electrical supply cable and destroy the plug with the remaining cable. Disable the door catch in order to prevent children from becoming trapped inside while playing.

Use an authorised disposal site for your old appliance.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Tips for environmental protection

Tips for environmental protection

- During washing, try not to use fabric softeners! If the laundry is machine dried, it will remain soft even without using fabric softeners.

- Shake out your laundry! Shake out the laundry before putting it into the dryer in order to reduce the drying time and creasing.

- Spin the laundry properly before drying it! As a general rule, the more the laundry is spun, the more economically your dryer works. In the following table, indications on consumption are provided, according to the spin speed. The data refers to 7 kg of laundry that have to be store dried.

Spinning: Drying cycle:
Revolutionsper minute	Residual dampness		Time requiredin minutes	Energy requirementkWh
	inlitres	in%0
1000 4,2 60	103 3,9
1200 3,64	52 94 3,7
1400 3,43	49 83 3,2

• Please observe the full load specifications!
  The machine works more economically if it is fully loaded, as indicated in the programme charts.
• Select the correct drying programme!
  Select the drying programme suited to the type and quantity of laundry, so that your dryer will work more economically. Some consumption values:

Tips for environmental protection

Type of laundry	Desired degree of dryness	Load in kg	Duration in minutes	Energy consumption in kWh
Cotton^1	KASTDROOG/A RANGER	7 103 3,9
Cotton^1	STRIJKDROOG/A REPASSER	7 78 3,05
Mixed fabrics^2	KASTDROOG/A RANGER	3 32 1,15

1) previously spun at 1000 rpm
2) previously spun at 1200 rpm.

• The "DELICAAT/DELICAT" function: can only be used for loads up to 3kg!
• Clean the fluff filter after each drying cycle!

Structure of the appliance

Structure of the appliance

Front view

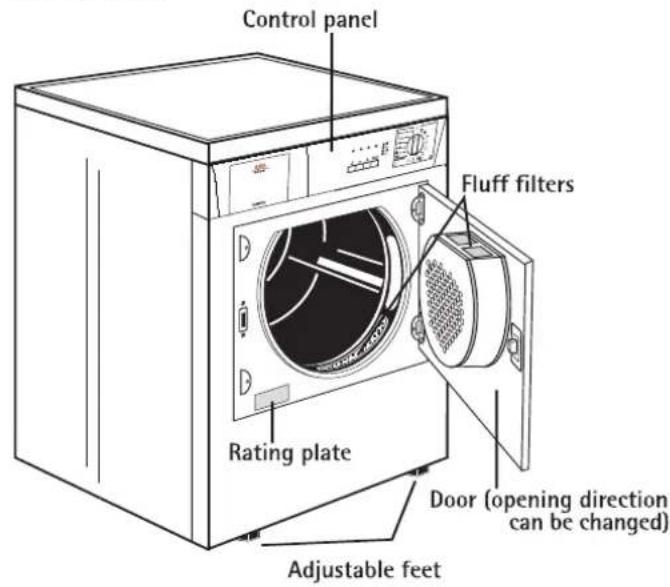

Control panel Fluff filters Rating plate Door (opening direction can be changed) Adjustable feet

Rear view

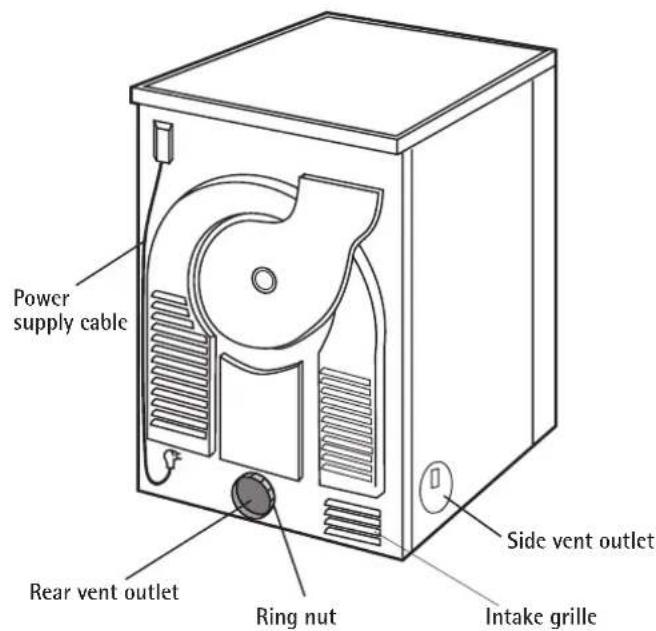

Power supply cable Rear vent outlet Ring nut Side vent outlet Intake grille

Structure of the appliance

Control panel

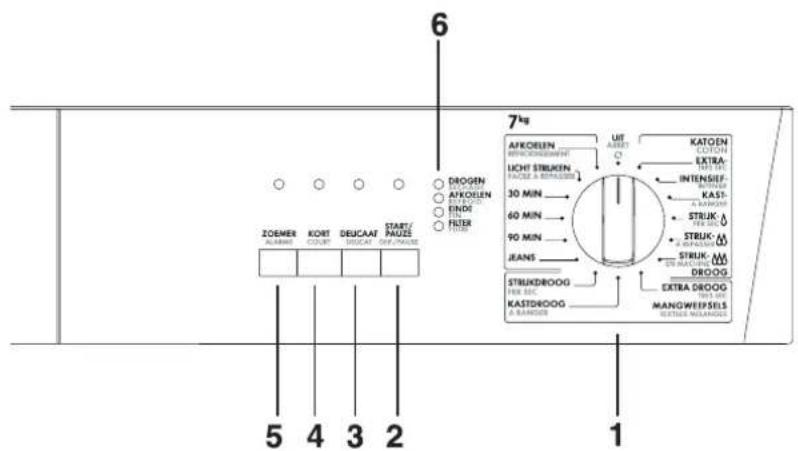

6 7kg KOEMER ALABBE KORT COUET DEUCAAT SUGCAT START/ PAUSE OFF/PAGE 5 4 3 2 1 AFKOELEN SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SpRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPRING/SPINE LIGHT STRIKEN FACE & REFRADED 30 MIN 60 MIN 90 MIN JEANS STRIJKDROOG FIRE SEC KASTDROOG & BANODES KATOEN CLOTH EXTRA- INTENSIEF ELEGE KAST & BARBONE STRUK & REFRADED STRUK & & REFRADED STRIJKDROOG EXTRA DROOG MANGWEEPSELS EXTERIOR NO.INGOLED

1 Programme/Time Selector Dial

Allows you to select electronically controlled or time controlled drying.

Turn the dial to the required programme or time.

Electronically controlled drying (automatic)

The appliance runs these programmes with the help of probes which detect the degree of dampness of the laundry.

Simply select the programme according to the type of laundry and degree of drying required.

Time controlled drying

This can be used to finish off drying if necessary. Select the 90 or 60 minute programme for cottons or the 30 minute programme for synthetics.

To cancel a programme which is running, turn the programme selector dial to "UIT/ARRET".

At the end of drying, turn the selector dial to "UIT/ARRET" to switch the machine off before removing the laundry.

2 START/PAUZE-DEP./ PAUSE button

Press this button to start the dryer after having selected the programme and the options.

If the door of the appliance or the small door at the bottom is opened while the programme is running, this button must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted.

This button must also be depressed after a power failure.

Structure of the appliance

In both cases the light of the "START/PAUZE-DEP./ PAUSE" button flashes to remind you that the start button needs to be pressed again.

3 DELICAAT/DELCAT button

Pressing this button allows drying to be performed at a lower temperature, for delicate items.

The corresponding pilot light comes on.

This option can also be used for time controlled drying.

This option cannot be selected with KORT/COURT.

4 KORT/COURT button

By depressing this button the drying time is reduced in the following cotton programmes:

• EXTRADROOG/TRES SEC

• INTENSIEFDROOG/INTENSIVE

• KASTDROOG/A RANGER

The corresponding pilot light comes on.

This option cannot be selected with DELICAAT/DELCAT function.

5 ZOEMER/ALARME button

A buzzer sounds

- when selecting the programme

- when depressing the buttons

- when an incorrect option selection is made

- when the programme selector dial is turned to another position during the programme or when you depress an option button during the cycle

- at the end of the programme and during the anticrease phase

- if the machine is not working correctly

By depressing the button the acoustic signal is switched on.

6 INDICATOR LIGHTS

These lights indicate the following functions:

- "DROGEN/SECHAGE" light.

This light indicates that the appliance is in the drying phase.

- "AFKOELEN/REFROID." light.

This light indicates that the appliance is in the cooling phase. At the end of drying, there is a 10 minute cooling phase to cool the laundry.

- "EINDE/FIN" light.

This light is on at the end of the cooling phase, during the anti-creasing phase and at the end of the programme.

- "FILTER/FILTRE" light.

This light illuminates at the end of the programme to remind you that the filters must be cleaned.

Brief operating instructions

• Spin the laundry as much as possible.
• Sort out the laundry.
• Put the laundry into the tumble dryer.
• Switch the machine on by selecting the drying programme/time.
• If necessary, press the "ZOEMER/ALARME" and/or "KORT/COURT" and/or "DELICAAT/DELICAT" (This option cannot be selected with "KORT/COURT" function) button.
• Press the "START/PAUZE-DEP./ PAUSE" for about 2 seconds to start the dryer.

When the programme is in progress, the door can be opened in order to remove laundry or to add other items.

At the end of the programme:

• Switch off the tumble dryer.
• Remove the laundry.
• Clean the fluff filters.

Drying

Drying

Switching machine on / switching light on

Turn the programme selector to any programme. The machine has been switched on. When the loading door is opened, the drum is illuminated.

i Before the first drying cycle

Before using your tumble dryer for the first time, we recommend to place a few damp cloths inside the appliance and dry for 30 minutes. There may be dust inside a brand new tumble dryer.

Sort out the laundry

• To prevent bundling of laundry: close zips, button up pillow cases and duvet covers; tie any strings, such as apron strings.
• Empty pockets.
• Remove any metal parts (paper clips, safety pins, etc. ....).
• Turn garments made of double layer fabrics inside out (e. g. turn anoraks with cotton lining inside out), so that they will dry better.
• Shake out the laundry.

Open the door

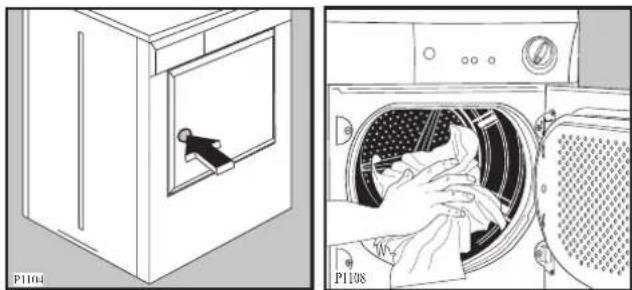

- Open the door by presing on the left side as per picture

Illustration showing a washing machine with a hand inserting a cable into the door, and a close-up of hands cleaning the interior of a washing machine (no text or symbols present)

Load the laundry

Warning! When closing the door, do not trap any garments! The fabrics could get damaged. Please check the laundry does not get caught between the door and filter.

- Put the prepared and shaken out laundry into the dryer.

Switch the machine on - select the drying programme/time

- Select the drying programme or time. The lights "DROGEN/SECHAGE", "AFKOELEN/REFROID." and "EINDE/FIN" come on. The light of the "START/PAUZE-DEP./ PAUSE" button flashes and the display shows the duration of the programme.

Illustration of a hand holding a cylindrical object with a circular base, no text or symbols present

DROGEN SECHAGE AFKOELEN REFROID, EINDE FIN FILTER FILTRE ZOEMER ALARME KORT COURT DELICAAT DELICAT START/ PAUZE DEP./PAUSE

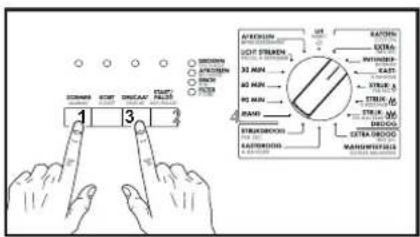

If required, press the "DELICAAT/DELICAT" button and/or the "ZOE-MER/ALARME" button or the "KORT/COURT" button.

Start the machine

Press the "START/PAUZE-DEP./ PAUSE" button: the corresponding light stops flashing and drying starts. Only the "DROGEN/SECHAGE" light stays lit.

The drum turns alternately in both directions during drying.

All drying programmes end with a 10 minute cooling phase (light "AFKOELEN/REFROID." is on).

The "EINDE/FIN" and "FILTER/FILTRE" lights illuminate. The display shows a static zero and the buzzer sounds to indicate the end of the cycle.

You may remove the laundry after this phase.

Remove or add laundry

It is possible to interrupt the drying cycle at any time in order to remove or add laundry.

Open the door.

Caution! Laundry and drum can be hot.

Remove or add laundry.

Close the door and press "START/PAUZE-DEP./ PAUSE" button to continue the drying cycle.

Drying

End of drying cycle

If the laundry is not removed at the end of the cycle, the dryer performs an anti-creasing phase (duration: 30 minutes maximum).

If you do not remove the laundry, the dryer will stop automatically at the end of the anti-creasing phase.

The "EINDE/FIN" and "FILTER/FILTRE" lights remain lit and the buzzer sounds for 2 minutes.

The light of the "START/PAUZE-DEP./ PAUSE" button goes off and a flashing zero appears on the display.

Switch the tumble dryer off

Turn the programme selector dial to "UIT/ARRET"; all the lights go out. The appliance is switched off.

Remove the laundry.

If you open and then close the door before turning the programme selector dial to "UIT/ARRET", all the lights corresponding to the phases making up the performed programme come on and the display shows the duration of the programme.

Important!

If the drying programme has to be stopped before it reaches the end, we recommend that you turn the programme selector dial to position "AFKOELEN/REFROID." and wait until the end of this phase before removing the laundry. This will avoid a build-up of heat inside the appliance. To do this first turn the dial to "UIT/ARRET" and then to "AFKOELEN/REFROID." and depress "START/PAUZE-DEP./ PAUSE" button.

Clean the filters

To ensure free circulation of air during the drying cycle, the fluff filters must be cleaned after each drying cycle, before removing the laundry.

Adjusting the level of conductivity

Water contains, a variable quantity of limestone and mineral salts of which quantities vary according to geographical locations thus varying its conductivity values.

Relevant variations of the conductivity of the water compared to those prefixed by the factory could slightly influence the residual humidity of the laundry at the end of the cycle.

Your dryer allows you to regulate the sensitivity of the drying sensor based on conductivity values of the water by using the following procedure.

Procedure:

Turn the programme selector dial to switch on the appliance. In selection mode, press simultaneously the buttons 1 and 3. Press the buttons down until the pilot lights above each ones begin to flash and one of the pilot lights indicating the drying phase lights, cooling, or end cycle remains lit.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Adjusting the level of conductivity:

Press the START/PAUZE button sequentially: the level of conductivity is indicated by the phase pilot lights, which light in various combinations as follows:

Lights	Conductivity degree	Approximative value μS/cm (25°C)
ENDE	Low < 300
AFKOELEN	Medium 300	600
DROGEN	High > 600

Normally, the appliance is factory-set to the highest level; however, certain models may be configured differently.

Memorizing the new setting:

Simultaneously press down the buttons 1 and 3 until the previous drying cycle time appears again on the display and the buzzer sounds.

Programme Chart

Programme Chart

Automatic drying (electronic programmes)

Type of laundry Programme		Max-load (1)
COTTON	EXTRADROOG/TRES SEC	7 kg
	INTENSIEFDROOG/INTENSIVE	7 kg
	KASTDROOG/A RANGER	7 kg (*)
	STRIJKDROOG/FER SEC	7 kg
	STRIJKDROOG/A REPASSER	7 kg (*)
	STRIJKDROOG/EN MACHINE	7 kg
SYNTHETICS	EXTRADROOG/TRES SEC	3 kg
	KASTDROOG/A RANGER	3 kg (*)
	STRIJKDROOG/FER SEC	3 kg
Jackets, shirts, chemis-es.	LICHT STRIJKEN/FACILE A REPASSER	2 kg
Jeans, sweat-shirts,etc.,	JEANS	7 kg

(*) According to CEI 1121 Standards.

- JEANS. Special programme for leisure clothing, such as jeans, sweat-shirts, etc., of different material thicknesses (e.g. at the cuffs and seams).

Time controlled drying

Type of laundry	Drying time	Max-load (1)	Programme selector dial position
COTTON 90 min		7 kg 90 MIN
COTTON 60 min		7 kg 60 MIN
SYNTHETICS 30 min		3 kg 30 MIN

(1) Never overfill the drum (do not load large quilts, for example).

Programm "AFKOELEN/REFROID."

This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour of moth-balls).

Load

It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the following guidelines:

• cotton, linen: drum full but not too tightly packed;
• synthetics: drum no more than half full;
• delicate fabrics: drum no more than one third full.

Hints & Tips on Drying

Care symbols

Before placing articles of laundry in your tumble dryer, check the care labels to ensure they are recommended for tumble drying.

Basically, this fabric can be tumble dried; however the manufacturer does not specify whether it can be dried with normal or low temperature.

Normal drying (normal temperature)

Gentle drying (low temperature)

Do not tumble dry

If none of these symbols is found:

Dry cottons, as well as mixed fabrics, at normal temperature. Press the "DELICAAT/DELICAT" button when delicate cottons have to be dried. It is advisable to take into consideration the care symbols on garment labels when buying them.

• Wool, eiderdowns Do not dry any woollen items in the tumble dryer! They can felt! Eiderdowns can be tumble dried only if the corresponding care symbol is present.
• Fabrics sensitive to high temperatures Dry fabrics sensitive to high temperatures (such as acrylic or viscose) and items bearing the care symbol using a synthetic drying programmes.
• Tricot garments, knitwear Tricot garments and knitwear tend to shrink.

Do not overdry these items. High quality products are less likely to shrink.

- New coloured fabrics Do not dry new coloured fabrics with light-coloured laundry. This could lead to discoloration!

Cleaning and care

Cleaning and care

Warning! You must disconnect the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly. Important: do not use methylated spirit, diluents or similar products.

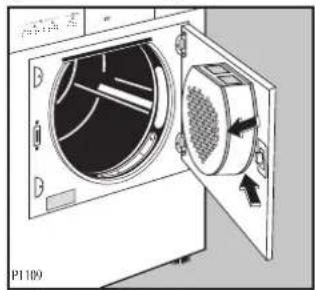

Cleaning the door

Clean periodically the interior part of the door to remove any fluff from the seals around the filter. Regular cleaning ensures correct drying.

Diagram of a washing machine with open door and side panel, showing internal components (no text or symbols)

Cleaning the filters

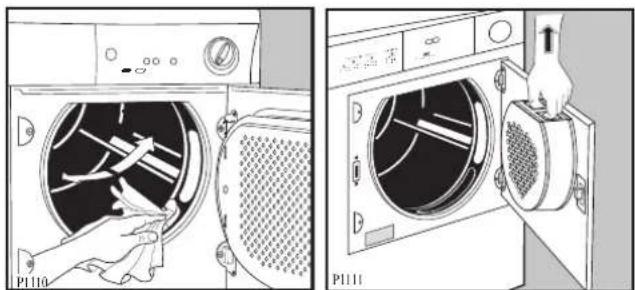

Your dryer will only function well if the filters are clean. The filters collect all the fluff which accumulates during drying and they must therefore be cleaned at the end of each programme, before removing the laundry, with a damp cloth. The filter in the inner door must be removed for cleaning.

P110 P111

Do not be alarmed by the amount of fluff. It is not due to excessive wear caused by the dryer. All fabric looses fluff when drying but it

Cleaning and care

goes un-noticed in the air. In a tumble dryer it simply collects in the filter.

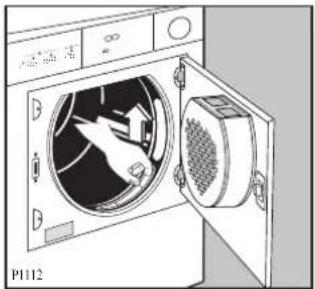

If necessary the filters can be cleaned under running water using a brush. In this case, remove the filter in the door opening as per picture (it can be positioned with the tongue facing to the left or to the right).

Illustration of a washing machine with open door and side panel, showing internal components (no text or symbols)

Cleaning the drum

Warning! Do not clean the stainless steel drum with abrasive detergent or steel wool.

Wipe the inside of the drum and the drum paddles with a standard household detergent (e.g. vinegar solution).

Cleaning the panel and the controls

Warning! Do not use household furniture polish or abrasive detergents.

Wipe the panel and the controls with a damp cloth only. Use only warm water.

Something not working?

Something not working?

If a problem occurs, you can try to solve it yourself following the instructions below. If you call out an engineer when one of the following problems occurs, or to repair a fault due to incorrect use, the call-out will be charged even if requested within the guarantee period.

Problem Possible cause		Remedy
The drier is not working properly	Mains plug disconnected Plug in mains plug
	The "START/PAUZE-DEP./ PAUSE" button has not been depressed.	press "START/PAUZE-DEP./ PAUSE" button
	No programme selected Select programme
	Loading door open Close loading door
	Fuse or residual current circuit breaker in fuse box (domestic installation) faulty	Check fuse or residual current circuit breaker. Faults can be eliminated by an electrical engineer
The drying results are not satisfactory	Wrong programme selected	Select another (time) programme for the next drying cycle
	Lint filter blocked Clean lint filter
	Wrong filling quantity Observe recommended filling quantity
	Laundry not sufficiently dried Pre-dry laundry sufficiently
	Deposit on the drum inner surface-or on the drum ribs	Clean drum inner surface and drum ribs

Something not working?

Problem Possible cause		Remedy
The drying cycle exceptionally takes a long time	Vented air transport disrupted	Straighten N- air venting hose and/or clean air venting ducts
	Lint filter blocked Clean lint filter
The loading door cannot be closed	Lint filter not installed and/or filter lid not locked in position	Install lint filter and/or lock filter lid in position
The drier ends the drying cycle automatically: "EINDE/FIN" indicator is illuminated shortly after programme start	Too little or too dry laundry loaded for selected programme	Select time programme or higher drying level (for instance EXT-RADROOG/TRES SEC instead of KASTDROOG/A RANGER)
The drying cycle exceptionally takes a long time. 4,5 hours after starting the drying cycle: "EINDE/FIN" indicator is illuminated - drying cycle is aborted - programme run indicator flashes	"DELICAAT/DELICAT"- button depressed and filling quantity too large	Check programme selection: only use "DELICAAT/DELICAT" -button for laundry quantities up to 3 kg. Clean lint filter.
	Filling quantity too large Reduce filling quantity
	Laundry too wet Pre-dry laundry more thoroughly

If these operating instructions do not offer sufficient advice to eliminate a specific fault, please contact our customer service.

Technical specifications

Technical specifications

Height x Width x Depth 85x60x57 cm

Depth with the door open 107 cm

Height adjustment 6 mm

Empty weight ca. 32 kg

Load (according to the programme) max. 7 kg

(Different load sizes in some countries are due to different measuring methods)

Use Domestic

Permissible ambient temperature +5°C to +35°C

CE This appliance complies with the following EC directives:

- 73/23/EEC of 19/2/1973 "Low voltage directive"

- 89/336/EEC of 3/5/1989 "EMC directive" including modification directive 92/31/EEC.

Electrical connection

The manufacturer declines any liability should this safety measure not be observed.

Specifications concerning the power supply are indicated on the rating plate. The rated voltage and the type of current stated on the plate must correspond to those which exist where the dryer is installed. Also refer to the rating plate for the type of fuse required.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance's rating plate. (See picture on page 10).

Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances in use.

Warning! THIS APPLIANCE MUST BE EARTHED.

The power supply cable must be accessible after installing the machine.

Unpacking/ Special accessory/Door reversal

Unpacking

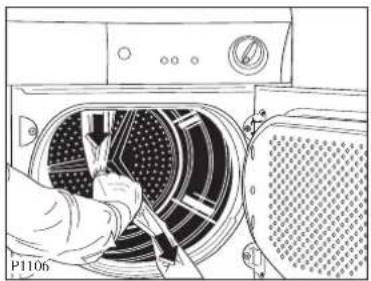

Slide out the polythene bag with the polystyrene stuffing before using the appliance.

Pull off adhesive strips from inside machine on top of drum.

Line drawing of a hand operating a washing machine with a mesh chamber and control panel (no text or symbols)

Special accessory

You can obtain the following special accessory through the AEG customer service organisation or from your dealer:

Kit Washing/drying column

With this kit you can combine your dryer with any LAVAMAT automatic washing machine to a washing and drying column. The appliances are stacked in space-economising manner in this arrangement, the washing machine at the bottom and the dryer at the top. It should be possible to stack your new dryer on top of a front loading washing machine with cover's depth between 48 and 60 cm. Read carefully the instructions supplied with the kit.

Line drawing of a two-story refrigerator with front panel and washing machine (no text or symbols)

Door reversal

To make it easier to load or unload the laundry the door can be reversed. This operation must be carried out by qualified personnel. Please contact the nearest Service Force Centre. This is a chargeable option.

Service

Service

In the chapter "Something not working?" some problems that can be solved by yourself are listed. Read this section in the event of problems. If you are not able to find a solution, contact the Service centre. It is close by and, if necessary, an engineer will soon be with you. (Addresses and telephone numbers are given on the enclosed form).

In all cases, set your speech before calling, in order to facilitate troubleshooting: the engineer will be able to decide whether a service visit is necessary.

Take note of the serial number (Ser. No.) and the product number (Prod. No.) indicated on the rating plate.

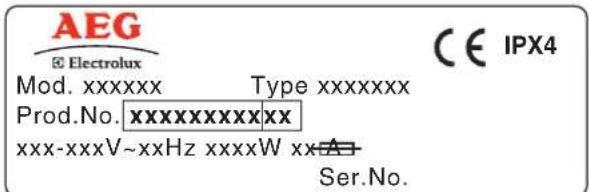

Prod. No. ....

Ser. No.

AEG Electrolux Mod. xxxxxxx Type xxxxxxxx Prod.No. xxxxxxxxxxxxx xxx-xxxV~xxHz xxxxW xx- Ser.No. CE IPX4

Try to specify, as precisely as possible:

• The symptoms of the fault.
- When the fault occurs.

When can a service visit be charged during the guarantee period?

• when it should have been possible to solve the problem by yourself, with the help of the troubleshooting chart (see section "Something not working?")
• when the engineer has to come out several times because he has not been given all the relevant information he needs and so, for example, has to fetch spare parts. Repeated trips can be avoided if you prepare your call to the Service centre as described above.

Guarantee conditions

Belgium

DECLARATION OF GUARANTEE TERMS.

Our appliances are produced with the greatest of care. However, a defect may still occur. Our consumer services department will repair this upon request, either during or after the guarantee period. The service life of the appliance will not, however, be reduced as a result:

This declaration of guarantee terms is based on European Union Directive 99/44/EC and the provisions of the Civil Code. The statutory rights that the consumer has under this legislation are not affected by this declaration of guarantee terms.

This declaration does not affect the vendor's statutory warranty to the end user. The appliance is guaranteed within the context of and in adherence with the following terms:

1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user. These guarantee terms do not apply in the event of use for professional or equivalent purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was in before the defect occurred. Defective parts are replaced or repaired. Parts replaced free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous ceramic), synthetic materials and rubber, is the result of inappropriate use.

6. The guarantee cannot be called on for minor faults that do not affect the value or the overall reliability of the appliance.

7. The statutory warranty does not apply when defects are caused by:

• a chemical or electrochemical reaction caused by water,

• abnormal environmental conditions in general,

• unsuitable operating conditions,

- contact with harsh substances.

1. The guarantee does not apply to defects due to transport which have occurred outside of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or directions for use.

2. Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or spare parts are not covered by the guarantee.

3. Appliances that are easy to transport may be delivered or sent to the consumer services department. Home repairs are only anticipated for bulky appliances or built-in appliances.

4. If the appliances are built-in, built-under, fixed or suspended in such a way that removing and replacing them in the place where they are fitted takes more than half an hour, the costs that result therefrom will be charged for. Connected damage caused by these removal and replacement operations will be the responsibility of the user.

5. If, during the guarantee period, repairing the same defect repeatedly is not conclusive, or if the repair costs are considered disproportionate, in agreement with the consumer, the defective appliance may be replaced with another appliance of the same value. In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.

6. A repair under guarantee does not mean that the normal guarantee period will be extended nor that a new guarantee period begins.

7. We give a twelve month guarantee for repairs, limited to the same defect.

8. Except in the event where liability is legally imposed, this declaration of guarantee terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.

These guarantee terms are only valid for appliances purchased and used in Belgium. For exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the country concerned and that they can withstand the local climatic and environmental conditions. For appliances purchased abroad, the user must first ensure that they meet the qualifications required in Belgium. Non-essential or requested adjustments are not covered by the guarantee and are not possible in all cases.

Our consumer services department is always at your disposal, even after the guarantee period has expired.

Address for our consumer services department:

ELECTROLUX HOME PRODUCTS BELGIUM Bergensesteenweg, 719 - 1502 LEMBEEK

Tel.: [phone]

Customer services

Belgium

		Tel.:	Fax.:
Electrolux Home Products Belgium	Consumer services	02/363.04.44	02/363.04.00
ELECTROLUX SERVICE			02/363.04.60
Bergensesteenweg 719
1502 Lernbeek
E-mail:
[e-mail]

Illustration showing a washing machine with a hand inserting a component into the door, and a close-up of hands cleaning the interior of a washing machine (no text or symbols present)

Wäsche einfüllen

Illustration of a hand holding a cylindrical object with a circular base, no text or symbols present

DROGEN SECHAGE AFKOELEN REFROID. EINDE FIN FILTER ZOEMER KORT DEUCAAT START/ ALARME COURT DELICAT PAUZE DEP/PAUSE

Diagram of a washing machine with open door and side panel, showing internal components (no text or symbols)

Illustration of a washing machine with hand holding a doorbell (no text or symbols)

Diagram of a washing machine with an open door, showing internal air flow direction (no text or symbols)

Trommel reinigen

Line drawing of a hand operating a washing machine with a mesh chamber and control panel (no text or symbols)

Sonderzubehör

Line drawing of a two-tier refrigerator with front panel and side door (no text or symbols)

Türanschlagwechsel

Installation et raccordement

Illustration showing a washing machine with a hand inserting a component into the door, and a close-up of hands cleaning the interior of a washing machine (no text or symbols present)

Chargez le linge

Diagram of a washing machine with a door open, showing internal components and directional arrows (no text or symbols)

Diagram of a washing machine with door open, showing internal components and airflow direction (no text or symbols)

Trommel reinigen

- 73/23/EEC of 19/2/1973 "Directive basse tension"

- 89/336/EEC of 3/5/1989 "directive EMC" icomprenant la directive de modification 92/31/EEC.

Illustration of a hand inserting a device into a washing machine (no text or symbols visible)

Line drawing of a two-story refrigerator with front panel and side door (no text or symbols)

Illustration showing a washing machine with a hand inserting a component into the door, and a close-up of hands cleaning the interior of a washing machine (no text or symbols present)

Illustration of a washing machine with a door open, showing internal components (no text or symbols)

Trommel reinigen

Line drawing of a hand inserting into a washing machine with a valve, showing internal components and control knobs (no text or symbols)

Extra leverbare accessoires

Line drawing of a two-tier refrigerator with front panel and side door (no text or symbols)

Deurdraairichting
