Product type	Hi-fi system with CD player, cassette, turntable, FM/MW radio, Bluetooth, USB
Brand	Roadstar
Model	HIF1996BT
Power supply	230 V ~ 50 Hz
FM radio	87.5 - 108 MHz
MW radio	530 - 1620 kHz
Playback media	CD, USB, Cassette, Turntable, Bluetooth, AUX
Turntable	Speeds 33/45/78 rpm, adapter for 45 rpm records included
Recording	To USB flash drive from PHONO, TAPE, Bluetooth, AUX, CD (selection by track, folder or all)
Remote control	Included with play, program, repeat keys, etc.
Display	LCD
AUX input	3.5 mm jack
Headphone output	Yes (jack socket)
FM antenna	Connector for external antenna
Cassette	Playback only (FFD/EJ buttons)
Safety	Automatic shut-off after 15 min without sound; do not expose to humidity, rain, heat; unplug if unused for long periods
Special functions	CD programming (99 tracks), repeat playback (1 track, folder, all), USB file deletion
Maintenance	Clean with a soft dry cloth; do not use solvents
Repairability	Contains no user-serviceable parts; contact qualified technician
Included accessories	Remote control, adapter for 45 rpm records

Frequently Asked Questions - HIF1996BT ROADSTAR

How to connect my smartphone via Bluetooth?

Press the BT button (9) to select the Bluetooth function. The display shows 'BT'. On your smartphone, enable Bluetooth and search for devices. Select HIF-1996BT from the list. Confirm the connection. The indicator stops flashing when the connection is established. You can then stream your music.

How to program CD playback?

Insert a CD and press STOP (15) as soon as it starts playing. Press the PROGRAM button (8 on remote). The display shows 'P01'. Use the SKIP -/+ buttons (16/17) to select the desired first track, then press PROGRAM again to confirm. Repeat to add up to 99 tracks. Press PLAY/PAUSE (14) to start programmed playback.

How to record a vinyl record to a USB flash drive?

Insert a USB flash drive into the USB port (4). Press PHONO (12) to select the turntable. Place the record and start playback. During playback, press REC (18). The display shows 'REC' and recording starts. Press STOP (15) to stop. The tracks are saved in a folder on the USB drive.

What to do if the device does not turn on?

Check that the power cord is properly connected to a functional mains outlet (230V~50Hz). Make sure the ON/OFF switch (24) is in the ON position. If the device remains off, unplug it for a few minutes then plug it back in. If the problem persists, contact a qualified technician.

How to improve FM reception?

Use the supplied FM antenna. Connect it to the FM ANTENNA connector (23). Rotate the antenna in different directions to find the best reception. If necessary, you can use an external antenna by connecting it to the same socket.

How to use the AUX input?

Connect an audio cable (3.5 mm jack) between the output of your external device (smartphone, MP3 player) and the AUX-IN input (21) of the system. Press AUX (13) to select this mode. The display shows 'AUX'. Start playback on the external device and adjust the volume with the knob (1).

How to clean the hi-fi system?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the exterior surfaces. Never use abrasive products, alcohol or solvents. For the turntable, avoid touching the stylus.

How to change the turntable speed?

Locate the speed selector 33/45/78 RPM (32) near the platter. Slide the selector to the position corresponding to your record: 33 rpm for LPs, 45 rpm for singles, 78 rpm for older records.

How to delete files on the USB flash drive?

Insert the USB drive and select USB mode by pressing CD/USB (10). During playback, press and hold the REC button (18). The display shows 'DEL.'. Use the SKIP -/+ buttons to choose between ONE (delete one file), FOL (delete a folder) or ALL (delete everything). Press REC again to confirm.

Why is the 'REP' indicator flashing?

The flashing indicates the current repeat mode. REP flashes quickly: repeat one track (Repeat1). REP flashes slowly: repeat the active folder (RepeatFolder). REP steady: repeat all tracks (RepeatAll). You can change the mode by pressing the REPEAT button (7 on the remote) multiple times.

USER MANUAL HIF1996BT ROADSTAR

Press (5) on remote repeatedly to select FM / MW / CD/USB / AUX / BLUETOOTH / TAPE / PHONO mode.

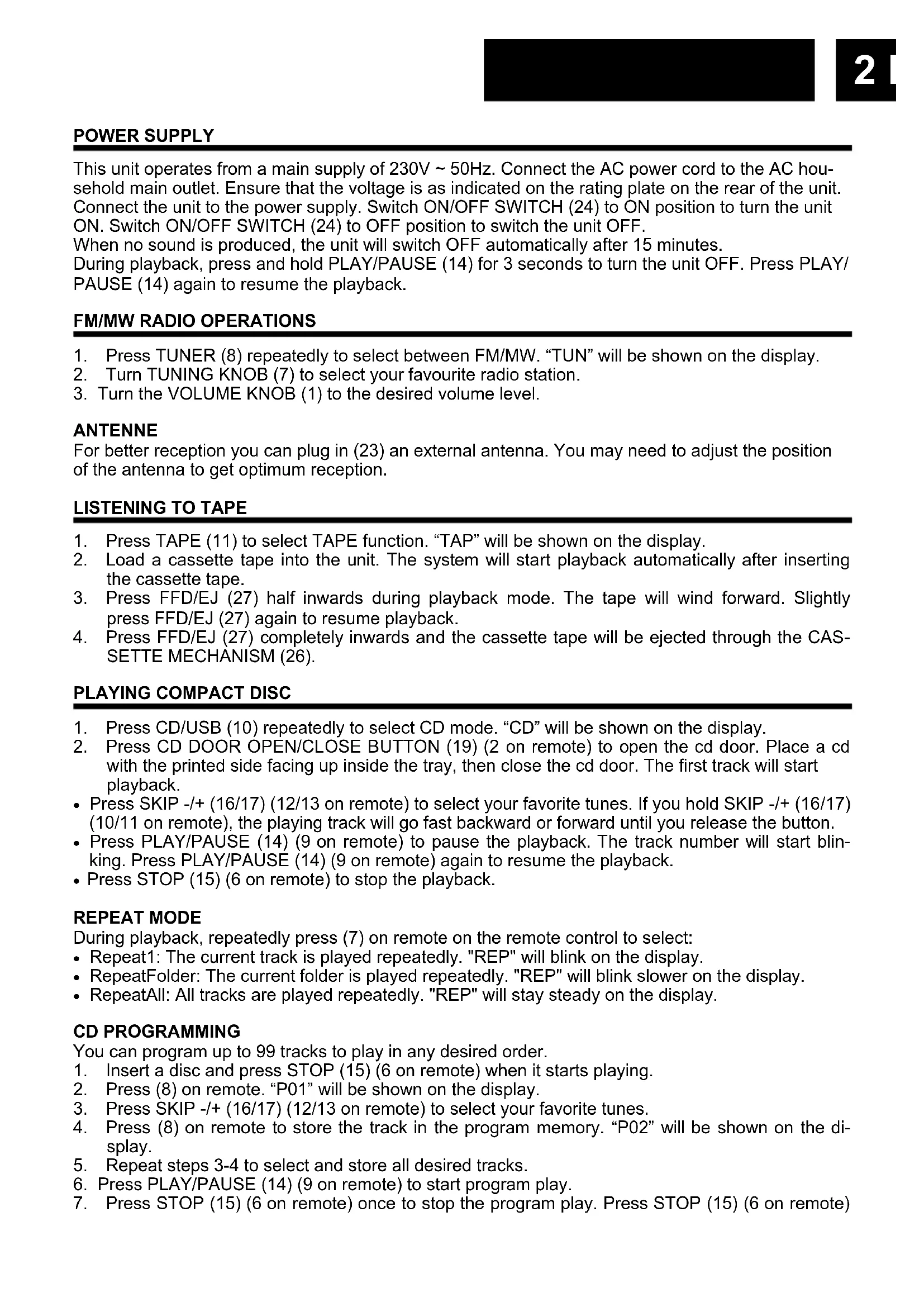

POWER SUPPLY

This unit operates from a main supply of 230V 50Hz . Connect the AC power cord to the AC household main outlet. Ensure that the voltage is as indicated on the rating plate on the rear of the unit. Connect the unit to the power supply. Switch ON/OFF SWITCH (24) to ON position to turn the unit ON. Switch ON/OFF SWITCH (24) to OFF position to switch the unit OFF.

When no sound is produced, the unit will switch OFF automatically after 15 minutes.

During playback, press and hold PLAY/PAUSE (14) for 3 seconds to turn the unit OFF. Press PLAY/ PAUSE (14) again to resume the playback.

1. Press TUNER (8) repeatedly to select between FM/MW. "TUN" will be shown on the display.
2. Turn TUNING KNOB (7) to select your favourite radio station.
3. Turn the VOLUME KNOB (1) to the desired volume level.

ANTENNE

For better reception you can plug in (23) an external antenna. You may need to adjust the position of the antenna to get optimum reception.

LISTENING TO TAPE

1. Press TAPE (11) to select TAPE function. "TAP" will be shown on the display.
2. Load a cassette tape into the unit. The system will start playback automatically after inserting the cassette tape.
3. Press FFD/EJ (27) half inwards during playback mode. The tape will wind forward. Slightly press FFD/EJ (27) again to resume playback.
4. Press FFD/EJ (27) completely inwards and the cassette tape will be ejected through the CASSETTE MECHANISM (26).

PLAYING COMPACT DISC

1. Press CD/USB (10) repeatedly to select CD mode. "CD" will be shown on the display.
2. Press CD DOOR OPEN/CLOSE BUTTON (19) (2 on remote) to open the cd door. Place a cd with the printed side facing up inside the tray, then close the cd door. The first track will start playback.
3. Press SKIP -/+ (16/17) (12/13 on remote) to select your favorite tunes. If you hold SKIP -/+ (16/17) (10/11 on remote), the playing track will go fast backward or forward until you release the button.
4. Press PLAY/PAUSE (14) (9 on remote) to pause the playback. The track number will start blinking. Press PLAY/PAUSE (14) (9 on remote) again to resume the playback.
5. Press STOP (15) (6 on remote) to stop the playback.

REPEAT MODE

During playback, repeatedly press (7) on remote on the remote control to select:
- Repeat1: The current track is played repeatedly. "REP" will blink on the display.
- RepeatFolder: The current folder is played repeatedly. "REP" will blink slower on the display.
- RepeatAll: All tracks are played repeatedly. "REP" will stay steady on the display.

CD PROGRAMMING

You can program up to 99 tracks to play in any desired order.

1. Insert a disc and press STOP (15) (6 on remote) when it starts playing.
2. Press (8) on remote. "P01" will be shown on the display.
3. Press SKIP -/+ (16/17) (12/13 on remote) to select your favorite tunes.
4. Press (8) on remote to store the track in the program memory. "P02" will be shown on the display.
5. Repeat steps 3-4 to select and store all desired tracks.
6. Press PLAY/PAUSE (14) (9 on remote) to start program play.
7. Press STOP (15) (6 on remote) once to stop the program play. Press STOP (15) (6 on remote)

twice to clear programme.

To prevent damages from transportation, a transit screw is located at the upper right side of the turntable platform. Before start playing, use a screwdriver and turn the transit screw in clockwise direction (screw going down) completely. In case of transportation, remember to clock again this screw in counter-clockwise direction to prevent damages.

1. Press PHONO (12) to select PHONO function. "PHO" will be shown on the display.
2. Open the Record Player Cover. Release the Tonearm Clamp, and remove the stylus protector. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle when playing 17cm EP records.
3. Set 33/45/78 RPM SPEED SELECTOR (32) to 33 / 45 / 78 rpm according to the record.
4. Lift the Tonearm with the Tonearm Lift Lever. Move the tonearm to the beginning of the record, or to the start of a particular track. Gently lower the tone arm onto the record with the Tonearm Lift lever to start playing.
5. When the record is finished the tonearm will automatically stop and return automatically to the rest. To stop manually, lift the tonearm from the record and return it to the rest.
6. Moving or jarring the turntable without securing the Tonearm clamp could result in damage to the Tonearm. Replace the protective cap on the stylus when not in use.

AUX-IN

This unit provides an auxiliary audio input jack for connecting external audio device like MP3 players, CD players and allow playback of your external source through the system speakers.

1. Use an audio cable (not included) with a RCA stereo plugs on one end of the cable. Plug one end into the AUX-IN jack on the main unit and plug the other end of the cable into the LINE OUT or HEADPHONE Jack of your external audio device.
2. Turn ON the unit and your external audio device. Press AUX (13) to select AUX function. "AUX" will be shown on the display.
3. Start to play the external device (see the user manual of the external device).

BLUETOOTH OPERATION

1. Press BT (9) to select BLUETOOTH function. "BT" will be shown on the display.
2. Select from your portable device (Smartphone, Tablet...) the ID Bluetooth tagged as HIF-1996BT, then confirm connection.
3. When the pairing is successful the LED will stop blinking.
4. Now you can transfer the music to the HIF-1996BT and all operations can only be operated from your mobile device.

PLAYBACK FROM USB

1. Insert the USB device's plug into the USB socket.
2. Press CD/USB (10) repeatedly to select USB mode. "USB" will be shown on the display.
3. The unit will start reading the device automatically after the connection.
4. Use the same procedure as CD to listen to your USB/SD device.

DELETE USB

1. During playback, press and hold REC (18) (4 on remote). "DEL" will be shown on the display.
2. Press SKIP -/+ (16/17) (12/13 on remote) repeatedly to select between ONE/FOLDER/ALL.
3. Press REC (18) (4 on remote) again to confirm.

RECORDING FUNCTION

1. While listening to PHONO/TAPE/BLUETOOTH/AUX-IN, press REC (18) (4 on remote). "REC" will be shown on the display. The REC indicator will light up. Encoding is performing now. Note that the encoding speed is 1:1.
2. Press STOP (15) (6 on remote) to stop recording.
3. The unit will create a folder in the USB device, that contain all recorded tracks.

CD

1. Press REC (18) (3 on remote).
2. Press SKIP -/+ (16/17) (12/13 on remote) repeatedly to select between ONE/FOLDER/ALL.
3. Press REC (18) (3 on remote) once more to start recording.

SPECIFICATIONS

AC: 230V 50Hz

FM: 87.5 - 108 MHz

MW: 530 - 1620 kHz

Specifications and the design are subject to possible modifications without notice due to improvement.

·WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

LAGE DER BEDIENELEMENTE

1. LAUTSTÄRKEREGLER
2. LCD-DISPLAY
3. STAUBSCHUTZ
4. USB-EINGANG
5. CD-FACH
6. SKALENSCHEIBE
7. TUNING-KNOP
8. TUNER
9. BT
10. CD/USB
11. TAPE
12. PHONO
13. AUX
14. PLAY/PAUSE-TASTE
15. STOP-TASTE
16. SKIP -
17. SKIP+
18. AUFNAHMETASTE
19. TASTE ZUM ÖFFNEN/SCHLIESSEN DES CD-FACHS
20. SERVICE LOCH
21. KOPFHÖRERAUSGANG
22. ZUSATZEINGANG
23. FM-ANTENNE
24. AN/AUS-TASTE
25. NETZKABEL
26. KASSETTENMECHANISMUS
27. FFD/EJ
28. TRANSIT SCREW
29. ACHSADAPTER
30. PLATTENSPIELER
31. TONE ARM
32. 33/45/78 RPM DREHZAHLWÄHLER

FERNBEDIENUNG

DEWERKING VAN BLUETOOTH
