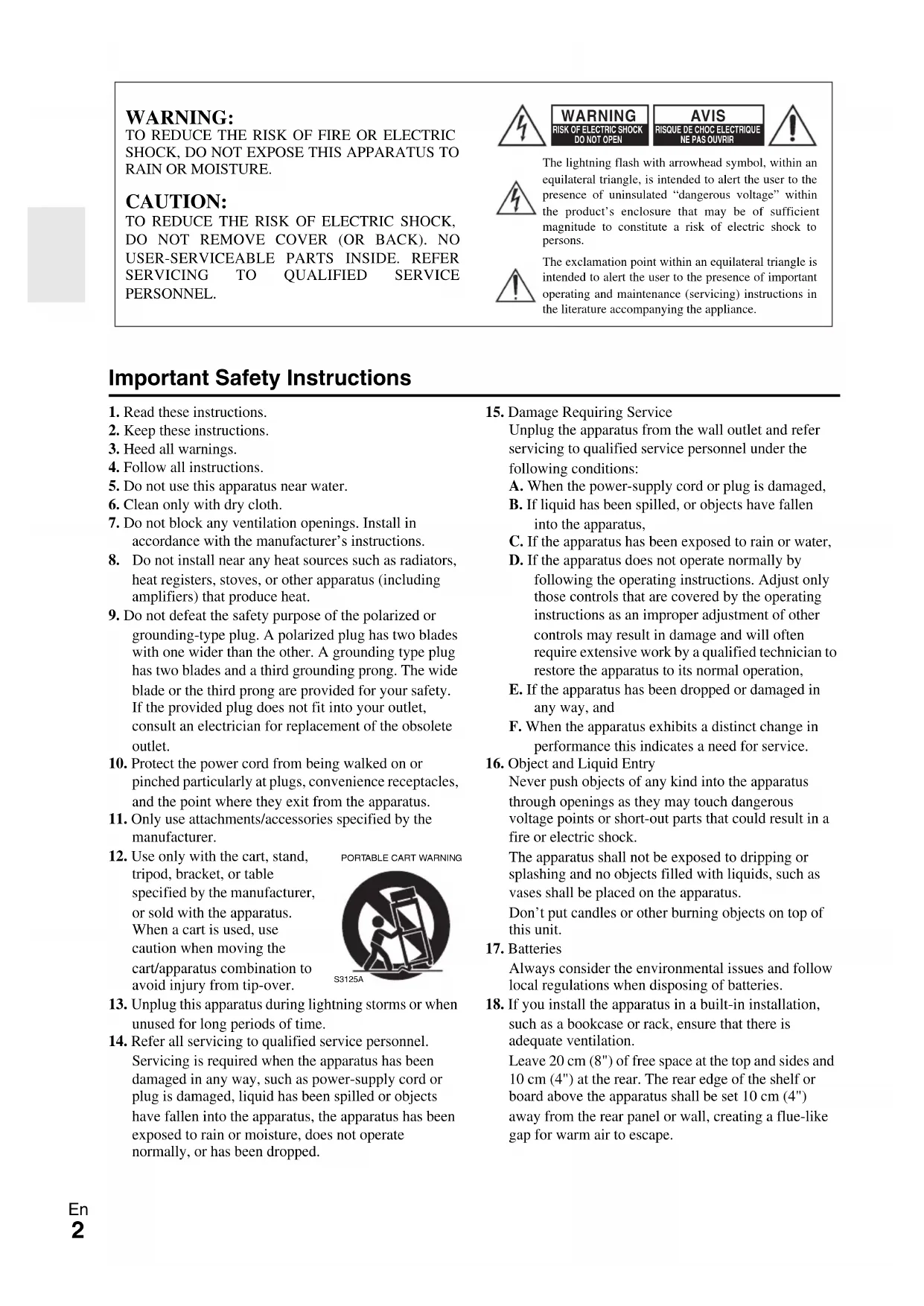

Introduction Important Safety Instructions 1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring ServiceUnplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:A. When the power-supply cord or plug is damaged,B. If liquid has been spilled, or objects have fallen into the apparatus,C. If the apparatus has been exposed to rain or water,D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,E. If the apparatus has been dropped or damaged in any way, andF. When the apparatus exhibits a distinct change in performance this indicates a need for service.16. Object and Liquid EntryNever push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.Don’t put candles or other burning objects on top of this unit.17. BatteriesAlways consider the environmental issues and follow local regulations when disposing of batteries.18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation.Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING RISK OF ELECTRIC SHOCKDO NOT OPENRISQUE DE CHOC ELECTRIQUENE PAS OUVRIR AVIS

only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over

with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz). The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times. Pressing the [ON/STANDBY] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss

Caution Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure

Warning Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never

handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

• If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally. For U.S. models FCC Information for User CAUTION: The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. For Canadian Models

NOTE: THIS CLASS B DIGITAL APPARATUS

For British models Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. IMPORTANT The wires in the mains lead are coloured in accordance with the following code:Blue: NeutralBrown: LiveAs the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. IMPORTANT The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug. For European Models Supplied Accessories Make sure you have the following accessories: In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color. ■ Installing the batteries Note

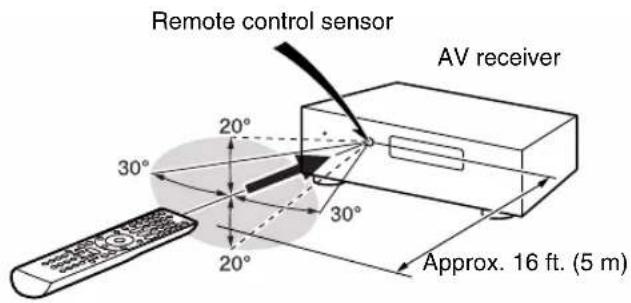

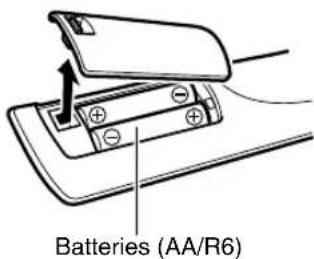

• If the remote controller doesn’t work reliably, try replacing the batteries.• Don’t mix new and old batteries or different types of batteries.• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.■ Aiming the remote controllerTo use the remote controller, point it at the AV receiver’s remote control sensor, as shown below. Declaration of Conformity We, ONKYO EUROPEELECTRONICS GmbHLIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANYGROEBENZELL, GERMANYONKYO EUROPE ELECTRONICS GmbHK. MIYAGIdeclare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.Indoor FM antenna (➔ page 20)AM loop antenna (➔ page 20) Speaker setup microphone (➔ page 30) Remote controller (RC-801M) and two batteries (AA/R6)Batteries (AA/R6)Remote control sensorAV receiverApprox. 16 ft. (5 m)5

• 80 Watts/Channel @ 8 ohms (FTC)

• 130 Watts/Channel @ 6 ohms (IEC)

• Optimum Gain Volume Circuitry

• H.C.P.S. (High Current Power Supply) Massive High Power Transformer

• Jitter Cleaning Circuit Technology Processing

Integrated System Certified

technology for HDMI Video Upscaling (to 4K Compatible)

• HDMI (Audio Return Channel, 3D, DeepColor, x.v.Color

• Non-Scaling Configuration

for Compressed Digital Music files

• 192 kHz/24-bit D/A Converters

• Powerful and Highly Accurate 32-bit Processing DSP Connections

• Onkyo p for System Control

• Universal Port for the Dock for iPod

Services available may vary depending on the region.

• Network Capability for Streaming Audio Files *12

• Front-Panel USB Input for Memory Devices and iPod

models (Enables Display of Album Artwork) Miscellaneous

to correct room acoustic problems

for loudness correction

to maintain optimal listening level and dynamic range

• A/V Sync Control Function (up to 800 ms)

THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. All rights reserved.

Qdeo and QuietVideo are trademarks of Marvell or its affiliates.

“x.v.Color” is a trademark of Sony Corporation.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks, & DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround EX and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Audyssey Laboratories™, Inc. U.S. and foreign patents pending. Audyssey 2EQ

and Audyssey Dynamic Volume

are registered trademarks of Audyssey Laboratories, Inc.

Music Optimizer™ is a trademark of Onkyo Corporation.

“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. *10 HD Radio™, HD Radio Ready™, and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corporation. This HD Radio Ready™ receiver is ready to receive HD Radio broadcasts when connected to the Onkyo UP-HT1 HD Radio tuner module (sold separately). *11 In Europe, using banana plugs to connect speakers to an audio amplifier is prohibited. *12 “DLNA

, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certification marks of the Digital Living Network Alliance.” *12 Windows and the Windows logo are trademarks of the Microsoft group of companies. THX The HT-R990, jointly developed by Onkyo and THX Ltd., provides home theater enthusiasts the perfect blend of performance and ease of use. All of the components in this THX Certified System are engineered to work seam- lessly together to deliver exceptional entertainment expe- riences. Whether you are watching a movie, listening to music, or playing the hottest new video game, the HT-R990 will transform your room into the ultimate entertainment environment.8

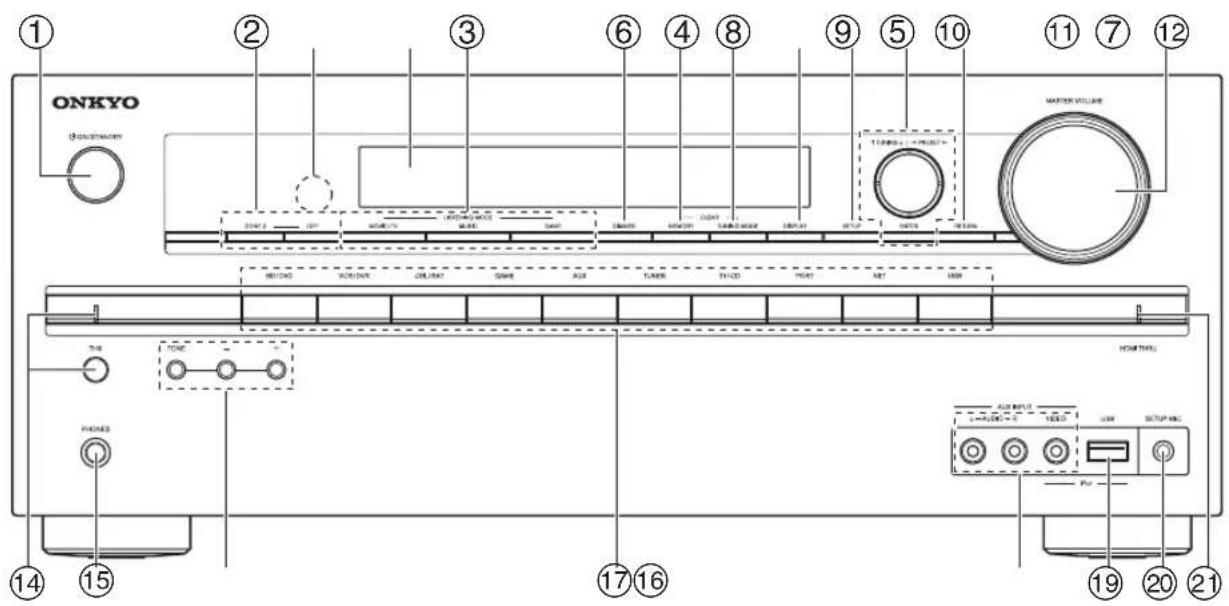

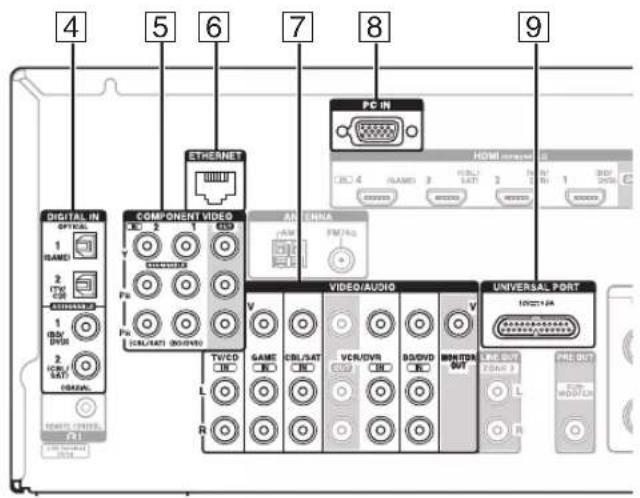

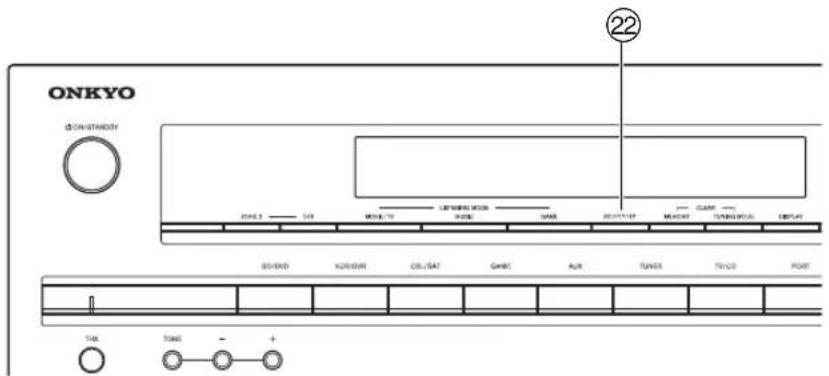

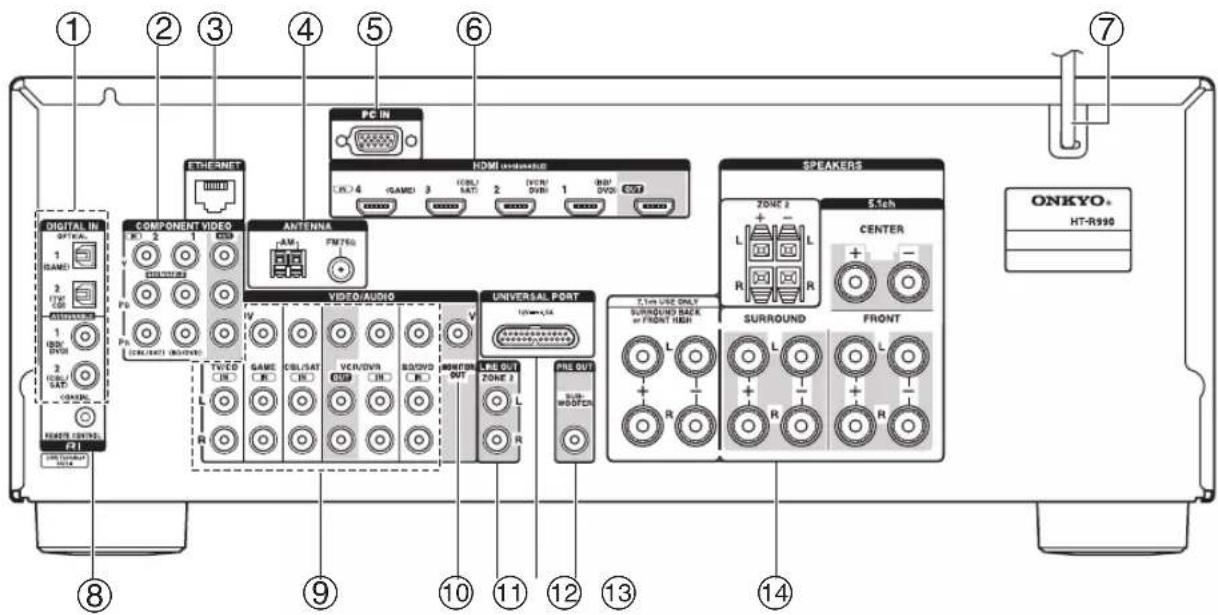

a DIGITAL IN COAXIAL and OPTICAL jacks b COMPONENT VIDEO IN and OUT jacks c ETHERNET port d FM ANTENNA jack and AM ANTENNA terminal e PC IN jack f HDMI IN and OUT jacks g Power cord h u REMOTE CONTROL jack i Composite video and analog audio jacks (BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, TV/CD IN) j MONITOR OUT V jack k ZONE 2 LINE OUT jacks l UNIVERSAL PORT jack m SUBWOOFER PRE OUT jack n SPEAKERS terminals

c d See “Connecting the AV Receiver” for connection (➔ pages 12 to 20).11

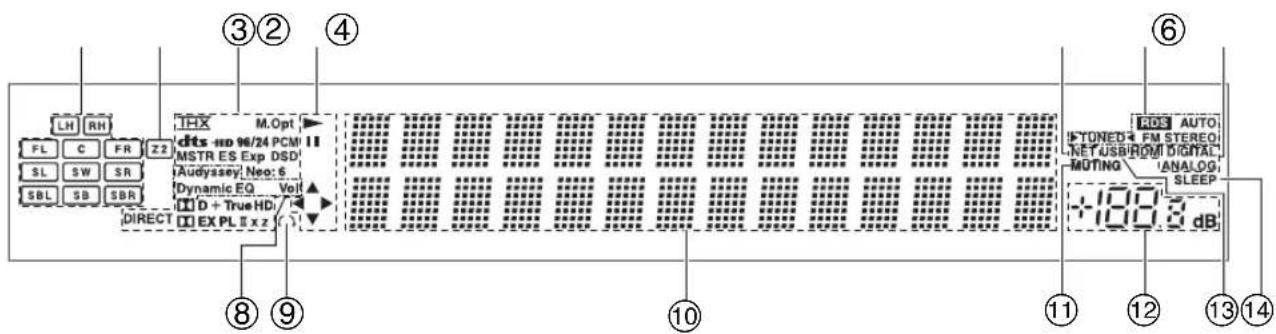

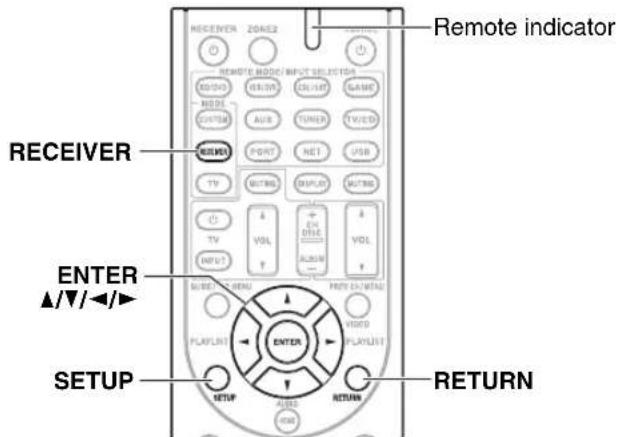

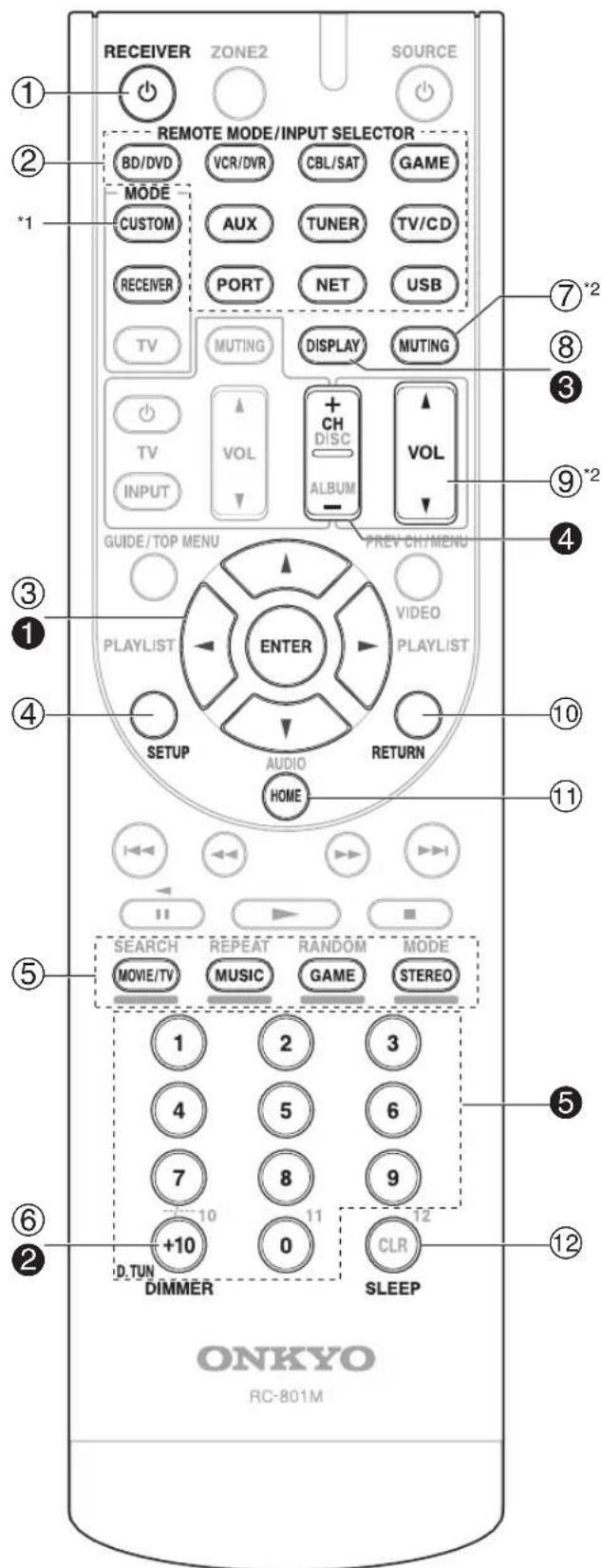

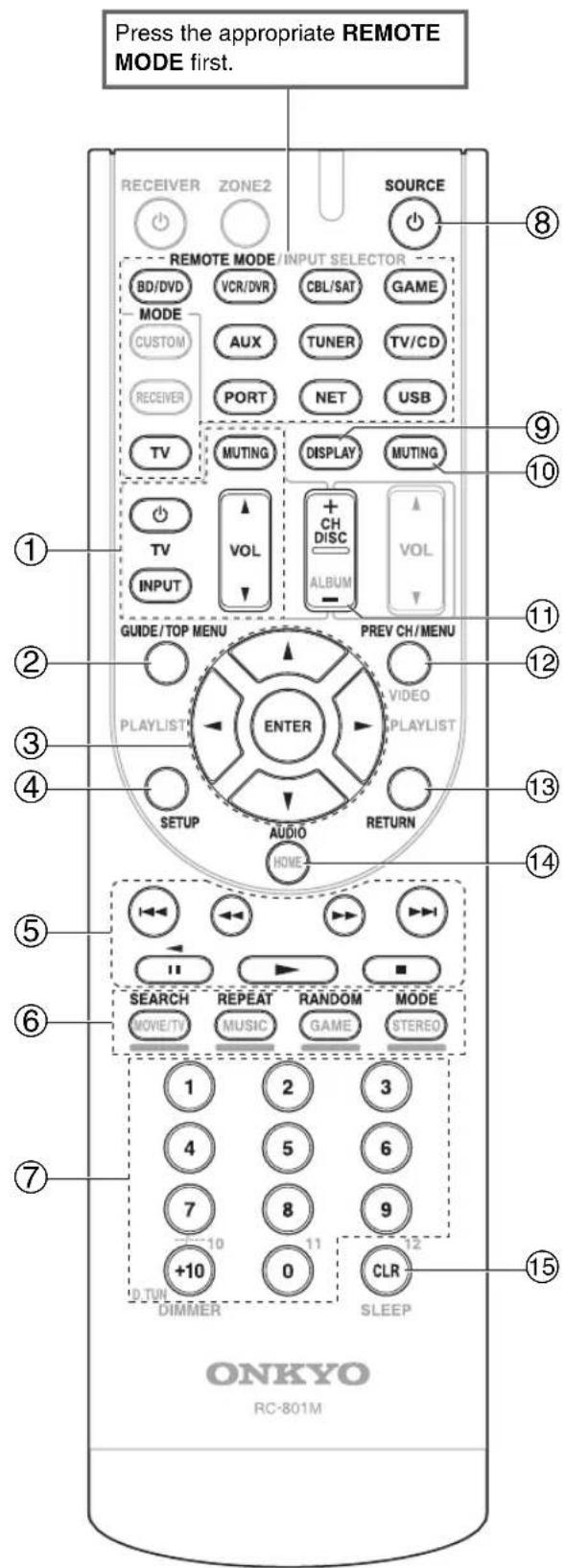

To control the AV receiver, press RECEIVER to select Receiver mode.You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (➔ page 64).12

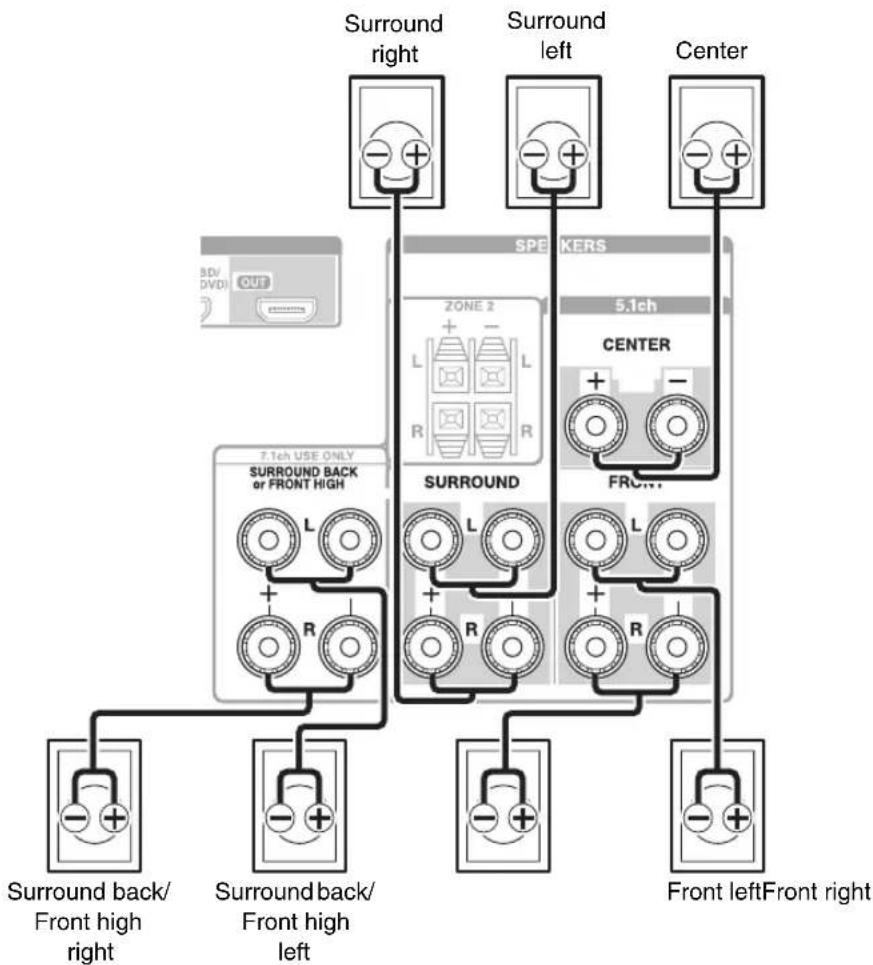

Connections Connecting the AV Receiver Connecting the Speaker Cables The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one surround back speaker, connect it to the SURROUND BACK or FRONT HIGH L terminals. Tip

• You can specify whether surround back or front high speakers are connected in the “Speaker Configuration” menu (➔ page 44) or during Audyssey 2EQ

Room Correction and Speaker Setup (➔ page 30).

• The speakers you can connect will differ depending on the speaker system that you have. ■ Screw-type speaker terminals Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown. (Supplied speaker cables are already stripped.) ■ Banana Plugs (North American models)

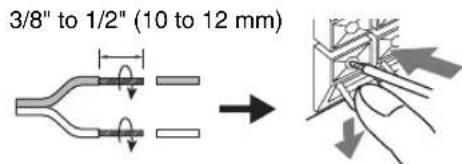

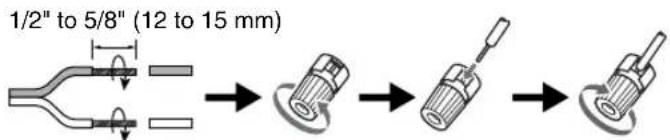

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal. ■ Push-type speaker terminals Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown. (Supplied speaker cables are already stripped.) Connecting Your Speakers Surround back/ Front high rightSurround left Surround rightCenterFront leftFront rightSurround back/ Front high left 1/2" to 5/8" (12 to 15 mm)3/8" to 1/2" (10 to 12 mm)13

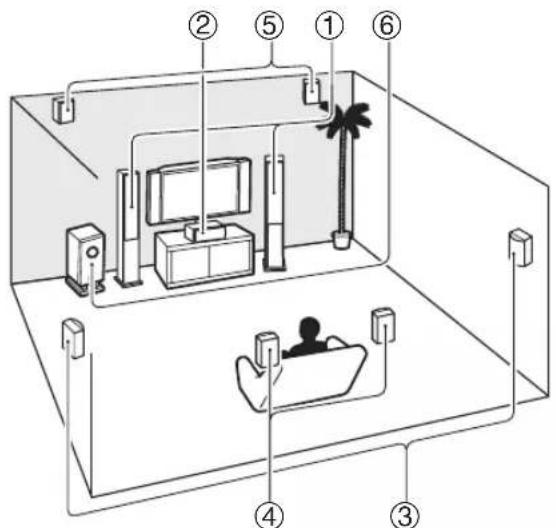

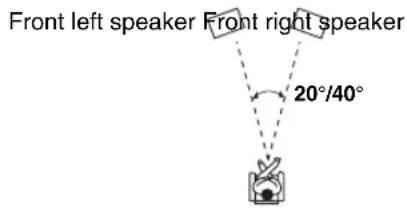

Speaker Configuration The following table indicates the channels you should use depending on the number of speakers that you have. No matter how many speakers you use, a powered subwoofer is recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings automatically (➔ page 30) or manually (➔ page 43).

Front high and surround back speakers cannot be used at the same time. Connecting the Speaker Cables The speaker terminals are color-coded for identification purpose. Speaker Connection Precautions Read the following before connecting your speakers:

• You can connect speakers with an impedance of between 6 and 16 ohms. If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.

• Disconnect the power cord from the wall outlet before making any connections.

• Read the instructions supplied with your speakers.

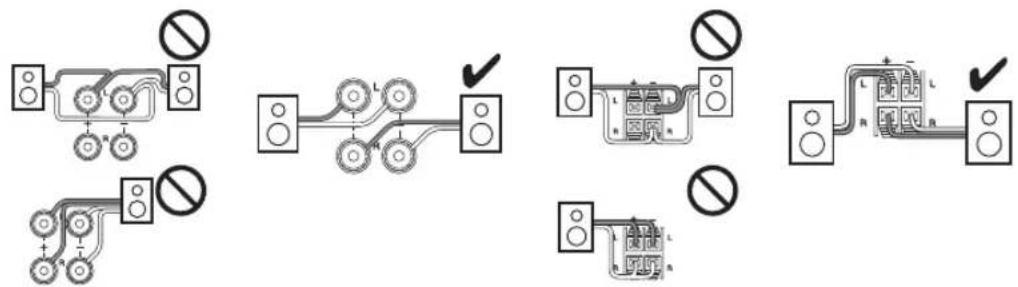

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver. Number of channels 2345677 Front speakers ✔✔✔✔✔✔✔ Center speaker ✔✔✔✔✔ Surround speakers ✔✔✔✔✔ Surround back speaker *1*2

Surround back speakers

Speaker Color Front left, Zone 2 left White Front right, Zone 2 right Red Center Green Surround left Blue Surround right Gray Surround back left, Front high left Brown Surround back right, Front high right Tan14

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.

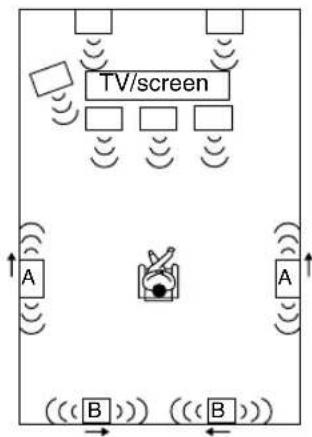

• Don’t connect one speaker to several terminals. Using Dipole Speakers You can use dipole speakers for the surround and surround back speakers. Dipole speakers output the same sound in two directions. Dipole speakers typically have an arrow printed on them to indicate how they should be positioned. The surround dipole speakers (A) should be positioned so that their arrows point toward the TV/screen, while the surround back dipole speakers (B) should be positioned so that their arrows point toward each other, as shown. Using a Powered Subwoofer To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results. Tip

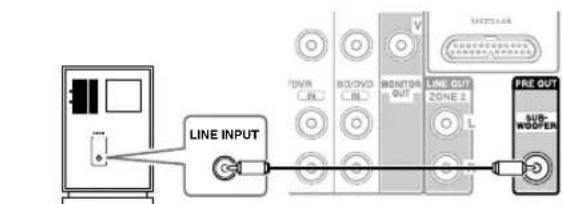

• If your subwoofer is unpowered and you’re using an external amplifier, connect the subwoofer pre out jack to an input on the amplifier.

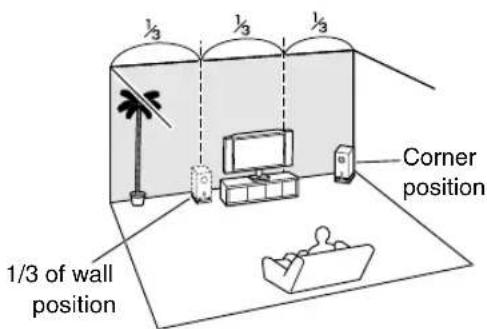

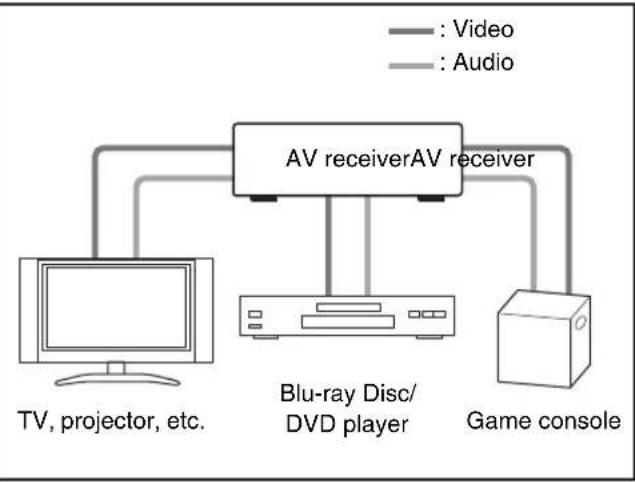

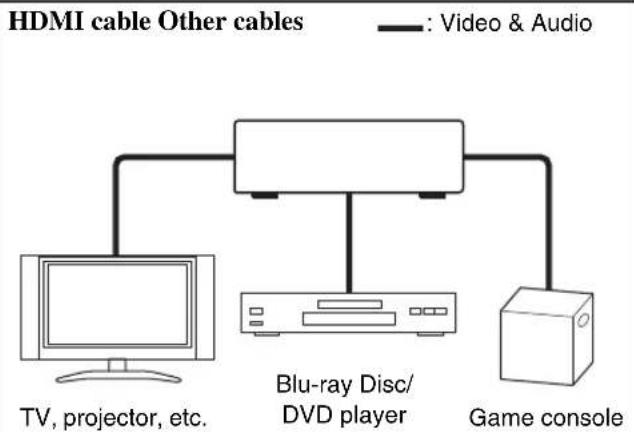

Connecting AV components

• Before making any AV connections, read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed and double-checked all AV connections.

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio and video cables away from power cords and speaker cables. AV Cables and Jacks

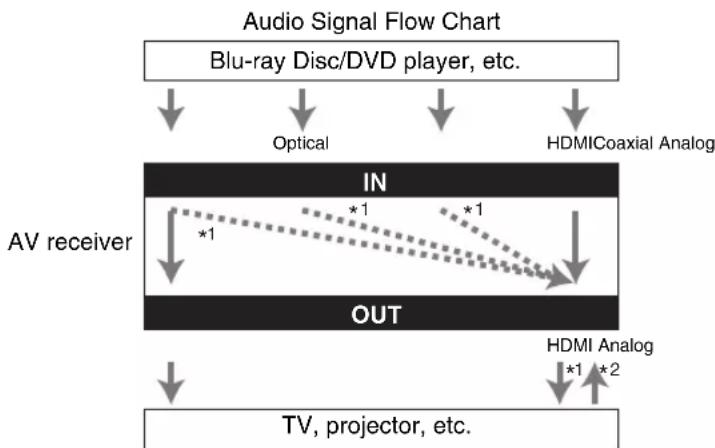

Available sampling rate for PCM input signal (stereo/mono) is 32/44.1/48/88.2/96 kHz. In case of an HDMI connection, 176.4/192 kHz is also available. Note

• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.Caution
• To prevent shutter damage, hold the optical plug straight when inserting and removing. About AV Connections Signal Cable Jack DescriptionVideo and AudioHDMI HDMI connections can carry digital video and audio.Video Component video Component video separates the luminance (Y) and color difference signals (PB, PR), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).Analog RGB This is a conventional analog interface to connect a PC and a display device (also called D-Sub or D-subminiature).Composite video Composite video is commonly used on TVs, VCRs, and other video equipment.Audio Optical digital audioOptical digital connections allow you to enjoy digital sound such as PCM , Dolby Digital or DTS. The audio quality is the same as coaxial.Coaxial digital audioCoaxial digital connections allow you to enjoy digital sound such as PCM , Dolby Digital or DTS. The audio quality is the same as optical.Analog audio (RCA)Analog audio connections (RCA) carry analog audio. HDMI cable Other cables : Video & Audio: Video: AudioGame consoleBlu-ray Disc/DVD playerTV, projector, etc.Game consoleBlu-ray Disc/DVD playerTV, projector, etc.AV receiverAV receiverRight!Wrong! HDMI

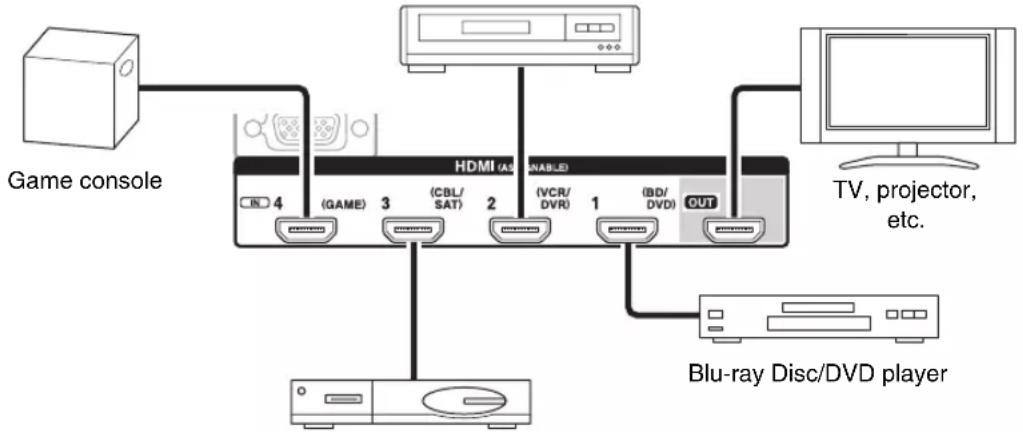

Connect your components to the appropriate jacks. The default input assignments are shown below. ✔: Assignment can be changed (➔ page 42). See also:

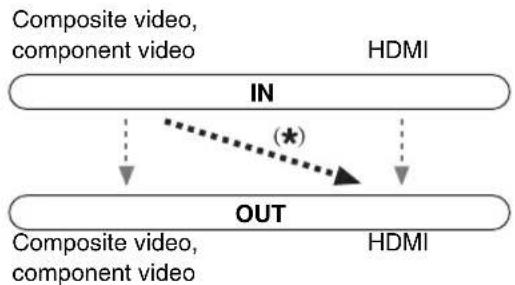

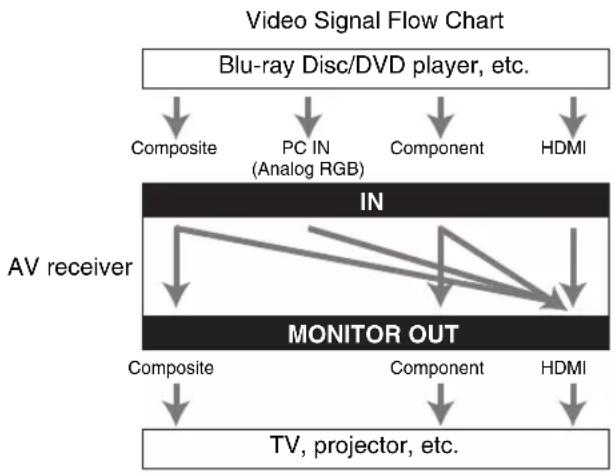

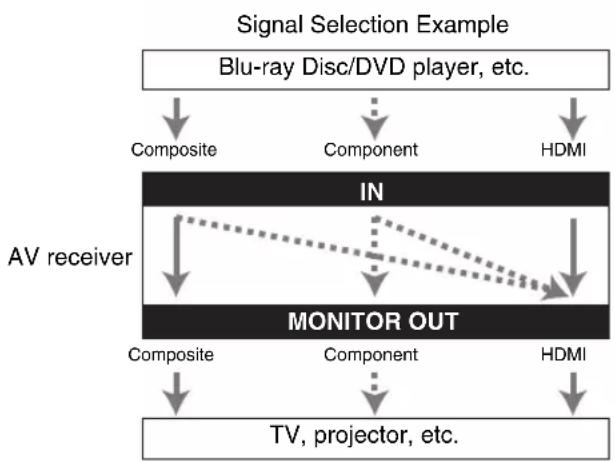

• “Connection Tips and Video Signal Path” (➔ page 79)

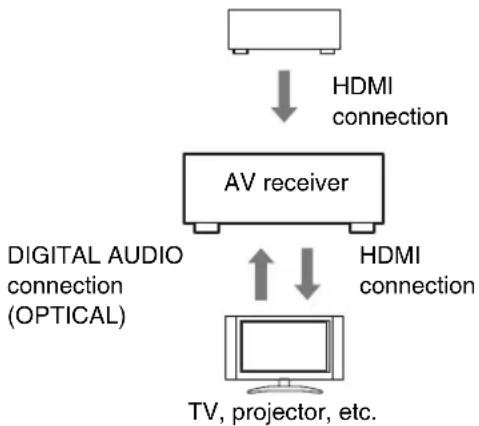

• This function can be used when:– your TV is ARC capable, and–the TV/CD input selector is selected, and –“HDMI Control (RIHD)” is set to “On”(➔ page 54), and –“Audio Return Channel” is set to “Auto” (➔ page 55). Tip

• To listen to audio received by the HDMI IN jacks through your TV’s speakers: – Set the “HDMI Control (RIHD)” setting to “On” (➔ page 54) for an p-compatible TV. – Set the “Audio TV Out” setting to “On” (➔ page 55) when the TV is not compatible with p, or the “HDMI Control (RIHD)” setting to “Off”.– Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM. – To listen to TV audio through the AV receiver, see “Connecting Your Components” (➔ page 17). Note

• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.
• As the “Audio TV Out” setting is set to “On” (➔ page 55) to hear from your TV speakers, the sound will also be output from the AV receiver’s speakers if you adjust the volume of the AV receiver. Similarly, as the “HDMI Control (RIHD)” setting is set to “On” (➔ page 54) to hear from the speakers of an p-compatible TV, the AV receiver’s speakers will produce sound if you adjust the volume of the AV receiver, while the TV speakers will be muted. To stop the AV receiver’s speakers from producing sound, you can either change the settings on the AV receiver or on the TV, or turn down the volume of the AV receiver. Connecting Components with HDMI Jack Components AssignableInput HDMI IN 1 Blu-ray Disc/DVD player ✔HDMI IN 2 VCR or DVD recorder/Digital Video Recorder ✔HDMI IN 3 Satellite/cable set-top box, etc. ✔HDMI IN 4 Game console ✔Output HDMI OUT TV, projector, etc.Game consoleVCR or DVD recorder/Digital Video RecorderTV, projector, etc. Satellite/cable set-top box, etc.Blu-ray Disc/DVD player17

Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection Tips and Video Signal Path” for more information (➔ page 79). ✔: Assignment can be changed (➔ page 43). Note

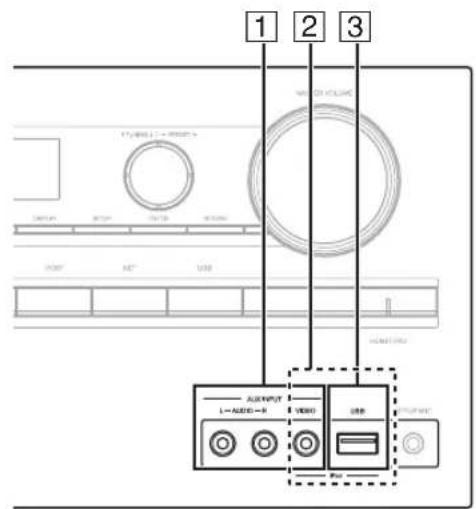

When USB input is selected, you can input video signals from the AUX INPUT VIDEO jack. Video signals input from AUX INPUT VIDEO will be output from the MONITOR OUT V jack.

Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way.

Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially available phono preamp. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as well as a phono preamp. See your turntable’s manual for details. Connecting Your Components The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings. No. Jack/Port Components Assignable AUX INPUT AUDIO L/R Camcorder, etcVIDEO

USB, AUX INPUT VIDEO

iPod/iPhone (video playback)

iPod/iPhone, MP3 player, USB flash drive DIGITAL IN OPTICAL 1 (GAME) Game console ✔2 (TV/CD) TV, CD player ✔COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔ 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔

COMPONENT VIDEO IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock ✔ IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔ OUT TV, projector, etc. ETHERNET Router MONITOR OUT TV, projector, etc.BD/DVD IN Blu-ray Disc/DVD playerVCR/DVR IN VCR or DVD recorder/digital video recorder, RI dock CBL/SAT IN Satellite/cable set-top box, etc.GAME IN Game console, RI dockTV/CD IN TV, CD player, cassette tape deck, MD, CD-R, Turntable , RI dock PC IN Personal computer ✔ UNIVERSAL PORT Universal port option dock (UP-A1 etc.) A CB EDGHF I18

When you connect your personal computer to PC IN and select the corresponding input selector, the video of the personal computer is output from the HDMI outputs. However, if you have assigned the HDMI inputs to the same input selector, the AV receiver will output signals received from the HDMI inputs instead of signals from PC IN. To have the signals output from PC IN, select “-----” for the corresponding input selector in the “HDMI Input” setting (➔ page 42).

• With connection D, you can enjoy Dolby Digital and DTS. (To record or listen the audio in Zone 2 as well, use D and G.)

• With connection G, you can listen to and record audio from external components while you are in Zone 2.

• With connection G, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect to the main stereo. ■ How to record a video source With the connections described above, you cannot record the videos through the AV receiver. See “Recording” about connections for video recording (➔ page 40).19

With u (Remote Interactive), you can use the following special functions: ■ System On/Auto Power On When you start playback on a component connected via u while the AV receiver is on Standby, the AV receiver will automatically turn on and select that component as the input source. ■ Direct Change When playback is started on a component connected via u, the AV receiver automatically selects that component as the input source. ■ Remote Control You can use the AV receiver’s remote controller to control your other u-capable Onkyo components, pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (➔ page 65). Note

• Use only u cables for u connections. u cables are supplied with Onkyo components.
• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting additional u-capable components.
• Connect only Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.
• Some components may not support all u functions. Refer to the manuals supplied with your Onkyo components.• While Zone 2 is on, the System On/Auto Power On and Direct Change u functions do not work. See “Recording” for details on recording (➔ page 40). Note

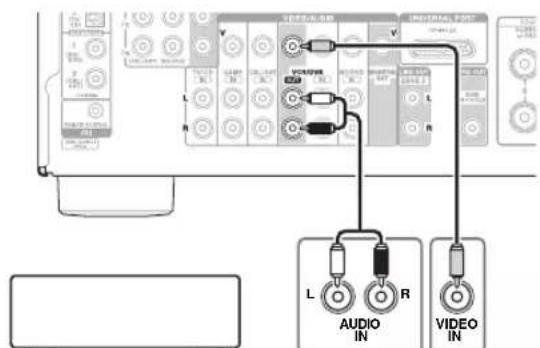

• The AV receiver must be turned on for recording. Recording is not possible while it’s in standby mode.• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.• Video signals connected to composite video inputs can be recorded only via composite video outputs. For example, if your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.• The surround sound and DSP listening modes cannot be recorded.• Copy-protected Blu-ray Discs and DVDs cannot be recorded.• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs. Connecting Onkyo u Components

Make sure that each Onkyo component is connected with an analog audio cable (connection G in the hookup examples) (➔ page 17).

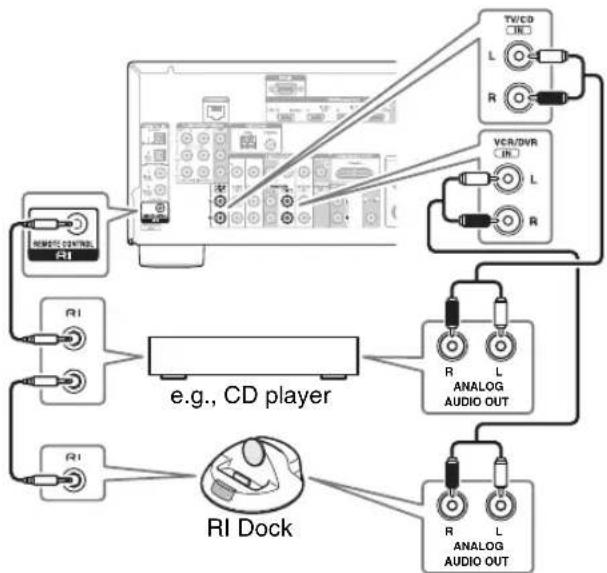

Make the u connection (see the illustration).

VIDEO VCR, DVD recorder, cassette tape deck, CDR, MD recorder, etc.20

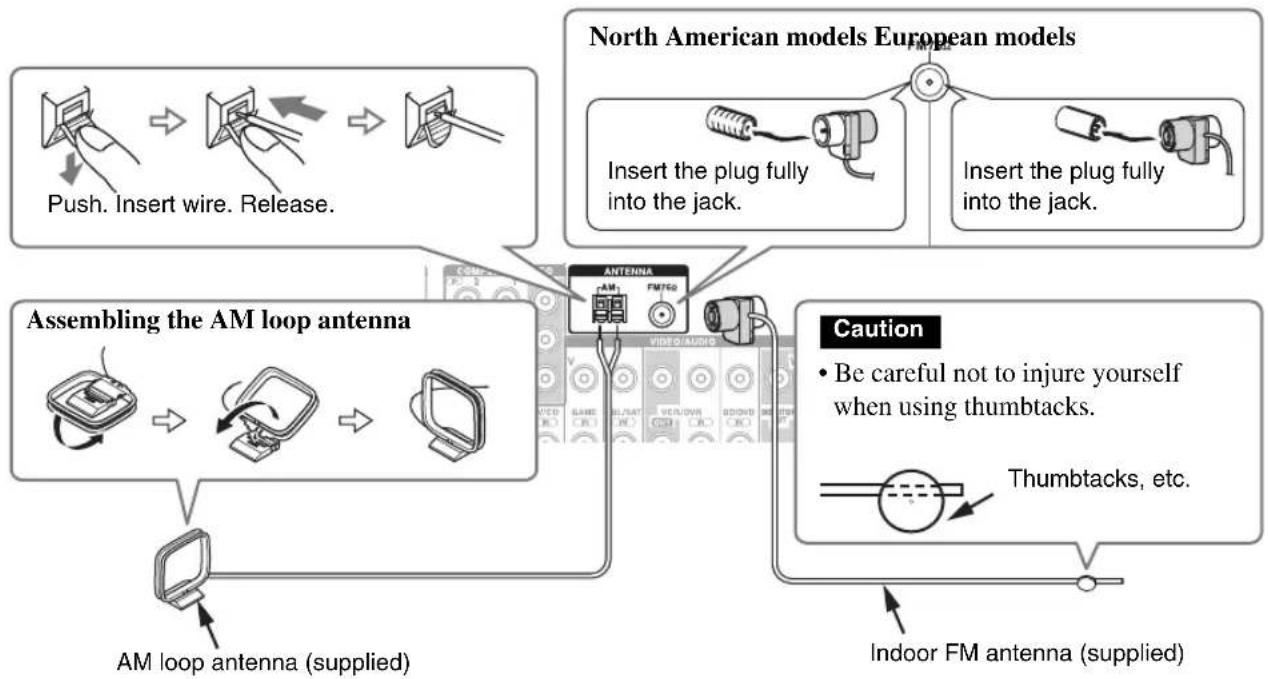

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner. Note

• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.
• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords. Tip

• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna. Note
• Before connecting the power cord, connect all of your speakers and AV components.• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit. Connecting the Antennas Connecting the Power Cord Thumbtacks, etc.Insert the plug fully into the jack.Insert the plug fully into the jack. North American models European models Push. Insert wire. Release. Assembling the AM loop antenna Indoor FM antenna (supplied)AM loop antenna (supplied)Caution
• Be careful not to injure yourself when using thumbtacks.

Plug the power cord into an AC wall outlet.21

Turning On & Basic Operations Turning On/Off the AV Receiver Tip

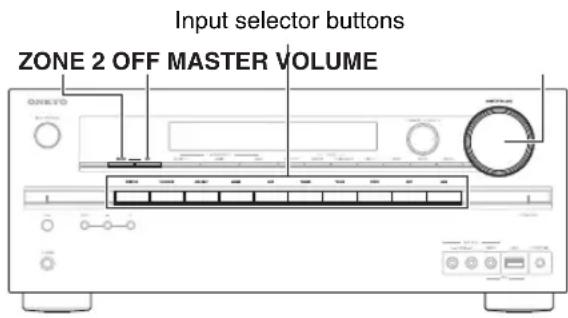

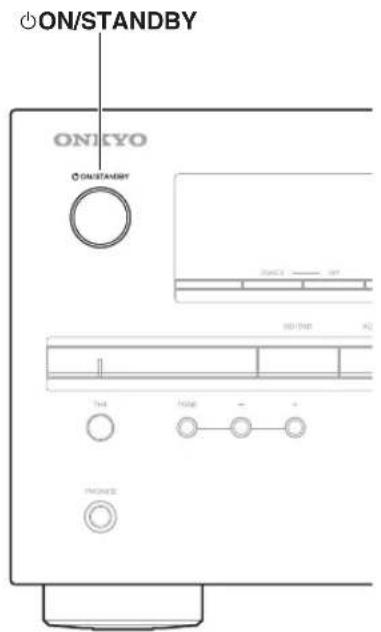

Press 8ON/STANDBY on the front panel.

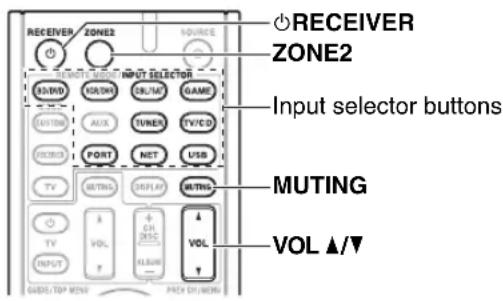

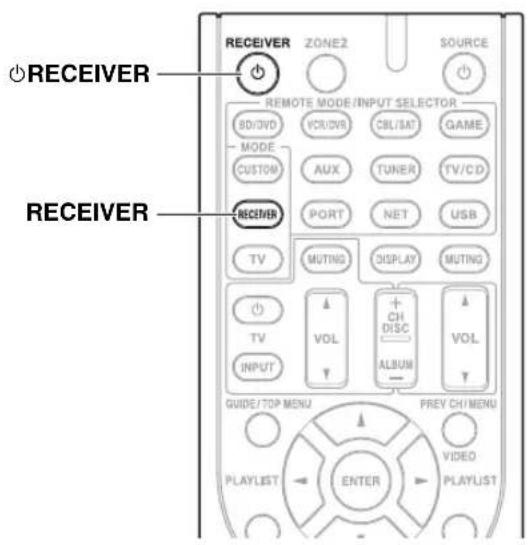

Press RECEIVER followed by 8RECEIVER on the remote controller. The AV receiver comes on, the display lights. Turning Off

Press 8ON/STANDBY on the front panel.

Press RECEIVER followed by 8RECEIVER on the remote controller. The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.8RECEIVERRECEIVER8ON/STANDBY22

Playback You can determine the language used for the onscreen setup menus. See “Language” in the “OSD Setup” (➔ page 54).■ Operating with the remote controller■ Operating on the AV receiverSee “Controlling Other Components” about the operation of other components (➔ page 64). The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.This section describes the procedure for using the remote controller unless otherwise specified. Selecting the Language for the Onscreen Setup Menus Playing the Connected Component

Press RECEIVER followed by INPUT SELECTOR. Start playback on the source component.See also:

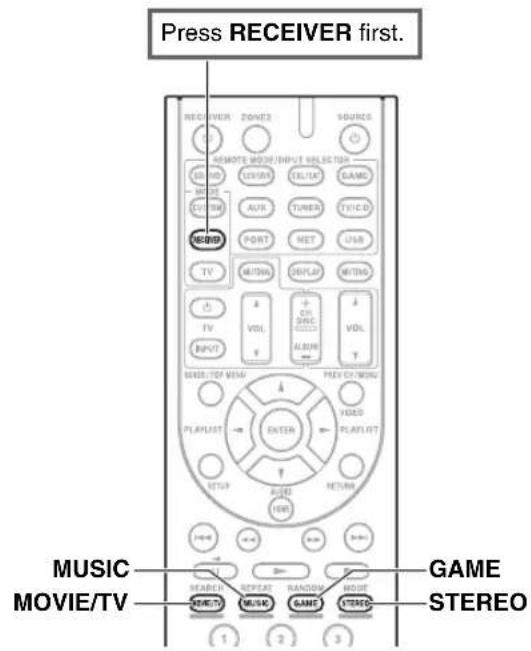

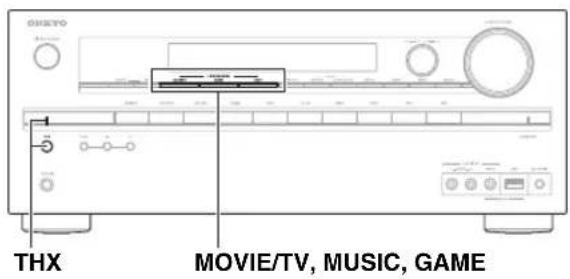

Select a listening mode and enjoy!See also:

Use the input selector buttons to select the input source. Start playback on the source component. To adjust the volume, use the MASTER VOLUME control. Select a listening mode and enjoy! Controlling Contents of USB or Network Devices

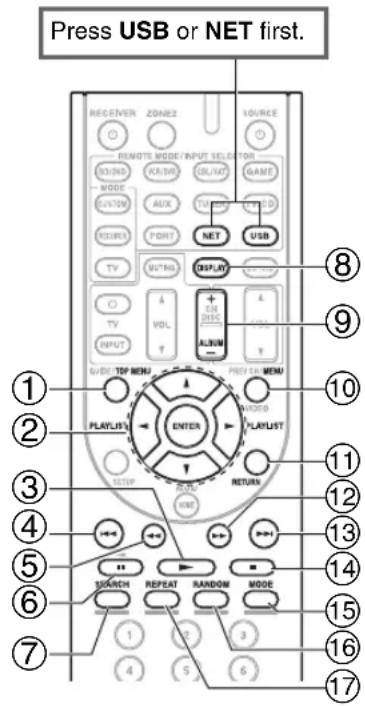

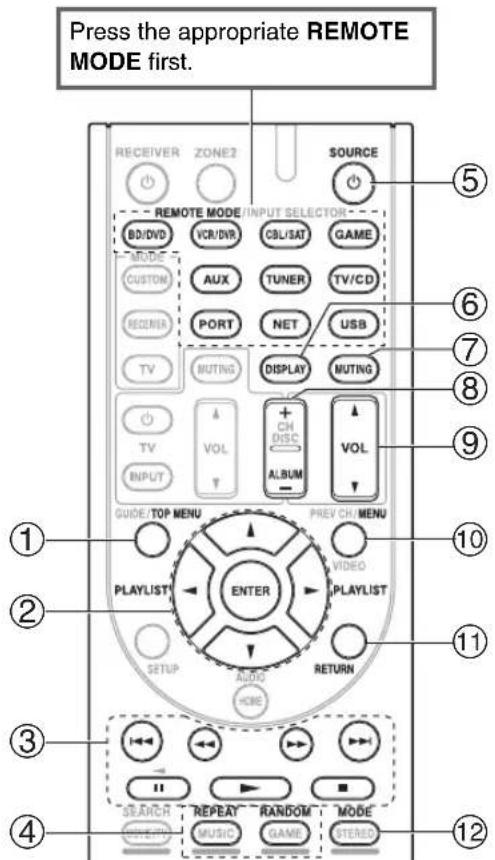

TOP MENUThis button displays the top menu for each media or service. q/w and ENTERThese buttons navigate through the menus.e/rThis button cycles through pages.PLAYLIST e/rIn Standard Mode (iPod/iPhone), this button selects playlists.

This button starts playback.

This button selects the beginning of the current song. Pressing this button twice selects the previous song.

This button fast-reverses the current song.

This button pauses playback. SEARCHYou can toggle between the playback screen and the list screen during playback. DISPLAYThis button switches between song informations. ALBUM +/–In Standard Mode (iPod/iPhone), this button selects albums.

• The buttons you can use will differ depending on the devices and media used for playback. This section describes icons that appear on the display during media playback. This section explains how to play music/video files on the iPod/iPhone. Compatible iPod/iPhone models Made for: iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod with video, iPod nano (1st, 2nd, 3rd, 4th, 5th and 6th generation), iPhone 4, iPhone 3GS, iPhone 3G, iPhone Note
• Do not disconnect the USB device or USB cable that comes with iPod/iPhone to the USB port at the front of the AV receiver, while the message “Connecting...” appears on the display.

• If you connect an iPod or iPhone to the USB port on this device, no sound will be output from the headphones jack.

This button fast-forwards the current song.

This button selects the next song.

This button stops playback.

MODE You can switch between Standard Mode and Extended Mode during iPod/iPhone playback.

RANDOM This button performs random playback.

REPEAT Press this button repeatedly to cycle through the repeat modes. Understanding Icons on the Display Displayed IconsIcon DescriptionFolderTrackPlaybackPauseFast ForwardFast ReverseArtistAlbumRepeat One TrackRepeat Folder (USB Device)RepeatShuffleShuffle Album (iPod/iPhone) Playing an iPod/iPhone via USB

Connect the USB cable that comes with the iPod/iPhone to the USB port on the front of the AV receiver. While reading the contents of your iPod/iPhone, the message “Connecting...” appears on the display. The USB indicator lights. It will flash if the AV receiver cannot read the iPod/iPhone.

Press MODE repeatedly to switch to Extended Mode (Music) or Extended Mode (Video). A list of your iPod/iPhone model’s contents appears. To open a folder, use q/w to select it, and then press ENTER. Tip

• With the default settings, the iPod/iPhone is operated in Standard Mode.• Pressing MODE repeatedly switches back to Standard Mode.• When you disconnect the iPod/iPhone, the AV receiver stores the mode. This means that if you disconnect when in Extended Mode (Music), the AV receiver will start in Extended Mode (Music) the next time you connect the iPod/iPhone.
• You can also use q/w, ENTER and TUNING MODE buttons on the front panel. TUNING MODE allows you to switch modes.• When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.

Use q/w to select a music/video file, and press ENTER or 1 to start playback.24

Extended Mode (Music) control The music content information is displayed (lists are displayed), and you can control the music content while looking at the screen. Top screen list: Playlists, Artists, Albums, Genres, Songs, Composers, Shuffle Songs, Now Playing. Extended Mode (Video) control The video content information is displayed (lists are displayed), and you can control the video content while looking at the screen. Top screen list: Movies, Music Videos, TV Shows, Video Podcasts, Rentals. Note

• To view the video contents of your iPod/iPhone, connect it to the USB port and AUX INPUT VIDEO jack on the AV receiver’s front panel, using the official Apple Composite AV Cable.• Depending on your iPod/iPhone model and generation, the displayed items may vary and the support for Extended Mode (Video) is not guaranteed. Standard Mode control The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller (USB). Note
• The following iPod models are not supported in Standard Mode.(They can only be controlled in Extended Mode).– iPod with video– iPod nano (1st generation) This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players). See also:

• “Network/USB Features” (➔ page 73). Note
• Do not disconnect the USB device or USB cable that comes with iPod/iPhone to the USB port at the front of the AV receiver, while the message “Connecting...” appears on the display. You can select Internet radio stations by connecting to the AV receiver from your computer and selecting stations in your web browser. Internet radio URLs in the following formats are supported: PLS, M3U, and podcast (RSS). However, depending on the type of data or audio format used by the Internet radio station, you may not be able to listen to some stations. Note
• Services available may vary depending on the region. See the separate instructions for more information. Listening to vTuner Internet Radio This unit includes the full vTuner Internet Radio Service at no additional charge. Once you have connected your unit to the Internet you can select vTuner Internet Radio to search for and play Internet radio stations and podcasts at any time. To enhance your Internet radio experience, the http://onkyo.vtuner.com/ portal is available to you as an easy way to browse to find stations, set up/organize your favorites, add your own stations, get help, etc. After the first time you try vTuner Internet Radio on your unit you can use the MAC Address of your unit to create a member login account (email address and password) on the http://onkyo.vtuner.com/ portal. To verify your MAC Address, please see “Network” (➔ page 56). Playing a USB Device

Plug your USB device into the AV receiver’s USB port. The USB indicator lights. It will flash if the AV receiver cannot read the USB device.

Press ENTER. A list of the device’s contents appears. To open a folder, use q/w to select it, and then press ENTER.

Use q/w to select a music file, and press ENTER or 1 to start playback. Listening to Internet Radio You need to connect the AV receiver to your home network (➔ page 73).

Press NET. The “NET” screen appears, and the NET indicator lights. If it flashes, verify that the Ethernet cable is firmly connected to the AV receiver.

Listening to Other Internet Radio To listen to other internet radio stations, insert the following step after step 1 in the “Listening to vTuner Internet Radio” section. Registering My Favorites

You can add the currently playing song or station to the “My Favorites”. You can save up to 40 Internet radio stations. Once you’ve added a station to the list, simply select it in the “My Favorites” menu, and then press ENTER to start playback.

From the search results you can save the stations and songs but cannot listen to them directly. ■ Top menu of Internet Radio ` Create new station: Add a favorite station or Internet radio to the My Favorites. ` Rename this station: You can rename the stations and songs saved in “My Favorites” list. ` Delete from My Favorites: You can delete the stations and songs saved in “My Favorites” list.

Use q/w to select a program and then press ENTER. Playback starts. Press MENU to enable selection from the following menu items. ` Stations like this: Stations like the one currently being played back are displayed. ` Add to My Favorites: Adds a station to My Favorites list. Press TOP MENU to go to the top menu of the Internet Radio services. Tip

• By pressing SEARCH, you can toggle between the playback screen and the radio list screen.

On your computer, start your web browser and enter the AV receiver’s IP address in the browser’s Internet address (URL) field. The browser connects to the AV receiver (WEB Setup Menu). Note

• The AV receiver’s IP address is shown on “IP Address” (➔ page 56).

• If you’re using DHCP, your router may not always allocate the same IP address to the AV receiver, so if you find that you can’t connect to the AV receiver, recheck the AV receiver’s IP address on the “Network” screen.

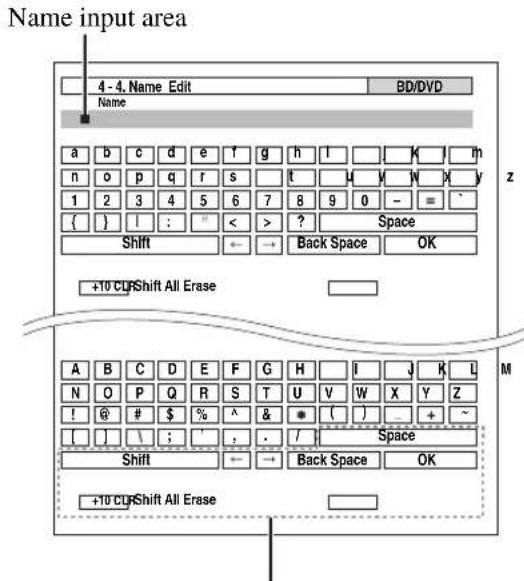

Enter the preset name and Internet address (URL).

Click “Save” to save the Internet radio station.

The Internet radio station is then added to “My Favorites”. Greate ArtistMy MusicMy Favorite0 : 11

Press MENU with the station selected or while a song is playing.

Use q/w to select “Add to My Favorites”, and press ENTER.

• If you choose to rename the station, see “Name Edit”

This section explains how to play music files on a computer or media server through the AV receiver (Server Playback). Windows Media Player 11 Setup This section explains how to configure Windows Media Player 11 so that the AV receiver can play the music files stored on your computer. Remote Playback means you can play the music files stored on a media server or personal computer with the AV receiver by operating the controller device in the home network. Windows Media Player 12 Setup This section explains how to configure Windows Media Player 12 so that the AV receiver can play the music files stored on your personal computer. Playing Music Files on a Server You need to connect the AV receiver to your home network (➔ page 73).

Start your computer or media server.

Press NET. The “NET” screen appears. The NET indicator lights. If it flashes, confirm the network connection.

• To go back to the previous screen, press RETURN.

Use q/w to select a server, and then press ENTER. The menu is displayed according to the server functions. Note

• The search function does not work with media servers which do not support this function.• Photos and movies stored on a media server cannot be accessed from the AV receiver.• Depending on the sharing settings in the media server, the AV receiver may not able to access the content. See the instruction manual of the media server.

Use q/w to select an item, and then press ENTER or 1 to start playback. Note

• Depending on the media server, 5/4/3 may not work.
• If the message “No Item.” appears, this means that no information can be retrieved from the server. In this case, check your server, network, and AV receiver connections.Artist nameMy favorite song 1My favorite album0 : 11

On the “Library” menu, select “Media Sharing”. The “Media Sharing” dialog box appears.

Select the “Share my media” check box, and then click “OK”.

Select the AV receiver in the list, and then click “Allow”.

Click “OK” to close the dialog box. This completes the Windows Media Player 11 configuration. You can now play the music files in your Windows Media Player 11 library through the AV receiver. Tip

• Windows Media Player 11 can be downloaded for free from the Microsoft web site. Remote Playback You need to connect the AV receiver to your home network (➔ page 73).

On the “Stream” menu, select “Turn on media streaming”. A dialog box appears.

Move your cursor and click on “Turn on media streaming”. A list of media server appears. Wording may vary slightly depending on the network location.

Select the product in the list, and then click “Allowed”.

Click “OK” to close the dialog box. This completes the Windows Media Player 12 configuration. You can now play the music files in your Windows Media Player 12 library.27

Using Remote Playback Using the Tuner With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection. You can also change the frequency steps (➔ page 54). Tuning into Radio Stations ■ Auto tuning mode ■ Manual tuning mode In manual tuning mode, FM stations will be in mono.

Press NET. The “NET” screen appears. The NET indicator lights. If it flashes, verify the network connection.

Use q/w/e/r to select “dlna”, and press ENTER. A list of media server appears. Note

• Remote playback cannot be used while the music files of another media server are being played. You must stop their playback first.

On Windows Media Player 12, right-click on a music file. The right-click menu appears. For selecting another media server, select the desired media server from the “Other Libraries” menu on Windows Media Player

Select the AV receiver from the right-click menu. The “Play to” window appears and playback on the product starts. Operations during remote playback can be made from the “Play to” window of Windows 7 on your personal computer. During remote playback, operations (such as Playback, Pause, Fast Forward, Fast Rewind, Previous, Next, Repeat, Random) cannot be made.

Adjusting the Volume. You can adjust the volume by adjusting the volume bar in the “Remote playback” window. The default maximum volume level is 82 (0dB). If you wish to change this, enter the value from the Web Setup in your browser. The volume value of the remote window and the volume value of the AV receiver may not always match. Adjustments you make to the volume in the AV receiver will not be reflected in the “Remote playback” window. Listening to AM/FM Radio This section describes the procedure using the buttons on the front panel unless otherwise specified.

Press TUNER to select either “AM” or “FM”. In this example, FM has been selected. Each time you press TUNER, the radio band changes between AM and FM. (Actual display depends on the country.)

Press TUNING MODE so that the AUTO indicator lights on the display.

Press TUNING q/w. Searching stops when a station is found. When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights on the display, as shown. Tip

• Tuning into weak FM stereo stationsIf the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to manual tuning mode and listen to the station in mono.

Press TUNING MODE so that the AUTO indicator goes off on the display.

Press and hold TUNING q/w. The frequency stops changing when you release the button. Press the buttons repeatedly to change the frequency one step at a time. Band FrequencyTUNED

■ Tuning into stations by frequency You can tune into AM and FM stations directly by entering the appropriate frequency. Presetting AM/FM Stations You can store a combination of up to 40 of your favorite AM/FM radio stations as presets. Note

• You can name your radio presets for easy identification (➔ page 50). Its name is displayed instead of the band and frequency. ■ Selecting Presets ■ Deleting Presets Using RDS (excluding North American models) When tuned into an RDS station, the RDS indicator lights. When the station is broadcasting text information, the text can be displayed. ■ What is RDS? RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.). The AV receiver supports four types of RDS information: PS (Program Service) When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing DISPLAY will display the frequency for 3 seconds. RT (Radio Text) When tuned to an RDS station that’s broadcasting text information, the text will be shown on the display as described in the next section. PTY (Program Type) This allows you to search for RDS radio stations by type (➔ page 29). TP (Traffic Program) This allows you to search for RDS radio stations that broadcast traffic information (➔ page 29). Note

• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.

On the remote controller, press TUNER repeatedly to select “AM” or “FM”, followed by D.TUN. (Actual display depends on the country.)

Within 8 seconds, use the number buttons to enter the frequency of the radio station. For example, to tune to 87.5 (FM), press 8, 7, 5. If you have entered the wrong number, you can retry after 8 seconds.

Tune into the AM/FM station that you want to store as a preset. See the previous section.

While the preset number is flashing (about 8 seconds), use PRESET e/r to select a preset from 1 through 40.

Press MEMORY again to store the station or channel. The station or channel is stored and the preset number stops flashing. Repeat this procedure for all of your favorite AM/FM radio stations.

To select a preset, use PRESET e/r on the AV receiver, or the remote controller’s CH +/–. Tip

• You can also use the remote controller’s number buttons to select a preset directly.

Select the preset that you want to delete. See the previous section.

While holding down MEMORY, press TUNING MODE. The preset is deleted and its number disappears from the display. RDS works only in areas where RDS broadcasts are available.29

■ Displaying Radio Text (RT) ■ Finding Stations by Type (PTY) You can search for radio stations by type. ■ Listening to Traffic News (TP) You can search for stations that broadcast traffic news. RDS program types (PTY)

• The message “Waiting” may appear while the AV receiver waits for the RT information.

Press RT/PTY/TP twice. The current program type appears on the display.

Use PRESET e/r to select the type of program you want. See the table shown later in this chapter.

To start the search, press ENTER. The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.

When a station you want to listen to is found, press ENTER. If no stations are found, the message “Not Found” appears.

Press RT/PTY/TP three times. If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the display, and traffic news will be heard as and when it’s broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

To locate a station that is broadcasting TP, press ENTER. The AV receiver searches until it finds a station that’s broadcasting TP. If no stations are found, the message “Not Found” appears. Type Display None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music Pop M Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children’s programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!30

Using Basic Functions With the supplied calibrated microphone, Audyssey 2EQ automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequencies to the subwoofer (if present), and distances from the primary listening position.Audyssey 2EQ then removes the distortion caused by room acoustics by capturing room acoustical problems over the listening area in both the frequency and time domain. The result is clear, well-balanced sound for everyone. Audyssey 2EQ can be used with Audyssey Dynamic EQ and Audyssey Dynamic Volume

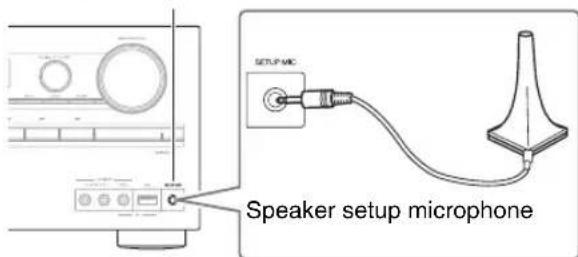

(➔ pages 48, 49). Before using this function, connect and position all of your speakers.Audyssey 2EQ offers two ways of measuring: the “Audyssey Quick Start” and “Audyssey 2EQ Full Calibration”.•“Audyssey Quick Start” uses the measurement from one position to perform the speaker setting only.•“Audyssey 2EQ Full Calibration” uses the measurement from three positions to correct room response in addition to the speaker setting.The more positions are used in measuring, the better the listening environment will become. We recommend using a measurement from three positions to create the best listening environment.The Quick Start takes 2 minutes and Full Calibration takes about 10 minutes.Total measurement time varies depending on the number of speakers.Measurement procedureTo create a listening environment in your home theater that all listeners will enjoy, Audyssey 2EQ takes measurements at up to three positions within the listening area. Position the microphone at ear height of a seated listener with the microphone tip pointed directly at the ceiling using a tripod. Do not hold the microphone in your hand during measurements as this will produce inaccurate results. a First measurement positionAlso referred to as the Main Listening Position this refers to the most central position where one would normally sit within the listening environment. Audyssey 2EQ uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.b Second measurement positionThe right side of the listening area.c Third measurement positionThe left side of the listening area. The distances from position a to b and a to c must be at least 1 meter (3.3 ft). Note

• Make the room as quiet as possible. Background noise and Radio Frequency Interference (RFI) can disrupt the room measurements. Close windows, televisions, radios, air conditioners, fluorescent lights, home appliances, light dimmers, or other devices. Turn off the cell phone (even if it is not in use) or place it away from all audio electronics.• The microphone picks up test tones played through each speaker as Audyssey 2EQ Room Correction and Speaker Setup run.• Audyssey 2EQ Room Correction and Speaker Setup cannot be performed while a pair of headphones is connected. Using the Automatic Speaker Setup

Turn on the AV receiver and the connected TV.On the TV, select the input to which the AV receiver is connected. On the subwoofer, set the OUTPUT LEVEL control to THX POSITION. Set the speaker setup microphone at the Main Listening Position a, and connect it to the SETUP MIC jack.The speaker setting menu appears. Note

• The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

• You can cancel Audyssey 2EQ Room Correction and Speaker Setup at any point in this procedure simply by disconnecting the setup microphone.

• Do not connect or disconnect any speakers during Audyssey 2EQ Room Correction and Speaker Setup.

• If the AV receiver is muted, it will be unmuted automatically when Audyssey 2EQ Room Correction and Speaker Setup starts.

• Changes to the room after Audyssey 2EQ Room Correction and Speaker Setup requires you run Audyssey 2EQ Room Correction and Speaker Setup again, as room EQ characteristics may have changed.

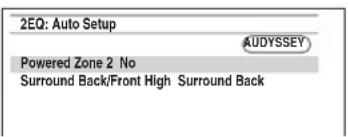

When you’ve finished making the settings, press ENTER. Perform the “Speaker Setup” according to your speaker configuration: – Powered Zone 2 (➔ page 43) – Surround Back/Front High (➔ page 44) When an optional unit is connected to the UNIVERSAL PORT jack on the AV receiver, the optional unit setting may appear on the speaker setting menu.

Use q/w to select “Audyssey Quick Start” or “Audyssey 2EQ Full Calibration”.

Room Correction and Speaker Setup starts. Test tones are played through each speaker as Audyssey 2EQ Room Correction and Speaker Setup runs. This process takes a few minutes. Please refrain from talking during measurements and do not stand between speakers and the microphone. Do not disconnect the speaker setup microphone during Audyssey 2EQ Room Correction and Speaker Setup, unless you want to cancel the setup. If you select “Audyssey Quick Start”, you will go to step 9.

Place the setup microphone at the next position, and then press ENTER. Audyssey 2EQ performs more measurements. This takes a few minutes.

Use q/w to select an option, and then press ENTER. The options are: ` Save: Save the calculated settings and exit Audyssey 2EQ Room Correction and Speaker Setup

` Cancel: Cancel Audyssey 2EQ Room Correction and Speaker Setup

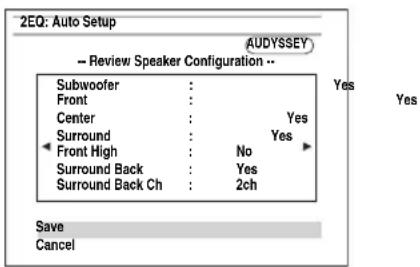

• You can view the calculated settings for the speaker configuration, speaker distances, and speaker levels by using e/r. 2EQ: Auto Setup AUDYSSEY Powered Zone 2 NoSurround Back/Front High Surround Back Subwoofer : YesFront : YesCenter : YesSurround : YesFront High : NoSurround Back : YesSurround Back Ch : 2ch Save Cancel AUDYSSEY-- Review Speaker Configuration --2EQ: Auto Setup

Use q/w to select a target, and use e/r to change the setting. After the results of Audyssey 2EQ have been saved, the menu will display the “Audyssey” (➔ page 48), “Dynamic EQ” (➔ page 48), “Dynamic Volume” (➔ page 49) settings. Note

• When “Audyssey Quick Start” has been used for measurement, “Audyssey” cannot be selected.

• These settings are applied to all input selectors.

Disconnect the speaker setup microphone.32

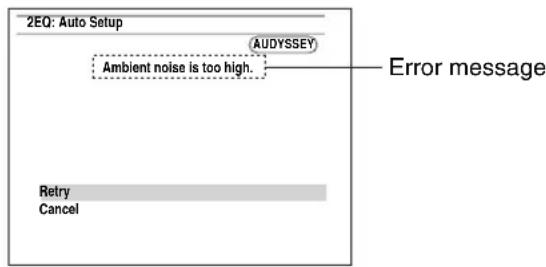

Room Correction and Speaker Setup is in progress, one of the error messages below may appear. The options are: ` Retry: Try again. ` Cancel: Cancel Audyssey 2EQ Room Correction and Speaker Setup.

• Ambient noise is too high. The background noise is too loud. Remove the source of the noise and try again.

• Speaker Matching Error! The number of speakers detected was different from that of the first measurement. Check the speaker connection.

• Writing Error! This message appears if saving fails. Try saving again. If this message appears after 2 or 3 attempts, contact your Onkyo dealer.

• Speaker Detect Error This message appears if a speaker is not detected. “No” means that no speaker was detected. Tip

• See “Speaker Configuration” for appropriate settings (➔ page 13). Changing the Speaker Setup Manually You can manually make changes to the settings found during Audyssey 2EQ Room Correction and Speaker Setup. See also:

• Sometimes due to the electrical complexities of subwoofers and the interaction with the room, THX recommends setting the level and the distance of the subwoofer manually.

• Sometimes due to interaction with the room, you may notice irregular results when setting the level and/or distance of the main speakers. If this happens, THX recommends setting them manually. Using a Powered Subwoofer If you’re using a powered subwoofer and it outputs very low-frequency sound at a low volume level, it may not be detected by Audyssey 2EQ Room Correction and Speaker Setup. If the “Subwoofer” appears on the “Review Speaker Configuration” screen as “No”, increase the subwoofer’s volume to the half-way point, set it to its highest crossover frequency, and then try running Audyssey 2EQ Room Correction and Speaker Setup again. Note that if the volume is set too high and the sound distorts, detection issues may occur, so use an appropriate volume level. RetryCancelAmbient noise is too high.2EQ: Auto SetupAUDYSSEY Error message33

Selecting Listening Modes See “About Listening Modes” for detailed information about the listening modes (➔ page 34). ■ Listening Mode Buttons MOVIE/TV button This button selects the listening modes intended for use with movies and TV. MUSIC button This button selects the listening modes intended for use with music. GAME button This button selects the listening modes intended for use with video games. STEREO button This button selects the Stereo listening mode and All Channel Stereo listening mode. THX button and indicator This button selects the THX listening modes. The indicator lights when this mode is selected. Using the Listening Modes GAME STEREO MOVIE/TV MUSIC Press RECEIVER first.

• The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).
• The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” (➔ page 40).

• While a pair of headphones is connected, you can select the following listening modes: Mono, Direct, and Stereo.

• The listening modes cannot be used while you are listening to sound through your TV speakers coming from components connected to the AV receiver.34

About Listening Modes The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound. ■ Explanatory Notes Input Source The following audio formats are supported by the listening mode. Speaker Layout The illustration shows which speakers are activated in each channel. See “Speaker Configuration” for the speaker setup (➔ page 44).

a Front speakersb Center speakerc Surround speakersd Surround back speakerse Front high speakersf Subwoofer This is mono (monophonic) sound. This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two speakers. This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).

This is 7.1-channel surround sound. This is a further sound enhancement to 5.1 channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds.

This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material. This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1-channel sources. ZXC N BV35

■ Onkyo-Original DSP Listening Modes ■ Listening Modes Listening Mode Description Input Source Speaker Layout Orchestra Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.

Unplugged Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage. Studio-Mix Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert. TV Logic This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices. Game-RPG In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra mode. Game-Action In this mode, sound localization is distinct with emphasis on bass. Game-Rock In this mode, sound pressure is emphasized to heighten live feel. Game-Sports In this mode, reverberation is increased and sound localization decreased slightly. All Ch Stereo Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers. XCN Full Mono In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room. T-D (Theater- Dimensional) With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb. ZXC

Listening Mode Description Input Source Speaker Layout Direct In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers) and speaker distance settings are enabled, but much of the processing set via Home menu is disabled. A/V Sync does not have effect on the analog audio. See “Advanced Setup” for more details (➔ page 41).

Stereo Sound is output from the front left and right speakers and subwoofer. ZXC

Mono Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs. Multichannel This mode is for use with PCM multichannel sources.

Dolby Pro Logic II Dolby Pro Logic IIx expands any 2-channel source for 7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx.

• Dolby PLIIx Movie Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS).

• Dolby PLIIx Music Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD).

• Dolby PLIIx Game Use this mode with video games, especially those that bear the Dolby Pro Logic II logo. S XCN

• Dolby PLIIx Music These modes use the Dolby Pro Logic IIx modes to expand 5.1-channel sources for 7.1-channel playback.

Dolby Pro Logic IIz Height Dolby Pro Logic IIz Height is designed to more effectively use existing program material when height channel speaker outputs are present. Dolby Pro Logic IIz Height can be used to upmix a variety of sources from movies and music, but are particularly well-suited to upmix game content.

Dolby EX These modes expand 5.1-channel sources for 6.1/7.1-channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix- encoded surround back channel. The additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

Dolby Digital In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via Home menu are enabled. See “Advanced Setup” for more details (➔ page 41). D XCN Dolby Digital Plus

DTS 96/24 This mode is for use with DTS 96/24 sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo. D XCN DTS-ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a discrete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360- degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Discrete soundtrack.

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix- encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

DTS Neo:6 This mode expands any 2-channel source for up to 7.1-channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.

• DTS Neo:6 This mode uses DTS Neo:6 to expand 5.1-channel sources for 6.1/7.1- channel playback.

THX Founded by George Lucas, THX develops stringent standards that ensure movies are reproduced in movie theaters and home theaters just as the director intended. THX Modes carefully optimize the tonal and spatial characteristics of the soundtrack for reproduction in the home-theater environment. They can be used with 2-channel matrixed and multichannel sources. Surround back speaker output depends on the source material and the selected listening mode.

• THX Cinema THX Cinema mode corrects theatrical soundtracks for playback in a home theater environment. In this mode, THX Loudness Plus is configured for cinema levels and Re-EQ, Timbre Matching, and Adaptive Decorrelation are active.

• THX Music THX Music mode is tailored for listening to music, which is typically mastered at significantly higher levels than movies. In this mode, THX Loudness Plus is configured for music playback and only Timbre Matching is active.

• THX Games THX Games mode is meant for spatially accurate playback of game audio, which is often mixed similarly to movies but in a smaller environment. THX Loudness Plus is configured for game audio levels, with Timbre Matching active.

and THX Cinema/Music/Games modes can be used. The PLII or PLIIx indicator lights on the display. SCN

• Dolby Pro Logic IIx Movie + THX Cinema

• Dolby Pro Logic IIx Music + THX Music The combination of Dolby Pro Logic IIx and THX Cinema/Music modes can be used. The PLIIx indicator lights on the display.

• Dolby Pro Logic IIz Height + THX Games The combination of Dolby Pro Logic IIz Height and THX Cinema/Music/Games modes can be used. The PLIIz indicator lights on the display.

When the input source contains the encoded front high channel, the corresponding speakers output the sound.

If there are no surround back speakers, Dolby Pro Logic II is used.

For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound according to the player. In that case, set the output setting on the player side to PCM.

If there are no surround back speakers, DTS is used.

• The listening modes cannot be selected with some source formats.

• THX I/S Cinema This mode expands 5.1-channel sources for 7.1- channel playback. It does this by analyzing the composition of the surround source, optimizing the ambient and directional sounds to produce the surround back channel output.

• THX I/S Music This mode is designed for use with music. It expands 5.1-channel sources for 7.1-channel playback.

• THX I/S Games This mode is designed for use with video games. It can expand 5.1-channel sources for 6.1/7.1-channel playback.

• THX Surround EX This mode expands 5.1-channel sources for 6.1/7.1- channel playback. It’s especially suited to Dolby Digital EX sources. THX Surround EX, also known as Dolby Digital Surround EX, is a joint development between Dolby Laboratories and THX Ltd.

The Home menu provides you quick access to frequently used menus without having to go through the long standard menu. This menu enables you to change settings and view the current information. Note

For the PORT input selector, the name of Universal Port Option Dock will be displayed.

Only when you have selected “Custom” in the “Picture Mode” (➔ page 51), pressing ENTER allows you to adjust the following items via the Home menu : “Brightness”, “Contrast”, “Hue” and “Saturation”. Press RETURN to return to the “Picture Mode” setting. Depending on the input source and listening mode, not all channels shown here output the sound. With the sleep timer, you can set the AV receiver to turn off automatically after a specified period. You can adjust the brightness of the AV receiver’s display. Using the Home Menu The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.

Press RECEIVER followed by HOME. The Home menu will be superimposed on the TV screen.

Use q/w and ENTER to make the desired selection. ■ Input

` You can select the input source while viewing the information as follows: the name of input selectors, input assignments, radio information, and ARC function setting. Press ENTER to display the current input source, followed by q/w to select the desired input source. Pressing ENTER again switches to the selected input source. ■ Audio ` You can change the following settings: “Bass”, “Treble”, “Subwoofer Level”, “Center Level”, “Audyssey”, “Dynamic EQ”, “Dynamic Volume”, “Late Night”, “Music Optimizer”, “Re-EQ” and “Re-EQ(THX)”. See also:

• “Audyssey” (➔ page 48)

• “Using the Audio Settings” (➔ page 57) ■ Video ` You can change the following settings: “Wide Mode” and “Picture Mode

` You can view the information of the following items: “Audio”, “Video” and “Tuner”. ■ Listening Mode ` You can select the listening modes that are grouped in the following categories: MOVIE/TV, MUSIC, GAME and THX. Use q/w to select the category and e/r to select the listening mode. Press ENTER to switch to the selected listening mode. Using the Sleep Timer

Press RECEIVER followed by SLEEP repeatedly to select the required sleep time. The sleep time can be set from 90 to 10 minutes in 10 minute steps. The SLEEP indicator lights on the display when the sleep timer has been set. The specified sleep time appears on the display for about 5 seconds, then the previous display reappears. Tip

• If you need to cancel the sleep timer, press SLEEP repeatedly until the SLEEP indicator goes off.• To check the time remaining until the AV receiver sleeps, press SLEEP. Note that if you press again on SLEEP as the time being displayed is equal or inferior to 10 minutes, the sleep timer will go off. Setting the Display Brightness

Press RECEIVER followed by DIMMER repeatedly to select:

• (North American models) Alternatively, you can use the AV receiver’s DIMMER.40

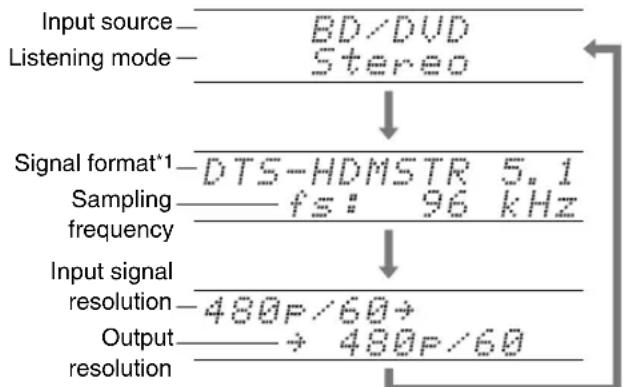

You can display various information about the current input source as follows. (Components connected to the UNIVERSAL PORT jack are excluded.) The following information can typically be displayed.

If the input signal is analog, “Analog” is displayed. If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears. When you connect an

-capable Onkyo component, you must configure the input display so that

can work properly. This setting can be done only from the front panel. You can temporarily mute the output of the AV receiver. This section explains how to record the selected input source to a component with recording capability, and how to record audio and video from different sources. AV Recording Audio sources can be recorded to a recorder (e.g., cassette tape deck, CDR, MD recorder). Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder). Displaying Source Information

Press RECEIVER followed by DISPLAY repeatedly to cycle through the available information. Tip

• Alternatively, you can use the AV receiver’s DISPLAY. Changing the Input Display

Press TV/CD, GAME or VCR/DVR. “TV/CD”, “GAME” or “VCR/DVR” appears on the display.

• DOCK can be selected for the TV/CD, GAME or VCR/DVR input selector, but not at the same time.• Enter the appropriate remote control code before using the remote controller for the first time (➔ page 64). Input sourceInput signalresolutionOutputresolutionSignal format Listening modeSamplingfrequency

Muting the AV Receiver

Press RECEIVER followed by MUTING. The output is muted and the MUTING indicator flashes on the display. Tip

• To unmute, press MUTING again or adjust the volume.• Muting is automatically cancelled when the AV receiver is set to standby. Using Headphones

Connect a pair of stereo headphones with a standard plug (1/4 inch or 6.3 mm) to the PHONES jack. Note

• Always turn down the volume before connecting your headphones.
• While the headphones plug is inserted in the PHONES jack, the speakers are turned off. (The Powered Zone 2 speakers are not turned off.)• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.
• If you connect an iPod or iPhone to the USB port on this device, no sound will be output from the headphones jack. Recording

Use the input selector buttons to select the source that you want to record. You can watch the source while recording. The AV receiver’s MASTER VOLUME control has no effect on recording.

On your recorder, start recording.

On the source component, start playback. If you select another input source during recording, that input source will be recorded.41

Advanced Operations Advanced Setup The on-screen setup menus appear on the connected TV and provide a convenient way to change the AV receiver’s various settings. Settings are organized into 9 categories on the main menu.Carry out the settings by using the on-screen display. Note

• This procedure can also be performed on the AV receiver by using SETUP, the arrow buttons, and ENTER.
• During Audyssey 2EQ Room Correction and Speaker Setup, messages and alike that are displayed on the TV screen will appear on the display. Explanatory Notes The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.This section describes the procedure for using the remote controller unless otherwise specified. On-screen Setup Menus a Input/Output Assign (➔ page 42)f Miscellaneous (➔ page 53)b Speaker Setup (➔ page 43)g Hardware Setup (➔ page 54)c Audio Adjust (➔ page 47)h Remote Controller Setup (➔ page 64) d Source Setup (➔ page 48)i Lock Setup (➔ page 57)e Listening Mode Preset (➔ page 53) MENU 1. Input/Output Assign 2. Speaker Setup 3. Audio Adjust 4. Source Setup 5. Listening Mode Preset 6. Miscellaneous 7. Hardware Setup 8. Remote Controller Setup 9. Lock Setup

Common Procedures in Setup Menu

Press RECEIVER followed by SETUP. Tip

• If the main menu doesn’t appear, make sure the appropriate external input is selected on your TV.

Main Menu Input/Output Assign Monitor Out You can specify the output resolution for the HDMI OUT and have the AV receiver upconvert the picture resolution as necessary to match the resolution supported by your TV. ■ Resolution ` Through: Select this to pass video through the AV receiver at the same resolution and with no conversion. ` Auto

Select this to have the AV receiver automatically convert video at resolutions supported by your TV. ` 480p (480p/576p), 720p, 1080i, 1080p: Select the desired output resolution. ` 1080p/24: Select this for 1080p output at 24 frames per second. ` 4K Upscaling: Select this for an output resolution four times that of 1080p, resulting in 3840 × 2160 pixels. Note

• Depending on the incoming video signal, the video playback may not be smooth or the vertical resolution may be lowered. In this case select anything other than “1080p/24”. HDMI Input If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector. If you’ve connected your TV to the AV receiver with an HDMI cable, composite video and component video sources can be upconverted

to HDMI. See “Video Connection Formats” for more information on video signal flow and upconversion (➔ page 79). Here are the default assignments. ■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,

` HDMI1, HDMI2, HDMI3, HDMI4: Select a corresponding HDMI input to which the video component has been connected.

Select this to output composite video and component video sources from the HDMI OUT. The video signal from the HDMI output is configured in “Component Video Input” (➔ page 43). Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMI4 have already been assigned, you must first set any unused input selectors to “-----” or you will be unable to assign HDMI1 - HDMI4 to other input selectors. Note

• When an HDMI IN is assigned to an input selector as explained here, the same HDMI IN will be set as a priority in the “Digital Audio Input” (➔ page 43). In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” setting (➔ page 52).

• The “TUNER” selector cannot be assigned and is fixed to the “-----” option.
• Do not assign an HDMI IN to the TV/CD selector while “HDMI Control(RIHD)” is set to “On” (➔ page 54), otherwise appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.
• If you assign “-----” to an input selector that is currently selected in “HDMI Through” (➔ page 55), the “HDMI Through” setting will be automatically switched to “Off”.
• If you connect a component (such as UP-A1 Dock with docked iPod/iPhone) to the UNIVERSAL PORT jack, you cannot assign any input to the “PORT” selector. Input/Output Assign

Component Video Input If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector. Here are the default assignments. ■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,

` IN1, IN2: Select a corresponding component video input to which the video component has been connected.

Select if you are using the HDMI output, not the component video output, to output composite video and component video sources. ` PC IN: Select if the personal computer is connected to PC IN. Note

• If you connect a component (such as UP-A1 Dock with docked iPod/iPhone) to the UNIVERSAL PORT jack, you cannot assign any input to the “PORT” selector.

• The “TUNER” selector cannot be assigned and is fixed to the “-----” option. Digital Audio Input If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPTICAL1” to the “TV/CD” input selector. Here are the default assignments. ■ BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,

` COAXIAL1, COAXIAL2, OPTICAL1, OPTICAL2: Select a corresponding digital audio input to which the component has been connected.

Select if the component is connected to an analog audio input. Note

• When an HDMI IN is assigned to an input selector in “HDMI Input” (➔ page 42), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the selection in the “Audio Selector” (➔ page 52).

• Available sampling rates for PCM signals (stereo/mono) from a digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.

• If you connect a component (such as UP-A1 Dock with docked iPod/iPhone) to the UNIVERSAL PORT jack, you cannot assign any input to the “PORT” selector.

• The “TUNER” selector cannot be assigned and is fixed to the “-----” option. Main menu Speaker Setup Here you can check the settings made by Audyssey 2EQ Room Correction and Speaker Setup function, or set them manually, which is useful if you change one of the connected speakers after using Audyssey 2EQ Room Correction and Speaker Setup function. Note

• These settings are not available in either of the following cases: – a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 55). –“HDMI Control(RIHD)” is set to “On” (➔ page 54) and you’re listening through your TV speakers. Speaker Settings ■ Powered Zone 2 ` No ` Yes: Zone 2 speakers can be used. (Powered Zone 2 enabled). Note

• Before you change this setting, turn down the volume.

• When the “Powered Zone 2” setting is set to “Yes”, the surround back or front high speakers cannot be used. Input selector Default assignment

PORT ----- Speaker Setup Some of the settings in this section are set automatically by Audyssey 2EQ

Room Correction and Speaker Setup (➔ page 30). If you change these settings, you must run Audyssey 2EQ Room Correction and Speaker Setup again (➔ page 30).44

• These settings are not available in either of the following cases: – a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 55). –“HDMI Control(RIHD)” is set to “On” (➔ page 54) and you’re listening through your TV speakers. ■ Subwoofer, Center, Surround, Surround Back *1*2*3 ` Yes ` No ■ Front High *1*2*4 ` Yes ` No Note

If the “Surround” setting is set to “No”, this setting cannot be selected.

If the “Powered Zone 2” setting is set to “Yes”, this setting cannot be selected.

If the “Front High” setting is set to “Yes”, this setting is automatically set to “No”.

If the “Surround Back” setting is set to “Yes”, this setting is automatically set to “No”. ■ Surround Back Ch ` 1ch: Select if only one surround back speaker L is connected. ` 2ch

Select if two (left and right) surround back speakers are connected. Note

• If the “Surround Back” Setting is set to “No”, this setting cannot be selected. ■ Wireless Front High, Wireless Surround Back, Wireless Subwoofer ` Yes: The audio is output from the speakers connected to the wireless unit. ` No

The audio is not output from the speakers connected to the wireless unit. When the wireless unit is connected to the UNIVERSAL PORT jack on the AV receiver, you can select if you wish to output the audio from the speakers connected to the wireless unit. Note

• If the “Front High” setting is set to “No”, “Wireless Front High” cannot be selected.

• If the “Surround Back” setting is set to “No”, “Wireless Surround Back” cannot be selected.

• If the “Subwoofer” setting is set to “No”, “Wireless Subwoofer” cannot be selected. Speaker Distance Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended. ■ Unit ` feet: Distances can be set in feet. Range: 1.0ft to 30.0ft in 1 foot steps. ` meters: Distances can be set in meters. Range: 0.30m to 9.00m in 0.3 meter steps. (The default setting varies from country to country.) ■ Left, Front High Left, Center, Front High Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left, Subwoofer ` Specify the distance from each speaker to your listening position. Note

• These settings are not available in either of the following cases: – a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 55). –“HDMI Control(RIHD)” is set to “On” (➔ page 54) and you’re listening through your TV speakers.

• Speakers that you set to “No” in the “Speaker Configuration” cannot be selected. Speaker configuration settings only need to be changed if you are not using all of the speakers in this package. When an optional unit is connected to the UNIVERSAL PORT jack on the AV receiver, the speaker setting menu may appear on screen. This setting is set automatically by Audyssey 2EQ Room Correction and Speaker Setup (➔ page 30).45

Level Calibration Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position. ■ Left, Front High Left, Center

, Front High Right, Right, Surround Right, Surround Back Right, Surround Back Left, Surround Left ` –12dB to 0dB to +12dB in 1 dB steps. ■ Subwoofer

` –15dB to 0dB to +12dB in 1 dB steps. Note

• These settings cannot be calibrated in either of the following cases: – a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 55). –“HDMI Control(RIHD)” is set to “On” (➔ page 54) and you’re listening through your TV speakers. – the AV receiver is muted.

• Speakers that you set to “No” in the “Speaker Configuration” cannot be selected (➔ page 44).

• The test tone is output at the standard level for THX, which is 0 dB (absolute volume setting 82). If you normally listen at volume settings below this, be careful because the test tone will be much louder.

For the center speaker and subwoofer, the level settings made by using the Home menu are saved in this menu (➔ page 39). Tip

• If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading. Equalizer Settings With the Equalizer settings, you can adjust the tone of speakers individually with a 5-band equalizer. The volume of each speaker can be set. ■ Equalizer ` Manual: You can adjust the equalizer for each speaker manually. Continue with the following procedure: ` Off

Tone off, response flat. Note

• You can select: “63Hz”, “250Hz”, “1000Hz”, “4000Hz”, or “16000Hz”. And for the subwoofer, “25Hz”, “40Hz”, “63Hz”, “100Hz”, or “160Hz”.

• When the Direct listening mode is selected, the equalizer settings have no effect.

• If “Audyssey” is enabled, it prevails over this setting (➔ page 48). This setting is set automatically by Audyssey 2EQ Room Correction and Speaker Setup (➔ page 30). Adjust the level control of the subwoofer to the THX POSITION before calibrating this system.

Press w to select “Channel”, and then use e/r to select a speaker.

Use q/w to select a frequency, and then use the e/r to adjust the level at that frequency. The volume at each frequency can be adjusted from –6dB to 0dB to +6dB in 1 dB steps. Tip

• Low frequencies (e.g., 63Hz) affect bass sounds; high frequencies (e.g., 16000Hz) affect treble sounds.

Use q to select “Channel”, and then use e/r to select another speaker. Repeat steps 1 and 2 for each speaker. You cannot select speakers that you set to “No” in the “Speaker Configuration” (➔ page 44).46

• Cannot be set if: –“Surround Back Ch” is set to “1ch” (➔ page 44). –“Surround Back” is set to “No” (➔ page 44). –“Powered Zone 2” is set to “Yes” (➔ page 43) and Zone 2 turned on (➔ page 60). ■ BGC ` Off ` On You can apply THX’s Boundary Gain Compensation (BGC) to compensate the perceived exaggeration of low frequencies for listeners sitting very close to a room boundary (i.e., wall). Note

• If the “Subwoofer” setting is set to “No”, this setting cannot be selected (➔ page 44). ■ Loudness Plus ` Off ` On When the “Loudness Plus” is set to “On”, it is possible to enjoy even subtle nuances of audio expression at low volume. This is only available when the THX listening mode is selected. ■ Preserve THX Settings ` Yes ` No If this setting is set to “Yes”, Dynamic EQ and Dynamic Volume have no effect in THX listening mode. Note

• This setting is fixed to “Yes” if “Loudness Plus” is set to “On”. THX Loudness Plus THX Loudness Plus is a new volume control technology featured in THX Ultra2 Plus™, THX Select2 Plus™ and THX I/S Plus™ Certified receivers. With THX Loudness Plus, home theater audiences can now experience the rich details in a surround mix at any volume level. A consequence of turning the volume below Reference Level is that certain sound elements can be lost or perceived differently by the listener. THX Loudness Plus compensates for the tonal and spatial shifts that occur when the volume is reduced by intelligently adjusting ambient surround channel levels and frequency response. This enables users experience the true impact of soundtracks regardless of the volume setting. THX Loudness Plus is automatically applied when listening in any THX listening mode. The new THX Cinema, THX Music, and THX Games modes are tailored to apply the proper THX Loudness Plus settings for each type of content.47

Main menu Audio Adjust With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like. Multiplex/Mono ■ Multiplex Input Channel ` Main ` Sub ` Main/Sub This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on. ■ Mono Input Channel ` Left + Right ` Left ` Right This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2- channel analog/PCM source in the Mono listening mode. Output Speaker ` Center

Mono audio is output by the center speaker. ` Left / Right: Mono audio is output by the front left and right speakers. This setting determines which speakers output mono audio when the Mono listening mode is selected. Note

• If the “Center” setting is set to “No” (➔ page 44), this setting cannot be selected. Dolby ■ PL IIx Music (2ch Input) These settings apply to only 2-channel stereo sources. If you’re not using any surround back speakers, these settings apply to Dolby Pro Logic II, not Dolby Pro Logic IIx. Panorama ` On ` Off With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode. Dimension ` –3 to 0 to +3 With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward. If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward. Center Width ` 0 to 3 to 7 With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic IIx Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output from only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound. ■ PL IIz Height Gain ` Low ` Mid ` High The Height Gain Control in Dolby Pro Logic IIz enables the listener to select how much gain is applied to the front high speakers. There are three settings, “Low”, “Mid” and “High”, and the front high speakers are accentuated in that order. While “Mid” is the default listening setting, the listener may adjust the Height Gain Control to their personal preference. Note

• If the “Front High” setting is set to “No” (➔ page 44), this setting cannot be selected. ■ Dolby EX Dolby EX ` Auto: If the source signal contains a Dolby EX flag, the Dolby EX or THX Surround EX listening mode is used. ` Manual

You can select any available listening mode. This setting determines how Dolby EX encoded signals are handled. This setting is unavailable if no surround back speakers are connected. This setting is effective with Dolby Digital, Dolby Digital Plus and Dolby TrueHD only. Note

• If the “Surround Back” setting is set to “No” (➔ page 44), this setting cannot be selected.

• If the “Front High” setting is enabled (➔ page 44), this setting is fixed to “Manual”. Audio Adjust48

DTS ■ Neo:6 Music Center Image ` 0 to 2 to 5 The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. Changing the value from “0” to “5” will spread the sound of the center channel to left and right (outwards). Theater-Dimensional ■ Listening Angle ` Wide

Select if the listening angle is 40 degrees. ` Narrow: Select if the listening angle is 20 degrees. With this setting, you can optimize the Theater- Dimensional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings. LFE Level ■ Dolby Digital

` –QdB, –20dB, –10dB, or 0dB With these settings, you can set the level of the LFE (Low Frequency Effects) channel individually for each input sources. If you find that low-frequency effects are too loud when using one of these sources, change the setting to –20 dB or –Q dB.

DTS and DTS-HD High Resolution sources

DSD (Super Audio CD) sources Items can be set individually for each input selector. Main menu Source Setup Audyssey ■ Audyssey ` Off ` Movie: Select this setting for movie material. The Audyssey indicator lights. ` Music: Select this setting for music material. The Audyssey indicator lights. Note

• If the “Audyssey” setting is set to “Off”, the “Equalizer” settings are applied (➔ page 45).

• When “Audyssey Quick Start” has been used for measurement, the “Audyssey”setting cannot be selected.

• Audyssey equalizing does not work with DSD sources.

• These technologies cannot be used when: – a pair of headphones is connected, or – Direct listening mode is selected. ■ Dynamic EQ ` Off ` On: Audyssey Dynamic EQ

becomes active. The Dynamic EQ indicator lights. With Audyssey Dynamic EQ, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that the content sounds the way it was created at any volume level — not just at reference level. Note

• These technologies cannot be used when: – a pair of headphones is connected, or – Direct listening mode is selected. 20°/40° Front left speaker Front right speaker Source Setup Preparation Press the input selector buttons to select an input source. The tone for each speaker is set automatically by Audyssey 2EQ

Room Correction and Speaker Setup. To enable the following settings, you must first perform the Room Correction and Speaker Setup (➔ page 30).49

This should be used when listening to movies. ` 5dB: Select this setting for content that has a very wide dynamic range, such as classical music. ` 10dB: Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference. ` 15dB: Select this setting for pop/rock music or other program material that is mixed at very high listening levels and has a compressed dynamic range. Movies are mixed in rooms calibrated for film reference. To achieve the same reference level in a home theater system each speaker level must be adjusted so that –30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. A home theater system automatically calibrated by Audyssey 2EQ

will play at reference level when the master volume control is set to the 0 dB position. At that level you can hear the mix as the mixers heard it. Audyssey Dynamic EQ is referenced to the standard film mix level. It makes adjustments to maintain the reference response and surround envelopment when the volume is turned down from 0 dB. However, film reference level is not always used in music or other non- film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard. Note

• If “Dynamic EQ” setting is set to “Off”, these technologies cannot be used. ■ Dynamic Volume ` Off ` Light: Activates Light Compression Mode. ` Medium: Activates Medium Compression Mode. ` Heavy: Activates Heavy Compression Mode. This setting affects volume the most. It quiets the loud parts, such as explosions, and boosts the quiet parts so they can be heard. Note

• If you want to use Audyssey Dynamic EQ or Dynamic Volume with THX listening modes, set the “Loudness Plus” setting to “Off” and set “Preserve THX Settings” to “No” (➔ page 46).

• If you make Dynamic Volume active, “Dynamic EQ” is set to “On”. The Dynamic Vol indicator will light.

• When “Dynamic EQ” is set to “Off”, “Dynamic Volume” is automatically switched to “Off”.

• These technologies cannot be used when: – a pair of headphones is connected, or – Direct listening mode is selected. About Audyssey Dynamic EQ

Audyssey Dynamic EQ solves the problem of deteriorating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any user-selected volume setting. The result is bass response, tonal balance, and surround impression that remain constant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for delivering a loudness correction solution. Audyssey Dynamic EQ works well by itself. However, if Audyssey 2EQ is on, the two technologies work in tandem to provide well-balanced sound for every listener at any volume level. About Audyssey Dynamic Volume

Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. Whenever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic Volume works fine by itself, but can also be used with Audyssey Dynamic EQ. When both are on, Audyssey Dynamic EQ adjusts the perceived bass response, tonal balance, surround impression, and dialog clarity whether watching movies, flipping between television channels, or changing from stereo to surround sound content, when Dynamic Volume adjusts the volume.50

IntelliVolume ■ IntelliVolume ` –12dB to 0dB to +12dB in 1 dB steps. With IntelliVolume, you can set the input level for each input selector individually. This is useful if one of your source components is louder or quieter than the others. Use e/r to set the level. If a component is noticeably louder than the others, use e to reduce its input level. If it’s noticeably quieter, use r to increase its input level. A/V Sync ■ A/V Sync ` 0msec to 800msec in 10 msec steps. When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals. To view the TV picture while setting the delay, press ENTER. To return to the previous screen, press RETURN. The range of values you can adjust will depend on whether your TV or display supports HDMI Lip Sync and if the “Lip Sync” setting is set to “On” or not (➔ page 55). Note

• A/V Sync is disabled when the Direct listening mode is used with an analog input source.

• This setting cannot be used with the NET input selector. Name Edit You can enter a custom name for each individual input selector and radio preset for easy identification. When entered, the custom name will appear on the display. The custom name is edited using the character input screen. ■ Name To correct a character: Tip

• To name a radio preset, use TUNER to select AM or FM, and then select the preset (➔ page 28).

• To restore a custom name to its default, erase the custom name by entering an empty white space for each letter. Note

• This setting cannot be used for the NET and USB input selector.

Use q/w/e/r to select a character, and then press ENTER. Repeat this step to enter up to 10 characters.

To store a name when you’re done, be sure to select “OK” by using q/w/e/r, and then press ENTER.

Press ENTER several times to highlight the incorrect character (For each pressure, the cursor is moved on the next character).

Toggles between lower and upper case characters. (Left)/ (Right): Moves the cursor left or right in the Name input area. Back Space

Moves the cursor backward and deletes one character. OK: Confirms your entry. Tip

This can also be performed by using +10 on the remote controller.

Press CLR on the remote controller to delete all the characters you have input.51

Picture Adjust Using Picture Adjust, you can adjust the picture quality and reduce any noise appearing on the screen. To view the TV picture while setting, press ENTER. To return to the previous screen, press RETURN. ■ Wide Mode *1*2 This setting determines the aspect ratio. ` 4:3: ` Full: ` Zoom: ` Wide Zoom: ` Auto

According to the input signals and monitor output setting, the AV receiver automatically selects the “4:3”, “Full”, “Zoom” or “Wide Zoom” mode. See “Monitor Out” for details on the monitor output setting (➔ page 42). ■ Picture Mode

` Custom: All settings can be performed manually. ` Cinema: Select when the picture source is a movie or alike. ` Game: Select when the video source is a game console. ` Through: Does not adjust picture quality (changes resolution). ` Direct: Does not adjust picture quality (does not change resolution). When video is output from HDMI OUT, it is processed the same as “Through”. With “Picture Mode”, you can change the following settings to be suitable for the movie or game screen by one operation: “Game Mode”, “Film Mode”, “Edge Enhancement”, “Noise Reduction”, “Brightness”, “Contrast”, “Hue”, “Saturation” or “Color Temperature”. ■ Game Mode *3*4*5 ` Off ` On If video signal delay occurs during playback on a video component (i.e., game console), select the corresponding input source and set the “Game Mode” setting to “On”. The delay will decrease but in return the picture quality will become poor. ■ Film Mode *3*5*6 ` Video: “Film Mode” detection is not applied and the input signal is handled as a video source. ` Auto

Detects whether the input signal is a video or a movie. If it is a movie, the appropriate conversion is applied. The AV receiver will adjust to the picture source, automatically converting it to the appropriate progressive signal and reproducing the natural quality of the original picture. ■ Edge Enhancement *3*5*6*7 ` Off ` Low ` Mid ` High With Edge Enhancement, you can make the picture appear sharper. ■ Noise Reduction *3*5*6*7 ` Off ` Low ` Mid ` High With this setting, you can reduce noise appearing on the screen. Select the desired level. ■ Brightness *1*3*5 ` –50 to 0 to +50 With this setting you can adjust the picture brightness. “–50” is the darkest. “+50” is the brightest. ■ Contrast *1*3*5 ` –50 to 0 to +50 With this setting you can adjust contrast. “–50” is the least. “+50” is the greatest. ■ Hue *1*3*5 ` –50 to 0 to +50 With this setting you can adjust the red/green balance. “–50” is the strongest green. “+50” is the strongest red. ■ Saturation *1*3*5 ` –50 to 0 to +50 With this setting you can adjust saturation. “–50” is the weakest color. “+50” is the strongest color.52

• “Picture Adjust” cannot be used with the NET input selector.

This procedure can also be performed on the remote controller by using the Home menu (➔ page 39).

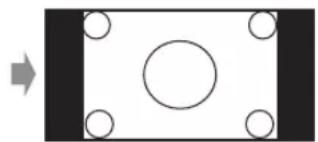

When a 3D video source is input, “Wide Mode” is fixed to “Full”.

When the “Picture Mode” setting is set to anything other than “Custom”, this setting cannot be used.

If the “Resolution” setting is set to “4K Upscaling” (➔ page 42), this setting is fixed to “Off”.

Press CLR if you want to reset to the default value.

If you are using the analog RGB input, this setting is not available.

If the “Game Mode” setting is set to “On”, this setting is fixed to “Off”. Audio Selector You can set priorities of audio output when there are both digital and analog inputs. ■ Audio Selector ` ARC: The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver.

With this selection, the TV’s audio can be automatically selected as a priority among other assignments. ` HDMI: This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is automatically selected as a priority. ` COAXIAL: This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and HDMI inputs have been assigned, coaxial input is automatically selected as a priority. ` OPTICAL: This can be selected when OPTICAL IN has been assigned as an input source. If both optical and HDMI inputs have been assigned, optical input is automatically selected as a priority. ` Analog: The AV receiver always outputs analog signals. Note

• The setting is stored individually for each input selector.

• This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN.

• The “Audio Selector” settings cannot be used with the NET, USB and PORT (with connected component) input selectors.

You can select “ARC” if you select the TV/CD input selector. But you cannot if you’ve selected “Off” in the “Audio Return Channel” setting (➔ page 55). ■ Fixed Mode ` Off

The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead. ` PCM: Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced. ` DTS: Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the DTS indicator will flash and there will be no sound. When “HDMI”, “COAXIAL” or “OPTICAL” is selected in the “Audio Selector” setting, you can then specify the signal type in “Fixed Mode”. Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.

• If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM.

• If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS. Note

• The setting is stored individually for each input selector.

• The setting will be reset to “Off” when you change the setting in “Audio Selector”. Charge Mode ■ Charge Mode ` Auto

Power feeding is interrupted when your iPod/iPhone is fully charged. ` On: Power feeding continues even if your iPod/iPhone is fully charged. ` Off: Your iPod/iPhone is not charged. You can specify how the power is fed to your iPod/iPhone when the AV receiver is in standby mode. Note

• This setting cannot be selected when: – the UP-A1 Dock with docked iPod/iPhone is not connected to the AV receiver, or – the docked iPod/iPhone model is not supported.

• When the “Charge Mode” setting is set to “On”, or to “Auto” with your iPod/iPhone recharging, the SLEEP indicator is dimly lit in standby mode. In such conditions, the power consumption of the AV receiver slightly increases.53

You can assign a default listening mode to each input source that will be selected automatically when you select each input source. For example, you can set the default listening mode to be used with Dolby Digital input signals. You can select other listening modes during playback, but the mode specified here will be resumed once the AV receiver has been set to standby. Main menu Listening Mode Preset ■ Analog / PCM / Digital With this setting, you can specify the listening mode used when an analog (CD, TV, LD, VHS, MD, turntable, radio, cassette, cable, satellite, etc.) or PCM digital (CD, DVD, etc.) audio signal is played. ■ Mono/Multiplex Source With this setting, you can specify the listening mode used when a mono digital audio signal is played (DVD, etc.). ■ 2ch Source With this setting, you can specify the listening mode used when 2-channel (2/0) stereo digital sources, such as Dolby Digital or DTS, are played. ■ Dolby D/Dolby D Plus/TrueHD With this setting, you can specify the listening mode used when Dolby Digital or Dolby Digital Plus format digital audio signals are played (DVD, etc.). Specifies the default listening mode for Dolby TrueHD sources, such as Blu-ray or HD DVD (input via HDMI).

With this setting, you can specify the listening mode used when DTS or DTS-HD High Resolution format digital audio signals are played (DVD, LD, CD, etc.). Specifies the default listening mode for DTS-HD Master Audio sources, such as Blu-ray or HD DVD (input via HDMI). ■ Other Multich Source Specifies the default listening mode for multichannel PCM sources from HDMI IN such as DVD-Audio, and DSD multichannel sources such as Super Audio CD. Main menu Miscellaneous Volume Setup ■ Volume Display ` Absolute

Displayed range is Min, 0.5 to 99.5, Max. ` Relative (THX): Displayed range is –QdB, –81.5dB to +18.0dB. With this setting, you can choose how the volume level is displayed. The absolute value 82 is equivalent to the relative value 0dB. Note

• If the absolute value is set to 82, “82Ref” will appear on the display and the THX indicator will flash. ■ Muting Level

QdB (fully muted), –50dB to –10dB in 10 dB steps. This setting determines how much the output is muted when the muting function is used (➔ page 40). ■ Maximum Volume ` Off , 50 to 99 (Absolute display) ` Off , –32dB to +17dB (Relative display) With this setting, you can limit the maximum volume. To disable this setting, select “Off”. ■ Power On Volume ` Last , Min, 1 to 99 or Max (Absolute display) ` Last , –QdB, –81dB to +18dB (Relative display) With this preference, you can specify the volume setting to be used each time the AV receiver is turned on. To use the same volume level that was used when the AV receiver was turned off, select “Last”. The “Power On Volume” cannot be set higher than the “Maximum Volume” setting. ■ Headphone Level ` –12dB to 0dB to +12dB With this preference, you can specify the headphone volume relative to the main volume. This is useful if there’s a volume difference between your speakers and your headphones. Listening Mode Preset

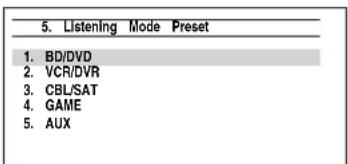

Use q/w to select the input source that you want to set, and then press ENTER. The following menu appears.

Use q/w to select the signal format that you want to set, and then use e/r to select a listening mode. Only listening modes that can be used with each input signal format can be selected (➔ pages 34 to 38). The “Last Valid” option means that the listening mode selected last will be used. Note

• If you connect an input component (such as UP-A1 series Dock that seated iPod) to the UNIVERSAL PORT jack, the only listening modes you can assign to the “PORT” selector are specific to analog sound.
• For the TUNER input selector, only “Analog” will be available.

OSD Setup ■ On Screen Display ` On ` Off This preference determines whether operation details are displayed on-screen when an AV receiver function is adjusted. Even when “On” is selected, operation details may not be output if the input source is connected to an HDMI IN. ■ Language (North American models) ` English , Deutsch, Français, Español, Italiano, Nederlands, Svenska (European models) ` English , Deutsch, Français, Español, Italiano, Nederlands, Svenska, 中文 This setting determines the language used for the on- screen setup menus. Main menu Hardware Setup Remote ID ■ Remote ID ` 1 , 2, or 3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differentiate the AV receiver from the other components, you can change its remote ID from “1”, to “2” or “3”. Note

• If you do change the AV receiver’s remote ID, be sure to change the remote controller to the same ID (see below), otherwise, you won’t be able to control it with the remote controller. Changing the remote controller’s ID Tuner For AM/FM tuning to work properly, you must specify the AM/FM frequency step used in your area. Note that when this setting is changed, all radio presets will be deleted. ■ AM/FM Frequency Step (North American models) ` 10kHz/200kHz

` 9kHz/50kHz: Select the frequency step according to your area. ■ AM Frequency Step (European models) ` 10kHz: ` 9kHz

Select the frequency step according to your area. HDMI ■ HDMI Control(RIHD) ` Off ` On Turn this setting on to allow p-compatible components connected via HDMI to be controlled by the AV receiver (➔ page 82). Note

• When the setting is set to “On” and the menu is closed, the names of connected p-compatible components and “RIHD On” are displayed on the AV receiver. “Search…” → “(name)” → “RIHD On” When the AV receiver cannot receive the name of the component, it is displayed as “Player ” or “Recorder ”, etc (“

shows up and indicates the number of components, when two or more are received).

• When an p-compatible component is connected to the AV receiver via an HDMI cable, the name of the connected component is displayed on the AV receiver display. For example, while you are watching TV broadcasting, if you operate a Blu-ray Disc/DVD player (being powered on) with the remote control of the AV receiver, the name of the Blu-ray Disc/DVD player will be displayed on the AV receiver.•Set it to “Off” when a connected piece of equipment is not compatible or it is unclear whether the equipment is compatible or not.• If operation is not normal when set to “On”, change the setting “Off”.• Refer to the connected component’s instruction manual for details.
• When “HDMI Control(RIHD)” setting is set to “On”, the power consumption on standby mode slightly increases. (Depending on the TV status, the AV receiver will enter standby mode as usual.) Hardware Setup

While holding down RECEIVER, press and hold down SETUP until the remote indicator lights (about 3 seconds) (➔ page 41).

■ HDMI Through ` Off ` Auto: Detects the signal and automatically selects the input source. ` BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX, TV/CD, PORT: Selects the input source for which the HDMI Through function is enabled. ` Last: The HDMI Through function is activated on the input source selected at the time of setting the AV receiver to standby mode. When enabling the HDMI Through function, regardless of whether the AV receiver is on or in standby, both audio and video streams from an HDMI input will be output to the TV or other components via HDMI connection. The HDMI THRU and HDMI indicators light when enabled (HDMI is dimly-lit). This setting is set to “Auto” automatically when the above “HDMI Control(RIHD)” is set to “On”. Note

• Only the input source assigned to the HDMI IN via “HDMI Input” is enabled (➔ page 42).

• The power consumption during standby mode will increase during the HDMI Through function: however in the following cases, the power consumption can be saved: – The TV is in standby mode. – You are watching a TV program.

• Refer to the connected component’s instruction manual for details.

• Depending on the connected component, the correct input source may not be selected with the setting set to “Auto”.

• This setting is set to “Off” automatically when the “HDMI Control(RIHD)” setting is set to “Off”. ■ Audio TV Out ` Off ` On This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV’s speakers. Normally, this should be set to “Off”. Note

• If “On” is selected and the audio can be output from the TV, the AV receiver will output no sound through its speakers. In this case, “TV Speaker” appears on the display by pressing DISPLAY.

• When “HDMI Control(RIHD)” is set to “On”, this setting is fixed to “Auto”.

• With some TVs and input signals, no sound may be output even when this setting is set to “On”.

• When “Audio TV Out” or “HDMI Control(RIHD)” is set to “On” and you’re listening through your TV’s speakers (➔ page 16), turning up the AV receiver’s volume control will make the sound be output from the AV receiver’s front left and right speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume. ■ Audio Return Channel ` Off ` Auto

The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver. The audio return channel (ARC) function allows an ARC capable TV to send the audio stream to the HDMI OUT of the AV receiver. To use this function, you must select the TV/CD input selector and your TV must be ARC capable. Note

• If you set “Audio Return Channel” to “Auto”, the “Audio Selector” settings of the TV/CD input selector will be automatically switched to “ARC” (➔ page 52).

• The “Audio Return Channel” setting can be set only when the “HDMI Control(RIHD)” setting is set to “On”.

• This setting is set to “Auto” automatically when the “HDMI Control(RIHD)” is set to “On” for the first time. ■ Lip Sync ` Off ` On This function allows the AV receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor. Note

• This function works only if your HDMI-compatible TV supports HDMI Lip Sync. Auto Standby ■ Auto Standby ` Off ` On When “Auto Standby” is set to “On”, the AV receiver will automatically enter standby mode if there is no operation for 30 minutes with no audio and no video signal input. “Auto Standby” will appear on the display and OSD 30 seconds before the Auto Standby comes on. Default setting: On (European models), Off (North American models) Note

• Set to “ On”, the Auto Standby function may activate itself during playback with some sources.

• The Auto Standby function does not work when Zone 2 is on. After changing the settings of the “HDMI Control(RIHD)”, “HDMI Through” or “Audio Return Channel” turn off the power on all connected pieces of equipment and then turn them on again. Refer to the user’s manuals for all connected pieces of equipment.56

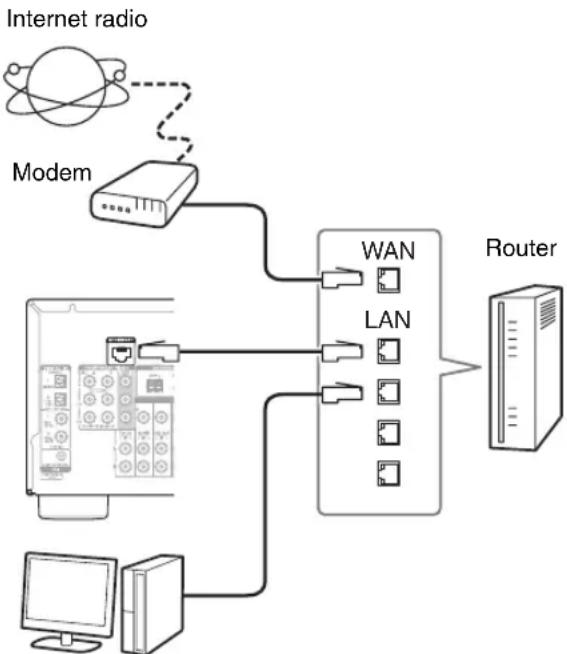

Network This section explains how to configure the AV receiver’s network settings manually. If your router’s DHCP server is enabled, you don’t need to change any of these settings, as the AV receiver is set to use DHCP to configure itself automatically by default (i.e., DHCP is set to “Enable”). If, however, your router’s DHCP server is disabled (you’re for example using static IP), you’ll need to configure these settings yourself, in which case, a knowledge of Ethernet networking is essential. What’s DHCP? DHCP (Dynamic Host Configuration Protocol) is used by routers, computers, the AV receiver, and other devices to automatically configure themselves on a network. What’s DNS? The DNS (Domain Name System) translates domain names into IP addresses. For example, when you enter a domain name such as www.onkyousa.com in your Web browser, before accessing the site, your browser uses DNS to translate this into an IP address, in this case

■ MAC Address This is the AV receiver’s MAC (Media Access Control) address. This address cannot be changed. ■ DHCP ` Enable ` Disable This setting determines whether or not the AV receiver uses DHCP to automatically configure its IP Address, Subnet Mask, Gateway, and DNS Server settings. Note

• If you select “Disable”, you must configure the “IP Address”, “Subnet Mask”, “Gateway”, and “DNS Server” settings yourself. ■ IP Address ` Class A: “10.0.0.0” to “10.255.255.255” ` Class B: “172.16.0.0” to “172.31.255.255” ` Class C: “192.168.0.0” to “192.168.255.255” Enter a static IP address provided by your ISP. Most routers use Class C IP addresses. ■ Subnet Mask Enter the subnet mask address provided by your ISP (typically 255.255.255.0). ■ Gateway Enter the gateway address provided by your ISP. ■ DNS Server Enter the DNS server address provided by your ISP. ■ Proxy URL To use a Web proxy, enter its URL here. ■ Proxy Port If you’re using a Web proxy, enter a proxy port number here. ■ Network Control ` Enable ` Disable This setting enables or disables control over the network. Note

• When set to “Enable”, the NET indicator is dimly-lit and the power consumption slightly increases in standby mode. ■ Control Port ` “49152” to “65535” This is the network port used for control over the network. Note

• When the “Network Control” setting is set to “Disable”, this setting is cannot be selected. Firmware Update See “Firmware Update” for the update procedure (➔ page 76). Note

• Perform the firmware update only when such an announcement is posted on the Onkyo web site. Visit the Onkyo web site for the latest information.

• It takes maximum 60 minutes to complete the firmware update. ■ Version Displays the current version of the firmware. ■ Receiver ` via NET: Performs the firmware update via Internet. Check the network connection before updating. ` via USB: Performs the firmware update from a USB device. These settings allow you to update the AV receiver’s firmware. Do not shutdown the power of the AV receiver while updating. ■ Universal Port ` via NET: Performs the firmware update via Internet. Check the network connection before updating. ` via USB: Performs the firmware update from a USB device. These settings allow you to update Onkyo dock’s firmware. Do not shutdown the power of the AV receiver while updating. Note

• This update shall not be performed when no dock is connected to the UNIVERSAL PORT jack. After modifying the network settings, you must confirm the changes by executing “Save”.57

Main menu Remote Controller Setup Remote Mode Setup See “Looking up for Remote Control Code” (➔ page 64). With this preference, you can protect your settings by locking the setup menus. Main menu Lock Setup ■ Setup ` Locked ` Unlocked When “Locked” is selected, the setup menus will be locked and you cannot change any setting. You can change various audio settings from the Home menu (➔ page 39). Note

• These settings are not available in either of the following cases:– a pair of headphones is connected. –the “Audio TV Out” setting is set to “On” (➔ page 55). –“HDMI Control(RIHD)” is set to “On” (➔ page 54) and you’re listening through your TV speakers. Tone Control Settings ■ Bass ` –10dB to 0dB to +10dB in 2 dB steps. You can boost or cut low-frequency sounds output from the front speakers. ■ Treble ` –10dB to 0dB to +10dB in 2 dB steps. You can boost or cut high-frequency sounds output from the front speakers. You can adjust the bass and treble for the front speakers, except when the Direct or THX listening mode is selected. Operating on the AV receiver Speaker Levels ■ Subwoofer Level ` –15dB to 0dB to +12dB in 1 dB steps. ■ Center Level ` –12dB to 0dB to +12dB in 1 dB steps. You can adjust the volume of each speaker while listening to an input source. These temporary adjustments are cancelled when the AV receiver is set to standby. To save the setting you made here, go to “Level Calibration” (➔ page 45) before setting the AV receiver to standby. Note
• You cannot use this function while the AV receiver is muted.
• Speakers that are set to “No” in “Speaker Configuration” (➔ page 44) cannot be adjusted. Audyssey ■ Audyssey See “Audyssey” in “Source Setup” (➔ page 48). ■ Dynamic EQ See “Dynamic EQ” in “Source Setup” (➔ page 48). ■ Dynamic Volume See “Dynamic Volume” in “Source Setup” (➔ page 49). Note
• These technologies can be used when all the following conditions are met:– Room Correction and Speaker Setup is completed. Note that “Audyssey” requires the “Audyssey 2EQ Full Calibration” method.– Any listening mode other than Direct is selected.– A pair of headphones is not connected.• The setting is stored individually for each input selector. Remote Controller Setup Lock Setup Using the Audio Settings

Press RECEIVER followed by HOME.

Use q/w and ENTER to select “Audio”, and then use q/w/e/r to make the desired selection.

Press TONE repeatedly to select either “Bass” or “Treble”.

Use + and – to adjust.58

Late Night ■ Late Night For Dolby Digital and Dolby Digital Plus sources, the options are: ` Off ` Low: Small reduction in dynamic range. ` High: Large reduction in dynamic range. For Dolby TrueHD sources, the options are: ` Auto

The Late Night function is set to “On” or “Off” automatically. ` Off ` On Turn this setting on to reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone. Note

• The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

• The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

• The Late Night function is set to “Off” when the AV receiver is set to standby. For Dolby TrueHD sources, it will be set to “Auto”. Music Optimizer ■ Music Optimizer ` Off ` On Turn this setting on to enhance the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3. Note

• The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.

• The setting is stored individually for each input selector.

• The M.Opt indicator will light (➔ page 9). Re-EQ With the Re-EQ function, you can compensate a soundtrack whose high-frequency content is too harsh, making it more suitable for home theater viewing. ■ Re-EQ ` Off ` On This function can be used with the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS Express, DSD, Dolby EX, Dolby Pro Logic IIz Height, Dolby PLIIx Movie, DTS Neo:6 Cinema and 5.1-channel source + DTS Neo:6. ■ Re-EQ(THX) ` Off ` On This function can be used with the following listening modes: THX Cinema, THX Surround EX, and THX I/S Cinema. Note

• Settings for the Re-EQ function are kept in each listening mode. In THX listening mode however, the setting will return to “On” when the AV receiver is turned off.59

Zone 2 In addition to the main listening room, you can also enjoy playback in another room, which we call Zone 2. For either of the rooms, you can specify a different input source. There are two ways you can connect Zone 2 speakers:

1. Connect them directly to the AV receiver.

2. Connect them to an amp in Zone 2.

Connecting Your Zone 2 Speakers Directly to the AV receiver This setup allows 5.1-channel playback in your main room and 2-channel stereo playback in Zone 2, with a different source in each room. This is called Powered Zone 2, as the Zone 2 speakers are powered by the AV receiver. Note

• With this setup, the volume of Zone 2 is controlled by the AV receiver.• When Powered Zone 2 is used, listening modes that require front high or surround back speakers are unavailable. Connecting the Zone Speakers to an Additional Amplifier This setup allows 7.1-channel playback in your main listening room and 2-channel stereo playback in Zone 2. Note
• The volume of Zone 2 must be set on the Zone 2 amp. Making Zone 2 Connections To use this setup, you must set the “Powered Zone 2” setting to “Yes” (➔ page 43).

Main room AV receiverZone 2

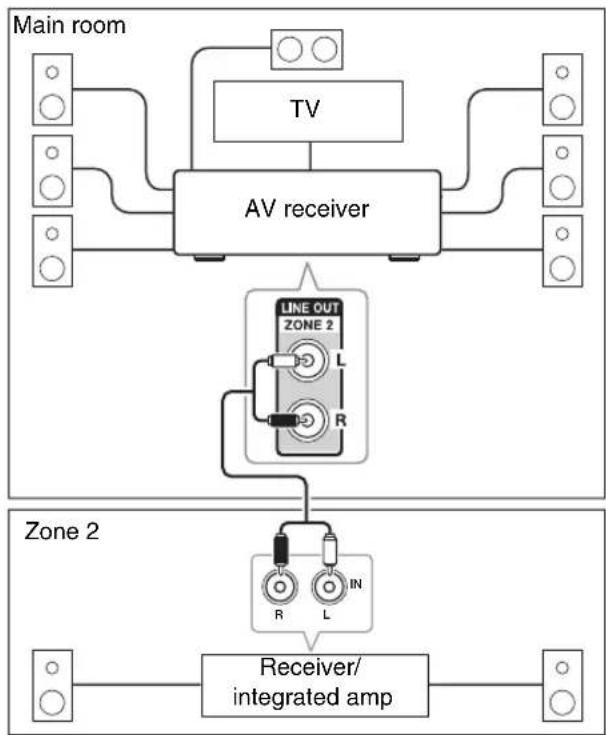

Main room Zone 2AV receiverReceiver/integrated amp60

■ Operating on the AV receiver ■ Operating on the remote controller To control Zone 2, you must press ZONE2 on the remote controller first. Adjusting the Volume for Zone 2 ■ Operating on the remote controller ■ Operating on the AV receiver If your Zone 2 speakers are connected to a receiver or integrated amp in Zone 2, use its volume control to adjust the volume. Muting Zone 2 ■ Operating on the remote controller Tip

• To unmute, press ZONE2 followed by MUTING again. Note

• Only analog input sources are output from the ZONE 2 LINE OUT L/R jacks and ZONE 2 L/R terminals. Digital input sources are not output. If no sound is heard when an input source is selected, verify that the source is connected to an analog input.• While Zone 2 is on, u functions will not work.• You cannot select different AM or FM radio stations for your main room and Zone 2. The same AM/FM radio station will be heard in each room. Namely, if you have selected an FM station for the main room, that station will also be output in Zone 2.
• When you have selected NET or USB as the input selector, the last selector selected will be set for both Main room and Zone 2.• Zone 2 can also be unmuted by adjusting the volume.• When Zone 2 is activated and its input selector is selected, the power consumption of standby mode slightly increases.• When setting the AV receiver to standby mode while Zone 2 is active, the Z2 indicator is dimly lit. Controlling Zone 2 Components

To turn on Zone 2 and select an input source, press ZONE 2 followed by an input selector button within 8 seconds. Zone 2 turns on, the Z2 indicator lights on the display. To select AM or FM, press the TUNER input selector button repeatedly. To select the same source as the main room’s, press ZONE 2 repeatedly until “Z2 Selector: Source” appears on the display. To turn off Zone 2, press OFF. The zone is turned off.

• You cannot select different AM or FM radio stations for your main room and Zone 2. The same AM/FM radio station will be heard in each room.

Use MASTER VOLUME control within 8 seconds to adjust the volume.

Press ZONE2 followed by MUTING.61

Controlling Other Components iPod/iPhone Playback via Onkyo Dock UP-A1 Dock With the UP-A1 Dock, you can easily play the music, photos, or movies stored on your Apple iPod/iPhone through the AV receiver and enjoy great sound. You can use the AV receiver’s remote controller to operate your iPod/iPhone. ■ System Function Auto Power On If you start iPod/iPhone playback while the AV receiver is on standby, the AV receiver will automatically turn on and select your iPod/iPhone as the input source. Direct Change If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically select your iPod/iPhone as the input source. Using the AV receiver’s Remote Controller You can use the AV receiver’s remote controller to control basic iPod/iPhone functions (➔ page 62). ■ Using Your iPod/iPhone Alarm Clock You can use the Alarm Clock function of your iPod/iPhone to automatically turn on your iPod/iPhone and the AV receiver at a specified time. The AV receiver’s input source will automatically be set to the PORT selector. Note

• To use this function, your iPod/iPhone must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV receiver.
• This function works only in Standard mode (➔ page 63).
• When you use this function, be sure to set the AV receiver’s volume control to a suitable level.• When Zone 2 is turned on, you can’t use this function.• This function doesn’t work when alarms sounds are set on your iPod/iPhone.
• The “Charge Mode” setting must be set to “On” to enable the Alarm Clock function (➔ page 52). ■ Charging Your iPod/iPhone Battery When the UP-A1 Dock with docked iPod/iPhone is connected to the AV receiver, the battery of your iPod/iPhone is charged. Charging occurs when AV receiver is set to on or standby. You can specify how the power is fed to your iPod/iPhone when the AV receiver is in standby mode (➔ page 52). Note
• When the UP-A1 Dock with docked iPod/iPhone is connected, the power consumption on standby mode slightly increases. Using the Onkyo Dock The Dock is sold separately. Models sold are different depending on the region. For the latest information on the Onkyo Dock components, see the Onkyo web site at: http://www.onkyo.com Before using the Onkyo Dock components, update your iPod/iPhone with the latest software, available from the Apple web site. For supported iPod/iPhone models, see the instruction manual of the Onkyo Dock. The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song. ■ Operating Notes
• Functionality depends on your iPod/iPhone model and generation.• Before selecting a different input source, stop your iPod/iPhone playback to prevent the AV receiver from selecting the iPod/iPhone input source by mistake.• If any accessories are connected to your iPod/iPhone, the AV receiver may not be able to select the input source properly.
• When connecting the UP-A1 Dock to the radio tuner UP-HT1 (North American models)/UP-DT1 (European models) with AUTO selected by the tuner’s Mode Selector switch, you can switch the input source between UP-A1 Dock and the tuner, by pressing PORT repeatedly on the front panel.• While your iPod/iPhone is in the UP-A1 Dock, its volume control has no effect. If you adjust your iPod/iPhone models volume control while it’s in the UP-A1 Dock, make sure it’s not set too high before you reconnect your headphones.• The Auto Power On function will not work if you set your iPod/iPhone in the UP-A1 Dock while it is playing.• When Zone 2 is turned on, you can’t use Auto Power On and Direct Change functions.
• The “Charge Mode” setting must be set to “On” to enable the Auto Power On and Direct Change functions (➔ page 52).62

■ Status Messages If either of the following messages is not displayed on the AV receiver’s display, check the connection to your iPod/iPhone.

• PORT Reading The AV receiver is checking the connection with the dock.

• PORT Not Support The AV receiver do not support the connected dock.

• PORT UP-A1 UP-A1 Dock is connected. Note

• The AV receiver displays the message “UP-A1” for several seconds after recognizing the UP-A1. RI Dock With the RI Dock, you can easily play the music stored on your Apple iPod/iPhone through the AV receiver and enjoy great sound, and watch iPod/iPhone slideshows and videos on your TV. In addition, the onscreen display (OSD) allows you to view, navigate, and select your iPod/iPhone model’s contents on your TV, and with the supplied remote controller, you can control your iPod/iPhone from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod/iPhone. Note

• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (➔ page 64).

• Connect the RI Dock to the AV receiver with an u cable (➔ page 19).

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• Set the AV receiver’s Input Display to “DOCK” (➔ page 40). ■ System Function System On When you turn on the AV receiver, the RI Dock and iPod/iPhone turn on automatically. In addition, when RI Dock and iPod/iPhone are on, the AV receiver can be turned on by pressing 8SOURCE. Auto Power On If you press the remote controller’s 1 (Playback) while the AV receiver is on standby, the AV receiver will automatically turn on, select your iPod/iPhone as the input source, and your iPod/iPhone will start playback. Direct Change If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically switch to the input to which the RI Dock is connected. Other Remote Controllers You can use the remote controller that came with the AV receiver to control other iPod/iPhone functions. The available functionality depends on the AV receiver. iPod/iPhone Alarm If you use the Alarm function on your iPod/iPhone to start playback, the AV receiver will turn on at the specified time and select your iPod/iPhone as the input source automatically. Note

• Linked operations do not work with video playback or when the alarm is set to play a sound.

• If you use your iPod/iPhone with any other accessories, iPod/iPhone playback detection may not work.

• This function works only in Standard mode (➔ page 63).

• The System On function may not work depending on the RI Dock. Note

• On the iPod with video and iPod nano (1st generation), the click wheel is disabled during playback. By pressing the REMOTE MODE that’s been programmed with the remote control code for your Dock, you can control your iPod/iPhone in the Dock with the buttons described further in this section. See “Entering Remote Control Codes” for details on entering a remote control code (➔ page 64). See the Dock’s instruction manual for more information. ■ UP-A1 Dock PORT is preprogrammed with the remote control code for controlling a Dock via Universal Port. You can control your iPod/iPhone when “PORT” is selected as the input source. ■ RI Dock

• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

• 8SOURCE may not work with a remote control code (without u). In this case, make an u connection and enter the remote control code 81993 (with u). With the RI Control Make an u connection and enter the remote control code 81993 (with u).

• Set the AV receiver’s Input Display to “DOCK” (➔ page 40). Without the RI Control You must enter the remote control code 82990 first (➔ page 65). ■ Operating Notes

• Use the AV receiver’s volume control to adjust the playback volume.

• While your iPod/iPhone is inserted in the RI Dock, its volume control has no effect.

• If you do adjust the volume control on your iPod/iPhone while it’s inserted in the RI Dock, be careful that it’s not set too loud before you reconnect your headphones. Controlling Your iPod/iPhone63

• With some iPod/iPhone models, generations and RI Docks, certain buttons may not work as expected.

• For detailed operation of iPod/iPhone, please refer to the instruction manual of the RI Dock.

TOP MENU works as the mode button when used with the DS-A2 RI Dock.

In Extended mode (see

), e/r is used as the page jump button. This allows you to quickly locate your favorite songs even when such lists as the song or artist lists are very long.

In Extended mode (see

), this button doesn’t work.

This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the first time you press this button, in which case you should press it again. This is because the remote controller transmits the On and Standby commands alternately, so if your iPod/iPhone is already on, it will remain on when the remote controller transmits the On command. Similarly, if your iPod/iPhone is already off, it will remain off when the remote controller transmits the Off command.

In Extended mode (see

), DISPLAY is used to switch between song informations. In Standard mode (see

), DISPLAY turns on backlight for a second.

DISPLAY turns on backlight for a second.

Press MODE to switch between the following modes: Standard mode Nothing is displayed on your TV. Contents are browsed and selected on your iPod/iPhone display. Extended mode (Music) The music contents (artists, albums, songs, and so on) are displayed on your TV, and you can browse and select them on screen. Extended mode (Video) The video contents (Movies, Music Videos, TV Shows, Video Podcasts or Rentals) are displayed on your TV, and you can browse and select them on screen.

Resume mode With the Resume function, you can resume playback of the song that was playing when you removed your iPod/iPhone from the RI Dock. Note

• In Extended mode (see

), you cannot operate your iPod/iPhone directly.

• In Extended mode (see

), it may take some time to acquire the contents.

• In Extended mode (see

), the on-screen navigation menus only appear on a TV that is connected to the HDMI output.

Press the appropriate REMOTE MODE first. UP-A1 Dock u Dock

Controlling Other Components You can use the AV receiver’s remote controller to control your other AV components, including those made by other manufacturers. This section explains how to enter the remote control code for a component that you want to control: DVD, TV, CD, etc.The following REMOTE MODE buttons are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components.For details on controlling these components, see the indicated pages.You can look up for an appropriate remote control code from the on-screen setup menu. Note

• This can only be carried out using the on-screen setup menu.You’ll need to enter a code for each component that you want to control. Note
• Though the provided remote control codes are correct at the time of printing, they are subject to change. Preprogrammed Remote Control Codes BD/DVD Onkyo Blu-ray Disc player (➔ page 65) TV/CD Onkyo CD player (➔ page 65) PORT Onkyo Universal Port Option (➔ page 62) Looking up for Remote Control Code

Press RECEIVER followed by SETUP. The main menu appears on-screen. Tip

• If the main menu doesn’t appear, make sure the appropriate external input is selected on your TV.

Use q/w to select “Remote Controller Setup”, and then press ENTER.

Use q/w to select “Remote Mode Setup”, and then press ENTER.

Use q/w to select a remote mode, and then press ENTER.The menu of category selection appears.

Use q/w to select a category, and then press ENTER.The panel for brand name input appears.

Use q/w/e/r to select a character, and then press ENTER.Repeat this step for the first three characters of the brand name.When you have entered the 3rd character, select “Search” and press ENTER.A list of brand names is retrieved.If the desired brand name is not found: Use r to select “Not Listed”, and then press ENTER.The panel for brand name input appears.

Use q/w to select a brand, and then press ENTER. A remote control code with its instructions are displayed. Follow the procedure.

If you can control the component, use q/w to select “OK”, and then press ENTER.The “Remote Mode Setup” menu appears. If you cannot control the component, use q/w to select “Try next code” and press ENTER.The next code is displayed. Entering Remote Control Codes

Look up the appropriate remote control code in the separate Remote Control Codes list.The codes are organized by category (e.g., DVD player, TV, etc.). While holding down the REMOTE MODE to which you want to assign a code, press and hold down DISPLAY (about 3 seconds).The remote indicator lights. Note

• Remote control codes cannot be entered for RECEIVER and ZONE 2.• Only TV remote control codes can be entered for TV.
• Except for RECEIVER, TV and ZONE 2, remote control codes from any category can be assigned to the REMOTE MODE. However, these buttons also work as input selector buttons (➔ page 22), so choose a REMOTE MODE that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code. Within 30 seconds, use the number buttons to enter the 5-digit remote control code.The remote indicator flashes twice.If the remote control code is not entered successfully, the remote indicator will flash once slowly.65

Onkyo components that are connected via u are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example. Controlling Onkyo components without u If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that’s not connected via u, use the following remote control codes: ` 30627: Onkyo DVD player without u ` 71817: Onkyo CD player without u ` 32900/33100/33500: Onkyo Blu-ray Disc player ` 32901/33104/33504: Onkyo HD DVD player ` 70868: Onkyo MD recorder without u ` 71323: Onkyo CD recorder without u ` 82990: Onkyo Dock without u You can reset a REMOTE MODE to its default remote control code. You can reset the remote controller to its default settings. By pressing the REMOTE MODE that’s been programmed with the remote control code for your component, you can control your component as described below. For details on entering a remote control code for other components, see “Entering Remote Control Codes” (➔ page 64). Controlling a TV TV is preprogrammed with the remote control code for controlling a TV that supports the p

(limited to some models). The TV must be able to receive remote control commands via p and be connected to the AV receiver via HDMI. If controlling your TV via p doesn’t work very well, program your TV’s remote control code into TV and use the TV remote mode to control your TV. Use the following remote control codes: ` 11807/13100/13500: TV with p Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder BD/DVD is preprogrammed with the remote control code for controlling a component that supports the p

(limited to some models). The component must be able to receive remote control commands via p and be connected to the AV receiver via HDMI. Use the following remote control codes: ` 32910/33101/33501/31612: Blu-ray Disc/DVD player with p

The p supported by the AV receiver is the CEC system control function of the HDMI standard. Remote Control Codes for Onkyo Components Connected via u

Make sure the Onkyo component is connected with an u cable and an analog audio cable (RCA). See “Connecting Onkyo u Components” for details (➔ page 19).

Enter the appropriate remote control code for REMOTE MODE, referring to the previous section. ` 42157: Onkyo cassette tape deck with u ` 81993: Onkyo Dock with u

Press REMOTE MODE, point the remote controller at the AV receiver, and operate the component. Resetting REMOTE MODE Buttons

While holding down REMOTE MODE that you want to reset, press and hold down HOME until the remote indicator lights (about 3 seconds).

Within 30 seconds, press REMOTE MODE again. The remote indicator flashes twice, indicating that the button has been reset. Each of REMOTE MODE is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored. Resetting the Remote Controller

While holding down RECEIVER, press and hold down HOME until the remote indicator lights (about 3 seconds).

Within 30 seconds, press RECEIVER again. The remote indicator flashes twice, indicating that the remote controller has been reset. Controlling Other Components66

• With some components, certain buttons may not work as expected, and some may not work at all. ✔: Available buttons

The p function is not supported. The p supported by the AV receiver is the CEC system control function of the HDMI standard.

These buttons function as colored buttons or A, B, C, D buttons.

3 (Pause) functions as reverse playback.

When you press 8SOURCE, the related component is turned on (or off). Note

• See the “Controlling Your iPod/iPhone” about the operation of iPod/iPhone (➔ page 62).

Press the appropriate REMOTE MODE first.

DVD player/DVD recorder Blu-ray Disc player HD DVD player VCR/PVR Satellite receiver Cable receiver CD player/CD recorder MD recorder Cassette tape deck a 8, INPUT, TV VOL q/w

Number: 1 to 9, 0 ✔✔ ✔✔✔ Number: +10

Appendix Troubleshooting If you have any trouble using the AV receiver, look for a solution in this section. If you can’t resolve the issue yourself, contact your Onkyo dealer. ■ Can’t turn on the AV receiver ■ The AV receiver turns off unexpectedly ■ When the power is restored after a power interruption, “CHECK SP WIRE” appears on the display ■ There’s no sound, or it’s very quiet If you can’t resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer. To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press 8ON/STANDBY. “Clear” will appear on the display and the AV receiver will enter standby mode. Note that resetting the AV receiver will delete your radio presets and custom settings. To reset the remote controller to its factory defaults, while holding down RECEIVER, press and hold down HOME until the remote indicator lights (about 3 seconds). Within 30 seconds, press RECEIVER again. The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings. Power Make sure that the power cord is properly plugged into the wall outlet. Unplug the power cord from the wall outlet, wait five seconds or more, then plug it in again. The AV receiver will automatically enter standby mode when Auto Standby has been set and launches.

HOME RECEIVER Remote indicatorThe protection circuit has been activated. Remove the power cord from the wall outlet immediately. Disconnect all speaker cables and input sources, and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord and set the volume to maximum. If the AV receiver stays on, set the volume to minimum, disconnect the power cord, and reconnect your speakers and input sources. If the AV receiver turns off when you set the volume to maximum, disconnect the power cord, and contact your Onkyo dealer.

Audio Make sure that the digital input source is selected properly. Make sure that all audio connecting plugs are pushed in all the way. Make sure that the inputs and outputs of all components are connected properly.16-19Make sure that the polarity of the speaker cables is correct, and that the bare wires are in contact with the metal part of each speaker terminal. Make sure that the input source is properly selected. 22Make sure that the speaker cables are not shorting. 13Check the volume. The AV receiver is designed for home theater enjoyment. It has a wide volume range, allowing precise adjustment.

If the MUTING indicator is flashing on the display, press the remote controller’s MUTING to unmute the AV receiver. While a pair of headphones is connected to the PHONES jack, no sound is output from the speakers. If there’s no sound from a DVD player connected to an HDMI IN, check the DVD player’s output settings, and be sure to select a supported audio format. Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off. With some DVD-Video discs, you need to select an audio output format from a menu. If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer. Make sure that none of the connecting cables are bent, twisted, or damaged. Not all listening modes use all speakers. 34Specify the speaker distances and adjust the individual speaker levels. Make sure that the speaker setup microphone is not still connected.

The input signal format is set to “PCM” or “DTS”. Set it to “Off”.

■ Only the front speakers produce sound ■ Only the center speaker produces sound ■ The surround speakers produce no sound ■ The center speaker produces no sound ■ The front high and surround back speakers produce no sound ■ The subwoofer produces no sound ■ There’s no sound with a certain signal format ■ Can’t get 6.1/7.1 playback ■ The speaker volume cannot be set as required ■ Noise can be heard ■ The Late Night function doesn’t work ■ About DTS signals ■ The beginning of audio received by an HDMI IN can’t be heard When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

Check the Speaker Configuration. 44 If you use the Dolby Pro Logic IIx Movie, Dolby Pro Logic IIx Music, or Dolby Pro Logic IIx Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.

In the Mono listening mode, only the center speaker output sound if the “Output Speaker” setting is set to “Center”.

Make sure the speakers are configured correctly. 44 When the T-D (Theater-Dimensional), Stereo or Mono listening mode is selected, the surround speakers produce no sound.

Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.

Make sure the speakers are configured correctly. 44 When the Stereo or Mono listening mode is selected, the center speaker produces no sound.

In the Mono listening mode, only the front speakers output sound if the “Output Speaker” setting is set to “Left / Right”.

Make sure the speakers are configured correctly. 44 Depending on the current listening mode, no sound may be produced by the front high and surround back speakers. Select another listening mode.

Depending on the sources, the sound produced by the front high and surround back speakers may be weak.

Make sure the speakers are configured correctly. 44 While the “Powered Zone 2” setting is set to “Yes”, playback in the main room is reduced to 5.1- channels and the front high and surround back speakers produce no sound.

When you play a source material that contains no information in the LFE channel, the subwoofer produces no sound.

Make sure the speakers are configured correctly. 44 Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an audio output format from a menu.

Depending on the input signal, some listening modes cannot be selected. 34–38 If no surround back speakers and front high speakers are connected, or the Zone 2 speakers are being used, 6.1/7.1 playback is not possible.

Depending on the number of connected speakers, it is not always possible to select all of the listening modes. 34–38 Check to see if a maximum volume has been set. 53 If the volume level of each individual speaker has been adjusted to high positive values, then the maximum master volume possible may be reduced. Note that the individual speaker volume levels are set automatically after the Audyssey 2EQ

Room Correction and Speaker Setup has been performed. 30, 44 Using cable ties to bundle audio cables with power cords, speaker cables, and the like may degrade the audio performance, so refrain from doing it.

An audio cable may be picking up interference. Try repositioning your cables.

Make sure the source material is Dolby Digital, Dolby Digital Plus, and Dolby TrueHD.

When DTS program material ends and the DTS bitstream stops, the AV receiver remains in DTS listening mode and the DTS indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the AV receiver does not switch formats immediately, you may not hear any sound, in which case you should stop your player for about three seconds, and then resume playback.

With some CD and LD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the AV receiver. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the AV receiver doesn’t recognize it as a genuine DTS signal. In such cases, you may hear noise.

Playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.

Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately. —69

■ There’s no picture ■ There’s no picture from a source connected to an HDMI IN ■ The on-screen menus don’t appear ■ The on screen display does not appear ■ Reception is noisy, FM stereo reception is noisy, or the FM STEREO indicator doesn’t light ■ The remote controller doesn’t work ■ Can’t control other components Video Make sure that all video connecting plugs are pushed in all the way.

Make sure that each video component is properly connected. 16, 17 If your TV is connected to the HDMI OUT, select “-----” in the “HDMI Input” setup to watch composite video, and component video sources.

If the video source is connected to a component video input, you must assign that input to an input selector, and your TV must be connected to either the HDMI OUT or COMPONENT VIDEO OUT. 17, 43 If the video source is connected to a composite video input, your TV must be connected to the HDMI OUT or the corresponding composite video output.

If the video source is connected to an HDMI input, you must assign that input to an input selector, and your TV must be connected to the HDMI OUT. 16, 42 On your TV, make sure that the video input to which the AV receiver is connected is selected.

Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.

When the resolution is set to any resolution not supported by the TV, no video is output from the HDMI outputs.

If the message “Resolution Error” appears on the AV receiver’s display, this indicates that your TV does not support the current video resolution and you need to select another resolution on your DVD player.

On your TV, make sure that the video input to which the AV receiver is connected is selected.

When the AV receiver is not connected to a TV via HDMI, onscreen menus are not displayed.

Depending on the input signal, the on screen display may not appear when the input signal from the HDMI IN is output to a device connected to the HDMI OUT.

Tuner Relocate your antenna. — Move the AV receiver away from your TV or computer.

Listen to the station in mono. 27 When listening to an AM station, operating the remote controller may cause noise.

Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. — If nothing improves the reception, install an outdoor antenna.

Remote Controller Before operating this unit, be sure to press RECEIVER.

Make sure that the batteries are installed with the correct polarity.

Install new batteries. Don’t mix different types of batteries, or old and new batteries.

Make sure that the remote controller is not too far away from the AV receiver, and that there’s no obstruction between the remote controller and the AV receiver’s remote control sensor.

Make sure that the AV receiver is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV receiver is installed in a rack or cabinet with colored-glass doors, the remote controller may not work reliably when the doors are closed.

Make sure you’ve selected the correct remote controller mode. 11, 65 When using the remote controller to control other manufacturers’ AV components, some buttons may not work as expected.

Make sure you’ve entered the correct remote control code.

Make sure to set the same ID on both the AV receiver and remote controller.

If it’s an Onkyo component, make sure that the u cable and analog audio cable are connected properly. Connecting only an u cable won’t be enough.

Make sure you’ve selected the correct remote controller mode. 11, 65 For a proper operation of the remote controller as a cassette tape deck is connected to the TV/CD IN jack, or as an RI Dock is connected to the TV/CD IN, VCR/DVR IN or GAME IN jacks, you must set the input display accordingly.

If you cannot operate it, you will need to enter the appropriate remote control code.

To control another manufacturer’s component, point the remote controller at that component.

To control an Onkyo component that’s connected via u, point the remote controller at the AV receiver. Be sure to enter the appropriate remote control code first.

To control an Onkyo component that’s not connected via u, point the remote controller at the component. Be sure to enter the appropriate remote control code first.

The entered remote control code may not be correct. If more than one code is listed, try each one. —70

■ There’s no sound ■ There’s no video ■ The AV receiver’s remote controller doesn’t control my iPod/iPhone ■ The AV receiver unexpectedly selects your iPod/iPhone as the input source ■ Can’t record ■ There’s no sound ■ The Zone 2 speakers produce no sound ■ Can’t access the server or Internet radio ■ Playback stops while listening to music files on the server ■ Can’t connect to the AV receiver from a Web browser UP-A1 Dock for iPod/iPhone Make sure your iPod/iPhone is actually playing. — Make sure your iPod/iPhone is properly inserted in the Dock.

Make sure the UP-A1 Dock is connected to the UNIVERSAL PORT jack on the AV receiver.

Make sure the AV receiver is turned on, the correct input source is selected, and the volume is turned up.

Make sure the plugs are pushed in all the way. — Try resetting your iPod/iPhone. — Make sure that your iPod/iPhone model’s TV OUT setting is set to On.

Make sure the correct input is selected on your TV or the AV receiver.

Some versions of the iPod/iPhone do not output video.

Make sure your iPod/iPhone is properly inserted in the Dock. If your iPod/iPhone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock.

The iPod/iPhone cannot be operated while it’s displaying the Apple logo.

Make sure you’ve selected the right remote mode. 22 When you use the AV receiver’s remote controller, point it toward your AV receiver.

When connecting the UP-A1 Dock to the radio tuner UP-HT1 (North American models)/UP-DT1 (European models) with AUTO selected with the tuner’s Mode Selector switch, you can switch the input source between the UP-A1 Dock and the tuner, by pressing PORT repeatedly on the front panel.

If you still can’t control your iPod/iPhone, start playback by pressing your iPod/iPhone model’s Play button. Remote operation should then be possible.

Try resetting your iPod/iPhone. — Depending on your iPod/iPhone, some buttons may not work as expected.

Always pause iPod/iPhone playback before selecting a different input source. If playback is not paused, the Direct Change function may select your iPod/iPhone as the input source by mistake during the transition between tracks.

Recording On your recorder, make sure the correct input is selected.

To prevent signal loops and damage to the AV receiver, input signals are not fed through to outputs with the same name (VCR/DVR IN to VCR/DVR OUT).

Zone 2 Only components connected to analog inputs can be played in Zone 2.

Zone 2 speakers can be used when the “Powered Zone 2” setting is set to “Yes”.

Music Server and Internet Radio Check the network connection between the AV receiver and your router or switch.

Make sure that your modem and router are properly connected, and make sure they are both turned on.

Make sure the server is up and running and compatible with the AV receiver. 73, 75 Check the “Network” settings. 56 Make sure your server is compatible with the AV receiver. 73, 75 If you download or copy large files on your computer, playback may be interrupted. Try closing any unused programs, use a more powerful computer, or use a dedicated server.

If the server is serving large music files to several networked devices simultaneously, the network may become overloaded and playback may be interrupted. Reduce the number of playback devices on the network, upgrade your network, or use a switch instead of a hub.

If you’re using DHCP, your router may not always allocate the same IP address to the AV receiver, so if you find that you can’t connect to a server or Internet radio station, recheck the AV receiver’s IP address on the “Network” screen.

Check the “Network” settings. 5671

■ Can’t access the music files on a USB device ■ Standby power consumption ■ The sound changes when I connect my headphones ■ The speaker distance cannot be set as required ■ How do I change the language of a multiplex source ■ The u functions don’t work ■ The functions System On/Auto Power On and Direct Change don’t work for components connected via u ■ When performing “Automatic Speaker Setup”, the measurement fails showing the message “Ambient noise is too high.” ■ The following settings can be made for the composite video inputs You must use the buttons on the unit to make these settings. On the AV receiver, press the input selector for the input source that you want to set and the SETUP button simultaneously. While holding down the input selector button, press SETUP until “Video ATT:On” appears on the display. Then, release both buttons. To reactivate the setting, repeat the above process so that “Video ATT:Off” appears on the display, and release the buttons.

• Video Attenuation This setting can be made for the BD/DVD, VCR/DVR, CBL/SAT, GAME or AUX input. If you have a game console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain. Video ATT:Off: (default). Video ATT:On: Gain is reduced by 2 dB. ■ If the picture on your TV/monitor connected to HDMI OUT is unstable, try switching the DeepColor function off To turn off the DeepColor function, simultaneously press the CBL/SAT and 8ON/STANDBY buttons on the AV receiver. While holding down CBL/SAT, press 8ON/STANDBY until “Off” appears on the display. Then, release both buttons. To reactivate the DeepColor function, repeat the above process until “On” appears on the display and release the buttons. USB Device Playback Make sure the USB device is plugged in properly. — The AV receiver supports USB devices that support the USB mass storage device class. However, playback may not be possible with some USB devices even if they conform to the USB mass storage device class.

USB memory devices with security functions cannot be played.

Others In the following cases, the power consumption in standby mode may reach up to a maximum of 37 W: – You are using the Universal Port jack. –“Network Control” is set to “Enable” in the “Network” setting. –“HDMI Control(RIHD)” setting is set to “On”. (Depending on the TV status, the AV receiver will enter standby mode as usual.) –The “HDMI Through” setting is set to other than “Off”. 17, 54, 55, 56 When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono or Direct.

In some cases, corrected values suitable for home theater use may be set automatically.

Use the “Multiplex” setting on the “Audio Adjust” menu to select “Main” or “Sub”.

To use u, you must make an u connection and an analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally.

These functions don’t work when Zone 2 is turned on.

This can be caused by a malfunction in your speaker unit. Check if the unit produces normal sounds.

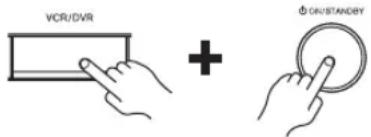

The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in. Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly. Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.72

The AV receiver can upconvert component video and composite video sources for display on a TV connected to the HDMI OUT. However, if the picture quality of the source is poor, upconversion may make the picture worse or disappear altogether. In this case, try the following: Important Note Regarding Video Playback

If the video source is connected to a component video input, connect your TV to the COMPONENT VIDEO OUT. If the video source is connected to a composite video input, connect your TV to the MONITOR OUT V.

On the main menu, select “Input/Output Assign”, and then select “Component Video Input” (➔ page 43). If the video source is connected to COMPONENT VIDEO IN 1, select the relevant input selector, and assign it to “IN1”. If the video source is connected to COMPONENT VIDEO IN 2, select the relevant input selector, and assign it to “IN2”. If the video source is connected to a composite video input, select the relevant input selector, and assign it to “-----”.73

Network/USB Features The following diagram shows how you can connect the AV receiver to your home network. In this example, it’s connected to a LAN port on a router, which has a 4-port 100Base-TX switch built-in. ■ Ethernet Network For the best results, a 100Base-TX switched Ethernet network is recommended. Although it’s possible to play music on a computer that’s connected to the network wirelessly, playback may be unreliable, so it is recommended to use wired connections. ■ Ethernet Router A router manages the network, data-routing and supplying of IP addresses. Your router must support the following:

• NAT (Network Address Translation). NAT allows several networked computers to access the Internet simultaneously via a single Internet connection. The AV receiver needs Internet access for Internet radio.

• DHCP (Dynamic Host Configuration Protocol). DHCP supplies IP addresses to the network devices, allowing them to configure themselves automatically.

• A router with a built-in 100Base-TX switch is recommended. Some routers have a built-in modem, and some ISPs require you to use specific routers. Please consult your ISP or computer dealer if you’re unsure. ■ CAT5 Ethernet cable Use a shielded CAT5 Ethernet cable (straight-type) to connect the AV receiver to your home network. ■ Internet Access (for Internet radio) To receive Internet radio, your Ethernet network must have Internet access. A narrowband Internet connection (e.g., 56K modem, ISDN) will not provide satisfactory results, so a broadband connection is strongly recommended (e.g., cable modem, xDSL modem, etc). Please consult your ISP or computer dealer if you’re unsure. Note
• To receive Internet radio with the AV receiver, your broadband Internet connection must be working and able to access the Web. Consult your ISP if you have any problems with your Internet connection.• The AV receiver uses DHCP to configure its network settings automatically. If you want to configure these settings manually, see “Network” (➔ page 56).
• The AV receiver does not support PPPoE settings, so if you have a PPPoE-type Internet connection, you must use a PPPoE-compatible router.• Depending on your ISP, you may need to specify a proxy server to use Internet radio. If your computer is configured to use a proxy server, use the same settings for the AV receiver (➔ page 56). Connecting to the Network WAN LAN ModemRouterComputer or media serverInternet radio Network Requirements74

■ Server playback The AV receiver can play digital music files stored on a computer or media server and supports the following technologies:

• DLNA-certified media server If the operating system of your computer is Windows Vista, Windows Media Player 11 is already installed. Windows Media Player 11 for Windows XP can be downloaded for free from the Microsoft web site.

• The computer or media server must be on the same network as the AV receiver.

• Each folder may contain up to 20000 music files, and folders may be nested up to 16 levels deep. Note

• Depending on the media server, the AV receiver may not recognize it, or may not be able to play its music files. ■ Remote playback

• Windows Media Player 12

• DLNA-certified (within DLNA Interoperability Guidelines version 1.5) media server or controller device. Setting varies depending on the device. Refer to your device’s instruction manual for details. If the operating system of your personal computer is Windows 7, Windows Media Player 12 is already installed. For more information, see the Microsoft web site.

• USB mass storage device class (but not always guaranteed).

• FAT16 or FAT32 file system format.

• If the storage device has been partitioned, each section will be treated as an independent device.

• Each folder may contain up to 20,000 music files and folders, and folders may be nested up to 16 levels deep.

• USB hubs and USB devices with hub functions are not supported. Note

• If the media you connect is not supported, the message “No Storage” will appear on the display.

• If you connect a USB hard disk drive to the AV receiver’s USB port, we recommend that you use its AC adapter to power it.

• The AV receiver supports USB MP3 players that support the USB Mass Storage Class standard, which allows USB devices to be connected to computers without the need for special drivers or software. Note that not all USB MP3 players support the USB Mass Storage Class standard. Refer to your USB MP3 player’s instruction manual for details.

• Protected WMA music files on an MP3 player cannot be played.

• Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB device when that device is used with the AV receiver. We recommend that you back up your important music files beforehand.

• MP3 players containing music files that are managed with special music software are not supported.

• Operation is not guaranteed for all USB devices, which includes the ability to power them.

• Do not connect your USB device via a USB hub. The USB device must be connected directly to the AV receiver’s USB port.

• If the USB device contains a lot of data, the AV receiver may take a while to read it.

For server playback and playback from a USB device, the AV receiver supports the following music file formats. Variable bit-rate (VBR) files are supported. However, playback time may not be display correctly. Note

• With remote playback, the AV receiver does not support the following music file formats: FLAC and Ogg Vorbis.

• In the case of server playback, the below-mentioned file formats may not be played depending on the server type. ■ MP3 (.mp3 or .MP3)

• MP3 files must be MPEG-1/MPEG-2 Audio Layer 3 format with a sampling rate of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and bitrates of between 8 kbps and 320 kbps. Incompatible files cannot be played. ■ WMA (.wma or .WMA) WMA stands for Windows Media Audio and is an audio compression technology developed by Microsoft Corporation. Audio can be encoded in WMA format by using Windows Media

• WMA files must have the copyright option turned off.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, bitrates

of between 5 kbps and 320 kbps, and WMA DRM are supported.

• WMA Pro/Voice formats are not supported. ■ WMA Lossless (.wma or .WMA)

• Sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz are supported.

• Quantization bit: 16 bit, 24 bit ■ WAV (.wav or .WAV) WAV files contain uncompressed PCM digital audio.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported.

• Quantization bit: 8 bit, 16 bit, 24 bit ■ AAC (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/ .3GP or .3G2) AAC stands for MPEG-2/MPEG-4 Audio.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, 96 kHz and bitrates of between 8 kbps and

320 kbps are supported. ■ FLAC (.flac or .FLAC) FLAC is a file format for lossless audio data compression.

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported.

• Quantization bit: 8 bit, 16 bit, 24 bit ■ Ogg Vorbis (.ogg or .OGG)

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and

bitrates of between 48 kbps and 500 kbps are supported. Incompatible files cannot be played. ■ LPCM (Linear PCM)

• Sampling rates of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,

22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz,

88.2 kHz, and 96 kHz are supported.

• Quantization bit: 8 bit, 16 bit, 24 bit

Only for playback via network. The Digital Living Network Alliance is an international, cross-industry collaboration. Members of DLNA develop a concept of wired and wireless interoperable networks where digital content such as photos, music, and videos can be shared through consumer electronics, personal computers, and mobile devices in and beyond the home. The AV receiver complies with the DLNA Interoperability Guidelines version 1.5. Supported Audio File Formats About DLNA76

Firmware Update To update the firmware of the AV receiver, you can choose from the following two methods: update via network, or update via USB storage. Choose the one that best suits your environment. Before proceeding with the update, please read the corresponding explanations carefully. ■ Update via network You need a wired Internet connection to update the firmware. ■ Update via USB storage (➔ page 77) Please prepare a USB storage device such as a USB flash memory stick. You need at least 32 MB of available space to update the firmware. Note

• Check the network connection before updating.• Do not touch the any cable or device connected to the AV receiver during the update process.• Do not attempt to access the AV receiver from your PC while it is being updated.• Do not shutdown the power of the AV receiver while it is being updated.• The storage media in the USB card reader may not work.• If the USB device is partitioned, each section will be treated as an independent device.• If the USB device contains a lot of data, the AV receiver may take a while to read it.• Operation is not guaranteed for all USB devices, which includes the ability to power them.• Onkyo takes no responsibility whatsoever for the loss or damage of data resulting from the use of a USB device with the AV receiver. Onkyo recommends that you back up your important music files beforehand.• If you connect a USB hard disk drive to the USB port, Onkyo recommends that you use its AC adapter to power it.• USB hubs and USB devices with hub functions are not supported. Do not connect your USB device via a USB hub.• USB devices with security functions are not supported. The AV receiver allows you to update the firmware using network connection on the rear panel. Note
• Make sure your AV receiver and TV are turned on and an Ethernet cable is connected to the rear panel of the AV receiver.• Never unplug or turn off the AV receiver while it is being updated.• Never plug or unplug an HDMI or Ethernet cable during the update process.• Do not attempt to access the AV receiver from your PC while it is being updated.• Never unplug the power cord during the update process.• It takes maximum 60 minutes to complete the firmware update.• The AV receiver will retain all your settings after the update is finished. Before you start

• Set the “HDMI Control(RIHD)” setting to “Off” (➔ page 54).

• Turn off the controller device connected via Ethernet cable.

• Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc. Update procedure Limitation of liability The program and accompanying online documentation are furnished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever. See the Onkyo web site for latest information. Updating the Firmware via Network

Press RECEIVER followed by SETUP on the remote controller. The Setup menu will be displayed on the TV screen. The procedures thereafter can also be performed on the AV receiver by using its SETUP, arrow and ENTER buttons.

Select “Hardware Setup” and press ENTER.

Select “Firmware Update” and press ENTER. Note that the “Firmware Update” option will be grayed out for a short while after the AV receiver is turned on. Please wait until it becomes operable.

Select “Update” and press ENTER. The update process will begin. During the update process, the on-screen display may disappear depending on the updated program. When this occurs, you can still view the update progress on the front display of the AV receiver. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again.

The message “Completed!” appears on the front display of the AV receiver, indicating that the update has been completed.77

Troubleshooting Case 1: If “No Update” is displayed on the front display of the AV receiver, it means that the firmware has already been updated. You do not need to do anything further. Case 2: If an error occurs, “Error!! *-** No media” is displayed on the front display of the AV receiver. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action. ■ Errors during an update via network Case 3: If an error occurs during the update process, disconnect then reconnect the AC power cord and try again. Case 4: If an error occurs due to a wrong selection of input sources, turn off and on the AV receiver. Then retry the update. Case 5: If you do not have an Internet connection, please contact Onkyo Support (➔ page 78). The AV receiver allows you to update the firmware using a USB device. Note

• Never unplug or turn off the AV receiver during the update process.

• Never plug or unplug an HDMI cable or a USB device during the update process.

• Never unplug the USB storage device containing the firmware file or the AC power cord during the update process.

• Do not attempt to access the AV receiver from your PC while it is being updated.

• It takes maximum 60 minutes to complete the firmware update.

• The AV receiver will retain all your settings after the update is finished. Before you start

• Set the “HDMI Control(RIHD)” setting to “Off” (➔ page 54).

• Turn off the controller device connected via Ethernet cable.

• Stop playback of contents from Internet Radio, iPod/iPhone, USB or servers, etc.

• If there is any data in the USB device, remove it first. Update procedure

Using 8ON/STANDBY on the front panel, turn off and on the AV receiver. Do not use 8RECEIVER on the remote controller. Congratulations! You now have the latest firmware installed on your Onkyo AV receiver. Error Code Description

The Ethernet cable was not detected. Reconnect the cable properly.

Internet connection error. Check the following items:

• Make sure the IP address, subnet mask, gateway address, and DNS server are configured properly.

• Make sure the router is turned on.

• Make sure the AV receiver and the router are connected with an Ethernet cable.

• Make sure your router is configured properly. See the instruction manual of the router.

• If your network allows only one client connection and there is any other device already connected, the AV receiver will not be able to access the network. Consult your Internet Service Provider (ISP).

• If your modem does not function as a router, you will need a router. Depending on your network, you may need to configure the proxy server if necessary. See the document provided by your ISP. If you are still unable to access the Internet, the DNS or proxy server may be temporarily down. Contact your ISP. Others Retry the update procedure from the beginning. If the error persists, please contact Onkyo Support (➔ page 78) and provide the error code. Updating the Firmware via USB

Connect a USB device to your PC. If there is any data in the USB device, remove it first.

Download the firmware file from the Onkyo web site. The file name is as follows: ONKAVR****_************.zip Unzip the downloaded file. The following three files are created: ONKAVR****_************.of1 ONKAVR****_************.of2 ONKAVR****_************.of3

Copy the extracted files to the USB device. Be careful not to copy the zip file.

Remove the USB device from your PC and connect it to the USB port on the AV receiver.

Make sure the AV receiver and TV are turned on. If the AV receiver is in standby mode, press 8ON/STANDBY on the AV receiver to light up the front display.

Select the USB input source. “Now Initializing” is displayed on the front display and then the name of the USB device is displayed. It takes 20 to 30 seconds to recognize the USB device.

Press RECEIVER followed by SETUP on the remote controller. The setup menu will be displayed on the TV screen. The procedures thereafter can also be performed on the AV receiver by using its SETUP, arrow and ENTER buttons.78

Troubleshooting Case 1: If “No Update” is displayed on the front display of the AV receiver, it means that the firmware has already been updated. You do not need to do anything further. Case 2: If an error occurs, “Error!! *-** No media” is displayed on the front display of the AV receiver. (Alpha-numeric characters on the front display are denoted by asterisks.) Refer to the following table and take appropriate action. ■ Errors during an update via USB Case 3: If an error occurs during the update, disconnect then reconnect the AC power cord and try again. Case 4: If an error occurs due to a wrong selection of input sources, turn off and on the AV receiver. Then retry the update.

Select “Hardware Setup” and press ENTER.

Select “Firmware Update” and press ENTER.

Select “Update” and press ENTER. The update process will begin. During the update process, the on-screen display may disappear depending on the updated program. When this occurs, you can still view the update progress on the front display of the AV receiver. The on-screen display will reappear after the update is complete, and upon turning the AV receiver off and on again. Do not turn off the AV receiver and do not remove the USB device during the update process.

The message “Completed!” appears on the front display of the AV receiver, indicating that the update has been completed.

Using 8ON/STANDBY on the front panel, turn off the AV receiver and then remove the USB device. Do not use 8RECEIVER on the remote controller. Congratulations! You now have the latest firmware installed on your Onkyo AV receiver. Error Code Description

The USB device was not detected. Make sure the USB flash memory or USB cable is properly connected to the USB port. If the USB storage device has its own power supply, use it to power the USB device.

The firmware file was not found in the root folder of the USB device, or the firmware file is for another model. Retry and download the file on the support page of the web site, following the on-site instructions. If the error persists, please contact Onkyo Support and provide the error code. Others Retry the update procedure from the beginning. If the error persists, please contact Onkyo Support and provide the error code.

Connection Tips and Video Signal Path The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide. Video component can be connected by using any one of the following video connection formats: composite video, PC IN (Analog RGB), component video or HDMI, the latter offering the best picture quality. Video input signals flow through the AV receiver as shown, with composite video, PC IN (Analog RGB) and component video sources all being upconverted for the HDMI output. The composite video and component video outputs carry their respective input signals as they are. When you connect a video component to an HDMI or COMPONENT input, you must assign that input to an input selector (➔ page 42). Tip

• For optimal video performance, THX recommends that video signals pass through the system without upconversion (e.g., component video input passing through to component video output). ■ Signal Selection If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, component video, composite video. However, for component video only, regardless of whether a component video signal is actually present, if a component video input is assigned to the input selector, that component video input will be selected. And if no component video input is assigned to the input selector, this will be interpreted as no component video signal being present. In the Signal Selection Example shown on the right, video signals are present at both the HDMI and composite video inputs. However, the HDMI signal is automatically selected as the source and the video is output by the HDMI output. The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings. Video Connection Formats

Audio components can be connected by using any of the following audio connection formats: analog, optical, coaxial, or HDMI. When choosing a connection format, bear in mind that the AV receiver does not convert digital input signals for analog line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog VCR/DVR OUT. If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog. Audio Connection Formats

Blu-ray Disc/DVD player, etc.AV receiverTV, projector, etc.HDMICoaxial AnalogAudio Signal Flow ChartHDMI AnalogOptical

Depends on the “Audio TV Out” setting (➔ page 55).

This is possible when “Audio Return Channel” is set to “Auto” (➔ page 55), the TV/CD input selector is selected, and your TV is ARC capable.81

About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM). The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)

, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) The AV receiver uses HDCP (High-bandwidth Digital Content Protection)

• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)

• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)

• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio) Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats. The AV receiver supports HDCP (High-bandwidth Digital Content Protection)

, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to protect video content and requires a HDCP-compatible device to display the encrypted video.

DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high- performance PCs and digital displays. Note

• The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

• The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details. The AV receiver’s HDMI interface is based on the following: Audio Return Channel, 3D, x.v.Color, DeepColor, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM. Supported Audio Formats About Copyright Protection82

Using an RIHD-compatible TV, Player, or Recorder p, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with components other than p-compatible components cannot be guaranteed. The following components are p-compatible (as of January 2011). ■ TV

• Toshiba REGZA-LINK compatible TV

• Sharp TV ■ Players/Recorders

• Onkyo and Integra p-compatible players

• Toshiba REGZA-LINK compatible players and recorders (only when used together with Toshiba REGZA-LINK compatible TV)

• Sharp players and recorders (only when used together with Sharp TV)

Models other than those mentioned above may have some interoperability if compatible with CEC, which is part of the HDMI Standard, but operation cannot be guaranteed. Note

• For proper linked operations, do not connect more p- compatible components than the quantities specified below, to the HDMI input terminal. – Blu-ray Disc/DVD players: up to three. – Blu-ray Disc/DVD recorders/Digital Video Recorders: up to three. – Cable/Satellite Set-top boxes: up to four.

• Do not connect the AV receiver to the other AV receiver/AV amplifier via HDMI.

• Proper linked operations are not guaranteed when more p-compatible components than the above-mentioned quantities are connected. ■ For p-compatible TV The following linked operations are enabled by connecting the AV receiver to an p-compatible TV.

• The AV receiver will enter standby mode when the power of the TV is turned to standby.

• You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV receiver, or from the speakers of the TV.

• It is possible to output the video/audio coming from the antenna or from the input jack of the TV from the speakers connected to the AV receiver. (A connection such as optical digital cable or similar is required above the HDMI cable.)

• Input to the AV receiver can be selected with the remote controller of the TV.

• Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV. ■ For p-compatible players/recorders The following linked operations are enabled by connecting the AV receiver to an p-compatible player/recorder.

• When the playback is started on the player/recorder, input of the AV receiver will switch to the HDMI input of the player/recorder that is playing back.

• Operation of the player/recorder is possible using the remote controller supplied with the AV receiver.

Depending on the model used, not all operations may be available. About p-compatible components Operations that can be performed with p connection83

■ How to connect and setup

Confirm the connecting and setting.

2. Connect the audio output from the TV to the

OPTICAL IN 2 jack of the AV receiver using an optical digital cable. Note

• When the audio return channel (ARC) function is used with an ARC capable TV, this connection is not necessary (➔ page 55).

3. Connect the HDMI output of the Blu-ray

Disc/DVD player/recorder to the HDMI IN 1 jack of the AV receiver. Note

• It is necessary to assign the HDMI input when connecting the Blu-ray Disc/DVD player/recorder to other jacks (➔ page 42). Do not assign the components connected to the HDMI IN to the TV/CD input at this time. Appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.

Change each item in the “HDMI” menu according to the following settings:

• HDMI Control(RIHD): On

• Audio Return Channel (ARC): Auto See details of each setting (➔ pages 54, 55). Blu-ray Disc/DVD player, etc. AV receiver TV, projector, etc. DIGITAL AUDIO connection (OPTICAL) HDMI connection HDMI connection

Confirm the settings.

1. Turn on the power for all connected components.

2. Turn off the power of the TV, and confirm that

the power of the connected components is turned off automatically with the link operation.

3. Turn on the power of the Blu-ray Disc/DVD

player/recorder, and verify the following.

• The AV receiver automatically turns on, and selects the input to which the Blu-ray Disc/DVD player/recorder is connected.

• The TV automatically turns on, and selects the input to which the AV receiver is connected.

5. Following the operating instructions of the TV,

select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.

6. Select “Use the speakers connected from the AV

receiver” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers. Note

• Perform the above operations when you use the AV receiver for the first time, when the settings of each component are changed, when the main power of each component is turned off, when the power cable is disconnected from the power supply, or when there has been a power outage.

Operate with the remote controller. For buttons that can be operated (➔ page 65). Note

• Audio from DVD-Audio or Super Audio CD may not output from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)

• Even if you set to output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, re- do the operations on the TV.

• In case of an p connection with u and u audio control compatible components, do not connect the RI cable at the same time.

• On the TV, when you select anything other than the HDMI jack to which the AV receiver is connected, the input on the AV receiver will be switched to “TV/CD”.

• The AV receiver will automatically power on in conjunction when it determines it to be necessary. Even if the AV receiver is connected to an p compatible TV or player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set to output audio from the TV.

• Linked functions with the AV receiver may not work depending on the component model connected. In such cases, operate the AV receiver directly.84

Specifications Amplifier Section Video Section Tuner Section General ■ HDMI ■ Video Inputs ■ Video Outputs ■ Audio Inputs ■ Audio Outputs ■ Others Specifications and features are subject to change without notice. Rated Output Power All channels: (North American) 80 watts minimum continuous power per channel, 8 ohm loads, 2 channels driven from 20 Hz to 20 kHz, with a maximum total harmonic distortion of 0.7% (FTC) 130 watts minimum continuous power per channel, 6 ohm loads, 1 channels driven at 1 kHz, with a maximum total harmonic distortion of 1% (FTC) 110 watts minimum continuous power per channel, 6 ohm loads, 2 channels driven at 1 kHz, with a maximum total harmonic distortion of 0.9% (FTC) (European) 7 ch × 130 W at 6 ohms, 1 kHz, 1 ch driven of 1 % (IEC) Dynamic Power

1 Vp-p/75 Ω (Composite) Component Video Frequency Response 5 Hz - 100 MHz/+0 dB, -3 dB FM Tuning Frequency Range (North American)

87.5 MHz - 107.9 MHz

87.5 MHz - 108.0 MHz, RDS

AM Tuning Frequency Range 522/530 kHz - 1611/1710 kHz Preset Channel 40 Power Supply (North American) AC 120 V, 60 Hz (European) AC 230 V, 50 Hz Power Consumption (North American) 4.5 A (European) 460 W No-sound power consumption 55 W Stand-by Power Consumption (North American)

Dimensions (W × H × D) 435 mm × 173.5 mm × 328 mm 17-1/8" × 6-13/16" × 12-15/16" Weight (North American)

Video Resolution Chart The following tables show how video signals at different resolutions are output by the AV receiver. NTSC/PAL ✔: Output

Available resolutions: [3840 × 2160 24/25/30 Hz] HDMI

Component Composite 1080p 1080i 720p 480p/576p 480i/576i 480i/576i HDMI 1080p 1080i 720p 480p/576p 480i/576i Component 1080p ✔ 1080i ✔ 720p ✔ 480p/576p ✔ 480i/576i ✔ Composite 480i/576i ✔ PC IN (Analog RGB)

Composantes Composite 1080p 1080i 720p 480p/576p 480i/576i 480i/576i HDMI 1080p 1080i 720p 480p/576p 480i/576i Composantes 1080p ✔ 1080i ✔ 720p ✔ 480p/576p ✔ 480i/576i ✔ Composite 480i/576i ✔ PC IN (RVB analogique)
