USER MANUAL MIC101 THOMSON

Durant la lecture, presser successivement REPEAT:

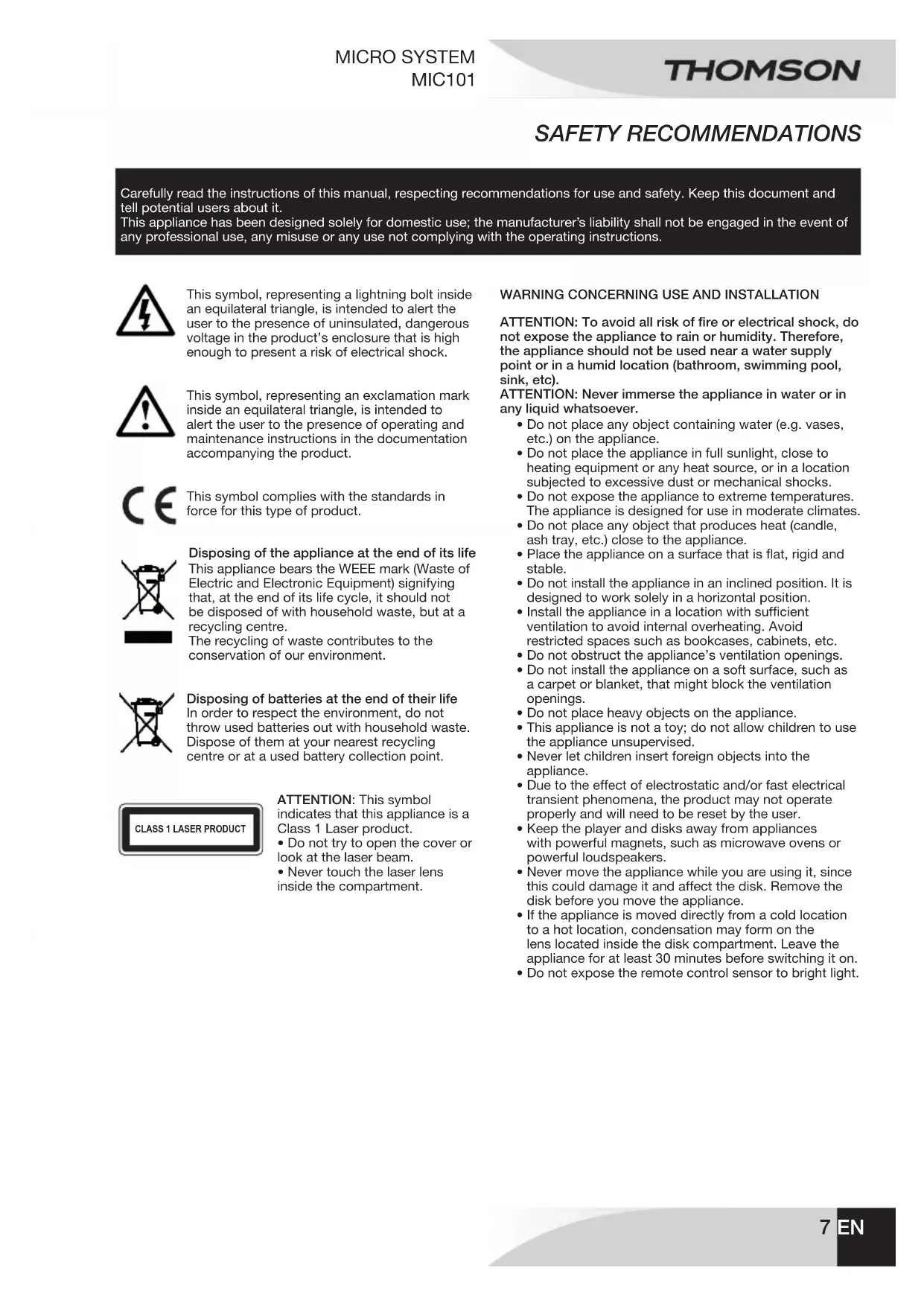

Carefully read the instructions of this manual, respecting recommendations for use and safety. Keep this document and tell potential users about it. This appliance has been designed solely for domestic use; the manufacturer's liability shall not be engaged in the event of any professional use, any misuse or any use not complying with the operating instructions.

This symbol, representing a lightning bolt inside an equilateral triangle, is intended to alert the user to the presence of uninsulated, dangerous voltage in the product's enclosure that is high enough to present a risk of electrical shock.

This symbol, representing an exclamation mark inside an equilateral triangle, is intended to alert the user to the presence of operating and maintenance instructions in the documentation accompanying the product.

This symbol complies with the standards in force for this type of product.

Disposing of the appliance at the end of its life This appliance bears the WEEE mark (Waste of Electric and Electronic Equipment) signifying that, at the end of its life cycle, it should not be disposed of with household waste, but at a recycling centre. The recycling of waste contributes to the conservation of our environment.

Disposing of batteries at the end of their life In order to respect the environment, do not throw used batteries out with household waste. Dispose of them at your nearest recycling centre or at a used battery collection point.

ATTENTION: This symbol indicates that this appliance is a Class 1 Laser product.

• Do not try to open the cover or look at the laser beam.

• Never touch the laser lens inside the compartment.

WARNING CONCERNING USE AND INSTALLATION

ATTENTION: To avoid all risk of fire or electrical shock, do not expose the appliance to rain or humidity. Therefore, the appliance should not be used near a water supply point or in a humid location (bathroom, swimming pool, sink, etc).

ATTENTION: Never immerse the appliance in water or in any liquid whatsoever.

• Do not place any object containing water (e.g. vases, etc.) on the appliance.
• Do not place the appliance in full sunlight, close to heating equipment or any heat source, or in a location subjected to excessive dust or mechanical shocks.
• Do not expose the appliance to extreme temperatures. The appliance is designed for use in moderate climates.
• Do not place any object that produces heat (candle, ash tray, etc.) close to the appliance.
• Place the appliance on a surface that is flat, rigid and stable.
• Do not install the appliance in an inclined position. It is designed to work solely in a horizontal position.
• Install the appliance in a location with sufficient ventilation to avoid internal overheating. Avoid restricted spaces such as bookcases, cabinets, etc.
• Do not obstruct the appliance's ventilation openings.
• Do not install the appliance on a soft surface, such as a carpet or blanket, that might block the ventilation openings.
• Do not place heavy objects on the appliance.
• This appliance is not a toy; do not allow children to use the appliance unsupervised.
• Never let children insert foreign objects into the appliance.
• Due to the effect of electrostatic and/or fast electrical transient phenomena, the product may not operate properly and will need to be reset by the user.
• Keep the player and disks away from appliances with powerful magnets, such as microwave ovens or powerful loudspeakers.
• Never move the appliance while you are using it, since this could damage it and affect the disk. Remove the disk before you move the appliance.
• If the appliance is moved directly from a cold location to a hot location, condensation may form on the lens located inside the disk compartment. Leave the appliance for at least 30 minutes before switching it on.
• Do not expose the remote control sensor to bright light.

SAFETY RECOMMENDATIONS

DESCRIPTION OF CONTROLS AND THE REMOTE CONTROL

INFORMATION ABOUT BATTERIES

• The appliance must be equipped with the appropriate batteries in order to function properly.
• Only recommended batteries should be used.
• Polarity must be respected when inserting batteries.
• The batteries should be inserted in such a way as to avoid any short circuit.
• Do not mix used and new batteries.
• Do not mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
• Do not recharge or try to open the batteries. Do not throw the batteries in fire.
• Replace all batteries at the same time with new, identical batteries.
• Remove the batteries when unused for a long time.
• If the liquid contained in the batteries comes in contact with eyes or skin, wash the area immediately and carefully with clear water and consult a doctor.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

ATTENTION: Danger of explosion if batteries are not inserted correctly.

ABOUT THE DISKS

Handling

Do not touch the playback side of disks. Hold disks by the edges to avoid leaving fingerprints on the surface.

Any dust, fingerprints or scratches may cause a malfunction.

Never attach a label or sticky tape to the disk.

Storage

Put disks back in their case after playing them. Never expose disks to direct sunlight or heat sources. Never leave disks inside a car parked in full sunlight.

Cleaning

Use a clean soft lint-free cloth to clean the disk, working from the centre outwards in a straight line. Do not use solvents such as petrol, thiners, commercially available cleaners or antistatic sprays for vinyl disks.

Insertion (lithium battery)

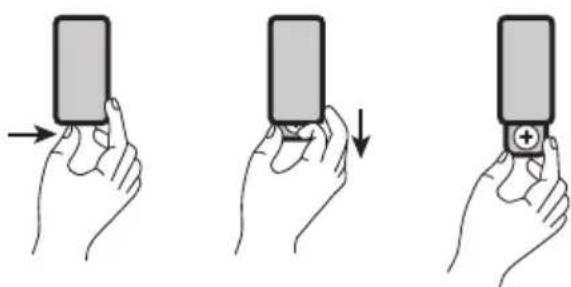

Replacing the button battery

The battery usually lasts for about 1 year.

Replace the battery if the remote control does not operate the appliance in normal use.

Button battery (lithium battery)

• Grip the battery compartment on the back of the remote control, then pull the strip to lift the battery holder up.
• Insert 1 CR.2025 3V lithium mini battery, taking care to respect the polarity indicated.
• Close the battery compartment.

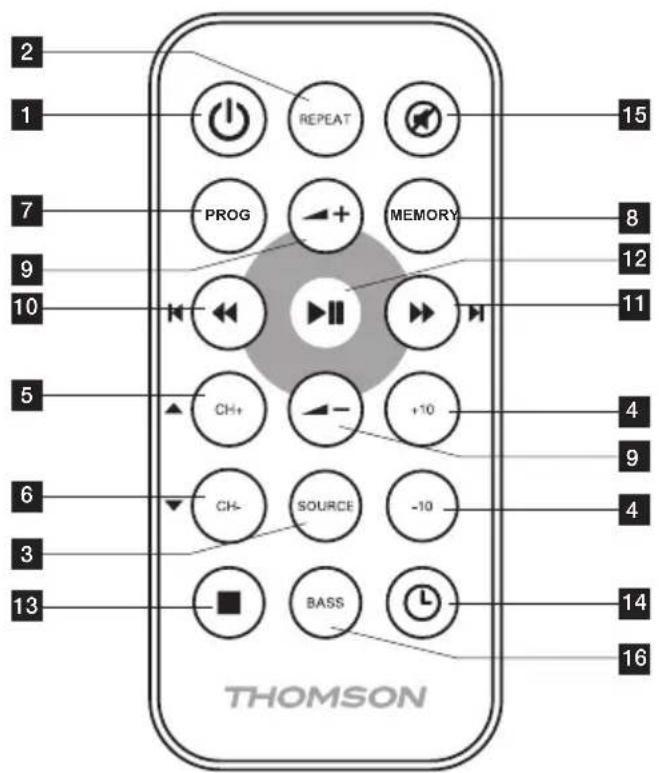

DESCRIPTION OF CONTROLS AND THE REMOTE CONTROL

1	O	On / Off
2	REPEAT	OFF, REPEAT ONE, REPEAT ALL, RANDOM
3	SOURCE	Mode selector (TUNER / CD / USB/ AUX IN)
4	-10/+10	During CD/USB mode: press to skip 10 songs forward or backward.
5	CH+	preselection / file +
6	CH-	preselection / file -
7	PROG	CD and radio programme
8	MEMORY	memorisation
9	A-	volume adjustment
10	K/k/k/k	previous track / Scan - radio frequency search -
11	H/H/H	next track / Scan - radio frequency search +
12	II	play/pause
13	■	stops play
14	○	sets the time
15	⊗	deactivates / reactivates the sound
16	BASS	bass boost
17		Infrared sensor
A	USB	USB port
B	▲	opens and closes the CD compartment
C		On / Off indicator light
D		Headphone socket
E	AUX IN	socket for auxiliary device
F		LED screen

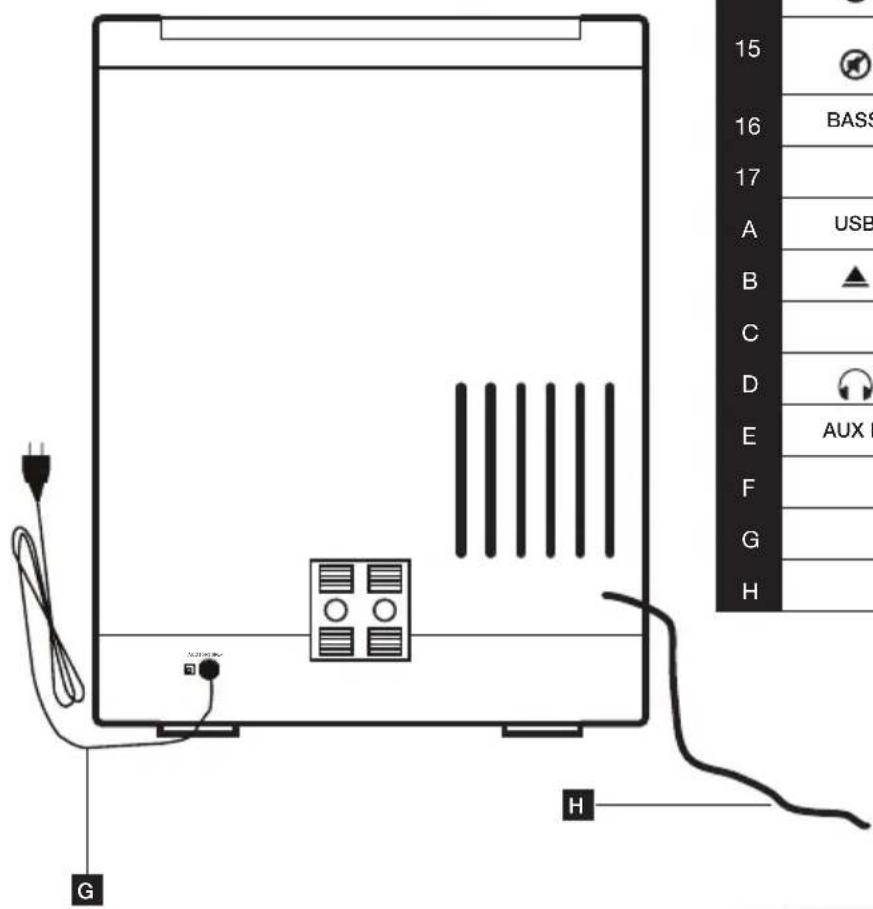

G		Power cable
H		FM wire aerial

USING

POWER SUPPLY

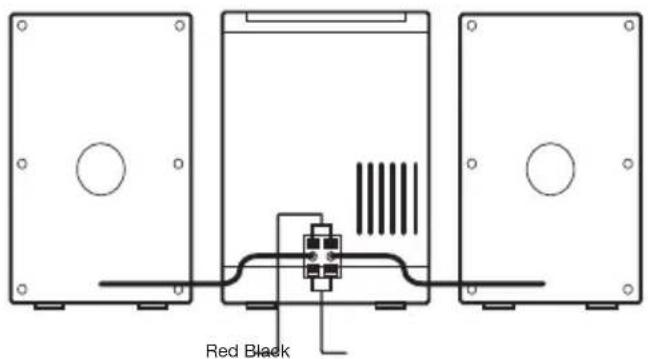

Speaker connection

• Unfurl the load speaker wires and connect them to the corresponding terminals.

USING THE APPLIANCE

• Press once of the device or twice on the remote to turn the appliance on: the indicator light (C) turns off.
• Press button to turn the appliance to stand-by mode: the indicator light (C) turns on.

COMMENTS CONCERNING TACTILE KEYS

Tactile keys react to touch under normal conditions. They do not react to greasy or wet fingers. Always clean and dry the surface with a soft cloth. Do not use a damp cloth or an aggressive detergent.

TIME SETTING

In Off mode:

• Press PROG/MEM of the device or on the remote.
• Press keys and to switch between 12 or 24-hour display.
• Press on the PROG/MEM of the device or on the remote: the display flashes.
• Set the time using the keys and . PROG/MEM of the device or on the remote to confirm.
• Repeat the previous operation to set the minutes.

USING THE RADIO

• Turn the appliance on and press SOURCE to select the « FM » function.
• Tune the radio to the desired station using keys and : the frequency is displayed on the LED screen.
• Press and hold the key to scroll through frequencies, then release to trigger automatically on the nearest station received.
  To turn the radio off, press the button.

Note: For improved reception, unfurl the FM wire aerial (H) located at the rear of the appliance.

PROGRAMMING RADIO STATIONS

Manual programming:

• Select a station to be saved.
• Press PROG/MEM of the device or MEMORY on the remote: program mode (P-01) is displayed.
• Press and keys top select a number.
• Press PROG/MEM of the device or MEMORY on the remote, to save each station (20 maximum).

Automatic programming:

Press PROG/MEM of the device or MEMORY on the remote for 3 seconds: programming will launch automatically and memorize received stations.

Accessing saved stations:

• Press keys CH+ and CH- to access the saved stations.

USING THE CD PLAYER

Comment: Before first use, remove the protective cardboard insert on the lens located in the CD compartment (B).

Move the compartment door with care.

Playing a CD:

• Press the CD compartment door and insert a CD (printed side up).
• Close the CD compartment by hand.
• Turn the appliance on by pressing button and press SOURCE to select "CD" mode.
• Adjust the volume using the keys and .

REPEAT MODE

Press REPEAT several times.

NORMAL: stops repeat.
- REPEAT ONE: repeats one track.
- REPEAT FLD: repeat all albums (only MP3 files).
- REPEAT ALL: repeats all tracks.
- RANDOM: playback random.

TECHNICAL SPECIFICATIONS

PROGRAMMED PLAYBACK

Programming up to 20 tracks in order:

The CD or USB must be stopped.
- Press on the PROG key: "P01" is displayed on the screen.
- Press keys and to choose a track.
- Press the PROG key to save each track (20 maximum).
- Press the key the appliance plays the tracks in the order programmed.
To cancel programmed playback, press on the key twice.

USB PORT

The appliance is fitted with a USB port (A) to play music files (MP3) stored on a USB key.

• No disc should be playing.
• Connect a USB drive to the USB port (A) of the reader.
• Press successively SOURCE: "USB" appears on the screen and reading the contents of the USB stick is read automatically.

The playback functions are the same as for a CD.

Comment:

• Press the Mode Selector (3) to select the "USB" function.
• It is recommended that key content is backed up to avoid data loss.
• IMPORTANT: 32 GB maximum capacity. The reader does not work with all USB devices (external hard drives for example.)

HEADPHONE SOCKET

Headphones (not provided), fitted with a 3.5mm jack and not exceeding 100dB can be connected to the appliance.

• Connect the headphones to the socket (D).

Note: When the headphones are connected, the loud speakers are automatically inactive.

Use the appliance at a comfortable volume to preserve user health.

AUXILIARY FUNCTION

• Connect a portable CD or MP3 player to the AUX IN (E) socket using an audio cable (cable not provided).
• Turn the appliance on.
• Press SOURCE several times: "AUX" is displayed on the screen.

• Use the peripheral device commands directly.

• Remote control power source: 1 CR.2025 3V lithium mini battery (included).

Power: AC 230V/50Hz.
Frequency range: FM: 88 - 108.0 MHz.
Consumption: 7W maximum.

Note: Unit design and specifications are subject to change without notice. The manufacturer reserves the right to make the necessary improvements.

TROUBLESHOOTING AND CLEANING

Consult the following table if there is a problem with the appliance.

Problems Cause Solutions
No power • The power supply cable is disconnected.	• Correctly connect the power supply cable to the mains socket.
No sound • The external source equipment is off. • Turn the external power source equipment on.
The appliance doesn't start playing.	• No disc has been inserted into the tray. • The disc in the tray cannot be read. • The disc is upside down. • The disc is not inside the guide. • The disc is dirty.	• Place a disc in the tray. • Place a legible disc in the tray. • Position the readable side of the disc downwards. • Correctly position the disc on the tray, inside the guide. • Clean the disc.
The remote control does not work properly.	• The remote control is not pointed towards the appliance sensor. • The remote control does not activate the appliance. • There is an obstacle between the remote control and the appliance. • The remote control batteries are flat.	• Point the remote control towards the appliance sensor. • The remote control has an effective range of 5 metres or the angle of aim is not correct. • Remove the object. • Replace flat batteries with new ones.

MAINTENANCE AND CLEANING

• Unplug the appliance before cleaning it.
• Remove fingerprints and dust with a soft and slightly damp cloth. Do not use abrasive products or solvents that may damage the appliance's surface.

ATTENTION: Never immerse the appliance in water or in any liquid whatsoever.

• If it is not used for a long time, unplug the appliance and remove the batteries.
