USER MANUAL LCX107 AIWA

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The excarnation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

OWNER'S RECORD

For your convenience, record the modal number and serial number (you will find at the rear of the unit) in the space provided below. Please refer to them when you contact your AWA dealer in case of difficulty.

Read these Operating Instructions carefully and completely before operating the unit. All precautions on this booklet and on the unit should be strictly followed. Keep the Operating Instructions for future reference.

Installation

1 Water and moisture Do not use this unit near water, such as near a beachfront, washbowl, swimming pool, or the lake.
2 Heat - Do not use this unitar sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or greater than 35^ (95^) .
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation The unit should be situated with adequate space around it, so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from each side.
- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or air tight rack where ventilation may be impeded.
5 Objects and liquid entry - Take care that objects or liquids do not get inside the unit through the ventilation
6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.
7 Condensation Moisture may form on the CD pickup lens when:
The unit is moved from a cold spot to a warm spot
The healing system has just been turned on
- The unit is used in a very humid room
The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.

2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defoating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never hand the AC power plug with wet hands, as this could result in fire or shock.
  Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power outlet.
• Avoid overloading AC outlets and extans on cordes beyond their capacity, as this could result in fire or shock.
  4 Extension cord - To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
  5 When not in use - Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

2 ENGLISH

LCX-107 (U) Eng 11/21/00, 10:28 AM2

Outdoor Antenna

1 Power lines When connecting an outdoor antenna, make sure it is located away from power lines.

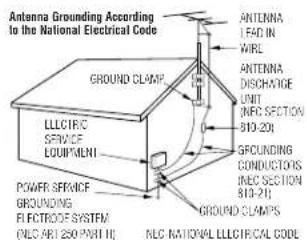

2 Outdoor antenna grounding Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70 provides information on proper grounding of the mast, supporting structure, and the lead in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

• Have the units serviced by a qualified service technician. It - The AC power cord or piuip has been damaged
  Foreign objects or liquid have gotten inside the unit.
  The unit has been exposed to rain or water.
  The unit does not seem to operate normally.
  The unit exhibits a marked change in performance
• The unit has been dropped, or the cabinet has been damaged.
  DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

TABLE OF CONTENTS

PRECAUTIONS 2
PREPARATIONS 4
TUNER OPERATION 5
CD OPERATION 6
TAPE OPERATION 7
GENERAL 8

LCX-107(U)Eng 11/21/00,10:28AM3

PREPARATIONS

Remote Control

Insert two R6 (size AA) batteries

En

• When the reach of the remote control signal is less than 5 meters (16 feet), replace the batteries.
• Remove the batteries to prevent possible electrolyte leakage if the unit is not going to be used for a long period.
  The remole control may not operate correctly when: - The unit is exposed to intense light, such as direct sunlight.
• Objects block the remote control signal to the unit

To use the buttons on the remote control Bultions on the remote control and the main unit with identical Indications have the same functions (except for tape operation).

To turn the power on and off

Press POWER. When one of the deck operation buttons is pressed, this button will not turn the power off.

To use the FUNCTION button

Each time FUNCTION is passed while the power is on. The function is steled cyclically.

• applicable when one of the deck operation buttons is pressed

Connections

The rated voltage of the unit, shown on the rear panel, is 120V . Check that it matches your local voltage.

1 Connect the speakers.

Connected the right speaker to the R terminals, and the left speaker to the L terminals on the rear panel. Connect the speaker cords with stripes to the - terminals.

2 Connect the supplied antennas.

The FM antenna to the FM 75 Ω terminals, and the AM antenna to the AM LOOP terminals.

3 Connect the AC cord to an AC outlet.

The STANDBY indicator lights up.

Speakers

Use only the supplied speakers

• Do not leave objects generating magnetism or objects affected by magnetism near the speakers.
  Do not short-circuit the + and - speaker cord leads, otherwise the sound may become inaudible. If this happens, disconnect the AC cord and re-connect the speaker cord leads correctly.

Antennas

Keep antennas away from metallic objects, electrical equipment and cords.
- FM antenna: Extend it horizontally in a T-shape and fix its end to the wall. For better reception, connect an optionally available outdoor antenna to the FM 75Ω terminals.
- AM antenna: Position and rotate it to find the best reception. Do not unwring the AM antenna wire.

AUX jacks (rear)

Analog sound signals can be input through these jacks. Use a cable with RCA phone plugs (not supplied) to connect audio equipment (humitable with a built-in equalizer, VCR etc.).

To listen to the connected equipment

1 Press AUX.
2 Play the connected equipment.

4

LCX-107 (U) Eng 11/21/00, 10:28 AM4

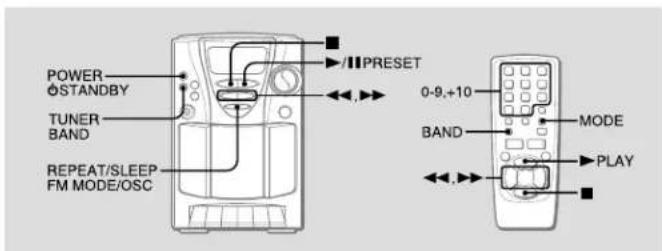

TUNER OPERATION

1 Press *TUNER/BAND repeatedly to select the desired band.

The power is turned on and the previously tuned station is received.

• or BAND on the remote control

2 Press or (TUNING DOWN/UP) to select a station,

After listening, press POWERSTANDBY to turn the power off.

For quick tuning (auto search)

Keep or pressed until the tinner starts searching for a station. When a station is tuned to, the search stops.

If the broadcast signal is weak, it does not slop. To stop the search manually, press

Note

If the unit picks up noise from other electrical appliances nearby, like a TV or fluorescent lights, move the unit.

*REPEAT/SLEEP/FM MODE/OSC

• If an FM stereo broadcast contains noise, press the button so that MONO is displayed.

Noisa is reduced, although reception is monaural.

To restore stereo reception, press the button again.

If a high-pitched sound is heard during AM recording, press

the button repeatedly until the noise is reduced. Its position

can be checked by * - being on or off in the display.

一 二 OR MODE on the remote control

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step.

If you use this unit in an area where the frequency allocation

system is 9 kHz/step change the integral as follows:

1PressIUPERBANDtodisplayFM

1. Check while moving TUMBER/PAND to display the AM

2 Press While pressing TURNEYBAND to display the AM

Hecency:

When the AM tuning interval is changed, the preset stations are cleared.

Presetting Stations

You can preset up to 15 stations in each band.

1 Select a station.

2 Press once so that "M" is displayed to store the station.

A notation is assigned a preset number, beginning from 1 in consecutive order for each band.

Preset number Frequency

3 Repeat steps 1 and 2.

The next station will not be stored if a total of 15 presets

stations have already been stored for a band.

To listen to preset stations

Select a band then press PRESET repeatedly. PLAY

on the remote control is also available

To select a preset number directly with the remote control

Press the numbered buttons 0-9 and +10.

Example

To selec number 15, press +10 and 5

To selecl number 10, press +10 and 0

To clear a preset station

Select the preset number first, Within 4 seconds, keep

pressed until "M" and the preset number disappear in the

display

The higher numbers in the band are decreased by one.

CD OPERATION

To select a track directly with the remote control Press the numbered buttons 0-9 and +10. CD play slats from the selected track and continues to the last track. Example:

To select number 25, press +10 +10 and 5. To select number 10, press +10 and 0.

After listening, press POWERSTANDBY to turn the power off.

Note

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones), it may result in malformations.
  Do not place more than one disc in the disc compartment. Do not try to open the disk compartment during this time.
• Do not try to open the slit compartment during play;
• Do not touch the lens. Doing so may cause malfunctions.

Note on CD-R/RW discs

• The unit may not play a CD-R/RW disc that is recorded on personal computers or some kinds of CD-R/RW recorders because of differences in recording platforms.
• Do not attach any seal or label to other side (the recordable side or the labeled side) of a CD-R/RW disc. It may cause malfunction.
• Do not load an unrecorded CD-R/WM disc. It will take over 30 seconds to read the disc. The disc may be damaged if you try to open the disc compartment while reading the disc.

1 Press CD. The power is turned on.
2 Press OPEN to open the disc compartment. Place a disc with the printed slide up and close the disc compartment. Total number of tracks and total playing time are displayed. It will take about 15 seconds when loading a CD-RW disc.
3 Press 一 PRESET to start play. The number of the track being played and elapsed playing time are displayed. *or PIAY or the remote control

Stops play.

• Pause to play. To resume play press again. PAUSE on the remote control is also available.
  -Searches for a particular point during playback. Koc either button pressed and then release it.
• Sights to the beginning of a track. Press it repeatedly.
• REPEAT/SLEEP/FM MODE/DSC - Repeats a single track or all traces. Select as follows.
  1: A single track is played repeatedly. Select a track with

All tracks are played repeatedly
* or REPEAT on the remote control

To start play when the power is off

Press CD. Play the Iaced disc begins (Direct Play Function). If you load a disc while the display flashes in step 2, play starts without pressing

6 ENGLISH

LCX-107(U)Eng 11/21/00,10:28 AM6

TAPE OPERATION -Use Type I (normal) topos only.

Programmed Play

Up to 30 tracks can be programmed from the disc.

1 In stop mode, keep pressed until "M" flashes in the display.

2 Press or to select a track, then press

to store it. Track number Programmed number

To select a track with the remote control

Press the numbered buttons 0-9 and +10.

3 Repeat step 2 to program other tracks.
To return to stop mode in steps 1 to 3, keep pressed.
4 Press to start play.

To check the program, press or stop mode. To clear the program, press once in stop mode so that "M" disappears in the display

To change the programmed tracks, clear the program and repeat all the steps again.

Inserting a Tape

Press to open the cassette holder and insert a tape with the exposed side down and the side to be played facing out.

Push the cassette holder to close.

Playing a Tape

Press while the power is off.
The power is turned on and play of the inserted tape begins. The volume level is displayed during tape operation.

Stops play The power will be automatically turned

Pause play. To resume play. press again.
Fast forwards/rewinds. To stop winding, press

About cassette tapes

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
• Take up any slack in the tape with a pencil or similar tool before use. Slack tape may jam in the mechanism.

Recording

Note that recording is done on only one side of the tape.

1 Insert a tape with the side to be recorded facing out.
2 Get ready to record from the source.

To record from a CD, press CD and load the disc.

To record from a radio broadcast, press TUNER/BAND.

and tune to a station.

To record from the connected equipment, press AUX

and start playback.

3 Press to start recording.

is pressed simultaneously.

When the selected function is CD, CD play and recording

starts simultaneously.

To record only the selected tracks of a CD
1 Follow steps 1 to 3 of 'Programmed Play' to program tracks.
2 Press

To stop recording, press /A To stop CD play, press
To pause recording, press. To resume recording, press
again.
To erase recording, press while the power is off.

After recording, press POWERSTANDBY to turn the power off.

LCX-107 (U) Eng 11/21/00, 10:28 AM7

GENERAL

En

Sound Adjustment

VOLUME (VOL)

Press VOLUME ▲ or ▼. The volume level is displayed as a number from 0 to MAX(25).

• The volume level is automatically set to 14 if the power is turned off when the volume level is set to 15 or more. (except when turning the power back on within 4 seconds)

To display the volume level when a function other than TAPE function is selected

Press VOLUME ▲ or ▼ The volume level is displayed for 4 seconds.

DISPLAY on the remote control is also available.

3-MODE EQ (equalizer)

Press *3-MODE EQ repeatedy
The equalizer mode changes to RO (rock), PO (pop), JA (jazz) or OF (off) cyclically.
RO (rock) Emphasizes the high and low range of music.
PO (pop) - Emphasizes voice and midrange of music.
JA (jazz) - Emphasizes the low range of music
or EO on the remote control
Volume or lone adjustment does not affect recording.

Setting the Sleep Timer

The unit can be turned off automatically at a specified time.

1 Keep REPEAT/SLEEP/FM MODE/OSC pressed until "30" flashes in the display.

2 Within 4 seconds, press or to specify the time until the power is turned off. Each time it is pressed, the time changes between 10 and 90 minutes in 10-minute steps.

To check the time remaining until the power is turned off
Repeat step 1 shown above. The remaining time is d splayed for 4 seconds.

To cancel the sleep timer

Display the remaining time and press or repeatedly until OFF is displayed.

Note

if the unit is turned off during lapse playback . on the deckwill not be released . Press ↑ / to release

To listen with the headphones

Connect headphones with a stereo mini plug to the PHONES

30X

8 ENGLISH

LCX-107(U)Eng 11:21:00,10:28 AM6

Maintenance

To clean the cabinet

Use a soft cloth lightly moisturized with mild detergent solution. Do not use strong solvents such as alcohol, benzene or thinner.

To clean the heads

When the tape heads are dirty,

• high frequency sound is not emitted

the sound is not adequately high.

the sound is off balance

the tape cannot be arased

theape cannot be recorded on

After every 10 hours of use, clean the rapa heads with a head cleaning cassette.

Use separately so dry-type or wet-type cleaning cassette. Refer to the instructions of the cleaning cassette for details.

To clean the lens

Use a cotton swab slightly moistened with cleaning fluid. Wipe gently from the center to the edge.

Specifications

Tuner

FM

Tuning range 87.5 - 106.0 MHz

Useable sensitivity (HI) 13.2 dB

Antenna terminals 75 ohms (unbalanced)

AM

Tuning range 530/531-1,710/1,602 kHz

Artocanio

m = 311 ;

Tape deck

Track format 4 tracks, 2 channels

Frequency response Normalape: 50-12,500 Hz (EMR)

Recording system AC bias

Erasing system Magnetron

Heads Recording/Playback head (1)

Erasure head (1)

CD player

Wow and flutter Unmeasurable

Scanning method Non-contact optical scanner

(semiconductor laser)

Amplifier

Power output 1.9W + 1.9W (65 Hz to 15 kHz)

THD less than 1%, 7 chms)

2.5W+2.5W(1kHzTHD10%,7

ohnsi

Input AUX (40G mV)

Output

SPEAKES: 7 ohns or more

PHONES: Stereos min-ack

General (Main unit)

Power requirements

Power consumption

Dimensions (W x H x D)

Weight

Accessories

AC120V60Hz

20W

146×216×206mm

(54x8/8x8/8in)

2.1kg(4lb 10oz)

Remote control, FM antenna

AMLOOP antenna

Speaker

Speaker

Dimensions (W× H× D)

100 mm cone type, 7 ohms

130x214x191mm

（6）×B（2×7%+10）

0.85kp(1bp.14g）

Weight

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Please check the copyright laws relating to recordings from disc, radio or external tape for the country in which the machine is being used.

To prevent accidental erasure

Brock of the plastic tab on the cassette tape with a screwdriver

or other no plenl poinl after recording

To record on the tape again

Cover the tab openings with adhesive tape, etc.

Side A

Tab for side A

LCX-107 (U) Eng

11/21:00, 10:28 AM

9

ESPANOL PRECAUCIONES

E

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENTIOS. O SACUDIDAS ELECTRICAS, NOEXPONGA ESTE APARATO A LA LUVIANA LA HUMEDAD.

LCX-107 (U) Spa 11:21:00, 10:59 AM11

PREPARATIVOS

Control Remoto

Insertar dos pilas R6 (tamafo AA)

R6(AA)

*REPEAT/SLEEP/FM MODE/OSC

LCX-107 (U) Spa 11/21/00, 10:59 AM14

LCX-107 (U) Spa 11/21/00, 10:59 AM*15

Mantenimiento

2.5W+2.5W(1kHb, sisorsin

amónica total del 10%, 7 ohmiost

AUX{400mT}

SPEAKERS:70pm0mas

PHONES: Estroo mini-jack

Keep the Operating Instructions for future reference.

Installation

1 Sources d'alimentation - Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.

LCX-107 (U) Fro 11:21/05, 12:08 PM/24

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

8A-CLD-903-01

000720ACK-U-FM

Printed in China

LCX-107 (U) Eng 11/21/00, 10:28 AM10

Assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

AIWA CO.,LTD.
