USER MANUAL LE24M600CF HAIER

Please read this manual carefully before operating the unit, and keep it for future reference.

Contents

01 SafetyWarnings

Welcome 2

Important Information 2

Safety notice 3

Warning and cautions 4

02 Introduction

Main Parameter. 5

Base Stand Assembly Instruction 7

Wall Mounting Installation Guidelines 8

Front Control Panel. 10

Rear/Side Sockets 11

Connecting to your Haier TV. 12

Common Interface 15

03 Remote Control

Remote Control. 16

Teletext 17

04 Operation

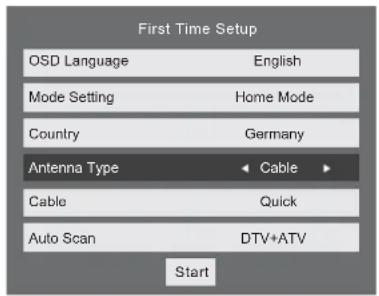

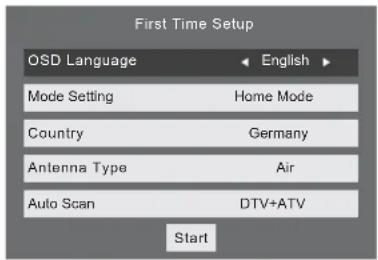

Installation Guide 18

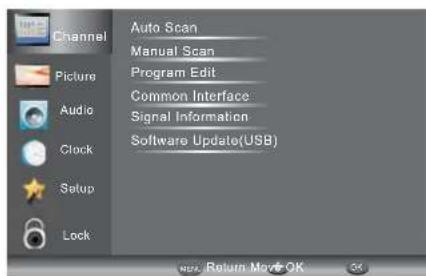

CHANNEL MENU.18

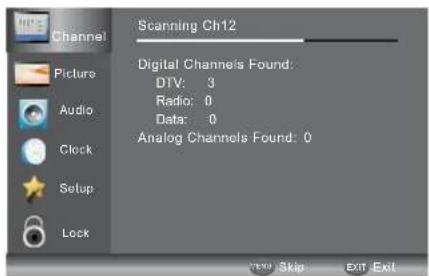

Auto Tuning (DVB-T).18.

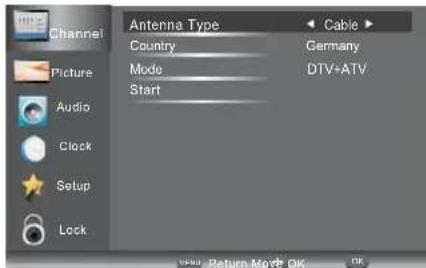

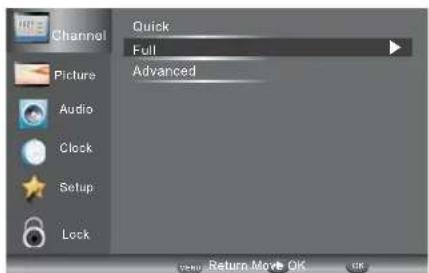

Auto Tuning (DVB-C).19

DTV Manual Tuning (DVB-T) 20

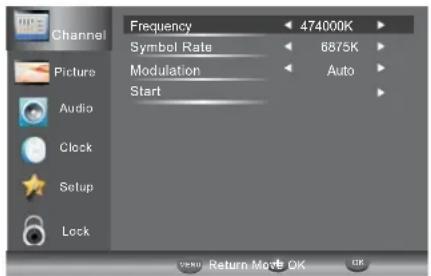

DTV Manual Tuning (DVB-C) 20

ATV Manual Tuning 20

Programedit 20

Common Interface. 21

Signal Information. 21

Software Updated(USB). 21

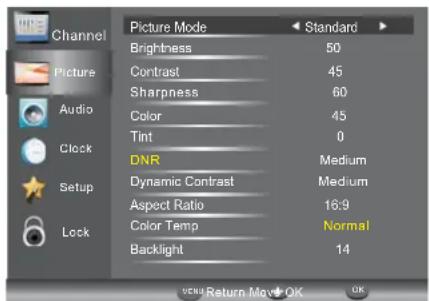

PICTURE MENU.21

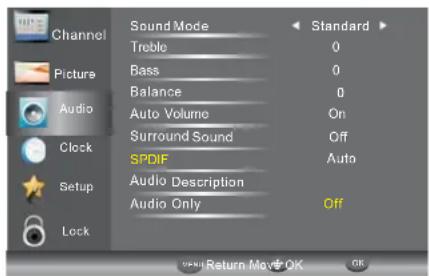

Audio MENU 21

Clock MENU 22

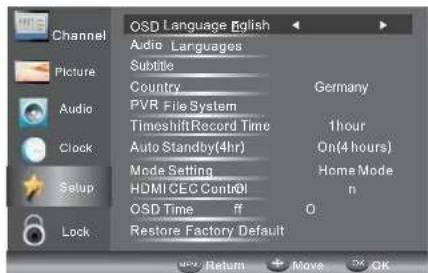

SETUP MENU 22

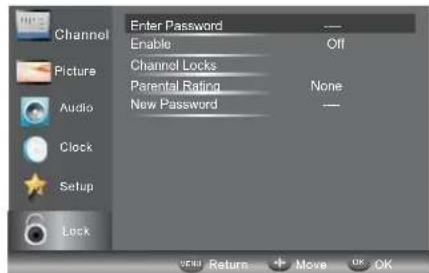

LOCK MENU 22

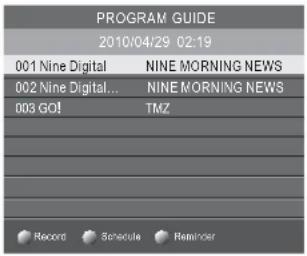

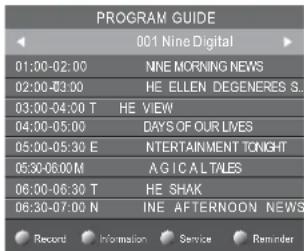

EPG Menu(Electronic Program Guide) 23

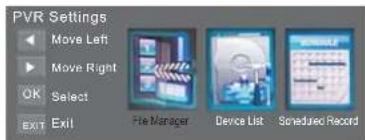

PVR File Systemonly for DTV) 23

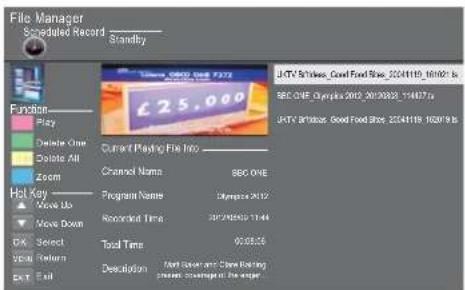

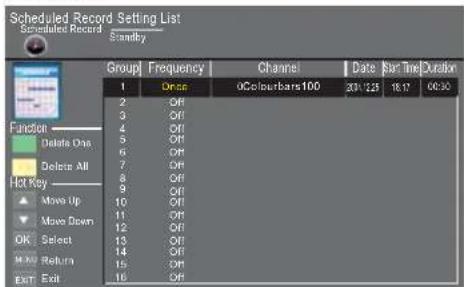

Prepare to record the program 24

Record the program 24

Play the recording 24

Time shift 25

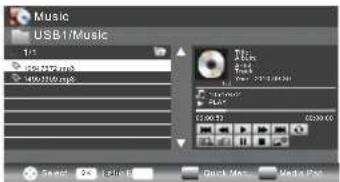

USB Player 26

05 Trouble shooting

Trouble shooting 28

06 Specification

Specification 31

01 Safety warnings

WELCOME

Thanks for buying this 22'' / 24'' / 28'' / 32'' LED LCD TV.This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts check list below:

22"FULL HD 1080P Digital LED LCD TV

24" FULL HD 1080P Digital LED LCD TV

Remote control

Remote control

AAA ba x2ttery

AAA ba x2ttery

Instruction Manual

Instruction Manual

Quick start guide

Quick start guide

Warranty Card

Warranty Card

Screws

Screws

Stand

Stand

28" HD Ready Digital LED LCD TV

32" HD Ready Digital LED LCD TV

Remote control

Remote control

AAA ba x2ttery

AAA ba x2ttery

Instruction Manual

Instruction Manual

Quick start guide

Quick start guide

Warranty Card

YPbPr Connect Cable

Screws

Warranty Card

Stand

Screws

Now you can get started!

Stand

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).NO USER SERVICEABLE PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,DO NOT PUTTHE TV SET NEAR SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE THE LCD SCREEN.AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED AND COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Safety notice

• Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
• Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
• Do not expose the product to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
• Keep the product away from direct sunlight and heat source such as radiators or stoves.
• Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your product on a cushion, sofa or other similar surface.
• Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
• Never place heavy or sharp objects on the panel or frame.
  Unplug the Power from the outlet when the unit is not in use.
• Attention should be drawn to the environmental aspects of battery disposal.
  WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
  WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
• CAUTION: When the apparatus was in electrostatic circumstance, it may malfunction and need to reset by user.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING AND CAUTIONS

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Caution

Do not trap the power supply cord under the television receiver.

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

02 Introduction

Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment.

When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth.

During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV service personnel.

Main features

① Used as Television, display terminal, PC display;
② High luminance, wide viewing angle;
③ HDMI interface and SCART Interface;

Main parameter

Panel	22"	24"	28"	32"
TV System	PAL-B/G,I,D/KSECAM-B/G,D/K,LDVB-T,DVB-C
Video Signal System	PAL/SECAM/MPEG2/MPEG4/H.264
	1000(DTV);100(ATV)Storage channel number
Input Power Voltage	AC 100 -240V 50/60Hz
Power consumption	38W	40W	41W	50W
Standby Power consumption	<0.30W
Audio Output Power (THD≤7%)	2x3W	2x3W	2x8W	2x8W
Signal Input	Analog RGB(PC)x1;PC audio x1High-Definition Multimedia Interface (HDMI)x2Composite Input x1YPbPr x1SCART Input x1CI x1USB x1RF Co-Ax x1
Signal output	Headphone x1COAXIAL x1SCART Output x1
Horizontal definition (TV line)	Composite video input >=350YPbPr >=400

INSTALLATIONCAUTION

*Locate the TV in the room where light does not strike the screen directly.
Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
Do not cover the ventilation openings when using theTV.

④ NICAM:
⑤ T: ime-shift

PC

SUPPORTED MODE

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	640x480	60	31.47
2	800x600	60	37.88
3	1024x768	60	48.36
4	1366x768	60	47.7
5	1280x1024	60	63.98
6	1920x1080 (only for 22",24")	60	66.64

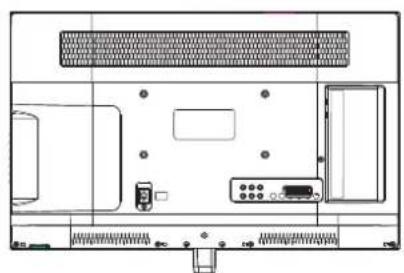

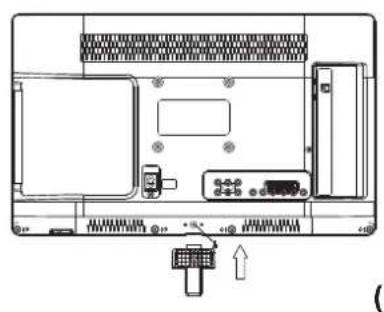

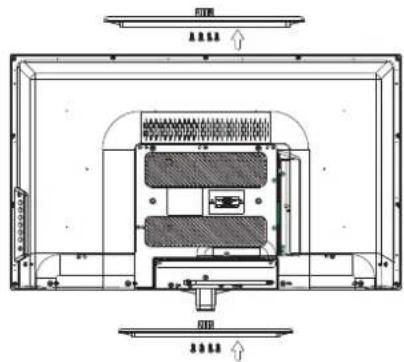

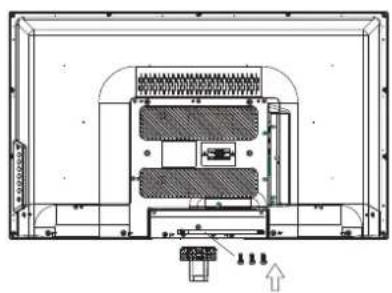

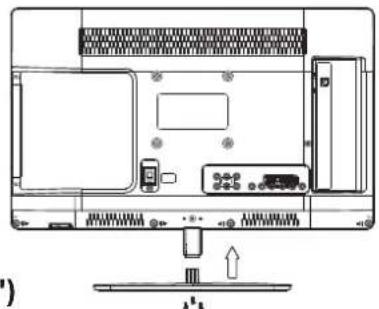

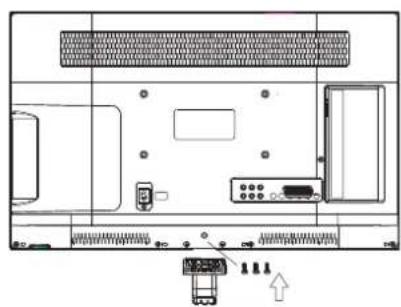

Base Stand Assembly Instruction

1. Place the TV with the display side down on a flat surface.Use a cloth to protect the display.Position the stand base pillar onto the bottom of the TV.

2. Attach the stand base plate to the stand pole by firmly tightening the supplied screw.

(22",24")

(28")

(32")

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Please do not attempt to rotate the TV on the stand.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

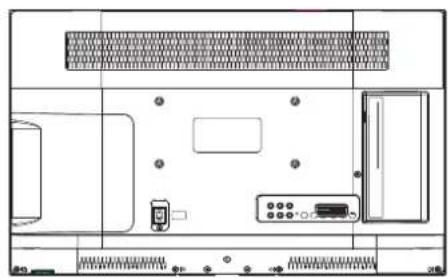

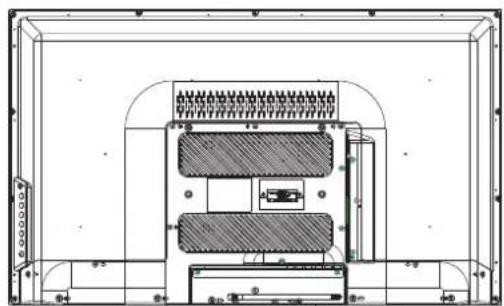

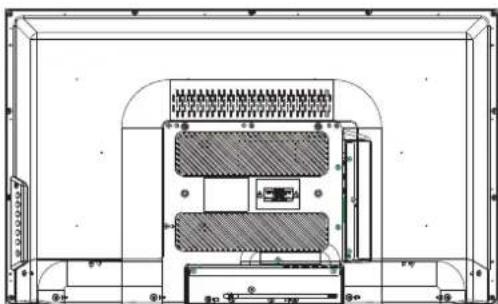

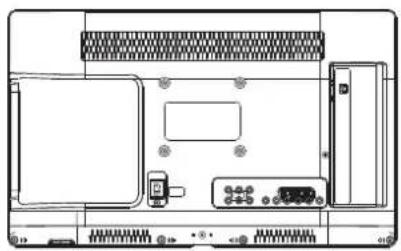

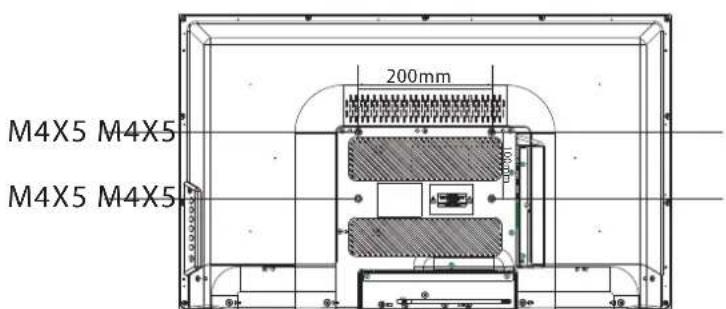

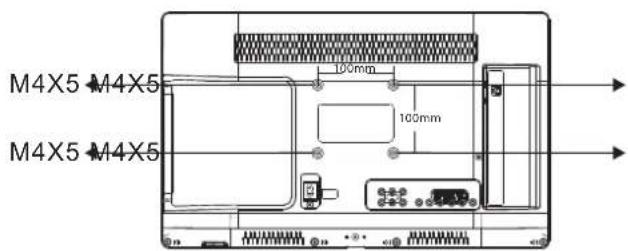

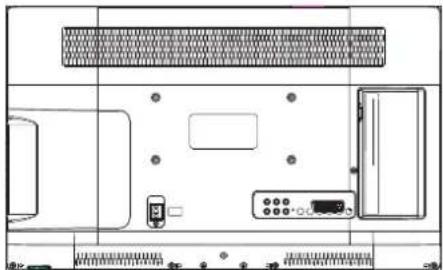

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

(22",24")

(28")
(32")

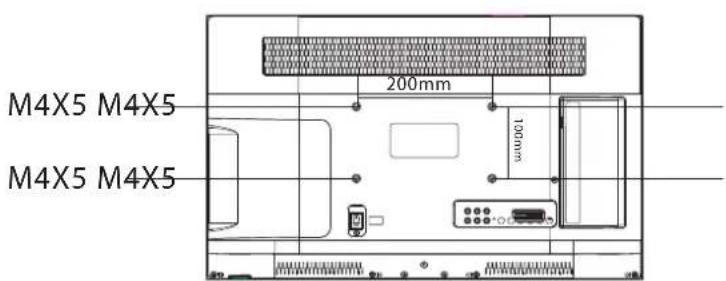

2.Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

(22",24")

(28")

(32")

Introduction

Front control panel(22",24",28")

3

2 1

≤ 8m

SOURCE

MEN: 2

CH3

CII-

V1.5 4

VOL

STANDBY 5

1 Remote control sensor.

2 Indicator LED:

RED:STAND BY.

3 Key board.

1 SOURCE Display the input source menu.

2 MENU Display main MENU.

3 CH+/CH-In TV mode,press CH+ or CH- to change

the channel up and down.

4 VOL+/VOL- Adjust sound level.

In MENU, adjust the item that you selected.

5 STANDBY

Front control panel(32")

3

2 1

35 ≤8m

SOURCE 1

MENU 2

CH+ 2

CH-

VOL+ 4

VOL-

STANDBY 5

Remote control sensor.

Indicator LED:

RED:STAND BY.

3 Keyboard.

1 SOURCE Display the input source menu.

2 MENU Display main MENU.

3 CH+/CH- In TV mode,press CH+ or CH- to change

the channel up and down.

4 VOL+/VOL- Adjust sound level.

In MENU,adjust the item that you selected.

5 STANDBY

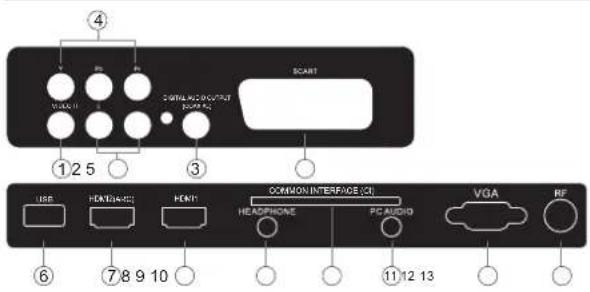

Rear/Side Sockets(22",24",28")

1	VIDEO	input
2	L/R AUDIO	input
3	DIGITAL AUDIO OUTPUT(COAXIAL)	digital audio output
4	YPbPr	input
5	SCART	input/output
6	USB	input
7	HDMI2(ARC)	input

8	HDMI1 input
9	HEADPHONE	analogue audio output
10	COMMON INTERFACE(CI)	input
11	PC AUDIO	input
12	VGA	input
13	RF	input

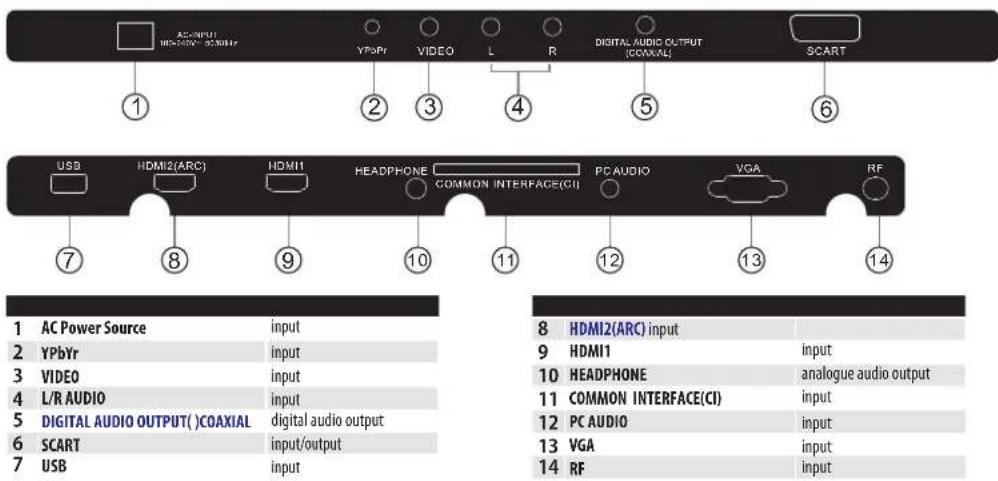

Rear/Side Sockets (32")

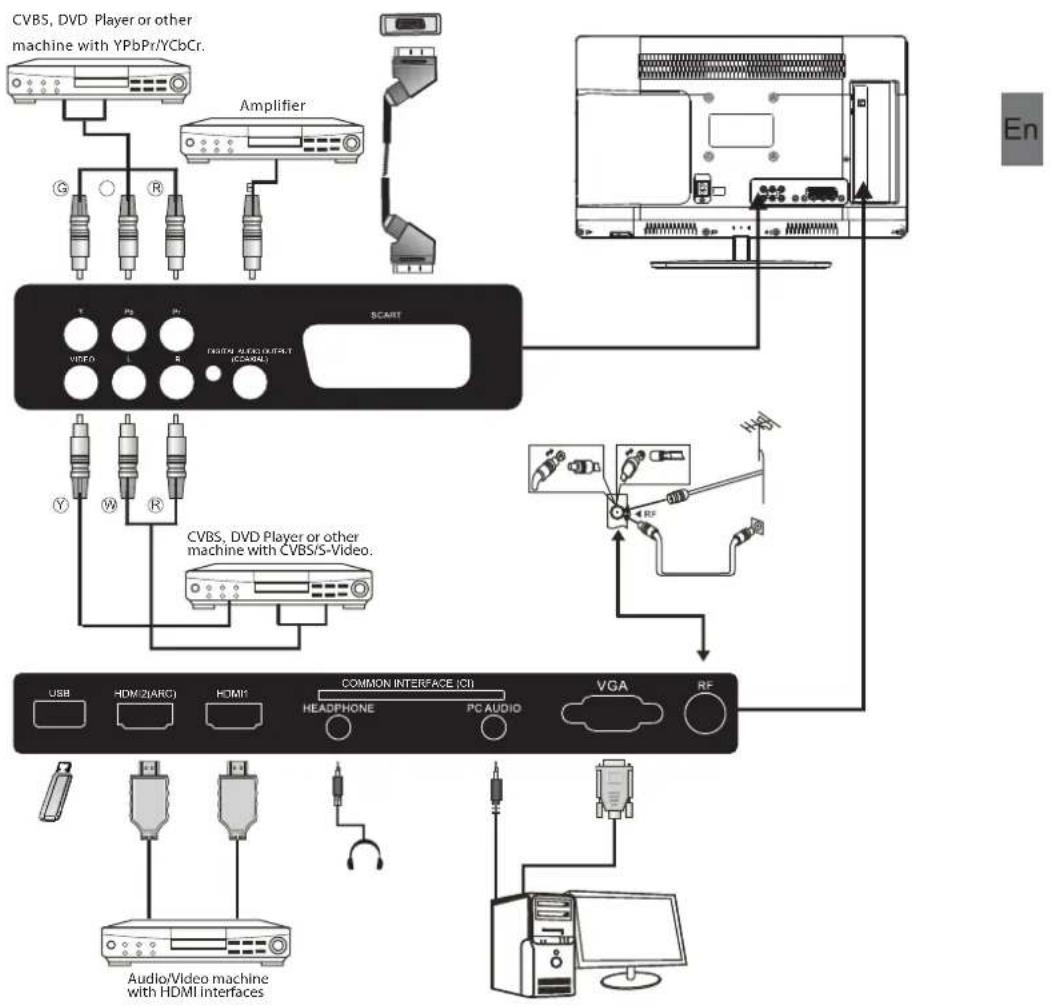

Connecting to your Haier TV(22",24",28")

G Green (Y)
B Blue (Pb / Cb)
W White(AUDIO-L)
R Red (AUDIO-R, Pr/Cr)
Y Yellow (VIDEO)

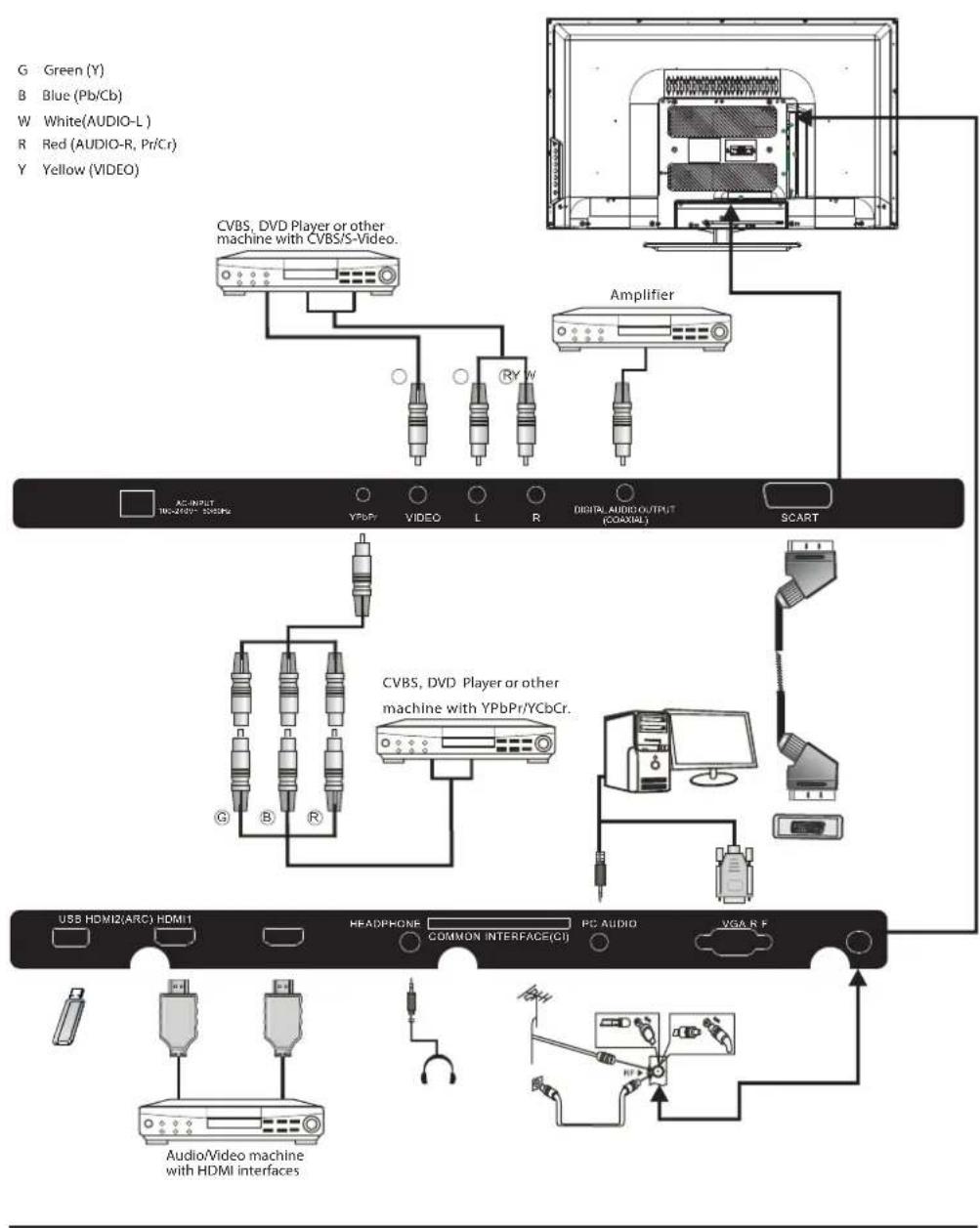

Connecting to your Haier TV(32")

EN-13 LED Backlit Flat TV Instruction Manual

Connecting to your Haier TV

Connecting a DVD player / Satellite / cable set top box receiver / games console / PC or Laptop

There are several options to connecting a DVD player /Satellite or Cable set top box receiver / games console / PC or Laptop to your TV.

Option 1 SCART

0 Connect a SCART cable (not supplied) from the SCART socket on the TV to the DVD player /Satellite or cable set top box receiver or games consul.

To select the device connected with the SCART cable press the SOURCE button on the remote and use the keys to select SCART and press the OK button.

Note: The TV will default to the SCART connection when the TV is switched on.

Option 2HDMI1/HDMI2

If the device you want to connect to the TV is switched on, switch off the device first.
Connect a HDMI cable (not supplied) from the HDMI socket on the TV to the DVD player /Satellite or cable receiver or games consul.
Switch on the device you have just connected to the TV
To select the device connected with the HDMI cable press the SOURCE button on the remote and use the keys to select HDMI and press the OK button.

Option 3 AV Audio Visual

(Yellow/White/Red)

1 Make sure that both TV and the device are switched off before connecting.
Connect the AV cables (not supplied) from the Video (yellow) and Audio (white, red) sockets on the TV to the DVD player or games console etc.
To select the device connected with the AV cable press the SOURCE button on the remote and use the keys to select AV and press the OK button.

Option 4 COMPONENT

(Green/Blue/Red) + (White/Red)

Make sure that both TV and the device are switched off before connecting.
Connect the cables (not supplied) from the COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and L-Audio-R (white, red) on the TV to the DVD player or games console etc.

To select the device connected with the Component cable press the SOURCE button on the remote and use the keys to select WnPr press the OK button.

Option 5 VGA (15pin Sub-D)

Connect a VGA cable (not supplied) from the VGA socket on the TV to the PC / Laptop.
To select the PC/Laptop connected with the VGA cable press the SOURCE button on the remote and use the keys to select PC and press the OK button.
Note VGA is video only. For audio from your PC/Laptop you need to connect a separate cable from the PC Audio (3.5mm jack) to the headphone socket on you PC/Laptop (3.5mm jack)

Option 6 USB

Most USB sticks can be connected to your TV and some digital cameras may also work.
Connect USB stick (not supplied) or a USB cable (not supplied) to the TV.
To select the USB device connected to the TV, press the SOURCE button on the remote and use the keys to select USB and press the OK button.

Note1:Only*.jpg,*.mp3,*.txt,*.avi,*.mp4,files will work,other file types are not guaranteed and may not.

Note 2. Apple iPhones and iPods are not compatible with your TV.
Note 3. When connecting any device to the USB connection, keep the USB cable length as short as possible.

Option 7 HEADPHONE OUTPUT

Insert the plug of the earphone into the headphone socket on the TV. The TV speakers are now muted. Alternatively you can also plug in external speakers if required.

Option 8 DIGITAL AUDIO OUT(COAXIAL)

COAXIAL is a digital audio connection used to connect audio equipment, for example home theatres and other digital HiFi systems over short distances. The signal is transmitted over either a coaxial cable with RCA connectors.
1 Make sure that both TV and the device are switched off before connecting.
Connect the AV cables (not supplied) from the GoExeAdn the TV to the Home Theater sound system or digital HiFi system etc.

COMMON INTERFACE

The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription.

Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.

PWarning

• Switch off your TV before any module is inserted in the Common Interface slot.

Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.

Turn on the TV and it will display the below message if the CI module is detected. Wait for few moments until the card is activated.

CAM Inserted

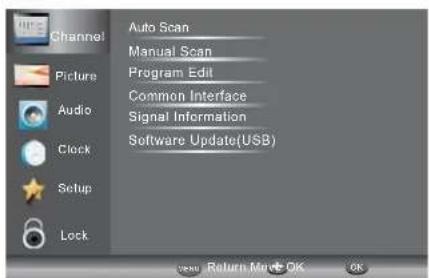

Press the MENU button then press button to select Common Interface option.

Detailed information on the CI card in use is displayed.
Press OK button to access the card menu. Refer to the module instruction manual for setting details.
When module is removed, the following message will appear on the screen.

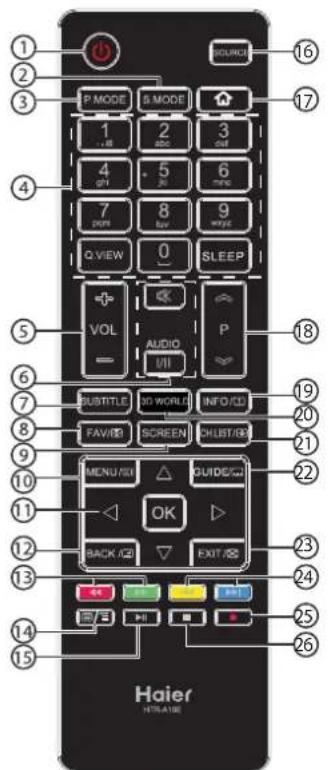

03 Remote Control

#	Button	Descriptions
1	(Power)	Press to turn the TV on or off.
2	S.MODE	Press to select the sound mode.
3	P.MODE	Press to select the picture mode.
4	0-9	Press to enter a channel number or password.
	Q.VIEW	Press to switch to the last viewed channel.
	SLEEP	Press to set the sleep timer.
5	VOL +/-	Press to adjust the volume level.
6	(Mute)	Press to turn the sound on or off.
	AUDIO(I/II)	Press to select Mono,Nicam stereo for ATV channel.Select Audio language for DTV channel.
7	SUBTITLE	Press to turn the subtitle on or off.
8	FAV/BS	Press to open a favorite channel list.In teletext mode,press to hold a page.

Insert Batteries into the Remote Contol

9	SCREEN	Press to change picture aspect ratio.
10	MENU/	Press to open the on-screen menu.In teletext mode,press to open the INDEX page.
11	▲▼▲	Press to navigate the on-screen menu.
		Press to confirm a selection.OK
12	BACK/	In teletext mode,press to enter mix mode.
13	(reverse) (forward)	Press to fast forward or reverse playback in multimedia mode and timeshift mode.(Red and Green button in teletext mode)
14	/	Press to turn on/off the teletext function,and change TTX mode.
15	play/pause)	Press to play/pause in multimedia mode, timeshift In DTV mode.
16	SOURCE	Press to open the input source list.
17		No function.
18	P /	Press to change the channel.
19	INFO/	Press to display the channel information. In teletext mode,press to revealthe hidden information.
20	3D WORLD	No function.
21	CHLIST/	Press to open the channel list.In teletext mode, press to size the teletext.
22	GUIDE/	Press to display electronic programme guide in TV mode. In teletext mode,press to enter a secondary page.
23	EXIT/	Press to close the on-screen menu.In teletext mode,press to hide the text.
24	(previous) (next)	Press to select previous or next file.(yellow and blue button in teletext mode)
25	(REC)	Press to record the TV program you are watching in DTV mode.
26	(stop)	Press to stop multimedia playback,stop timeshift In DTV mode.

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+or - ) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms:Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.
   Remark:
   1) Alkaline Battery Recommended.
   2) Remove batteries when they are exhausted or if the remote control is not to be used for long time.

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number.
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB CODE	Press the button and enter the 4-digit number to enter a secondary page.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
MIX	This will superimpose the teletext data on top of the TV picture. Press button again to return to full text.
EXIT	Hide the teletext.
SIZE	Switch the image to top,bottom,full.

04 OPERATION

Installation Guide

The First Time Setup screen will appear when the TV is first switched on or reset to the factory setting.

1).Press the buttons to navigate the menu and buttons to change the settings. Select your desired language, Home/Shop Mode to be displayed on the menu.

HOME or Shop modes

1. When the unit is turn on for the very first time, it will show Initializationet-up menu.After the OSD language is set, the user can choose between "shop mode" and "home mode". When the screen shows the following setting menu and the cursor stays on the "home mode" choice, press to adjust, and OK to enter the menu.

If "Shop mode" is chosen, the following menu will be displayed.

Choose "OK" to enter the next prompt menu.

Choose "Cancel" to go back to the Initializationet-up menu, and the cursor will stay at the "home mode" choice. choose it to go the next menu to choose the country.

2).Press the buttons to select AIR/Cable means DVB-T/DVB-C.

Note

In the UK to connect to cable TV you will require the appropriate cable TV's company's set top box to be connected to the TV. Please refer to the cable TV's instructions manual for further details.
If you select DVB-C, you will select Full or Quick way to scan. Also you can select Auto Scan mode. DTV+ATV or DTV only, or ATV only.
3). Channel tuning will commence. This operation may take up tooThe displayswill show the progress of the tuning and the number of channels found.
4). If you want to skip the DTV tuning, press the MENU button to interrupt the tuning half way. You will then go straight to ATV tuning.
5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

Note

DTV Digital TV

ATV Analogue TV (not used in UK)

1.CHANNEL MENU

1.1)Auto Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button or Right button.
2). Press the buttons to select Auto Scan and then press the OK button.

Operation

3). Press the buttons to select Antenna Type to Air means DVB-T.
4). In Country mode, press the buttons to select the country where you will operate the TV.

5). In the Mode item, press the buttons to select tune mode: ATV / DTV / DTV + ATV. Press the button to select Start to start.
6). Channel tuning will commence. This operation may take up to 10 minutes and will show the progress of the tuning and the number of channels found.
7). If you want to skip the DTV tuning, press the MENU button to interrupt the tuning half way. You will then go straight to ATV tuning. You may repeat the above step if you also want to skip the ATV tuning. An installation reminder will appear the next time you turn on the TV, if no channel is found.
8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

1.2)Auto Tuning (DVB-C)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the buttons to select Auto Tuning and then press the OK button,select Antenna Type to cable mean DVBC.

3). Press the button and then press the buttons to select the country you will operate the TV.

4). In the Mode menu, press the buttons to select ATV / DTV / DTV + ATV.
5). Select start to enter the menu as below, to select search mode.

6). Channel tuning will commence. This operation may take up to 30 minutes and show the progress of the tuning and the number of channels found.

7). If you want to skip the DTV tuning, press the MENU button to interrupt the tuning half way. You will then go straight to ATV tuning. You may repeat the above step if you also want to skip the ATV tuning. An installation reminder will appear the next time you turn on the TV, if no channel is found.
8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select P rogramme Edit under the channel menu.

Note

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

2.1)DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the buttons to select DTV Manual Tuning and then press the OK button, if you select Air in Auto Scan, you will enter DVB-T manual scan menu.

3). The DTV Manual Tuning screen will pop up. Press the buttons to select the desired UHF channel or press the OK button then input channel number. Select Start to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

2.2)DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.If you select Cable in Auto scan,you will enter DVBC manual scan menu.

2). The DVB-C Manual Tuning screen will pop up. Press the buttons to select(Frequency /Symbol (ks/s/QAM Type),press OK to input Frequency and symbol, press to change QAM type,press Start to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
3). Press the MENU button to return back to the main menu.
4). Press the EXIT button to exit the menu.

3) ATV Manual tuning :

You can change the sound system, search the analog TV channels and fine tune the channels, then storage the channels you selected.

Note

1. Press teletext red button to storage to channels after manual tuning.
2. If the number save to is the same as the number Current CH, when you press Red button, the save to number will cover the Current CH number.

4). Program edit:

Press the or Buttons to select Program Edit in the Channel Menu. Then press the OK Button to enter the sub-Menu. Then you will need to select the program you wish to edit.

Delete: Press the Red Button to delete the channel you highlighted.

SKIP: Press the Yellow Button to select the Skip function and a SKIP icon will be displayed next to the program and it will be skipped when changing the channel.

MOVE: Press the Green Button to highlight the select the channel you want to move. An icon will display ahead the channel number. Then press the / Buttons to a new position and press the Green Button to confirm.

Rename: (For ATV only) Press the Blue Button for renaming the channel. Press the number key circularly to enter a new name and press the OK Button to confirm (the number key as the following table).

FAV: Press the FAV Button (instead of color Buttons) to set the favourite channel. (If you want to view the Favorite Channel List you need to exit Program Edit Menu and then press the FAV Button.)

5). Common Interface

This menu can display the CI card's information.

6). Signal Information (Only for DTV)

Press the / Buttons to select the Signal Information in the Channel Menu. Then press the OK Button to show the related information of the current channel.

7). Software Updated (USB)

Press the or Buttons to select Software Update (USB) in the Channel Menu. Then press the OK Button to update software by using a USB. Follow the software upgrade instructions provided with the software.

Note: We recommend you perform a factory reset (refer to Restore Factory Default in Setup menu) to ensure the unit is successfully upgraded.

2.PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

Press to move, press adjust.

Note

1). There are three colors temperature modes can be selected normal, warm, cool.

2).PC Setting is available in PC mode only which can adjust Horizontal position, vertical position, size and phase.

3.AUDIO MENU

The third item of the MENU is the AUDIO MENU.

You can adjust the sound effect here such as treble, bass, balance etc.

Press to move, press to adjust.

Note

1.Auto volume: only available when the input signal volume is too large or distortion.

1. Audio Only: set on to turn off the TV screen, and then you can listen TV.

4.CLOCK MENU

The fourth item of the menu is the CLOCK MENU. You can adjust the clock, power on/off time, sleep timer etc. Press to move, press OK to adjust.

Auto Sleep

If after 15 minutes there is no signal input, the TV will switch off to Auto Sleep, when the Auto Sleep function is set to ON. The clock time is automatically set when the TV is able to receive DTV.

5. Setup MENU

The fifth item of the MENU is the SETUP MENU. You can adjust the OSD language, Audio language, Subtitle language etc.

Auto Standby(4hr)

1.If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes, the TV will start the automatic power down sequence.

And pop-up window will appear on screen.

After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.

1. To cancel the automatic power-down

On the Option Menu select Auto standby(4hr), The TV screen returns to the Option Menu and Auto standby (4hr) option will display.

Auto standby (4hr) OFF

To return to auto shutdown after 4 hours repeat the above except use the left arrow key to select on(4 hours).

In PVR File system menu you can set up USB disk for PVR.

Timeshift Record Time: To set the max Timeshift Record Time.

Auto Standby (4hr): To set the unit to standby after any 4hours operation.

Mode Setting: To set Home mode or Shop mode.

HDMI CEC CoaCEC function to on or off.

OSDTime: Press or to select the menu display time.

Press the or Buttons to select Restore Factory Default and press the OK Button to enter the first setup. Once confirmed, all the settings will be cleared. This should be used if you experience any issues with your TV.

Note

Restore factory default will clear all the programs and password.

6. LOCK MENU

The sixth item of the menu is the LOCK MENU. You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

The default pass word is 0000, If you forget the password, you can use the super password:9443.

Channel Locks: Press to choose the

program,press OK button to block

the program. If you want unblock the program, pls enter the main menu , input the password,choose the program,then press OK button again.

Parental Rating: Press to choose rating.

7.EPG Menu(Electronic Program Guide)

The EPG (Electronic Programme Guide) Menu provides you with detailed broadcast program information. Press the EPG Button and a pop-up Menu will be displayed with program information about the channel you are currently watching. You will be able to see up to seven days of program information. To view the next day or more use the or Buttons to highlight the date and then press the or Buttons to scroll through the available dates.

To see what is going to be broadcast after the current program, press Yellow (Schedule) Button. To view a different channel, use the or Buttons to highlight the channel and then press the or Buttons. To exit the EPG Menu, press the EPG or EXIT Button. Press it (Service) again to return.

Please refer to the bottom of the EPG screen for the basic remote control key functions.

Record

In EPG mode, press the Red Button on the remote control to select a program to be recorded. You will then enter Scheduled Record menu for record setting. (Refer to the section of PVR file system.)

Please ensure a compatible Hard Disc Drive or USB device is inserted into the USB input to schedule recordings. If your storage device is not compatible, you will be asked to format it. In Setup menu, enter the PVR File System Menu Device List to format your device.

WARNING

When formatting the USB device it will delete all the files stored on the USB device.

If you have set a timed recording, your TV will automatically turn on when the program is set to record and will automatically turn off after the recording is complete. During a timed recording however the picture and volume will be mute (there will be no display), however the unit will be on. You can press the STANDBY Button to turn the picture and volume back on.

Reminder (Blue Button)

In the EPG Menu, press the BLUE Button to set a program reminder. The below Reminder Menu will then be displayed and you can use the or Buttons to set the program reminder details. You will be able to set reminder to occur once, Daily or Weekly.

You may press Red button to view the scheduled programs list. Also you may delete the programs you have scheduled.

INFO (Green Button)

In the EPG Menu, press the GREEN Button to view more information about the current program.

8.PVR File System (only for DTV)

Press Menu Key,select setup submenu.Press the or Buttons to select PVR File System, then press the OK Button to enter sub-Menu and then use the or Buttons to scroll through the options.

Prepare to record the program:

File Manager: You may view all the recorded programs here. Press blue key to play with full screen.

Device List: This sub menu will list the USB devices connected to the TV set. You can select the device and then press red button to format the USB device.

Scheduled Record: You may set the scheduled record List here. And you may also delete the scheduled records you have set.

Enter the sub menu you may set the recording frequency as Once, Daily, Weekly, Weekday, or off.

Record the program:

To record the program you are currently watching press the REC Button and a red REC icon will appear on the screen. The record time/ length and remaining record time will be displayed in the menu below.

To reveal the menu press the REC Button again.
To stop recording, press the Stop Button.
You may also enter the Media Player Menu to view your recorded programs via Movie mode.

Playtherecording:

The program recorded on the "USB" will be saved in the folder "USB record" on the device. You can play it in PVR File System and in File mar submenu.

1.The USB storage size can be between 128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.
2. Video may become pixelated when Video bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV.
3. Not all USB devices are compatible.

Note

• Ensure the storage device used to record is inserted into the USB Input on the back of the unit and is compatible for recording. If your storage device is not compatible, you will be asked to format it. Enter the PVR File System menu and select Device List to format your device.
• There will be no record function, when the channel is CI+ channel.

9.Time Shift

Press the button to pause the program you are watching to activate Time Shift function. The below menu will be displayed. This Menu will auto disappear after several seconds.

Choose the option and press OK to resume playing, and a white play icon will appear at the right of the screen, which shows that time shift is being performed.

When the menu disappeared, press the button, the menu will appear again. To stop time shifting, press the Stop Button or move the cursor to select the Stop option when the menu is on, and then follow the pop-up guide.

Note

Ensure the storage device used for recording is inserted into the USB Input on the back of the unit and is compatible for recording. If your storage device is not compatible, you will be asked to format it. In Setup menu, enter the PVR File System submenu and select Device List to format your device.

• All the functions (Play, FB, FF, Pause and Stop) in the menu can only be performed when the menu is on.
• There will be no Timeshift function when the channel is Cl+ channel.

Record file Playback

The Haier TV records the program on the USB stick in .ts format "Time Shift". If another TV, PC, Laptop, DVD, or any other device or peripherals do not support or recognise the .ts (time shift) file then it will not play.

"ts" is the format used to broadcast high-definition TV. You can play "ts" files on a computer or laptop with the correct software. Refer to the Internet or or an IT supplier more information about the most appropriate software.

Caution: Haier does not take any responsibility for any software downloaded by any customer or retailer and may contain viruses or for any malfunction resulting in installing the software. The customer uses it at their own risk.

10.USB Player

Press source key, and select USB in source list, press OK button to enter the USB menu.

Please make sure that the USB device have plugged in the slot.There are four type media item can be selected, such as photo,music,Movie,and text. Select the type media item by pressing ,press OK button to enter the disk selection menu.

Press the / tentelebetmedigfdikstand folder,press OK to media type selection menu.

Press Red button to back to the

Select the media file by pressing o then the preview frame will pop up. Press the button to play the media file in full screen. When the movie file is playing, press the button can display the control bar.


Basic Function

When photos are playing, press "▼"key on the remote control, a help bar will display under the screen.

Play/Pause	Press"Play/Pause"key on the remote control to play or pause.
Prev.	Press"Left"key on the remote control to read the previous photo.
Next	Press"Right"key on the remote control to read the next photo.
Stop	press"stop"key to stop playing and return to the previous menu.
Rotate	Press"up/down"key to Rotate the photo.
Quick Menu	Press Blue key, you can enter Quick Menu to adjust Interval time,Repeat, slideshow effect, and Background Music(you may play music first).

Operation

MUSIC

When music are playing, press " ^ key to select toolbar.

Basic Function

←	FB:Press"Left/Right"key on the remote control to select this function,press"ok" key to fast back. Press"PLAY"key to play normally.
→	FF:Press"Left/Right"key on the remote control to select this function,press"ok" key to fast forward. Press"PLAY"key to play normally.
←p	Back ground music:Press"Left/Right"key on the remote control to select this function,press"ok" key to turn on / off.

Other functions are similar to the "PHOTO", Please refer to "PHOTO" options.

MOVIE

The operations are similar to the "PHOTO". Please refer to "PHOTO" options.

Basic Function

	Set A:Press"Left/Right"key on the remote control to select this function,press"ok" key to set A and B, the film will circulating play in the time of A to B.
	Zoom in:Press"Left/Right"key on the remote control to select this function,press"ok" key to enlarge picture.(if the document is larger than 1920x1080,this function is unsupported.)
	Zoom out:Press"Left/Right"key on the remote control to select this function,press"ok" key to reduce picture.(This function does not support more than 1920x1080 HD video.)
	Select Time:Press"Left/Right"key on the remote control to select this function,press"ok" key to select the time to play.

TEXT

Press"▼/▲"to select previous / next page, Input the number key and OK to jump to the page you want.

Provide list of major file types that play from a USB device

Photo.jpg files

Audio.mp3

Video .avi .mp4

Text.txt

05 Trouble shooting

Trouble phenomenon Symptom		Inspection Check
Picture Audio
Snow Noise	Normal audio	antenna position, direction or connection
Ghost	Noise	antenna position, direction or connection
Interference	Mute	electronic equipment,car/motorcycle,fluorescent light
Normal Picture	Mute	Volume(check if mute is activated or if the audio system connections are not correct)
No picture Mute		Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup Press standby key on the remote control for inspecting
No colour Normal audience control
Picture breaking up	Normal audio or weak	retune channel
No colour	Noise	TVsystem
There is black bar on top and bottom	Normal audio	Change aspect to zoom

En

Trouble Shooting

My TV does not display the picture on my laptop / PC when connected.	Most PC's and laptops when connected with a VGA Plug (the blue 15 pin plug on your PC or laptop) require you to press some buttons on your key board to get a picture on a TV or other external display. This is usually the F7 (Dell) or F4 (HP / Samsung) or F5 (Toshiba). On laptops, you have to press the "Fn" key at the same time as the "F" key.
I have connected my PC/Laptop to the TV and get a picture but no sound. Why?	The VGA cable only carries the video or picture information. You need to connect a separate cable connected to the earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m (PC Audio IN) socket on your TV. You will need to select "PC" using the Source button on your remote. Alternatively connect your PC/Laptop using a HDMI cable if you PC/Laptop has a HDMI connector. HDMI is both audio and video.
The picture is not auto resizing when changing channels.	Check that the TV picture Aspect Ratio is set to 'Auto' on all inputs ATV, DTV, SCART, HDMI 1, 2 etc. To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button start at ATV and repeat the sequence below for all input sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is controlled separately. Press TV Menu button Press Right Arrow to access Picture sub menu Press Down Arrow to select Aspect Ratio Select Auto Press Exit Repeat for all input sources.
I have just plugged in a DVD player or another item into my TV and it doesn't work.	This is applicable to any item of equipment plugged to the TV 1. Turn both TV & DVD player off (plugs out of the wall socket, not standby). 2. Turn off any equipment connected to the SCART socket. 3. Disconnect the SCART plug from the TV. 4. Plug in and turn TV on 5. Plug in and turn DVD player on 6. Select HDMI from Source Menu 7. Press play on DVD player and check movie plays ok NOTE: The SCART socket has priority over HDMI and it is important that the equipment connected to the SCART socket on the TV is switched OFF (not in standby). Please follow this information. If the advice works and the DVD player works, the TV is OK it is just a bit confused. Probably HDMI plugs have been removed and plugged back in when the TV is switched on. Never remove or plug in HDMI cables or any digital equipment with the equipment switched on. Always switch off all equipment when unplugging or connecting any digital equipment.

Trouble Shooting Digital TV Problems and possible Solutions.

Picture Breaks into Pixels

A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing, sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all.

Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an Inline amplifier or a pre-amplifier. This will boost your signal strength and fix the pixel problem.

If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and satellite is in bare or in full leaf.

Missing channels

It may be that you find that there are channels missing, or you're receiving channels from the wrong region. Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TVA

TV Aerials

Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV (Freeview) for example you get BBC1, BBC2, Channel 4, but not ITV or Channel 5, this is usually because your aerial is a narrow band type, and needs to be changed to a wide band type.

Faulty Leads and Cables

Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture) problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART plugs firmly in, this should fix the problem.

HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic part of the HDMI plug should be very close or touching the body of the TV or component.

When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the other component is switched on. Always switch off both the TV and the component you are plugging in. If you have checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on again.

I have connected my PC to the TV. There is no sound.

If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a separate audio cable to the TV from the PC or laptop.

Unnatural Colours and Flesh Tones

Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture menu.

White Outlines

White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.

Choppy Video

At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the help of an amplifier.

The picture does not fill the screen

When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or laptop (Windows > Start > Control Panel > Appearance and Personalization > Display settings) and select the best resolution. On your TV select: TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.

USB Connection

The USB connection will work with .jpg (photo) and .mp3 (music) files. Please note the TV does not recognize Apple iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple different file formats, there is no guarantee that these other file formats will work.

06 Specification

22" FULL HD 1080p Digital LED LCD TV

Television picture quality:	FULL HD Integrated digital. Screen Size: 55cm Resolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets. 1 SCART socket. PC input socket. Component video socket. Composite. 1 USB port. 1 Headphone port. 1 port.COAXIAL Supported Systems:PAL-SECAM Storage channel number: 1000(DTV), 100(ATV) TV (RF):75Ω Imbalance AV Video-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVideo Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system. 2 x 3 watts RMS power output.
Standby Power consumption	<0.30W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner; Sleep timer; Picture and textParental Rating; Remote control batteries required 2 x AAA (included). VESA Mount Size: 100 mmx 100 mm Package Size (WxHxD): 616x426x135mm Set Size (WxHxD) with Stand: mm513x355x160 Set Size (WxHxD) without Stand: mm513x312x42 Package weight: 4.1 kg Set weight with stand: 2.9kg Set weight without stand: 2.7 kg
*The part specifications of this TV set provided here are for reference only. Differences may occur as product technology is updated. Design and specifications are subject to change without notice. Scart Output description : 1. When current source is ATV/AV/SCART, scart output signal is ATV. 2. When current source is DTV, there will be no SCART output signal. 3. Other source have no SCART output signal.

Specification

24" FULL HD 1080p Digital LED LCD TV

Television picture quality:	FULL HD Integrated digital. Screen Size: 59.9cm Resolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets. 1 SCART socket. PC input socket. Component video socket. Composite. 1 USB port. 1 Headphone port. 1 COAXIAL port. Supported Systems:PAL SECAM Storage channel number: 1000(DTV),100(ATV) TV (RF):75Ω Imbalance AV Video-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVideo Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system. 2 x 3 watts RMS power output.
Standby Power consumption	<0.30W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner; Sleep timer; ;Picture and textParental Rating Remote control batteries required 2 x AAA (included). VESA Mount Size: 100 mmx 100 mm Package Size (WxHxD): mm650x440x135 Set Size (WxHxD) with Stand: mm568x386x160 Set Size (WxHxD) without Stand: mm568x344x42 Package weight: 4.9 kg Set weight with stand: 3.74kg Set weight without stand: 3.5 kg

• The part specifications of this TV set provided here are for reference only.
  Differences may occur as product technology is updated.
  Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, there will be no SCART output signal.
3. Other source have no SCART output signal.

Specification

28" HD Ready Digital LED LCD TV

Television picture quality:	HD Ready Integrated digital. Screen Size: cm70 Resolution 1366x768 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets. 1 SCART socket. PC input socket. Component video socket. Composite. 1 USB port. 1 Headphone port. 1 port.COAXIAL Supported Systems:PAL SECAM Storage channel number: 1000(DTV), 100(ATV) TV (RF) :75Ω Imbalance AV Video-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVideo Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system. 2 x 8watts RMS power output.
Standby Power consumption	<0.30W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner; Sleep timer; ; Picture and textParental Rating Remote control batteries required 2 x AAA (included). VESA Mount Size: 200 mmx 100 mm Package Size (WxHxD): 810x480x120mm Set Size (WxHxD) with Stand: 642x435x170mm Set Size (WxHxD) without Stand: 642x390x44mm Package weight: 6.5 kg Set weight with stand: 5.3 kg Set weight without stand: kg5.0
* The part specifications of this TV set provided here are for reference only. Differences may occur as product technology is updated. Design and specifications are subject to change without notice. Scart Output description : 1. When current source is ATV/AV/SCART, scart output signal is ATV. 2. When current source is DTV, there will be no SCART output signal. 3. Other source have no SCART output signal.

Specification

32" HD Ready Digital LED LCD TV

Television picture quality:	HD Ready Integrated digital. Screen Size: 81cm Resolution 1366x768 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets. 1 SCART socket. PC input socket. Component video socket. Composite. 1 USB port. 1 Headphone port. 1 port.COAXIAL Supported Systems:PAL-SECAM Storage channel number:1000(DTV),100(ATV) TV(RF):75Ω Imbalance AVVideo-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVideo Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system. 2 x 8watts RMS power output.
Standby Power consumption	<0.30W
Digital features:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer; ;Picture and textParental Rating Remote control batteries required 2 x AAA (included). VESA Mount Size: 200 mmx 100 mm Package Size (WxHxD): 880x550x137mm Set Size (WxHxD) with Stand: 738.5x487.5x170mm Set Size (WxHxD) without Stand: 738.5x443x64mm Package weight: 6.8 kg Set weight with stand: 5.0 kg Set weight without stand: 4.7 kg

• The part specifications of this TV set provided here are for reference only.
  Differences may occur as product technology is updated.
  Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, there will be no SCART output signal.
3. Other source have no SCART output signal.

Haier®

Haier®

Common Interface. 21

Signa informationen 21

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

(22",24")

(28")

(32")

G Grun (Y)
B Blau (Pb/Cb)
W WeiB (AUDIO-L)
R Rot (AUDIO-R, Pr/Cr)
Y Gelb (VIDEO)

RISQUES D'LECTROCUTION NE PAS OUVIR

Option 5 VGA (Sub-D 15 broches)

Common interface. 15

03 Afstandsbediening

Afstandsbediening 16

Common Interface. 21

WAARSCHUWINGEN EN VOORZORGSGMAATREGELEN

Waarschuwing

"Home"-of"Shop"-modus

Common interface. 15

03 Telecomando

Telecomando 16

TV LED LCD 22" Full HD 1080P Digital

TV LED LCD 24" Full HD 1080P Digital

Telecomando

Telecomando

2 x batterie AAA

2xbatterie AAA

TV LED LCD 32" HD Digital

Telecomando

Telecomando

2x batterie AAA

2x batterie AAA

Option 8 USCITA AUDIO DIGITALE (COASSIALE)

ATV TV analogica (non in UK)

1. MENU CANALI

8.File System PVR (solo per DTV Standard Definition)

TV LED LCD 22" FULL HD 1080P Digital

Qualità imagine television:	FULL HD Digitale integrato. Dimensioni schermo: 55cm Risoluzione 1920 x 1080 pixel 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connettività:	2 prese HDMI. 1 presa SCART. Presa ingresso PC. Presa video component. Composite. 1 porta USB. 1 porta cuffia. 1 porta COASSIALE. Supported Systems:PAL+SECAM Numero di canali Memorizzabili:1000(DTV),100(ATV) TV(RF):75Ω Non bilanziato AV Video-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVIDEO Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Qualità audio:	NICAM stereo sound system. 2 x 3watts RMS power output.
Potenza assorbita in standby	<0.30W
Funzioni digitali:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. Cl slot. Audio description compatible.
Funzioni supplementari:	UHF/VHF tuner; Sleep timer; ;Picture and textControllo Parentale Remote control batteries required 2 x AAA (included). VESA Mount Size: 100 mm x 100 mm Dimensioni confazione (LxAxA)6:16x426x135mm Dimensioni set (LxAxA) con supporto513x355x160mm Dimensioni set (LxAxA)enza supporto m: 513x312x42m Peso confazione: 4.1kg Peso set con supporto: 2.9 kg Peso setenza supporto: 2.8 kg

TV LED LCD 24" FULL HD 1080P Digital

Qualità immagine television:	FULL HD Digitale integrato. Dimensioni schermo: 59.9cm Risoluzione 1920 x 1080 pixel 50Hz.
DTV Tuner Decorder	DVB-T, DVB-C 16/32/64/128/256 QAM modulation/QPSK Modulation MPEG2,MPEG4,H.264
Connettività:	2 prese HDMI. 1 presa SCART. Presa ingresso PC. Presa video component. Composite. 1 porta USB. 1 porta cuffia. 1 porta COASSIALE. Supported Systems: PAL+SECAMNumero di canali Memorizzabili:1000(DTV),100(ATV) TV(RF):75Ω Non bilanciato AV Video-Input:75Ω,1V-P,RCA AV Audio-Input:20KΩ,500mB RMS YPbPr/HDMIVideo Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Qualità audio:	NICAM stereo sound system. 2 x 3 watts RMS power output.
Potenza assorbita in standby	<0.30W
Funzioni digitali:	Digitally interactive. Digital text. Digital video broadcasting (DVB) subtitles available. Auto setup. Auto scan for new channels. Now and next programme guide. 7 day electronic programme guide (EPG). Top up TV compatible. CI slot. Audio description compatible.
Funzioni supplementari:	UHF/VHF tuner; Sleep timer; ;Picture and textControllo Parentale Remote control batteries required 2 x AAA (included). VESA Mount Size: 100 mm x 100 mm Dimensioni confezione (LxAxP):650x440x135mm Dimensioni set (LxAxP) con supporto568x386x160mm Dimensioni set (LxAxP) alla supporto568x344x42mm Peso confezione: 4.9kg Peso set con supporto: 3.74 kg Peso set alla supporto: 3.5kg
