USER MANUAL LE39M600SF HAIER

Please read this manual carefully before operating the unit, and keep it for future reference.

Contents

01 Safety Warnings

Welcome....2

Important Information....2

Safety notice....3

Warning and cautions 4

02 Introduction

Main Parameter....5

Base Stand Assembly Instruction....7

Wall Mounting Installation Guidelines......8

Front Control Panel....9

Rear/Side Sockets....9

Connecting to your Haier TV 11

Common Interface 14

03 Remote Control

Remote Control....15

Teletext 16

04 Operation

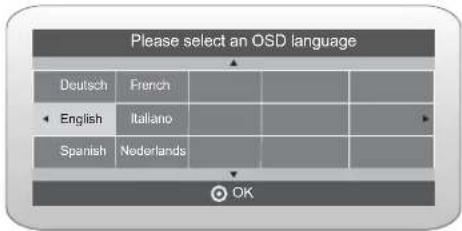

Installation Guide 17

CHANNEL MENU.18

Auto Tuning (DVB-T).18....

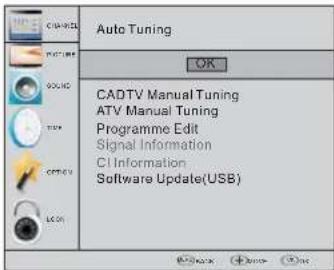

Auto Tuning (DVB-C).19....

Auto Tuning (DVB-S2).19

DTV Manual Tuning (DVB-T)....19

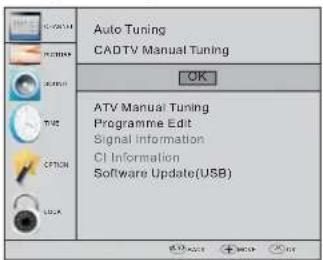

DTV Manual Tuning (DVB-C)....20

DVB-S2 20

First Time Installation....20

Satellite Management 20

Program Edit....22

Signal Information....22

CI Information....22

EPG(Electronic program guide)......22

ATV Manual Tuning 22......

Program edit 22

CI information....23

PICTURE MENU 23....

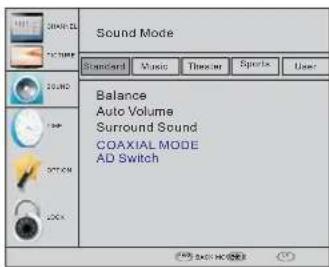

SOUND MENU....23

TIME MENU 23

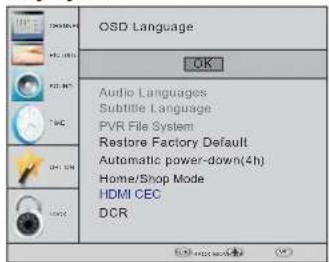

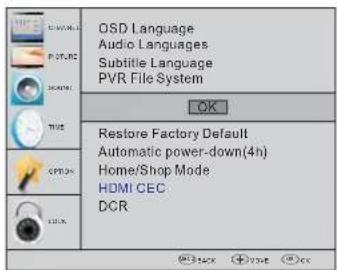

OPTION MENU....23

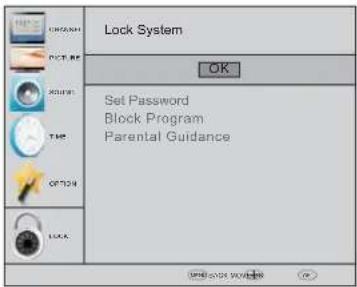

LOCK MENU....24

EPG Menu(Electronic Program Guide)......24

PVR function....25

Prepare to record the program 25

Record the program 26

Play the record 26

Timeshift function....27

Prepare to record the program 27

USB Drive Storage Format 27

Record a paused DTV program

to USB storage device....27

Timeshift limitations....28

USB Player 29

MHL User Guide....30

05 Trouble shooting

Trouble shooting 31

06 Specification

Specification 34....

01 Safety warnings

WELCOME

Thanks for buying this 39"/46"/50"LED LCD TV. This guide will help you set up and begin using your TV.

First, check the contents of your box with the parts check list below:

39" FULL HD 1080P Digital LED LCD TV

Remote control

AAA ba x2ttery

Instruction Manual

Quick start guide

MHL Cable (optional)

MHL Connector (optional)

Stand

46" FULL HD 1080P Digital LED LCD TV

Remote control

AAA ba x2ttery

Instruction Manual

Quick start guide

MHL Cable (optional)

MHL Connector (optional)

Stand

50" FULL HD 1080P Digital LED LCD TV

Remote control

AAA ba x2ttery

Instruction Manual

Quick start guide

MHL Cable (optional)

MHL Connector (optional)

Stand

Now you can get started!

IMPORTANT INFORMATION

READ ALL INSTRUCTIONS BEFORE USE AND KEEP FOR FUTURE REFERENCE.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. FOR ANY PROBLEMS, REFER SERVICING TO THE CUSTOMER HELP LINE. THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE: THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANYINSIDE PART OF THIS PRODUCT.

THERE IS A EXCLAMATION MARK IN THE TRIANGLE: THIS SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE CONCERNING OPERATION AND MAINTENANCE HAS BEEN INCLUDED WITH THIS PRODUCT.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE, DO NOT PUTTHE TV SET NEAR SOURCES OF HUMIDITY. DO NOT USE ANY ABRASIVE CLEANERS WHICH MAY SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.

NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORISED AND COULD LEAD TO INJURY OR PRODUCT DAMAGE. REFER ALL SERVICING TO THE CUSTOMER HELPLINE.

Safety notice

• Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.
• Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.
• Do not expose the product to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
• Keep the product away from direct sunlight and heat source such as radiators or stoves.
• Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your product on a cushion, sofa or other similar surface.
• Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.
• Never place heavy or sharp objects on the panel or frame.
• Unplug the Power from the outlet when the unit is not in use.
• Attention should be drawn to the environmental aspects of battery disposal.
• WARNING: The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.
• Warning: To avoid any injury caused by lean of the product, please always ensure the whole product was placed within the table surface in horizontal.
  • CAUTION: When the apparatus was in electrostatic circumstance, it may be malfunction and need to reset by user.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

WARNING AND CAUTIONS

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

Warning

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Warning

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Caution

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Caution

Do not trap the power supply cord under the television receiver.

Caution

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Caution

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

Caution

When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

Caution

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

02 Introduction

Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment.

When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth.

During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV service personnel.

Main features

① Used as Television, display terminal, PC display;
② High luminance, wide viewing angle;
③ HDMI interface and SCART Interface;

Main parameter

Panel	39"	46 "	50 "
TV System	PAL-B/G,I,D/KSECAM-B/G,D/K,L,DVB-T,DVB-C,DVB-S2
Video Signal System	PAL/SECAM/MPEG2/MPEG4/H.264
	5000(DVB-S2);510(DTV);100(ATV)Storage channel number
Input Power Voltage	AC 100 -240V 50/60Hz
Power consumption	78W	100W	120W
Standby Power consumption	≤0.50W
Audio Output Power	2x10W
Signal Input	Analog RGB(PC) x1; PC audio x1High-Definition Multimedia Interface (HDMI) x 2/MHL x 1Composite Input x 1YPbPr x 1SCART Inputx 1CI x 1USB x 1LNB IN x 1RF Co-Ax x 1
Signal output	Headphone x 1SCART Output x 1COAXIAL Output x 1
Horizontal definition (TV line)	Composite video input >=350YPbPr >=400

INSTALLATIONCAUTION

*Locate the TV in the room where light does not strike the screen directly.
*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
*Allow enough space between the TV and the wall to permit ventilation.
*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.
*Do not cover the ventilation openings when using theTV.

④ NICAM;
⑤ T; ime-shift

PC

SUPPORTED MODE

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	640x480	60	31.47
2	800x600	60	37.88
3	1024x768	60	48.36
4	1366x768	60	47.7
5	1280x1024	60	63.98
6	1920x1080	60	66.64

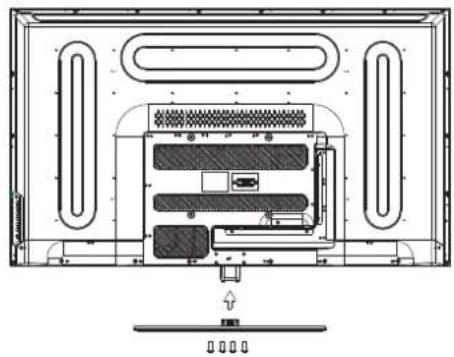

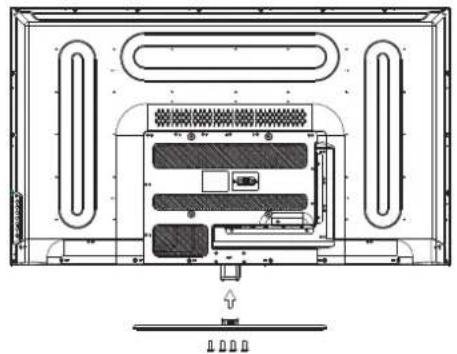

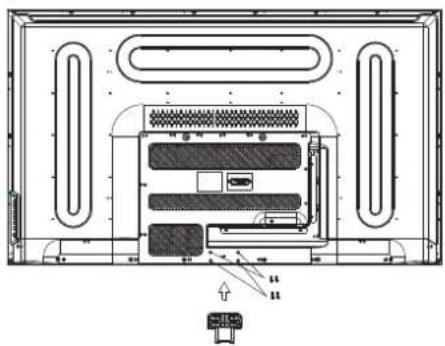

Base Stand Assembly Instruction

1. Place the TV with the display side down on a flat surface. Use a cloth to protect the display. Position the stand base pillar onto the bottom of the TV.

2. Attach the stand base plate to the stand pole by firmly tightening the supplied screws.

Technical line drawing of a computer chassis with ventilation ducts and connectors (no text or symbols)

Technical line drawing of a computer monitor rear panel with ventilation ducts and drive bays (no text or labels)

INSTALLATION NOTES

Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation. Please do not attempt to rotate the TV on the stand.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

WALL MOUNTING INSTALLATION GUIDELINES

This television can be wall mounted as follows:

1. Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to protect it from any damage.

Technical line drawing of a server rack unit with ventilation grilles and drive bays (no text or labels)

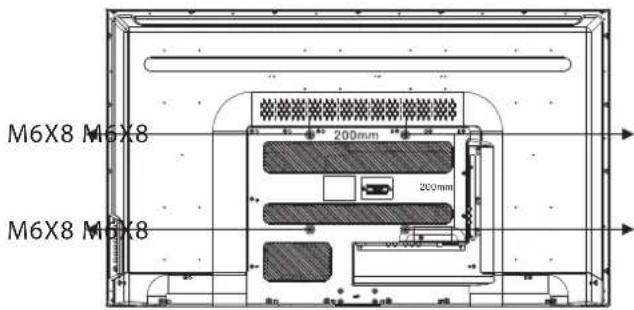

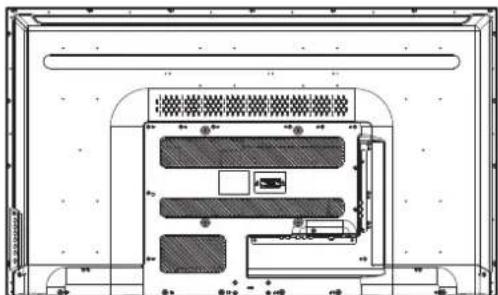

1. Use the four screws provided to fix the TV onto a wall mounting bracket (not included) via the four VESA standard holes on the back of the television.

M6X8 M6X8 200mm 200mm M6X8 M6X8

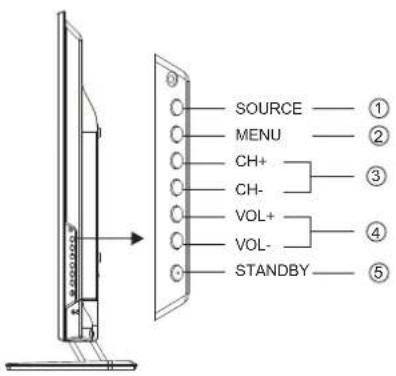

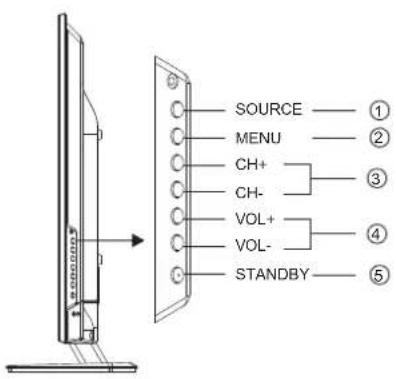

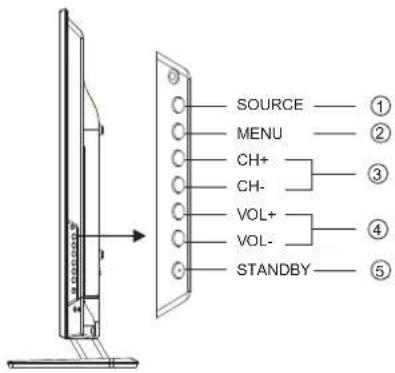

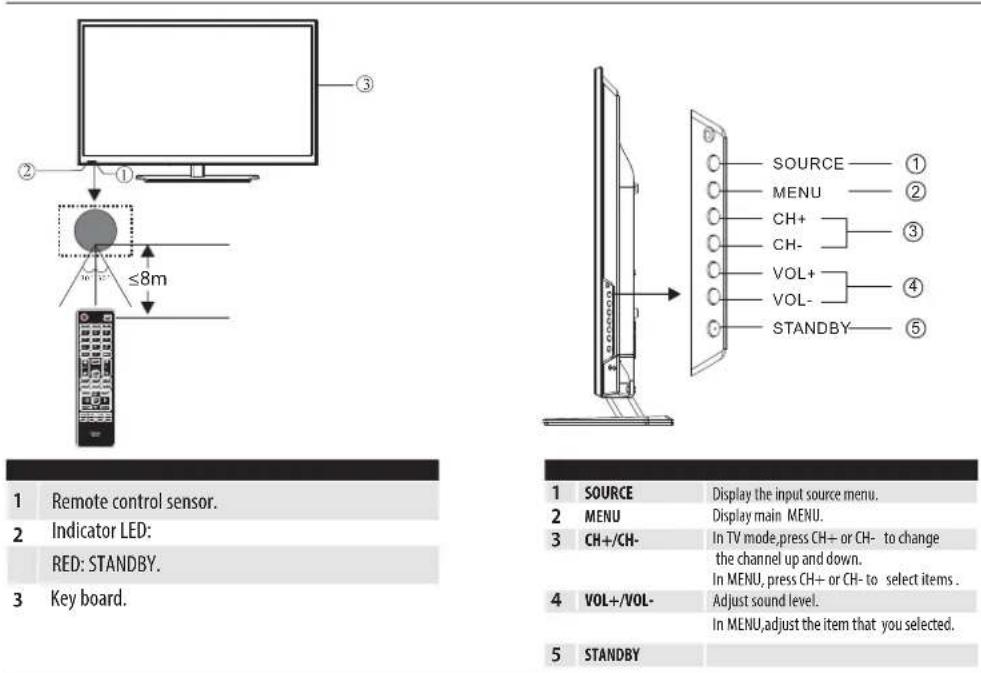

Front control panel

1 Remote control sensor.

2 Indicator LED:

RED: STANDBY.

3 Key board.

1	SOURCE	Display the input source menu.
2	MENU	Display main MENU.
3	CH+/CH-	In TV mode, press CH+ or CH- to change the channel up and down.In MENU, press CH+ or CH- to select items .
4	VOL+/VOL-	Adjust sound level.In MENU, adjust the item that you selected.
5	STANDBY

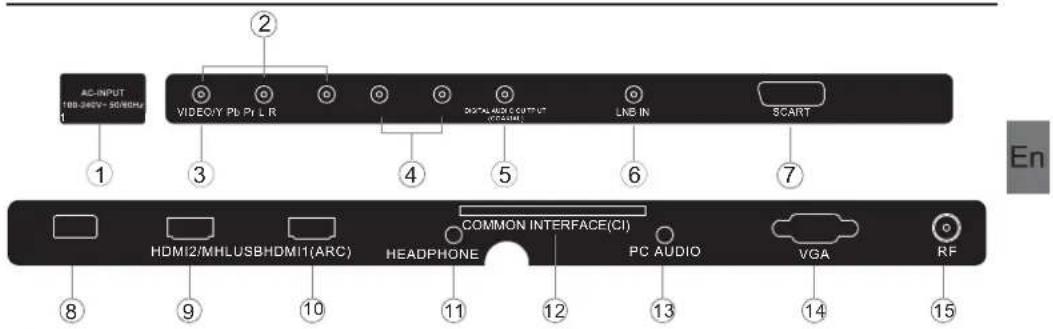

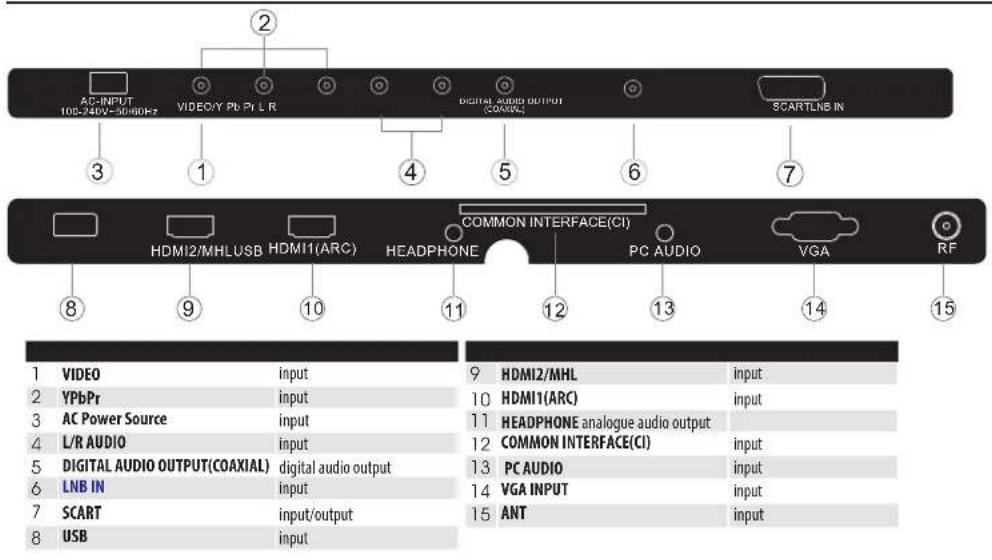

Rear/Side Sockets(39",50")

AC-INPUT 105-740V-30/60Hz VIDEO/Y Pb Pt L R DIGITAL AUDIO OUTPUT COAXIAL SCARTLNB IN ② ③ ① ④ ⑤ ⑥ ⑦ HDMI2/MHLUSB HDMI1(ARC) COMMON INTERFACE(CI) HEADPHONE PC AUDIO VGA RF ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ 1 VIDEO input 9 HDMI2/MHL input 2 YPbPr input 10 HDMI1(ARC) input 3 AC Power Source input 11 HEADPHONE analogue audio output 4 L/R AUDIO input 12 COMMON INTERFACE(CI) input 5 DIGITAL AUDIO OUTPUT(COAXIAL) digital audio output 13 PCAUDIO input 6 LNB IN input 14 VGA INPUT input 7 SCART input/output 15 ANT input 8 USB input

Rear/Side Sockets(46")

AC-INPUT TBD-240V~ 50/8GHz 1 VIDEO/Y PB PI L R 2 Digital Audio OUTPUT (CCS400) LINE IN SCART 3 4 5 6 7 HDMI2/MHLUSBHDMI1(ARC) HEADPHONE COMMON INTERFACE(CI) PC AUDIO VGA RF 8 9 10 11 12 13 14 15 En

1	AC Power Source	input
2	YPbPr	input
3	VIDEO	input
4	L/R AUDIO	input
5	DIGITAL AUDIO OUTPUT(COAXIAL)	digital audio output
6	LNB IN	input
7	SCART	input/output
8	USB	input

9	HDMI2/MHL	input
10	HDMI1(ARC)	input
11	HEADPHONE analogue audio output
12	COMMON INTERFACE(CI)	input
13	PC AUDIO	input
14	VGA INPUT	input
15	ANT	input

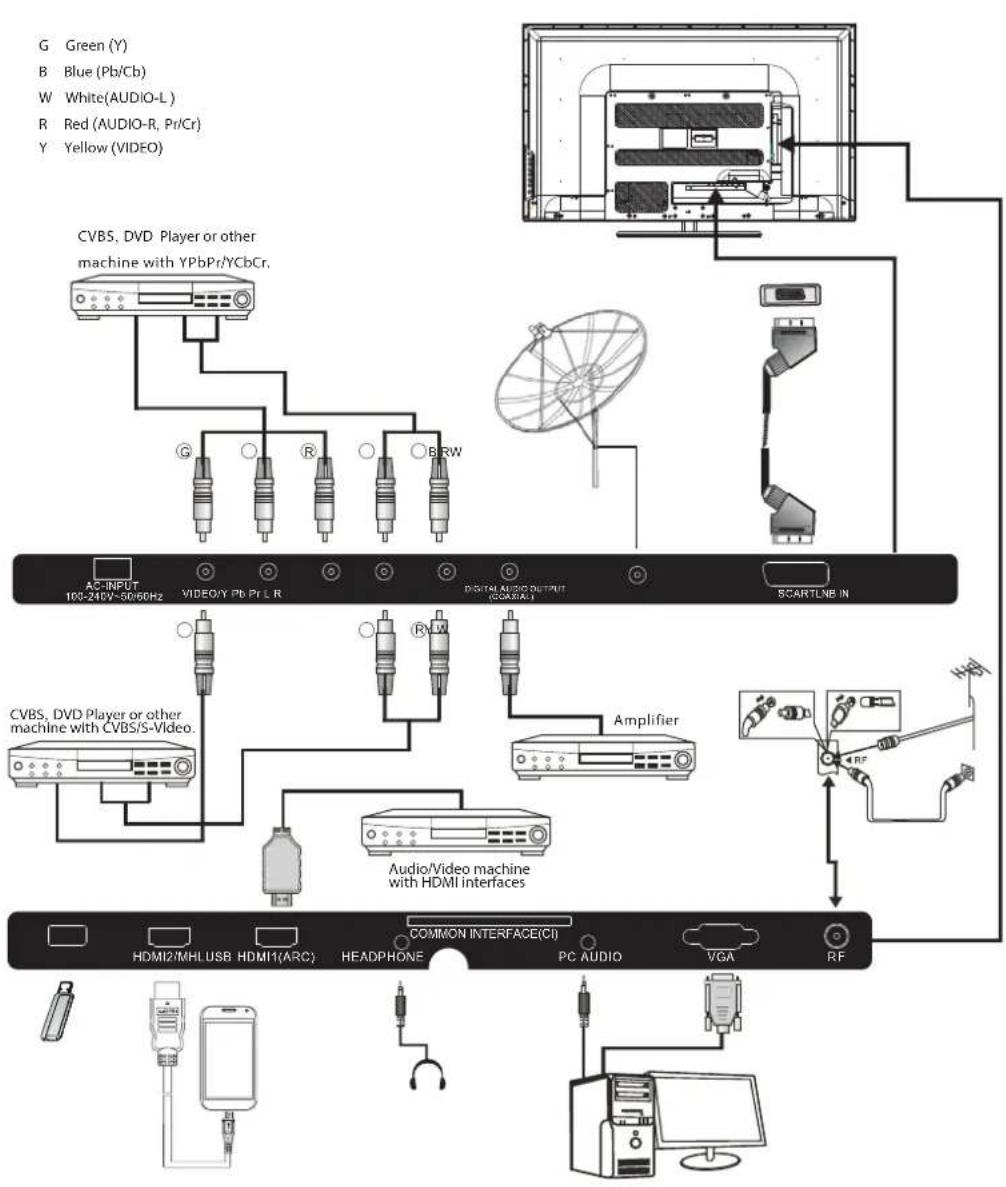

Connecting to your Haier TV(39",50")

G Green (Y) B Blue (Pb/Cb) W White(AUDIO-L) R Red (AUDIO-R, Pr/Cr) Y Yellow (VIDEO) CVBS, DVD Player or other machine with YPbPr/YCbCr. G R B RW AC-INPUT 100-240V-50/60Hz VIDEO/Y Pb Pr L R DIGITAL AUDIO OUTPUT SCARTLINE 1 SCARTLINE IN CVBS, DVD Player or other machine with CVBS/S-Video. Amplifier Audio/Video machine with HDMI interfaces HDMI2/MHLUSB HDMI1(ARC) COMMON INTERFACE(CI) HEADPHONE PC AUDIO VGA RF

EN-11 LED Backlit Flat TV Instruction Manual

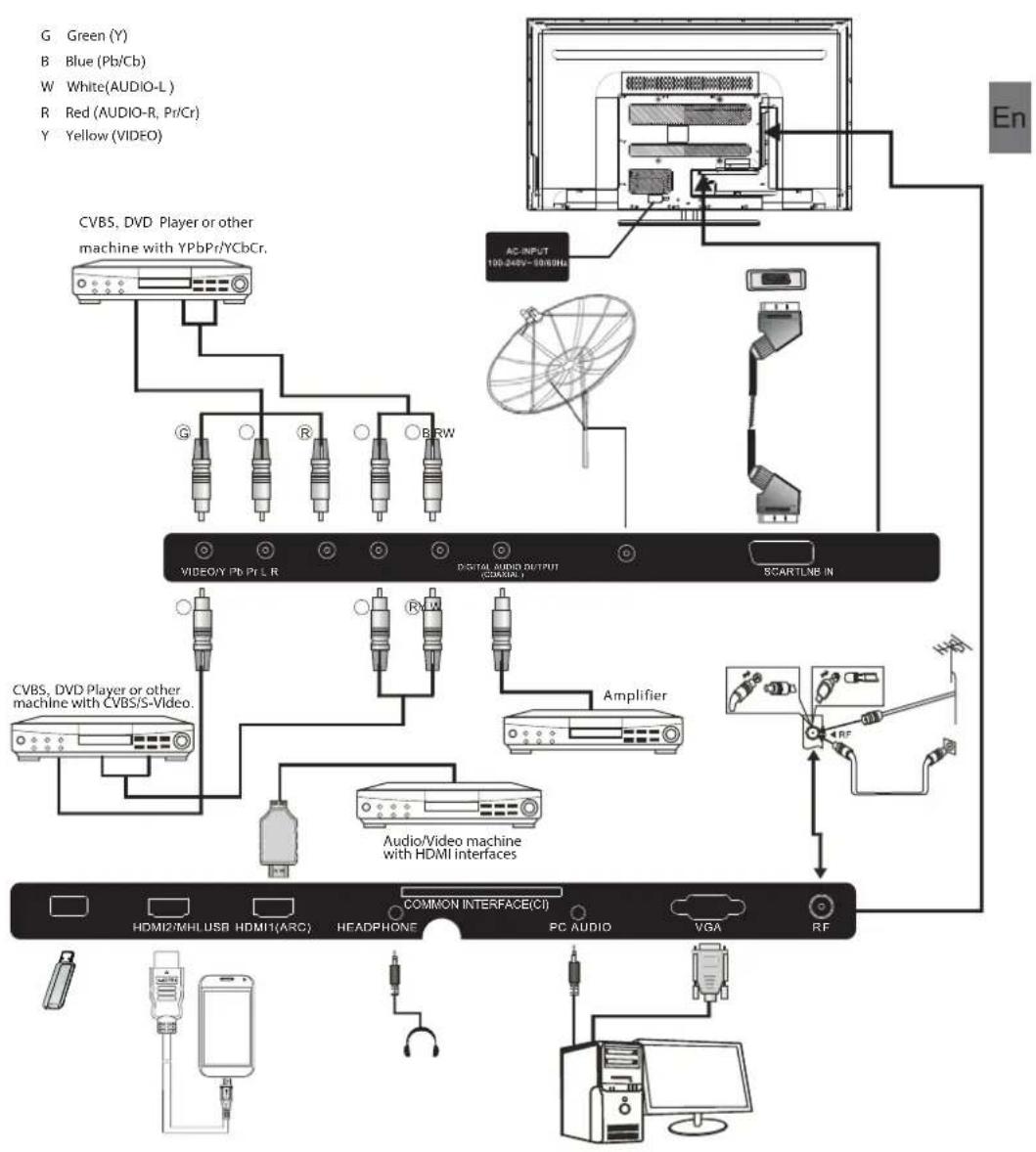

Connecting to your Haier TV(46")

G Green (Y) B Blue (Pb/Cb) W White(AUDIO-L) R Red (AUDIO-R, Pr/Cr) Y Yellow (VIDEO) CVBS, DVD Player or other machine with YPbPr/YCbCr. G R BRW VIDEO/Y Pb Pr L R DCITAL AUDIO OUTPUT (COMINA) SCARTLNB IN CVBS, DVD Player or other machine with CVBS/S-Video. Amplifier Audio/Video machine with HDMI interfaces COMMON INTERFACE(CI) HDMI2/MHLUSB HDMI1(ARC) HEADPHONE PC AUDIO VGA RF En

Connecting to your Haier TV

Connecting a DVD player/Satellite / cable set top box receiver / games console / PC or Laptop

There are several options to connecting a DVD player / Satellite or Cable set top box receiver / games console / PC or Laptop to your TV.

Option 1 SCART

Connect a SCART cable (not supplied) from the SCART socket on the TV to the DVD player top cable receiver or games consol.

To select the device connected with the SCART cable press the SOURCE button on the remote and use the ▼▲ keys to select SCART and press the OK button. Note:- The TV will default to the SCART connection when the TV is switched on.

Option 2 HDMI

If the device you want to connect to the TVs switched on, switch off the device first.

Connect a HDMI cable (not supplied) from the HDMI socket on the TV to the DVD player/reversible games consol.

3 Switch on the device you have just connected to the TV

To select the device connected with the HDMI cable press the SOURCE button on the remote and use the ▼▲ keys to select HDMI and press the OK button.

Option 3 AV Audio Visual (Yellow/White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the AV cables (not supplied) from the Video (yellow) and Audio (white, red) sockets on the TV to the DVD player or games console etc.

8 To select the device connected with the AV cable press the SOURCE button on the remote and use the ▼▲ keys to select AV and press the OK button.

Option 4 COMPONENT (Green/Blue/Red)+(White/Red)

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the cables (not supplied) from the COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and L-Audio-R (white, red) on the TV to the DVD player or games console etc.

To select the device connected with the COMPONENT cable press the SOURCE button on the remote and use the keys to select and Pr press the OK button.

Option 5 VGA (15pin Sub-D)

Connect a VGA cable (not supplied) from the VGA socket on the TV to the PC / Laptop.

To select the PC / Laptop connected with the VGA cable press the SOURCE button on the remote and use the ▼▲ keys to select PC and press the OK button.

Note : VGA is video only. For audio from your PC/Laptop you need to connect a separate cable from the PC Audio (3.5mm jack) to the headphone socket on you PC/Laptop (3.5mm jack)

Option 6 USB

1 Most USB sticks can be connected to your TV and some digital cameras may also work.

2 Connect USB stick (not supplied) or a USB cable (not supplied) to the TV.

To select the USB device connected to the TV, press the SOURCE button on the remote and use the keys to select USB and press the OK button.

Note1:Only *.jpg and *.mp3 files will work, other file types are not guaranteed and may not. Note 2. Apple iPhones and iPods are not compatible with your TV.

Note 3. When connecting any device to the USB connection, keep the USB cable length as short as possible.

Option 7 HEADPHONE OUTPUT

Insert the plug of the earphone into the headphone socket on the TV. The TV speakers are now muted. Alternatively you can also plug in external speakers if required.

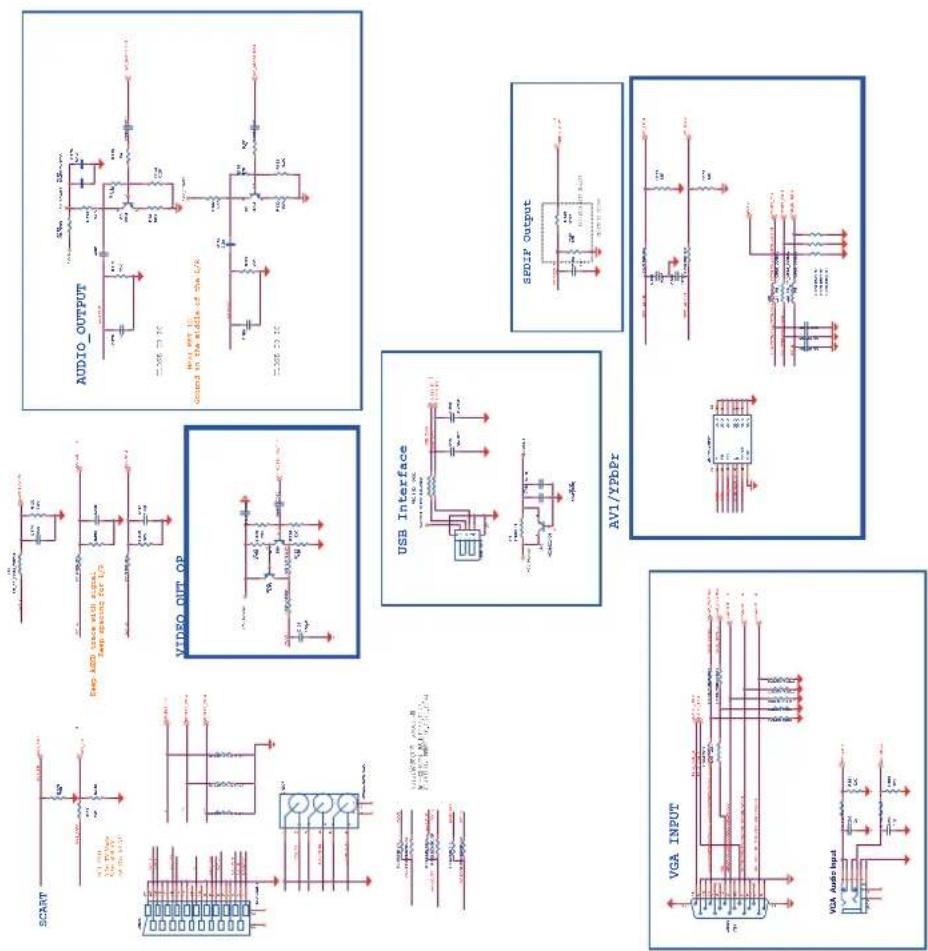

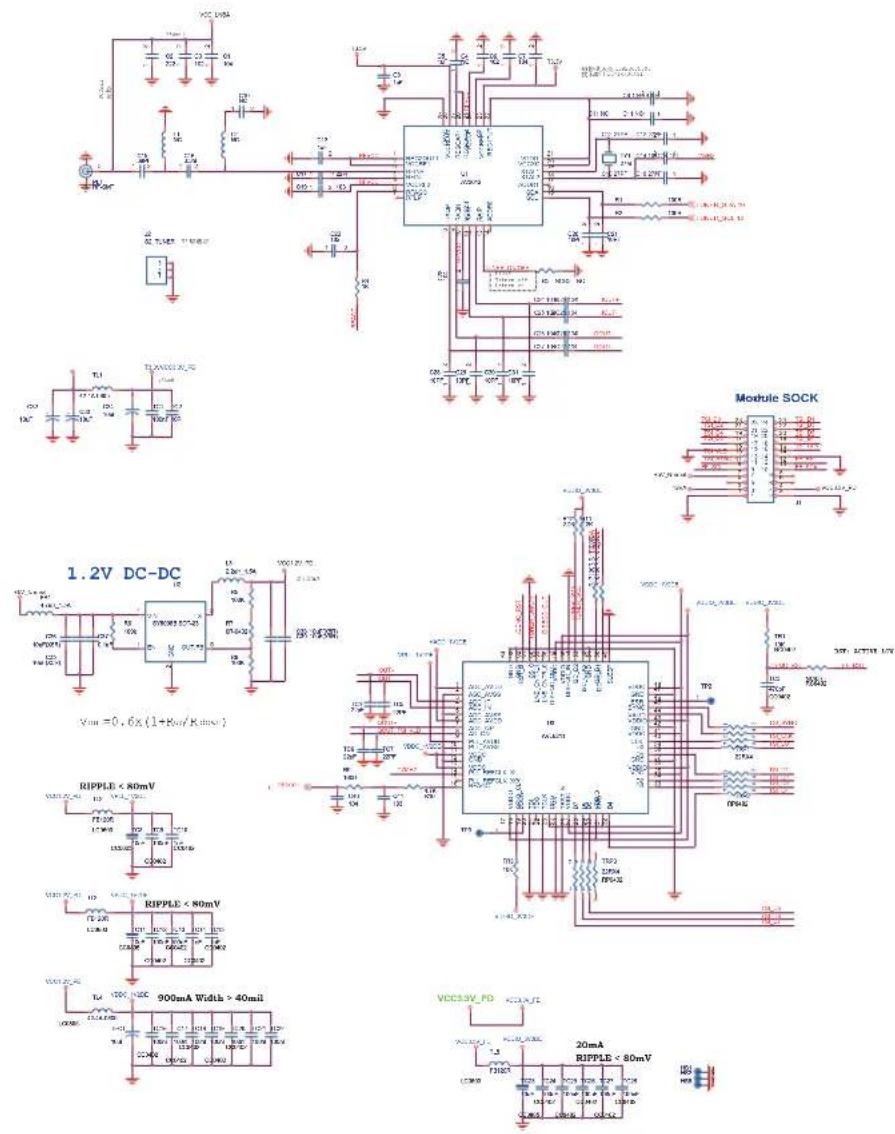

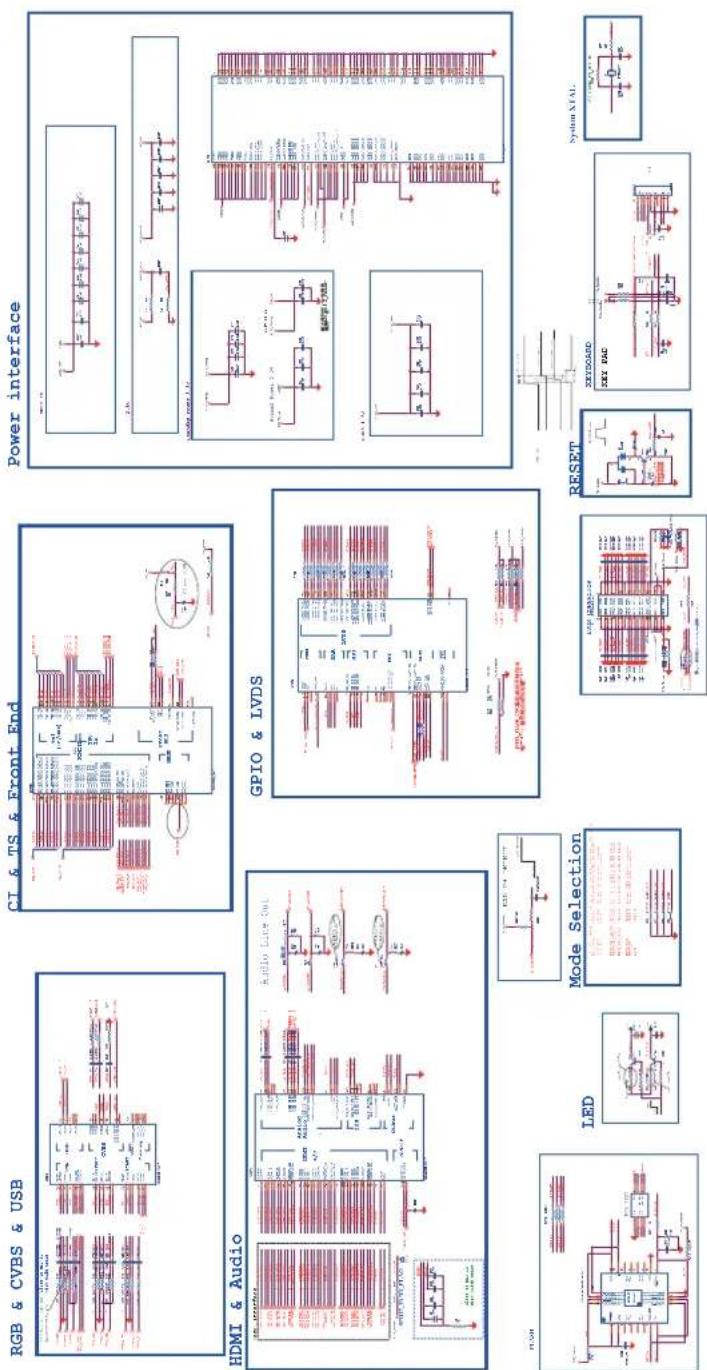

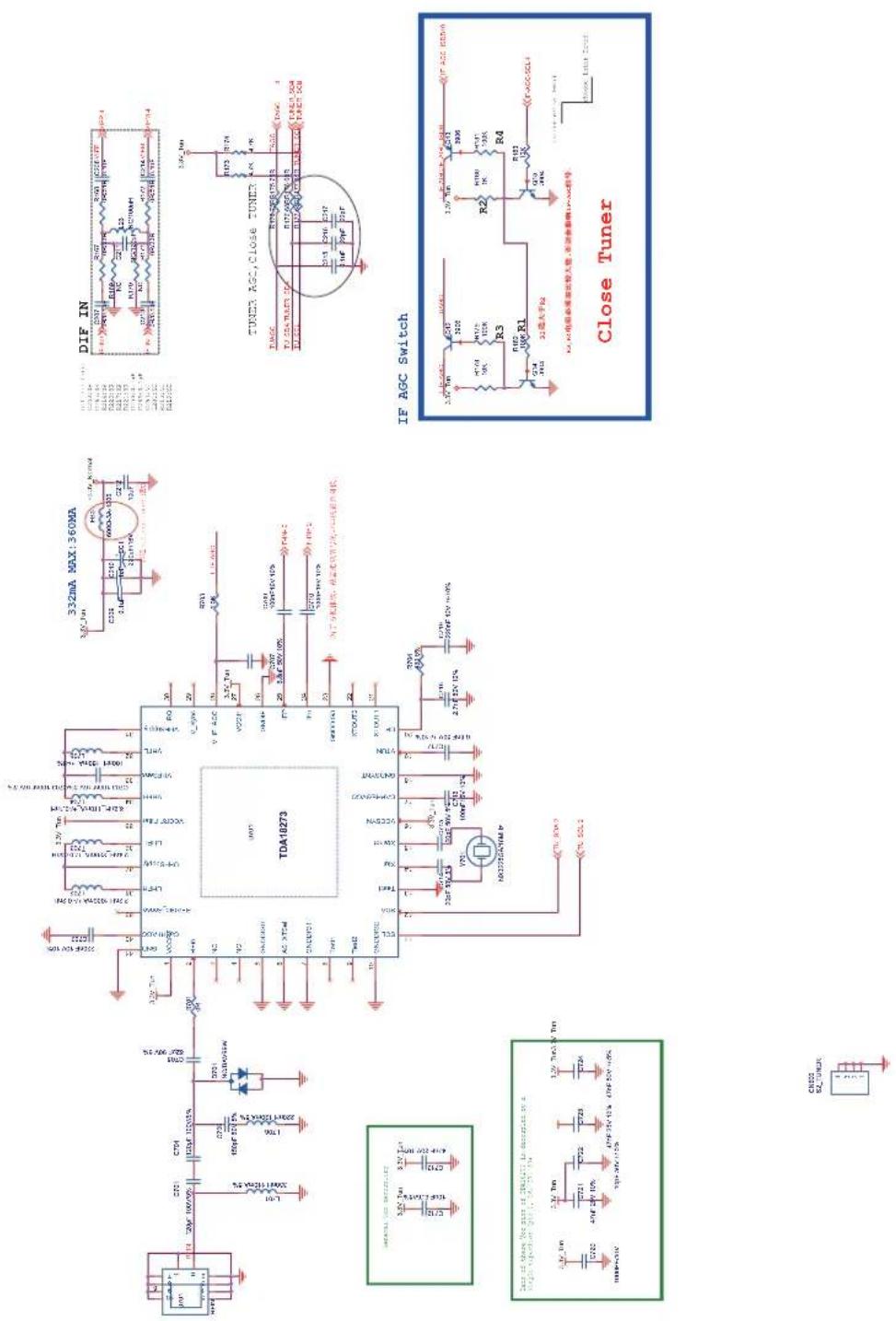

Option 8 DIGITAL AUDIO OUTPUT(COAXIAL)

COAXIAL is a digital audio connection used to connect audio equipment, for example home theatres and other digital HiFi systems over short distances. The signal is transmitted over either a coaxial cable with RCA connectors.

1 Make sure that both TV and the device are switched off before connecting.

2 Connect the AV cables (not supplied) from the GOKetin in the TV to the Home Theater sound system or digital HiFi system etc.

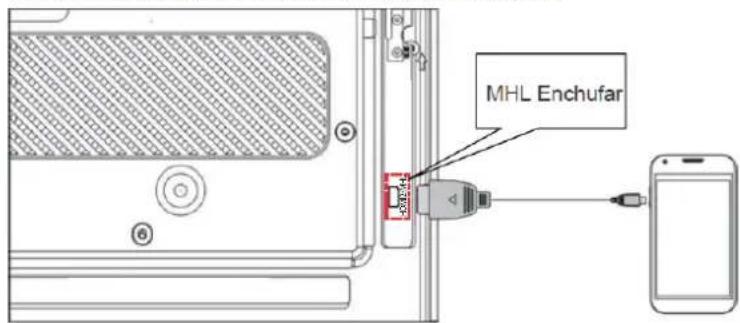

Option 9 MHL INPUT

Connect the devices which can support MHL function; also function as HDMI input socket.

Option 10 LNB INPUT

Connect the satellite cable with the LNB Port on the back.

After that, you can turn on the engine. Press "Source" to switch into the DVB-S2 mode and start the channel search.

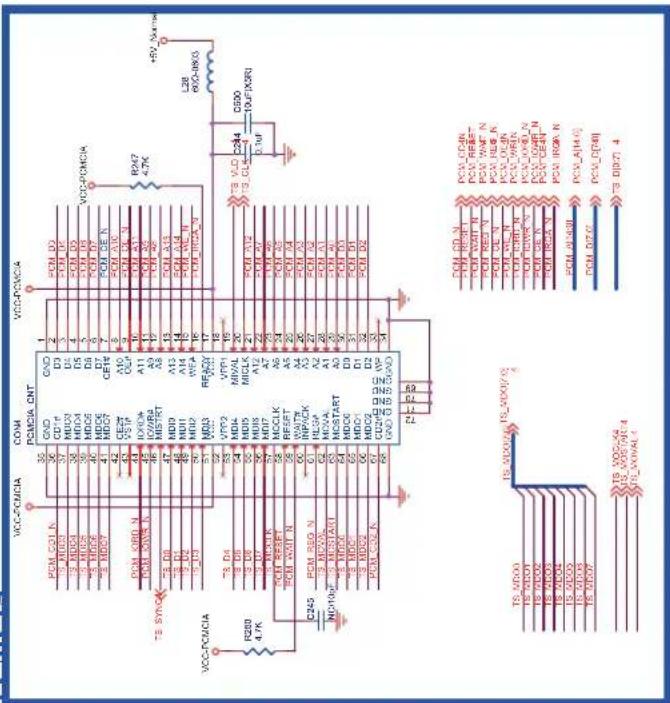

COMMON INTERFACE

The common interface (CI) slot is designed to accept the conditional Access (CA) Module and Smart card in order to view the pay TV programmes and additional services. Contact your Common Interface service provider to get more information about the modules and subscription. Please noted that CA modules and smart cards are neither supplied nor optional accessories from us.

Warning

- Switch off your TV before any module is inserted in the Common Interface slot.

1 Insert the CAM correctly, then Smart Card to the CI slot that is located at the side of the TV.

2 Turn on the TV and it will display the below message if the CI module is detected. Wait for few moments until the card is activated.

CI Module Inserted

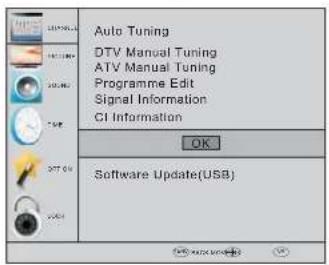

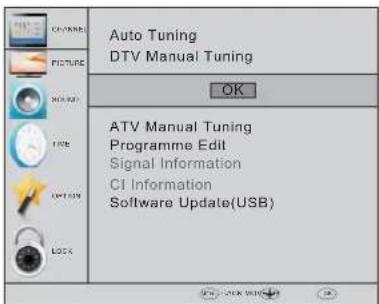

3 Press the MENU button then press ▲▼ button to select CI Information option.

Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information OK Software Update(USB)

4 Detailed information on the CI card in use is displayed.
5 Press OK button to access the card menu. Refer to the module instruction manual for setting details.
6 When module is removed, the following message will appear on the screen.

CI Module Removed

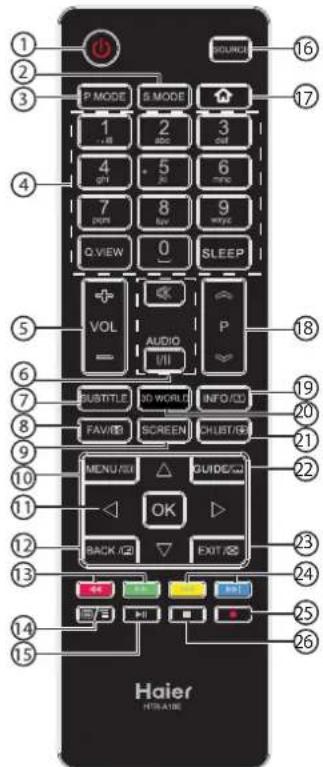

03 Remote Control

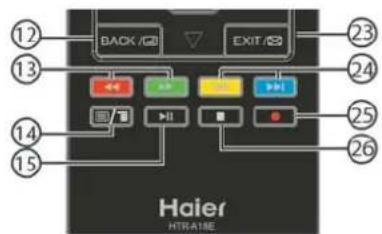

1 2 3 P MODE S MODE 1 2 3 - dB ABC out 4 5 6 GHz 7 8 9 OPEN 0 SLEEP VOL AUDIO P U/VII 18 5 6 7 BUSTITLE 30 WORLD INFO/CL FAV/BS SCREEN CHLIST/GB 9 10 11 MENU KEY GUIDE/CL OK BACK /2 EXIT /SB 12 13 14 15 Haier HTR/A18E SOURCE 16 17 19 20 21 22 23 24 25 26

#	Button	Descriptions
1	(Power)	Press to turn the TV on or off.
2	S.MODE	Press to select the sound mode.
3	P.MODE	Press to select the picture mode.
4	0-9	Press to enter a channel number or password.
	Q.VIEW	Press to switch to the last viewed channel.
	SLEEP	Press to set the sleep timer.
5	VOL +/-	Press to adjust the volume level.
6	(Mute)	Press to turn the sound on or off.
	AUDIO(I/II)	Press to select Mono,Nicam stereo for ATV channel.Select Audio language for DTV channel.
7	SUBTITLE	Press to turn the subtitle on or off.
8	FAV/88	Press to open a favorite channel list.In teletext mode,press to hold a page.

9	SCREEN	Press to change picture aspect ratio.
10	MENU/	Press to open the on-screen menu.In teletext mode,press to open the INDEX page.
11	▲▼◀	Press to navigate the on-screen menu.
		Press to confirm a selection.OK
12	BACK/	Press to return to the previous screen.In teletext mode,press to enter mix mode.
13	◀(reverse)▶(forward)	Press to fast forward or reverse playback in multimedia mode.
14	≡/	In teletext mode,press to open or close teletext page.Press to display main menu in the MHL mode,for example the APP menu.
15	▶	Press to play/pause in multimedia mode.(play/pause
16	SOURCE	Press to open the input source list.
17	↑	Press to launch the HDMI2/MHL mode.
18	P ≈/≈	Press to change the channel.
19	INFO/	Press to display the channel information.In teletext mode,press to revealthe hidden information.
20	3D WORLD	These models do not support 3D feature.
21	CH.LIST/	Press to open the channel list.In teletext mode, press to switch the image to top,bottom or full.
22	GUIDE/	Press to display electronic programme guide in TV mode. Press to enter the teletext subpage.
23	EXIT/	Press to close the on-screen menu.In teletext mode,press to hide the text.
24	◀(previous)▶(next)	Press to select previous or next file.
25	●(REC)	Press to record the TV program you are watching in DTV mode.
26	■(stop)	Press to stop multimedia playback.

Insert Batteries into the Remote Contol

Diagram showing two views of a mechanical device with a small inset component (no text or symbols)

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity
   (+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the
   TV set begins to show the following symptoms:Operation is
   unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.
   Remark:
   1) Alkaline Battery Recommended.
   2) Remove batteries when they are exhausted or if the remote control is not to be used for long time.

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain :
TEXT	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding 3 digit page number. If the channel selected does not broadcast teletext, the indication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A PAGE	Enter the number of the page required using the 0 to 9 up/down. Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX	This returns to the contents page (usually page 100).
SUB PAGE	Certain pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub-page acquisition. The indication appears top left.
HOLD	To freeze the page.
REVEAL	To display or hide the concealed information (games solutions).
MIX	Teletext,program,image are displayed together.
EXIT	Exit the teletext.
SIZE	Switch the image to top,bottom,full.

04 OPERATION

Installation Guide

The installation guide only appear when the TV first time turn on or reset to factory set.

Please select an OSD language Deutsch French English Italiano Spanish Nederlands OK

Password Please enter old password Please enter new password Confirm new password

1).Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm. Select your desired language, Home/Shop Mode to be displayed on the menu.

Note: The default password is 0000.

HOME or Shop modes

1. When the unit is turn on for the very first time, it will show Initialization set-up menu. After the OSD language is set, the user can choose between "shop mode" and "home mode".

When the screen shows the following setting menu and the cursor stays on the "home mode" choice, press to adjust, and "OK" to enter the menu.

If "Shop mode" is chosen, the following menu will displayed.

Press "OK" to enter the next prompt menu

Choose "Cancel" to go back to the Initialization set-up menu, and the cursor will stay at the "home mode" choice. choose it to go the next menu to choose the country.

2). Press the Buttons to select DVB-T/DVB-C/DVB-then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C DVB-S2

a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.

Tune Type < DTV+ATV > Germany Italy Norway Greece Luxembourg Poland Hungary Nederlands Portugal MENU OK

b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Symbol (KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV). Choose the right country, press OK button to start tuning.

DVB-C Scan Menu Scan type Full Frequency 610000 Network ID Auto Symbol(KS/S) Auto OK MENU

c. If you select DVB-S2, you may select to load default DVB-S2 channel list or select to start a new channel search.

3). Channel tuning will commence. This operation may take up to the display until show the progress of the tuning and the number of channels found.
4). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
5). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the Channel menu.

Channel Tuning TV : 1Programme(s) DTV : 0Programme(s) Radio : 0Programme(s) Data : 0Programme(s) 36%... 668 75MHz (ATV)

6) Congratulations

Congratulations!! Completed Initial Quick Setup. Enjoy your Haier TV Press OK to List

1. CHANNEL MENU

1.1) Auto Tuning (DVB-T)

1). Press the MENU button and then press the buttons to select the CHANNEL menu and then press the OK button.
2). Press the Buttons to select Auto Tuning and then press the OK button.

Auto Tuning OK DTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). Press the Button to Select DVB-T/DVB-C/ Press select DVB-T and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C DVB-S2

4). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the Button and then press the Button to select the country where you will operate the TV. Press the OK button to confirm

Tune Type < DTV+ATV > Germany Italy Norway Greece Luxembourg Poland Hungary Netherlands Portugal MENU OK

5). Channel tuning will commence. This operation may take up to 0 minutes. The display will show the progress of the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV.
7). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (ATV)

1.2) Auto Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲ buttons to select Auto Tuning and then press the OK button.

Auto Tuning OK CADTV Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). Press the ▼▲ buttons to select DVB-T/DVB-C/DVB-S2 Press select DVB-C and then press the OK button to confirm.

DVB SELECT TYPE DVB-T DVB-C DVB-S2

4). Press Buttons to select Scan type/Symbol (Ks/S)

DVB-C Scan Menu Scan type Full Frequency 610000 Network ID Auto Symbol(KS/S) Auto OK MENU

5). In the Tune Type menu, press the buttons to select ATV / DTV / DTV + ATV. Press the Button and then press the Button to select the country where you will operate the TV. Press the OK button to confirm.

Tune Type < DTV+ATV > Germany Italy Norway Greece Luxembourg Poland Hungary Noderlands Portugal MENU OK

6). Channel tuning will commence. This operation may take up to the display will show the progress of the tuning and the number of channels found. 7). If you want to skip the ATV tuning, press the MENU button to interrupt the tuning half way. A pop-up screen will be displayed, press the ◀ button to select YES to confirm. You will then go straight to DTV tuning. You may repeat the above step if you also want to skip the DTV tuning. An installation reminder will appear the next time you turn on the TV. 8). After tuning is complete, the channels are arranged in a preset order. If you wish to skip channels, modify the preset order or rename channels, select Programme Edit under the channel menu.

Channel Tuning TV : 1 Programme(s) DTV : 0 Programme(s) Radio : 0 Programme(s) Data : 0 Programme(s) 36%... 668.75MHz (ATV)

Note

All the channels including ATV, DTV and Radio can be tuning by one time, if the Tune Type is DTV+ATV.

All the stored channels will be disappear after auto tuning.

After auto tuning, the channel will skip to the first DTV channel.

1.3 Auto Tuning (DVB-S2)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the ▼▲ buttons to select Auto Tuning and then press the OK button.
3). Press the ▼▲ buttons to select DVB-T/DVB-C/DVB-S2, Press select DVB-S2 and then press the OK button to confirm.
4). Press BLUE key to start a new channel search; Press Exit key to skip the channel search to load the default channel list.

2.1) DTV Manual Tuning (DVB-T)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.

2). Press the ▼▲ buttons to select DTV Manual Tuning and then press the OK button.

Auto Tuning DTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). The DTV Manual Tuning screen will pop up. Press the ◀▶ buttons to select the desired UHF channel and then press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

DTV Manual Tuning VHF CH D Press OK to search Bad Normal Good

2.2) DTV Manual Tuning (DVB-C)

1). Press the MENU button and then press the ▼▲ buttons to select the CHANNEL menu and then press the OK button.
2). Press the buttons to select CADTV Manual Tuning and then press the OK button.

Auto Tuning CADTV Manual Tuning OK ATV Manual Tuning Programme Edit Signal Information CI Information Software Update(USB)

3). The CADTV Manual Tuning screen will pop up. Press the ▼▲buttons to select(Frequency /Symbol (ks/s/QAM Type QAM) press the OK button to commence the search of that channel. When the signal has been tuned, the picture and signal strength will be displayed on the screen.
4). Press the MENU button to return back to the main menu.
5). Press the EXIT button to exit the menu.

CADTV Manual Tuning Frequency 490000 Symbol(Ka/s) 6875 QAM Type QAM16 NO SIGNAL Bad Normal Good

3.DVB-S2 Operation

3.1 First Time Installation

Please press the source button to enter input menu and use/ direction buttons to select DVB-S2 and press OK key to confirm. The Channel List for ASTRA is already installed. You are now ready to watch TV.

Note

If you are using different satellites please follow the system settings instructions to set up the satellite. If you are using more than one Satellite you need to assign the satellites the correct DiSEqC-LNB that is used in your satellite installation.

3.2 Satellite Management

Configure the settings of satellites.

Satellites' list: Press ▼ to select a satellite, whose settings will be shown at right side.

LNB Type: Press◀/▶/OK to show the list of LNB Types which is shown as frequencies of local oscillator. You also can enter frequency by User Single, User Dual at bottom of the list.

LNB Power: Press ◀ /▶ to set the LNB power.

22K: Press ◀ /▶ to switch on or off the 22K, which is set with auto when LNB Type is dual local oscillator.

Operation

Toneburst: Enable or Disable the toneburst switcher.
DiSEqC1.0:	Select the right port up to 4 for the right LNB.
DiSEqC1.1:	Select the right port up to 16 for the right LNB.
Motor:	Press LEFT/RIGHT to select DiSEqC1.2 or DiSEqC1.3. Then Press OK to show the menu to set position.
DiSEqC1.2:	Move the motor to a right position to lock the signal.
DiSEqC1.3:	Move the motor according to the local and satellite positions.

Motor Settings:	Select DiSEqC and press OK to open.
Move Auto:	Press LEFT/RIGHT to start to move West/East. It will be stopped automatically when the signal is locked.
Move Continue:	Press LEFT/RIGHT to start to move West/East. It will keep moving until you stop it.
Move Step[1]:	Press LEFT/RIGHT to move just a step.
Store Position:	Store current position of motor.
Goto Position:	Press LEFT/RIGHT to goto the position stored.
Goto Reference:	Rest all the positions.
Goto X:	Goto the position calculated from the local and satellite positions.

3.2.1 Satellite settings

Add satellites: Press RED to add a new satellite, in which you must input an unique longitude, and edit the satellite's name with soft keyboard.

Edit satellites: Press GREEN to edit the focused satellite.

Delete satellite: Press YELLOW to delete the focused satellite.

Press OK to confirm.

3.2.2 Transponder

Press GUIDE to switch the list to show transponders of the focused satellite. Also you can press GUDIE to switch back to satellites' list.

Add transponder:

Press RED to add a new transponder. It can't save an existing TP under the same satellite.

Edit transponder:

Press GREEN to edit the focused transponder. It can't save an existing TP under the same satellite.

Delete transponder:

Press YELLOW to delete the focused transponder. Press OK to confirm.

Single Transponder Scan:

Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.

Multi-Transponder Scan:

Press OK to select transponders with the mark "√", then press BLUE to pop the menu of scanning setting. After Configuring the settings, press OK to start multi-transponder scanning.

3.2.3 Channel search

Single Satellite Scan:

Press BLUE to pop the menu of scanning settings.

Scan Mode: Press ◀/▶ to select default, which scan the default transponders built in, Blind Scan and NetWork, which scan with NIT on.

Crytped: Press ◀/▶ to select All Channels or FTA Channels;

Service Type: Press ◀/▶ to select ALL, DTV or Radio. Press OK to start scanning with the above settings.

Multi-Satellites Scan:

Press OK to select satellites with the mark "√", then press BLUE to pop the menu of scanning setting. After Configuring like single satellite scan, press OK to start multi-satellites scan.

3.3 Program Edit

To edit your program preferences (skip, favourite, move or delete), you will need to enter the Program Edit Menu.

Delete a TV or Radio Program

Select the program and then press the RED button to delete the channel.

Move a TV or Radio Program

Select the preferred program then press the YELLOW button. Press ◀/▶ to move the program. Press YELLOW again to confirm.

Skip TV or Radio Program

Select the program you would like to skip and press the BLUE button. A skip symbol is displayed. The program is marked as a skip.

Set Favourite Program

Press ▼▲to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥ will disappear. Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

3.4 Signal information

It shows the signal quality and signal strange by selectet channel.

3.5 Cl information

It shows informations about the CI card that is connected to tv.

3.6 EPG (Electronic program guide)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the GUIDE button on the Remote Control to access guide. It will show a list with the current runprogramms.

Select "Programm Guide" and press◀▶ switch between Time / Channel.

You can use the▼/▲ key to select the preferred program.

Time: An overview will be shown about the broadcast to the select date to current time from the programs.

- Select the "Date / Timer" display and press ◀/▶ to edit the date.

Channel: An overview will be shown about the broadcast course of the selectet channel on day you edit before.

- Select the programm display and press ◀/▶ to switch the channel

Remind: Use BLUE botton to open the reminder setting. Press "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Record: Use RED botton to open the record setting. Pres "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Info: Use Green botton to open the information about the selectet broadcast.

Schedule: Use YELLOW botton to open the schedule list from your records and remind settings.

Selectet items can be delete with "RED" botton.

4) ATV Manual tuning :

You can change the sound system to search the analog TV channels and fine tune the channels, then storage the channels you selected.

Note

Press teletext red button to storage to channels after manual tuning.

ATV Manual Tuning Storage To 1 System SG Current CH-1 Search Fine-Tung Frequency 424.25 MHz MENU

5). Program edit:

You can Delete ,Rename ,Move, Skip , FAV any programs.

Delete

Press teletext red button, the program in cursor will delete.

Rename:

Only can rename ATV programs. Move the cursor to the program, press teletext green button to rename the program.

Press ▼▲ to choose the character. Press ◀▶ to move the cursor. Press MENU button to exit edit, Press EXIT to exit the menu.

Note: ATV programs name only can be 5 character.

Move:

Use the Arrow Buttons to select the channel you wish to move. Then press the Yellow Button to select Move function. Once active use the Arrow Buttons to move and then press OK to confirm.

Skip:

Press to choose the program, press teletext blue button to skip this program, The will show on the right side of the program. Choose the skipped program, press blue button again, you can cancel the skip, The will disappear.

Favourite:

Press to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV, the ♥ will disappear.

Once your favorite group is created, you can press the FAV key to quickly access your favorite channel.

6). CI information: (optional)

This menu can display the CI card's information.

2. PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

Picture Mode Color Temperature Aspect Ratio Noise Reduction Screen

Color Temperature Medium Red 58 Green 50 Blue 50 MENU

Note

1).Tint is available in NTSC system only.
2).There are four colors temperature modes can be selected medium, warm, cool, user
3).Screen is available in PC mode only which can adjust Horizontal position, vertical position, size and phase.

3.SOUND MENU

The third item of the MENU is the SOUND MENU. You can adjust the sound effect here such as treble, bass, balance etc.

Sound Mode Standard Music Theater Sports User Balance Auto Volume Surround Sound COAXIAL MODE AD Switch

Note

Auto volume: only available when the input signal volume is too large or distortion.

4.TIME MENU

The fourth item of the menu is the TIME MENU. You can adjust the clock, power on/off time, sleep timer etc.

Clock Off Time OK On Time Sleep Timer Auto Sleep Time Zone

Note

Within 15 minutes there is no signal, the TV will auto sleep, if Auto Sleep is set ON. The clock time can get from the DTV system auto.

5.OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the OSD language, Audio language, Subtitle language etc.

OSD Language OK Audio Languages Subtitle Language PVR File System Restore Factory Default Automatic power-down(4h) Home/Shop Mode HDMI CEC DCR

Automatic Power-down

1. If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes, the TV will start the automatic power down sequence.

And pop-up window will appear on screen.

Seconds to Automatic power-down Please press any Key to Cancel

After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.

1. To cancel the automatic power-down On the Option Menu select Automatic power-down(4H) Press left/right A pop-up message will appear "Are you sure you want to disable automatic power- down?"

Use the left arrow key to select YES The TV screen returns to the Option Menu and the Automatic power-down(4H) option will display. Automatic power-down(4H) OFF To return to auto shutdown after 4 hours repeat the above except use the right arrow key to select NO.

In PVR File system menu you can set up USB disk for PVR.

Select Disk	Q:
Check PVR File System	Start
USB Disk
Format
Time Shift Size
Speed
(Free Record Limit	6 Hr)

Note

Restore factory default will clear all the programs and password.

6. LOCK MENU

The sixth item of the menu is the LOCK MENU.

You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

Lock System OK Set Password Block Program Parental Guidance

The default pass word is 0000, if you forget the password, you can use the super password:9443. Block program: Press ▼▲ to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu, input the password, then press green button again.Parental guidance: Press ◀▶ to choose rating.

7.EPG Menu(Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the ,GUIDE button the following menu will be displayed:

PROGRAMME GUIDE ( TIME ) 26:Jan 11:40 1 TV3 Cut/Super-D Naturalmen... 2 TV24 No Information 3 TVC HD No Information Record Info Surprise Remember Print

INFO

Use ✦ to choose the programs, Press INFO key, you can display the highlight program's information.

Schedule

Press the teletext yellow key, It can list all the reminder schedule, press ▼to choose the list, press red key ●DELETE to delete the schedule list.

Schedule List 04:55 28th Apr Delete Time Date Programme Title Channel Name | | | | | | | | | | | | | | | | | | |

Record

Press the red key, it can set the program to be recorded.

Reminder

Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the chosen program in the reminder time automatically.

Reminder 1 TV3 37 Minute 11 Hour Jan Month 28 Date Once Mode OK BACK

8.PVR function

1. Prepare to record the program

PVR function only works in DTV.

From OPTION MENU enter into PVR File System

In "OPTION MENU", please choose "check

PVR File System". Click "OK", until

"checking" change into "Success"

Note: please check the term "speed". If it is

"HD support", that means the speed of USB

device is available for time shift and record. If not, please format the device, to make sure the device available. The default "Free Record Limit" is 6 hour, if the space on the disk is big enough. If the space is not

big enough, the record time should be shorter, depends on the room on the device. During the

"check PVR File System" checking, please do not take any other operation until it finished.

The recordings must be done with the TV PVR system. It can only be played in the same TV, not in any other kind of device (computer,

DVD, etc.) which is not compatible with . TS. file format.

Please note that in order to carry out any kind of recording, the TV will require you to format the connected USB device to store the recording.

WARNING. WHEN YOU FORMAT, THE EXTERNAL USB DEVICE YOU WILL LOSE ALL THE FILES AND INFORMATION YOU HAVE STORAGE ON THE DEVICE.

The USB file system will limit the size of the storage size.

File system: NTFS up to 2TB

FAT32 with up to 192GB

FAT16 with up to 2GB

From OPTION MENU enter into PVR File

System as below:

OSD Language Audio Languages Subtitle Language PVR File System OK Restore Factory Default Automatic power-down(4h) Home/Shop Mode HDMI CEC DCR

Select Disk Check PVR File System Start USB Disk Format Time Shift Size Speed 〈 Free Record Limit 6 Hr.〉 OK MENU

Select Disk:select which disc to save the

record file.

Select Disk USB 0 Disk C: OK

Check PVR File System: check if the PVR File

System set up in the USB device or not.

Format:

File System Size

PVR File System Type Hi Speed FS

PVR File System Size All

SD 104 Mins

HD 29 Mins

File System Size
PVR File System Type	FAT32
SD 104 Mins
HD 29 Mins

(Suggest to format the device by "High Speed Fs...", which can speed up the record.)

Format disk Warning! All data will be lost. Start Exit >

Format disk Do not unplug USB device. Formatting,please wait

below menu appear after Format finish:

Select Disk	C:
Check PVR File System	Checking
USB Disk	Pass
Format	Pass
Time Shift Size	All
Speed	Checking
Free Record Limit	6 Hr.

Select Disk	C:
Check PVR File System	SUCCESS
USB Disk	Pass
Format	Pass
Time Shift Size	All
Speed HD Support	2730KB/S
Free Record Limit	6 Hr.

If you select the "Hi Speed FS" format mode, then you can change the time shift size:

Time Shift Size
Time Shift Disk Size	512 MB
SD 14 Mins
HD 4 Mins

2. Record the program

As playing the DTV showBe choose the channel and click "cord", the record frame will pop up. Click "cord" again, the record frame will disappear and the "REC" icon still on the left top. It will disappear until you click "stop".

3.Play the record

The program recorded on the "USB" will be saved in the folder "_MSTPVR" on the device.

1. The USB storage size can be between

128MB and 500GB in size, but for practical use 2GB to 500GB is recommended.

1. Video may become pixelated when Video

bit rate is too low. This can be caused by connecting a USB extension cable instead of plugging the USB directly into the TV

1. Not all USB devices are compatible.

Below is a list of recommended USB drives.

Models that are not listed may be compatible, but it is not guaranteed to work.

The USB support list are the same as Timeshift function, see the following pages for details.

9.Timeshift function

Prepare to record the program

This TV allows you to pause and record the currently watched digital program to a USB storage device, and to resume to the point where it was paused.

Note

- Formatting a USB 2.0 storage device will be needed. Save your original data before formatting. All the data stored in the USB device will be erased after formatting.

USB Drive Storage Format

Select to format the USB device and allocate the amount of space for the Time Shift function.

Note

- The format process will take at least 2 minutes. Please do not turn off the power or remove the USB device during formatting. - During formatting, a speed test will be done on the USB device. If it fails, it means the USB device may not support the Time Shift function.

Record a paused DTV program to USB storage device

1. While in the DTV input source, insert USB storage device to the USB port on the side of your TV.
2. Press Play/Pause 15 to start Time Shift function. The TV program paused. The Time Shift OSD appears, and starts recording.
3. Press STOP 26 to stop Time Shift function and stop recording program.

12 BACK /3 EXIT /3 23 13 24 14 7 1 25 15 Haier HTRATRE

Note

• Please do not unplug the USB storage device when the Time Shift function is activated.
  • Approximately 4GB of memory buffers about offer 140 minutes.

Time Shift limitations:

1. When the Time Shift feature is activated, only the PLAY/PAUSE/STOP/FWD/REV/VOL+/VOL-/MUTE keys and some basic operation keys (OEXIT/navigation keys) are available.
2. Video playback may not be smooth and skip if USB recording speed does not meet the minimum requirements.
3. Do Not remove USB disk or switch off the power during Time Shift operations. It will abort once the signal is lost.
4. Do Not remove the signal source during Time Shift operations.
5. Do Not quickly and repeatedly change operations between PLAY/PAUSE/FWD/REV.
6. Video may become pixelated when Video bit rate is too low.
7. Not all USB devices are compatible, The USB hard disk drive electricity should be < 500MA. Below is a list of recommended USB drives. Models that are not listed may be compatible, but it is not guaranteed to work.

• San Disk Extreme® Contour™ USB Flash Drive - 8GB SDCZ8 - 8192 - E75

- San Disk Extreme® Contour™ USB Flash Drive - 16GB SDCZ8 - 016 G - A75

- Kingston Data Traveler 410 USB 2.0 Flash Drive-8 GB DT410/8 GB

• Kingston Data Traveler 410 USB 2.0 Flash Drive - 16GB DT410/16 GB

• OCZ Technology Rally 2 USB 2.0 Flash Drive - 4GB OCZUSBR2DC - 4GB

• OCZ Technology ATV USB 2.0 Flash Drive - 8GB OCZUSBATV - 8GB

• OCZ Technology Rally 2 USB 2.0 Flash Drive - 8GB OCZUSBR2DC - 8GB

• SZMSUNG - Hm500 JI -500 G

1. This feature is not available for all digital TV, such as scrambled or audio only channels.

10.USB Player

Press source key, and select USB in source list, press OK button to enter the USB menu.

Haier Innovation Life PHOTO MUSIC TEXT HOME

Please make sure that the USB device have plugged in the slot. There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing ↑Press OK button to enter the disk selection menu.

Haier Innovation Life < Return C > Back Next Step

Press the ◄to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

Picture 021.jpg Return Up to dir 730 450 1000 021.jpg

Select the media file by pressing▶, then the preview frame will pop up. Press the button ▶ to play the media file in full screen. When the media file (photo, Movie, or text type) is playing, press the OK or Info button can display the control bar.

Press to select the function icon, press OK button to confirm the function.

Press OR EXIT button to exit the control bar except for music.

Note

You can adjust the audio track, or program in the Info menu while Playing the video file. Choose the Info icon and press OK can display the Info MENU.

SUB-10.avi Resolution: 720x400 AudioTrack: 1/1 Subtitle: OFF Programme: --/0 Size: 4142 KBytes Close

USB playback is supported for the following photo file formats:

-JPEG(JPEG format, files with the extension ".jpg")

-BMP (files with the extension ".bmp")

-PNG (files with the extension ".png")

USB playback is supported for the following music file formats:

-MP3 (files with the extension ".mp3")

USB playback is supported for the following text file formats:

-TXT (files with the extension ".txt")

USB playback is supported for the following movie file formats:

-TS (MPEG2 & H.264)

11.MHL user guide:

1: Turn on the TV, and unlock the phone screen.
2: Connect one end of the MHL cable to the TV "MHL" port.
3: Connect other end of MHL cable to Mini USB interface of mobile phone

MHL Enchufar

If your mobile phone is Samsung GALAXY SIII or GALAXY NOTE II, please use inverter from the attachment to connect MHL cable and mobile phone. Other brand can connect with MHL cable directly.

4: Press "h" on the remote control to switch the TV to the MHL mode.

If your phone supports MHL function, the TV will simultaneously display screen of the phone; otherwise, TV will be prompted to not connected to an external device or external devices do not support MHL.

After MHL successfully connected, you can remote control the phone through the TV remote control, specific remote function associated with your phone specification.

At this point, you can enjoy a wealth of Internet resources by phone.

5: For MHL official certified mobile phone models, please see the following links:

http://www.mhlconsortium.org/productlist/mobile-devices/

6: Support other devices with MHL-function.

7: The product has been officially certified by the MHL. If MHL functionality encounters any problems, please contact the manufacturer of mobile devices.

05 Trouble shooting

Trouble phenomenon Symptom				Inspection Check
Picture Audio
	Snow Noise			antenna position, direction or connection
	Ghost		Normal audio	antenna position, direction or connection
	Interference		Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture		Mute	Volume(check if mute is activated or if the audio system connections are not correct)
	No picture Mute			Power cord is not insertedPower switch is not openedContrast and brightness/volume setupPress standby key on the remote control for inspecting
	No colour Norma		ur control
	Picture breaking up		Normal audio or weak	retune channel
	No colour		Noise	TVsystem
	There is black bar on top and bottom		Normal audio	Change aspect to zoom

EN-31 LED Backlit Flat TV Instruction Manual

Trouble Shooting

My TV does not display the picture on my laptop / PC when connected.	Most PC's and laptops when connected with a VGA Plug (the blue 15 pin plug on your PC or laptop) require you to press some buttons on your key board to get a picture on a TV or other external display. This is usually the F7 (Dell) or F4 (HP / Samsung) or F5 (Toshiba). On laptops, you have to press the "Fn" key at the same time as the "F" key.
I have connected my PC/Laptop to the TV and get a picture but no sound. Why ?	The VGA cable only carries the video or picture information. You need to connect a separate cable connected to the earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m (PC Audio IN) socket on your TV. You will need to select "PC" using the Source button on your remote.Alternatively connect your PC/Laptop using a HDMI cable if you PC/Laptop has a HDMI connector. HDMI is both audio and video.
The picture is not auto resizing when changing channels.	Check that the TV picture Aspect Ratio is set to 'Auto' on all inputs ATV, DTV, SCART, HDMI 1, 2 etc.To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button start at ATV and repeat the sequence below for all input sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is controlled separately.Press TV Menu buttonPress Right Arrow to access Picture sub menuPress Down Arrow to select Aspect RatioSelect AutoPress ExitRepeat for all input sources.
I have just plugged in a DVD player or another item into my TV and it doesn't work.	This is applicable to any item of equipment plugged to the TV1. Turn both TV & DVD player off (plugs out of the wall socket, not standby).2. Turn off any equipment connected to the SCART socket.3. Disconnect the SCART plug from the TV.4. Plug in and turn TV on5. Plug in and turn DVD player on6. Select HDMI from Source Menu7. Press play on DVD player and check movie plays okNOTE: The SCART socket has priority over HDMI and it is important that the equipment connected to the SCART socket on the TV is switched OFF (not in standby).Please follow this information. If the advice works and the DVD player works, the TV is OK it is just a bit confused.Probably HDMI plugs have been removed and plugged back in when the TV is switched on.Never remove or plug in HDMI cables or any digital equipment with the equipment switched on.Always switch off all equipment when unplugging or connecting any digital equipment.

Trouble Shooting Digital TV Problems and possible Solutions.

Picture Breaks into Pixels

A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing, sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all. Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a pre-amplifier. This will boost your signal strength and fix the pixel problem.

If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and satellite is in bare or in full leaf.

Missing channels

It may be that you find that there are channels missing, or you're receiving channels from the wrong region. Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials

TV Aerials

Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV (Freeview) for example you get BBC1, BBC2, Channel 4, but not ITV or Channel 5, this is usually because your aerial is a narrow band type, and needs to be changed to a wide band type.

Faulty Leads and Cables

Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture) problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART plugs firmly in, this should fix the problem.

HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic part of the HDMI plug should be very close or touching the body of the TV or component. When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the other component is switched on. Always switch off both the TV and the component you are plugging in. If you have checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on again.

I have connected my PC to the TV. There is no sound.

If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a separate audio cable to the TV from the PC or laptop.

Unnatural Colours and Flesh Tones

Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture menu.

White Outlines

White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.

Choppy Video

At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the help of an amplifier.

The picture does not fill the screen

When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or laptop (Windows > Start > Control Panel > Appearance and Personalization > Display settings) and select the best resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.

USB Connection

The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple different file formats, there is no guarantee that these other file formats will work.

06 Specification
39" FULL HD 1080P Digital LED LCD TV

Television picture quality:	FULL HDIntegrated digital.Screen Size: 99cmResolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C,DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets/1MHL sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.1 LNB.Supported Systems:PAL+SECAMStorage channel number: 5000(DVB-S2),510(DTV),100(ATV)TV (RF):75 Ω ImbalanceAV Video-Input:75 Ω,1V-P,RCAAV Audio-Input:20K Ω,500mV RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system.2 x 10watts RMS power output.
Standby Power consumption	≤0.50W
Digital features:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer; ;Picture and textParental GuidanceRemote control batteries required 2 x AAA (included).VESA Mount Size: 200x200 mmPackage Size (WxHxD): 1015x160x640mmSet Size (WxHxD) with Stand: 892.4x210x574 mmSet Size (WxHxD) without Stand: 892.4x63x529mmPackage weight : 11.4kgSet weight with stand: 8.8kgSet weight without stand: 7.9 kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no SCART output signal.

46" FULL HD 1080P Digital LED LCD TV

Television picture quality:	FULL HDIntegrated digital.Screen Size: 117cmResolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C,DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets/1 MHL sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.1 LNB.Supported Systems:PAL+SECAMStorage channel number: 5000(DVB-S2),510(DTV),100(ATV)TV (RF):75 Ω ImbalanceAV Video-Input:75 Ω,1V-P,RCAAV Audio-Input:20K Ω,500mV RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system.2 x 10watts RMS power output.
Standby Power consumption	≤slant 0.50W
Digital features:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer; ;Picture and textParental GuidanceRemote control batteries required 2 x AAA (included).VESA Mount Size: 200x200 mmPackage Size (WxHxD): 1220x170x770mmSet Size (WxHxD) with Stand: 1060x280x668mmSet Size (WxHxD) without Stand: 1060x65x625mmPackage weight : 16.6 kgSet weight with stand: 13.8kgSet weight without stand: 11.9 kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no SCART output signal.

50" FULL HD 1080P Digital LED LCD TV

Television picture quality:	FULL HDIntegrated digital.Screen Size: 127cmResolution 1920x1080 pixels 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C,DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connectivity:	2 HDMI sockets/1 MHL sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.1 LNB.Supported Systems:PAL+SECAMStorage channel number: 5000(DVB-S2),510(DTV),100(ATV)TV (RF) :75 Ω ImbalanceAV Video-Input:75 Ω,1V-P,RCAAV Audio-Input:20K Ω,500mV RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Sound quality:	NICAM stereo sound system.2 x 10watts RMS power output.
Standby Power consumption	≤slant 0.50W
Digital features:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Additional features:	UHF/VHF tuner;Sleep timer; ;Picture and textParental GuidanceRemote control batteries required 2 x AAA (included).VESA Mount Size: 200x200 mmPackage Size (WxHxD): 1290x175x827mmSet Size (WxHxD) with Stand: 1136x280x709mmSet Size (WxHxD) without Stand: 1136x71x666mmPackage weight : 18.1 kgSet weight with stand: 14.6kgSet weight without stand: 12.8 kg

* The part specifications of this TV set provided here are for reference only.
Differences may occur as product technology is updated.
Design and specifications are subject to change without notice.

Scart Output description :

1. When current source is ATV/AV/SCART, scart output signal is ATV.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no SCART output signal.

Haier®

Haier®

MHL-Kabel ()optional

Technical line drawing of a computer chassis with ventilation ducts and connectors (no text or symbols)

Technical line drawing of a computer monitor rear panel with ventilation slots and drive bays (no text or labels)

HINWEISE ZUR INSTALLATION

Technical line drawing of a server rack unit with ventilation grilles and control panel (no text or labels)

① ② ③ ≤8m

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Diagram showing two views of a mechanical device with a small inset component (no text or symbols)

Installation Murale 7

Wandmontage 8

RISQUES D'ELECTROCUTION

NE PAS OUVRIR

Technical line drawing of a computer monitor rear panel with ventilation grilles and connectors (no text or labels)

Technical line drawing of a computer monitor rear panel with ventilation grilles and drive bays (no text or labels)

REMARQUES SUR L'INSTALLATION

Technical line drawing of a server rack with ventilation grilles and control panel (no text or symbols)

FR

② ① 10° 30° ≤8m ③

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Option 5 VGA (Sub-D 15 broches)

Technical line drawing of two mechanical components with a small inset showing a cylindrical component (no text or symbols)

OPSLAGAPPARAAT....27

TIJDVERPLAATS-beperkingen 28

USB-speler 29

DE ONDERDELEN BINNENIN DIT PRODUCT.

ER BEVINDT ZICH EEN UITROEPTEKEN IN DE DRIEHOEK: DIT SYMBOOL ATTENDEERT U EROP DAT ER

BELANGRIJKE LITERATUUR MEEGELEVERD IS BIJ DIT PRODUCT BETREFFENDE HET ONDERHOUD EN INBEDRIJFSTELLING.

LET OP:PLAATS HET TV-TOESTEL NIET IN DE BUURT VAN VOCHTIGHEID, DIT OM HET RISICO

Technical line drawing of a computer chassis with ventilation ducts and connectors (no text or symbols)

Technical line drawing of a computer monitor rear panel with ventilation slots and drive bays (no text or labels)

INSTALLATIE-OPMERKINGEN

Technical line drawing of a server rack with ventilation grilles and control panel (no text or symbols)

DU

① ② 30° 10° ≤8m ③

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Diagram showing two views of a mechanical component with a small inset view (no text or symbols)

"Home"- of "Shop"-modus

Tune Type < DTV+ATV > Germany Italy Norway Greece Luxembourg Poland Hungary Netherlands Portugal MENU OK

Congratulations !!! Completed Initial Quick Setup. Enjoy Your Haier TV Press OK to Exit

1.KANAAL MENU

1.1) Automatisch afstemmen (DVB-T)

Tune Type < DTV+ATV > Germany Italy Norway Greece Luxembourg Poland Hungary Netherlands Portugal MENU OK

Tune Type		< DTV+ATV >
Germany	Italy	Norway
Greece	Luxembourg	Poland
Hungary	Nederlands	Portugal
MENU		OK

Select Disk Check PVR File System USB Disk Format Time Shift Size Snailhood Free Record Limit 6 Hr OK MENU

Select Disk USB 0 Disk C: OK

File System Size PVR File System Type Hi Speed FS PVR File System Size All SD 104 Mins HD 29 Mins OK

File System Size PVR File System Type FAT32 SD 104 Mins HD 29 Mins OK

Format disk Do not unplug USB device. Formalteren, Even Geduld

Select Disk	C:
Check PVR File System	Controller
USB Disk	Pass
Format	Pass
Time Shift Size	All
Shelfield	Controller
(Free Record Limit	6 Hr.)

Select Disk	C:
Check FWR File System	SUCCESS
USB Disk	Pass
Format	Pass
Time Shift Size	All
Snailfield HD Support	2730KB/S
(Free Record Limit	6 Hz)

Haler Innovation Life Ting C

Technical line drawing of a computer chassis with ventilation ducts and connectors (no text or symbols)

Technical line drawing of a computer monitor rear panel with ventilation ducts and drive slots (no text or labels)

Technical line drawing of a server rack unit with ventilation grilles and control panel (no text or labels)

Diagram showing two mechanical components with a directional arrow indicating rotation (no text or symbols)

Haier Innovation Life Valer C

TV LED LCD 39"Full HD 1080P Digital

Telecomando

2 x batterie AAA

TV LED LCD 50"Full HD 1080P Digital

Telecomando

2 x batterie AAA

Technical line drawing of a computer chassis with internal components and connectors (no text or symbols)

Technical line drawing of a computer monitor rear panel with ventilation slots and drive bays (no text or labels)

Technical line drawing of a server rack unit with ventilation grilles and connectors (no text or labels)

① ② ③ ≤8m

SOURCE MENU CH+ CH- VOL+ VOL- STANDBY ① ② ③ ④ ⑤

Option 8 USCITA AUDIO DIGITALE (COASSIALE)

Diagram showing two views of a mechanical component with a small inset view (no text or symbols)

Haier Innovation Life Tama C

TV LED LCD 46" FULL HD 1080P Digital

Qualità immagine televisione:	FULL HDDigitale integrato.Dimensioni schermo: 117cmRisoluzione 1920 x 1080 pixel 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C, DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connettività:	2 prese HDMI / 1 prese MHL.1 presa SCART.Presa ingresso PC.Presa video component.Composite.1 porta USB.1 porta cuffia.1 porta .COASSIALE1 LNB.Supported Systems:PAL-SECAMNumero di canali Memorizzabili: 510(DTV),100(ATV)5000(DVB-S2),TV( RF ) :75Ω Non bilanciatoAV Video-Input:75Ω,1V-P,RCAAV Audio-Input:20KΩ,500mV RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Qualità audio:	NICAM stereo sound system.2 x 10watts RMS power output.
Potenza assorbitain standby	≤0.50W
Funzioni digitali:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Funzioni supplementari:	UHF/VHF tuner;Sleep timer; ;Picture and textGuida famigliaRemote control batteries required 2 x AAA (included).VESA Mount Size: 200 x 200 mmDimensioni confezione (LxAxP): 1220x170x770mmDimensioni set (LxAxP) con supporto: 1060x280x668mmDimensioni set (LxAxP) senza supporto: 1060x65x625mmPeso confezione: 16.6kgPeso set con supporto: 13.8 kgPeso set senza supporto: 11.9 kg

TV LED LCD 50" FULL HD 1080P Digital

Qualità immagine televisione:	FULL HDDigitale integrato.Dimensioni schermo: 127cmRisoluzione 1920 x 1080 pixel 50Hz.
DTV Tuner Decoder	DVB-T, DVB-C, DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264
Connettività:	2 prese HDMI / 1 prese MHL.1 presa SCART.Presa ingresso PC.Presa video component.Composite.1 porta USB.1 porta cuffia.1 porta COASSIALE.1 LNB.Supported Systems:PAL-SECAMNumero di canali Memorizzabili: 510(DTV),100(ATV)5000(DVB-S2),TV( RF) :75Ω Non bilanciatoAV Video-Input:75Ω,1V-P,RCAAV Audio-Input:20KΩ,500mV RMSYPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Qualità audio:	NICAM stereo sound system.2 x 10watts RMS power output.
Potenza assorbitain standby	≤0.50W
Funzioni digitali:	Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.
Funzioni supplementari:	UHF/VHF tuner;Sleep timer; ;Picture and textGuida famigliaRemote control batteries required 2 x AAA (included).VESA Mount Size: 200 x 200 mmDimensioni confezione (LxAxP): 1290x175x827mmDimensioni set (LxAxP) con supporto: 1136x280x709mmDimensioni set (LxAxP) senza supporto: 1136x71x666mmPeso confezione: 18.1kgPeso set con supporto: 14.6 kgPeso set senza supporto: 12.8 kg

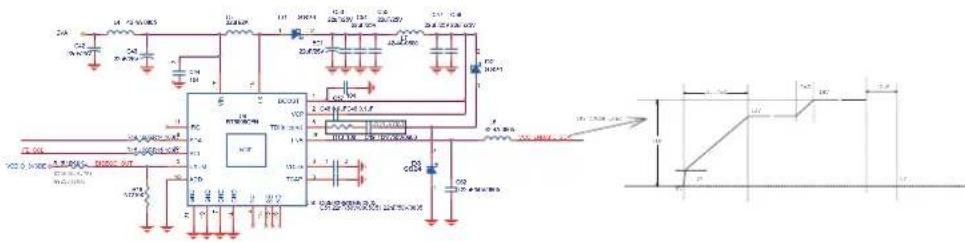

1.5V Normal Power for DDR3

1.5MHz, 实测1.45MHz 2003 电流290mA 45nV 1.53V +1.5V DDR L29 10uH_1.5A L30 2.3uH_1.5A UXO3 SY800BB SOT-23 VIN LYX R23 100K C578 ND321 C578 10uF(X5R)C578 10uF(X5R) C30 0.1uF(X7R)C30 0.1uF(X7R) C23 10uF(X9R)C23 10uF(X9R) C26 0.1uF(X7R)C26 0.1uF(X7R) SOT-23 EN OUT-FB R510 10k R502 51K R511 100K

QDQ C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V C10 120V

DBP3 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 10.25V 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 784 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 787 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786 786

120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V 120V

HDMI2/MHL

HDMI1 HDMI1 CBC & ABC

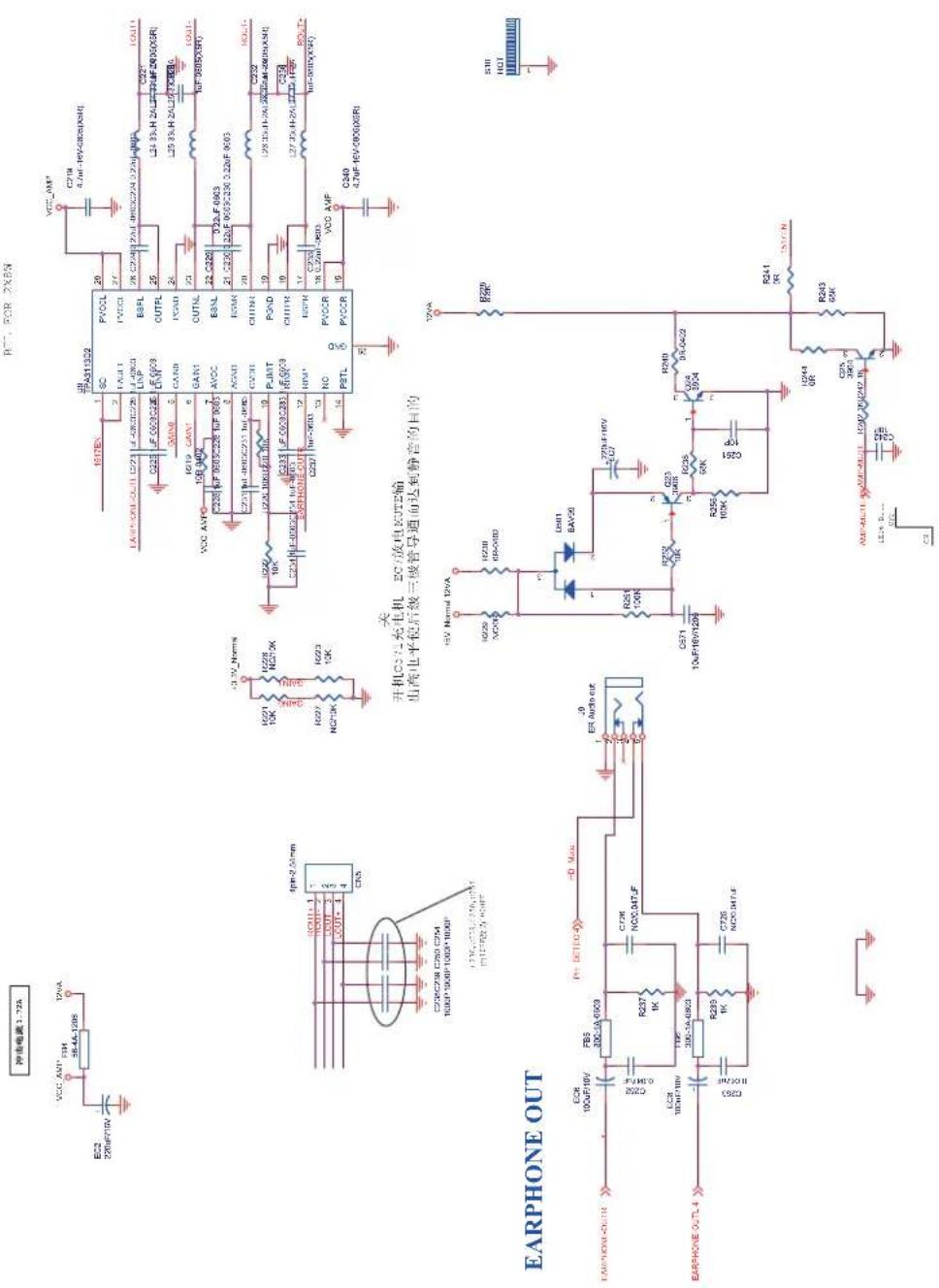

earPHONE OUT 开拓COS/AC光敏机 20V放电X25588 出荷电子级三极管导通时达到静音控制目标 开关 DC1 DC2 DC3 DC4 DC5 DC6 DC7 DC8 DC9 DC10 DC11 DC12 DC13 DC14 DC15 DC16 DC17 DC18 DC19 DC20 DC21 DC22 DC23 DC24 DC25 DC26 DC27 DC28 DC29 DC30 DC31 DC32 DC33 DC34 DC35 DC36 DC37 DC38 DC39 DC40 DC41 DC42 DC43 DC44 DC45 DC46 DC47 DC48 DC49 DC50 DC51 DC52 DC53 DC54 DC55 DC56 DC57 DC58 DC59 DC60 DC61 DC62 DC63 DC64 DC65 DC66 DC67 DC68 DC69 DC70 DC71 DC72 DC73 DC74 DC75 DC76 DC77 DC78 DC79 DC80 DC81 DC82 DC83 DC84 DC85 DC86 DC87 DC88 DC89 DC90 DC91 DC92 DC93 DC94 DC95 DC96 DC97 DC98 DC99 DC100

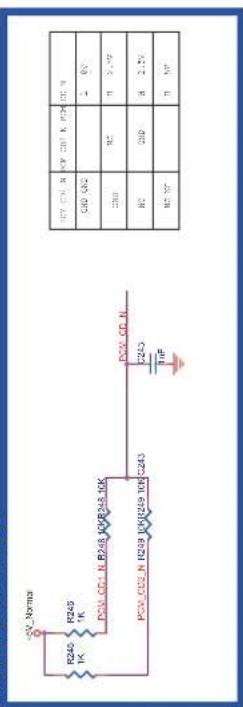

PCMCIA
CARD DETECT

R245 1K R245 1K PCW CD1 N R248 10KB245 10K PCW CD2 N R249 10KB249 10K C243 DCV CD N C243 3.6F TCV CW L N PCV CW L N, PCM CC N CHD CHD 2 8V CHD NC N 2.7V NC 2.5V NC NT N 5V

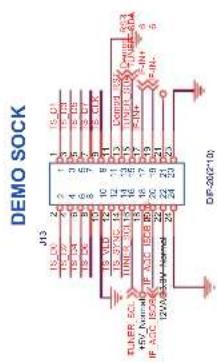

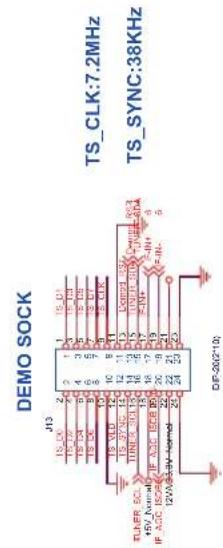

DEMO SOCK J13 IS DL 2 IS LV 2 IS LO 8 IS LO 8 IS VLD 12 IS VLD 14 TUNE 5 30.13 IF ASC I26C 16 IF ASC I26C 22 12V/33W-Normal 24 1 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 IS DL 1 IS LO 3 IS LO 6 IS LO 7 IS CLK 8 IENR 10 IENR 12 IENR 14 IENR 16 IENR 18 IENR 20 IENR 22 IENR 24 DIP-20(2*10)

DEMO SOCK J13 IS CLK 2 IS CLK 7 IS CLK 8 IS CLK 9 IS CLK 10 IS VLD 11 IS SYNC 12 TUNE 3.5Ω 13 IF ADC ISOC 14 12V/3.5V-NDI 15 TUNE 3.5Ω 16 IF ADC ISOC 17 12V/3.5V-NDI 18 TUNE 3.5Ω 19 TUNE 3.5Ω 20 TUNE 3.5Ω 21 TUNE 3.5Ω 22 TUNE 3.5Ω 23 TUNE 3.5Ω 24 TS_CLK:7.2MHz TS_SYNC:38KHz DIP-20(2*10)

Circuit diagram and pinout diagram for a VCC-PCM/CMOS4 interface, showing connections to resistors, capacitors, and memory pins.

Electrical circuit diagram with component labels and schematic symbols, including voltage and current measurements

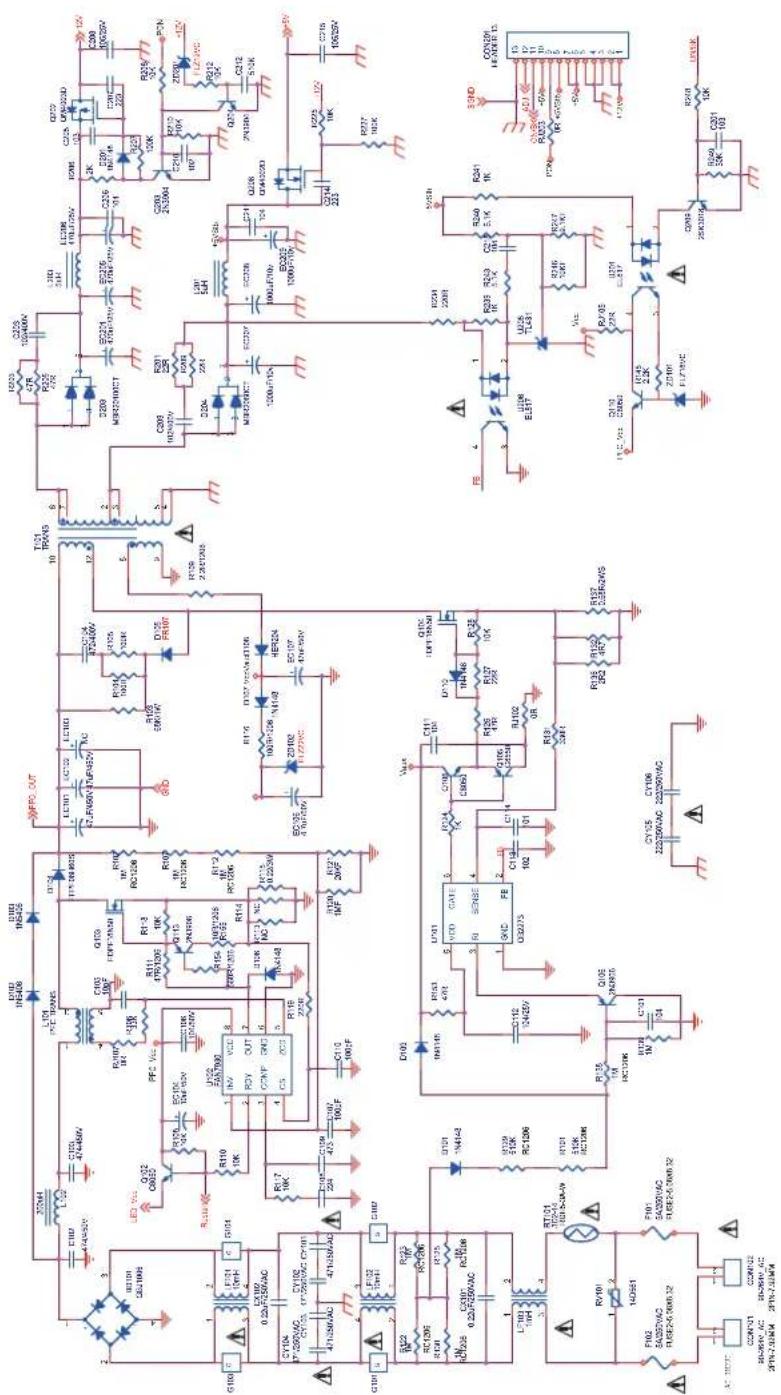

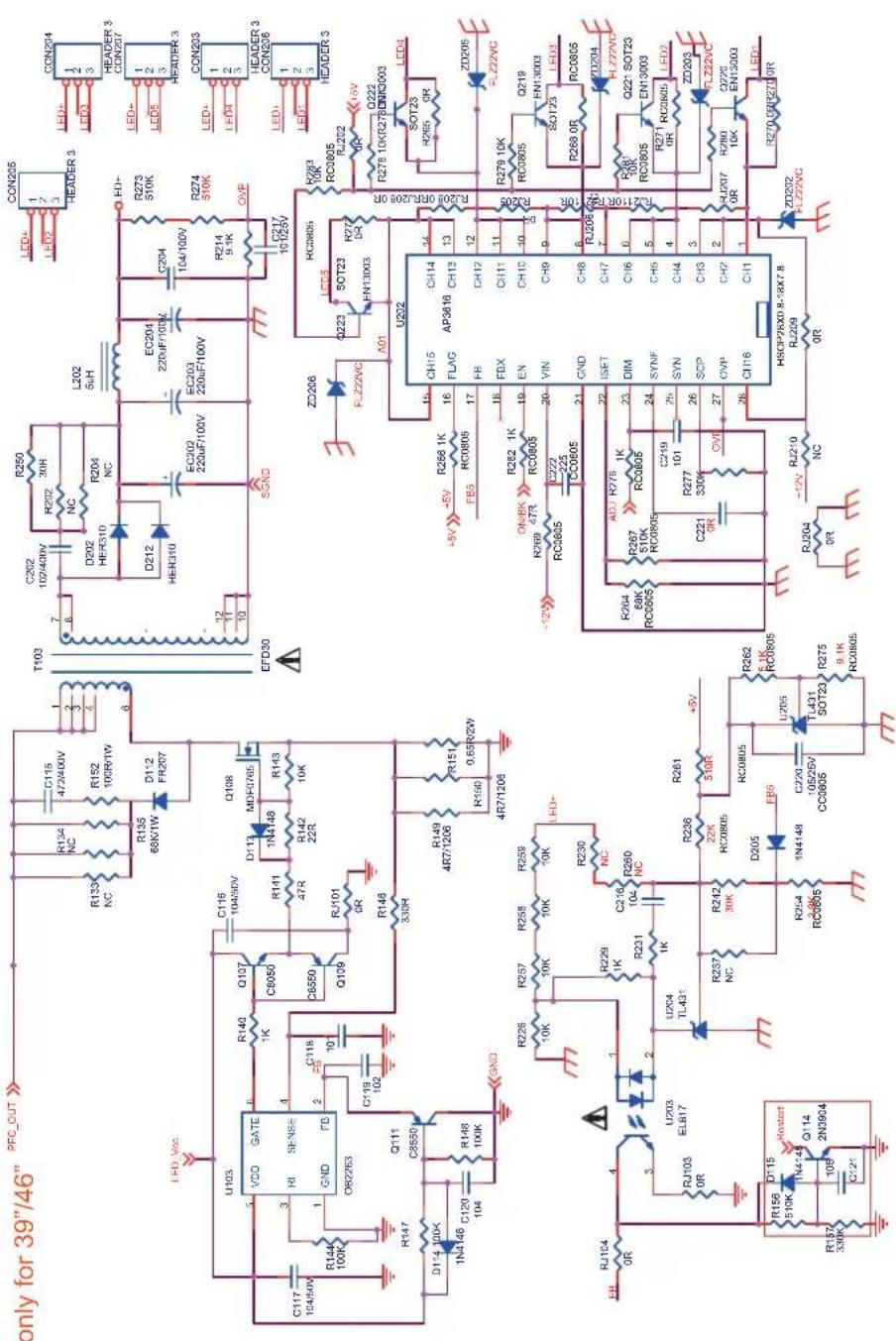

only for 39"/46"

Electrical schematic diagram of a dual-channel inverter circuit with labeled components and connections

only for 39"/46" PFC_OUT C115 472/400V R152 100R/1W R135 68K/1W D1:2 FR207 T103 C202 102/400V R250 30H L202 5uH D202 HER310 R204 NC D212 HER310 EC202 220uF/100V EC204 220uF/100V C204 104/100V R273 510K LED+ R274 510K OVP CON205 1 3 HEADER 3 LED+ LED- LED- LED- HEADER 3 CON204 1 3 HEADER 3 CON203 1 3 HEADER 3 CON206 1 3 HEADER 3 CON205 1 3 HEADER 3 CON204 1 3 HEADER 3 CON203 1 3 HEADER 3 CON202 1 3 HEADER 3 CON201 1 3 HEADER 3 CON2017 1 3 HEADER 3 CON2016 1 3 HEADER 3 CON2015 1 3 HEADER 3 CON2014 1 3 HEADER 3 CON2013 1 3 HEADER 3 CON2012 1 3 HEADER 3 CON2011 1 3 HEADER 3 CON2010 1 3 HEADER 3 CON2009 1 3 HEADER 3 CON2008 1 3 HEADER 3 CON2007 1 3 HEADER 3 CON2006 1 3 HEADER 3 CON2005 1 3 HEADER 3 CON2004 1 3

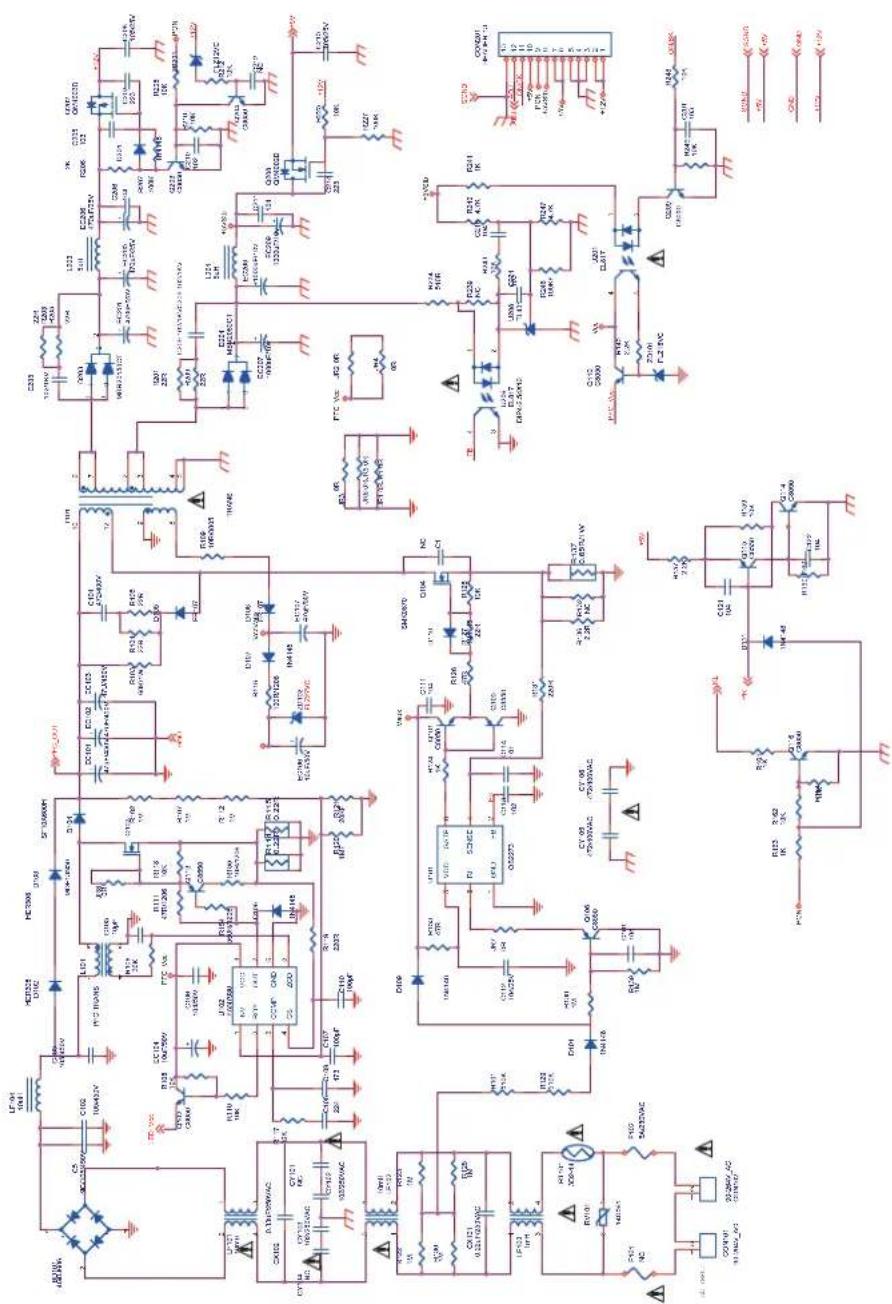

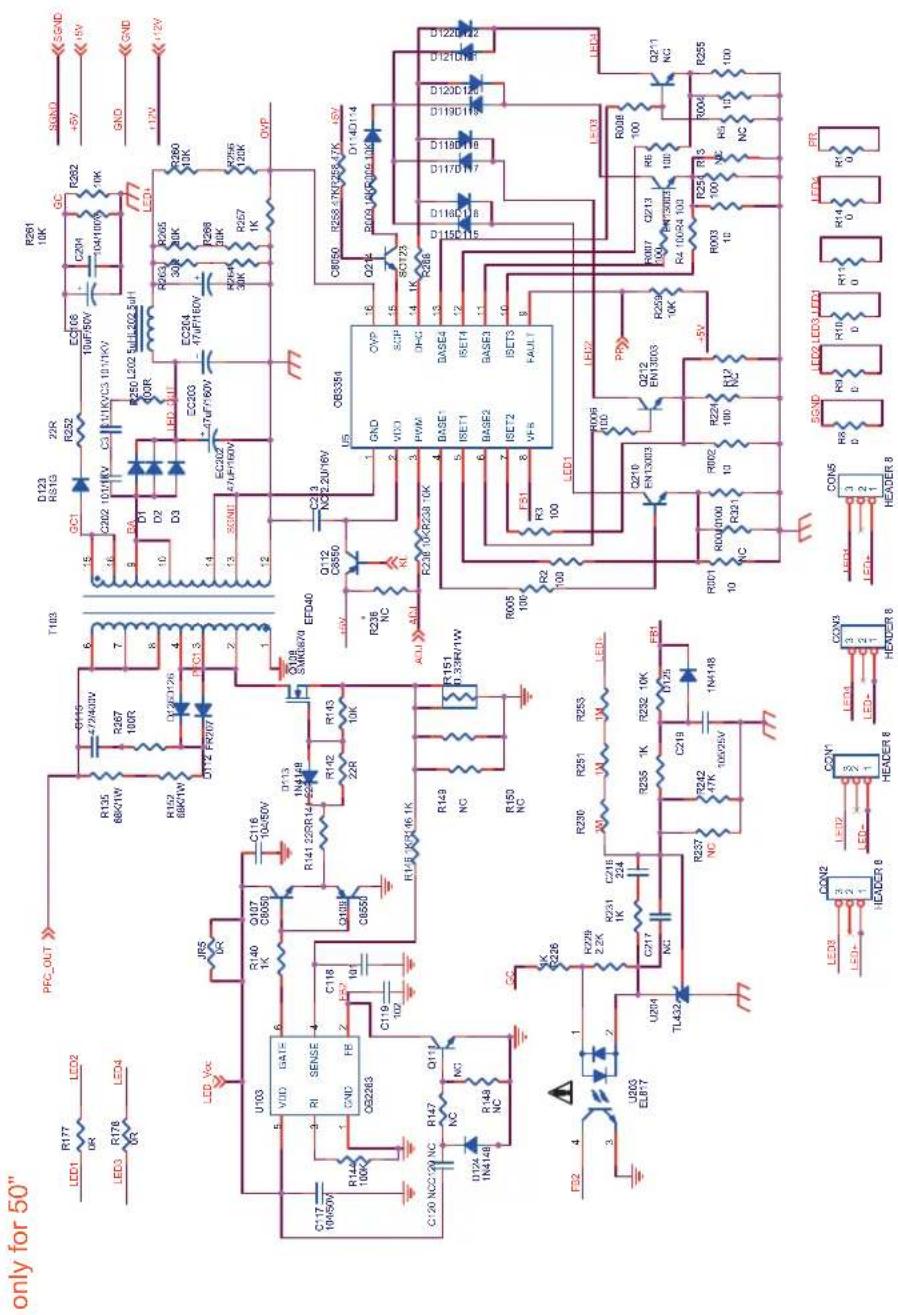

only for 50"

Electrical schematic diagram with labeled components, ICs, resistors, capacitors, and voltage sources

only for 50" LED1 R177 LED2 DR LED3 R178 LED4 PFC_OUT R135 68K/1W Q145 47/2403V R267 100R C116 104/50V R152 68K/1W D123 RS13 20R R252 C2602 10U/1KV C3 1U/1KV/C3 10U/1KV D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 D33 D34 D35 D36 D37 D38 D39 D40 D41 D42 D43 D44 D45 D46 D47 D48 D49 D50 D51 D52 D53 D54 D55 D56 D57 D58 D59 D60 D61 D62 D63 D64 D65 D66 D67 D68 D69 D70 D71 D72 D73 D74 D75 D76 D77 D78 D79 D80 D81 ECF166 10uF/50V 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1.0kV 1. SGND +5V SGND +5V GND +12V GND +12V OVP VDD GATE SENSE CND FB Q108 C655 D13 1N4/48 R142 R143 EFD40 Q112 C850 U5 CB3354 GND C2602 10U/1KV C3 1U/1KV/C3 10U/1KV D1 1N4/48 R267 10U/1KV D2 1N4/48 R268 10U/1KV D3 1N4/48 R269 10U/1KV D4 1N4/48 R270 10U/1KV D5 1N4/48 R271 10U/1KV D6 1N4/48 R272 10U/1KV D7 1N4/48 R273 10U/1KV D8 1N4/48 R274 10U/1KV D9 1N4/48 R275 10U/1KV D10 1N4/48 R276 10U/1KV D11 1N4/48 R277 10U/1KV D12 1N4/48 R278 10U/1KV D13 1N4/48 R279 10U/1KV D14 1N4/48 R280 10U/1KV D15 1N4/48 R281 10U/1KV D16 1N4/48 R282 10U/1KV D17 1N4/48 R283 10U/1KV D18 1N4/48 R284 10U/1KV D19 1N4/48 R285 10U/1KV D20 1N4/48 R286 10U/1KV D21 1N4/48 R287 10U/1KV D22 1N4/48 R288 10U/1KV D23 1N4/48 R289 10U/1KV D24 1N4/48 R290 10U/1KV D25 1N4/48 R291 10U/1KV D26 1N4/48 R292 10U/1KV D27 1N4/48 R293 10U/1KV D28 1N4/48 R294 10U/1KV D29 1N4/48 R295 10U/1KV D30 1N4/48 R30 1N4/48 R30A BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LUX BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI LDXB BLDI I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX I XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XIX II XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XI XII III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III III IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII-II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II II-II

Haier®
