USER MANUAL DVP7040TWIN SALORA

CLASS 1 LASER PRODUCT

CLASS 1 LASER PRODUCT

7” Portable DVD Player with

2 x 7' Monitor

DVP740TWIN

Please read this user's guide before installing, setting up, or using your new product.

Cautions andWarnings

Placement

To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight, excessive dust. If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit. When you move it from a cold to a warm location, wait for about one hour before operating the unit, or remove the disc and leave the unit turned on until the moisture evaporates.

Installation

Ensure that the portable DVD player is installed in accordance with the instructions and illustrations provided in this manual.

Caution

Do not push objects of any kind into the unit through openings; do not spill or spray liquid of any kind on or in the system (this may result in a fire or electric shock). Do not place anything heavy on the unit. To ensure proper ventilation and proper operation, never cover or block openings with a cloth or other material. Keep the unit away from an open flame such as fire, candle etc. Use the correct type of battery. Do not use the unit in temperatures higher than 104 degrees Fahrenheit or 40 degrees Celsius.

Disc

Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources. Do not touch the surface of disc. Handle the disc by its edge. Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software producers. Since this unit plays discs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the discs.

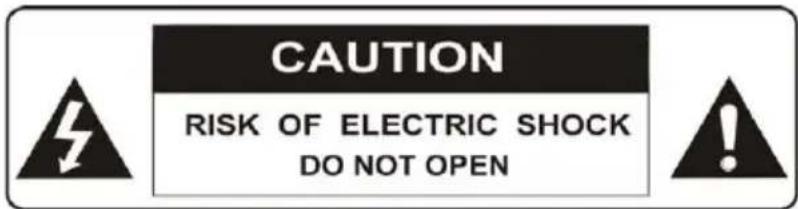

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO WATER OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICE MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY, OR THE WARRANTY IS UNVALID.

This mark is applied to show the equipment conforms to European safety and electro-magnetic compatibility standards.

The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated dangerous voltage within the product. This may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert user to the presence of important operating procedures and maintenance (service) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT

Laser product symbol: located on the rear panel of the unit, indicate this player is a class 1 laser product. It means it only uses weak laser and no hazardous radiation outside of the unit.

Macrovision:

This product incorporates copyright protection technology that is protected by method claims of certain U.S patents and other intellectual property rights owned by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

DOLBY PROLOGIC:

Manufactured under license from Dolby Laboratories.

"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a damp cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized-type plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Accessories

1 x AC to DC Adapter
1 x Remote Control with Battery (CR2025)
1 x Instruction Manual
1 x AV and DC Cable
1 x Car Cigarette Lighter Adapter
1 x Bag (with straps)

Remote Control

Using the Remote Control Remove the plastic sheet before using the remote control.

To Change the Remote Control Battery

1. Open the Battery Door. 2. Insert one CR2025 size battery.

3.Tousetheremotecontrol,pointitattheremotesensor ontheplayer.(Operateintherangeof3meters(10feet) and60 °)

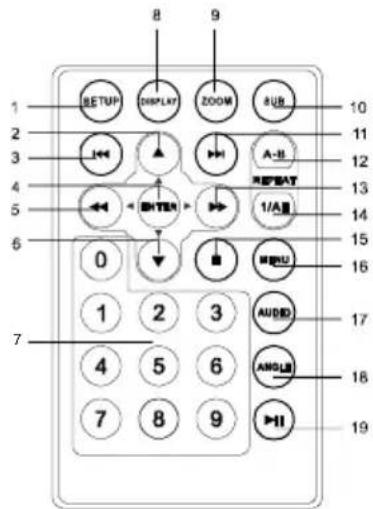

Controls, Indicators, and Connectors Remote Control View

1) Setup Enter or exit the setup menu.

2) UP Used to move up for Menu Navigation.

3)Skip- Move back to the previous title or chiptor.

4)ENTER Run the option or validate the setting.

5) Rewind/Left

Scan backward at 2,4,8,16,or 32 times normal playback speed.

6) Down

Used to move down for Menu Navigation.

7) Numbers

Use to select an item in a menu or enter a password.

8) Display

Display information about the DVD, such as title, chapter number, track number and time.

9) Zoom

Enlarge the image 2,3,or 4 times the original size.

10) Sub

Select the subtitle language or turn on subtitles.

11)Skip+

Move forward to next title or chapter.

12) A-B Repeat

Repeat a specific portion of a disc.

13) Fast Forward/Right

Scan forward at 2,4,8,16,or 32 time normal playback speed.

14) 1/ALL Repeat

Repeat playing the title, chapter or track.

15) Stop

(1 time) Stop at the present playing point./ (2 times) Stop playing.

16) Menu

Press to show the DVD root menu.

17) Audio

Select the audio language for the DVD.

18) Angle

Change the viewing angle of a scene.

19) Play/Pause

Start playback or pause playback.

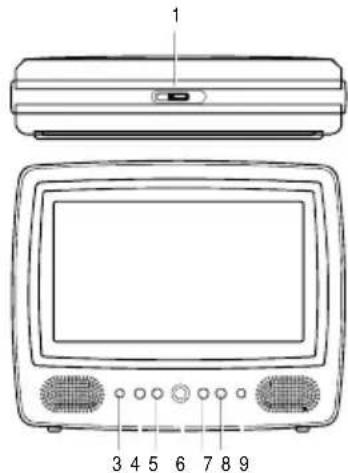

DVD Player View

15

1). Open Switch Slide to open the disc tray.
2). Earphone Jack Connect a set of headphones here.
3). Menu Button Display the main menu of the disc.
4). Pause Button Press to still the picture.
5). PREV. Button
Skip to the previous titles, chapters, or tracks.
6).Play Button Run the option or validate the setting.
7). Next Button Skip to the next titles, chapters, or tracks.

8). Stop Button

(1 time) Stop at the present playing point./ (2 times) Stop playing DVD/CD.

9). IR Sensor

Receives signals from the remote control.

10). Power On/Off Switch

Turns the player on or off.

11). AV jack

Connects to the monitor.

12). DC OUT Jack

Connects to the monitor.

13). DC IN Jack

Connects to the AC adapter or Car cigarette lighter adapter.

14). Volume control

Adjust the Volume.

15). Kickstand

Monitor View

1). DC 9-12V Jack

Connects to the DC OUT Jack on the DVD Player with a AV and DC Cable.

2). AV IN Jack

Connects to the AV Jack on the DVD Player.

3). Earphone Jack

Provides the output signal for headphones. Disable internal speakers.

4). Volume +/-

Adjust the Volume.

5). Brightness +/-

Adjust the brightness.

6). Power On/Off Switch

Turns the player on or off.

Powering and Installation

A. Powering the system Indoors

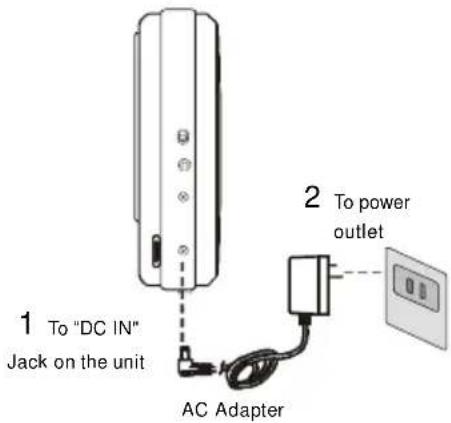

Plug one end of the AC adapter into the DC IN jack on the side of the main unit, then plug the other end into the 100~240V AC power outlet.

Note: The included AC adapter is for use with this unit only. Do not use it with other equipment.

Disconnect the player from the main outlet if you don't intend to use it for an extended period of time.

B. Positioning the DVD Player/Monitor On Headrest

Step 1

Step 2

Note: Install the the DVD player/Monitor according to the above steps.

C. Powering and Installation in a Car

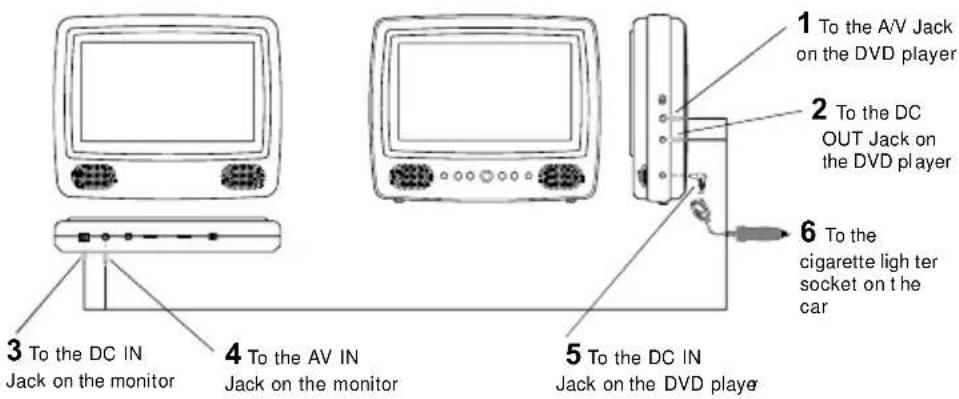

Connect the DVD player and Monitor with the attached cable according to the figure above.

Note: Unplug the car power adapter from the cigarette lighter socket when not in use.

D. Connecting to Headphones (Optional)

Wired headphone may be used with the DVD or Monitor, Simply plug in the headset to either Headphone jack on the Right DVD or Bottom Monitor.

Playing a Disc

This owner's manual explains the basic instructions for operate the unit. Some DVDs are produced in a manner that allows specific or limited operation during playback. Therefore, this uint may not respond to all operating commands. This is not defect. Please refer to the instructions accompanying the specific DVD in question for more information about the options available on that DVD.

"0" may appear on the screen during operation. The "0" symbol means that the desired operation is not permitted by the unit or disc.

Loading and Playing a Disc

1. After connecting power to the DVD player, push the Power On/ Off switch to the "On" position.
2. Move the panel up.

3. Place a disc gently into the tray.

4. You should hear and feel the disc snap firmly into place.

5. Place a disc into the tray with the disc's label facing up.

6. Close the DVD cover until it clicks shut. The unit will now load disc and commence playback.

7. Stopping Play.

Press the STOP ( button during play.

1. Pausing Play

Press the PAUSE (▶II) button on the remote during play.

• Screen stops, no sound.

• To resume, press PAUSE (▶ button once again.

• Fast Forward/Fast Reverse

Press Fast Forward (▶) or Fast Reverse (←) to achieve the place you desired with speed adjustable during 2X, 4X, 8X, 16X, 32X times.

1. Menu

A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your DVD player or Monitor. The contents of the menu vary from disc to disc. Press MENU during playback to display the menu.

Display

1. PLAYING TIME AND REMAINING TIME

a. During playback press the 'DISPLAY' button to display the current Title Number (1), the total Number of Titles (2), the current Chapter Number (3), the total Number of Chapters (4), and the Playing elapsed Time for the title (5). The heading will disappear automatically after 3 seconds if DISPLAY button is not pressed.

Title, Chapter Number, and Time Screen Display

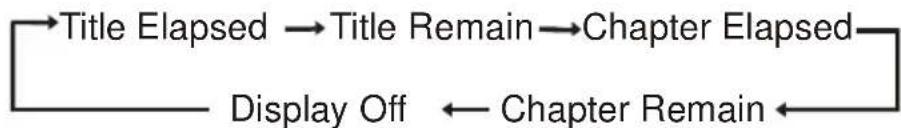

b. Press 'DISPLAY' constantly to choose the options below in sequence.

Title Elapsed: The elapsed time of the title

Title Remain: The remaining time of the title

Chapter Elapsed: The elapsed time of the chapter

Chapter Remain: The remaining time of the chapter

Display Off: The DVD's time Information will not be displayed.

2.ANGLE

During playback of a disc, press 'ANGLE' to display the available angles for discs containing multi-angles*, with the current angle number (1) and the total number of angles (2) displaying. Press 'ANGLE' toselectotherangles.

*NOTE: Not all discs contain this feature.

Angle

Subtitle

3. SUBTITLE

During disc playback press 'SUB' to select the subtitle language you desire*, with the current Subtitle Language Number (1) and the total Number of Subtitle Languages (2) displayed. If there are multiple languages press 'SUB' again to select another subtitle language. To turn subtitles OFF, press the 'SUB' button until 'Subtitle Off' is displayed. The Subtitle display will disappear automatically if the 'SUB' button is not pressed again within 3 seconds.

• Some DVDs only allow access to this function through the DVD menu

4.AUDIO

During playback press 'AUDIO' to select the audio language you desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select another audio language. The audio display will disappear automatically if the 'AUDIO' button is not pressed within for 3 seconds.

• Some DVDs only allow access to this function through the DVD menu.

Audio Language

Zoom

5.ZOOM

During playback press 'ZOOM' to enlarge the picture by 2X, 3X or 4X with the current zoom multiple.

(1)Press "zoom"one time, the picture will be enlarged 2X.
(2)Press "zoom" a second time, the picture will be enlarged 3X.
(3)Press "zoom" a 3rd time, the picture will be enlarged 4X.
(4)Press "zoom" a 4th time, the picture will return to normal size.

6. A-B REPEAT

a. During playback press a first time 'A-B' to set the Starting Point A.
b. Press 'A-B' a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B.
c. Press A-B a third time to cancel A-B repeat and resume normal playback.

7. 1/ALL REPEAT

a. During playback press '1/ALL REPEAT' constantly to see the repeat mode as right.

Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Off: Resume normal playback

The 'Chapter' repeat display shows below for example:

Chapter Repeat

PlayingMPEG4Discs

Thempeg4 standard covers many proprietary formats. Some will play on this player; other will be recognized by the player but will not play (such as AVI files). Some files such as W MV (Windows) and MOV (Apple QuickTime) files are not recognized by the player.

The operation of a MPEG4 Disc is the same as the MP3 discs. Using UP, DOWN, LEFT, RIGHT to move the cursor and press ENTER to confirm.

• Press MENU to return to the available menu.

Playing MP3 Discs

MP3 is a format for storing digital audio. An audio CD-quality song is compressed into the MP3 format with very little loss of audio quality while taking up much less disc space. CD-R /RW discs that have been encoded in MP3 format are compatible with this system.

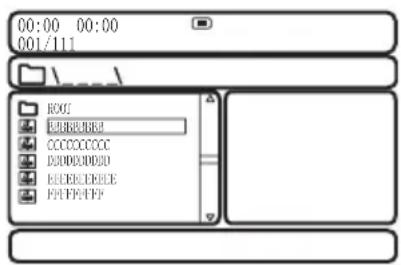

When a MP3 disc is inserted into the unit, the menu screen appears automatically. You can use the menu screen to select your desired folders and songs or the system plays the songs in the order they were burned onto the disc.

1. Press the or button to choose a folder from the folder list.
2. Press ENTER to select the highlighted folder. The songs available under the folder will be listed.
3. Use or button to choose a song from the list. Press ENTER to select and begin playback of the highlighted song.
4. Use the button to move to the next song. Press the button to move to the beginning of the previous song.

USING THE 1/ALL REPEAT FEATURE

The default mode for the Repeat feature is OFF. Pressing 1/ALL REPEAT consecutively changes the repeat options:

• Repeat One (repeat playback of a song)
• Repeat Folder (repeat playback of a specific folder)
• Repeat Off (normal playback)

USING THE A-B REPEAT FEATURE

a. During playback press a first time 'A-B' to set the Starting Point A.
b. Press 'A-B' a second time to set the Ending Point B and the player will repeatedly play the part between Point A and Point B.
c. Press A-B a third time to cancel A-B repeat and resume normal playback.

As you toggle through the options, the repeat mode changes. The selected repeat mode loops repeatedly until you turn it off.

NOTE:

• “” icon in front of a file name indicates that this is a folder, not an MP3 file.
• "MP3" icon in front of a file name indicates that this is a MP3 file.
• When you playing the disc which contains both MP3 and photos (JPEG), press the button to return to the Menu Screen, then you can choose your desired photo or MP3.

Setup

1. General Setup Page

1) Press 'SETUP' to display the Main screen of the Setup Menu on the screen and "General Setup Page" appears. At the same time, " " is highlighted. Press 'SETUP' again to exit the Setup Menu and the unit will resume its last playback mode.
2) Press the ENTER button, "TV Display" is highlighted.
3) Press the or button to select the other menus in general setup page.
4) Press to enter the sub menu.
5) Press the or button to select the sub menu and press the ENTER to confirm your selection.

6) Repeat steps 3-5 for other menus.

Note: Press to return the previous menu.

a) TV Display

• Normal/PS: When the player outputs signal to a normal monitor, Wide- screen images are shown on the screen but with some parts cropped automatically.
• Normal/LB: When the player outputs signal to a normal monitor, a normal picture is shown on the screen with a black strip at both the top and bottom of the screen.
• Wide: When the player outputs signal to a wide screen monitor, a wide picture is shown on the full screen.

b) Angle Mark

• On: The screen will show the angle mark icon. (*If an angle option is available).
• Off: The screen will not display the Angle Mark.

NOTE: Not all discs contain above features. The above features are disc dependent.

c) OSD Lang

You can choose one out of several different languages as the OSD setup language.

d) Screen Saver

*On: Enables screen saver.

NOTE: The DVD player will enter the Screen Saver mode after approximately five minutes if the same image remains on the screen.

*Off: Enables screen saver (off).

e) Last Memory

On: The unit will return to the last position on the disc.
Off: The unit will not return to the last position on the disc.

2. Video Setup Page

1) In Setup menu, Press the or button to select "Video Setup Page" and " ⑥ " is highlighted. Press ENTER to enter the video quality setup page.
2) Press the ENTER button, "Brightness" is highlighted.
3) Press the or button to select the other menus in the video setup page.
4) Press enter the sub menu.
5) Press the button to adjust the quantity and press the ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.

Note: Press ENTER to return the previous menu.

a) Brightness

b) Contrast

c) Hue

d) Saturation

3. Password

In Setup menu, Press the or button to select "Password Setup Page" and " ^ 品 " is highlighted. Press ENTER to enter the password page. Press ENTER twice to enter the Password Change Page. Input the Old Password or the Default Password, the New Password, and Confirmed the New Password. Press ENTER to confirm the change. Note:The default password is 3308.

4. Preference Page (This should be set with no disc in the player)

1) In Setup menu, Press the or button to select "Preference Page" and " ④ " is highlighted. Press ENTER to enter the Preference Page.
2) Press the ENTER button, "Audio" is highlighted.
3) Press the or button to select the other menus in preference page.
4) Press to enter the sub menu.
5) Press the or button to select the sub menu and press the ENTER to confirm your selection.
6) Repeat steps 3-5 for other menus.

Note: Press return the previous menu.

a) Audio

b) Subtitle

c) Disc Menu

Note: Language and subtitle selection are only available for discs that are recorded in the listed languages. If the selected language is not available, the player will play and display on the screen the original recorded language contained in the disc.

d) Parental

Select 'Parental' by pressing the button in the preference page. And Press Enter the sub menu. Select the parental level you desire using or button for discs with lock-out function or multiple rating levels. These are listed from the lowest level (1 Kid Safe) to the highest level (8 Adult). Press ENTER and input 4 digit password, then press ENTER again to confirm the parental level setting.

1 KID SAFE

2G

3PG

4 PG-13

5 PG-R

6R

7 NC-17

8ADULT

NOTE: The level of 8 Adult is the factory default.

e) Default

Select 'Default' by pressing the or button in preference page. And Press to enter the sub menu. Press ENTER to make the setting return to the factory-set mode.

NOTE: The parental setting is not affected by the default reset function. The master password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this master password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.

5.Exit Setup Menu

Press ENTER to Exit the Setup menu.

Specifications

DVD

Compatible DISC: DVD/CD/MP3/MPEG4

Signal system: PAL

Panel size: 7 Inches

Frequency response: 20Hz to 20kHz

Video output: 1 Vp-p/75 Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm (1KHz, 0dB)

Audio S/N: Better than 60 dB

Dynamic range: Better than 85 dB

Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm

Power source: DC 9V

Operating temperature: 5^ 35^

Weight : 0.74Kg

Dimensions (W x D x H): 8.35 X 6.81 X 2.16 inches

212X173X55mm

Single Monitor

Colour System: PAL

Screen Size: 7 Inches

Power Supply: DC 9V

Operating Temperature: 41~95F(5~35°C)

Operating Humidity: 10-75%

Storage Temperature: 14~140F(-10~60°C)

Dimensions (W x D x H): 7.91 x 6.45 x 1.34 inches

201 x 164 x 34 mm

Weight: 0.42Kg

This manual is only for your reference. Changes to the design and specification may be made without notice.

Trouble Shooting

No sound or distorted sound?

Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie?

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The icon () appears on screen?

The feature or action cannot be completed at this time because:

1. The disc's software restricts it.
2. The disc's software doesn't support the feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number that is out of range.

Picture is distorted?

1. The disc might be damaged. Try another disc.
2. It is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan?

1. Some discs have sections that prohibit rapid scanning or title and chapter skip.
2. If you try to skip through the warning information and credits at the beginning of a movie, you won't be able to. This part of the movies often programmed to prohibit skipping through it.

IR sensor inoperative?

1. Ensure that the batteries in the remote are fresh.
2. Ensure that the remote sensor eye is not obstructed.
3. Ensure that the infrared transmitter is affixed over the sensor eye of the component to be controlled.

Disc won't play?

1. Insert a disc with the label side facing up.
2. Check the type of disc you put into disc tray. This DVD only plays digital video discs, audio CDs and MP3s.

Play starts, but then stops immediately?

1. Both the unit and the disc are coded by region. If the regional codes don't match, the disc can't be played. This DVD is Region Number 2.
2. The disc is dirty. Clean it.
3. Condensation has formed. Allow player to dry out.
