Product Type	Portable DVD Player
Brand	Salora
Model	DVP7046TWIN
Dimensions (W x D x H)	Approx. 200 x 160 x 30 mm
Weight	Approx. 0.8 kg
Power	Rechargeable Li-ion battery (built-in) + 5V AC adapter
Battery Life	Approx. 2 to 3 hours
Screen Size	7 inches (17.8 cm)
Screen Resolution	480 x 234 pixels
Playable Formats	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG, DivX
Main Functions	DVD playback, zoom, freeze frame, menu navigation, parental control
Connectivity	AV output (RCA), 3.5 mm headphone jack, USB port (for multimedia files)
Included Accessories	Remote control, AC adapter, AV cable, earphones, user manual
DVD Region Code	Region 2 (Europe) – multi-region possible
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Safety	Do not expose to moisture, shocks, or extreme temperatures. Do not open the device.
Spare Parts and Repairability	Battery and adapter replaceable. Repair by an authorized center recommended.
General Information	Portable DVD player with built-in screen, ideal for travel. Dutch brand Salora.

Frequently Asked Questions - DVP7046TWIN SALORA

How to insert a disc into the player?

Open the player's lid by pressing the open button. Place the disc with the label facing up on the tray, then gently close the lid. Playback starts automatically.

What to do if the screen stays black?

Check that the battery is charged or the AC adapter is plugged in. Make sure the player is on (Power button). If the screen remains black, reset the device by pressing the Reset button (under a small hole) with a paperclip.

How to adjust the region code to play foreign DVDs?

This player is set to region 2 at the factory. To change region, you can use a universal remote or a special code (see the manual). Note: some players have a limited number of changes.

Can I play video files from a USB stick?

Yes, the player has a USB port. Plug in a USB stick formatted in FAT32 containing MP3, JPEG, or DivX files. Use the Source menu to select USB.

How to clean the DVD player lens?

Use a special DVD lens cleaning disc, available commercially. Do not attempt to clean the lens yourself with a cotton swab, as you may damage it.

The battery does not hold a charge, what to do?

Make sure the battery is properly inserted. If the problem persists, the battery may be worn out. Contact customer service for a replacement. Do not attempt to open the casing.

How to connect the player to a TV?

Use the provided AV cable (RCA plugs: yellow, red, white). Connect the yellow plug to the TV's video input, and the red/white plugs to the audio inputs. Then select the AV source on your TV.

Sound only comes out of one side of the headphones, what to do?

Check that the headphone plug is fully inserted. Try another headset to rule out a defect. If the problem is with the player, clean the jack with a dry cotton swab. If nothing works, contact customer service.

How to use the remote control?

Insert two AAA batteries (not included) into the compartment on the back of the remote. Point the remote at the player's infrared sensor. The buttons allow you to navigate menus, control playback, and adjust volume.

The disc does not play properly, error messages?

Clean the disc with a soft cloth (from center to edge). Check that it is not scratched or damaged. Ensure the format is compatible (DVD, CD, MP3, etc.). If the error persists, try another disc.

USER MANUAL DVP7046TWIN SALORA

Two silver-framed solar panels displaying a person surfing on waves, one labeled 'SALORA' (no other text or symbols visible)

HANDLEIDING

MODE D' EMPLOI

USER MANUAL

Inhoud

Two horizontal gray bars labeled A and B, with no text or symbols on either side.

Line drawing of a device with ports and cables (no text or symbols)

Simple line drawing of a rectangular device with a strap and handle (no text or symbols)

Line drawing of a device with connected power and AC connections (no text or symbols)

Line drawing of a device rear panel with connectors and cables (no text or symbols)

Opmerkingen:

Four stylized 3D folder icons in a row, no text or symbols visible

Grid of grayscale landscape photos including landscapes, mountains, and nature scenes (no text or symbols)

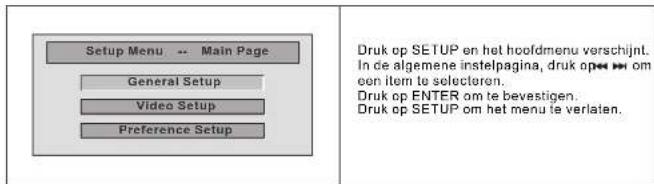

Systeeminstelling

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default

Overview of Unit Controls 3

In Car Installation 4

System Connection 6

The Remote Control 9

Basic operation 11

System Setup 19

Specification 23

Troubleshooting 24

Safety Precaution

Thank you for choosing our portable DVD player. It includes a 7" wide screen and a DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for future reference.

Remind user to be careful to avoid electric shock

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device.

2) Do not use this unit near water. Do not place the unit over any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit has been damaged in any way. Such as power supply cord or plug damaged, liquid spilled or objects falling into the unit, exposed to moisture, not operating normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may cause to the unit malfunction.

Package

DVD Player	1
7 " LCD Monitor	1
Remote Control with battery	1
AV Cable(DVD to TV)	1
Cigarette Lighter Adapter	1
User Manual	1
Mounting straps	2

Main Features

● High brightness color 7" LCD screen
● Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc
● Built-in stereo speaker
● Built-in rechargeable Lithium polymer battery
● Support PAL or NTSC system
● Support Multi-language OSD, speed forward/backward, repeat function
- Zoom in/out function

Main Unit Controls

1. Open knob
2. Power ON/OFF switch
3. SETUP
4. MODE button
5. ▲(◀)/▼▶◀(◀◀)▶▶
6. OK button
7. PLAY/PAUSE button
8. STOP button
9. DC IN 9-12V

Monitor View

1. Power ON/OFF
2. Volume knob
3. Earphone jack

4. AV IN

5. DC IN 9-12V

6. Brightness knob
7. Bracket
8. Rating label position

In Car Installation

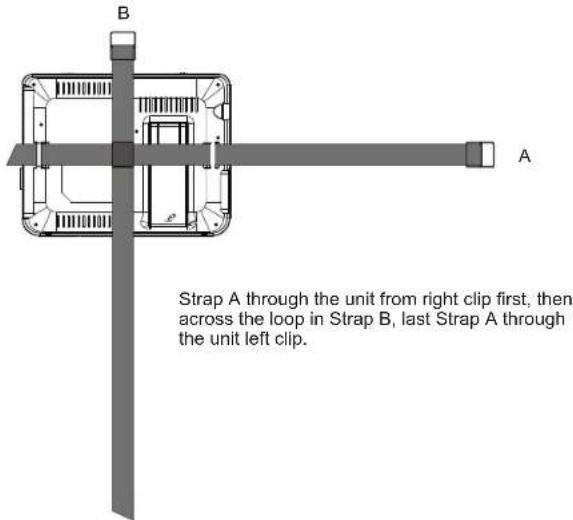

1. Fit the straps to the DVD Player / Monitor as required.

Please install the units with strap A (long) and strap B (short) together.

Two horizontal gray bars labeled A and B, with no text or symbols on either side.

Turn the player around so the backs are facing you.

1. Fitting the straps to the headrest.

a. Fitting the straps to the headrest.

Two technical line drawings of a device with cable or connector components, no text or symbols present.

Fit the straps around the headrest and engage the 2 trident clips. Ensure clips are securely fastened.

Pull the straps tight using the adjustment. Tuck the loose ends into the strap tidy.

This item incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle. Please refer to the following illustration.

Line drawing of a wall-mounted air conditioner unit connected to a power outlet (no text or symbols)

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Technical line drawing of a device rear panel with connectors and cables (no text or symbols)

Note:

1. Car cigarette lighter adaptor is not recommended to recharge the battery.
   2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
2. The mains plug is used as the disconnect device, the disconnect device should remain readily operable.

Connecting to monitor

The unit can also be connected to the external LCD monitor.

Connect the unit to power by AC/DC adapter or cigarette lighter adapter.

Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV cable. Also use this DC/AV cable to connect the AV OUT jack of the unit to AV IN jack of the Monitor.

Please refer to the illustration below.

You can connect unit with TV to enjoy high quality picture and stereo sound. Please refer to the following illustration:

Please use AV cable to connect the machine and the TV. Make sure it is connected correctly.

Connecting with external speaker

The unit can be connected with external speaker. Please see the following illustration.

Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

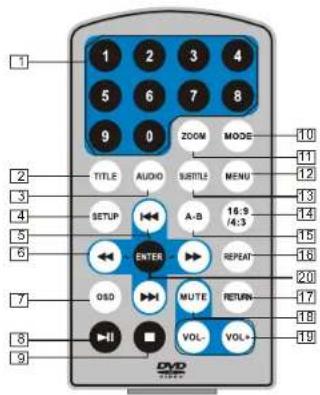

The Remote Control

1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)
4. SETUP(To go to or exit setup menu)
5. Previous/Next button(To go to previous/next chapter or scene during playing)
6. Fast forward/backward button(To scan forward/backward at 2,4,8,16,or 32 times)
7. OSD(To display disc information during playing such as elapsed and remaining time)
8. ▶ PLAY/PAUSE
9. ■ STOP(press once to stop playback, then press ▶ to resume playback from the point where you stopped; press stop button twice to stop playback completely)

10. MODE(To select the source)

11. ZOOM(To zoom in/out the image during the playback)

12. MENU(To enter or exit root menu)
13. SUBTITLE(To select subtitle language when playing DVD disc)
14. 16:9/4:3(To select aspect ratio)
15. A-B(Repeat a specific portion from point A to B, press it again to cancel repeat playing)
16. REPEAT(To repeat playing title, chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)

The Use of Remote Control

Please put the battery into the remote control as per illustration below.

CR2025 CR2025

When using remote control, make sure the infrared window is pointed to infrared receiving window of the unit. The distance between the unit and remote control must be within 3 metres. Please refer to the following illustration.

Note:

1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.

Basic Operation

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3.

1. In the Source Mode, you can press "select and ENTER key to enter the source you want.

1. Open the disc door and insert a disc into the door with the label side facing up.
2. Close the disc door. The unit will load the disc and start playing.
3. Press" ■ "once to stop playback; press" ▶ "to resume playback from the point where you stopped; press" ■ "twice to stop playback completely.
4. During playback, press"▶"to pause; press it again to resume playback.
5. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
6. For some DVD disc with Title or Chapter menu, press"MENU"button to enter menu page, and use"◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶

Note:

Please do not disconnect USB devices or plug out SD/MMC cards while they are working with the unit. Functional failure may occur in case of wrong operations.

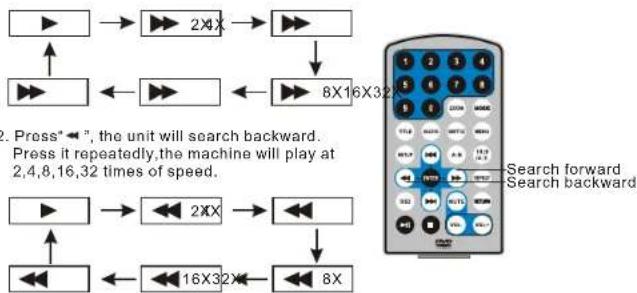

Fast forward and fast backward

When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward.

1. Press"▶", the unit will search forward. Press it repeatedly, the machine will play at 2, 4, 8, 16, 32 times of speed.

Repeat playing

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter, title or the whole disc.

For DVD disc, press "repeat" button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

For MP3 disc, press "repeat" button to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat function.

For CD/VCD disc, press "repeat" button repeatedly to repeat the track and the whole disc.

Repeat playing of favorite scene

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3.user can repeatedly play a specific section.

During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between "A-B"

Press it the third time, the unit will return to normal playback.

Zoom in/out

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image.

During playback, press "Zoom" button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status.

When the image is enlarged, user can press" «/»/«/» "to move the image.

Playing JPEG file in date disc

1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press "◀◀◀" to select aJPEG file and press "ENTER" button to confirm. Note: you can press "MENU" to return to the folder list. Press "▶" or "ENTER" to preview the file selected.
3. To rotate the picture counter-clockwise, press ""; Press " to rotate the picture clockwise.

4. Press OSD button when viewing pictures, you can select different refresh mode as follows:

5. from top to bottom

6. from bottom to top
7. from left side to right side
8. from right side to left side
   5 from left top to right bottom
9. from right top to left bottom
10. from left bottom to right top
11. from left bottom to right top
12. from right bottom to left top
13. from right bottom to left top
14. from horizontal center to both sides
    10 from vertical center to both sides
15. from vertical center to both side 11. from top and bottom to center
    12 from right and left to center
    13 from four window's top side to bottom side
    14 from four window's left side to right side

16. from 4 edges to center

17. During viewing files, ^* may appear when pressing "Angle" or "Subtitle" or "Audio" or "A-B" or "Title" etc; in this situation these options are unavailable to operate.

18. When viewing JPEG files, press "■", pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

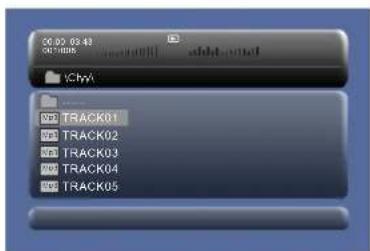

Playing MP3 files in date disc

1. Place MP3 disc into the disc door. Press 🐎 🐎 🐎 + or "ENTER" button to choose an MP3 file; Press "▶" or "ENTER" button to play the file selected.

SD/MMC/USB main menu

Four stylized 3D blocks of varying sizes arranged horizontally on a dark background (no text or symbols)

After entering the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by press key to confirm. "ENTER"

Browser Mode Please refer to P16 for detail explanation

Photo Mode Please refer to P16 -17 for detail explanation

Music Mode Please refer to P17 for detail explanation

Movie Mode Please refer to P18 for detail explanation

Note: Media cards formatted in exFAT file system are not supported.

Browser mode

In the Browser Mode, the system will show the list of file and folder.

"◀", "▶key:ENB@Rnd play
Enter the folder
“◀”: Quit the folder

Note:

If you want to return to the Main Menu, please make sure the system is in list of file or folder status, then press RETURN KEY."

Photo mode

Grid of grayscale landscape photos including mountains, waves, landscapes, and nature scenes (no text or symbols)

In the Photo Mode, the System will show the thumbnail Mode first.

"◀", "▶":select and "poly.ER

Slide Show: play the JPEG.

Menu:Enter the Help Menu.

Prev:Page Up

Next:Page Down.

When playing JPEG :

1. To rotate the picture counter-clockwise, press "◀"; Press" ▶" to rotate the picture clockwise

2. Press OSD button when viewing pictures, you can select different refresh mode as follows:

3. from top to bottom

4. from bottom to top
5. from left side to right side
6. from right side to left side
7. from left top to right bottom
8. from right top to left bottom
9. from left bottom to right top
10. from right bottom to left top

11. from horizontal center to both sides
    10 from vertical center to both sides
    1.1 from top and bottom to center
    12 from right and left to center
    13 from four window's top side to bottom side
    14 from four window's left side to right side
    15 from 4 edges to center

12. During viewing files, "may appear when pressing"Angle"or"Subtitle"or"Audio" or"A-B"or"Title"etc; in this situation these options are unavailable to operate.

13. When viewing JPEG files, press "■ "and"RETURN"key,pictures will be displayed in thumbnail mode,press"◀◀◀◀◀◀◀"or"ENTER"button to select one picture to view.

Note :

If you want to return the Main Menu, please press"RETURN"key in the thumbnail mode.

Music mode

In the Music Mode.the system will show the list of music file.like Mp3 and so on.

Press",select "ENDTRE"

Press to fast forward /backward MP3 during playing

Press to select the function button when in stop status.

Page-:Page Up.

:play

Page+:Page Down

Note: Press 'Return Key to Return to the Main Menu.

Movie mode

In the Movie Mode, the system will show the list of Movie file, like AVI and so on.

"◀", "Key ISNIRand Play.

When playing movie you can press MENU and Return Key to back to the list of movie file status. And if you want to Return to the Main Menu, Please Press Return key in list of Movie file status.

CD RIPPING

During playing the CD/HDCD disc, you can enter CD Ripping function. By pressing subtitle button, DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices, 128Kbps, 192Kbps, 256Kbps, 320Kbps, 96Kbps and 112Kbps.

Create ID3: In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for conversion and storage.

None: Cancel the selection.

Start: Move the cursor to the item and press "ENTER" button, the conversion begins.

During the converting, you can select "CANCEL" to stop it.

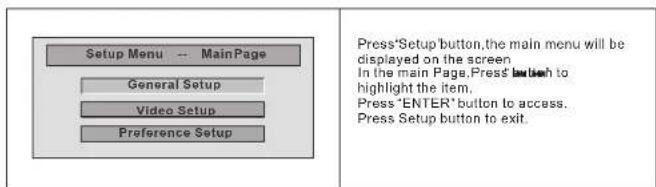

System Setup

General Setup Page

	TV display:Enter this option,user can set screen display format(Nomal/PS,Nomal/LB,Wide)The default is"Wide"Note:☆ The function depends on the display ratio with which the DVD disc is recorded.☆ Please choose"Wide(16:9) when using a 16:9 wide screen TV set.
	Ratio:Enter this option to set the ratio during playback.Optional setting:16:9,4:3The default is:16:9
	OSD Language:In the option user can set OSD menu language(English,French,German,Dutch).The default:Dutch
	Screen Saver:Enter this option to set whether to activate the screen saver function.The default is ON.

Video Setup Page

	TV Type:Enter this option to select TV type(PAL,NTSC)The default is PAL.
	Set the Video Quality of AV OUT
	Set the Video Quality of PANEL

Preference Page

Preference Setup
Audio:	English	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default

	Subtitle:Select your preferred language to show the subtitles on the screen.The default is OFFThe subtitle languages depend on the information available on each disc.You can also change the subtitle language during playback by press the SUBTITLE button.
	Disc Menu:This function allows you to choose the menu language stored on the disc.The default is Dutch.Note:the disc menu languages depend on the information available on the disc.
	Parental:Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.Optional parental control levels: KID SAFE, G, PG,PG 13,PGR, R, Nc17, ADULT.The default is ADULT.The default password:8888.
	Default:Select this item and press ENTERto reset.

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 7 in

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80dB

Dynamic range: Better than 85dB

Laser: Semiconductor Laser, Wave Length: 650nm/795nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature: 0\~40°C

Weight(Monitor/DVD Player): 0.36 / 0.7kg

Dimensions (Monitor/DVD Player)(W x Dx H): 212x166.5x25/212.5x167x39.8 mm

Battery Type: Li Polymer

Note:

1. The quality and speed for reading JPEG photos depend on the resolution and compression ratio of the photos. Some JPEG photo may not be played due to the disc quality and the formats.

2. Some DVD+R/RW, DVD-R/RW, CD-R/RW disc may not be played due to the quality on burning conditions.

Rechargeable battery use

The machine utilize s long-life Li polymer battery for portable power supply. The battery has no "Memory Effect" and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It's enough to recharge no longer than 3H each time, fully recharged battery can last about 2 hours with earphone.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it's fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is:0°G-40

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing and unattendance;

4. Avoid having the unit collide with any objects, and place away from all possible heat sources or damp areas.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Troubleshooting

PROBLEM	SOLUTION
No sound or distorted sound	Make sure the machine is connected properly.Make sure all cables are securely inserted into the appropriate jacks.
Can't advance through a movie	You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
The icon 7 appears on screen	The feature or action cannot be completed at this time because:1.The disc's software restricts it.2.The disc's software doesn't support the feature (e.g.,angles)3.The feature is not available at the moment.4.You've requested a title or chapter number that is out of range.
Picture is distorted	The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.
No forward or reverse scan	Some discs have sections that prohibit rapid scanning or chapter skip;if you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.

Sommaire

Line drawing of a device with a central screen and two vertical supports (no text or symbols)

Simple line drawing of a rectangular device with a strap and handle (no text or symbols)

Line drawing of a wall-mounted device with a plug and power outlet, no text or symbols present

Line drawing of a device with ports and cables, no text or symbols present

Notes:

Diagram showing cable connections between a device and a flat-screen monitor (no text or symbols present)

Connexion au TV

Lecture des documents JPG

Lecture documents Mp3

Menu principal SD/MMC/USB

Four stylized 3D blocks with yellow, blue, and green colors arranged horizontally on a dark background (no text or symbols)

Grid of grayscale landscape photos including landscapes, mountains, and nature scenes (no text or symbols)

Réglage système

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default
