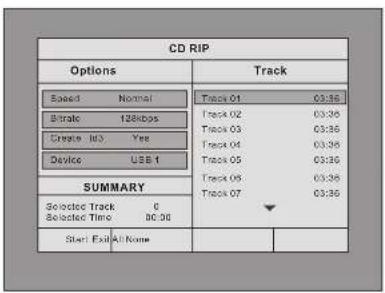

CD RIP Options Speed Normal Bitrate 128kbps Create Id3 Yes Device U99 1 SUMMARY Selected Track 6 Selected Time 00:30 Start Eat All None Track 01 63:36 Track 02 63:36 Track 03 63:36 Track 04 63:36 Track 05 63:36 Track 06 63:36 Track 07 63:36

CD RIP Ripping Selected track Track Progress Track 01 6% Total Progress Cancel SUMMARY Now ripping Track 01/01

Game functie

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default

Diagram of a device with rotating cables and a screen, no text or symbols present

Diagram of a device with power connections and an electrical outlet (no text or symbols)

Line drawing of a device rear panel with connectors and cables (no text or symbols)

Notes:

Diagram showing two connected devices: one with a monitor and cable, the other with a flat-screen device (no text or symbols present)

Connexion au TV

Lecture documents Mp3

Menu principal SD/MMC/USB

Four small icons on a dark background, no text or symbols visible

Grid of grayscale images showing various landscape or terrain views, no text or symbols present.

CD RIP Options Track Speed Normal Track 01 39:35 Scale 126kope Track 02 39:38 Create 43 Yes Track 03 39:39 Device USB 1 Track 04 39:38 SUMMARY Track 05 39:39 Selected Track 0 Track 08 39:38 Selected Time 60:30 Track 07 39:39 Start Exit At None

CD RIP Ripping Selected track Track Progress Total Progress Cancel SUMMARY Now ripping Track 01/01

Fonction jeu

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default

Alimentation: DC 9-12 V

Consommation: 10 W

Overview of Unit Controls 3

In Car Installation 4

System Connection 6

The Remote Control 9

Basic operation 11

System Setup 19

Specification 23

Troubleshooting 24

Safety Precaution

Thank you for choosing our portable DVD player. It includes a 7" wide screen and a DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for future reference.

Remind user to be careful to avoid electric shock

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

1) Please read the instruction manual carefully and follow all the requirements of safe operation to operate the device.

2) Do not use this unit near water. Do not place the unit over any container with liquid inside.

3) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

4) Unplug this unit during lightning storms or when unused for long time.

5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid detergent or aerosol.

6) Only use accessories specified by the manufacturer.

7) Refer all servicing to qualified service personnel, servicing is required when the unit has been damaged in any way. Such as power supply cord or plug damaged, liquid spilled or objects falling into the unit, exposed to moisture, not operating normally. Don't try to repair the machine by yourself because of the danger of high voltage and electric shock.

8) Do not use irregular shaped discs such as heart or star-shaped discs as they may cause to the unit malfunction.

Package

DVD Player	1
9 " LCD Monitor	1
Remote Control with battery	1
AV Cable(DVD to TV)	1
AC/DC Power Adapter	1
Cigarette Lighter Adapter	1
User Manual	1
Earphone	2
DC+Audio/Video Cable	1
Carry bag	1
Mounting straps	2
Game controller	2

Main Features

● High brightness color 9" LCD screen
● Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc
● Built-in stereo speaker
● Built-in rechargeable Lithium polymer battery
● Support PAL or NTSC system
● Support Multi-language OSD, speed forward/backward, repeat function
- Zoom in/out function

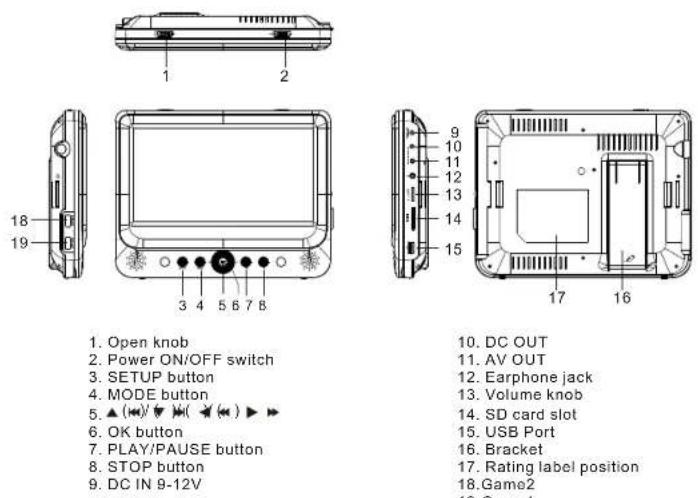

Main Unit Controls

1. Open knob
2. Power ON/OFF switch
3. SETUP button
4. MODE button
5. ▲(◀)√(▼)▶(◀)(◀)▶▶
6. OK button
7. PLAY/PAUSE button
8. STOP button
9. DC IN 9-12V
10. DC OUT
11. AV OUT
12. Earphone jack
13. Volume knob
14. SD card slot
15. USB Port
16. Bracket
17. Rating label position
18.Game2
19.Game1

Monitor View

Technical diagram of an electronic device with labeled components and exploded views

1. Power ON/OFF
2. Volume knob
3. Earphone jack

4. AV IN

5. DC IN 9-12V

6. Brightness knob

7. Bracket

8. Rating label position

In Car Installation

1. Fit the headrest mount to the DVD Player / Monitor as required.

NOTE: Both the headrest mounts are the same, there is no difference for DVD Player or Monitor.

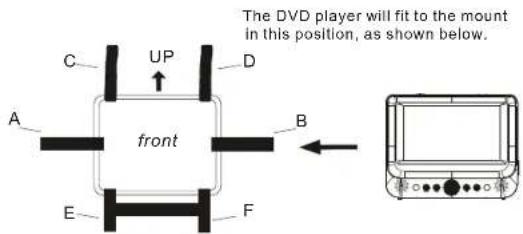

The DVD player will fit to the mount in this position, as shown below. front A C D B E F

Turn the headrest mount and player around so the backs are facing you.

back

Slide the vertical straps A and B through the strap lock upon the back of the DVD player, or monitor, as shown.

Fold and secure the horizontal straps on to the back of the mount until the velcro attaches. Ensure the DVD player or monitor is mounted centrally.

Turn the headrest mount and player around so the front is facing you.

Bring straps C, D, E & F in front of the DVD Player and attach to the velcro as shown.

1. Fitting the headrest mount to the headrest

Diagram of a device with rotating cables and a circular body, no text or symbols present

Fit the straps around the headrest and engage the 2 trident clips. Ensure clips are securely fastened.

Pull the straps tight using the adjustment. Tuck the loose ends into the strap tidy.

This item incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the unit, then plug the other end into the AC power receptacle. Please refer to the following illustration.

Line drawing of a device with ports and connections, no text or symbols present

If using car cigarette lighter adaptor to connect to the power: Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. See illustration below.

Line drawing of a device rear panel with ports and cables, no text or symbols present

Note:

1. Car cigarette lighter adaptor is not recommended to recharge the battery.
   2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
2. The mains plug is used as the disconnect device, the disconnect device should remain readily operable.

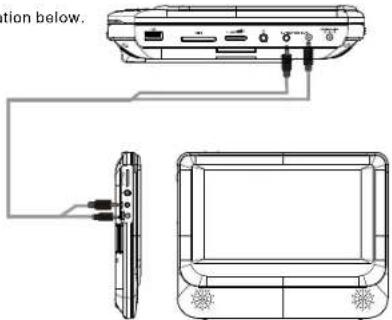

Connecting to monitor

The unit can also be connected to the external LCD monitor.

Connect the unit to power by AC/DC adapter or cigarette lighter adapter.

Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV cable. Also use this DC/AV cable to connect the AV OUT jack of the unit to AV IN jack of the Monitor.

Please refer to the illustration below.

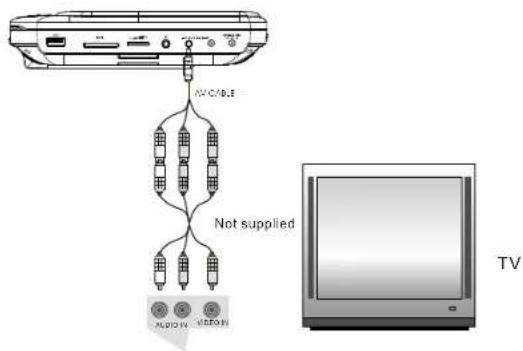

You can connect unit with TV to enjoy high quality picture and stereo sound. Please refer to the following illustration:

AV CABLE Not supplied ALABIN VACON TV

Please use AV cable to connect the machine and the TV. Make sure it is connected correctly.

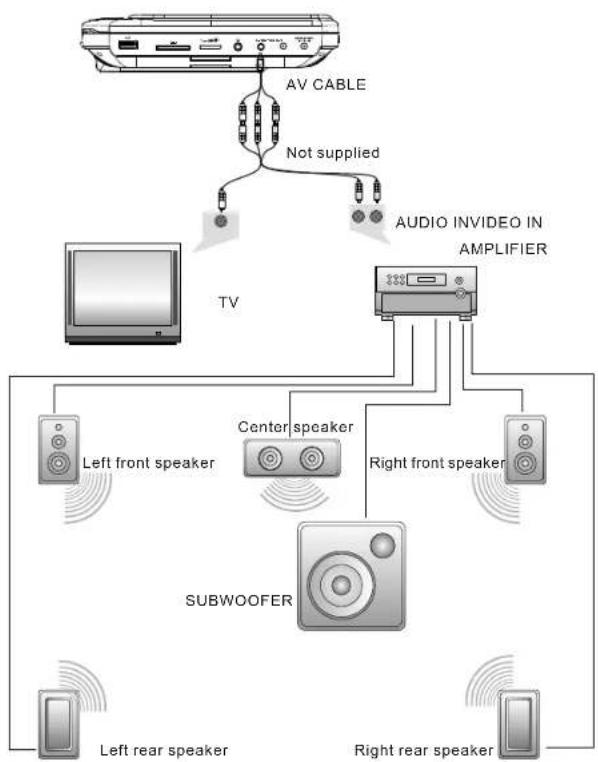

Connecting with external speaker

The unit can be connected with external speaker. Please see the following illustration.

Note:
There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel.

The Remote Control

1 2 3 4 5 6 7 8 9 0 ZOOM MODE 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

1. Number button
2. TITLE(To display title information)
3. AUDIO(To select audio language)
4. SETUP(To go to or exit setup menu)
5. Previous/Next button(To go to previous/next chapter or scene during playing)
6. Fast forward/backward button(To scan forward/backward at 2,4,8,16,or 32 times)
7. OSD(To display disc information during playing such as elapsed and remaining time)
8. ▶ II PLAY/PAUSE
9. ■ STOP(press once to stop playback, then press ▶ to resume playback from the point where you stopped; press stop button twice to stop playback completely)

10. MODE(To select the source)

11. ZOOM(To zoom in/out the image during the playback)

12. MENU(To enter or exit root menu)
13. SUBTITLE(To select subtitle language when playing DVD disc)
14. ANGLE(To change viewing angle when playing disc with multi-angle)
15. A-B(Repeat a specific portion from point A to B, press it again to cancel repeat playing)
16. REPEAT(To repeat playing title, chapter or track)
17. RETURN(To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)

The Use of Remote Control

Please put the battery into the remote control as per illustration below.

CR2025 CR2025

When using remote control, make sure the infrared window is pointed to infrared receiving window of the unit. The distance between the unit and remote control must be within 3 metres. Please refer to the following illustration.

30° 30°

Note:

1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.

Basic Operation

Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3.

1. In the Source Mode, you can press "select and ENTER key to enter the source you want.

1. Open the disc door and insert a disc into the door with the label side facing up.
2. Close the disc door. The unit will load the disc and start playing.
3. Press" ■ "once to stop playback; press" ▶ "to resume playback from the point where you stopped; press" ■ "twice to stop playback completely.
4. During playback, press"▶"to pause; press it again to resume playback.
5. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
6. For some DVD disc with Title or Chapter menu, press"MENU"button to entermenu page, and use"◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀◀▶

Note:

Please do not disconnect USB devices or plug out SD/MMC cards while they are working with the unit. Functional failure may occur in case of wrong operations.

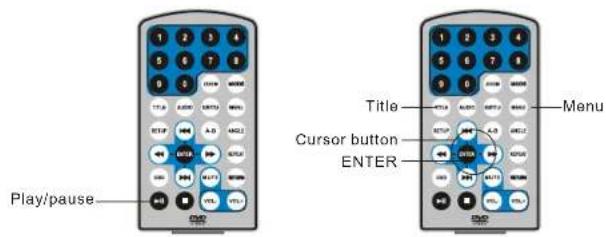

Play/pause Title Cursor button ENTER Menu

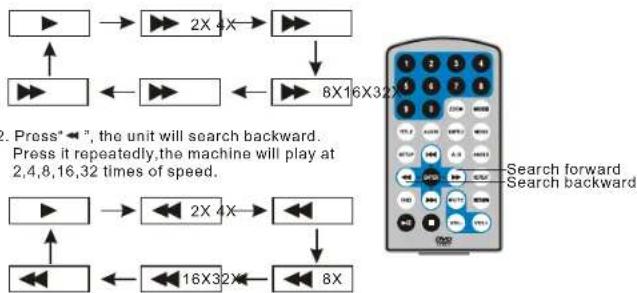

Fast forward and fast backward

When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or backward.

1. Press ",the unit will search forward. Press it repeatedly ,the machine will play at 2, 4,8, 16, 32 times of speed.

Repeat playing

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter, title or the whole disc.

For DVD disc, press "repeat" button, user can repeat playing one Chapter; press it again to repeat playing Title; press it the third time to repeat playing the whole disc.

For MP3 disc, press "repeat" button to repeat playing present file; press it again to repeat playing the folder; press it the third time to cancel repeat function.

For CD/VCD disc, press "repeat" button repeatedly to repeat the track and the whole disc.

Repeat playing of favorite scene

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3.user can repeatedly play a specific section.

During playback, press "A-B" button at a point A, then press this button again in point B, the unit will automatically repeat playing the part between "A-B"

Press it the third time, the unit will return to normal playback.

Number Zoom in/out A-B Angle

During playing DVD disc with multi-angle, press "Angle" button to change the display angle. Note:

The function is available only for discs with multi-angle.

Zoom in/ out

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image.

During playback, press "Zoom" button, the image will be enlarged; press it again the image will be enlarged again; press it fourth time, the image will zoom out, press it repeatedly and the image will return to normal status.

When the image is enlarged, user can press "←/→/→/→" to move the image.

Playing JPEG file in date disc

1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press "◀◀◀" to select aJPEG file and press "ENTER" button to confirm. Note: you can press "MENU" to return to the folder list. Press "◀◀" or "ENTER" to preview the file selected.
3. To rotate the picture counter-clockwise, press "";Press " to rotate the picture clockwise.

4. Press OSD button when viewing pictures, you can select different refresh mode as follows:

5. from top to bottom

6. from bottom to top
7. from left side to right side
8. from right side to left side
9. from left top to right bottom
10. from right top to left bottom 7. from left bottom to right top
11. from left bottom to right top
12. from right bottom to left top
13. from right bottom to left top
14. from horizontal center to both sides
15. from vertical center to both sides
16. from top and bottom to center
17. from right and left to center
18. from four window's top side to bottom side
19. from four window's left side to right side

20. from 4 edges to center

21. During viewing files, ^* may appear when pressing "Angle" or "Subtitle" or "Audio" or "A-B" or "Title" etc; in this situation these options are unavailable to operate.

22. When viewing JPEG files, press ■ ",pictures will be displayed in thumbnail mode, press "◀◀◀◀◀◀" or "ENTER" button to select one picture to view.

Playing MP3 files in date disc

1. Place MP3 disc into the disc door. Press 🔊▶▶ or "ENTER" button to choose an MP3 file; Press "▶" or "ENTER" button to play the file selected.

30. 36. 03. 45 Dsn: 301 iC3v1 TRACK01 TRACK02 TRACK03 TRACK04 TRACK05

SD/MMC/USB main menu

Four blurred icons on a dark background, no text or symbols visible

After entering the SD/MMC or USB, the system will show Main Menu which includes 4 Function ICONS. You can select them by press key to confirm." "ENTER"

Browser Mode Please refer to P16 for detail explanation

Photo Mode Please refer to P16 -17 for detail explanation

Music Mode Please refer to P17 for detail explanation

Movie Mode Please refer to P18 for detail explanation

Note: Media cards formatted in exFAT file system are not supported.

Browser mode

06.09 03:48 OK!@005 iChvi TRACK01 TRACK02 TRACK03 TRACK04 TRACK05

In the Browser Mode, the system will show the list of file and folder.

"◀", "▶key:ENB@Rnd play
Enter the folder
"◀": Quit the folder

Note:

If you want to return to the Main Menu, please make sure the system is in list of file or folder status, then press RETURN KEY."

Photo mode

Grid of grayscale image thumbnails showing various landscape scenes (no text or symbols)

In the Photo Mode, the System will show the thumbnail Mode first.

"◀", "▶":selectand"polyER

Slide Show: play the JPEG.

Menu:Enter the Help Menu.

Prev:Page Up

Next:Page Down.

When playing JPEG :

1. Torotate the picture counter-clockwise, press "◀"; Press" ▶" to rotate the picture clockwise

2. Press OSD button when viewing pictures, you can select different refresh mode as follows:

3. from top to bottom

4. from bottom to top
5. from left side to right side
6. from right side to left side
7. from left top to right bottom
8. from right top to left bottom
9. from left bottom to right top
10. from right bottom to left top
11. from horizontal center to both sides
12. from vertical center to both sides
13. from top and bottom to center
14. from right and left to center
15. from four window's top side to bottom side
16. from four window's left side to right side

17. from 4 edges to center

18. During viewing files, "may appear when pressing"Angle"or"Subtitle"or"Audio" or"A-B"or"Title"etc; in this situation these options are unavailable to operate.

19. When viewing JPEG files, press "■ "and"RETURN"key,pictures will be displayed in thumbnail mode,press"◀◀◀◀◀◀◀"or"ENTER"button to select one picture to view.

Note :

If you want to return the Main Menu, please press"RETURN"key in the thumbnail mode.

Music mode

TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 00:00 03:49 00:00:08 Repeat Off P- Ps

In the Music Mode, the system will show the list of music file, like Mp3 and so on.

Press",select "ENDTRE"

Press to fast forward /backward MP3 during playing

Press to select the function button when in stop status.

Page-:Page Up.

:play

Page+:Page Down

Note: Press 'Return Key to Return to the Main Menu.

Movie mode

001/006 TRACK01 TRACK02 TRACK03 TRACK04 TRACK05 TRACK06

In the Movie Mode, the system will show the list of Movie file, like AVI and so on. "◀", "▶" key SNERand Play.

When playing movie you can press MENU and Return Key to back to the list of movie file status. And if you want to Return to the Main Menu, Please Press's Return key in list of Movie file status.

CD RIPPING

During playing the CD/HDCD disc, you can enter CD Ripping function. By pressing subtitle button, DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

CD RIP Options Speed Normal Bitrate 128kbps Create Id3 Yes Device USB 1 SUMMARY Selected Track 0 Selected Time 00:00 Start Exit All Name Track 01 03:36 Track 02 03:36 Track 03 03:36 Track 04 03:36 Track 05 03:36 Track 06 03:36 Track 07 03:36

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices, 128Kbps, 192Kbps, 256Kbps, 320Kbps, 96Kbps and 112Kbps.

Create ID3: In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for conversion and storage.

None: Cancel the selection.

Start: Move the cursor to the item and press "ENTER" button, the conversion begins.

During the converting, you can select "CANCEL" to stop it.

CD RIP Ripping Selected track Track Progress Total Progress Cancel SUMMARY Now ripping Track 01/01

Game function

1. Plug the joystick into the game jack.
   2 Put a game disc into DVD player, after the game disc reading out, the game menu will display on the screen.
2. Use the LEFT/RIGHT button on joystick to page up or page down
3. Use the UP/DOWN button on joystick to select game
4. Use the MODE button on joystick to select single or double mode
5. Press the START on joystick to start the game
6. Press the MODE and START buttons at the same time to back to the game menu.

System Setup

Setup Menu -- MainPage General Setup Video Setup Preference Setup Press 'Setup button,the main menu will be displayed on the screen In the main Page,Press button to highlight the item. Press 'ENTER' button to access. Press Setup button to exit.

General Setup Page

	TV display:Enter this option, user can set screen display format(Nomal/PS, Nomal/LB, Wide)The default is*Wide*Note:☆ The function depends on the display ratio with which the DVD disc is recorded.☆ Please choose*Wide(16:9) when using a 16:9 wide screen TV set.
	Angle Mark:Enter this option to set the angle during playback.Optional setting:ON,OFFThe default is:ON
	OSD Language:In the option user can set OSD menu language{English, French, German, Dutch).The default:Dutch
	Screen Saver:Enter this option to set whether to activate the screen saver function.The default is ON.

Video Setup Page

	TV Type:Enter this option to select TV type(PAL,NTSC)The default is PAL.
	Set the Video Quality of AV OUT
	Set the Video Quality of PANEL

Preference Page

Preference Setup
Audio	ENG	English
Subtitle	Off	French
Disc Menu	ENG	German
Parental		Dutch
Default

	Subtitle:Select your preferred language to show the subtitles on the screen.The default is OFFThe subtitle languages depend on the information available on each disc.You can also change the subtitle language during playback by press the SUBTITLE button.
	Disc Menu:This function allows you to choose the menu language stored on the disc.The default is Dutch.Note:the disc menu languages depend on the information available on the disc.
	Parental:Enter this option to set the parental control level to some unsuitable disc scenes being watched by the children.Optional parental control levels: KID SAFE, G, PG,PG 13,PGR, R, Nc17, ADULT.The default is ADULT.The default password:8888.
	Default:Select this item and press ENTERto reset.

Specification

Compatible disc: DVD/VCD/CD/MP3/MPEG4

Signal system: PAL/NTSC

Panel size: 9 in

Frequency response: 20 Hz to 20 kHz

Video output: 1 Vp-p/75Ohm, unbalanced

Audio output: 1.4Vrms/10kOhm

Audio S/N: Better than 80dB

Dynamic range: Better than 85dB

Laser: Semiconductor Laser, Wave Length: 650nm/795nm

Power source: DC 9-12V

Power consumption: 10 W

Operating temperature: 0\~40°C

Weight(Monitor/DVD Player): 0.55 / 1.1kg

Dimensions (Monitor/DVD Player)(W x D x H): 246.5x191.6x30/247x191.8x41.9mm

Battery Type: Li Polymer

Note:

1. The quality and speed for reading JPEG photos depend on the resolution and compression ratio of the photos. Some JPEG photo may not be played due to the disc quality and the formats.

2. Some DVD+R/RW, DVD-R/RW, CD-R/RW disc may not be played due to the quality on burning conditions.

Rechargeable battery use

The machine utilize s long-life Li polymer battery for portable power supply. The battery has no 'Memory Effect' and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It's enough to recharge no longer than 3H each time, fully recharged battery can last about 2 hours with earphone.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state, and keep continuous power supply, the red light will be on, and the light will turn yellow when it's fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is:0°C-40;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing, it's normal, while avoid long time playing and unattendance;

4. Avoid having the unit collide with any objects, and place away from all possible heat sources or damp areas.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Troubleshooting

PROBLEM	SOLUTION
No sound or distorted sound	Make sure the machine is connected properly.Make sure all cables are securely inserted into the appropriate jacks.
Can't advance through a movie	You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.
The icon 7 appears on screen	The feature or action cannot be completed at this time because:1.The disc's software restricts it.2.The disc's software doesn't support the feature (e.g.,angles)3.The feature is not available at the moment.4.You've requested a title or chapter number that is out of range.
Picture is distorted	The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.
No forward or reverse scan	Some discs have sections that prohibit rapid scanning or chapter skip;if you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

If at any time in the future you should need to dispose of this product please note that waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic equipment Directive)

Owing to continuous improvement, no prior notice will be given regarding changes on above feature and spec.
